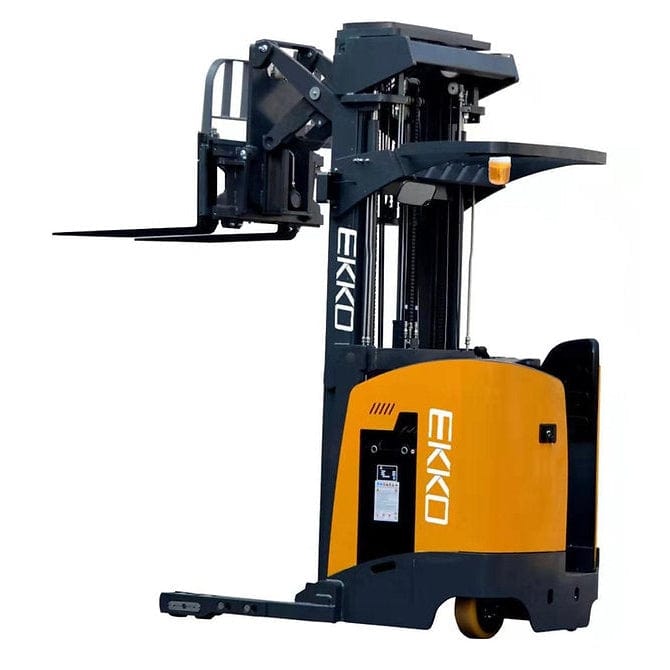

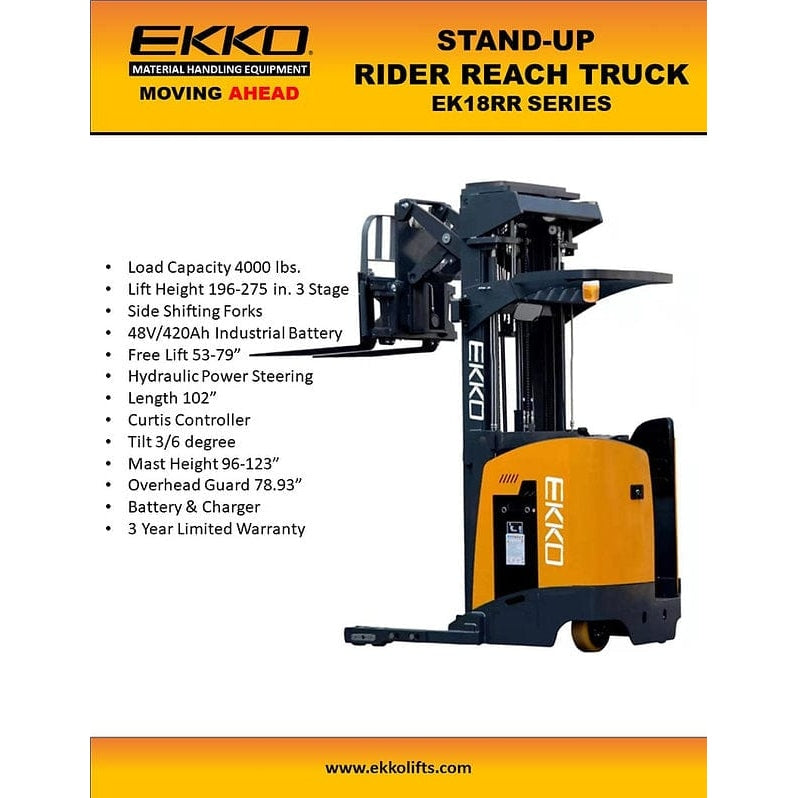

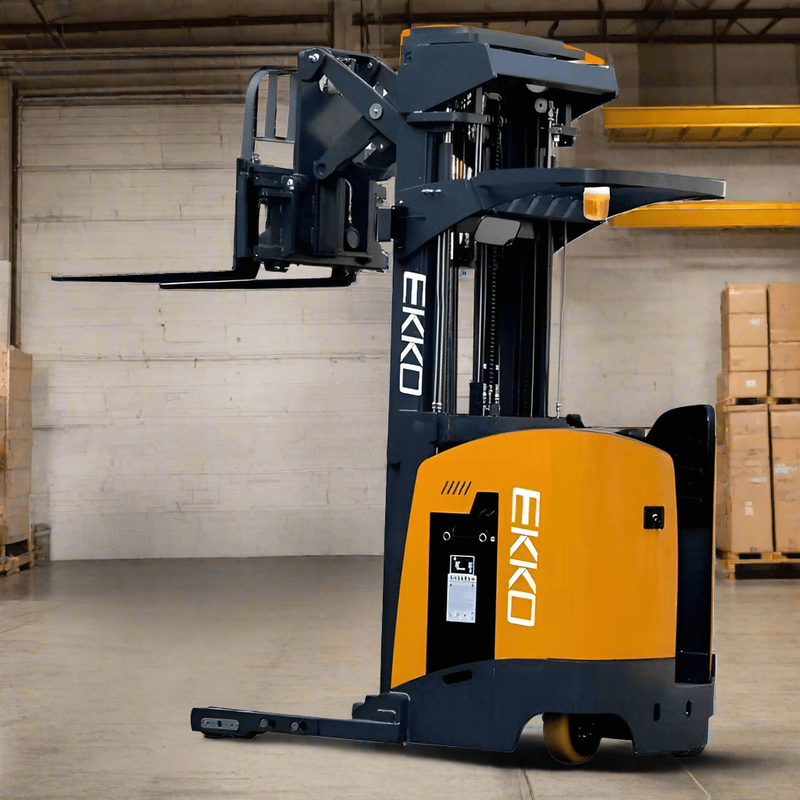

The EKKO EK18RRL Stand-up Narrow Aisle Reach Truck is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4000 lb
- Raised Height 196" (16.33ft)
- Reach Distance of 22.44"
- Side Shifting Forks
- Free Lift
- Tilt
- Adjustable Forks 7.9-35.04"
- Fork Length 45.3"
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC Drive Motor
- Battery 48V/420Ah
- 48V/65A 480V
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
- 3 Years Limited Warranty

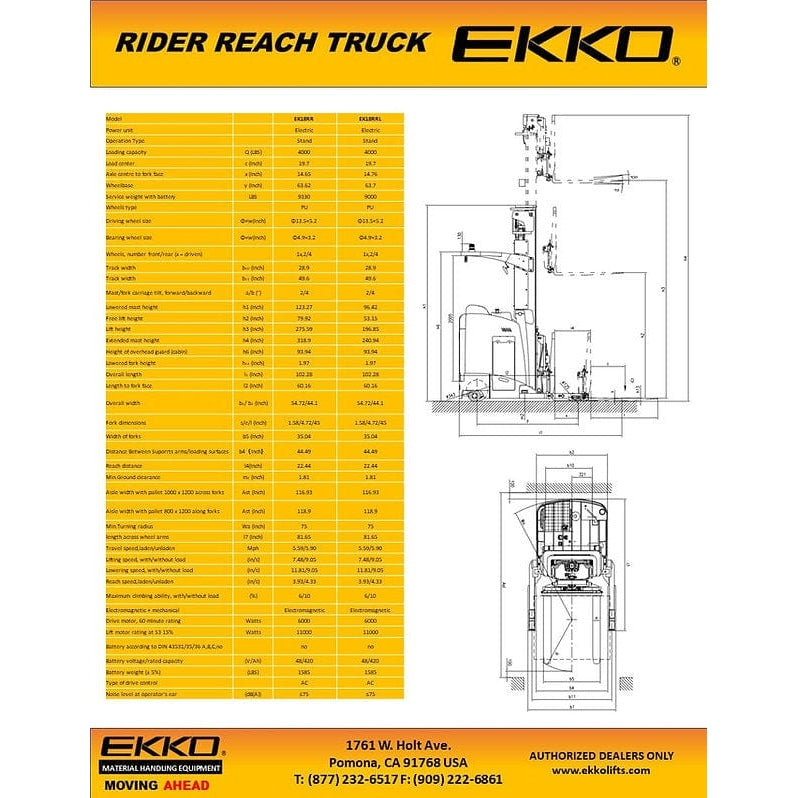

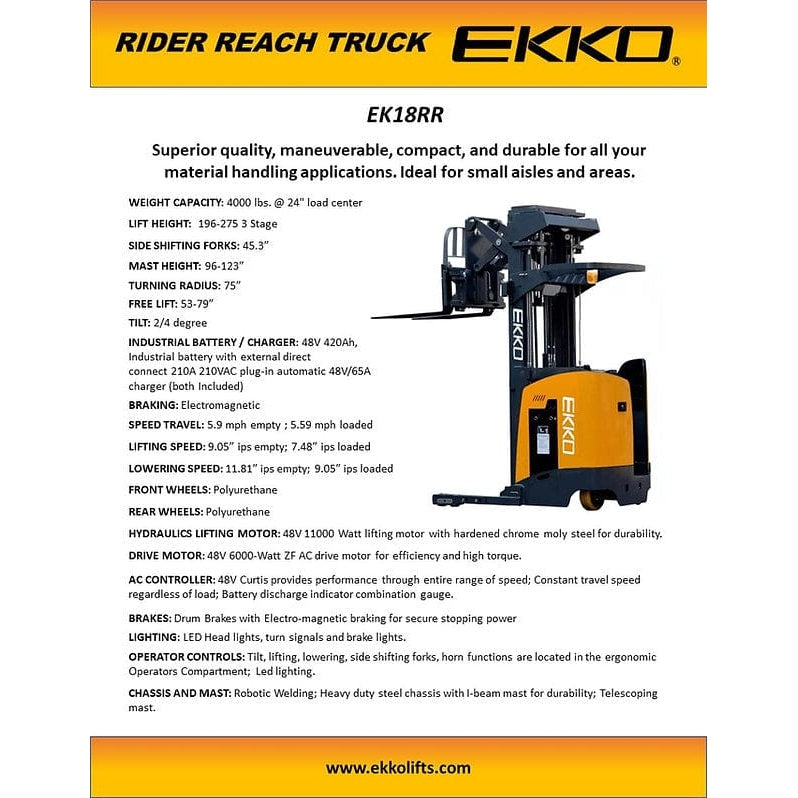

Specifications
Model |
|
EK18RRL |
Lift |
|
Electric |
Drive |
|
Electric |
Load capacity |
(lb) |
4000 |
Load center distance |
(in) |
24 |
Lifting height |
(in) |
196 |
Side Shifting Forks |
|
3 Way Valve |
Free Lift |
(in) |
53.15 |
Lowered mast height |
(in) |
96.42 |
Overall length/Extended |
(in) |
102.28 |
Overall width |
(in) |
54.72 |
Fork size, Thick/Width/Length |
(in) |
1.58/4.72/45 |
Fork adjust width |
(in) |
35.04 |
Reach Distance |
(in) |
22.44 |
Turning radius |
(in) |
75 |
Charger |
(V/A) |
48V/65A |
Driving Motor |
(V/W) |
48V/6000 |
EPS Steering Motor |
(V/W) |
Yes |
Lifting Motor |
(V/W) |
48V/11000 |
Battery voltage |
(V/Ah) |
48V/420Ah |
Service Weight |
(lb) |
9000 |
