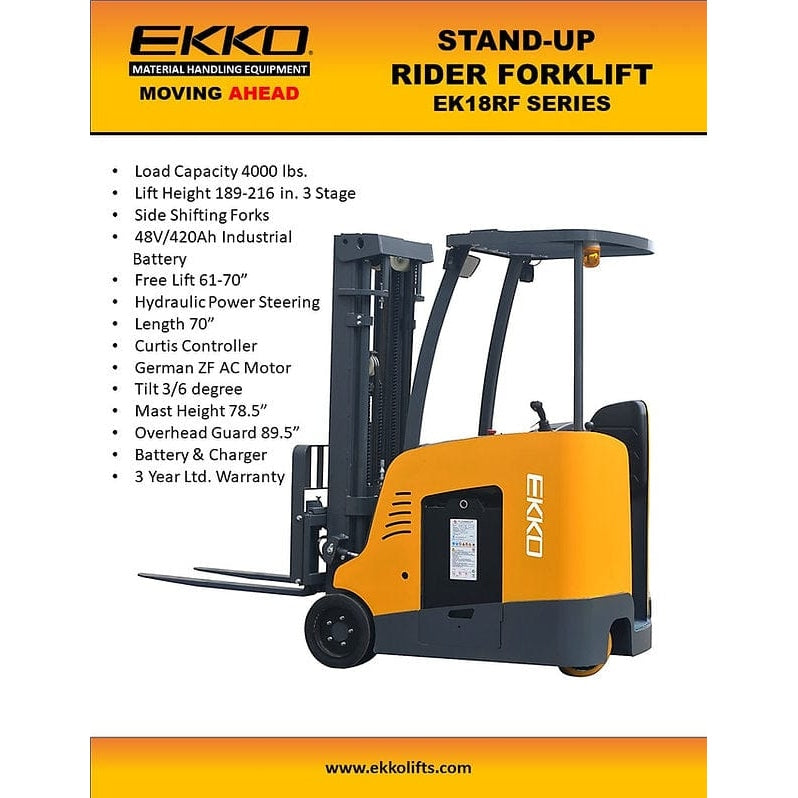

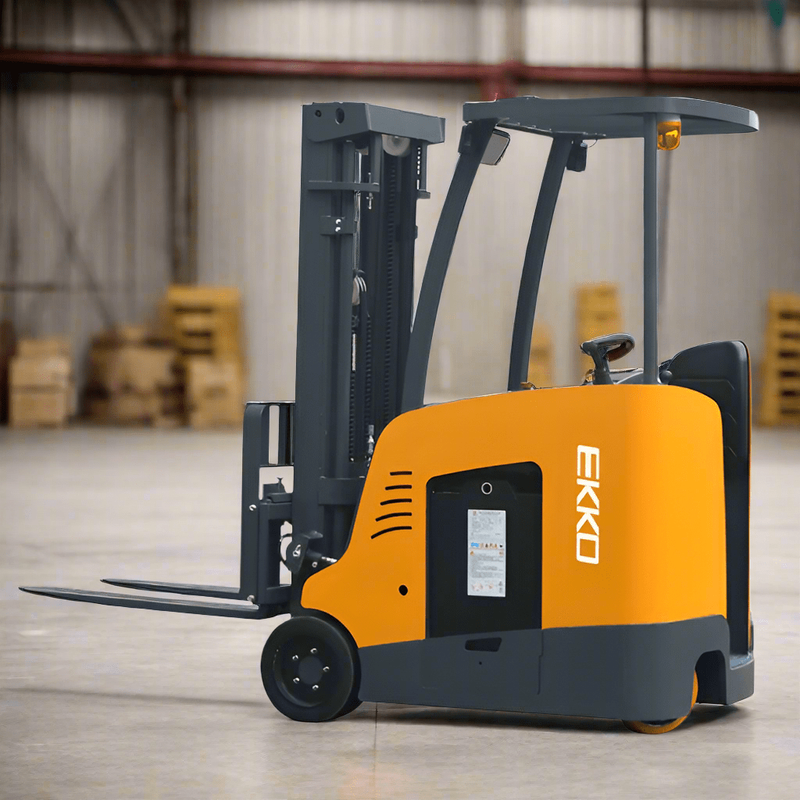

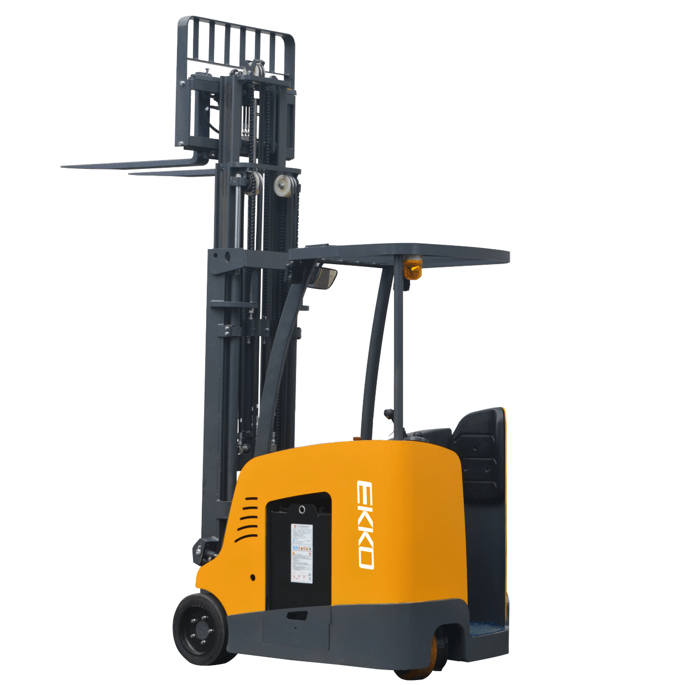

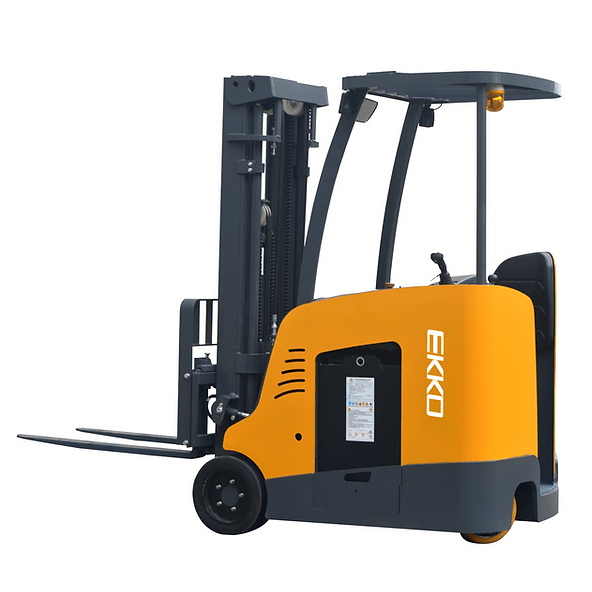

The EKKO EK18RF Stand-up Rider Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4000 lb
- Raised Height 189" (15.75ft)
- Side Shifting Forks
- Adjustable Forks 9.4-35.6"
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- German AC Drive Motor
- Battery 48V/420Ah (included)
- Charger 48V/65A 480V
- Solid Cushion Load Tires
- Polyeurathane Drive Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/65A
- 3 Year Limited Warranty
Specifications
Model |
|
EK18RFL |
Power unit |
|
Electric |
Operation Type |
|
Rider |
Loading capacity |
Q (LBS) |
4000 |
Load center |
c (Inch) |
24 |
Axle centre to fork face |
x (Inch) |
11.5 |
Wheelbase |
y (Inch) |
48.8 |
Service weight with battery |
LBS |
7870 |
Wheels type |
|
Solid wheel |
Driving wheel size |
Φ×w(Inch) |
16×7-10.5(15.98*7.01*10.51) |
Bearing wheel size |
Φ×w(Inch) |
13.5×5.2 |
Wheels, number front/rear |
|
1×/2 |
Track width |
b10 (Inch) |
35.04 |
Mast/fork carriage tilt, fwd/bwd |
a/b (°) |
3/5 |
Lowered mast height |
h1 (Inch) |
82.6 |
Free lift height |
h2 (Inch) |
52.17 |
Lift height |
h3 (Inch) |
188.98 |
Extended mast height |
h4 (Inch) |
220.87 |
Height of overhead guard (cabin) |
h6 (Inch) |
90.08 |
Height of seat/stand-on platform |
h7 (Inch) |
9.06 |
Overall length |
l1 (Inch) |
117.78 |
Length to fork face |
l2 (Inch) |
72.52 |
Overall width |
b1/ b2 (mm) |
42.52/42.13 |
Fork dimensions |
s/e/l (Inch) |
1.58/4.72/45.28 |
Width of forks |
b3 (Inch) |
36.22 |
Ground clearance under mast |
m1 (Inch) |
2.95 |
Min.Ground clearance |
m2 (Inch) |
3.86 |
Aisle Width Requirement |
Ast (FT) |
10.5 |
Min.Turning radius |
Wa (Inch) |
58.5 |
Travel speed,laden/unladen |
(km/h) |
12/13 |
Lifting speed, with/without load |
(mm/s) |
250/400 |
Lowering speed, with/without |
(mm/s) |
240/258 |
Climbing ability, with/without |
(%) |
6/10 |
Service brake |
|
Hydraulic |
Drive motor, 60-minute rating |
(kW) |
6 |
Lift motor rating at S3 15% |
(kW) |
7.7 |
Battery according to DIN 43531/35/36 A,B,C,no |
|
no |
Battery voltage/rated capacity |
(V/Ah) |
48/420 |
Battery weight (± 5%) |
(LBS) |
1570 |
Power consumption VDI |
(mm) |
38*18.1*29.53 |
Type of drive control |
|
AC |
Noise level at operator‘s ear |
(dB(A)) |
≤70 |
steering type |
|
Hydraulic steering |
