Overview

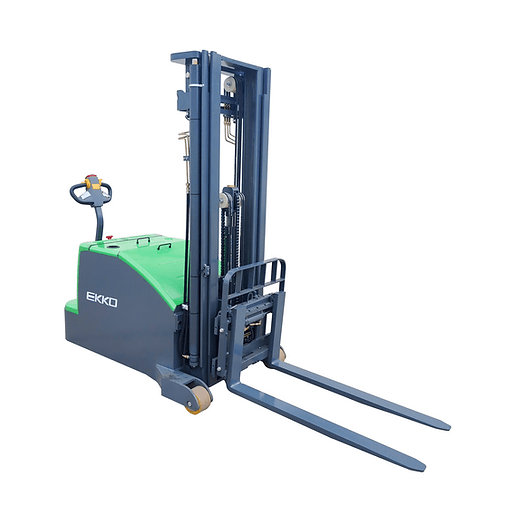

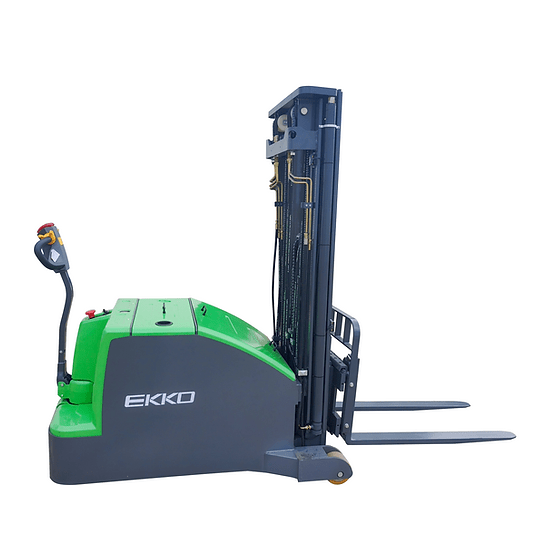

-The EKKO EK14CS-130Li Lithium Counterbalanced Walkie Stacker combines the versatility of a forklift and a walkie stacker. This equipment is ideal for loading and unloading trucks, operating on loading docks, managing stock rooms, and working on manufacturing floors and warehouses.
Constructed with high-quality steel and durable components, the EK14CS-130Li offers reliable performance across various terrains and operational conditions, making it a trustworthy tool for material handling tasks.
Key Features
-- Load Capacity: 3000 lbs
- Raised Height: 130" (10.83 ft)
- Side Shifting: Allows for precise material positioning
- Adjustable Forks: 8.6-26"
- Fork Length: 42.1"
- Tilt Function: 2° forward/5° backward
- Controller: Curtis Controller for precise control
- Motors: 24V AC Drive Motor and 2.2 kW Lift Motor
- Electronic Power Steering (EPS): Enhances maneuverability
- Wheels: Durable polyurethane construction
- Ergonomic Handle and Controls: For operator comfort
- Construction: Steel with robotic welding for enhanced durability
- Battery: 24V/150Ah Lithium, included
- Warranty: 3 Years Limited
Specifications
-Model | EK14CS-130Li | |
Lift | Electric | |
Drive | Electric | |
Load Capacity | (lbs) | 3000 |
Load Center Distance | (in) | 24 |
Wheel Base | (in) | 47 |
Lifting Height | (in) | 130 |
Side Shifting | (in) | 4 |
Lowered Mast Height | (in) | 85.6 |
Extended Mast Height | (in) | 158.7 |
Mast/Fork Carriage Tilt (Fwd/Back) | (°) | 2/5 |
Overall Length | (in) | 118 |
Overall Width | (in) | 42.1 |
Fork Size (Thick/Width/Length) | (in) | 1.4/4/42.1 |
Fork Adjust Width | (in) | 8.6-26 |
Turning Radius | (in) | 57 |
Max Gradient Performance (Laden/Unladen) | (%) | 6/10 |
Lift Speed (Laden/Unladen) | (in/s) | 2.95/3.94 |
Lowering Speed (Laden/Unladen) | (in/s) | 5.3/4.7 |
Charger | (V/A) | 24V/50A |
Driving Motor | (V/W) | AC 24V/2500W |
Lifting Motor | (V/W) | 24V/2500W |
EPS Steering Motor | (V/W) | 24/200W |
Battery Voltage | (V/Ah) | 24V/150Ah Lithium |
Service Weight | (lbs) | 4330 |
