Description

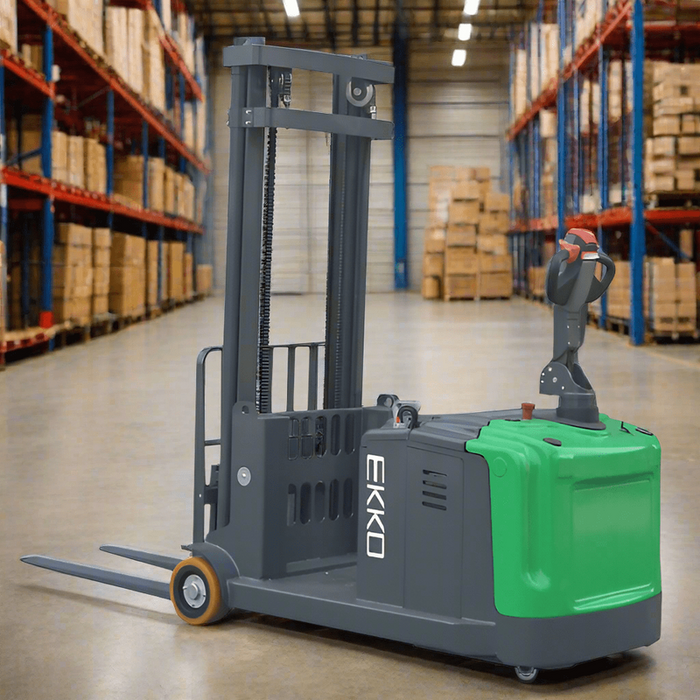

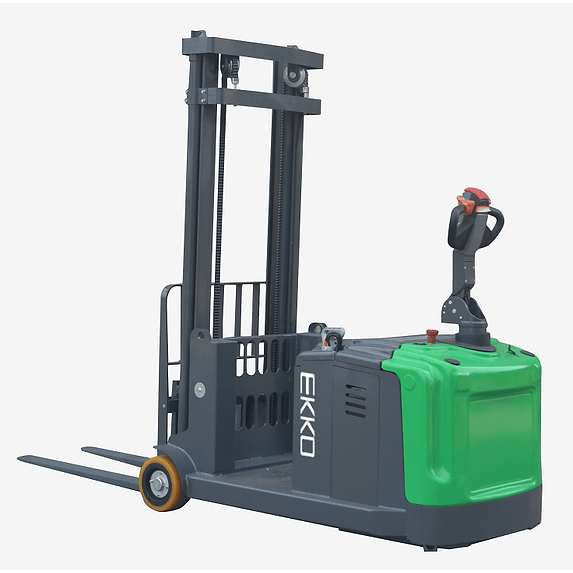

-The EKKO EK14-130LI Lithium Powered Counterbalanced Walkie Stacker is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

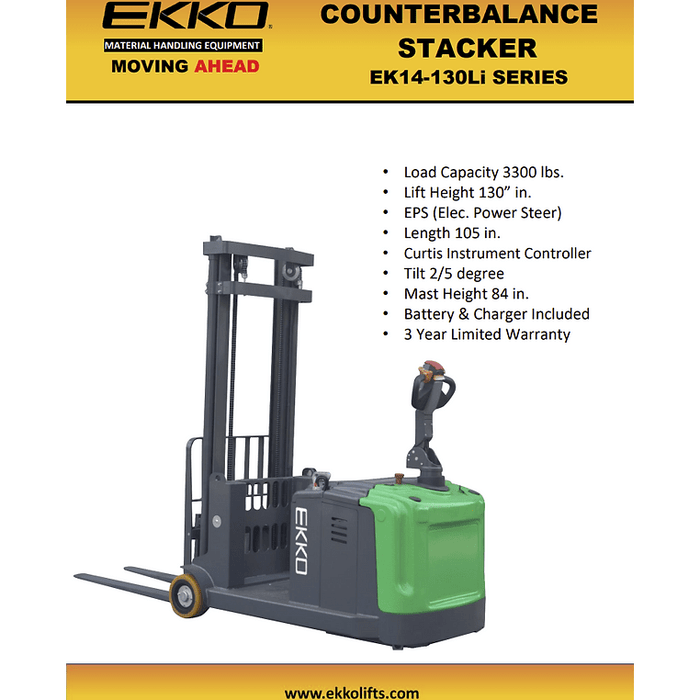

- Load Capacity 3300 lbs
- Raised Height 130" (10.83ft)
- Adjustable Forks 8.6-28.3"
- Fork Length 45.3"
- Tilt 2/5 Degree
- Curtis Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 24V/150Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty

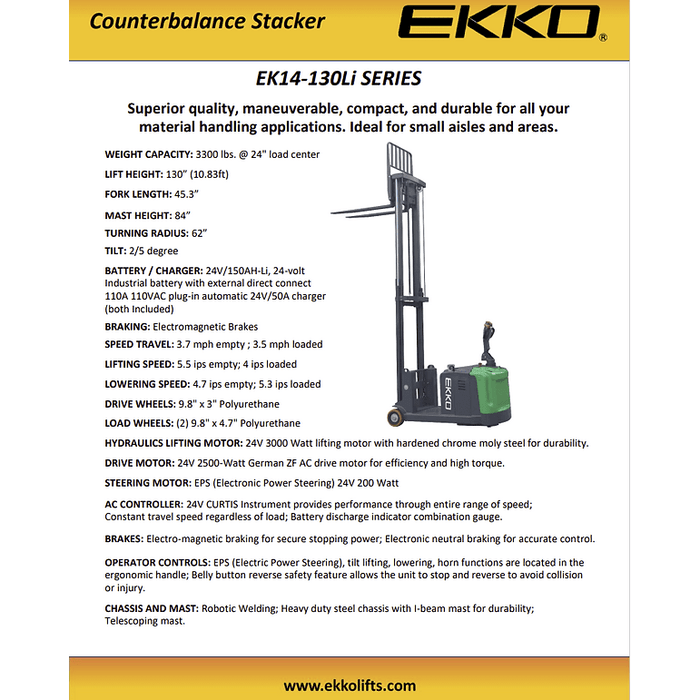

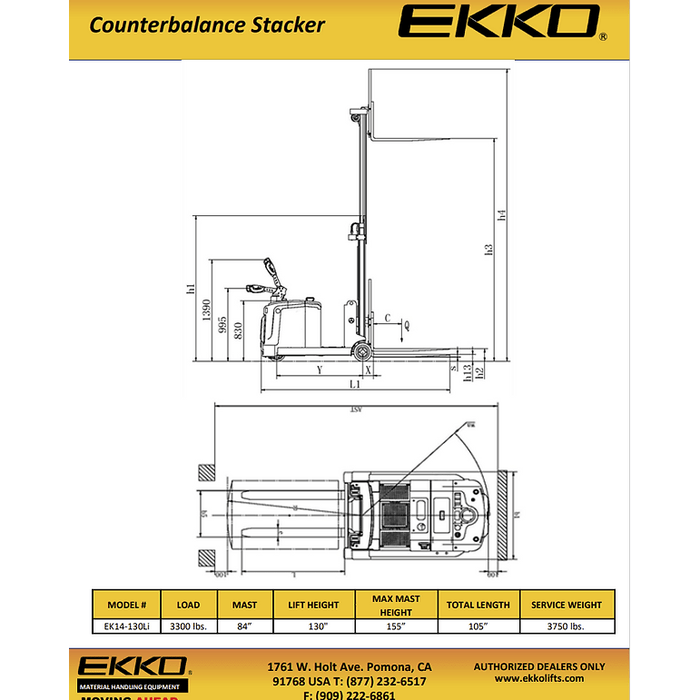

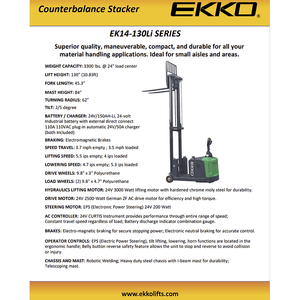

Specifications
Model |
EK14-130Li |
|
Drive type |
Electric |
|
Type of operation |
Walike type |
|
Load Capacity |
Q (LBS) |
3300 |
Load Centre |
c (Inch) |
24 |
Distance between fork backrest and front wheel |
x (Inch) |
6 |
Wheelbase |
y (Inch) |
47 |
Service Weight(with battery) |
LBS |
3750 |
Tire material |
PU |
|
Driving wheel size |
?w(Inch)? |
?9.83.1 |
Front wheel size |
?w(Inch)? |
?9.844.71 |
No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel |
2/1X |
|
Load capacity |
Power |
|
Operator type |
Stand |
|
Mast/fork carriage tilt, forward/backward |
?/? () |
2/5 |
Lowered mast height |
h1 (Inch) |
84 |
Free lift height |
h2 (Inch) |
4 |
Lift height |
h3 (Inch) |
130 |
Extended mast height |
h4 (Inch) |
155 |
Height of seat/stand-on platform |
h7 (mm) |
5 |
Fork carriage width |
(in) |
3.5 |
Overall Length |
l1 (Inch) |
105 |
The max driving speed laden/unladen |
(in/h) |
16850/204724 |
Overall Width |
b1(Inch) |
39 |
Fork Size |
s/e/l (Inch) |
1.4/4/37 |
Fork Width |
b5 (Inch) |
8.7-28 |
Ground clearance under mast |
m1 (Inch) |
2.4 |
Steering Motor |
24V/0.2kw |
|
Aisle width for pallets 1000*1200 crossways |
Ast (Inch) |
119 |
Aisle width for pallets 800*1200 lengthways |
Ast (Inch) |
123 |
Turing Radius |
Wa (Inch) |
62 |
Steering Motor |
24V/0.2kw |
|
Lifting Speed load/unload |
(in/s) |
4/5.5 |
Lowered Speed load/unload |
(in/s) |
5.3/4.7 |
Maximum gradeability load/unload |
(%) |
6/10 |
Charger |
24V/50A |
|
Drive Motor |
(kW) |
2.5 |
Lift Motor |
(kW) |
3.0 |
Battery voltage/rate capacity |
(V/Ah) |
24/150AH-Li |
