Description

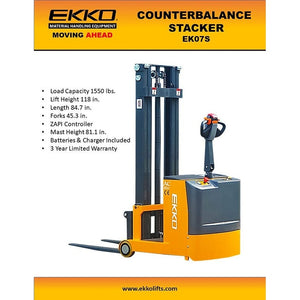

-The EKKO EK07S Fully Powered Counterbalance Walkie Stacker is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 1550lbs.
- Raised Height 118" (9.83ft)
- Adjustable Forks 8.3-25.2"
- Fork Length 42"
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- On-Board Charger Included
- BatterY Included
- 3 Years Limited Warranty
Specifications
Model |
EK07S |
|
Lift |
Electric |
|
Drive |
Electric |
|
Load capacity |
(lbs) |
1550 |
Load center distance |
(in) |
20 |
Lifting height |
(in) |
118 |
Lowered mast height |
(in) |
81.1 |
Overall length |
(in) |
84.7 |
Overall width |
(in) |
34.5 |
Fork size, Thick/Width/Length |
(in) |
1.4/2.9/42 |
Fork adjust width |
(in) |
8.3-25.2 |
Turning radius |
(in) |
51 |
Internal Charger |
24V/20A |
|
Driving Motor |
AC 24V/0.75kw |
|
Lifting Motor |
24V/1.5kw |
|
Battery voltage |
24V/120AH |
|
Service Weight |
(lbs) |
2090 |
