Overview

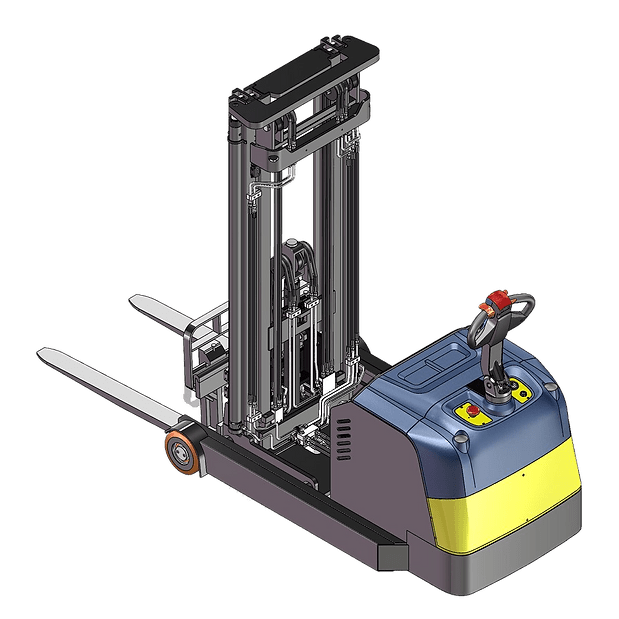

-The EKKO EH15T Moving Mast Walkie Reach Truck combines the functionality of a forklift, reach truck, and walkie stacker, making it an excellent choice for a variety of material handling applications. It is designed to excel in loading and unloading trucks, organizing stock rooms, managing loading docks, and ensuring smooth operation on manufacturing floors and in warehouses.
Built with precision and durability, this equipment is made from high-quality steel and components to withstand demanding environments and deliver consistent performance.
Key Features
-- Load Capacity: 3,300 lbs
- Lift Height: 138" (9.83 ft)
- Reach Distance: 19.7"
- Fork Adjust Width: 8.7"-29.1"
- Fork Length: 45.2"
- Controller: Curtis Controller
- Steering: EPS (Electronic Power Steering)
- Motors: 24V AC Drive Motor and 24V Lift Motor
- Battery: 24V/270Ah Lithium Included
- Wheels: Polyurethane for smooth operation
- Ergonomics: Ergonomic handle and controls for operator comfort
- Construction: Steel with robotic welding
- Warranty: 3 Years Limited Warranty
- Charger: 24V/40A Included
Specifications
-Model | EH15T | |
Lift | Electric | |
Drive | Electric | |
Load Capacity | (lbs) | 3,300 |
Load Center Distance | (in) | 24 |
Lifting Height | (in) | 138 |
Lowered Mast Height | (in) | 93.3 |
Overall Length | (in) | 111.6 |
Overall Width | (in) | 41 |
Fork Size (Thick/Width/Length) | (in) | 1.4/4/45.2 |
Fork Adjust Width | (in) | 8.7-28 |
Reach Distance | (in) | 19.7 |
Turning Radius | (in) | 67 |
Charger | 24V/40A | |
Driving Motor | AC 24V/2.5kw | |
Steering Motor | 24/0.2kw | |
Lifting Motor | 24V/3kw | |
Battery Voltage | 24V/270Ah | |
Service Weight | (lbs) | 4,200 |
