Description

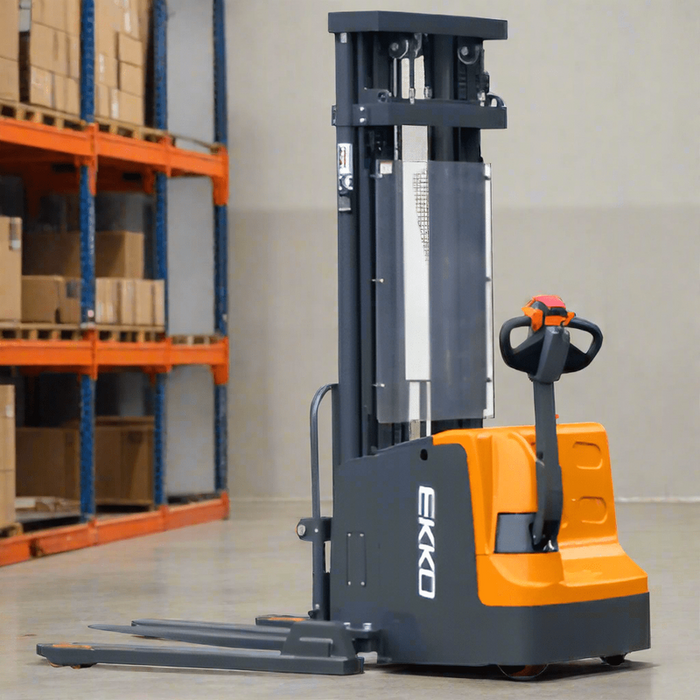

-The EKKO EB20E Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4400 lb
- Raised Height 177" (14.75ft)
- Adjustable Forks 9.8-31.5"
- Adjustable Legs 45.5-59.1"
- Fork Length 45.3"
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Triple Mast
- Battery 24V/210Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 24V/30A Included
- Batteries Included
- 3 Years Limited Warranty
Specifications
Model |
EB20E |
|
Load capacity |
(lb) |
4400 |
The max. lifting height |
(in) |
177 |
Load center distance |
(in) |
24 |
Fork length |
(in) |
45.3 |
Single fork width |
(in) |
4.7 |
Overall fork width |
(in) |
9.8-31.5 |
Lowered fork height |
(in) |
3 |
Fixed leg length |
(in) |
42 |
Adjustable legs |
(in) |
45.5-59.1 |
Turning radius |
(in) |
60 |
Overall length |
(in) |
85 |
Max width |
(in) |
61 |
Extended mast height |
(in) |
198 |
Lowered mast height |
(in) |
85 |
Battery voltage |
(V/Ah) |
24/210Ah |
The charger |
(V/A) |
24V/30A |
Lifting Motor |
(V/W) |
3000W, Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
Driving Motor |
(W) |
1500W, Driving speed: laden/unladen:4.0/4.2km/h |
Service Weight |
(lb) |
2800 |
