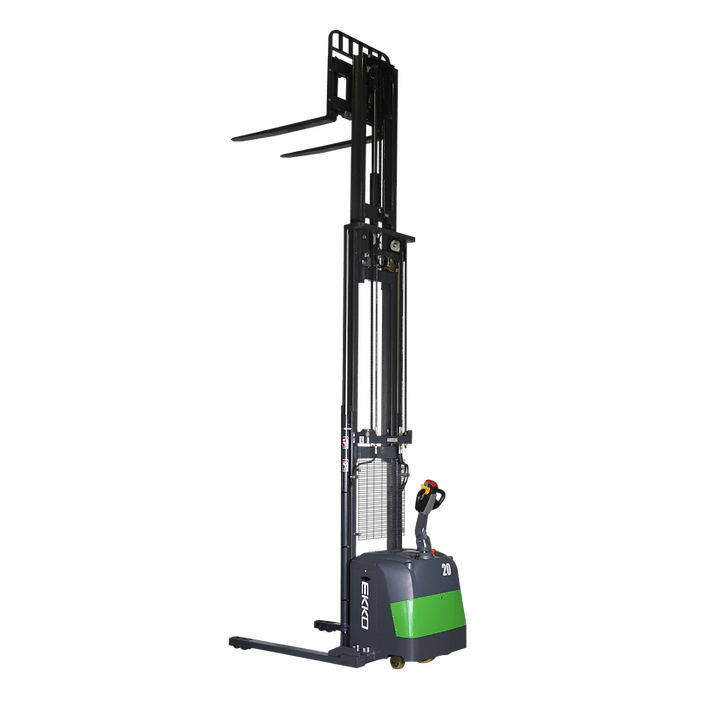

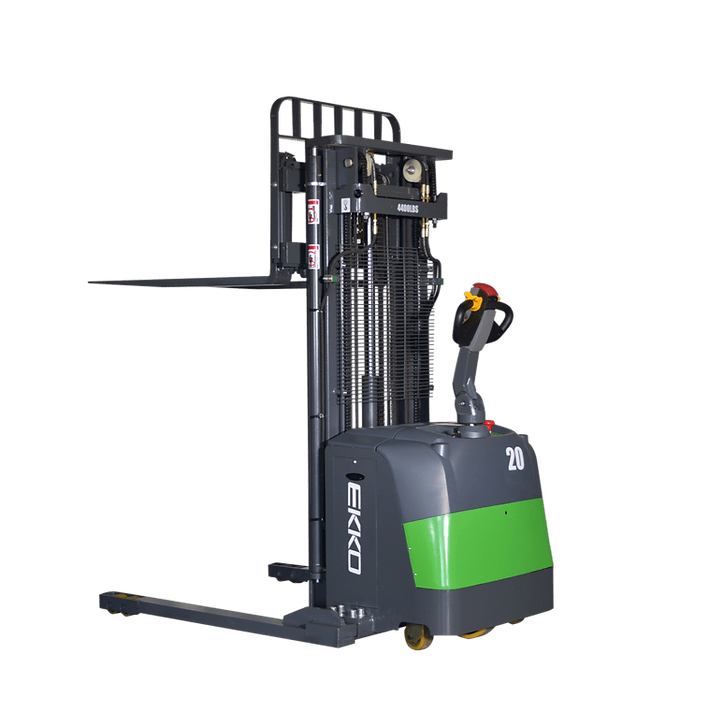

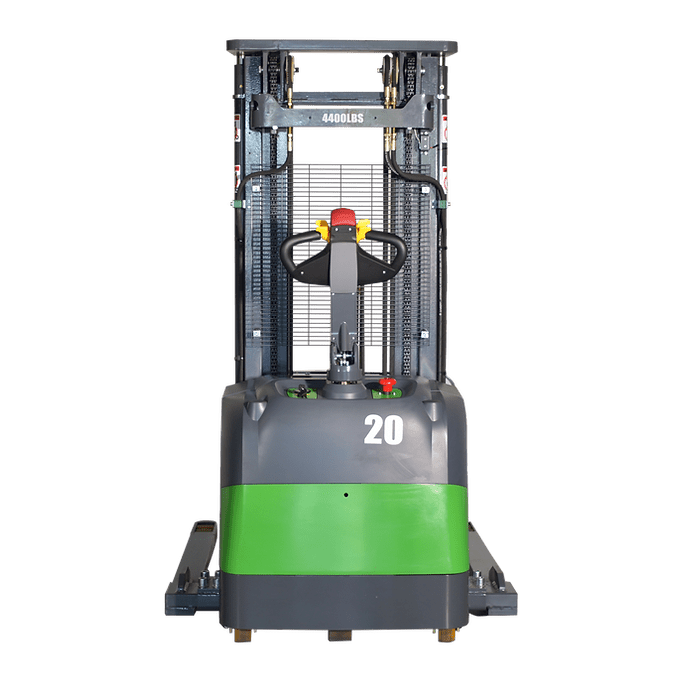

EKKO EB20CS-216Li 4400 lb Lithium Electric Straddle Stacker

EKKO EB20CS-216Li 4400 lb Lithium Electric Straddle Stacker

SKU EB20CS-216LI
You save: 5% ($949.95) You save: 5%
$18,999.00
$18,999.00 - $18,999.00
$18,999.00
$18,049.05
$18,049.05 - $18,049.05
$18,049.05
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat
WINTER SALE: 5% Applied At Checkout
Winter is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires soon.

Overview

-

The EKKO EB20CS-216Li Lithium Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker to deliver unmatched performance for material handling tasks. Ideal for loading and unloading trucks, managing stockrooms, manufacturing floors, and warehouses, this stacker ensures efficiency and reliability with its robust features and durable construction.

Key Features

-
  • Load Capacity: 4,400 lbs
  • Maximum Lifting Height: 216" (18 ft)
  • Side Shift: Included for precise load positioning
  • Adjustable Fork Width: 8.7" – 32.1"
  • Adjustable Leg Width: 39.8" – 55.5"
  • Fork Length: 45.3"
  • Triple Mast: Provides a compact footprint with high reach
  • Motors: 24V AC Drive Motor and Lift Motor
  • Battery: 24V/150Ah Lithium with 24V/50A Charger Included
  • Robust Construction: Steel frame with robotic welding for durability
  • Polyurethane Wheels: For smooth and quiet operation

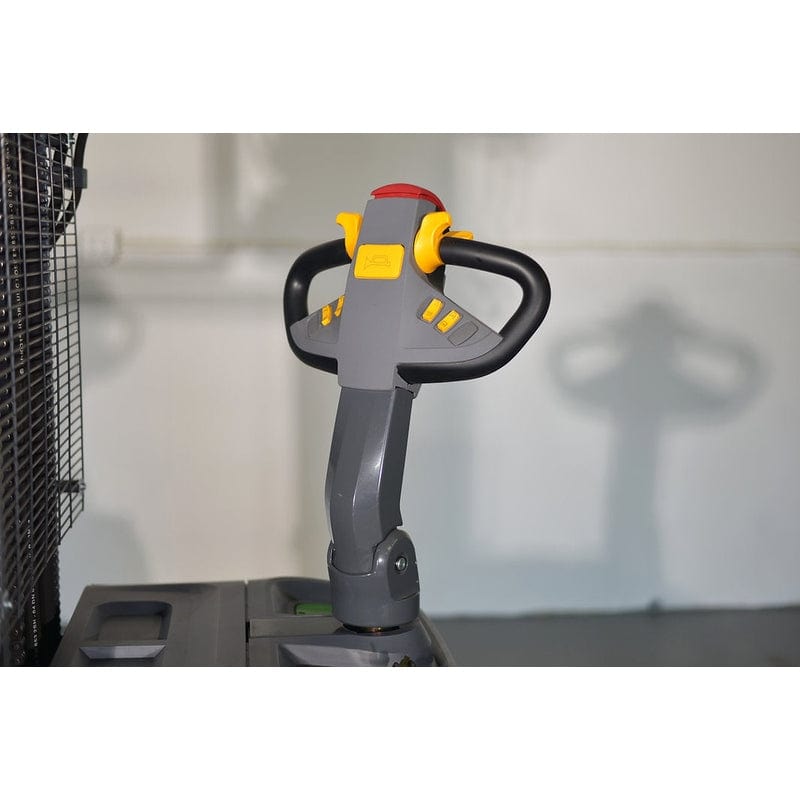

  • Ergonomic Handle and Controls: Designed for operator comfort and ease of use

Specifications

-
Model: EB20CS-216Li
Load Capacity: 4,400 lbs
Maximum Lifting Height: 216"
Fork Length: 45.3"
Adjustable Fork Width: 8.7" – 32.1"
Adjustable Leg Width: 39.8" – 55.5"
Turning Radius: 65"
Minimum Ground Clearance: 1.2"
Extended Mast Height: 245.6"
Lowered Mast Height: 92.9"
Battery: 24V/150Ah Lithium
Charger: 24V/50A
Lifting Motor: 3,000W
Driving Motor: 1,500W
Service Weight: 3,130 lbs

Why Choose the EKKO EB20CS-216Li?

-

The EKKO EB20CS-216Li is designed to meet the demands of rigorous material handling tasks. Its advanced features, including a triple mast, high lifting capacity, and ergonomic design, make it a top choice for industries requiring efficient and reliable equipment. Upgrade your operations with this powerful and versatile electric stacker.
