Description

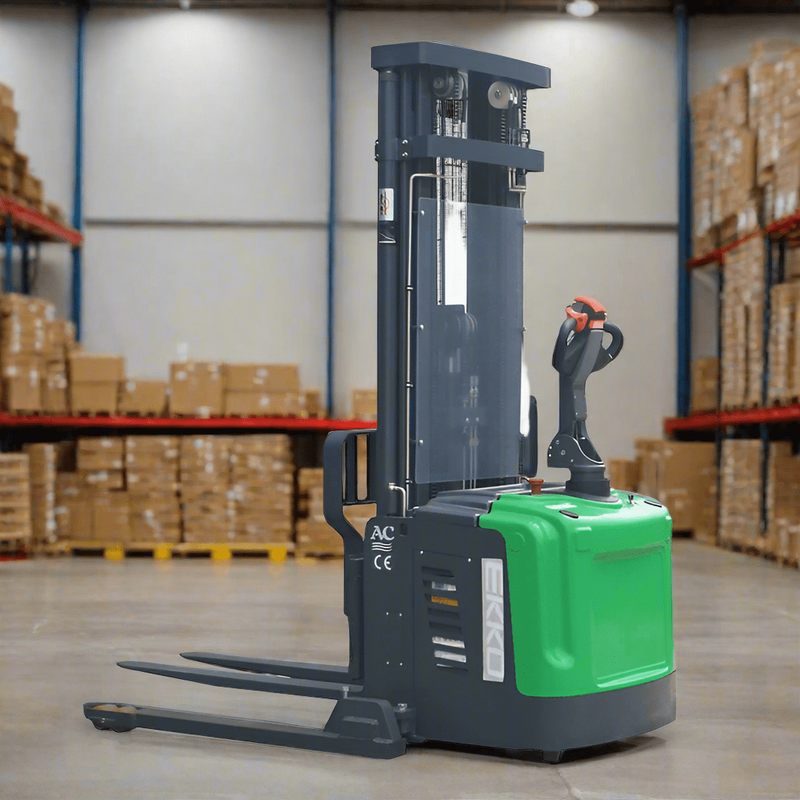

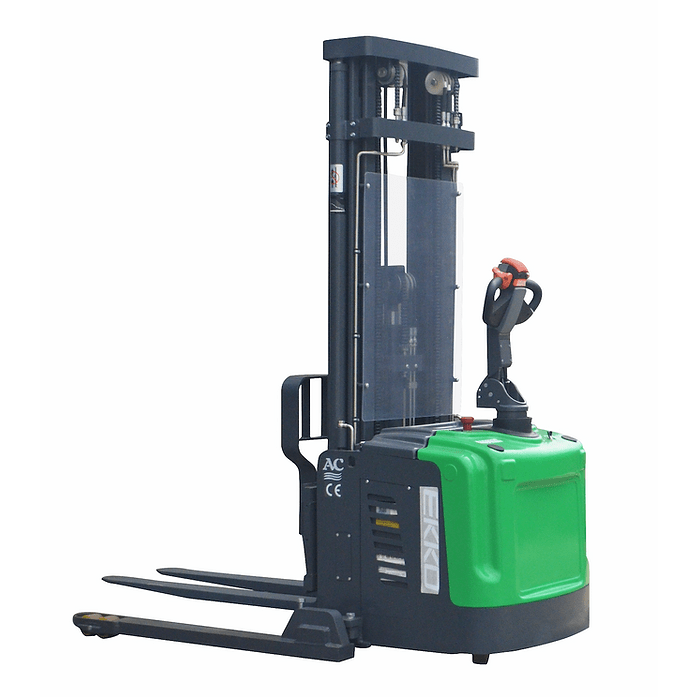

-The EKKO EB16EAS-189LI Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker with SIDE-SHIFTING capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4400 lb
- Raised Height 189
- SIDE-SHIFTING
- Adjustable Forks 8.27-31.5
- Adjustable Legs 38.06-51.8
- Fork Length 45.3
- Free Lift 51.85
- EPS (Electric Power Steering)
- Curtis Instrument Controller
- 24V Center AC Drive Motor
- 24V Lift Motor
- Triple Mast
- Battery 24V/210Ah
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty

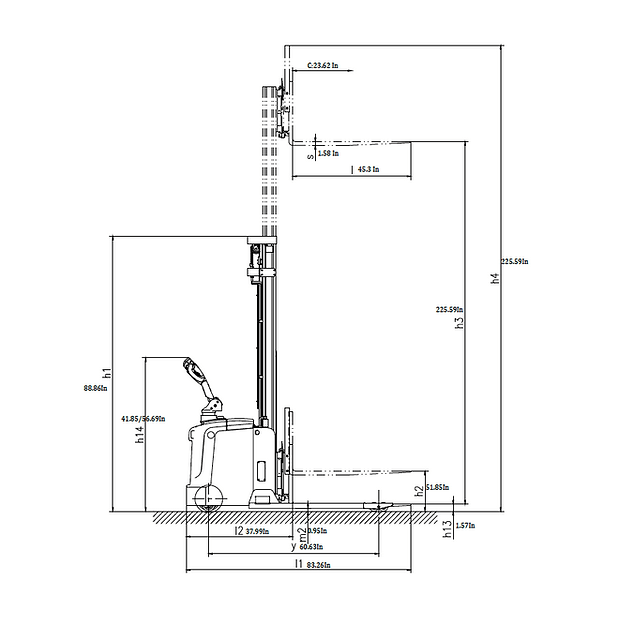

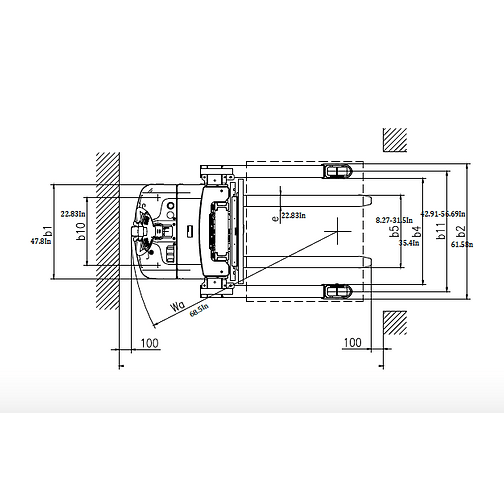

Specifications
Model |
EB16EAS-189Li |
|
Load capacity |
(lb) |
4400 |
The max. lifting height |
(in) |
189 |
Load center distance |
(in) |
23.62 |
Free Lift |
(in) |
51.85 |
EPS (Elec. Power Steer) |
Yes |
|
Fork length |
(in) |
45.28 |
SIDE-SHIFT |
(in) |
4.7 |
Overall fork width |
(in) |
8.27-31.5 |
Lowered fork height |
(in) |
1.57 |
Fixed leg length |
(in) |
42 |
Adjustable legs |
(in) |
38.06-51.81 |
Turning radius |
(in) |
68.5 |
Overall length |
(in) |
83.26 |
Max width |
(in) |
46.93-60.71 |
Extended mast height |
(in) |
227 |
Lowered mast height |
(in) |
88.86 |
Battery voltage |
(V/Ah) |
24/150 |
Charger |
(V/A) |
24V/30A |
Lifting Motor |
(kW) |
3 |
AC Driving Motor |
(kW) |
1.5 |
Service Weight |
(lb) |
3520 |
