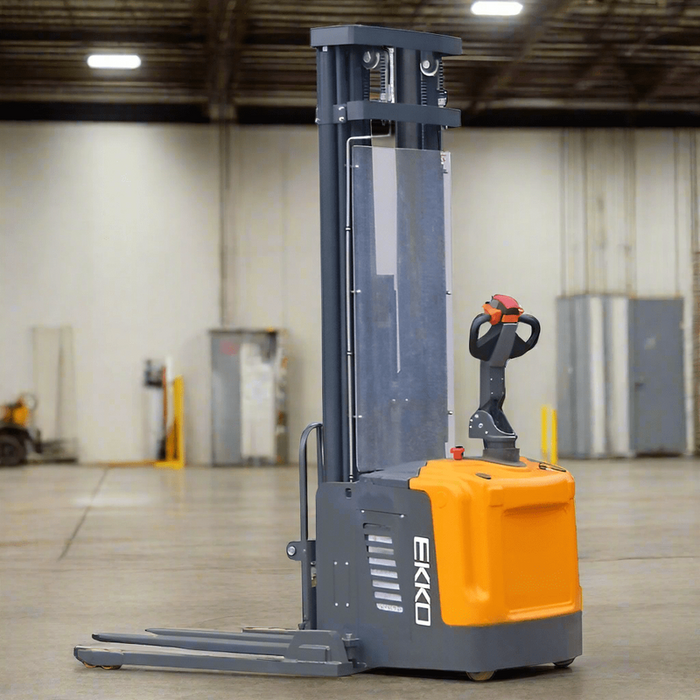

The EKKO EB16EA Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4400 lb
- Raised Height 216”
- Adjustable Forks 9.8-31.5“
- Adjustable Legs 38.06-51.8”
- Fork Length 45.28“
- Free Lift 76.25”
- EPS (Electric Power Steering)
- Curtis Instrument Controller
- 24V Center AC Drive Motor
- 24V Lift Motor
- Triple Mast
- Battery 24V/210Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
Specifications
Model |
|
EB16EA |
Load capacity |
(lb) |
4400 |
The max. lifting height |
(in) |
216 |
Load center distance |
(in) |
24 |
Free Lift |
(in) |
76.25 |
EPS (Elec. Power Steer) |
|
Yes |
Fork length |
(in) |
45.28 |
Single fork width |
(in) |
4.7 |
Overall fork width |
(in) |
9.8-31.5 |
Lowered fork height |
(in) |
1.58 |
Fixed leg length |
(in) |
42 |
Adjustable legs |
(in) |
38.06-51.81 |
Turning radius |
(in) |
69.09 |
Overall length |
(in) |
81.69 |
Max width |
(in) |
46.93-60.71 |
Extended mast height |
(in) |
253.15 |
Lowered mast height |
(in) |
98.03 |
Battery voltage |
(V/Ah) |
24/210Ah |
Charger |
(V/A) |
24V/30A |
Lifting Motor |
(W) |
3000 Watt, Lift speed, laden/unladen:95/160m/s Lowering speed, laden/unladen:130/110mm/s |
AC Driving Motor |
(W) |
3000 Watt, Driving speed: laden/unladen: 5.2/5.5km/h |
Service Weight |
(lb) |
3542 |
