Overview

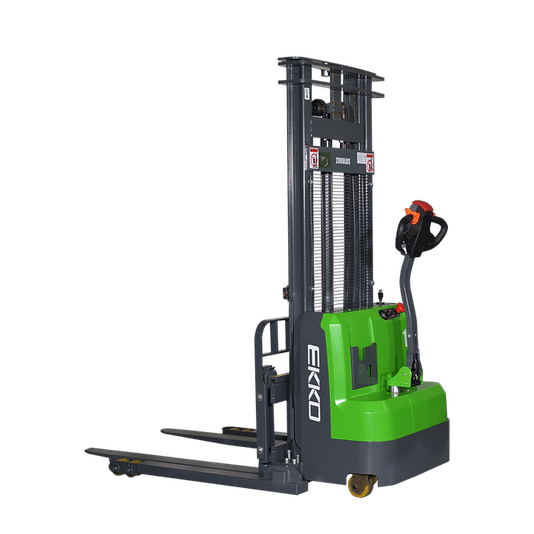

-The EKKO EB14C-98Li Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker into one robust solution. With its impressive 3,000 lbs load capacity and advanced features, this stacker is ideal for handling tasks in loading docks, manufacturing floors, stock rooms, and warehouses.
Its durable steel construction and high-quality components ensure reliable performance in various applications, even under tough conditions. Elevate your material handling operations with the efficiency and power of the EB14C-98Li.
Key Features
-- Load Capacity: Handles up to 3,000 lbs with ease.

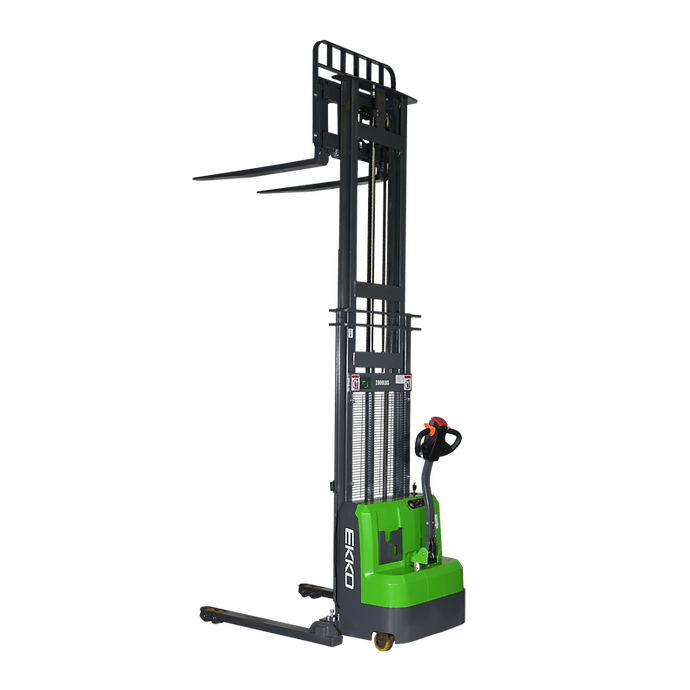

- Raised Height: Maximum lifting height of 98” (8.16 ft).
- Adjustable Forks: Width ranges from 8.7” to 32.1”.
- Adjustable Legs: Width ranges from 35.4” to 51.2”.
- Durable Construction: Made with high-quality steel and components.
- Ergonomic Design: Features an ergonomic handle and controls for operator comfort.
- Advanced Motor: Equipped with a DC Drive Motor and a 2.2 kW lifting motor.
- Lithium Battery: Powered by a 24V/50Ah lithium battery for extended runtime and efficiency.
- Polyurethane Wheels: Smooth operation across various surfaces.
- Curtis Instrument Controller: Ensures precise and reliable control.
Specifications
-Model: | EB14C-98Li |
Load Capacity: | 3,000 lbs |
Max Lifting Height: | 98” (8.16 ft) |
Fork Length: | 45.3” |
Fork Adjustment Width: | 8.7” – 32.1” |
Leg Adjustment Width: | 35.4” – 51.2” |
Turning Radius: | 57.5” |
Overall Length: | 73.7” |
Overall Width: | 61” |
Lowered Fork Height: | 2.6” |
Battery: | 24V/50Ah Lithium |
Service Weight: | 1,410 lbs |
Charger: | 24V/20A Internal Charger |
Lifting Motor: | 2.2 kW |
Driving Motor: | DC Drive Motor |
Construction: | High-quality steel |
Applications
-- Loading and unloading trucks
- Stockroom management
- Warehousing and logistics
- Manufacturing floors
