Overview

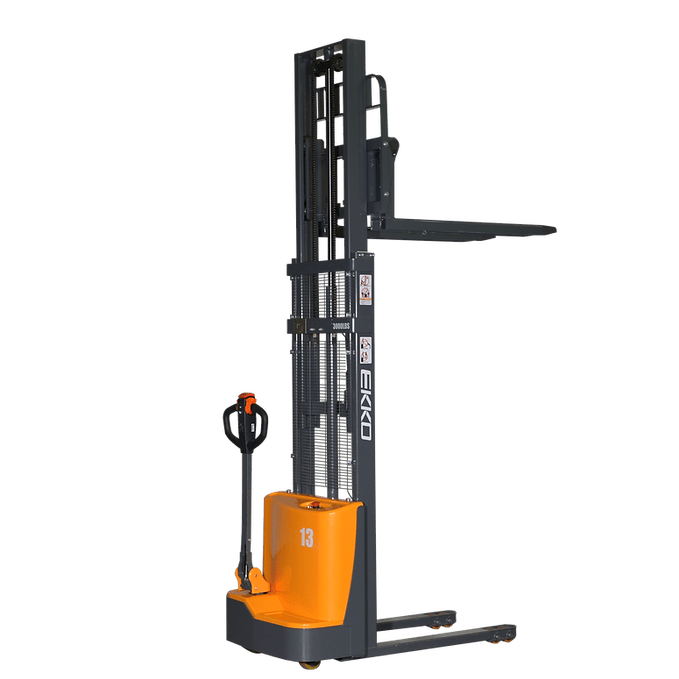

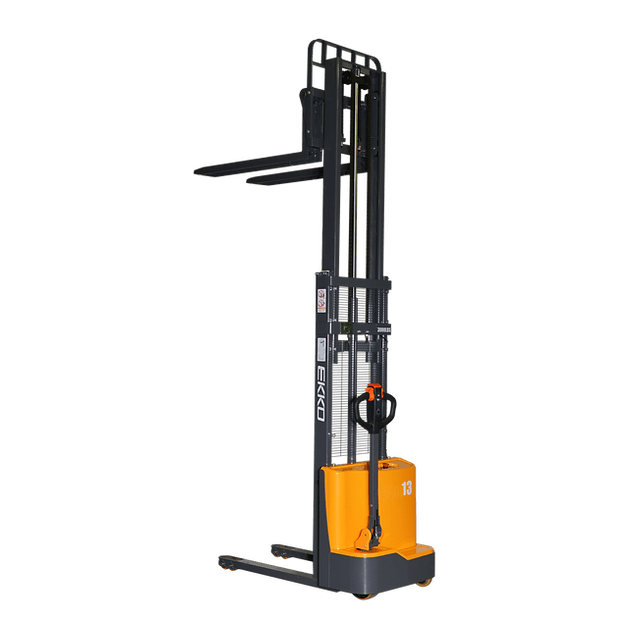

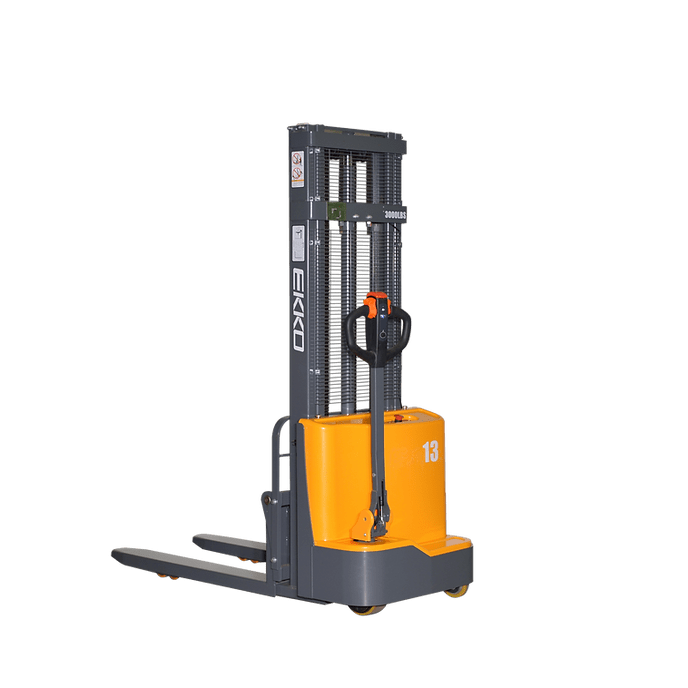

-The EKKO EB13CD Electric Fork Over Stacker combines the versatility of a forklift, reach truck, and a walkie stacker. This stacker is ideal for loading and unloading trucks, operating on loading docks, managing stock rooms, manufacturing floors, and warehouses.
Constructed from high-quality steel and components, the EB13CD is designed for durability and reliability. Its robust drives can handle various terrains, impacts, and directional changes, ensuring seamless operation in any application.
Key Features
-- Load Capacity: 2800 lbs
- Raised Height: 118"
- Forks and Legs: Fixed for added stability
- Fork Length: 45.28"
- Motors: 24V Lift Motor
- Battery: 2×12V/85Ah included
- Wheels: Polyurethane for enhanced durability

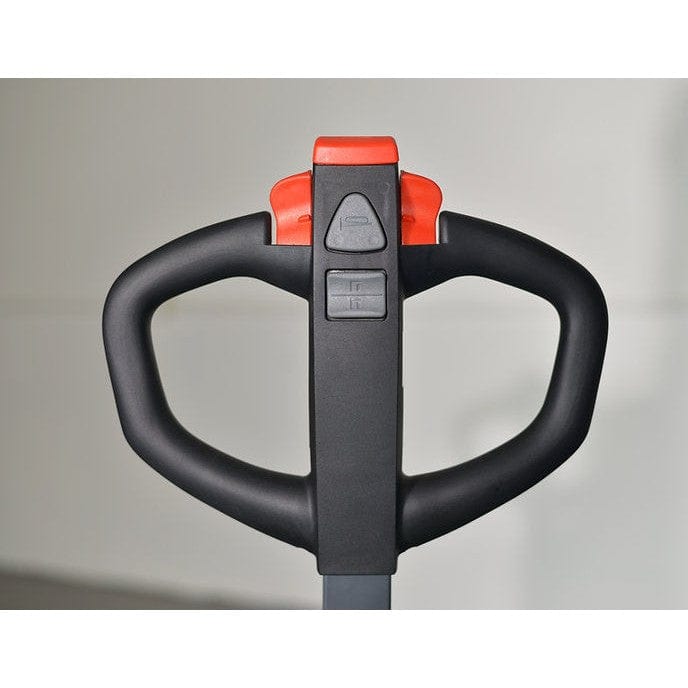

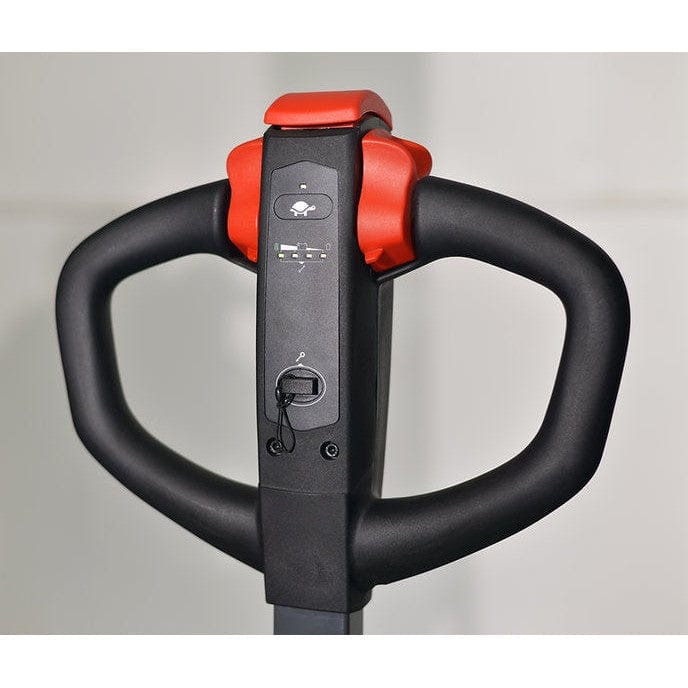

- Handle and Controls: Ergonomic design for ease of use
- Construction: Steel with robotic welding for long-lasting performance
- Charger: Internal 24V/15A included
Specifications
-Model | EB13CD | |
Load Capacity | (lbs) | 2800 |
Maximum Lifting Height | (in) | 118" |
Load Center Distance | (in) | 24 |
Fork Length | (in) | 45.28 |
Single Fork Width | (in) | 5.59 |
Overall Fork Width (Inner/Outer) | (in) | 11.8 / 26.8 |
Lowered Fork Height | (in) | 3.54 |
Turning Radius | (in) | 55.1 |
Overall Length | (in) | 71.7 |
Extended Mast Height | (in) | 147.6 |
Lowered Mast Height | (in) | 82.3 |
Battery Voltage | (V/Ah) | 2×12V/85Ah |
Internal Charger | (V/A) | 24V/15A |
Lifting Motor | (V/kW) | 2.2 kW |
Driving Motor | 0.75 kW | |
Service Weight | (lbs) | 992 |
