Overview

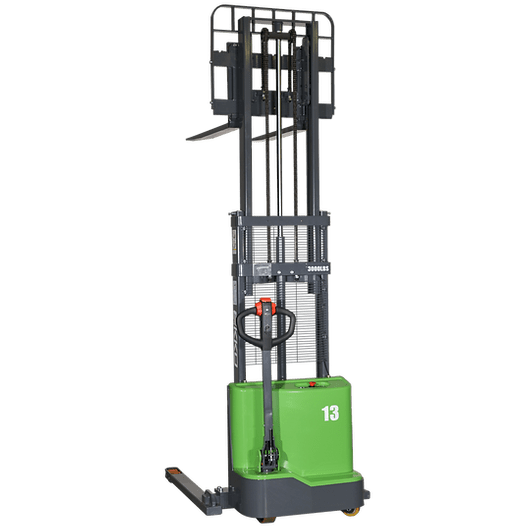

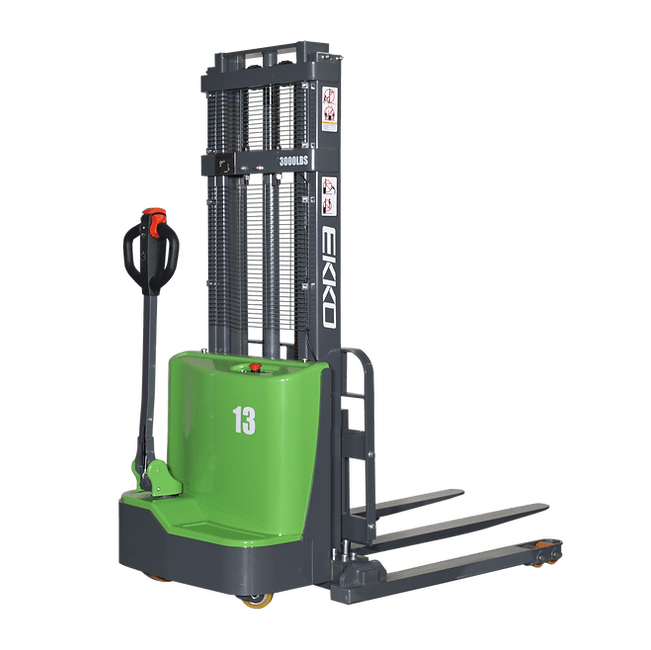

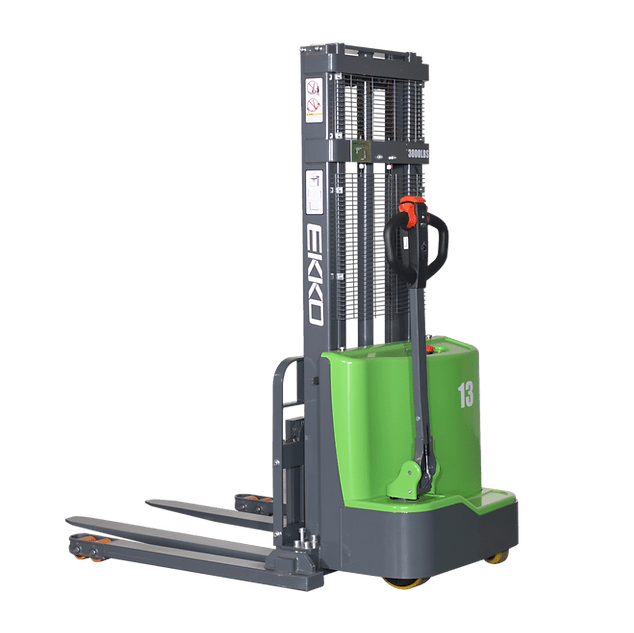

-The EKKO EB13C-145Li Lithium Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker to handle your material handling needs with ease. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouses, delivering reliable performance across various applications.
Built with high-quality steel and durable components, this stacker ensures smooth operation on different terrains and in challenging conditions. Its ergonomic design and advanced features provide confidence and efficiency for operators.
Key Features
-- Load Capacity: 2800 lbs
- Raised Height: 145”
- Adjustable Forks: 8.6-32.1”
- Adjustable Legs: 35.4-51.2”
- Fork Length: 45.3”
- Controller: Curtis Instrument Controller
- Motors: DC Drive Motor and 24V Lift Motor
- Battery: 24V/50Ah Lithium included
- Wheels: Polyurethane for smooth and durable operation
- Ergonomic Design: Handle and controls for operator comfort
- Construction: Robust steel build for enhanced durability
- Internal Charger: 24V/20A included
Specifications
-Model | EB13C-145Li | |
Load Capacity | (lbs) | 2800 |
Max Lifting Height | (in) | 145” |
Load Center Distance | (in) | 20 |
Fork Length | (in) | 45.3 |
Single Fork Width | (in) | 4 |
Fork Adjustment Width | (in) | 8.6-32.1 |
Lowered Fork Height | (in) | 2.56 |
Adjustable Legs | (in) | 35.4-51.2 |
Turning Radius | (in) | 56.1 |
Overall Length | (in) | 73.4 |
Max Overall Width | (in) | 61 |
Extended Mast Height | (in) | 174.8 |
Lowered Mast Height | (in) | 98.8 |
Battery Voltage | (V/Ah) | 24V/50Ah Lithium |
Internal Charger | (V/A) | 24V/20A |
Lifting Motor | (kW) | 2.2 kW |
Driving Motor | 0.75 kW | |
Service Weight | (lbs) | 1700 |
