Overview

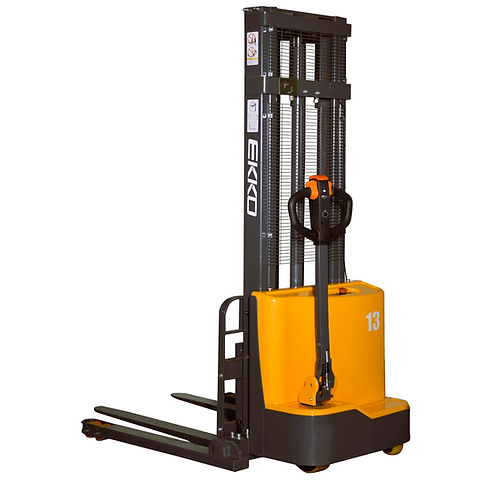

-The EKKO EB13C-138 Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker, making it an excellent choice for loading and unloading trucks, managing stock rooms, loading docks, manufacturing floors, and warehouses.
Engineered with high-quality steel and durable components, this stacker ensures reliability across various terrains and challenging environments, offering consistent performance with minimal maintenance.
Key Features
-- Load Capacity: 2800 lbs
- Raised Height: 138”
- Adjustable Forks: 8.6-32.1”
- Adjustable Legs: 35.4-51.2”
- Fork Length: 45.3”
- Controller: Curtis Instrument Controller
- Motors: DC Drive Motor and 24V Lift Motor
- Battery: 24V/85Ah included
- Wheels: Polyurethane for durability and smooth operation
- Ergonomic Design: Easy-to-use handle and controls
- Construction: Robust steel build with robotic welding
- Internal Charger: 24V/10A included
Specifications
-Model | EB13C-138 | |
Load Capacity | (lbs) | 2800 |
Max Lifting Height | (in) | 138” |
Load Center Distance | (in) | 24 |
Fork Length | (in) | 45.3 |
Single Fork Width | (in) | 4 |
Fork Adjustment Width | (in) | 8.6-32.1 |
Lowered Fork Height | (in) | 2.56 |
Adjustable Legs | (in) | 35.4-51.2 |
Turning Radius | (in) | 56.1 |
Overall Length | (in) | 73.4 |
Max Overall Width | (in) | 61 |
Extended Mast Height | (in) | 166.9 |
Lowered Mast Height | (in) | 75.2 |
Battery Voltage | (V/Ah) | 24V/85Ah |
Internal Charger | (V/A) | 24V/10A |
Lifting Motor | (kW) | 2.2 kW |
Driving Motor | 0.75 kW | |
Service Weight | (lbs) | 1390 |
