Overview

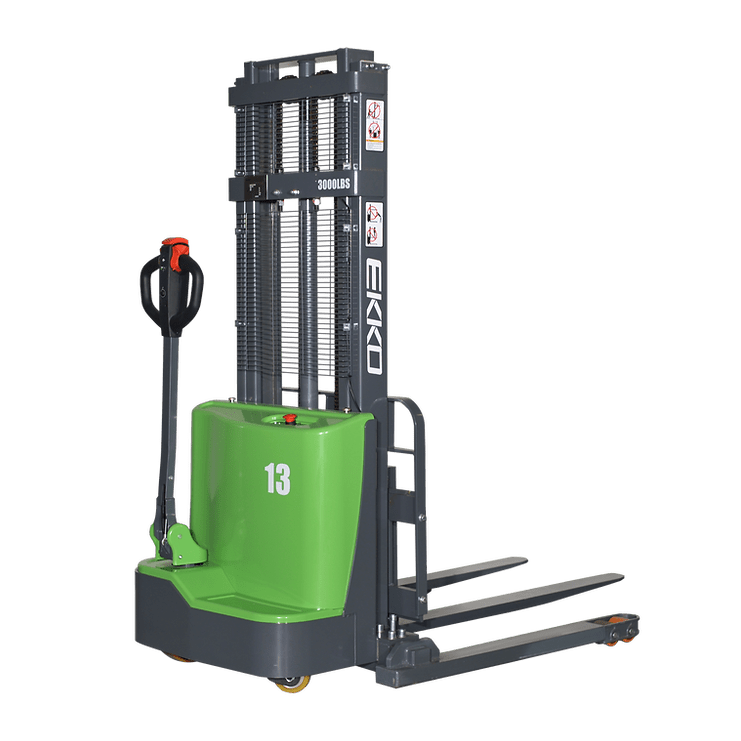

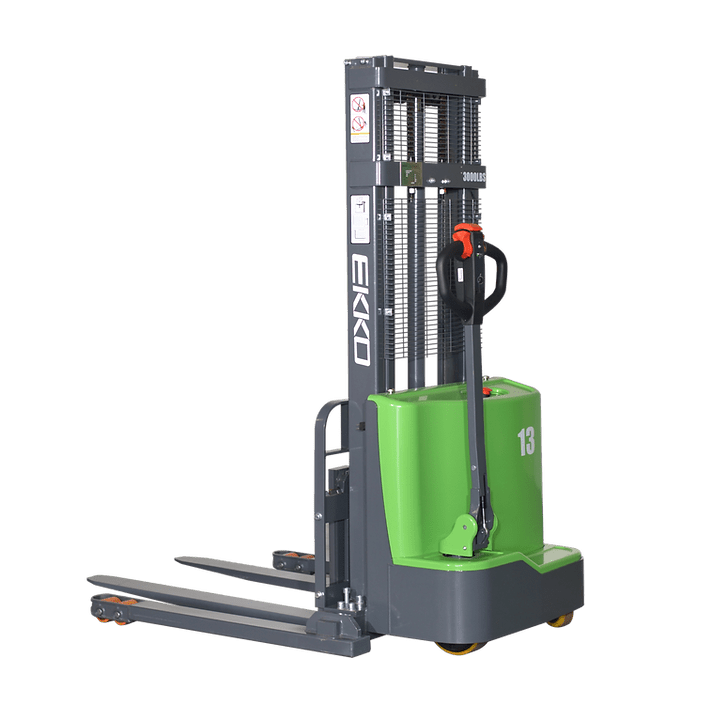

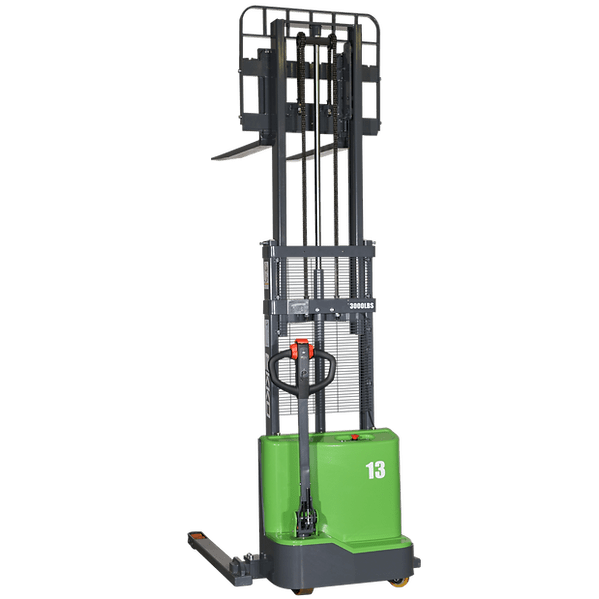

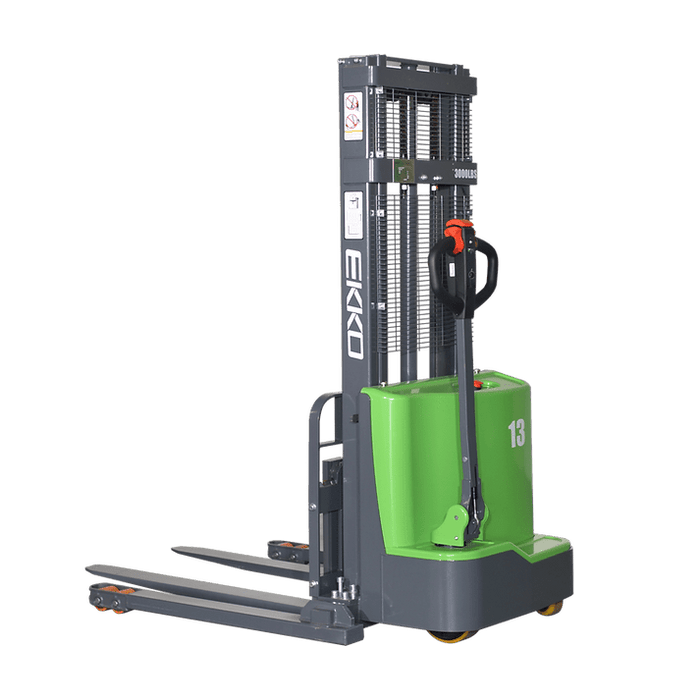

-The EKKO EB13C-118Li Lithium Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker to meet all your material handling needs. Ideal for use in loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouses, this stacker is designed to enhance productivity and efficiency.
With its robust construction, the EB13C-118Li is made from high-quality steel and durable components, ensuring excellent performance across various terrains and usage conditions.
Key Features
-- Load Capacity: 2800 lbs
- Raised Height: 118”
- Adjustable Forks: 8.6-32.1”
- Adjustable Legs: 35.4-51.2”
- Fork Length: 45.3”
- Controller: Curtis Instrument Controller
- Motors: DC Drive Motor and 24V Lift Motor
- Battery: 24V/50Ah Lithium included
- Wheels: Polyurethane for smooth and durable operation
- Ergonomic Design: Handle and controls designed for comfort and efficiency
- Construction: Sturdy steel build with robotic welding for long-lasting durability
- Internal Charger: 24V/20A included
Specifications
-Model | EB13C-118Li | |
Load Capacity | (lbs) | 2800 |
Max Lifting Height | (in) | 118” |
Load Center Distance | (in) | 20 |
Fork Length | (in) | 45.3 |
Single Fork Width | (in) | 4 |
Fork Adjustment Width | (in) | 8.6-32.1 |
Lowered Fork Height | (in) | 2.56 |
Adjustable Legs | (in) | 35.4-51.2 |
Turning Radius | (in) | 56.1 |
Overall Length | (in) | 73.4 |
Max Overall Width | (in) | 61 |
Extended Mast Height | (in) | 147.6 |
Lowered Mast Height | (in) | 85 |
Battery Voltage | (V/Ah) | 24V/50Ah Lithium |
Internal Charger | (V/A) | 24V/20A |
Lifting Motor | (kW) | 2.2 kW |
Driving Motor | 0.75 kW | |
Service Weight | (lbs) | 1380 |
