Overview

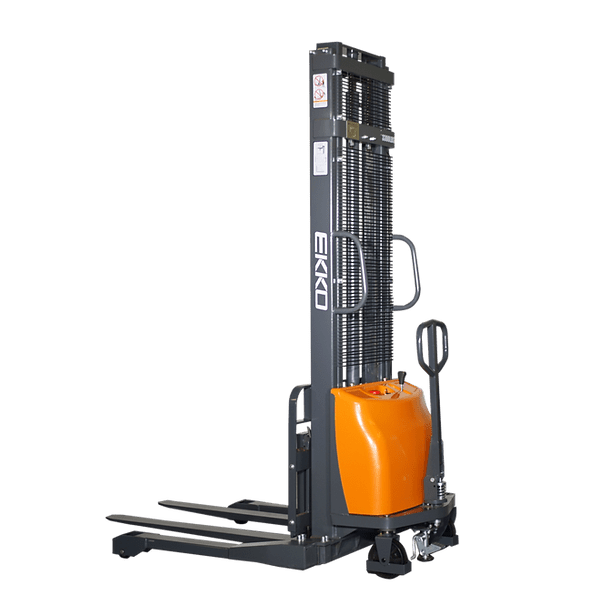

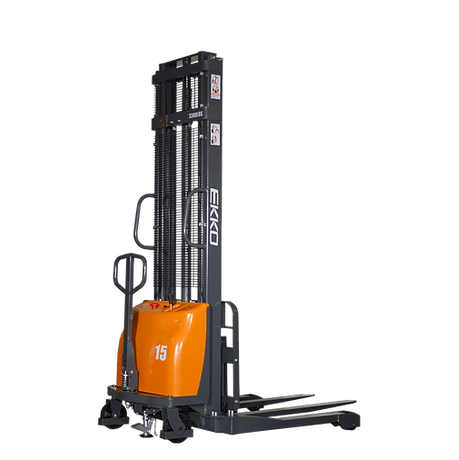

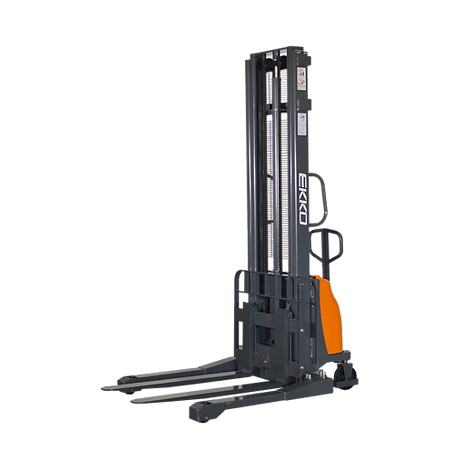

-The EKKO EA15A Semi-Electric Straddle Stacker offers a versatile solution that combines the functionality of a forklift with the convenience of a pallet stacker. Perfect for a wide range of applications, it excels at loading and unloading trucks, stocking in warehouses, and handling materials on manufacturing floors.
Constructed with durable, high-quality steel and advanced components, this stacker is designed to withstand diverse terrain, heavy usage, and impact, ensuring reliable performance for any task.
Key Features
-- Load Capacity: 3300 lbs
- Raised Height: 118" (9.83 ft)
- Adjustable Forks: 8.66-32"
- Adjustable Legs: 35-51"
- Fork Length: 45"
- Lifting Mechanism: Power lifting with manual drive
- Battery: 12V 120Ah included
- Internal Charger: 12V/15A included

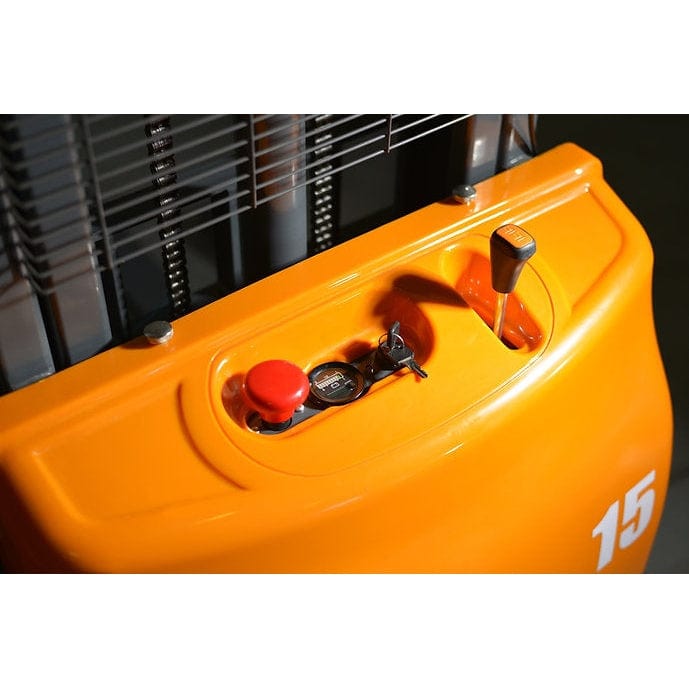

- Ergonomic Handle: Designed for operator comfort
- Construction: Steel with robotic welding for durability
Specifications
-Model | EA15A | |
Load Capacity | (lbs) | 3300 |
Max Lifting Height | (in) | 118 |
Load Center Distance | (in) | 20 |
Fork Length | (in) | 45 |
Single Fork Width | (in) | 4 |
Overall Fork Width | (in) | 8.66-32 |
Lowered Fork Height | (in) | 2.6 |
Adjustable Legs | (in) | 35-51 |
Turning Radius | (in) | 59 |
Overall Length | (in) | 70 |
Max Overall Width | (in) | 59 |
Extended Mast Height | (in) | 147 |
Lowered Mast Height | (in) | 85 |
Battery Voltage | (V/Ah) | 12V/120Ah |
On-Board Charger | (V/A) | 12V/15A |
Lift Motor | (kW) | 2.2 |
Service Weight | (lbs) | 1212 |
