Overview

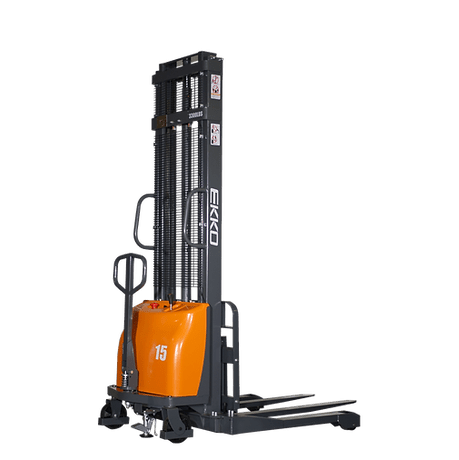

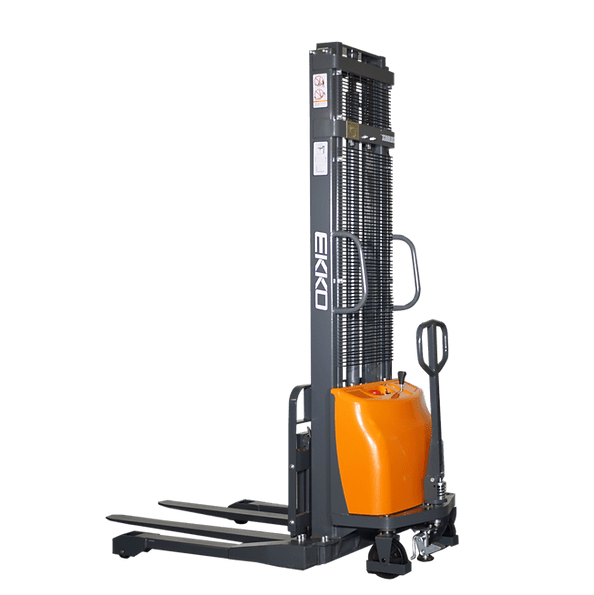

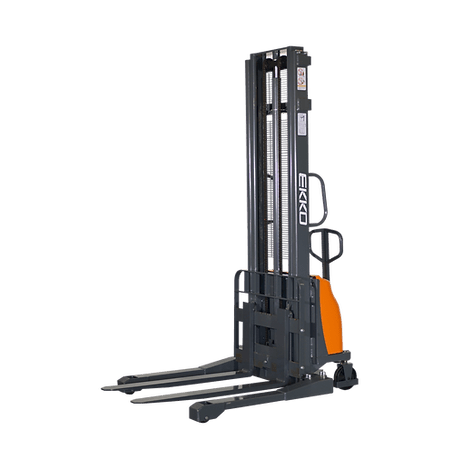

-The EKKO EA15A-118 Semi-Electric Straddle Stacker combines the versatility of a forklift and a pallet stacker, making it a perfect choice for various material handling tasks. Whether you're loading and unloading trucks, working in stockrooms, or handling goods in manufacturing floors and warehouses, this stacker ensures efficiency and reliability.
Key Features
-- Load Capacity: 3,300 lbs
- Maximum Lifting Height: 118" (9.83 ft)
- Adjustable Forks: 8.66-32"
- Adjustable Legs: 35-51"
- Fork Length: 45"
- Power Lifting: Electric lift functionality
- Manual Drive: Easy to maneuver manually
- Battery: 12V 120Ah with Internal Charger (12V/15A)
- Robust Steel Construction: Built to withstand demanding applications

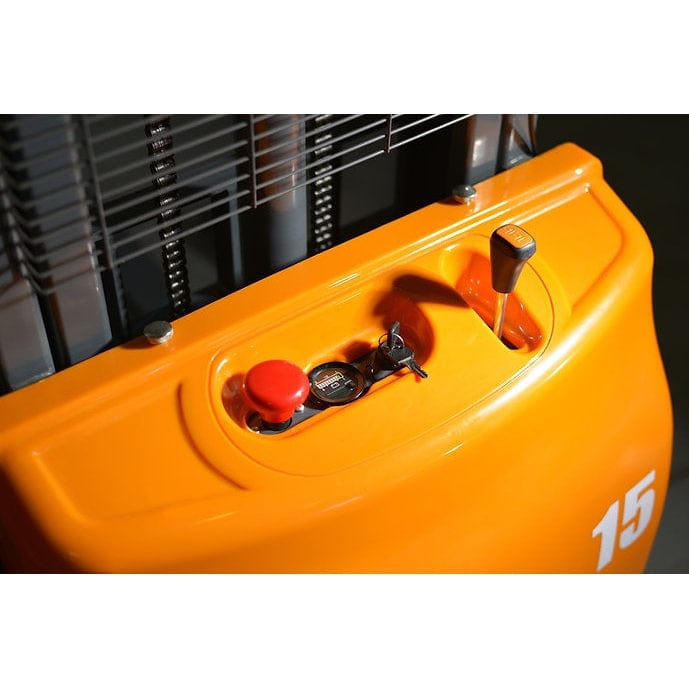

- Ergonomic Handle: Comfortable and user-friendly controls
- Polyurethane Wheels: Durable and smooth operation
- Robotic Welding: Precision-crafted for long-lasting performance
Specifications
-Model: | EA15A-118 |
Load Capacity: | 3,300 lbs |
Maximum Lifting Height: | 118" |
Load Center Distance: | 20" |
Fork Length: | 45" |
Single Fork Width: | 4" |
Fork Adjustment Width: | 8.66-32" |
Lowered Fork Height: | 2.6" |
Adjustable Legs: | 35-51" |
Turning Radius: | 59" |
Overall Length: | 70" |
Overall Width (Max): | 59" |
Extended Mast Height: | 147" |
Lowered Mast Height: | 85" |
Battery Voltage: | 12V/120Ah |
On-Board Charger: | 12V/15A |
Lift Motor: | 2.2 kW |
Service Weight: | 1,212 lbs |
Why Choose the EKKO EA15A-118?
-The EKKO EA15A-118 Semi-Electric Straddle Stacker is engineered for durability, efficiency, and ease of use. With its robust steel construction and ergonomic design, this stacker is a reliable partner for your material handling needs.
