Description

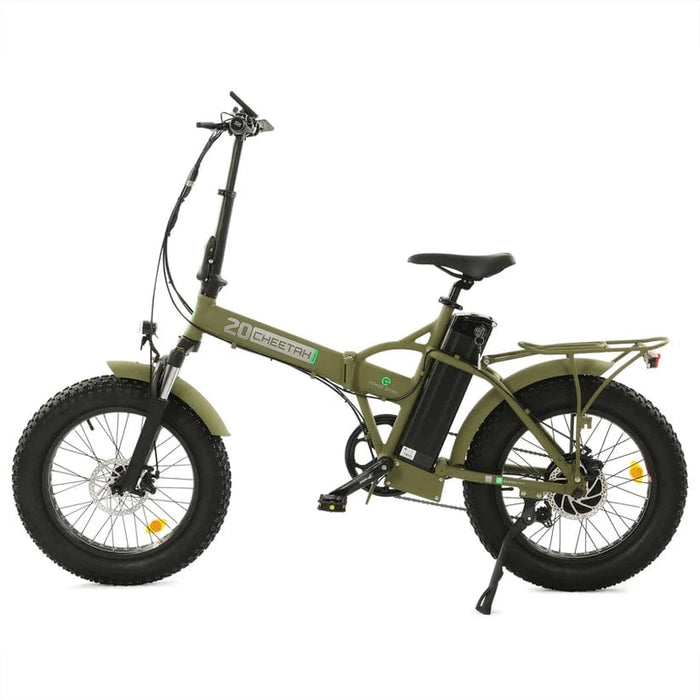

-The Flagship Model Of The FAT 20 Series
To allow users to have a better visual experience, we have adopted a Color LCD screen for the first time, with high resolution and excellent saturation. The upgrading shock-absorbing front fork significantly improves the shock absorption effect and greatly enhances comfort. The large-capacity lithium battery of 48V 15AH is rare in the market, which can save you from the worry of insufficient power when you go out. Besides, we added a rear rack to enhance its practicality.
20'' 4.0'' FatTires
Heavy-duty 20" x 4" fat tires
Ecotric LCD Display
ECOTRIC waterproof Color LCD Display w/ USB interface
Suspension Front Fork
Powerful braking, safe companionship
Rear Rack
More comfortable cushion
SHIMANO7SpeedDerailleur
High quality,Seven-speed transmission
Portable and Folding
Portable and adjustable upper tube, the handlebar stem, even the pedals
Folding Steps
Specifications
MODEL SIZE | 1780*620*1120mm |
---|---|
WEIGHT CAPACITY |
200lbs |
WEIGHT WITH BATTERY |
63lb |
Electrical & Power
BATTERY |
48V 15AH |
---|---|
MOTOR |
Rear Hub 48V 500W |
CHARGING TIME |
5-8 Hours |
DISPLAY |
Ecotric Smart LCD |
SENSOR |
Speed Sensor |
BATTERY LIFE |
400-600 Cycles |
FUNCTIONS | Pedal Assist On-Demand Throttle |
Components
FRONT BRAKE | Mechanical Disc 160mm Rotor |
---|---|
REAR BRAKE | Mechanical Disc 160mm Rotor |
DERAILLEUR | 7Speed SHIMANO |
FRAME | Aluminum Alloy |
TIRES | 204.0' Fat Tires |
FENDERS | Included, Front And Rear |
BRAKE SYSTEM | Left Brake For Rear/Right Brake For Front |
Packing List
- 1 x Ecotric 48V Fat Tire Portable and Folding Electric Bike with color LCD display-Black and Red
- 1 x Lithium-Ion Battery
- 1 x Front Light
- 1 x Kit Box
- 2 x Pedals
- 1 x Front and Rear Fenders
- 1 x Display
- 2 x Keys
- 1 x Rear Rack
- 1 x Tool Kit
- 2 x Reflectors
- 1 x Owners User Manual
