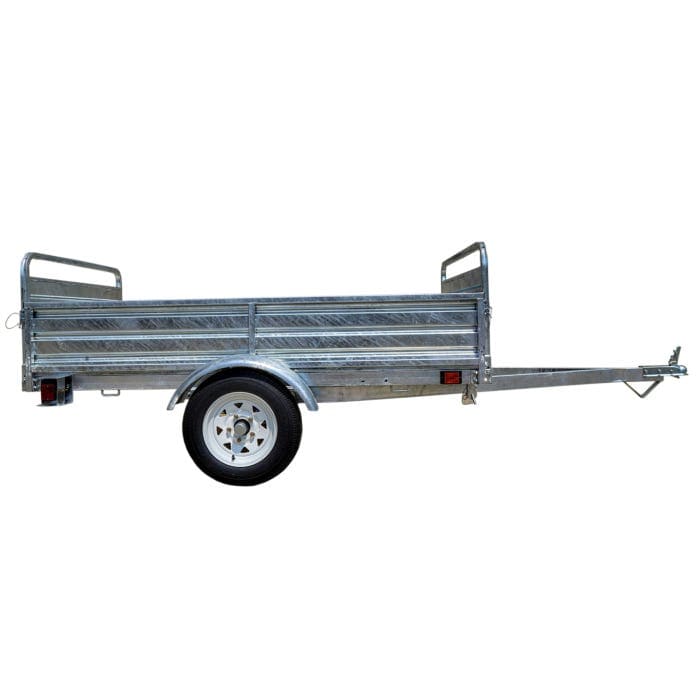

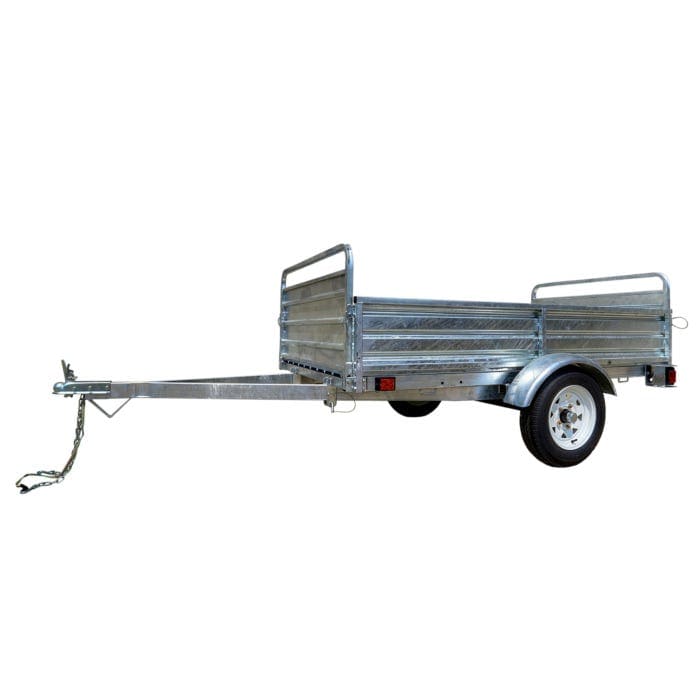

This single axle multi-utility trailer from DK2 is one of the most versatile trailers on the market. Sitting on a solid square tube cambered axle with 12-inch, 6-ply bias tires and a load capacity of 1,639 pounds. When the front and back load-bearing gates are down, the trailer bed extends to nearly 12 feet in length, and the tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and/or interchangeable.
Features
-

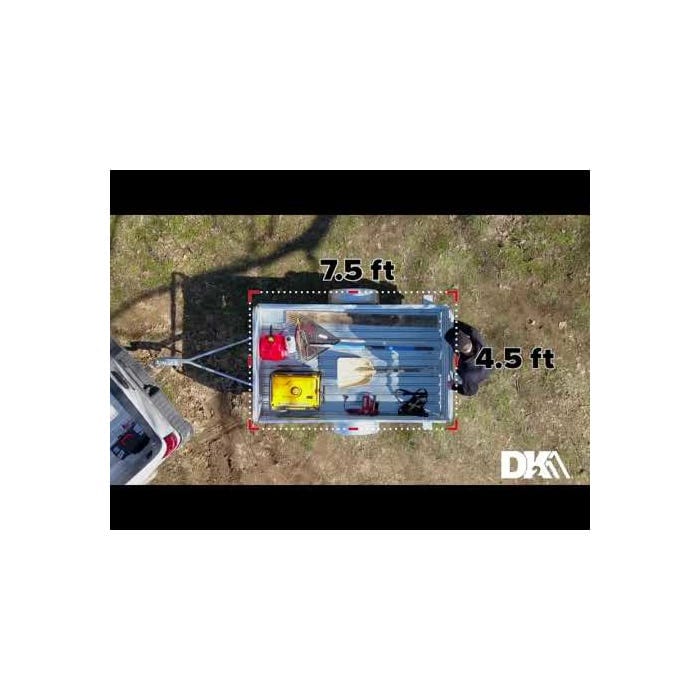

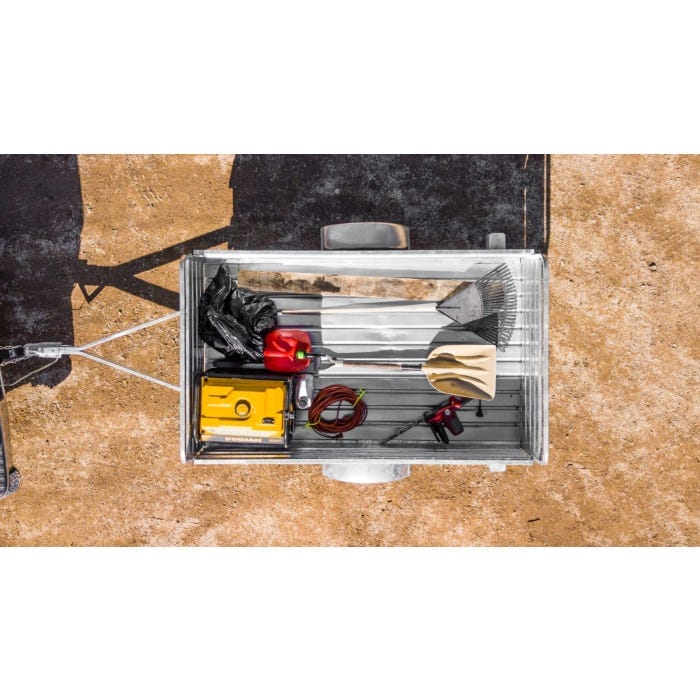

Constructed with fully-welded heavy-duty hot-dipped galvanized tubular steel with a bed size of 4.5 ft. x 7.5 ft. that holds up to 1,639 pounds.
-
Corrugated reinforced steel floor panel with 20" ground clearance.
-

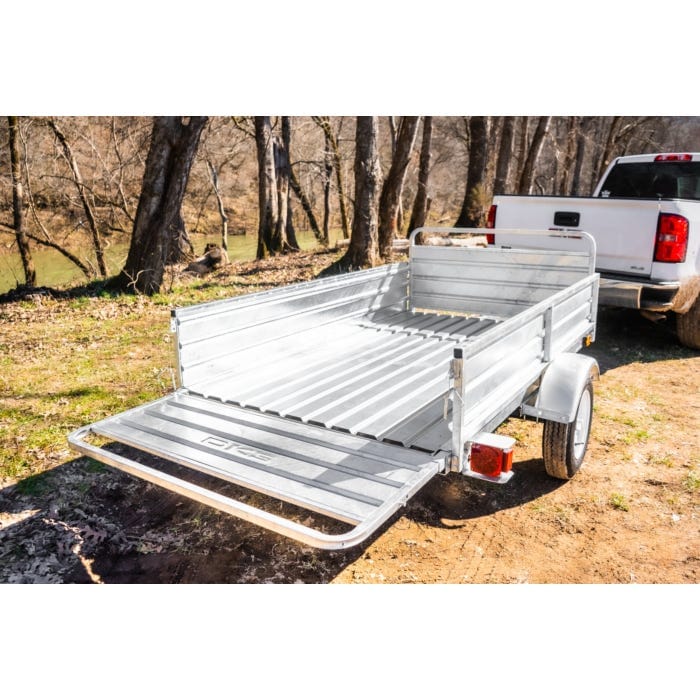

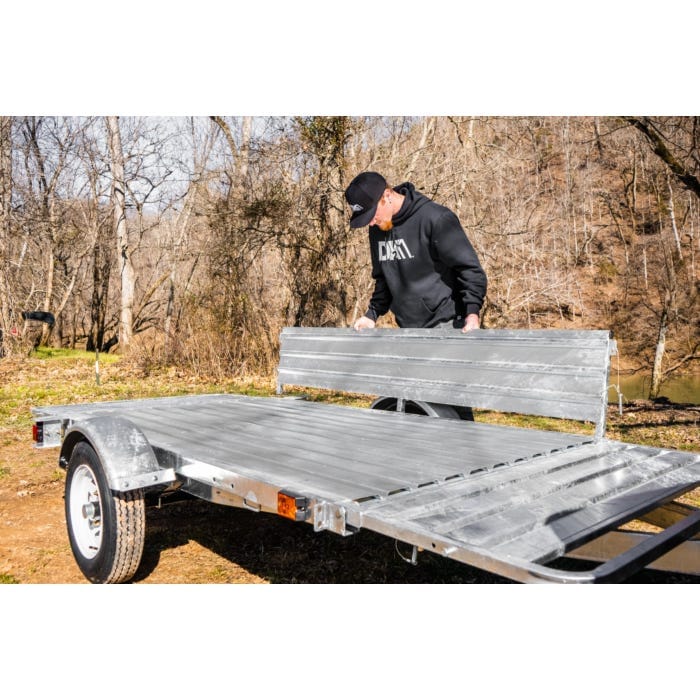

24" load-bearing corrugated steel drop gates that- when lowered- extends the trailer bed to 11.3 ft.
-
Solid square tubular steel cambered axle.
-

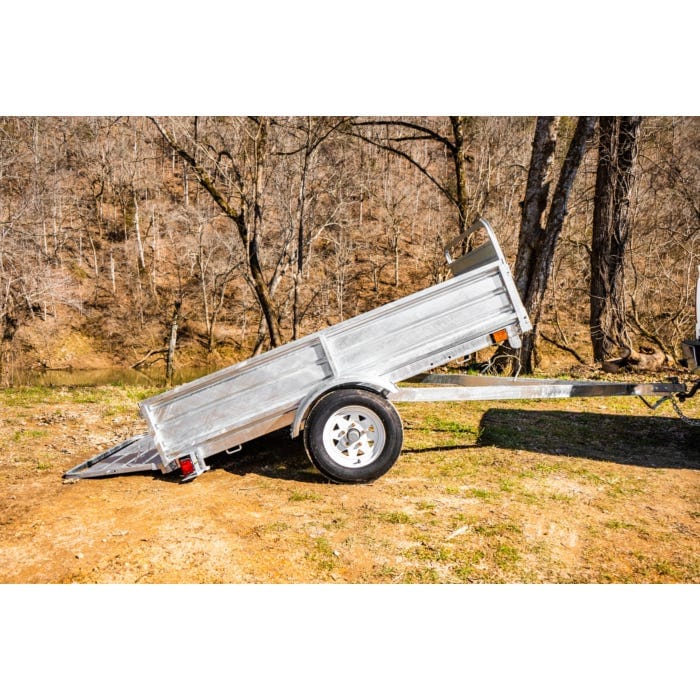

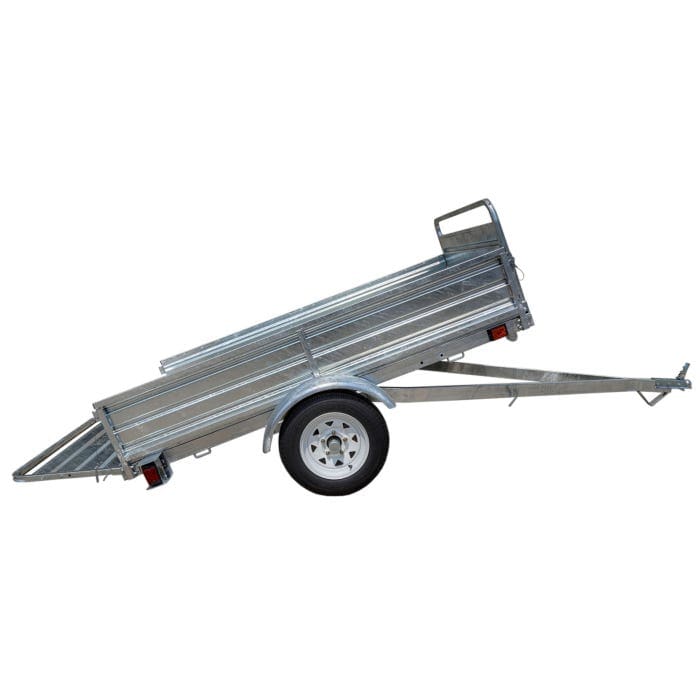

2-position axle-mounted dump bed with quick-release lock pin.
-
D.O.T. 5.30-12 bias tires with a 5 x 4.5" bolt pattern.
-
Quick-connect D.O.T. LED lighting with side markers and heavy-duty taillight protectors.
-

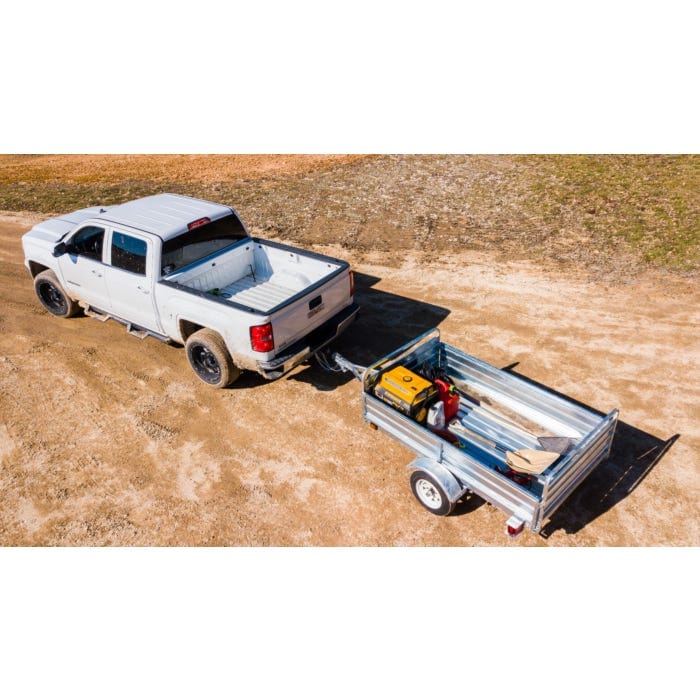

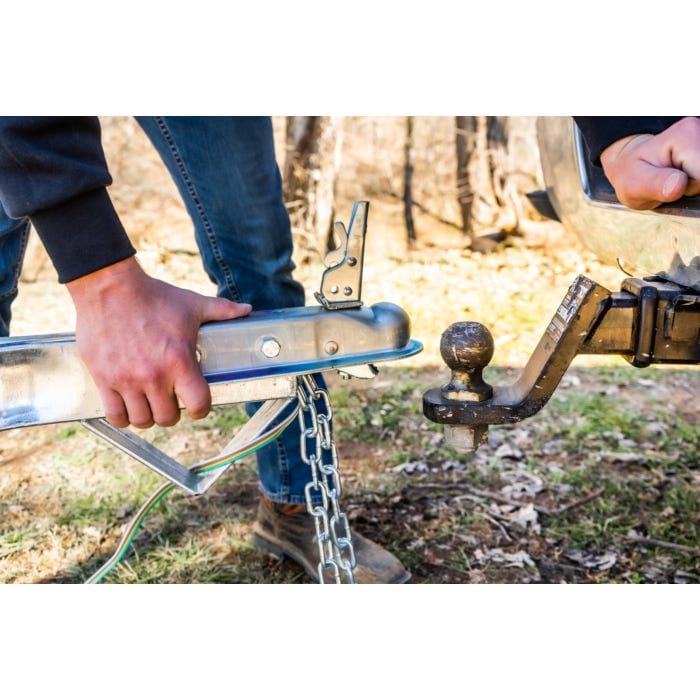

A-frame tow bar with 2" ball coupler and a hitch height of 16".
- Includes 1-year DK2 limited warranty and all necessary paperwork for registering with local DMV.
Specifications
-
Manufacturer: DK2
-
UPC: 826518004848
-
Material: Steel
- Material Finish: Hot-Dip Galvanized
- Color: Silver
- Wheels: D.O.T. 5.30-12 bias
- Coupler: 2 in (5.08 cm) ball
- Payload Capacity: 1,639 lb (743.4 kg)
-
Cross-Border Shipping: No
- GVWR: 2,073 lb (940.3 kg)
- Bed Dimensions (LXW): 88 in x 52 in (223.5 cm x 132.1 cm)
- Side Panels/Rails: Solid corrugated steel side panels
- Vehicle-Facing Gate Height: 24 in (61 cm) load-bearing corrugated reinforced steel
- Rear Gate Height: 24 in (61 cm) load-bearing corrugated reinforced steel
- Floor Height: 20 in (50.8 cm)
- Hitch Height: 16 in (40.6 cm)
- Flooring: Corrugated reinforced steel
- Trailer Dump Mechanism: 2-position, axle-mounted with quick-release lock pin
- Lighting: Pre-wired, quick-connect D.O.T. LED
- Assembled Dimensions (LXWXH): 177 in x 65 in x 36 in (449.6 cm x 165.1 cm x 91.4 cm)
- Assembled Weight: 451 lb (204.6 kg)
- Shipping Dimensions (LXWXH): 89 in x 55 in x 9 in (226.1 cm x 139.7 cm x 22.9 cm)
- Warranty: 1-year limited
