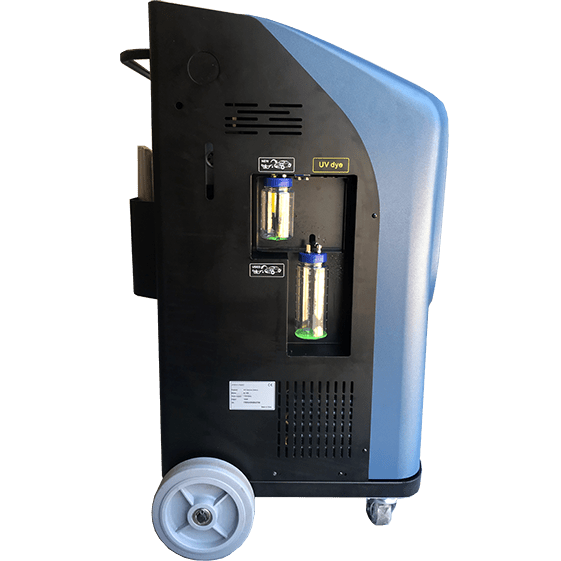

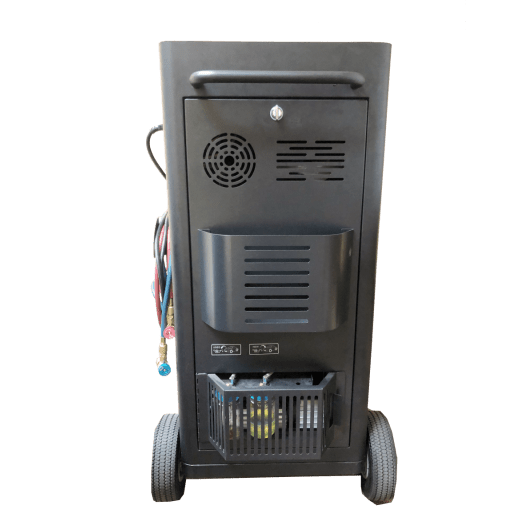

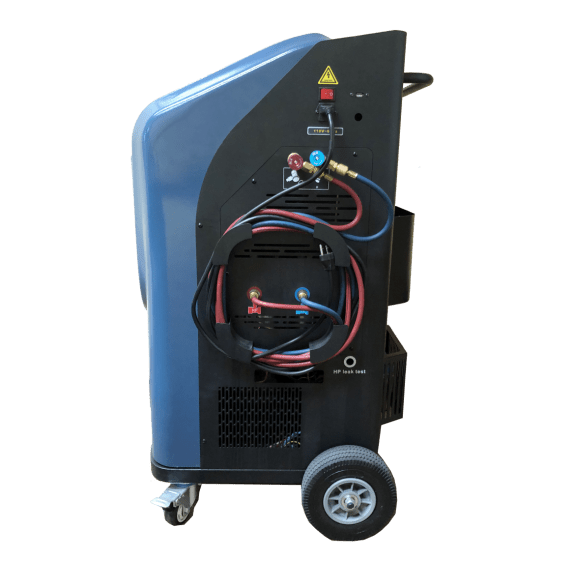

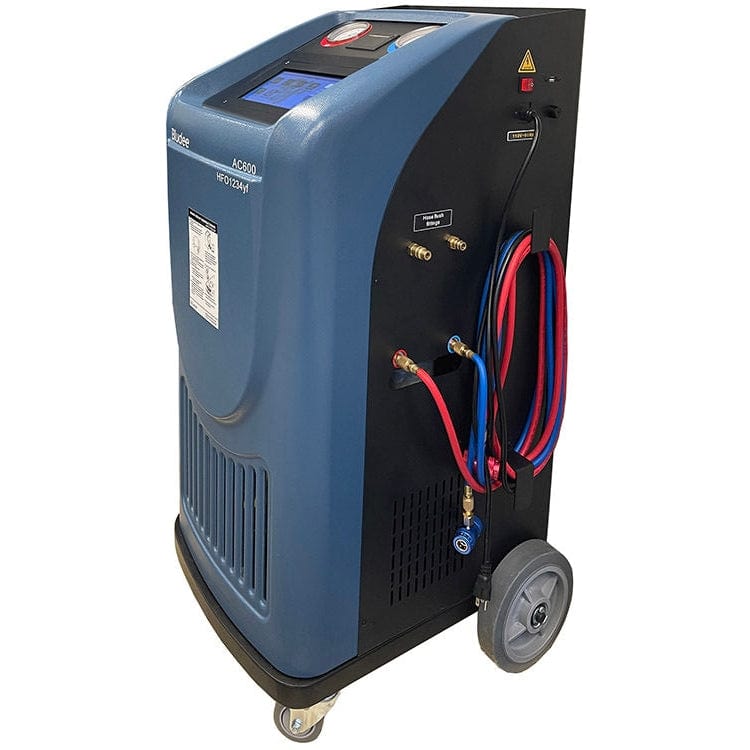

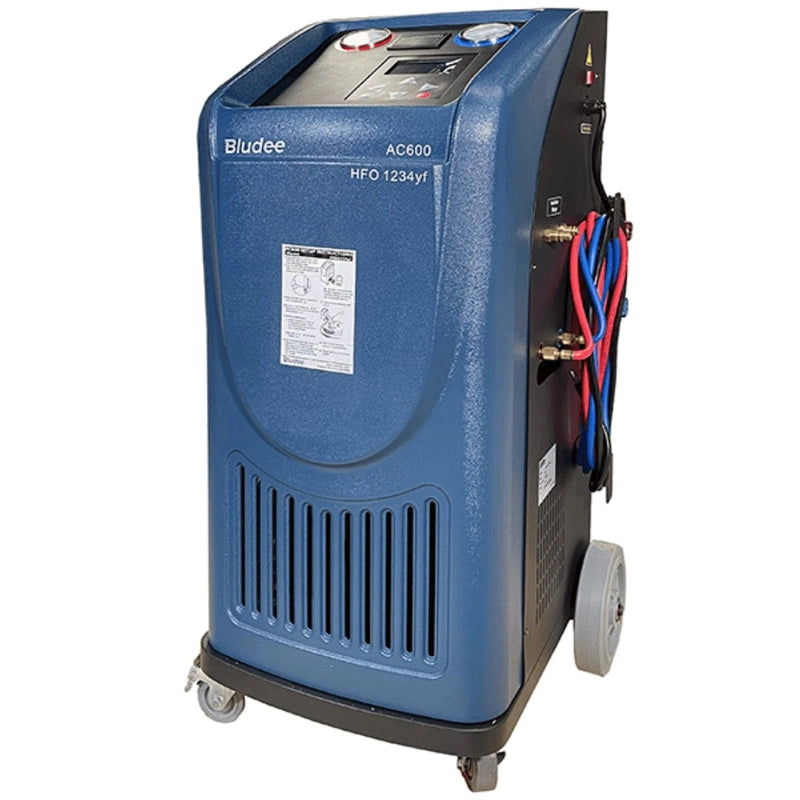

The Bludee AC600 Auto Recovery Machine for 1234yf
-The model AC600 features 95% recovery efficiency for standard and hybrid vehicles and fully automatic function or manual mode.
The AC600 machine recovers, recycles, evacuates, leak-tests, and recharges 1234yf. It has automatic refrigerant refill and oil drain/inject putting A/C lubricant back into the system. AC600 also has a built-in thermal printer and a capacity database that is available for all passenger vehicles.
Features
-- Automatic recovery/recycling/recharge, walk away and return when complete

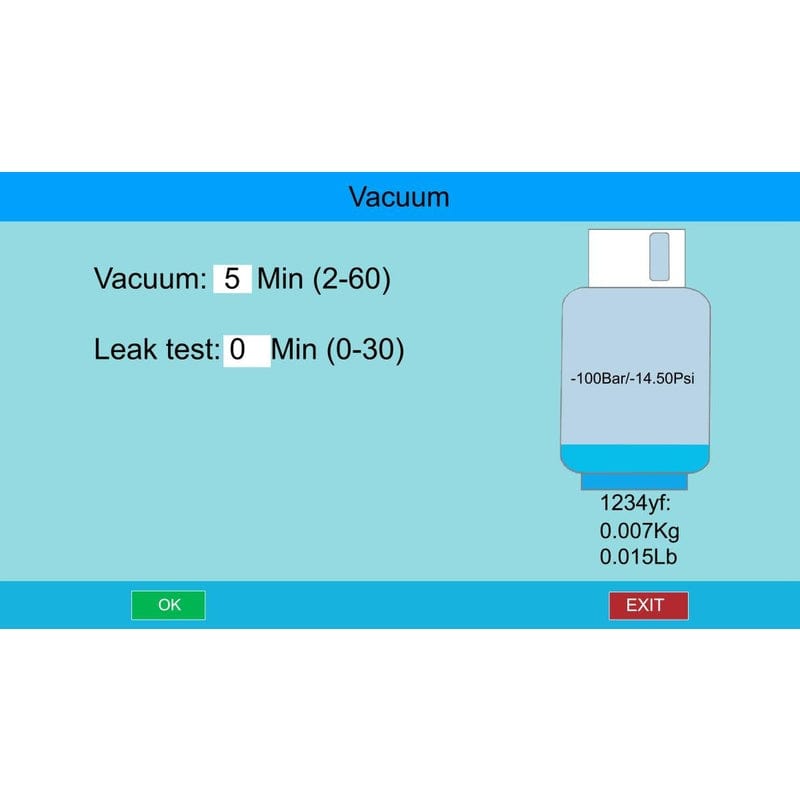

- Automatic vacuum helps get to the necessary vacuum level in any condition quickly
- Automatic air purge removes the potential of air accumulating in the internal tank
- Comprehensive A/C capacity database

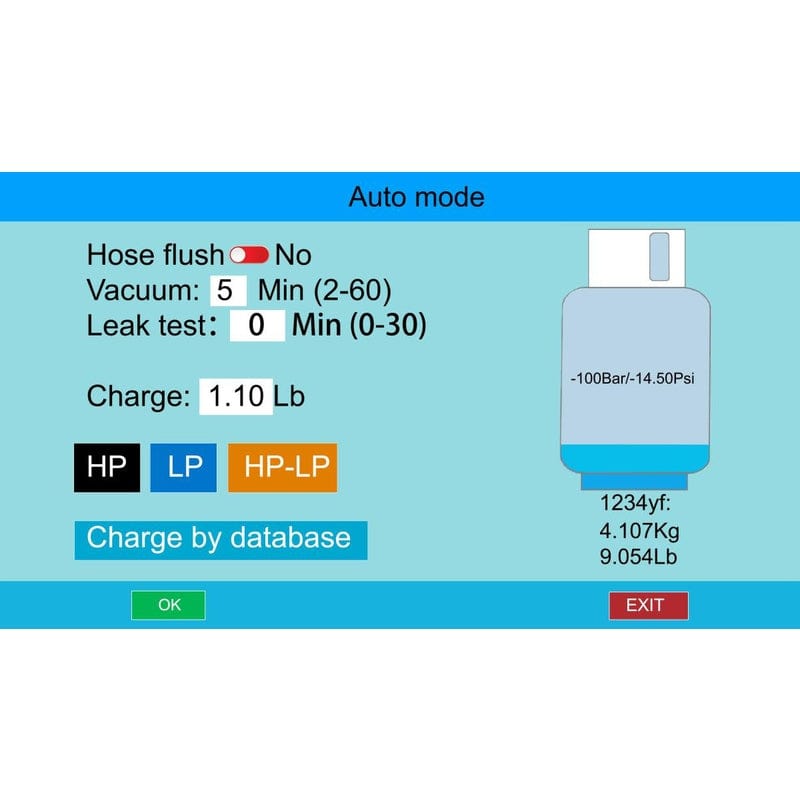

- Support Auto Mode: One step to do automatic recovery, recycling, vacuum and recharge

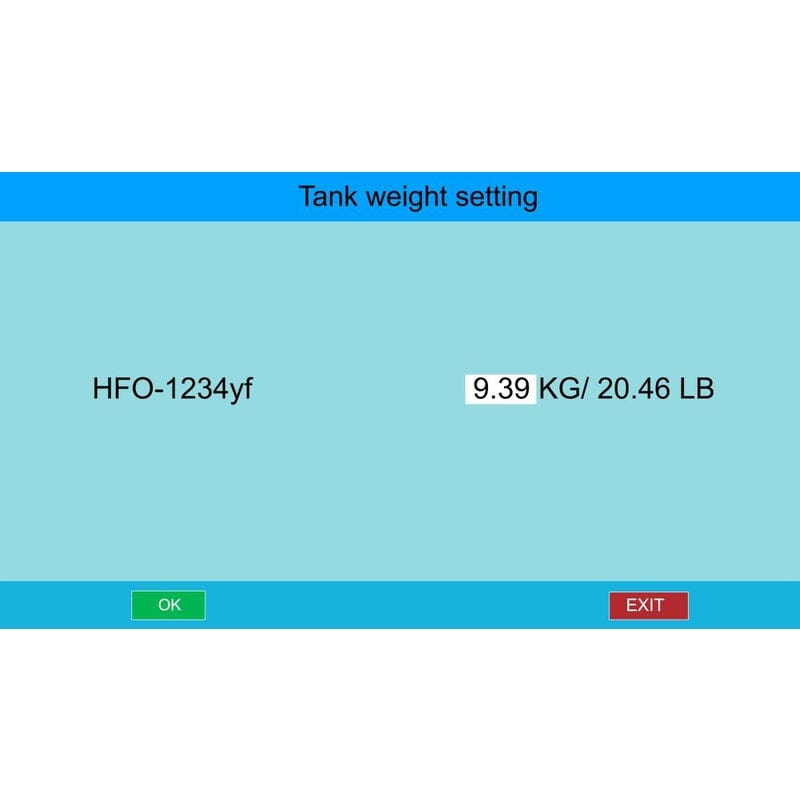

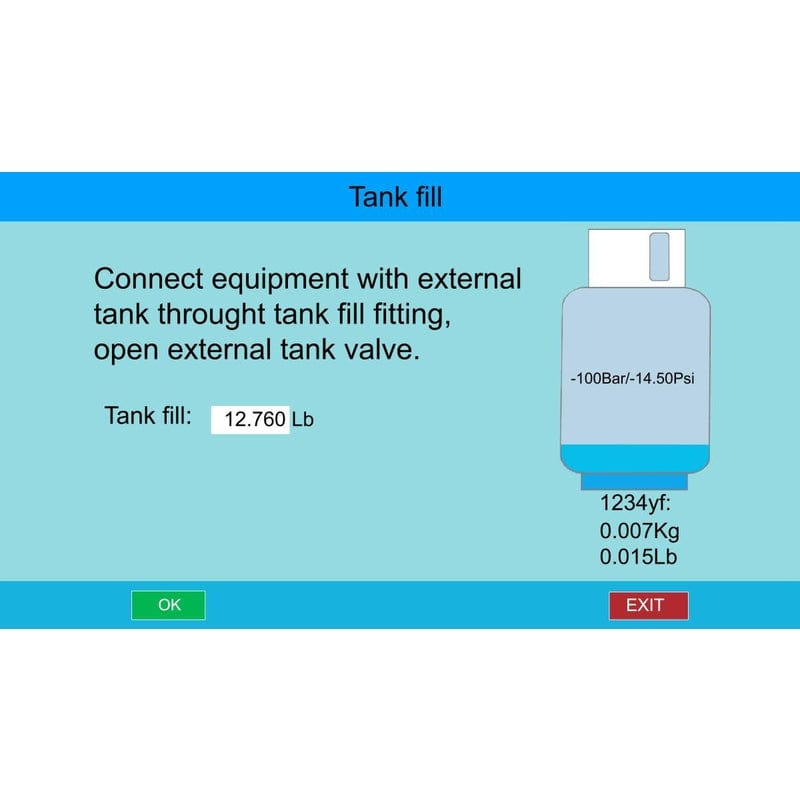

- Tank filling with manual or pre-set value options
- Onboard electronic scales
- Built-in thermal printer
- Tank installed internally
- Vacuum leak test to identify gross leaks in a system
Specifications
--
Input power: AC110V 60Hz.
-
Compressor: 3/8 HP.
-
Vacuum pump capacity: 16Gal/min.
-
Recovery rate: 99% to medium vacuum.
-
Vapor state refrigerant recovery speed: 0.55 lbs/Min.
-
Gas cylinder volume: 22LBS
-
Drying filter: 20oz
-
Load cell accuracy(oil bottle): +_5g
-
Load cell accuracy(gas cylinder): +_10g
-
New and old oil bottle capacity: 8.9/13.5oz Max working pressure 290PSI
-
Color screen: 4.3inch 480RGB*272Dots.
-
Dimension: 560*625*1048mm.
- One year warranty, two years part and three years compressor
Functions
-Main functions

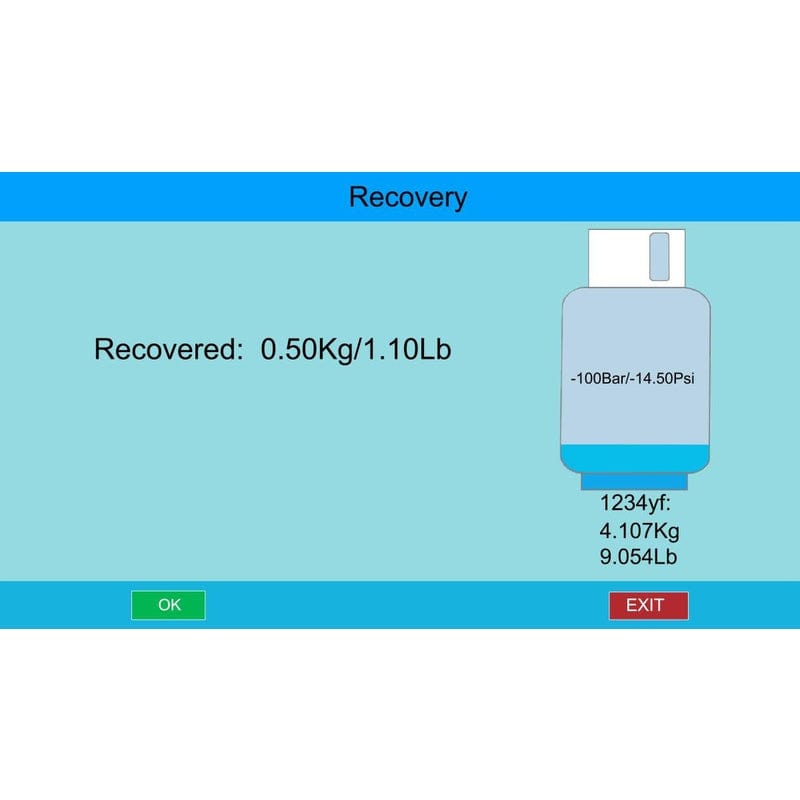

- Recovering/Recycling
- Discharging used oil
- Vacuum
- Refilling new oil

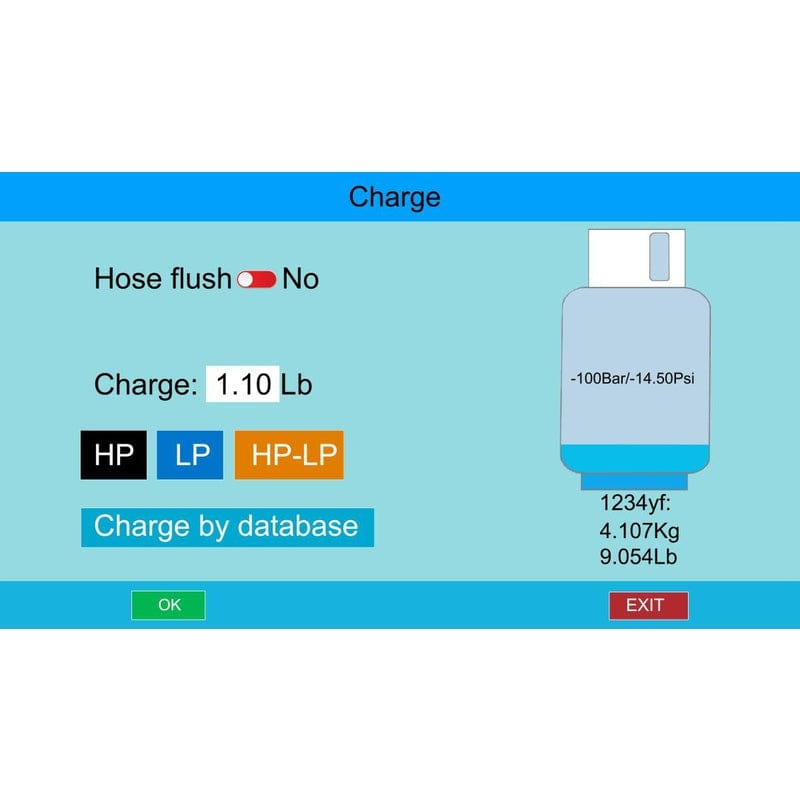

- Recharging
- Full Automatic mode
- Vacuum leak test (optional)
Auxiliary functions
- Vacuum system piping
- Multiple alarms
- Maintenance procedures
- Part inspections
- Calibration of load cell
- Parameters setting
- Gas cylinder heating
- Incompressible gases discharging
