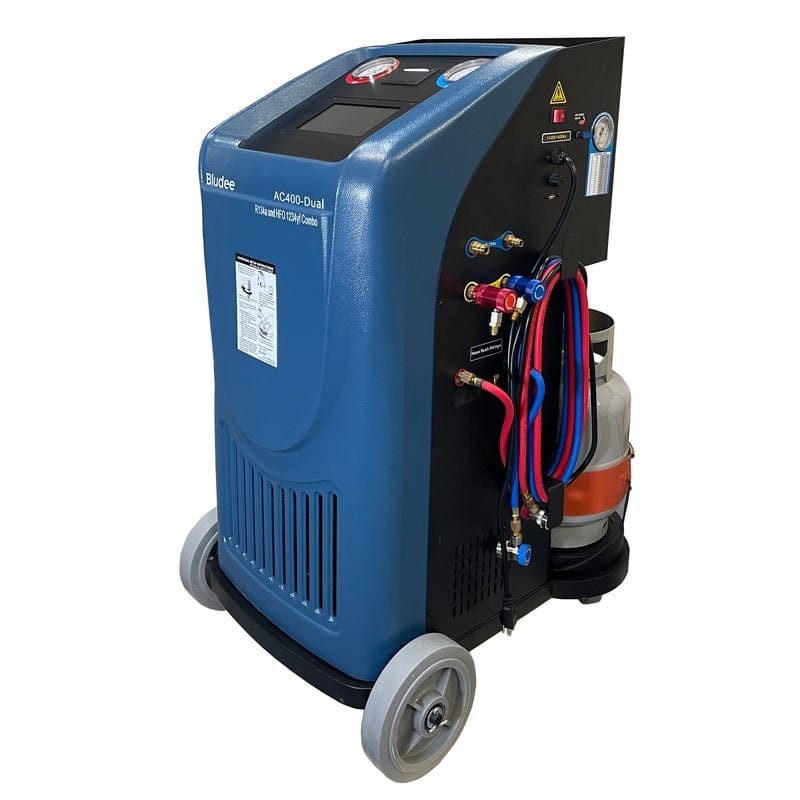

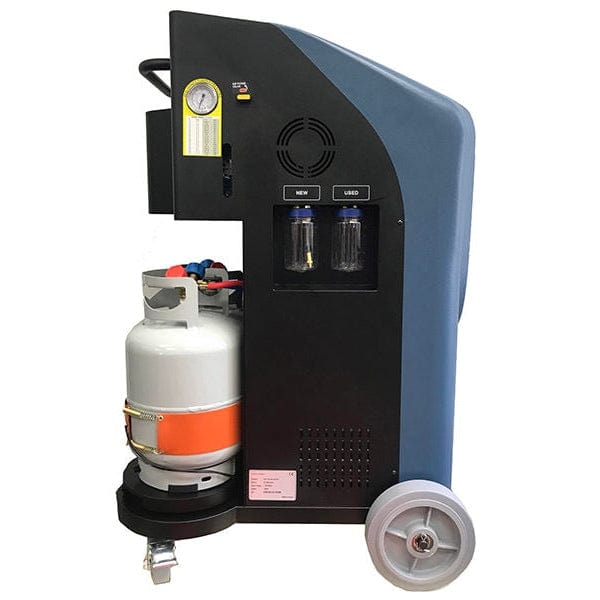

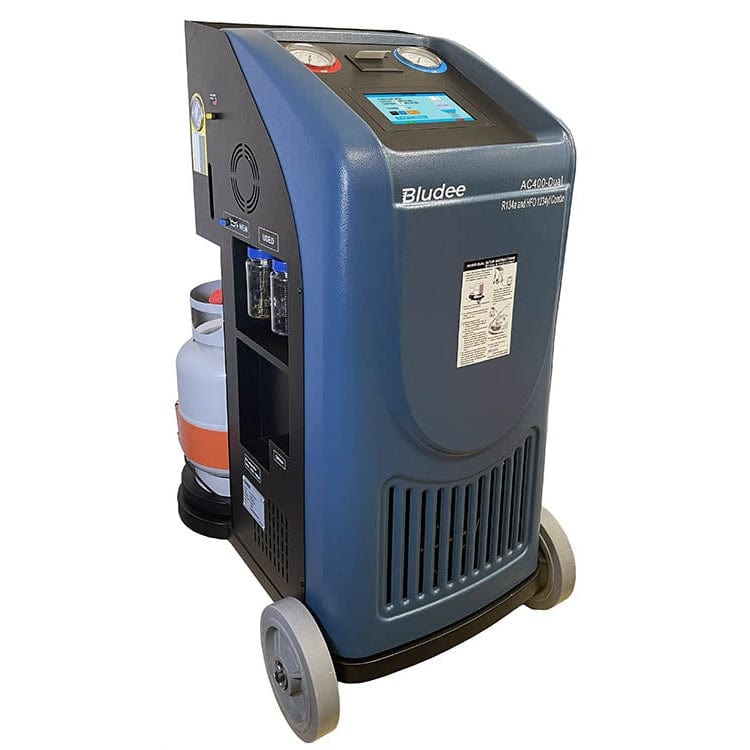

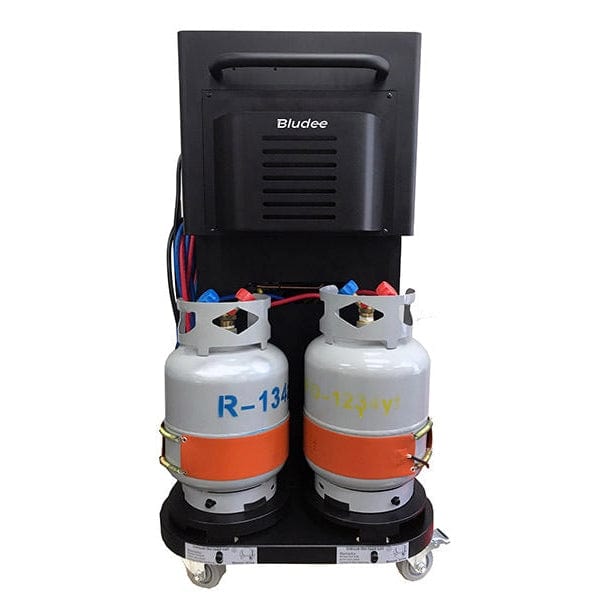

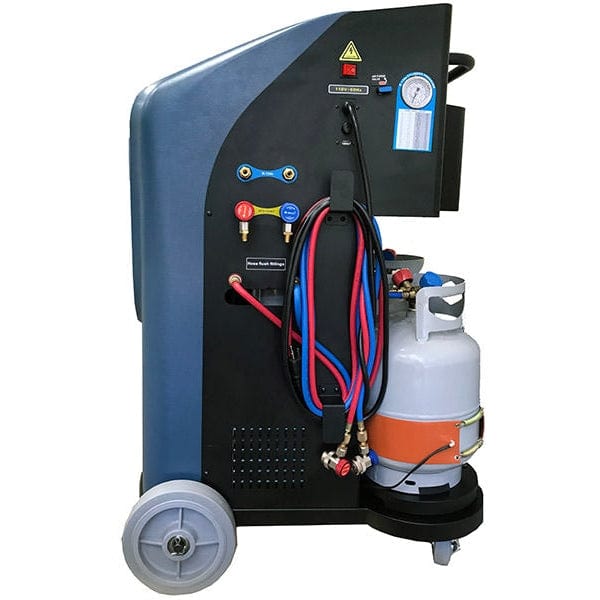

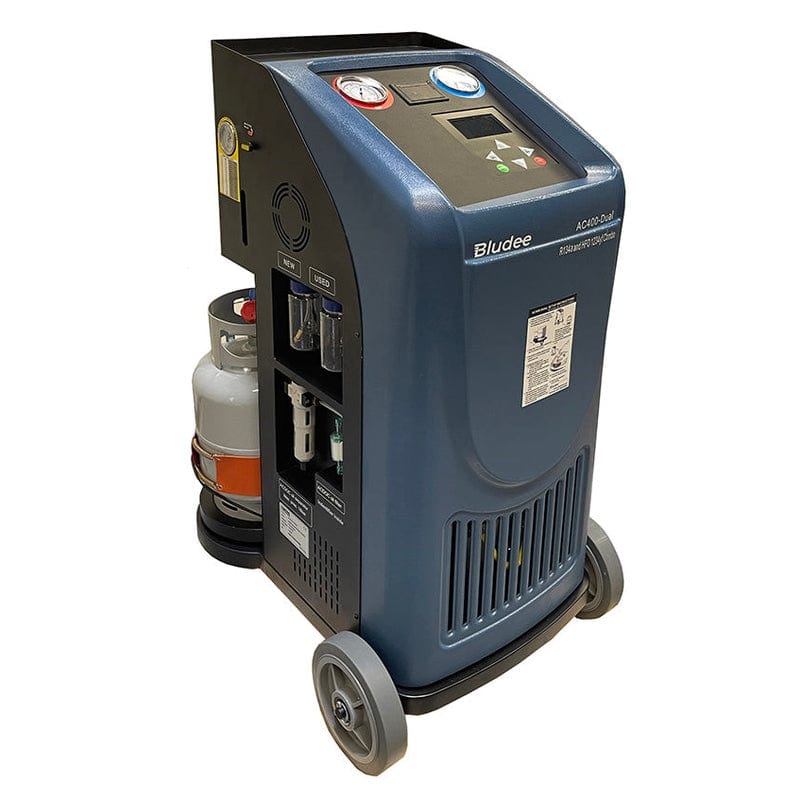

The Bludee AC400D AC Dual Machine
The model AC400D dual features 95% recovery efficiency for standard and hybrid vehicles and fully automatic function or manual mode.
The AC400D & AC400Di dual machine recovers, recycles, evacuates, and recharges R-134a and HFO 1234yf. It has automatic refrigerant refill and oil drain/inject – putting A/C lubricant back into the system. AC400D also has a built-in capacity database for all passenger vehicles. One machine will handle two refrigerants. It can quickly switch from one refrigerant to another.
Features
- Automatic recovery/recycling/recharge, walk away and return when complete
- Automatic discharging used oil/oil drain.
- Automatic vacuum helps get to the necessary vacuum level in any condition quickly
- Automatic new oil injection shows how much oil was removed from the system during service

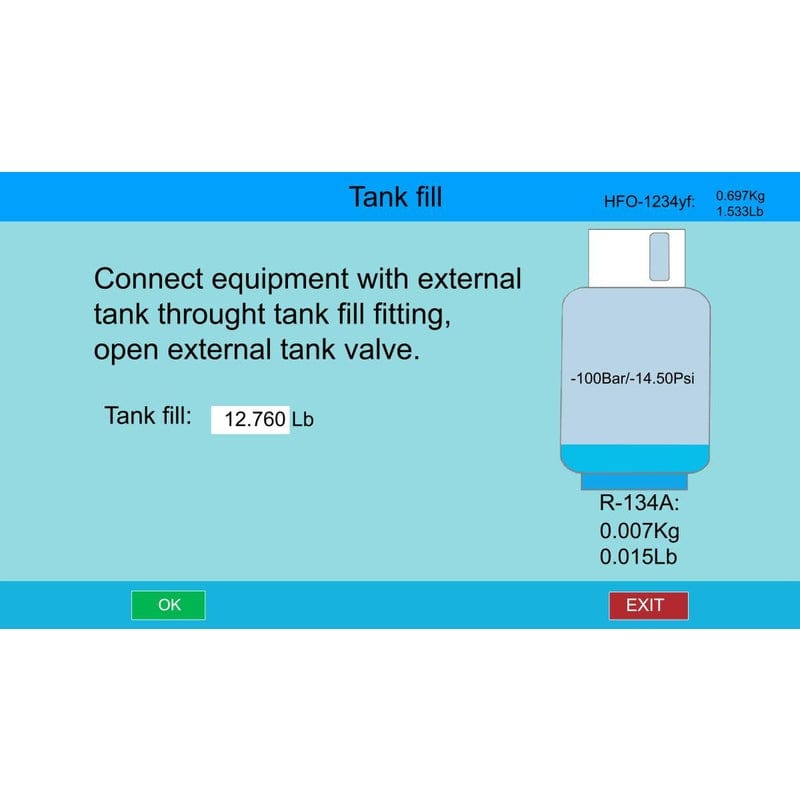

- Automatic internal tank refill. No stopping to fill the internal tank during service
- Comprehensive A/C capacity database

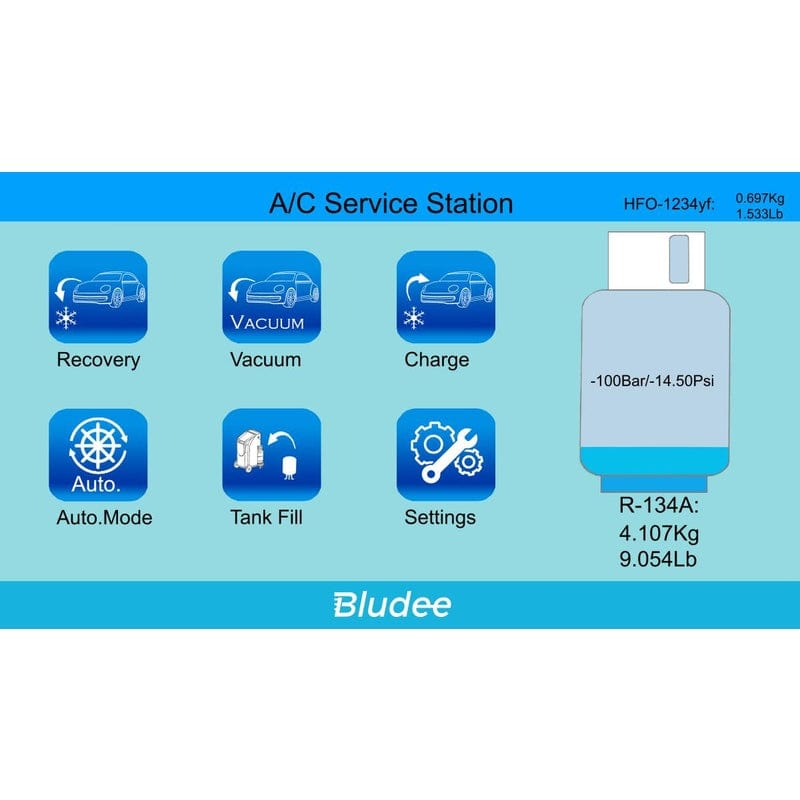

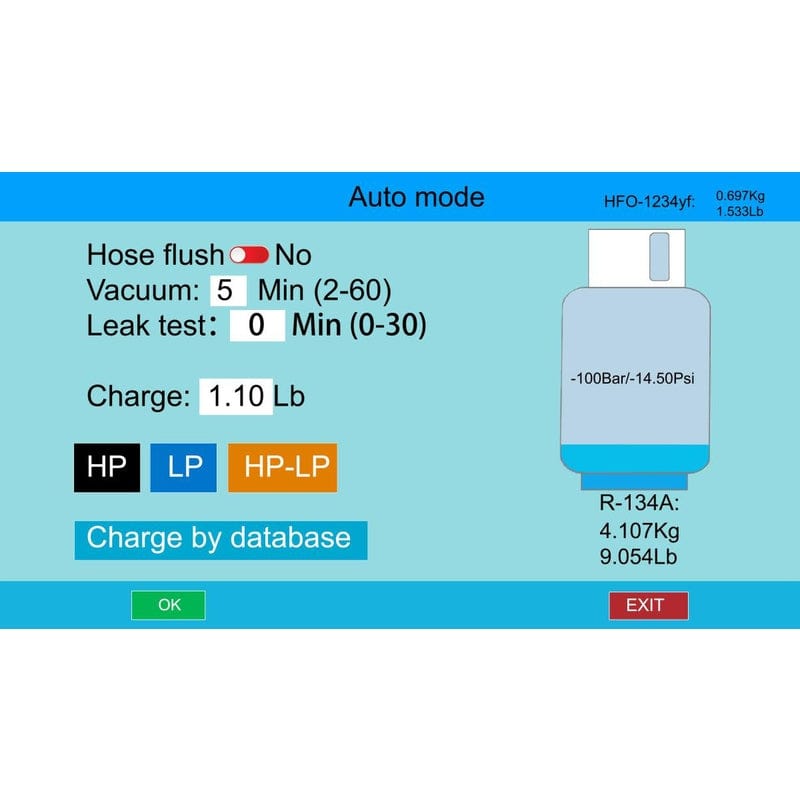

- Support Auto Mode: One step to do automatic recovery, recycling, vacuum and recharge
- Tank filling with manual or pre-set value options
- Onboard electronic scales
- Built-in thermal printer

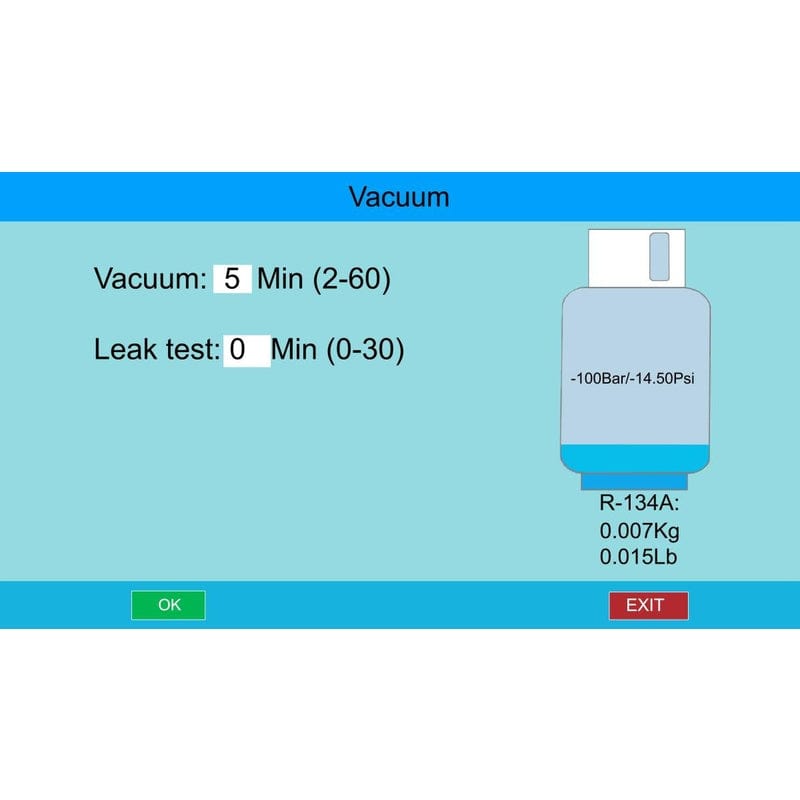

- Vacuum leak test to identify gross leaks in a system
Specifications
-
Input power: AC110V 60Hz.
-
Compressor: 3/8 HP.
-
Vacuum pump capacity: 16Gal/min.
-
Recovery rate: 99% to medium vacuum.
-
Vapor state refrigerant recovery speed: 0.55 lbs/Min.
-
Gas cylinder volume: 22LBS
-
Drying filter: 20oz
-
Load cell accuracy(oil bottle): +_5g
-
Load cell accuracy(gas cylinder): +_10g
-
New and old oil bottle capacity: 8.9/13.5oz Max working pressure 290PSI
-
Color screen: 4.3inch 480RGB*272Dots.
-
Dimension: Packaging in crate 710*660*1190mm (28”x26”x47”); Unpacked machine 610*595*1075mm (24”x23”x46”)
- Shipping Weight: Gross in crate 269LBS
- One year labor warranty, two years part and three years compressor
Functions
Main functions

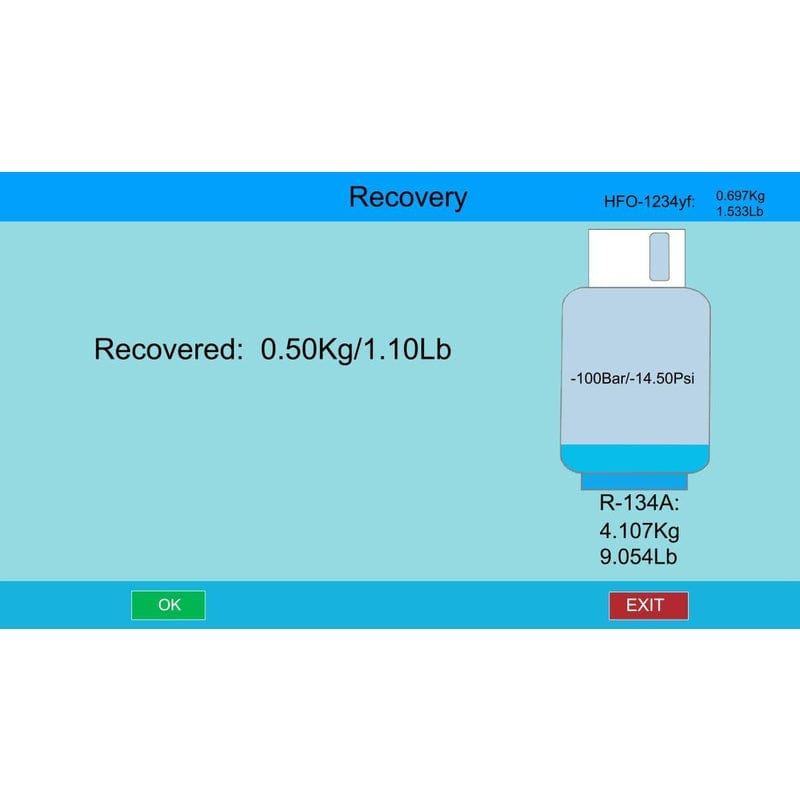

- Recovering/Recycling
- Discharging used oil
- Vacuum
- Refilling new oil

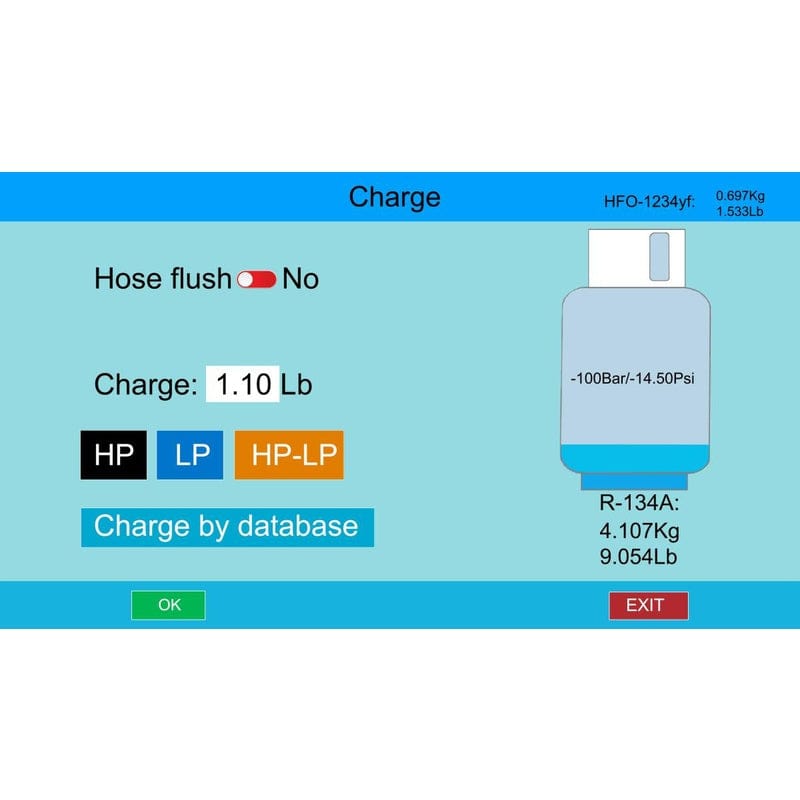

- Recharging
- Full Automatic mode
- Vacuum leak test (optional)
Auxiliary functions
- Vacuum system piping
- Multiple alarms
- Maintenance procedures
- Part inspections
- Calibration of load cell

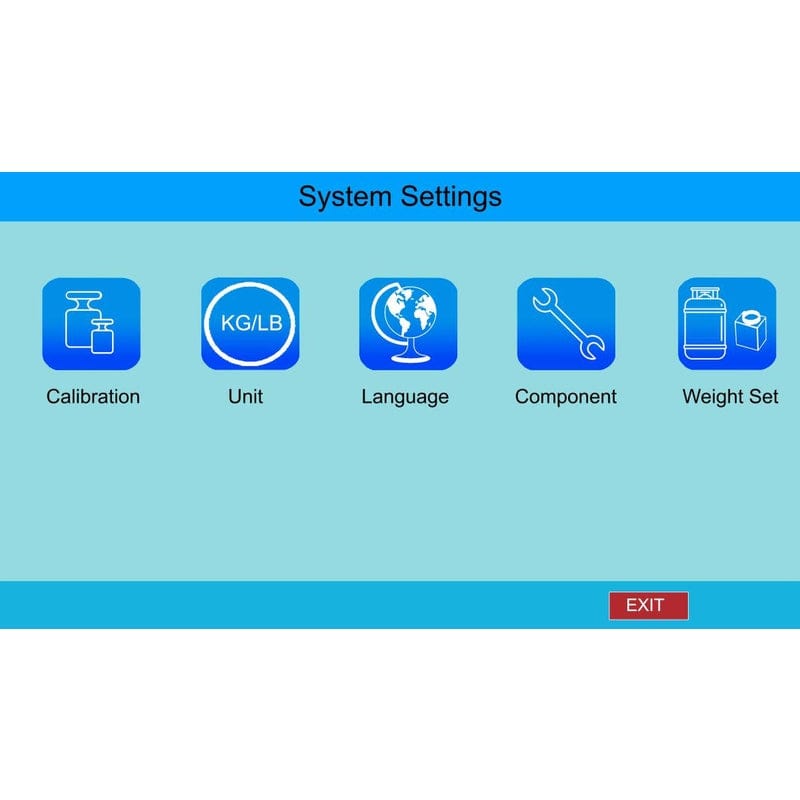

- Parameters setting
- Gas cylinder heating
- Incompressible gases discharging
