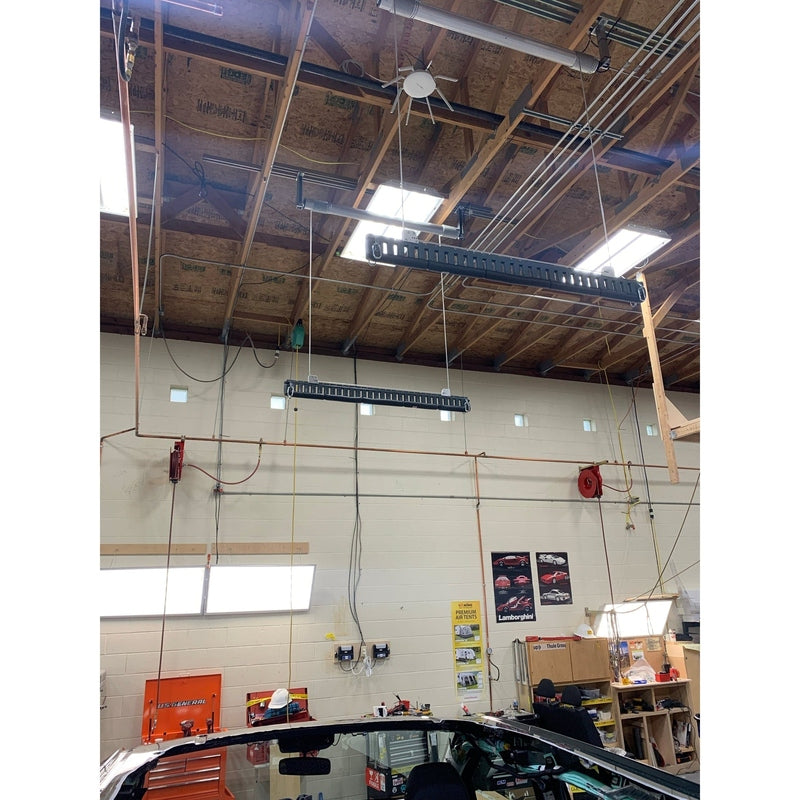

Auxx-One 400 lbs Lift for Garage - Bike, Kayak, Jeep-Top, Canoe, and More

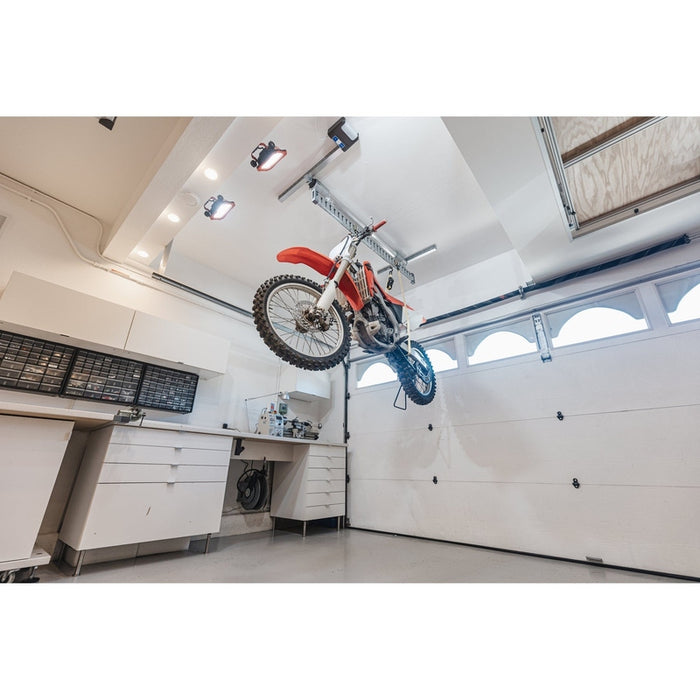

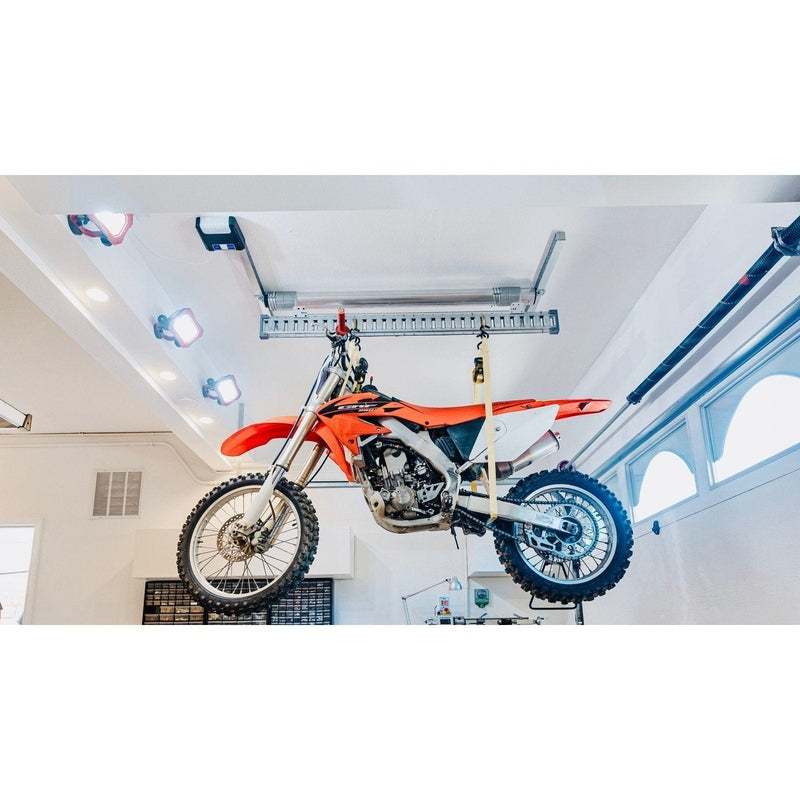

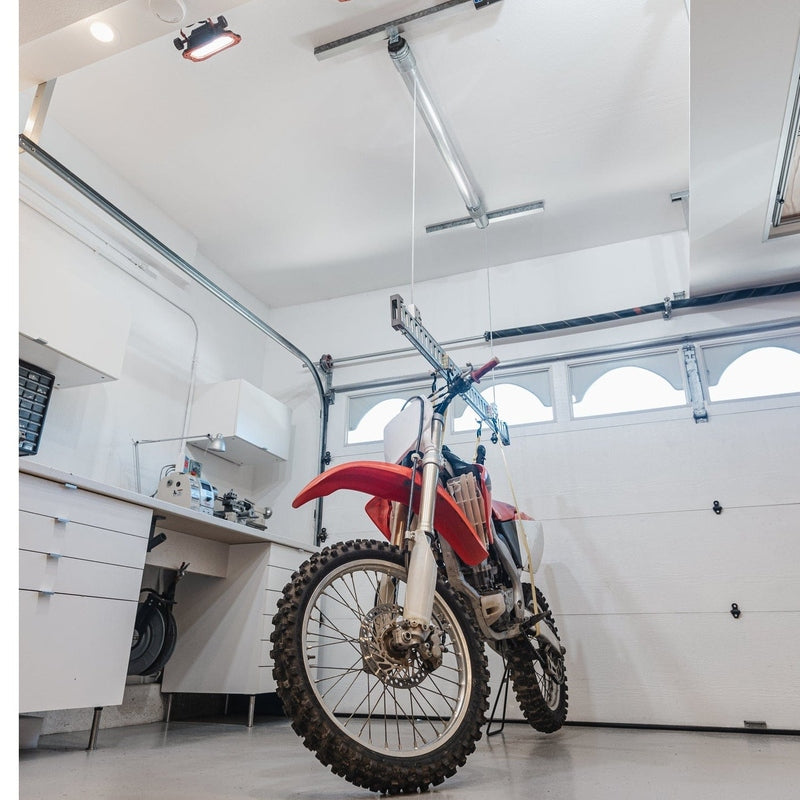

Our single motor lifter is the ideal storage solution for a wide variety of heavy, bulky items like Truck Tops, Jeep Tops, Rooftop Tents, Canoes, Kayaks, Fifth Wheel Hitch, Bikes, and many more. Thanks to our powerful motor with 600 lbs lifting capacity. All controlled via our wireless remote control.

• No heavy lifting: Eliminate the safety hazard of reaching up to grab heavy items with our heavy duty garage storage system. Finally your bulkiest items can vanish from your garage floor and safely stored overhead on your ceiling.

• Wireless Remote-Control: Equipped with an easy to use remote control allowing you to lower/raise your items. Programmable stopping points allow you to set high and low point parameters preventing your items hitting the ceiling or floor.

• Safety: The robust lifter motor comes with a wide variety of safety features such as preventing you from lifting items above capacity limits. The dual aircraft cables are spaced further apart to ensure your items wont spin or twist while suspended.

• Customizable: Accessories like our adjustable straps, carabiners, hooks, and ext. frames keep even the bulkiest item snugly secured and its center of gravity balanced.

Dimensions

Highlights

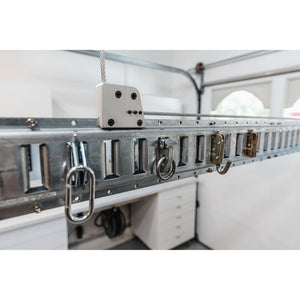

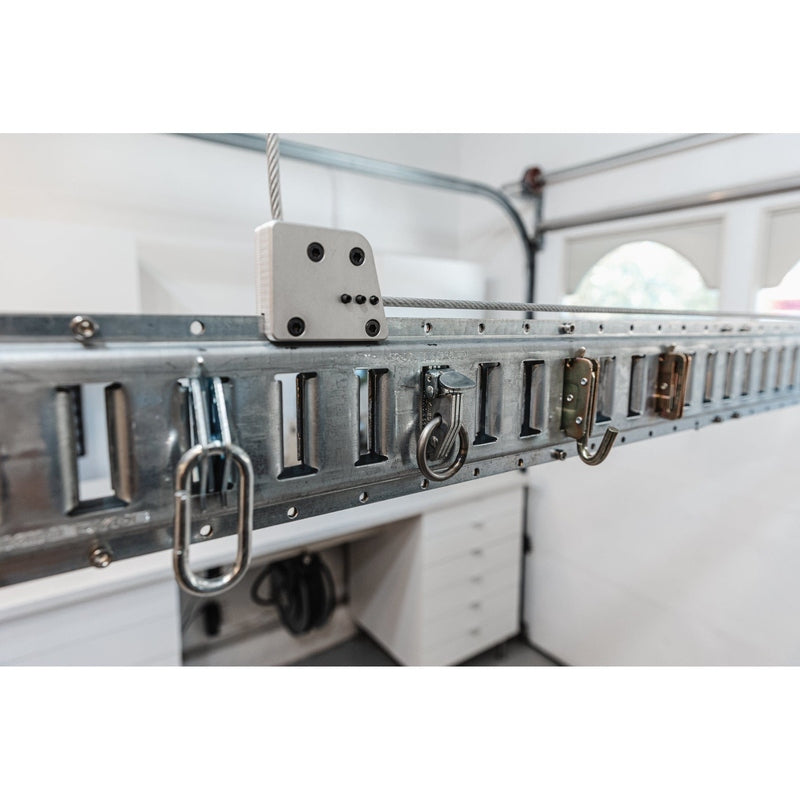

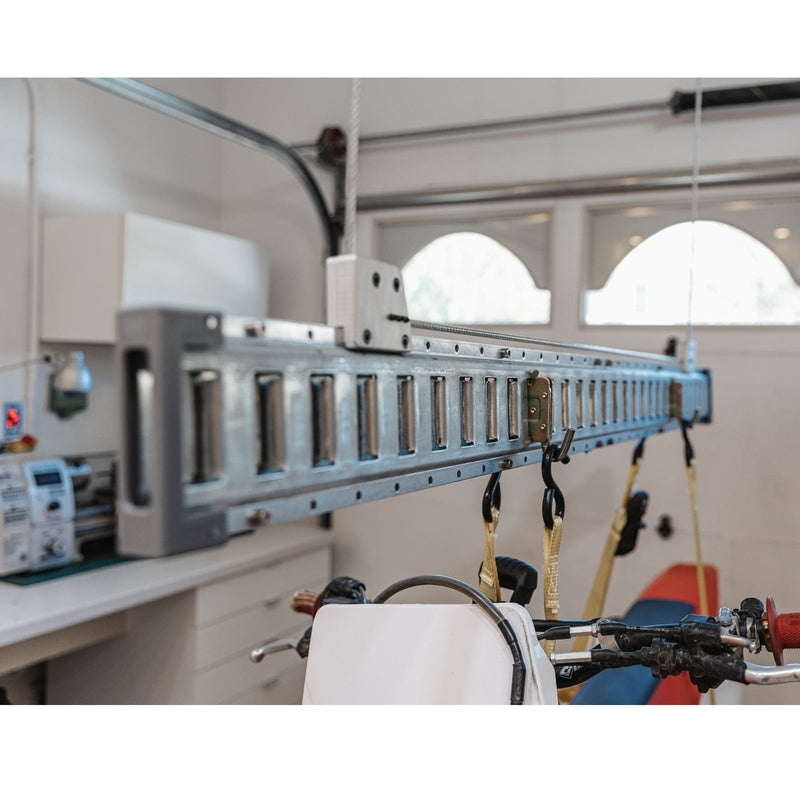

The multi-purpose E-Beam lays the groundwork for your lifting needs. It is made from industrial grade steel that has been galvanized for Corrosion and scratch resistant. Similar tracks have been used in the trucking world to preventing goods from shifting or tipping.

We offer multiple anchor points and other accessories to keep you and your stored items safe.

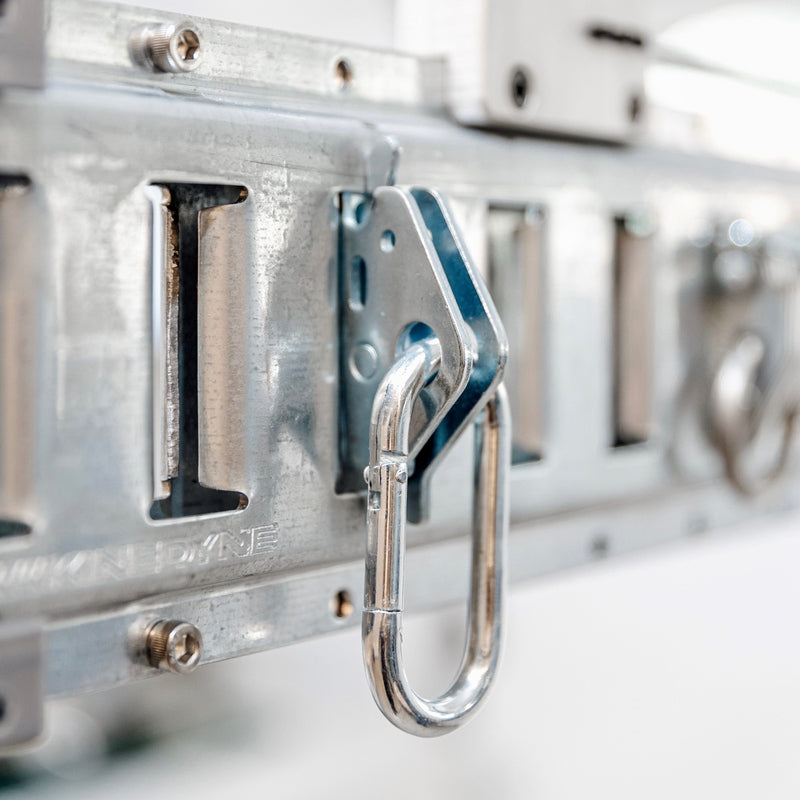

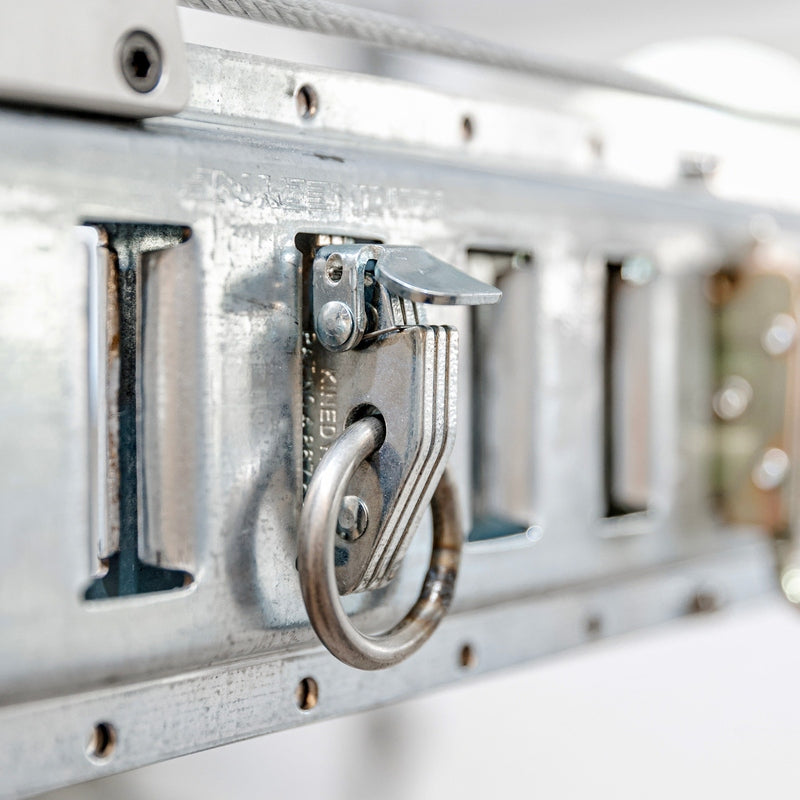

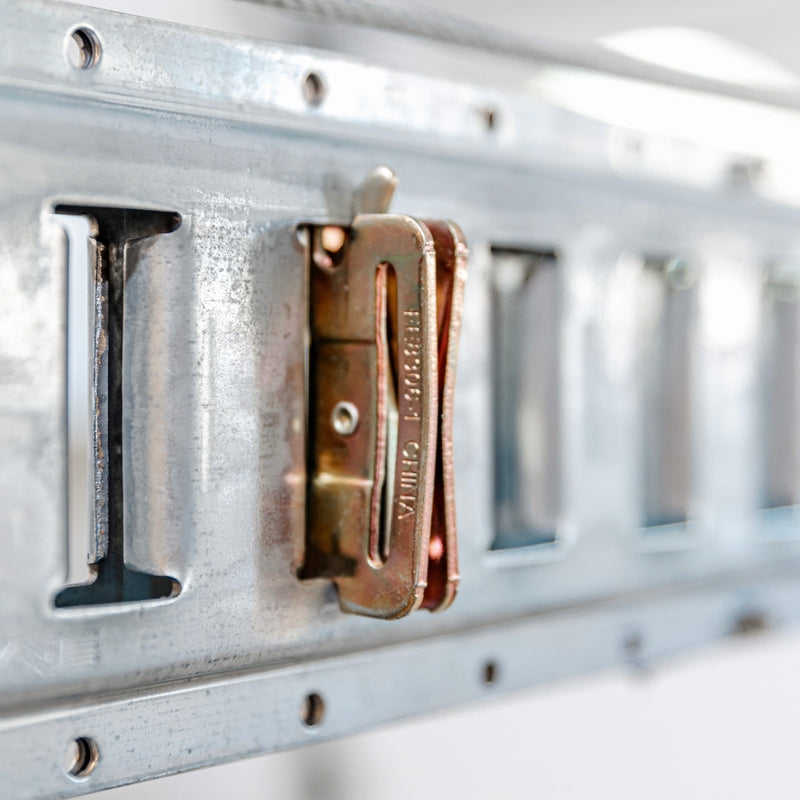

Attachment Points

• Slots spacing: 2 in / 50.8mm on center
• Slot height: 2-13/32 in / 61.1mm
• # of sides: Both sides

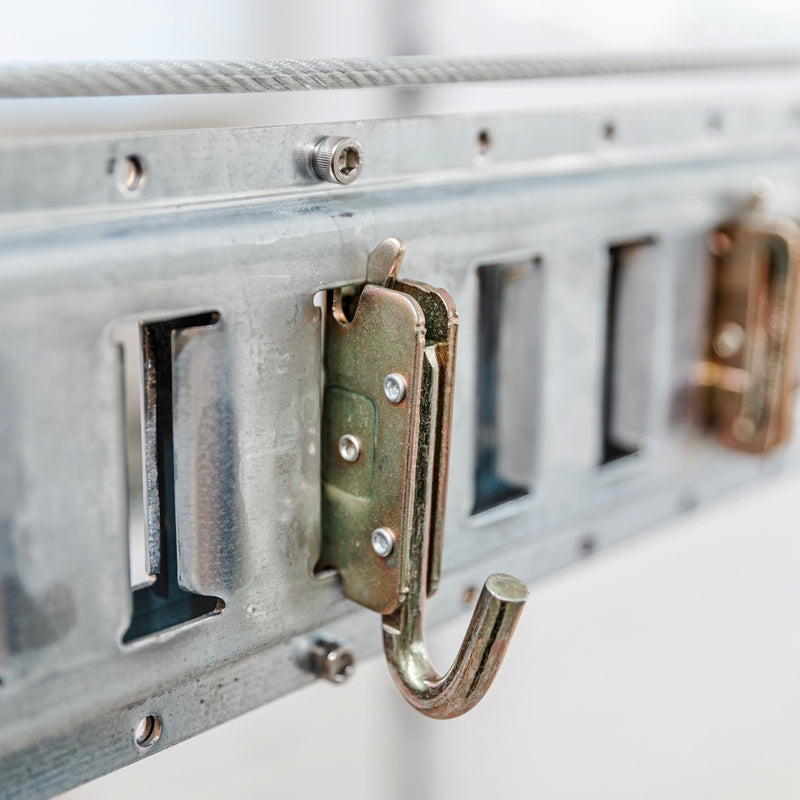

• Type: Snap In

General

• Height: 5 in / 12.7 cm
• Length: 5 ft / 152.4 cm
• Thick: 13/16 in / 20.65 mm
• Weight: 7.58 oz / 215 g

Finish

• Material: Galvanized Steel
• Color: Silver
• Corrosion resistant

General specs

• Model:Auxx-One 1400
• Lifting Capacity:Up to 400 lbs
• Max. Travel Distance¹:22 ft
• Weight:

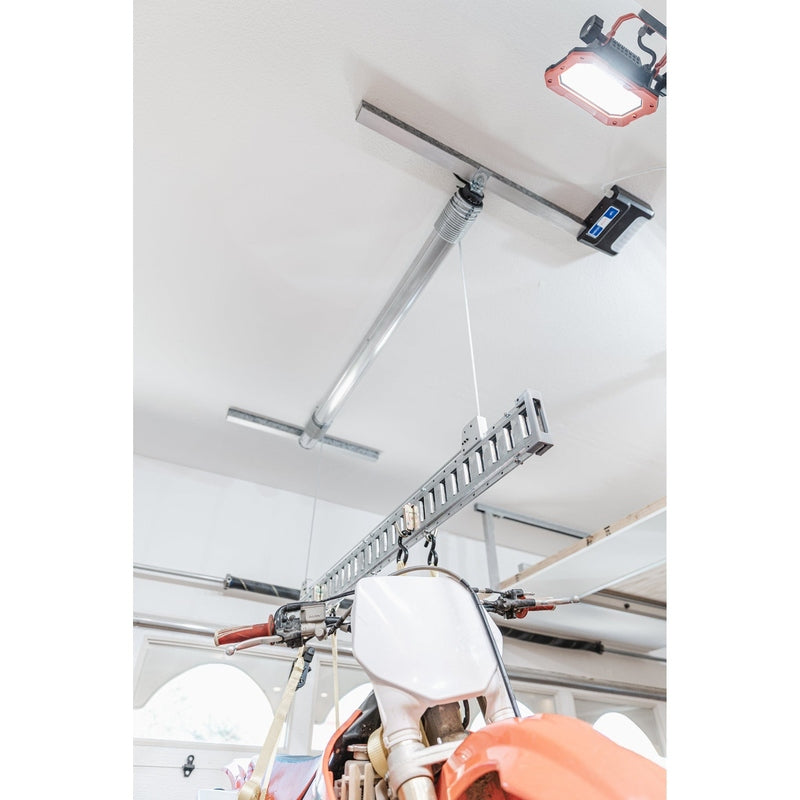

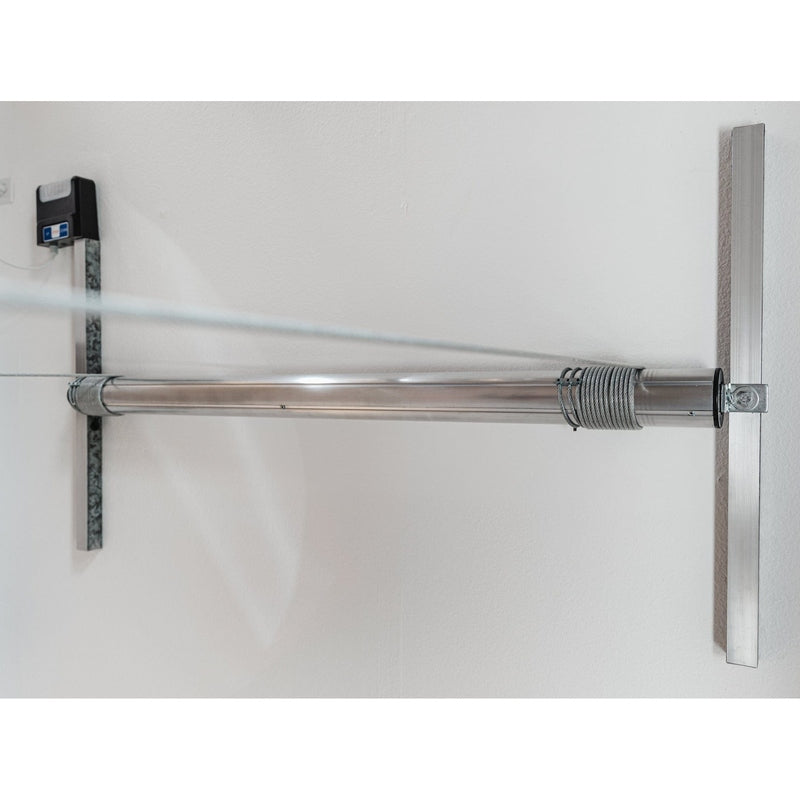

Ceiling Support

• Type:(2) 1 5/8" x 30" strut channels
• Fasteners:(6) 5/16" x 4" SPAX Lag Bolts
• Cable:3/16 Vinyl-coated Steel 7x19
• Cable Strength²:4,200 lbs

Operating Requirements

• Switch Voltage:110V / 120V
• Transmitter:433.92 MHz
• Electrical Cord:10 FT / 16 gauge / NEMA 5-15
• Min. circuit size:15 amp

E-Beam Lifting Frame

• Height:5 inches
• Length:5 ft
• Material:Galvanized Steel
• Slot Spacing:2 in on center

Motor

• Type:IP44 (T-Motor)
• Rated Power:680 W
• Rated Current:6.0 A
• Voltage / Phase:100-120V AC / Single
• Duty Cycle @ Max. Capacity:3 min on, 15 min off³

What's in the box

• 1 Motor
• Controller
• Remote Control
• 2 C-Strut Channels
• E-Beam
• Mounting Hardware

¹The Auxx-One can be equiped with a cable length to allow 22 ft of travel distance.

²Ultimate tensile strength

³If you run the Auxx-One continously for more than 3 min at a time, the motors will switch off automatically and require to cool down for 15 min or less.

What is covered?

Any defect in material and workmanship from personal, normal household use in accordance with the Owners Manual.

For how long?

2 years, from date of purchase

What we will do?

If your Auxx-Lift Product is defective, we will send replacement parts or, at our option, replace it at no charge to you after the defective product is returned to Auxx-Lift. If we send replacement parts for your Auxx-Lift Product, we may use new or reconditioned parts. If we choose to replace your Auxx-Lift Product, we may replace it with a new or reconditioned one of the same or similar design.

How to get warranty service?

To get warranty service for your Auxx-Lift Product, you must provide proof of date and place of purchase of the product. Trained representatives will assist in diagnosing the problem and will arrange to supply you with required parts for repairs or replacement product after defective product is returned to Auxx-Lift.

Warranty does not cover

This warranty does not cover installation commercial use, defects resulting from accidents, damage while in transit to our service location or damage resulting from altercations misuses or abuse, lack of proper maintenance, unauthorized repair or modifications of the product, affixing of any attachment not provided with the product, staples through wiring, pinched or broken wires, broken cables power outages, use of extension cords, missing or damaged parts or discounted clearance, final sale or taped cartons fire, flood, acts of God, or failure to follow the Owners Manual. This warranty is the only one we will give on your Auxx-Lift Product. There are no other express warranties. Customer pays for shipping on warranty replacements.
