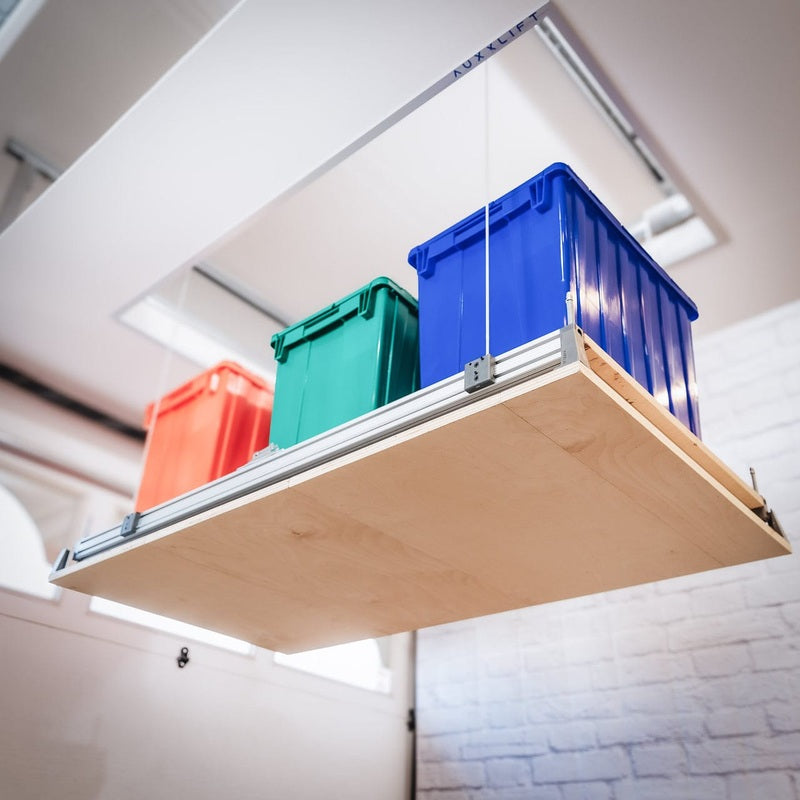

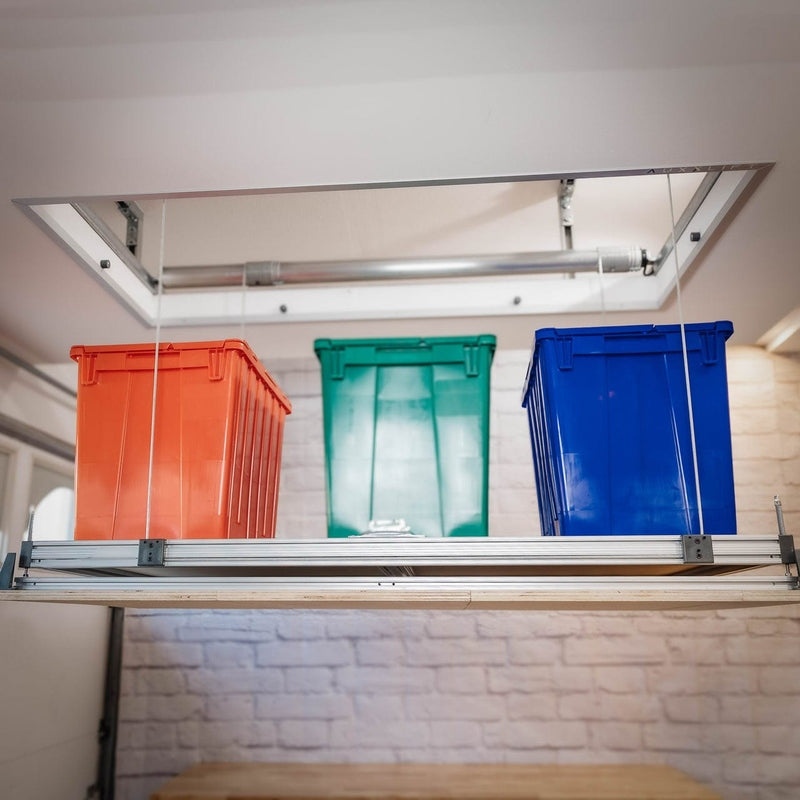

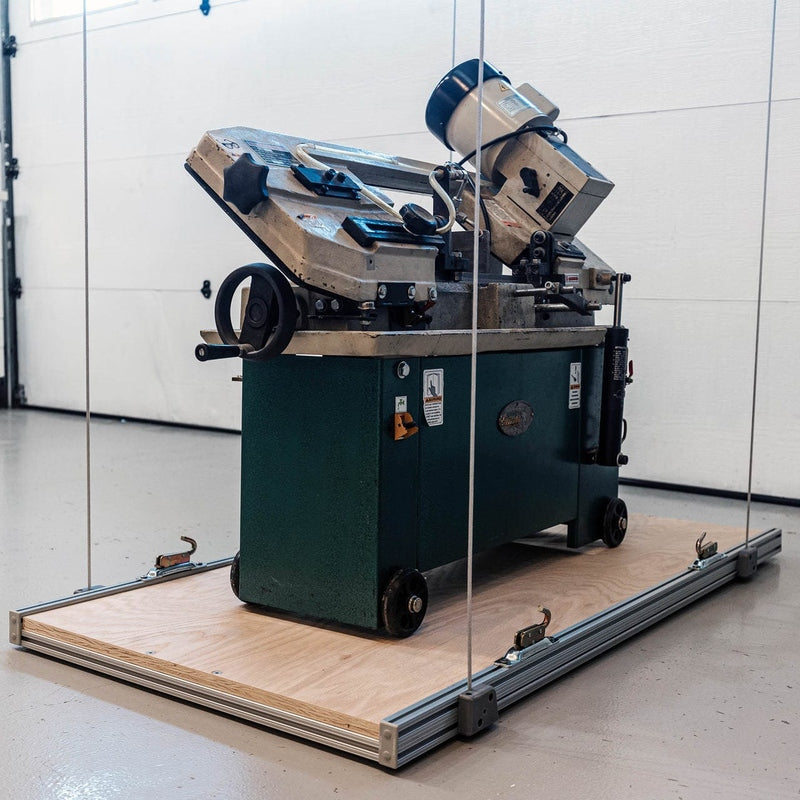

Auxx Lift 400lbs Garage Attic Storage Lift System

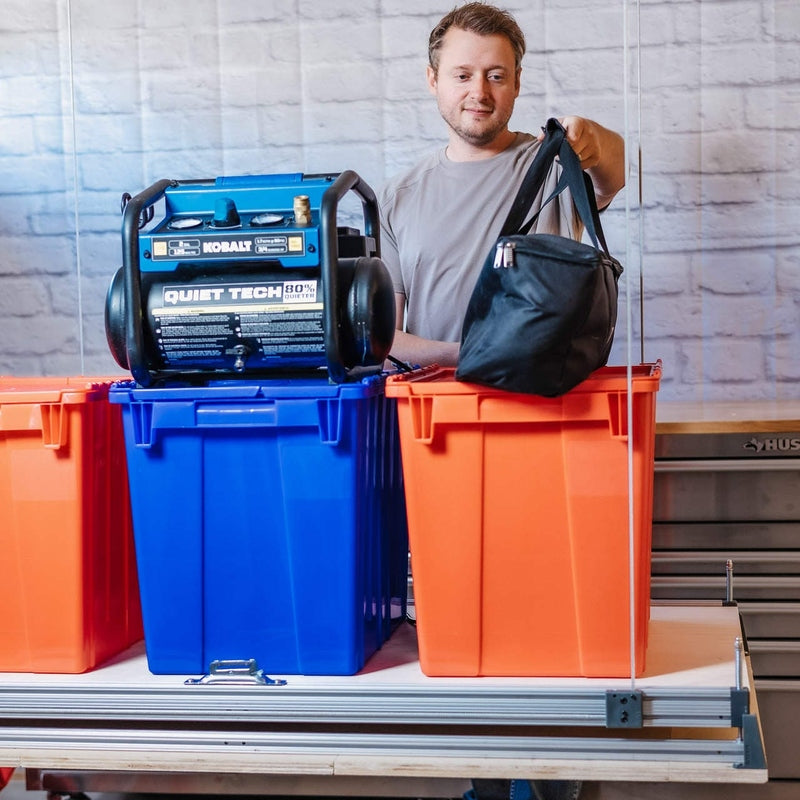

• No heavy lifting: Eliminate the safety hazard of carrying heavy items up and down the pull-down stairways. Your bulkiest items can vanish from your garage floor and safely stored up in your attic.

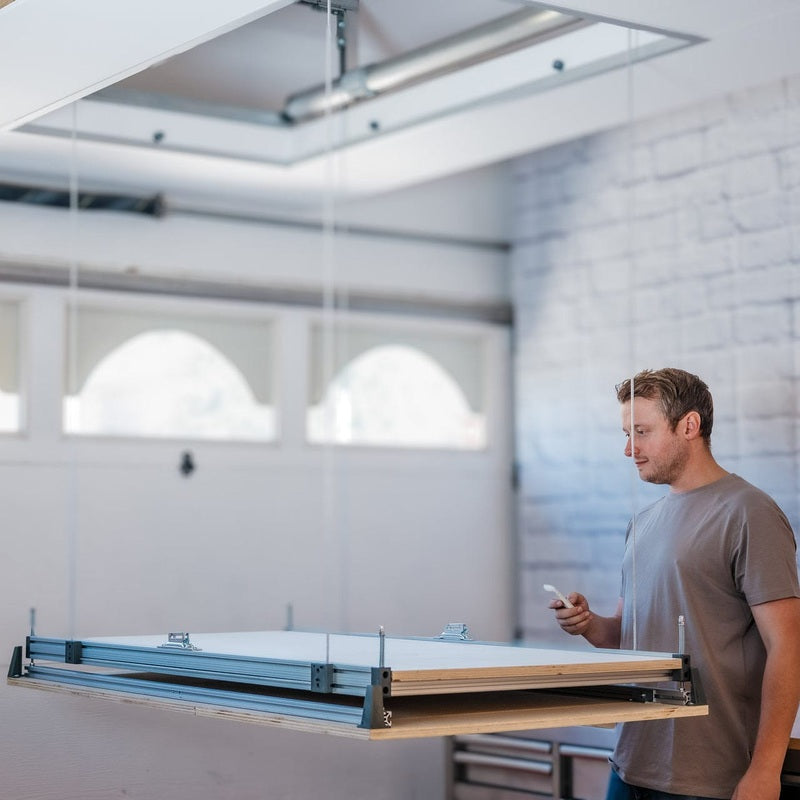

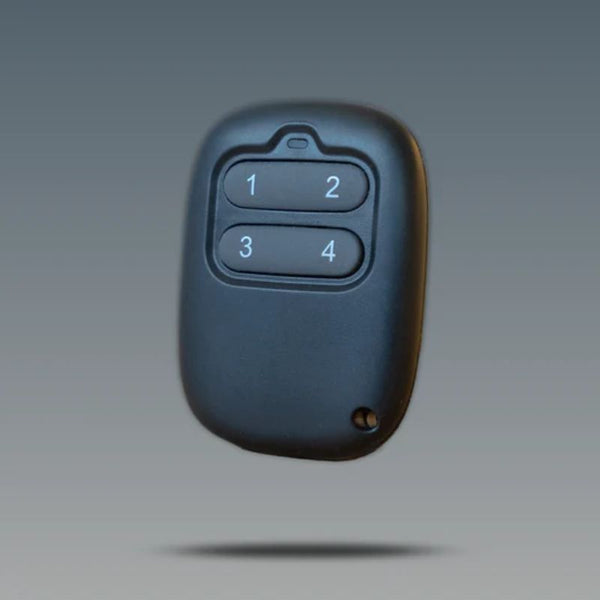

• Wireless Remote-Control: Equipped with an easy to use remote control allowing you to lower/raise your items. Programmable stopping points allow you to set high and low point parameters preventing your items hitting the floor.

• Safety: The robust lifter comes with a wide variety of safety features:

  • Self-leveling platform: The controller monitors and adjust cable speeds to keep platform level.
  • Stop Limit: The attic-lift monitors weight on lift preventing you from overloading it.

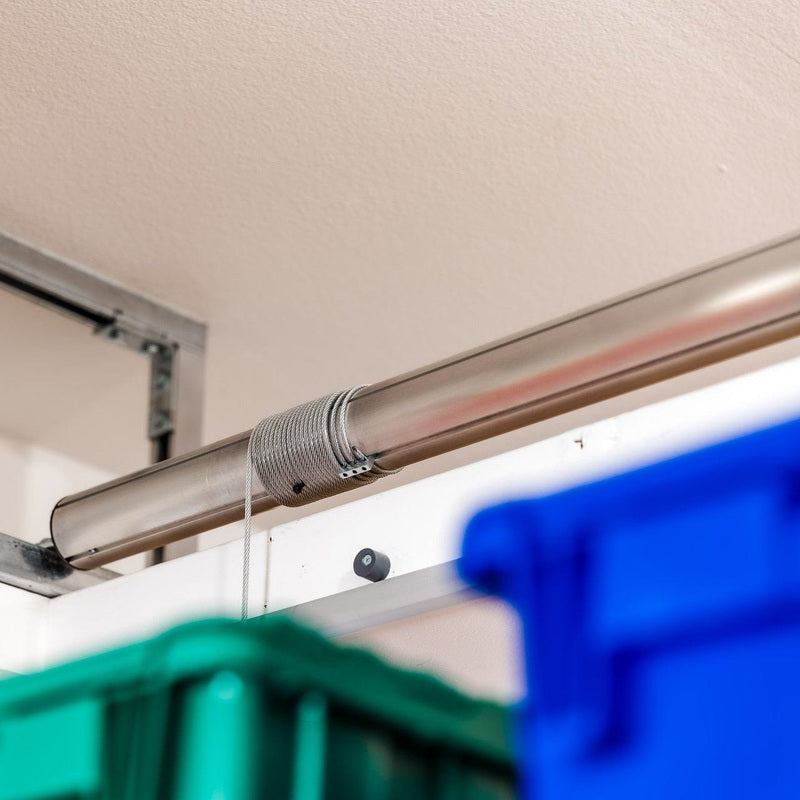

• Powerful motors: The Attic-Lift uses two tubular motors that are synced via the control unit to ensure the platform stays level. Both motors are mounted on steel strut channels which are anchors via lag screws on your attic's floor joists/rafters.

• Motors: The Attic-Lift runs on typical household 100-120V AC, drawing 2.3 amps.

• Aircraft Cables: The platform is hoisted by four hot-dipped galvanized 7x19 steel cables made from 133 wires each. The cables are wrapped in a vinyl coating which not only protects your hands but also seals in any lubrications, increasing its useful life.

• Vertical Travel Distance: We offer three versions allowing for 13ft, 16ft, and 20ft vertical travel distances, respectively.

General Specs

• Model: Attic-Lift 1400
• Lifting Capacity: Up to 400 lbs
• Max Travel Distance1: 16 ft

Roof Support

• Type: (2) 1 5/8" x 60" strut channel
• Fasteners: (8) 5/16" x 4" SPAX Lag Bolts
• Mounting Area: 5' x 5' over 3 joists/rafters
• Cable: 1/8 Vinyl-coated Steel 7x19
• Cable Strength2: 2,000 lbs

Operating Requirements

• Switch Voltage: 110V / 120V
• Transmitter: 433.92 MHz
• Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
• Min. circuit size: 15 amp

Platform Specs

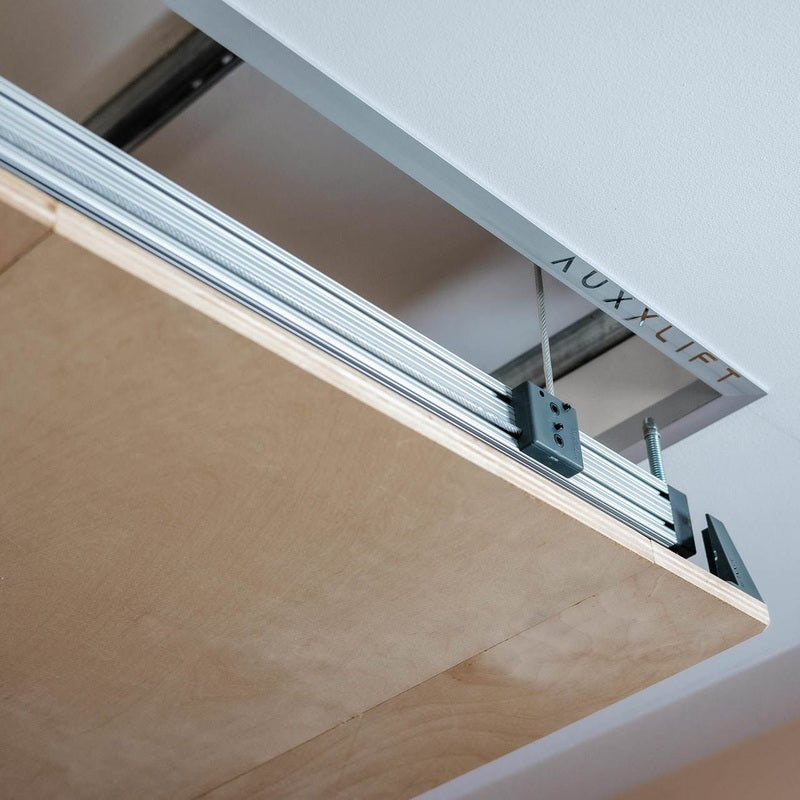

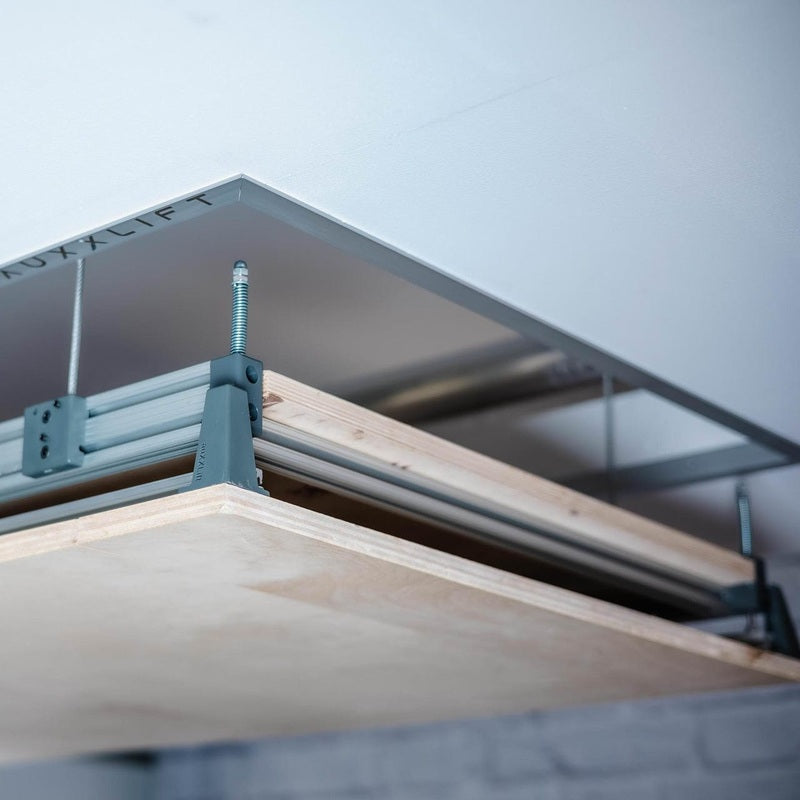

• Frame: T-slotted framing rail
• Material: 6105-T5 aluminum alloy
• Deking: 3/4 in thick Oak veenered plywood (5-ply)

Motors

• Type: IP44 (T-Motor)
• Rated Power: 235 W
• Rated Current: 2.2 A
• Voltage / Phase: 100-120V AC / Single
• Duty Cycle @ Max Capacity: 3 min on, 15 min off3

Size and Weight

• Platform Size: 20.75 in x 44 in / 28.75 in x 56 in

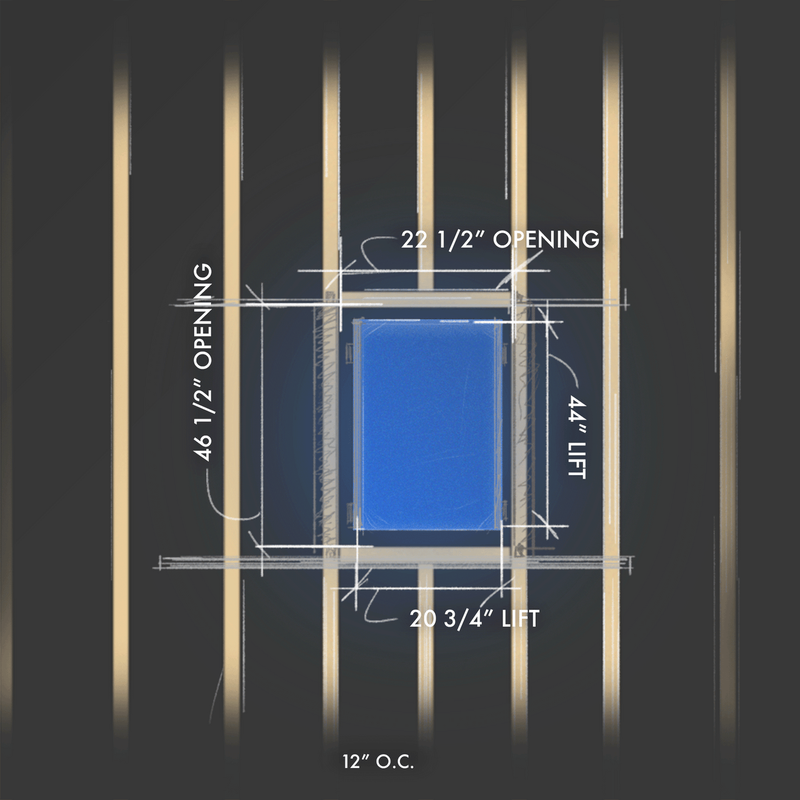

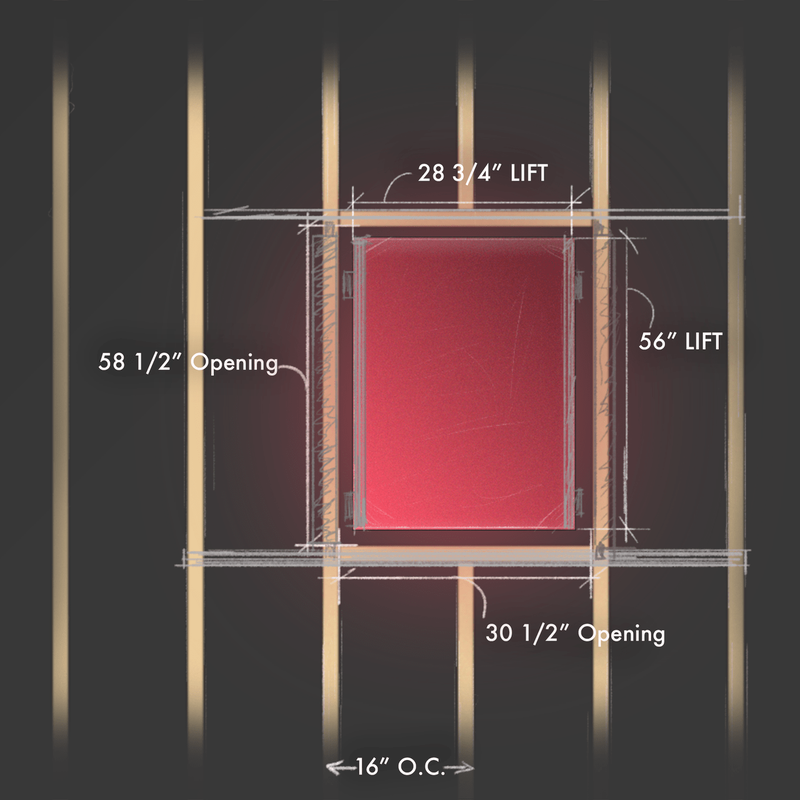

• Ceiling Cutout Size: 22.5 in x 46.5 in / 30.5 in x 58.5 in

We know that installing a lift may seem intimidating. Dont worry. The Attic-Lift was designed to be easy to install, and this guide includes everything you need for the installation process. If any step in this guide is unclear, watch our installation videos. If you do not feel comfortable performing any step yourself, please contact a handyman. Before starting, make sure to have reviewed the entire manual.

Auxx Lift 400lbs Garage Attic Storage Lift System Manual
