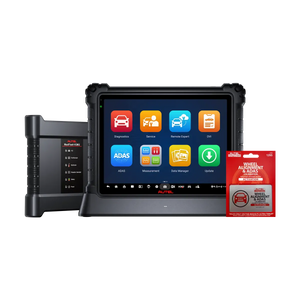

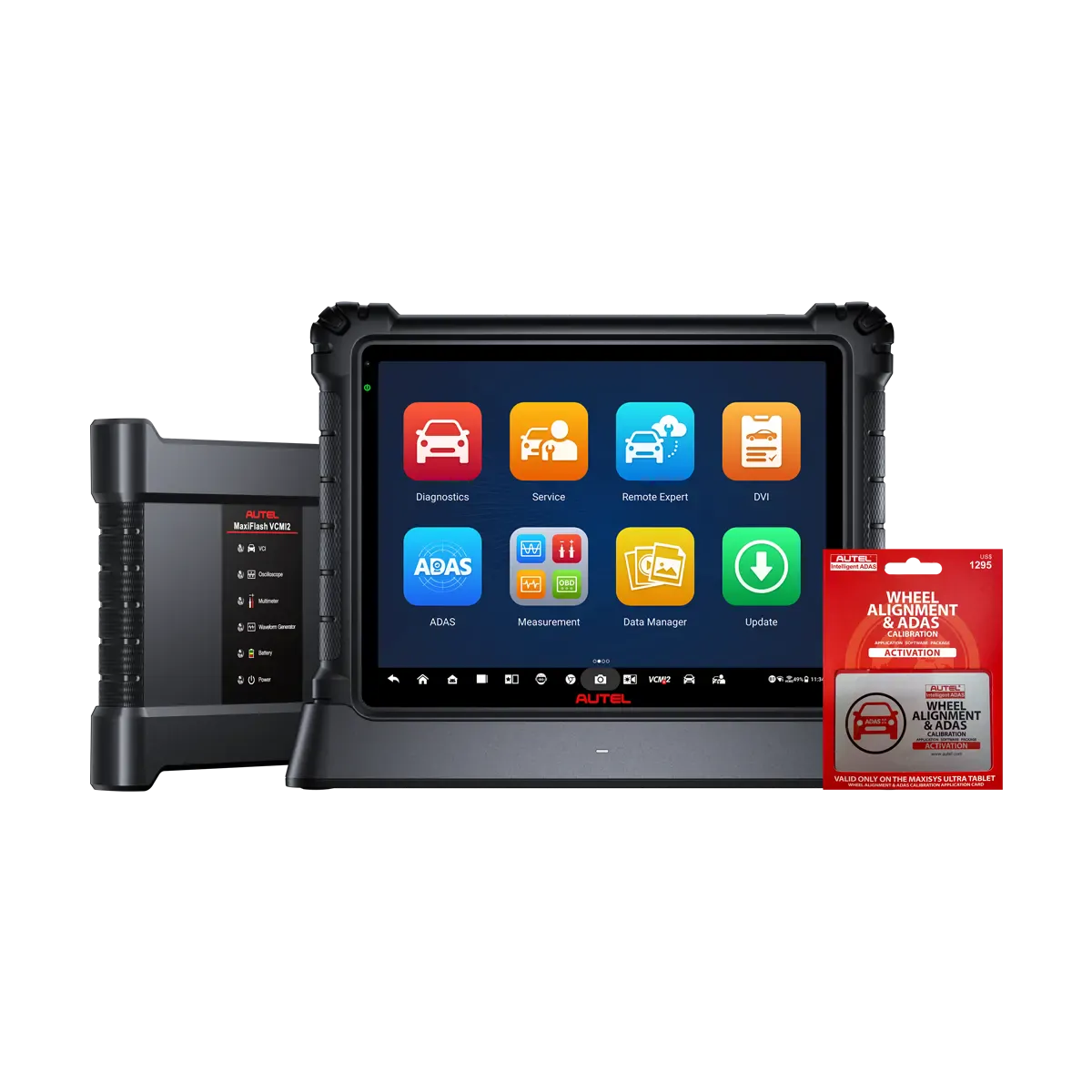

Autel MaxiSYS Ultra S2 Advanced Diagnostic Tablet with IA900 Wheel Alignment and ADAS Calibration Software

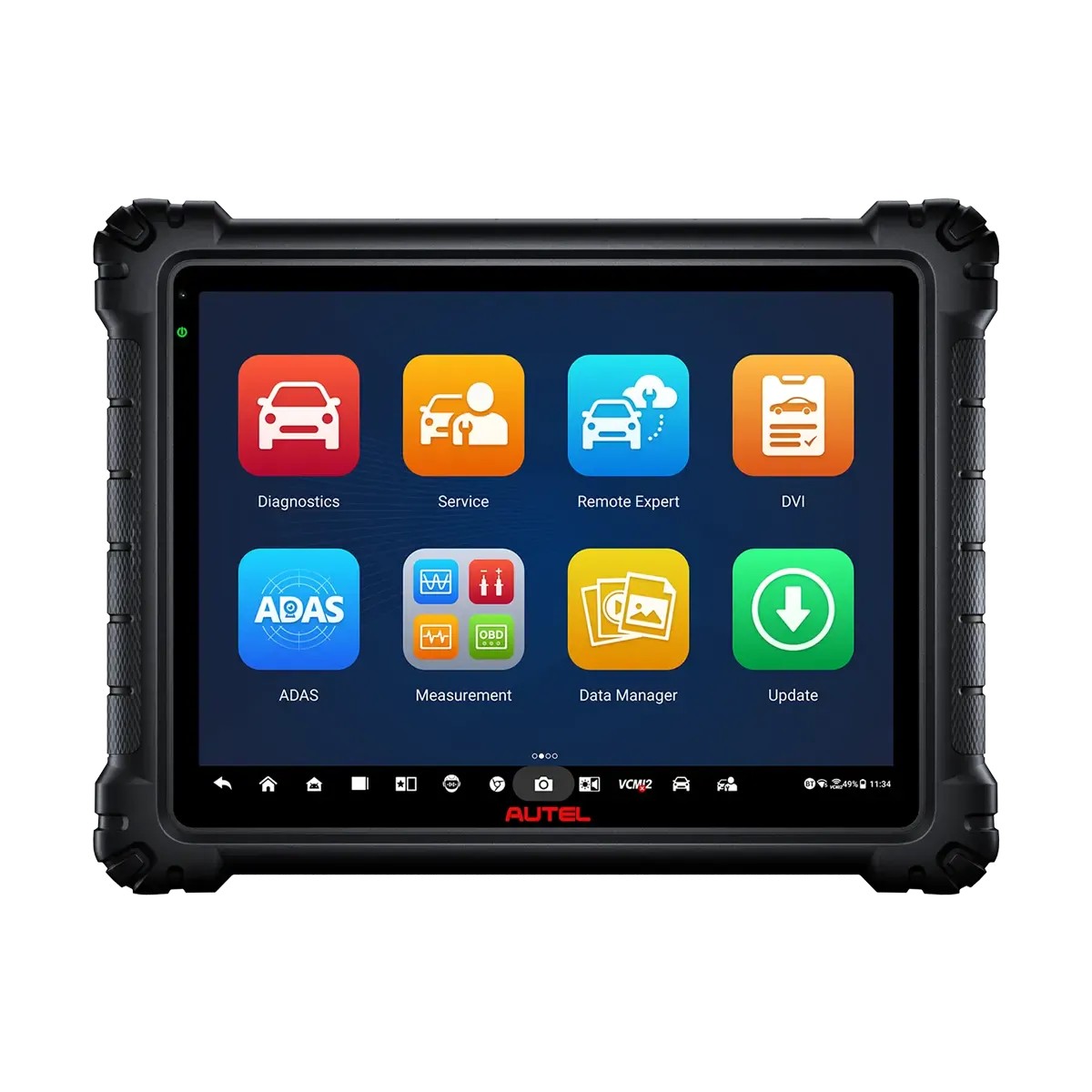

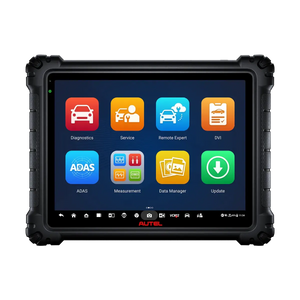

The Autel MaxiSYS Ultra S2 with IA900 software (SKU S2ADAS900) is Autel's flagship advanced diagnostic tablet shipped with the activation card that unlocks 4-wheel alignment and ADAS calibration for the IA900 calibration system. The 13.7-inch Android 13 tablet pairs with the MaxiFlash VCMI2 — a 6-in-1 vehicle communication and measurement device — to cover U.S., Asian, and European vehicles from 1996 forward with active tests, special functions, coding, and adaptations.

Static calibrations of cameras, radar, lidar, and night-vision systems still require physical targets and calibrators, which are sold separately and matched to the IA900 calibration frame package the shop is running.

• 13.7-inch anti-glare touchscreen at 2176×1600, driven by a Qualcomm QCS6490 8-core 2.7 GHz processor with 12 GB RAM and 512 GB onboard storage.
• MaxiFlash VCMI2 6-in-1 VCI: VCI/J2534 pass-thru programmer, 4-channel oscilloscope, multimeter, waveform generator, CAN-Bus tester, and standalone Remote Expert device — one lighter chassis instead of separate bench tools.
• Comprehensive coverage of U.S., Asian, and European vehicles, 1996 and newer, with active tests, special functions, coding, and adaptations.
• Topology 3.0 — OE-style system analysis of multi-speed communication protocol networks, plus Active Module and Network Analysis for pinging individual ECUs to verify signal quality and network integrity.
• Enhanced 4-channel oscilloscope that launches directly from Live Data, with EV tests for AC/DC charging, HV components, interlock loop signal, power-on control, resolver sensor, and thermal management. Adds parasitic current-draw and swing tests.
• Multi-point Digital Vehicle Inspection (DVI) with AI-powered image analysis for auto-detection of dents and scratches. Pairs with the Autel TBE200 tire-tread examiner and ITS600 TPMS tool for detailed tire analysis.
• Live Data Fusion records and compares value changes across multiple systems. Parameter Grouping handles multi-PID selection of related parameters. Reference Sampling records, stores, and reviews selected PIDs for pre- and post-repair comparison, flagging min, max, and average.
• Service Menu with 48-plus maintenance and service tasks for direct access to commonly performed service functions and resets.
• MAX virtual assistant for hands-free navigation of the Ultra S2 interface via audible commands.
• Fast-charge docking station for quicker tablet recharge between jobs.
• Security gateway access for Stellantis, Nissan, Mercedes-Benz, and Volkswagen/Audi vehicles.
• One year of free Autel software updates and one year of free access to Motor TRUSPEED OEM-sourced repair data.

Built for U.S., Asian, and European passenger vehicles from 1996 forward. Supports gateway-protected vehicles from Stellantis, Nissan, Mercedes-Benz, and Volkswagen/Audi. Protocols include DoIP, CanFD, J2534, and D-PDU. The IA900 software bundled here drives Autel's IA900 calibration frame and targets — static camera, radar, lidar, and night-vision calibrations require the matching IA900 calibrator hardware, sold separately.

• MaxiSYS Ultra S2 main unit (tablet)
• MaxiFlash VCMI2 vehicle communication and measurement device
• Docking station with fast-charge support
• Main Cable V2.0
• USB 2.0 Cable V2
• USB Type-C cable
• USB-to-Ethernet adapter
• AC/DC adapter (12 V)
• Auxiliary power-outlet adapter
• Clamp cable
• Spare fuse, 6×30 mm (2 pcs)
• Attenuator 20:1 (2 pcs)
• Scope test lead (4 pcs)
• Multimeter test lead (2 pcs)
• Multimeter probe (2 pcs)
• Secondary ignition pickup (2 pcs)
• Breakout lead set (24 pcs total — 4 sizes × 6 pcs)
• Flexible back-pinning probe (4 pcs)
• Back-pinning probes — red, green, blue, yellow, black (5 pcs)
• Back-pinning probe screws (2 pcs)
• Back-pinning probe replacement needles (20 pcs)
• Small alligator clips (4 pcs)
• Large dolphin clips (2 pcs)
• Soft cloth, tool box, accessory storage bag, carrying case
• Quick Reference Guide and Quick Start Guide
• Wheel Alignment & ADAS Calibration software activation card (IA900)

Oscilloscope Accessory Kit and Non-OBD II Adapter Kit are sold separately. Static ADAS calibration targets and the IA900 calibration frame are sold separately.

One-year limited warranty from Autel, with one year of free software updates included.

How is this different from the standalone MaxiSYS Ultra S2 tablet?

This SKU ships with the Autel IA900 Wheel Alignment & ADAS Calibration software activation card pre-bundled. The standalone Ultra S2 tablet ships without that activation. The hardware in the box is identical to the standard Ultra S2.

Do I need anything else to perform static ADAS calibrations?

Yes. The IA900 software runs on this tablet, but static calibrations of cameras, radar, lidar, and night-vision systems require the physical IA900 calibration frame and the matching targets and calibrators for the vehicles you service. Those are sold separately as package options.

Which security gateways are supported out of the box?

Stellantis, Nissan, Mercedes-Benz, and Volkswagen/Audi. Other manufacturer gateway access follows Autel’s normal subscription model.

Is the Motor TRUSPEED repair data subscription included?

One year of Motor TRUSPEED OEM-sourced repair data access is included free with the tablet, alongside one year of free Autel software updates.

• S2ADAS900 Tablet + IA900 Software Flyer
• MaxiSYS Ultra S2 Flyer
• Quick Reference Guide
• User Manual (EN, V1.0)
• Packing List
