Autel MaxiSYS Ultra S2 Advanced Diagnostic Tablet with IA1000 Wheel Alignment and ADAS Calibration Software

The Autel MaxiSYS Ultra S2 is a 13.7-inch Android 13 advanced diagnostic tablet built around a MaxiFlash VCMI2 6-in-1 vehicle communication and measurement device, paired with Autel’s IA1000 4-wheel alignment and ADAS calibration software activation. The tablet covers U.S., Asian, and European vehicles 1996 and newer with active tests, special functions, coding, and adaptations, and the IA1000 software extends the Ultra S2 into static calibration workflows for cameras, radar, lidar, and night-vision systems on shops that have the matching targets and calibrators.

This SKU includes the Ultra S2 tablet, the MaxiFlash VCMI2, the enhanced docking station, and the IA1000 software activation card. Per Autel, “static calibrations of cameras, radar, lidar, and night vision systems require the use of targets and calibrators (package options available)” — the calibration targets and frame are not included with this SKU and are purchased separately.

The Ultra S2 introduces Topology 3.0 for OE-style system analysis of multi-speed communication networks, Active Module and Network Analysis for pinging individual ECUs to test signal quality, and a streamlined VCMI2 that combines VCI/J2534 pass-thru programming, a 4-channel oscilloscope, a multimeter, a waveform generator, a CAN-bus tester, and standalone Remote Expert into a single lighter chassis. A multi-point Digital Vehicle Inspection (DVI) application with AI-powered dent and scratch detection produces revenue-generating inspection reports, and MAX, Autel’s new hands-free voice assistant, lets technicians navigate the tablet with audible commands.

The Ultra S2 keeps the diagnostic side of the tablet on par with Autel’s current flagship coverage and adds new visualization, EV, and inspection capabilities the previous generation did not have. Highlights from Autel’s specification:

• Topology 3.0 — OE-style system analysis of multi-speed communication protocol networks
• Active Module and Network Analysis — locate and directly ping ECUs to test signal quality and network integrity
• Enhanced 4-channel oscilloscope — launch directly from Live Data; adds EV-specific tests including AC/DC charging, HV component, interlock loop signal, power-on control, resolver sensor, and thermal management; parasitic current draw and swing tests added
• Live Data Fusion — record and compare value changes across multiple systems
• Parameter Grouping — multi-PID selection for analyzing related parameters simultaneously
• Reference Sampling — record, store, and review selected PIDs for pre- and post-repair comparison; flags min, max, and average
• Service Menu — 48-plus maintenance and service tasks with direct access to common service functions and resets
• Multi-point Digital Vehicle Inspection (DVI) — AI-powered image analysis for auto-detection of dents and scratches; pairs with the Autel TBE200 Tire Tread Examiner and ITS600 TPMS tool to produce detailed tire analysis
• MaxiFlash VCMI2 — VCI/J2534 pass-thru programmer, 4-channel oscilloscope, multimeter, waveform generator, CAN-Bus tester, and standalone Remote Expert in a lighter chassis
• MAX hands-free assistant — access tablet functions with audible commands
• Enhanced docking station with tablet fast-charge
• Motor TruSpeed repair data — one year of free access included
• One year of free Autel software updates included

• Vehicle coverage: U.S., Asian, and European vehicles, 1996 and newer
• Diagnostic functions: active tests, special functions, coding and adaptations
• Security gateway support: Stellantis, Nissan, Mercedes-Benz, Volkswagen/Audi
• Communication protocols: DoIP, CAN FD, J2534, D-PDU

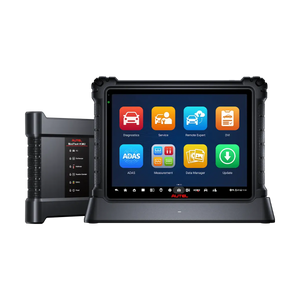

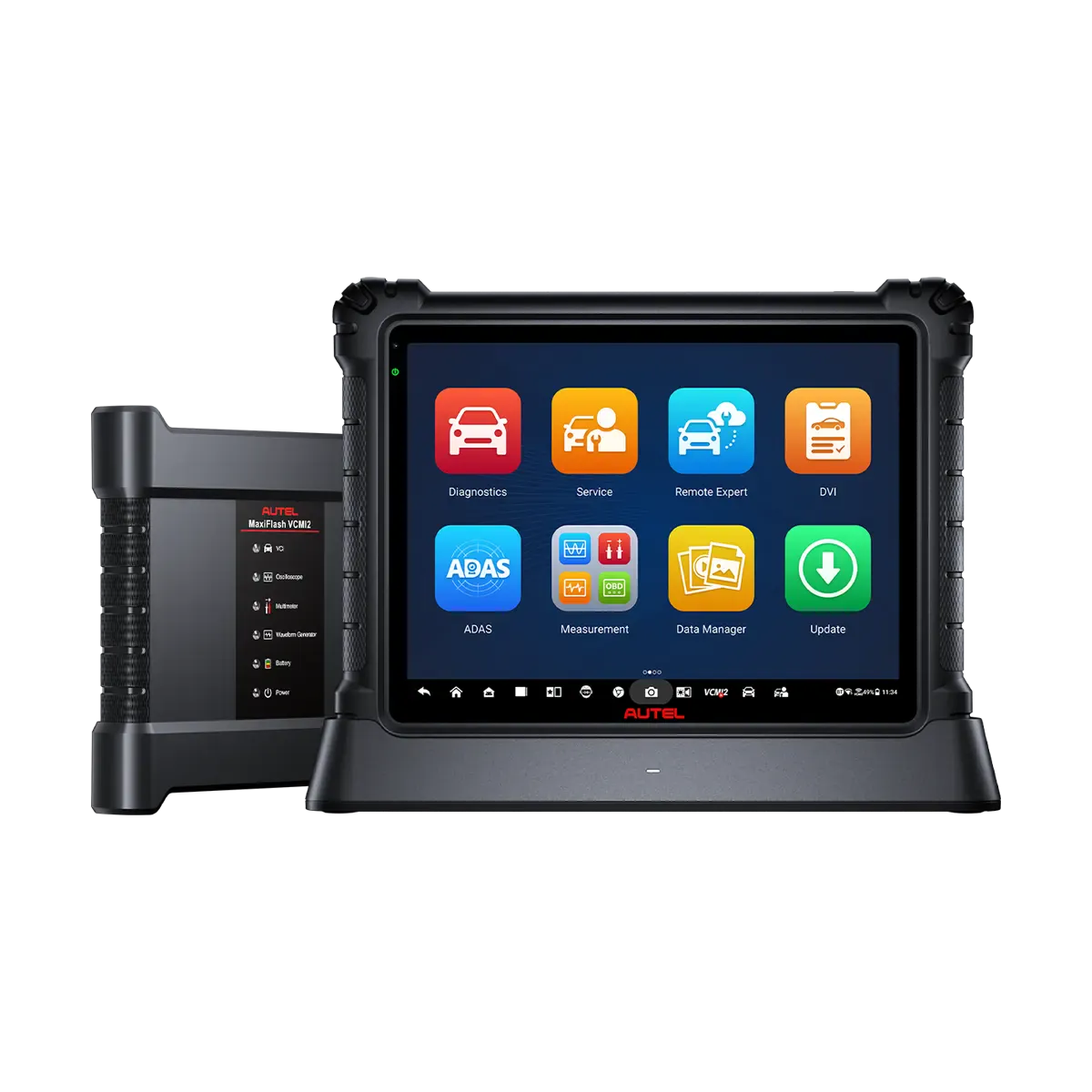

• MaxiSYS Ultra S2 tablet
• MaxiFlash VCMI2 (VCI/J2534 pass-thru programmer with built-in 4-channel oscilloscope, multimeter, waveform generator, CAN-bus tester, and Remote Expert)
• Enhanced docking station with fast-charge
• IA1000 4-wheel alignment and ADAS calibration software activation card

Static calibration of cameras, radar, lidar, and night-vision systems requires Autel’s IA1000 targets and calibrator package, sold separately. Refer to the official Autel MaxiSYS Ultra S2 Packing List for the full box contents.

• 1-year limited warranty on the MaxiSYS Ultra S2 tablet
• 1 year of free Autel software updates included from the date of activation
• 1 year of free Motor TruSpeed OEM-sourced repair data included

Does this kit include the calibration targets, calibrators, or frame?

No. This SKU ships with the MaxiSYS Ultra S2 tablet, MaxiFlash VCMI2, docking station, and the IA1000 software activation card. Static calibrations of cameras, radar, lidar, and night-vision systems require Autel’s IA1000 targets and calibrator package, which are separate purchases — per Autel, “package options available.”

What vehicles does the Ultra S2 cover?

U.S., Asian, and European vehicles 1996 and newer, with advanced diagnostics including active tests, special functions, coding, and adaptations.

Are software updates and repair data free?

Yes for the first year. One year of free Autel software updates and one year of free Motor TruSpeed OEM-sourced repair data are included from the date of activation.

Does it handle factory security gateways?

Yes. Per Autel, the Ultra S2 supports Stellantis, Nissan, Mercedes-Benz, and Volkswagen/Audi security gateways.

What communication protocols does the MaxiFlash VCMI2 support?

DoIP, CAN FD, J2534, and D-PDU.

Autel MaxiSYS Ultra S2 quick reference guide, user manual, packing list, and product flyers are available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
