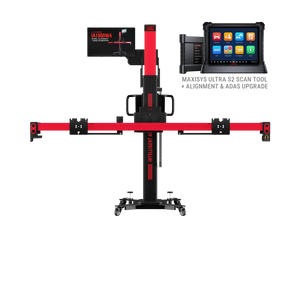

Autel MaxiSYS IA1000T Automated ADAS Calibration & Wheel Alignment System with MaxiSYS Ultra S2 Tablet

The Autel MaxiSYS IA1000T is a next-generation automated ADAS calibration and wheel alignment system, sold as a frame package that ships with the MaxiSYS Ultra S2 diagnostic tablet. Robotic one-step forward-facing target positioning, six high-definition cameras, and laser-guided Blind Spot, ACC, and AVM pattern placement collapse the wheel alignment, ADAS calibration, and advanced diagnostics workflow into a single system — the kind a collision center, ADAS calibration shop, or new-car dealership needs to keep up with modern vehicle service.

The IA1000 platform handles three jobs in one ecosystem: pre-scan and post-scan diagnostics through the included MaxiSYS Ultra S2, advanced wheel alignment beyond basic camber, caster, and toe, and automated ADAS calibration. The pre/post-scan reports validate and document every calibration step for insurance documentation and OEM compliance.

Five-way robotic, forward-facing target placement

Robotic five-way automated forward-facing target placement reduces manual setup time and removes the per-vehicle rough-in step that bottlenecks most static ADAS calibrations. The technician parks the frame, initiates the run, and the IA1000 handles target positioning rather than asking the bench tech to chase shims and tape-measure marks.

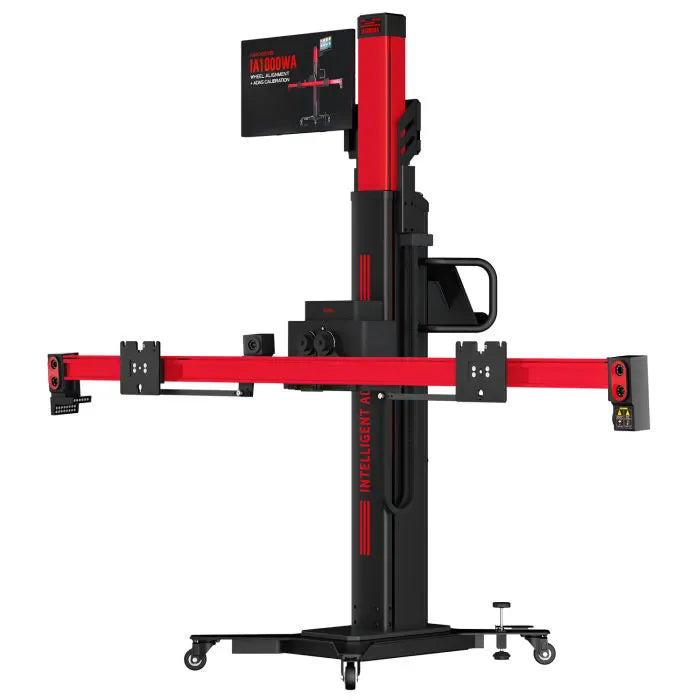

Six HD cameras with laser-guided pattern positioning

Six high-definition cameras at 3,072 × 2,048 pixels each handle vehicle and frame positioning. Laser-guided pattern placement covers Blind Spot, ACC, and AVM floor targets, and precision-engineered wheel clamp targets deliver industry-leading 0.02° alignment accuracy with consistent first-pass calibration success.

Automated unlevel floor compensation

Shop drainage and the everyday slope of a working bay break most ADAS calibration setups — uneven floors are one of the most common reasons calibrations fail or come back unsafe. The IA1000 includes automated unlevel floor compensation so the run completes correctly even on a working shop floor rather than a flatness-spec calibration bay.

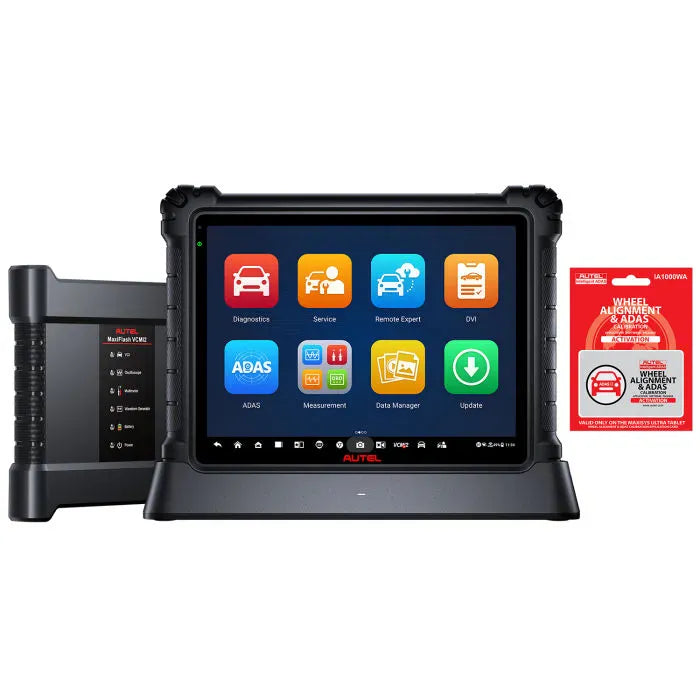

Powered by the MaxiSYS Ultra S2 diagnostic tablet

The IA1000T ships with the MaxiSYS Ultra S2 diagnostic scan tool, which runs the IA1000 system and supplies its advanced diagnostics. Topology 3.0 supports deep system analysis on the included vehicle coverage, keeping the entire pre-scan → align → calibrate → post-scan workflow inside one ecosystem.

Validated target placement and OEM-compliant reporting

The IA1000 documents every target position in the Pre/Post Scan report, formatted for insurance documentation and OEM compliance. OEM-sourced calibration procedures align the run with manufacturer specifications, and Digital Go/No-Go confirmation prevents the system from advancing when a target is out of spec — there is no way to walk away from a calibration thinking it succeeded when it didn't.

Optional digital LDW target display

The IA1000 platform supports optional Autel digital LDW (Lane Departure Warning) target displays as a separately-purchased upgrade. Auto-projected digital targets eliminate manual target selection and self-adjusting screen brightness keeps targets readable in challenging shop lighting. Digital target monitors replace the physical-target storage footprint and receive OTA target and software updates.

• Five-way robotic, automated forward-facing target placement for static ADAS calibration
• Six high-definition cameras at 3,072 × 2,048 pixels per camera
• Laser-guided Blind Spot, ACC, and AVM pattern positioning
• 0.02° wheel alignment accuracy with precision-engineered wheel clamp targets
• Advanced wheel alignment data beyond camber, caster, and toe
• Automated unlevel floor compensation
• Powered by the MaxiSYS Ultra S2 with Topology 3.0 for deep system analysis
• Pre-scan and post-scan reports for insurance documentation and OEM compliance
• OEM-sourced calibration procedures
• Digital Go/No-Go validation prevents advancement when targets are out of spec
• Compatible with optional Autel digital LDW target displays (separately purchased)
• Self-adjusting screen brightness on the optional digital target display
• Seamless OTA updates for ongoing OEM-sourced target and software coverage
• Scalable platform with multiple IA1000 ADAS and wheel alignment package configurations

The IA1000 platform performs static and dynamic ADAS calibration plus advanced wheel alignment on U.S., Asian, and European vehicles. ADAS coverage per Autel's published specification includes Blind Spot, Adaptive Cruise Control (ACC), Around View Monitor (AVM), and Lane Departure Warning (LDW). The MaxiSYS Ultra S2 tablet drives diagnostics across the same coverage set.

The IA1000T frame is part of the MaxiSYS Ultra Tablet ecosystem and ships compatible with the included Ultra S2 tablet model.

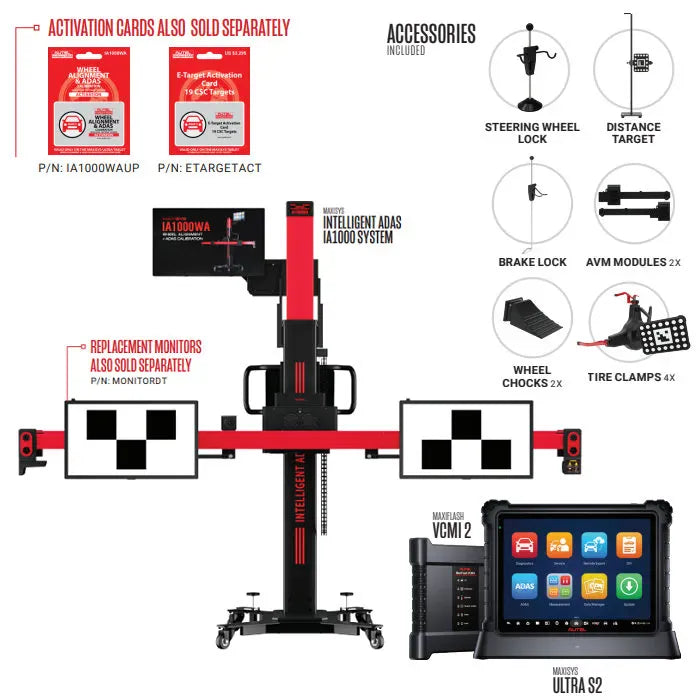

• IA1000 calibration frame
• MaxiSYS Ultra S2 diagnostic tablet
• IA1000 activation card
• Four wheel clamp targets
• Two AVM modules
• Distance target
• Steering wheel lock
• Brake lock
• Two wheel chocks

The IA1000T does not include physical Lane Departure Warning targets or the optional Autel digital target display — those are available as upgrade SKUs (IA1000LDWT, IA1000TDT, IA1000LDWTDT, and IA1000AST variants).

Does the IA1000T include Lane Departure Warning targets?

No. The IA1000T package includes the calibration frame, the listed accessories, the MaxiSYS Ultra S2 tablet, and the IA1000 activation card. Physical LDW targets are part of the IA1000LDWT package; digital LDW target displays are part of the IA1000TDT, IA1000LDWTDT, and IA1000ASTDT variants. The IA1000T frame supports both upgrade paths.

Can I add the Autel digital LDW target display after the initial purchase?

Yes. The IA1000T frame is compatible with Autel's optional digital target display. The display auto-projects calibration-specific targets, eliminates manual selection, replaces physical-target storage requirements, and receives OTA OEM-sourced coverage updates.

What ADAS components can the IA1000 calibrate?

Per Autel's published feature set, the IA1000 supports laser-guided pattern positioning for Blind Spot, Adaptive Cruise Control (ACC), and Around View Monitor (AVM) calibration, plus Lane Departure Warning (LDW) calibration when the appropriate LDW target package is added. Calibration coverage is scalable through multiple IA1000 package configurations tailored to specific shop needs.

Does the IA1000 work on an unlevel shop floor?

Yes. The IA1000 includes automated unlevel floor compensation so the calibration completes correctly even when shop drainage or floor slope would otherwise fail the run.

Which Autel tablet does the IA1000 require, and is one included?

The IA1000 platform requires a tablet from Autel's MaxiSYS Ultra Tablet series. The IA1000T package includes the MaxiSYS Ultra S2 model along with the IA1000 activation card. The base IA1000 frame-only SKU does not include a tablet and requires the user to supply one plus an activation card.

What is the wheel alignment accuracy?

Industry-leading 0.02° accuracy per Autel's published specification, achieved through six HD positioning cameras and precision-engineered wheel clamp targets.

How are software and target coverage updates delivered?

Updates are delivered over the air. Autel publishes ongoing OEM-sourced target and software coverage through the MaxiSYS Ultra S2 tablet.

• MaxiSYS IA1000 User Manual (PDF)
• Autel IA1000 Product Spec Sheet (PDF)
• Autel All Systems ADAS Brochure (PDF)
• IA1000 Package List Without Monitor (PDF)
• IA1000 Digital Target Package List & Quick Reference Guide (PDF)
• IA1000 AVM Package List & Quick Reference Guide (PDF)

Ships via freight. Contact MGS at sales@mygaragesupplies.com or 307-381-1810 to confirm delivery scheduling, dock or lift-gate requirements, and installation logistics before ordering.
