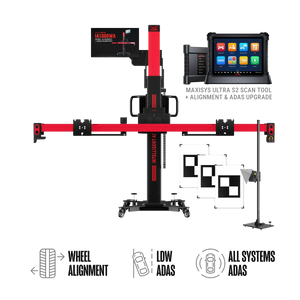

Autel IA1000AST MaxiSYS All-Systems ADAS Calibration & Wheel Alignment System with LDW Targets and MaxiSYS Ultra S2 Tablet

The Autel IA1000AST All-Systems ADAS Calibration & Wheel Alignment System bundles the IA1000 robotic calibration frame, the MaxiSYS Ultra S2 advanced diagnostics tablet with MaxiFlash VCMI2, physical LDW targets, and the full All-Systems calibration equipment package into one workflow. Position the frame inside the on-screen green Distance and Offset tolerances, click Next, and the system robotically handles forward-facing target placement, crossbar pitch, roll, yaw, and front-to-back fine-tuning — reducing manual setup and first-time calibration error.

Six high-definition cameras, laser-guided AVM, ACC, BSD, and NVS pattern positioning, and automated unlevel floor compensation work alongside the MaxiSYS Ultra S2 to deliver four-wheel alignment, pre- and post-scan reports, and static and dynamic ADAS calibrations on U.S., Asian, and European vehicles — in a single system and single workflow.

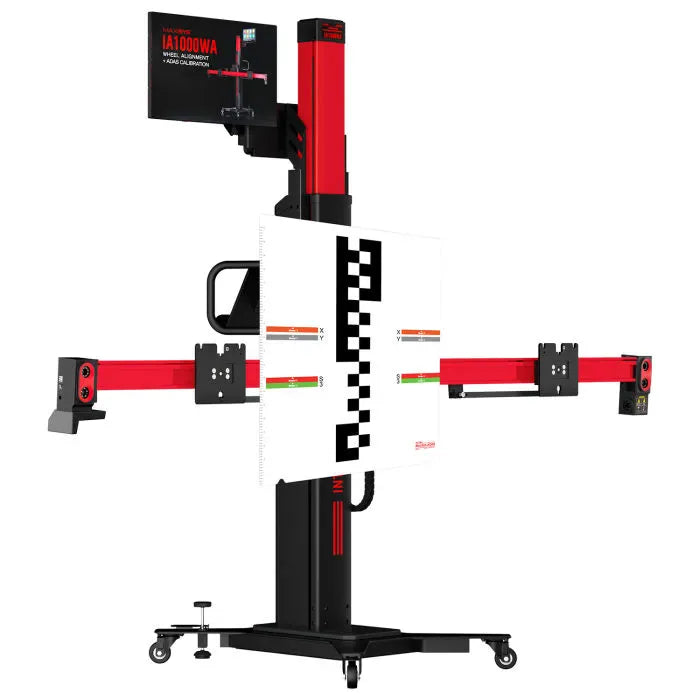

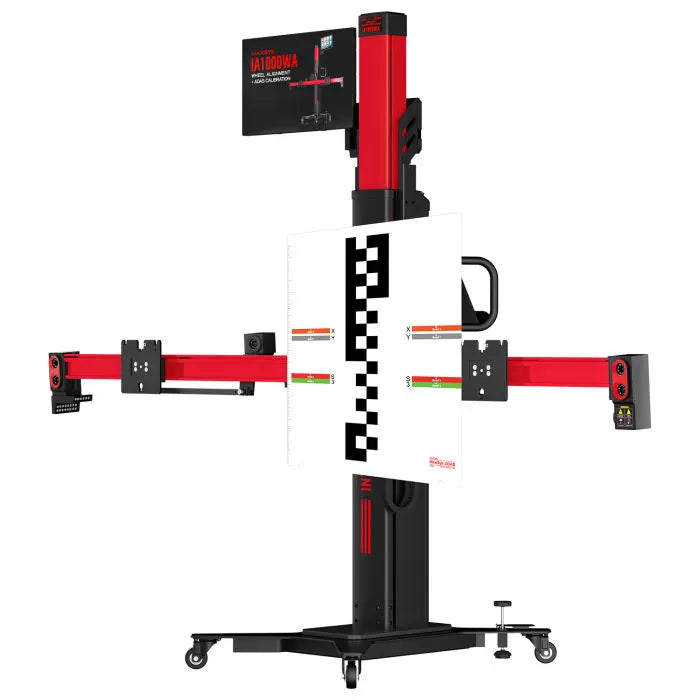

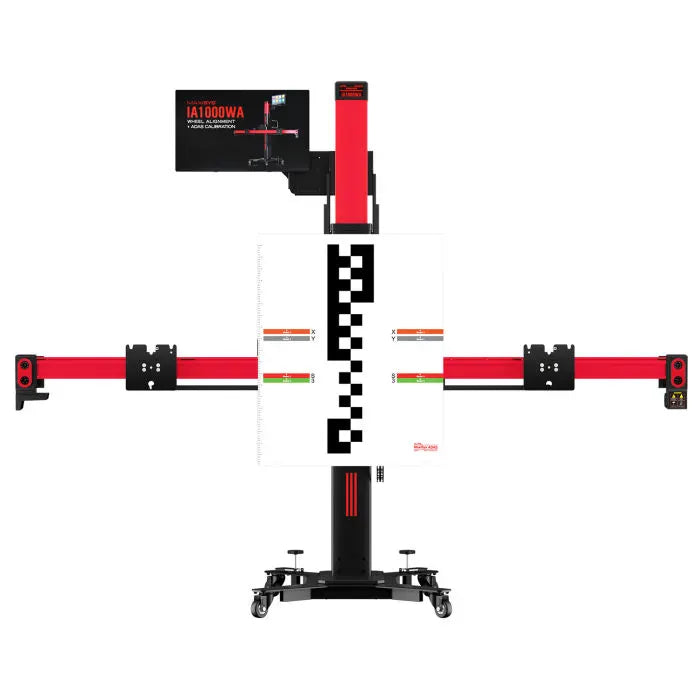

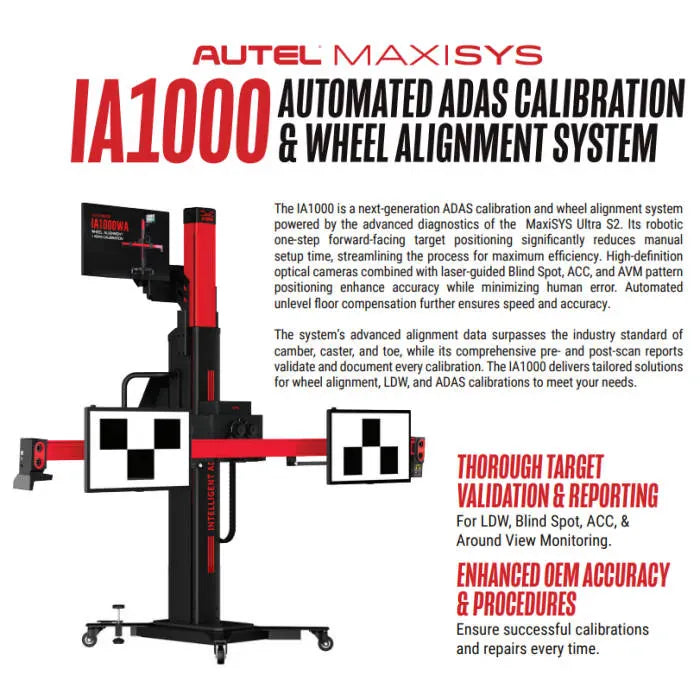

5-Way Robotic Forward-Facing Target Positioning

The IA1000 automates target placement front-to-back, vertical, and horizontal, plus crossbar pitch, roll, and yaw — five axes of robotic adjustment off a single button press. The technician positions the frame within tolerances, the system handles the rest.

Optical Camera & Laser-Guided Floor Pattern Positioning

Six HD positioning and tracking cameras map vehicle and frame position. Automated laser guides place AVM, ACC, NVS, and BSD floor patterns the same way every time — faster setup, fewer rework cycles from misplaced targets.

Unlevel Floor Compensation

Select level floor, unlevel floor, or on-rack from the tablet. The system compensates for the selected surface condition rather than failing the calibration — level flooring is otherwise one of the environmental factors required for successful ADAS calibration.

Validated Target Positioning & Pre/Post-Scan Reporting

Every calibration produces a documented target-position report with OEM-sourced procedures. Digital Go-No-Go confirmation blocks advancement when an element is out of spec. Pre- and post-scan reports cover faults, OE-required calibrations, and confirmation that work was performed to OE specifications — the documentation insurers, sublets, and vehicle owners expect.

Advanced Alignment Data Beyond Camber/Caster/Toe

Four-wheel alignment with thrust angle, SAI, toe out on turns, frame alignment, engine cradle alignment, and bent/loose-part diagnosis — all on the same single screen with live readings, required tools, and adjustment locations. Illustrated ADAS instructions step through every calibration.

Powered by MaxiSYS Ultra S2 Advanced Diagnostics

The included MaxiSYS Ultra S2 is a 13.7" Android-based touchscreen tablet with 512 GB storage and the MaxiFlash VCMI2 6-in-1 vehicle communication and measurement device. It covers U.S., Asian, and European vehicles from 1996 onward with active tests, special functions, coding, and adaptations, plus Topology 3.0 for OE-style multi-network system analysis and Active Module and Network Analysis to locate and ping ECUs directly.

Remote Expert & Guided ADAS for OE-Locked Work

Remote Expert is a cloud-based path to OE software and qualified technicians when active OE subscriptions aren't economical for the shop. Guided ADAS pairs the MaxiSYS tablet with a local laptop and OE subscription or OE tool for late-model calibrations — using Autel's optical positioning with current OE coverage.

Optional Digital LDW Target Monitors

The IA1000AST ships with physical LDW targets. The system also accepts 27" attachable digital target monitors (sold separately) that auto-project calibration-specific targets, self-adjust screen brightness for shop lighting, and update OEM coverage over the air. Adding monitors later replaces physical target storage and trims setup time further.

U.S., Asian, and European passenger vehicles, 1996 model year and newer. Static and dynamic calibration coverage for cameras, radar, LIDAR, Night Vision, Around View Monitoring, Rear Collision Warning, Blind Spot, ACC, and Lane Departure Warning systems — covered through the MaxiSYS Ultra S2 software with seamless OTA updates as Autel publishes new OEM-sourced targets.

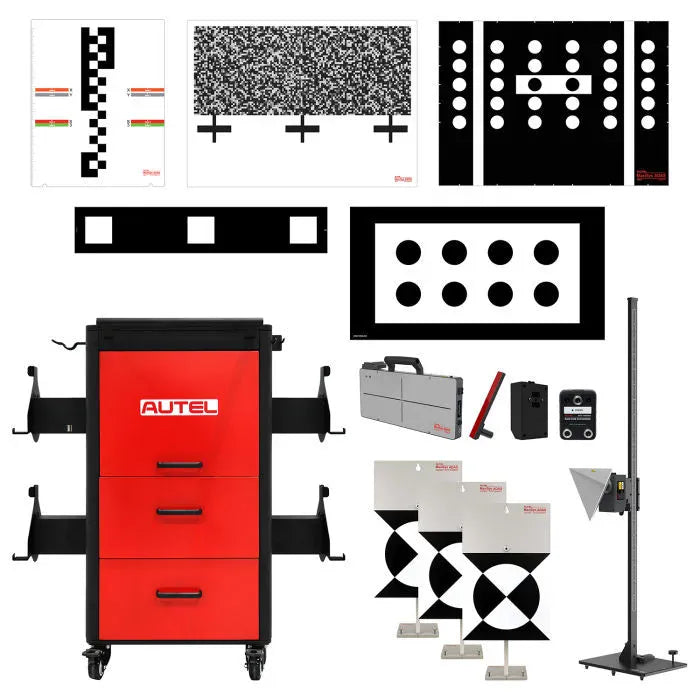

• IA1000 Calibration Frame with attached 24" touchscreen display
• MaxiSYS Ultra S2 Tablet
• MaxiFlash VCMI2 6-in-1 vehicle communication and measurement device
• IA1000 Activation Card (Wheel Alignment & ADAS Calibration)
• Physical LDW Targets
• All-Systems Calibration Equipment package
• Accessories: Steering Wheel Lock, Brake Lock, 2× Wheel Chocks, Distance Target, 2× AVM Modules, 4× Tire Clamps

One-year limited warranty on the IA1000AST system. The package includes one year of MaxiSYS Ultra S2 software updates from activation; ongoing coverage updates after year one are available from Autel as a software-update subscription.

Which ADAS systems can the IA1000AST calibrate?

Cameras, radar, LIDAR, Night Vision, Around View Monitoring (AVM), Rear Collision Warning, Blind Spot Detection (BSD), Adaptive Cruise Control (ACC), and Lane Departure Warning (LDW) — static and dynamic. The All-Systems Calibration Equipment package and included physical LDW targets cover the standard static-calibration kit for U.S., Asian, and European vehicles.

Does the IA1000AST include the tablet, or is it a frame-only package?

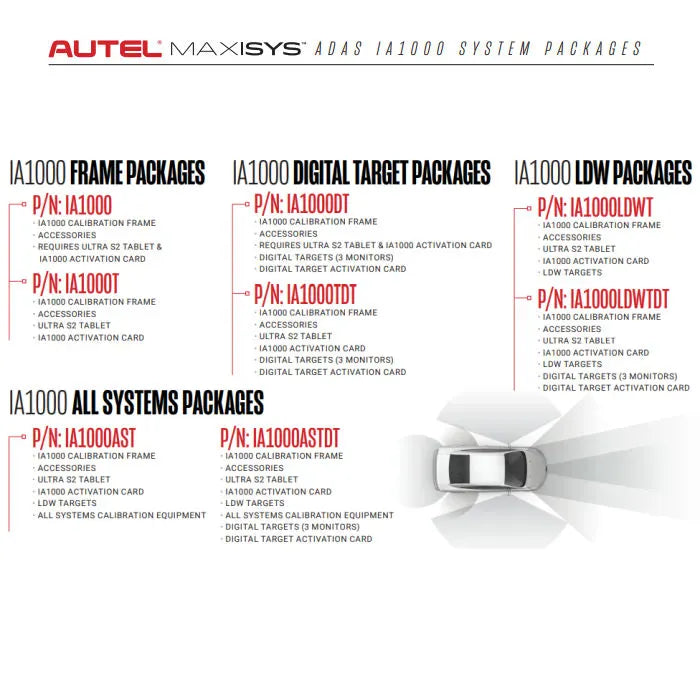

The MaxiSYS Ultra S2 tablet, MaxiFlash VCMI2, and IA1000 activation card are included. The Frame-only IA1000 (no tablet, no activation card) and the IA1000T (tablet, no LDW targets, no All-Systems equipment) are separate part numbers.

Does it work on uneven shop floors?

Yes. The tablet asks you to select level floor, unlevel floor, or on-rack, and the system compensates for floor slope or rack tilt during calibration setup rather than rejecting the calibration outright.

Can I add digital LDW target monitors later?

Yes. The IA1000AST ships with physical LDW targets and accepts 27" attachable digital target monitors as a separate purchase. The digital monitors auto-project calibration-specific targets and remove the storage and handling requirements of physical targets.

What's the accuracy specification?

Autel publishes 0.02° accuracy for the IA1000 with its six high-definition cameras and precision-engineered wheel clamp targets.

• IA1000 All-Systems ADAS Brochure (PDF)
• IA1000 AVM Package List & Quick Reference Guide (PDF)
• MaxiSYS Intelligent ADAS IA1000 User Manual (PDF)
• IA1000 Product Flyer (PDF)

The IA1000AST ships freight on a pallet. Contact sales@mygaragesupplies.com or call 307-381-1810 to confirm freight scheduling, lift-gate or inside-delivery options, and final unloading requirements for your shop.
