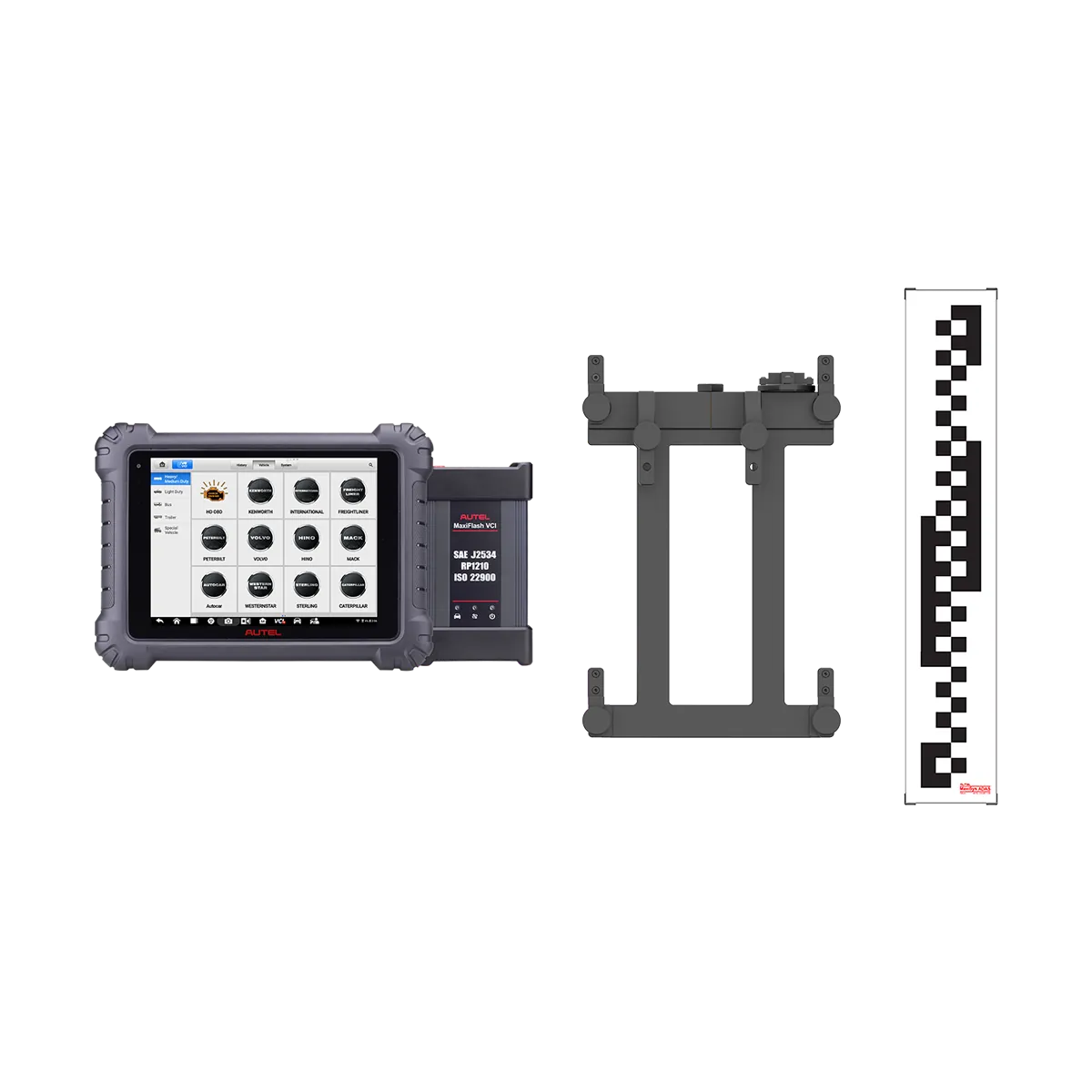

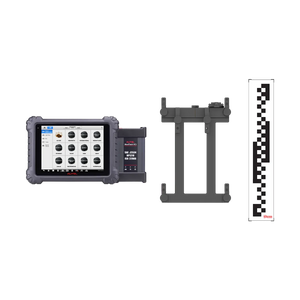

Autel CVMAGLS package: MaxiSYS MS909CV tablet with MaxiFlash VCI, pattern bracket, and CV calibration pattern

Autel CVMAGLS CV ADAS Glass Calibration Package — MA600 Mobile Frame + MS909CV Tablet

SKU CVMAGLS

In Stock
$6,359.00 - $6,359.00
$6,359.00
$6,359.00 - $6,359.00
$6,359.00
This Item Qualifies for FREE SHIPPING.

This Item Qualifies for FREE SHIPPING.

Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat

Description

-

The Autel CVMAGLS CV ADAS Glass Package extends an existing MA600 Mobile ADAS Calibration System to Class 3-5 and Class 6-8 commercial vehicles. The package adds the diagnostic tablet, calibration pattern, and bracket needed to perform dynamic and static ADAS calibrations on heavy-duty trucks alongside the static camera calibrations a shop already runs on Mercedes-Benz Sprinter and Ram ProMaster vans through the MA600 LDW pattern set.

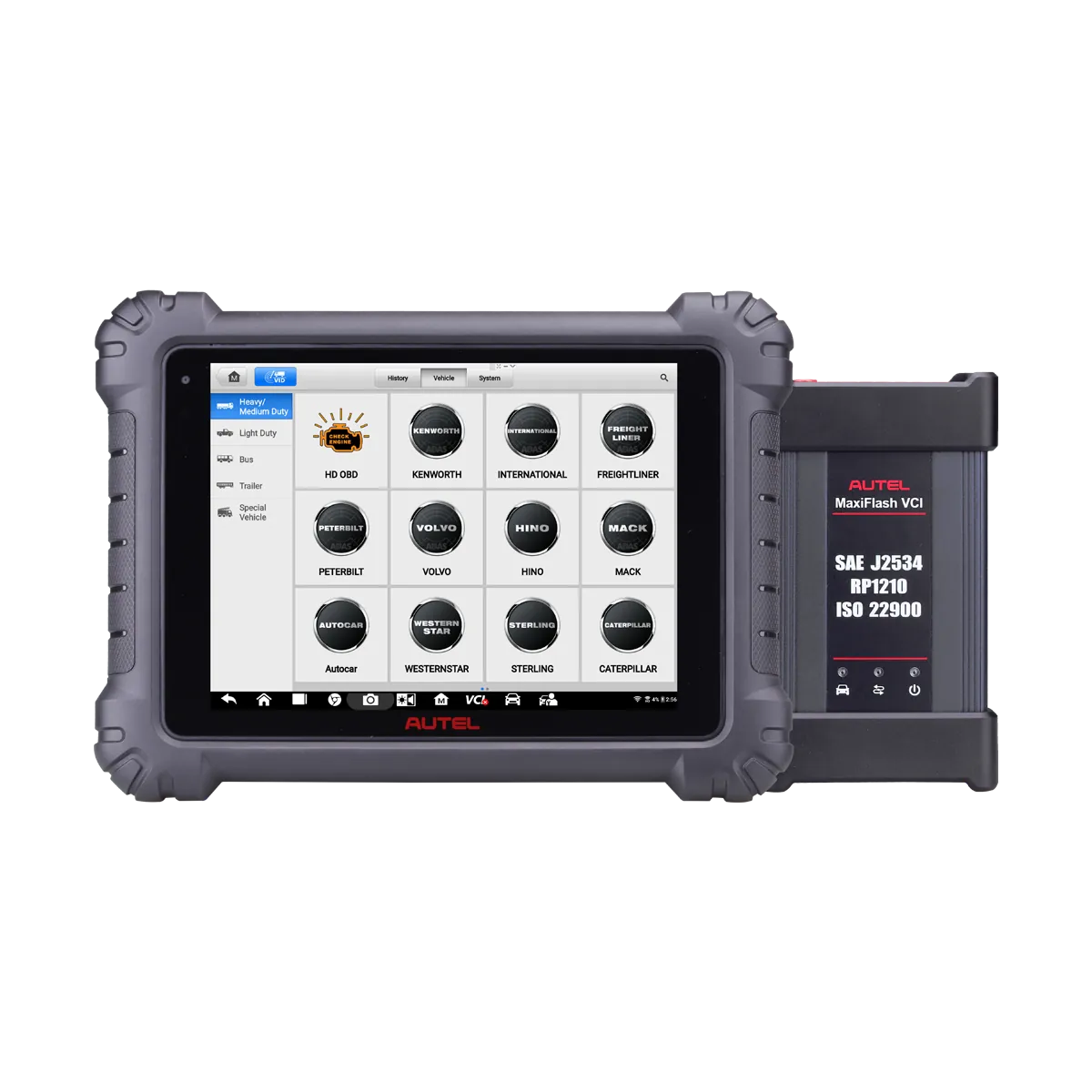

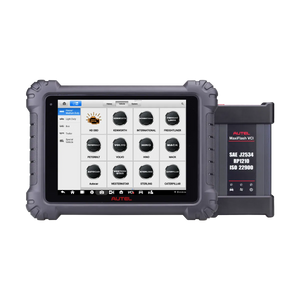

At the center of the kit is the MaxiSYS 909CV advanced diagnostic tablet, an Autel commercial-vehicle scan platform shipped with one year of free software updates. The included CV Pattern is the calibration target used by Autel for Bendix-Wingman camera systems on commercial trucks, and the supplied pattern bracket mounts the CV Pattern to the MA600 frame so the existing mobile-calibration workflow carries over without rebuilding a setup for every job.

Static camera calibrations of Mercedes-Benz Sprinter vans and Ram ProMaster vans are supported with the applicable Lane Departure Warning patterns that ship with the MA600 LDW packages — those patterns are not part of this kit and must already be on hand.

Features

-
  • Compatible with the Autel MA600 Mobile ADAS Calibration System
  • Includes the MaxiSYS 909CV advanced diagnostic tablet with one year of free software updates
  • Enables dynamic and static ADAS calibration of Class 3-5 and Class 6-8 commercial vehicles
  • Supports static camera calibrations of Mercedes-Benz Sprinter vans and Ram ProMaster vans when the applicable MA600 LDW patterns are on hand

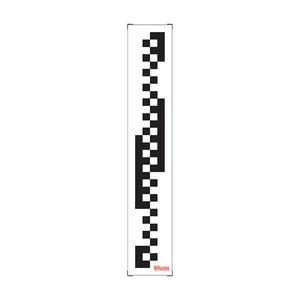

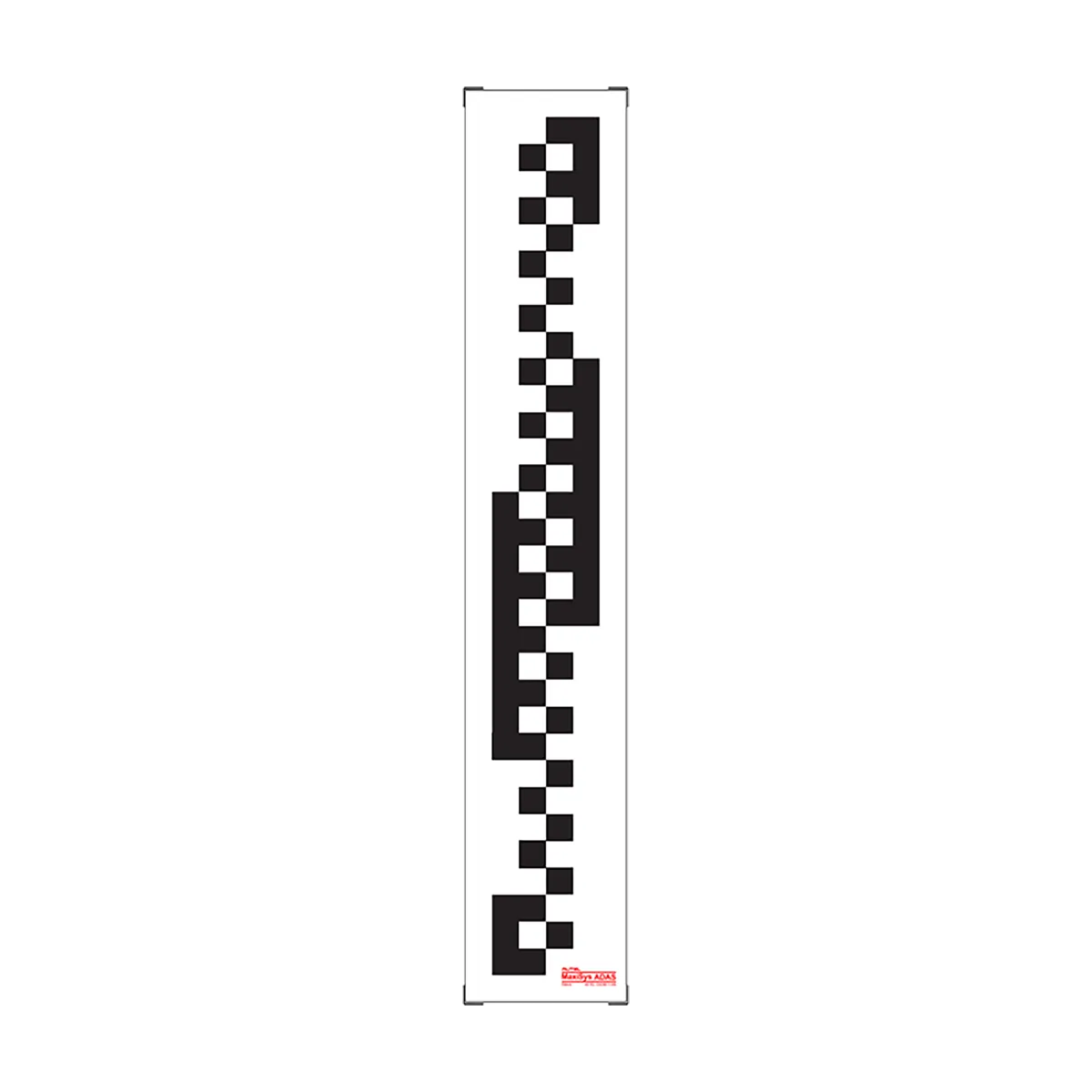

  • CV Pattern included for camera calibration of Bendix-Wingman systems

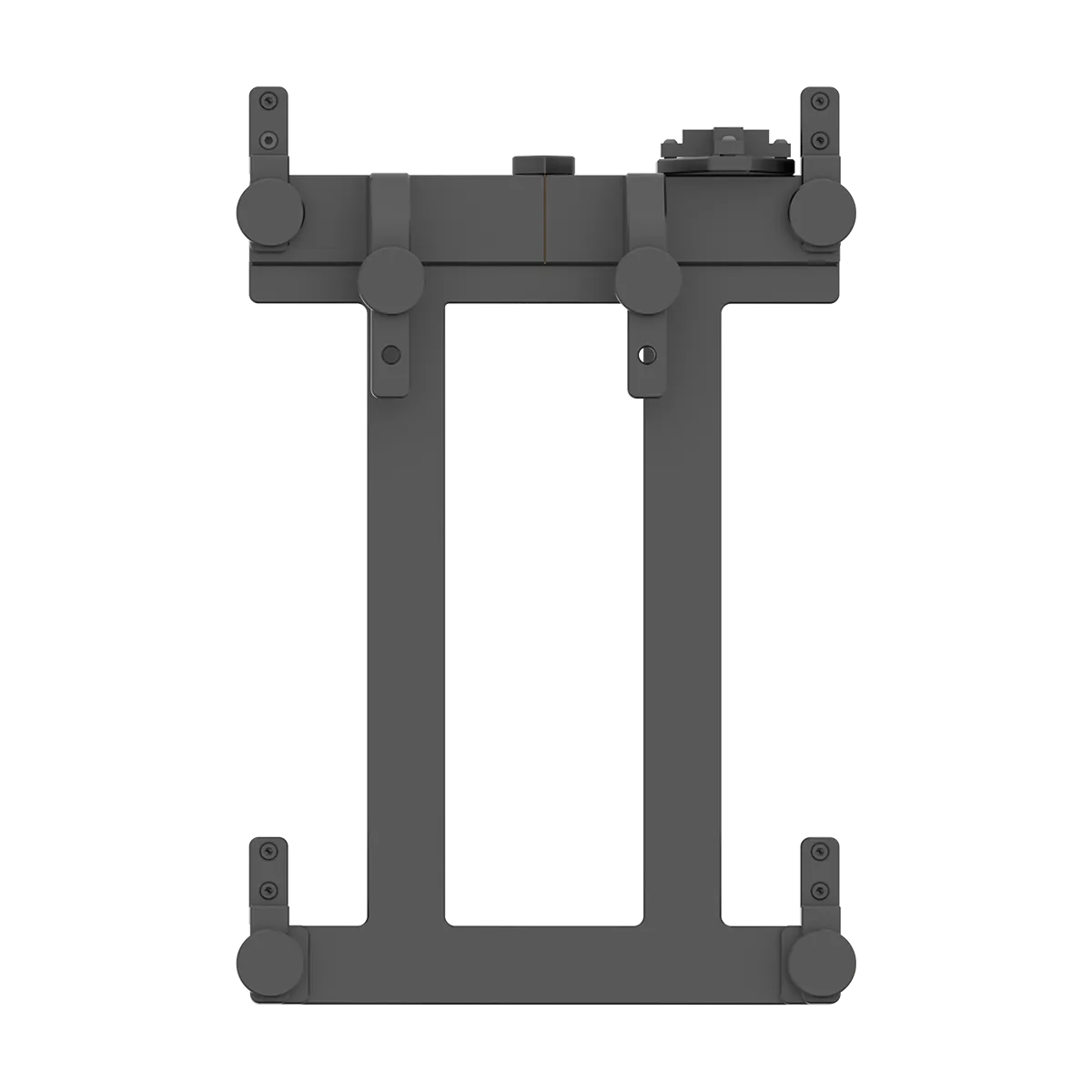

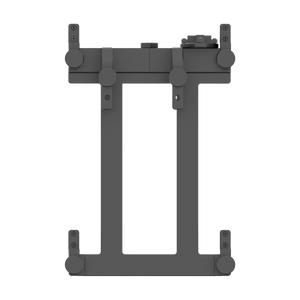

  • Pattern bracket included for attaching the CV Pattern to the MA600 frame
  • One-year limited warranty on package components, including the MS909CV

What’s Included

-
  • MaxiSYS 909CV advanced diagnostic tablet (with one year of free software updates)
  • CV Pattern (Bendix-Wingman calibration target)
  • Pattern bracket (for attaching the CV Pattern to MA600)

The MA600 frame and the MA600 LDW pattern set are not included — this is an expansion package for shops that already operate an MA600.

Warranty

-

One-year limited warranty covers the package components, including the MaxiSYS MS909CV diagnostic tablet.

Documents

-

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
