Autel CVCOREGLS CV ADAS Core Glass Calibration Package — MA600 Mobile Frame + MS909CV Tablet

The Autel CVCOREGLS CV ADAS Core Glass Calibration Package equips heavy- and medium-duty technicians to perform both dynamic and static ADAS calibrations on Class 3-5 and Class 6-8 commercial vehicles. The package pairs the MA600 mobile ADAS calibration frame with the MaxiSYS MS909CV advanced diagnostic tablet and adds the CV Pattern and pattern bracket needed for camera calibration of Bendix-Wingman systems out of the box.

Built around the MA600 rolling frame and a complete laser-alignment set, the kit lets a single technician set up, square to the vehicle, and run an OEM-style calibration without dragging shop tooling onto every bay. The MS909CV tablet ships with one year of free software updates, and the full package is covered by a one-year limited warranty that includes the tablet.

• Dynamic and static ADAS calibration for Class 3-5 and Class 6-8 commercial vehicles
• MA600 mobile ADAS calibration frame on rolling casters with leveling feet for fast bay-to-bay setup
• MaxiSYS MS909CV advanced diagnostic tablet included, with one year of free software updates
• CV Pattern and pattern bracket included for camera calibration of Bendix-Wingman systems
• Pattern bracket attaches the CV Pattern directly to the MA600 frame for stable, repeatable target placement
• Static camera calibration of Mercedes-Benz Sprinter vans and Ram ProMaster vans (with the applicable Lane Departure Warning patterns from an MA600 LDW package)
• Complete laser-alignment set: 2-line laser, 5-line laser, L-shaped positioning bracket, plumb bob, laser-assisted reflector, and laser-reflective board
• One-year limited warranty covers the package components, including the MS909CV

Designed specifically for commercial-vehicle ADAS work.

• Vehicle classes: Class 3-5 and Class 6-8 commercial vehicles
• Camera systems: Bendix-Wingman camera calibration is supported with the included CV Pattern and pattern bracket
• Vans: Static camera calibration of Mercedes-Benz Sprinter and Ram ProMaster vans is supported with this package, but it requires the applicable Lane Departure Warning patterns included with an Autel MA600 LDW package (not included in CVCOREGLS)

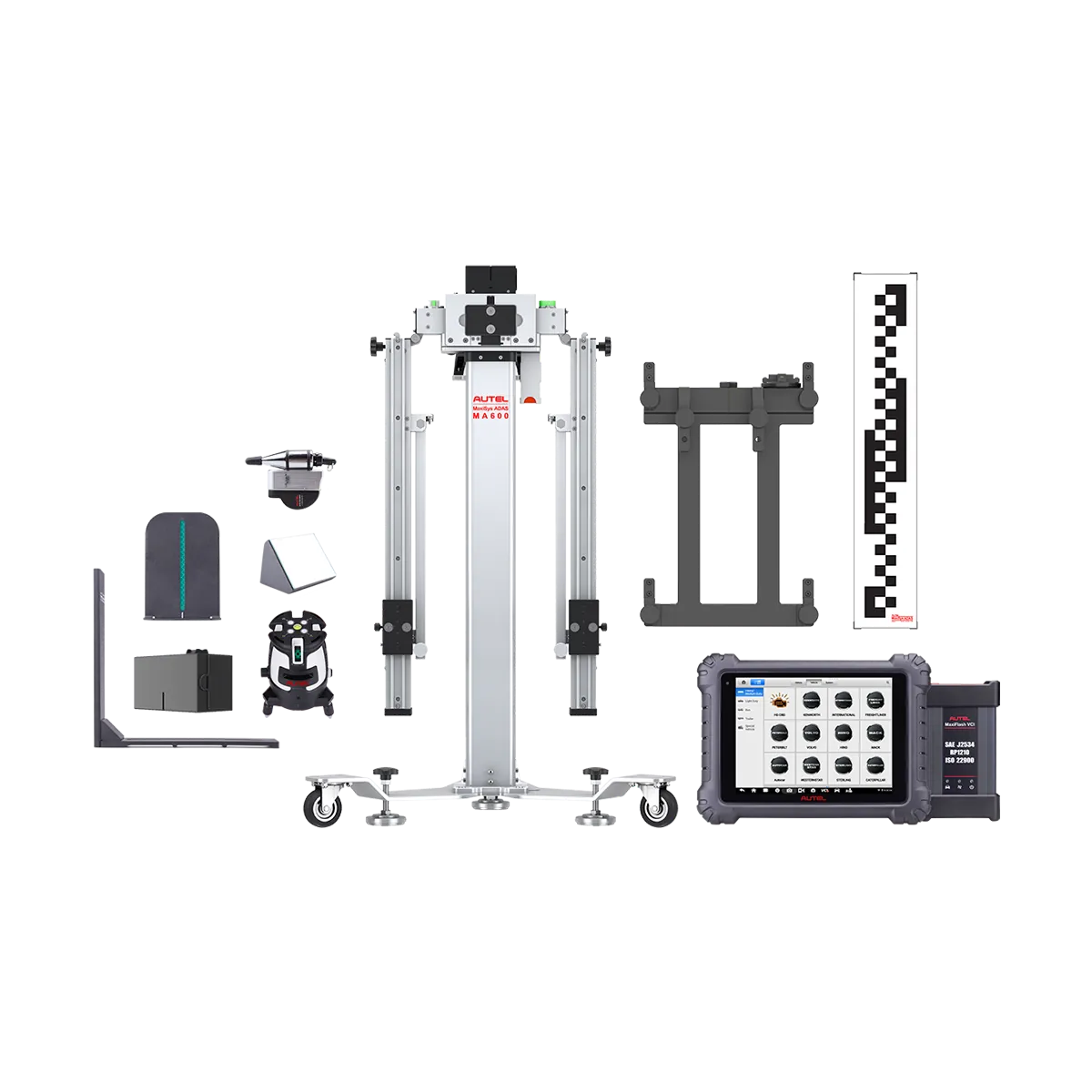

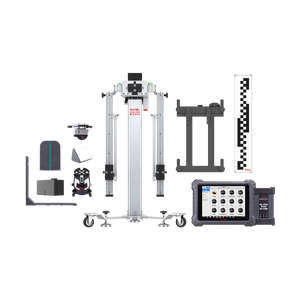

• MA600 Mobile ADAS Calibration System (frame)
• MaxiSYS MS909CV advanced diagnostic tablet (with one year of free software updates)
• CV Pattern

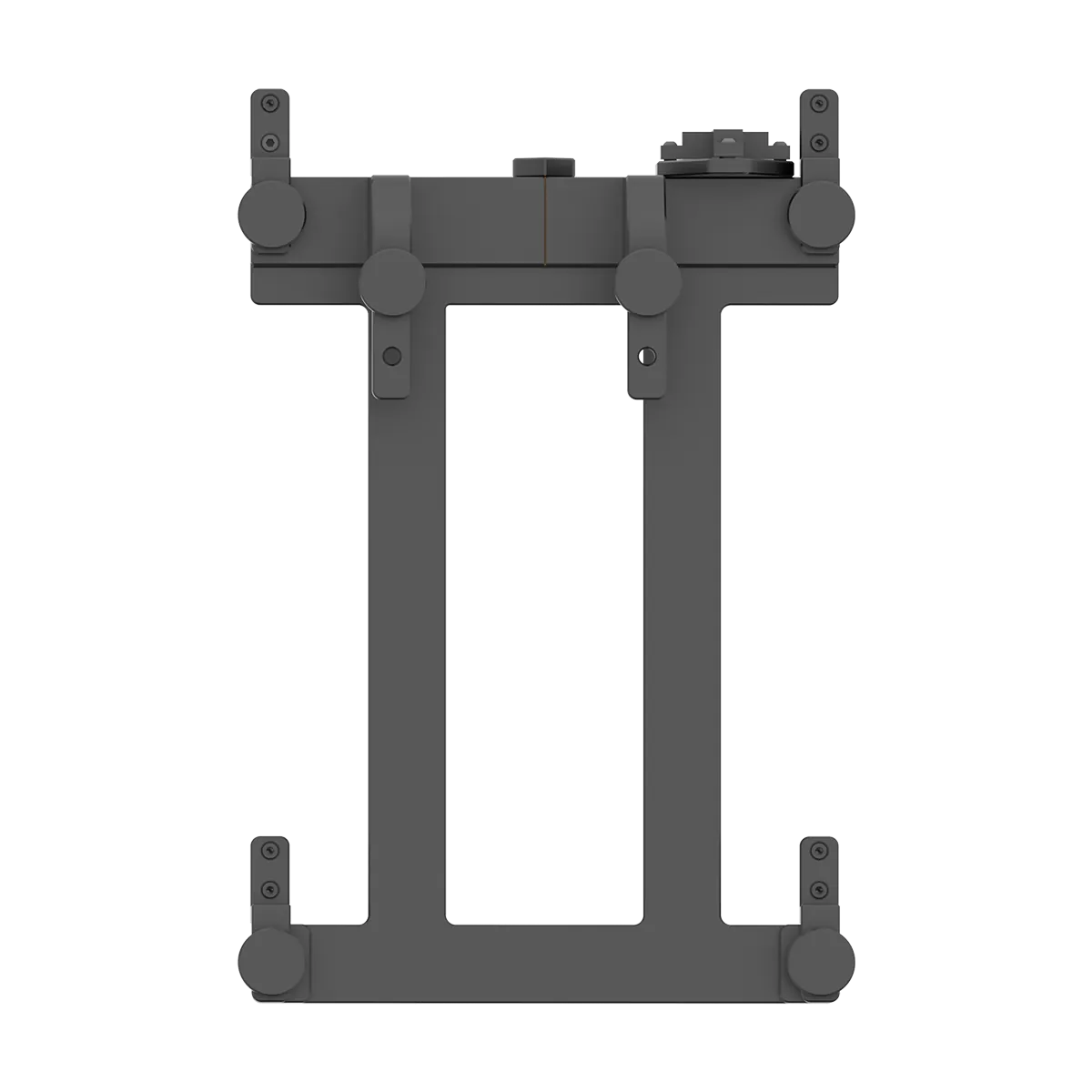

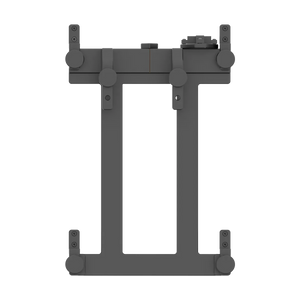

• Pattern bracket (attaches the CV Pattern to the MA600)
• 2-line laser
• 5-line laser
• L-shaped positioning bracket
• Plumb bob
• Laser-assisted reflector
• Laser-reflective board

The CVCOREGLS package is covered by a one-year limited warranty that includes the MA600 frame components, the CV Pattern and bracket, the laser-alignment accessories, and the MaxiSYS MS909CV diagnostic tablet.

Is the diagnostic tablet included?

Yes. The CVCOREGLS package includes the Autel MaxiSYS MS909CV advanced diagnostic tablet, with one year of free software updates from purchase.

What vehicles can this package calibrate?

It supports dynamic and static ADAS calibration on Class 3-5 and Class 6-8 commercial vehicles. The included CV Pattern enables camera calibration on Bendix-Wingman systems. Mercedes-Benz Sprinter and Ram ProMaster vans can be calibrated for static cameras using this package together with the LDW patterns from an Autel MA600 LDW package.

Does it perform both dynamic and static calibrations?

Yes. Both calibration types are supported, using the MA600 mobile frame with the included laser-alignment set (2- and 5-line lasers, L-shaped positioning bracket, plumb bob, laser-assisted reflector, and laser-reflective board).

Do I also need a Lane Departure Warning pattern package?

Only if you plan to perform static camera calibrations on Mercedes-Benz Sprinter or Ram ProMaster vans. Those calibrations use the LDW patterns bundled with Autel's MA600 LDW packages, which are sold separately from CVCOREGLS.

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
