Autel ADASCALD All-Systems ADAS Calibration Expansion Package — LDW, AVM, RCW, ACC, BSD, LIDAR & NVS Targets (Frame, Tablet & Software Sold Separately)

The Autel ADASCALD is an all-systems calibration expansion package designed specifically for Autel OE-level ADAS calibration systems. Adding this bundle to a MaxiSys-based ADAS setup unlocks calibration capability across seven ADAS technologies — Lane Departure Warning, Night Vision System, LIDAR, Adaptive Cruise Control, Around View Monitoring, Blind Spot Detection, and Rear Collision Warning — covering the major Asian, European, and select American OEM platforms in one purchase.

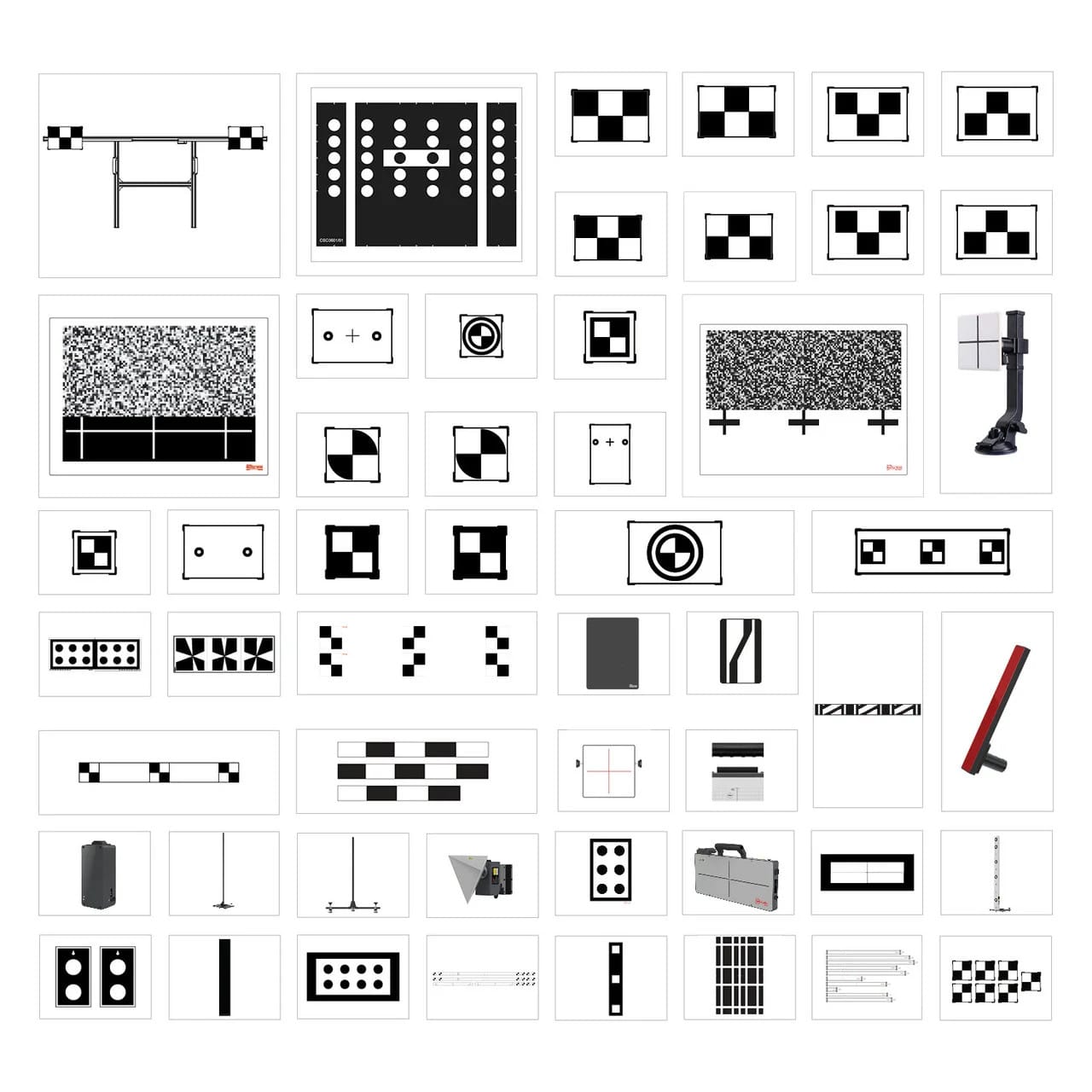

ADASCALD ships as a set of calibration targets, radar boards, reflectors, and stands. It is an expansion to an existing Autel ADAS calibration workflow, not a standalone system. Confirm compatibility with your existing tablet, software, and calibration frame before ordering.

Seven ADAS technologies in one package

ADASCALD covers the full all-systems calibration scope an OE-level shop is expected to handle. Each category ships with the dedicated OEM-specific target patterns or radar tools required to bring the corresponding ADAS sensor back to factory specification.

• LDW — Lane Departure Warning targets covering nine major OEM platform groups, with separate left and right variants where the OEM calibration procedure requires them
• AVM — Around View Monitoring targets for VW, Honda, Hyundai/Kia, Cadillac, Mitsubishi, Toyota, and Nissan
• RCW — Rear Collision Warning targets for VW, Mercedes (RCW I and RCW II), and Nissan (RCW I and RCW II)
• BSD — Blind Spot Detection radar tools including a radar calibration box, corner reflector stand, target stand, and Honda LaneWatch target
• ACC — Adaptive Cruise Control radar tools including the radar calibration plate, Hitachi radar plate, reflector, and VW ADR calibration plate
• LIDAR — VW/Audi calibration board and Toyota reflector for LIDAR-based ADAS
• NVS — Night Vision System calibration tools, with vehicle-specific coverage for Volkswagen, General Motors, and Lexus

OE-spec calibration targets

Every target, radar board, and reflector in the package is built to the pattern, dimension, and reflectivity specification each vehicle manufacturer publishes for ADAS calibration. Combined with an Autel MaxiSys tablet running the Autel all-systems ADAS upgrade software, these targets return ADAS sensors to factory specification — the same workflow OE dealer technicians follow.

ADASCALD is an expansion to an existing Autel ADAS calibration workflow. To run a calibration with these targets, you need all three of the following in addition to ADASCALD itself — each sold separately:

• A compatible Autel MaxiSys tablet — drives the calibration routine and the OEM diagnostic side of the workflow
• The Autel all-systems ADAS upgrade software license — required for the diagnostic software side of the calibration
• A compatible Autel ADAS calibration frame — the physical structure that holds the targets at the OEM-specified distance and height during calibration

If you do not already own those three pieces of the workflow, the targets alone will not perform a calibration. Confirm fit with your existing tablet and frame before ordering — call 307-381-1810 or email sales@mygaragesupplies.com with your current Autel setup and we will verify compatibility.

The ADASCALD bundle covers seven ADAS categories with the OEM-specific target sets listed below. Part numbers reference Autel's own component naming so a technician can confirm any individual piece against Autel's catalog.

Lane Departure Warning targets

• Target Board Holder — 0600-22
• VW / Audi / Porsche LDW I — CSC0601-01
• Mercedes LDW I — CSC0601-02
• Mercedes LDW II — CSC0601-19
• Honda / Acura LDW I — CSC0601-05
• Honda / Acura LDW II (left) — CSC0601-08-L
• Honda / Acura LDW II (right) — CSC0601-08-R
• Honda / Acura LDW III — CSC0601-24-1
• Subaru LDW I — CSC0601-14
• Subaru LDW II — CSC0601-17
• Toyota / Lexus LDW I — CSC0601-11
• Toyota / Lexus LDW II — CSC0601-15
• Toyota / Lexus LDW III — CSC0601-25
• Mazda LDW I — CSC0601-12
• Mazda LDW II (left) — CSC0601-13-L
• Mazda LDW II (right) — CSC0601-13-R
• Nissan / Infiniti LDW I (left) — CSC0601-06-L
• Nissan / Infiniti LDW I (right) — CSC0601-06-R
• Nissan LDW II (left) — CSC0601-03-L
• Nissan LDW II (right) — CSC0601-03-R
• Nissan / Infiniti LDW III (left) — CSC0601-04-L
• Nissan / Infiniti LDW III (right) — CSC0601-04-R
• Mitsubishi LDW I — CSC0601-22-L
• Hyundai / Kia LDW III — CSC0701-23

Around View Monitoring targets

• VW AVM — CSC0804-01
• Honda AVM — CSC1004-02
• Honda AVM — CSC1004-03
• Hyundai / Kia AVM — CSC1004-04
• Cadillac AVM — CSC1004-06
• Mitsubishi AVM — CSC1004-09
• Toyota AVM — CSC1004-10
• Nissan AVM — CSC1004-11

Rear Collision Warning targets

• VW RCW I — CSC0806-01
• Mercedes RCW I — CSC1006-01
• Mercedes RCW II — CSC1006-02
• Nissan RCW I — CSC1006-03
• Nissan RCW II — CSC1006-05

Blind Spot Detection

• Radar Calibration Box — CSC0605-01
• Corner Reflector Stand — CSC0800
• Target Stand — CSC0802
• Corner Reflector — CSC0802-01
• Honda LaneWatch — CSC0805-02

Adaptive Cruise Control

• Radar Calibration Plate — CSC0602-02
• Hitachi Radar Plate — CSC0802-03
• Reflector ACC — CSC0602-01
• VW ADR Calibration Plate — CSC0602-08

LIDAR

• VW / Audi Calibration Board — CSC0602-04
• Toyota Reflector — CSC0802-04

Night Vision System

• VAG / GM Calibrator — CSC0603-01
• Lexus Pattern — CSC0603-03
• Mercedes Stand — CSC0803-01

Review the official Autel ADAS Expansion Package brochure for the full visual parts grid and ADAS coverage breakdown: ADASCALD Expansion Package Brochure (PDF).
