Autel ADASCAL1 MaxiSYS ADAS Expansion Package — AVM, RCW, ACC, BSM, FCW & Night Vision Calibration Add-On (Standard Frame & Tablet Not Included)

The Autel ADASCAL1 ADAS Expansion Package upgrades an existing Autel Lane Departure Warning calibration setup into a complete advanced driver assistance system calibration toolkit. The kit adds fifteen vehicle-specific calibration targets, radar plates, reflectors, and stand assemblies to service Around View Monitoring, Rear Collision Warning, Adaptive Cruise Control, Blind Spot Monitoring, Front Collision Warning, Park Assist, and OEM Night Vision systems on supported Volkswagen, Audi, Honda, Cadillac, Mercedes-Benz, and Nissan vehicles.

This is an expansion package designed for shops already running an Autel ADAS Standard Calibration Frame with a MaxiSYS tablet. The frame and tablet are required to use this kit, and neither is included — both must already be in place or purchased separately.

• Adds calibration coverage for Around View Monitoring (AVM), Rear Collision Warning (RCW), Adaptive Cruise Control (ACC), Blind Spot Monitoring (BSM), Front Collision Warning (FCW), Park Assist, and OEM Night Vision systems
• Fifteen vehicle-branded calibration components grouped by ADAS system
• Designed to mount on the Autel ADAS Standard Calibration Frame
• Operated through a MaxiSYS tablet running the ADAS Calibration Software
• Night Vision calibration hardware for OEM camera modules
• Vehicle-brand-specific AVM and RCW targets for Volkswagen, Honda, Cadillac, Mercedes-Benz, and Nissan

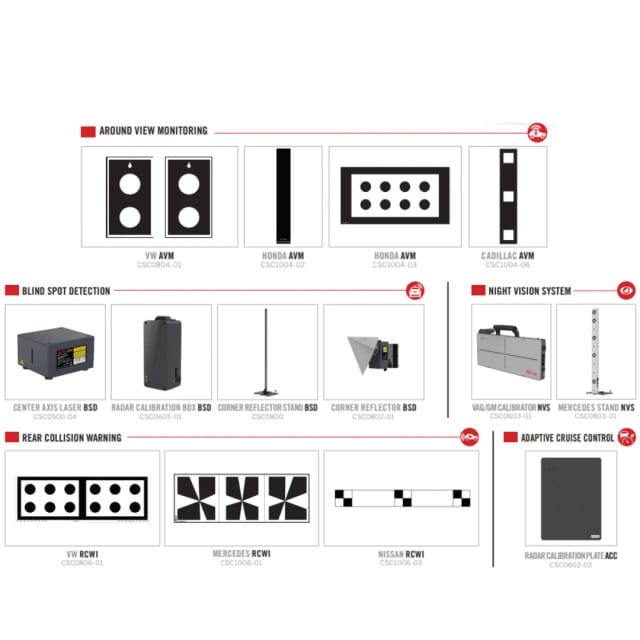

Around View Monitoring (AVM) — 4 vehicle-specific targets

• VW AVM target — CSC0804-01
• Honda AVM target — CSC1004-02
• Honda AVM target — CSC1004-03
• Cadillac AVM target — CSC1004-06

Blind Spot Detection (BSD) — 4 components

• Center Axis Laser — CSC0500-04
• Radar Calibration Box — CSC0605-01
• Corner Reflector Stand — CSC0800
• Corner Reflector — CSC0802-01

Night Vision System (NVS) — 2 components

• VAG/GM Calibrator — CSC0603-01
• Mercedes Stand — CSC0803-01

Rear Collision Warning (RCW) — 3 vehicle-specific targets

• VW RCW target — CSC0806-01
• Mercedes RCW target — CSC1006-01
• Nissan RCW target — CSC1006-03

Adaptive Cruise Control (ACC) — 1 component

• Radar Calibration Plate — CSC0602-02

The ADASCAL1 expansion is designed to mount on the Autel ADAS Standard Calibration Frame and is operated through a MaxiSYS tablet with the ADAS Calibration Software license active. Both the frame and tablet are sold separately and are not included with this kit.

The targets and components in this package are labeled for use with ADAS systems on Volkswagen, Audi, Honda, Cadillac, Mercedes-Benz, and Nissan vehicles. Confirm specific year and model coverage against your MaxiSYS ADAS Calibration Software vehicle list before scheduling work.

Autel ADASCAL1 ADAS Expansion Package Brochure (PDF)

For fitment confirmation against your existing Autel ADAS Standard Calibration Frame or your MaxiSYS tablet, contact MGS at sales@mygaragesupplies.com or 307-381-1810.
