Atlas TTC303 Truck Tire Changer + WBT-210 Heavy Duty Wheel Balancer Combo

SKU ATETTCWB-COMBO3-FPD
Original price $15,399.00 - Original price $15,399.00
Original price
$15,399.00
$15,399.00 - $15,399.00
Current price $15,399.00

Description

-

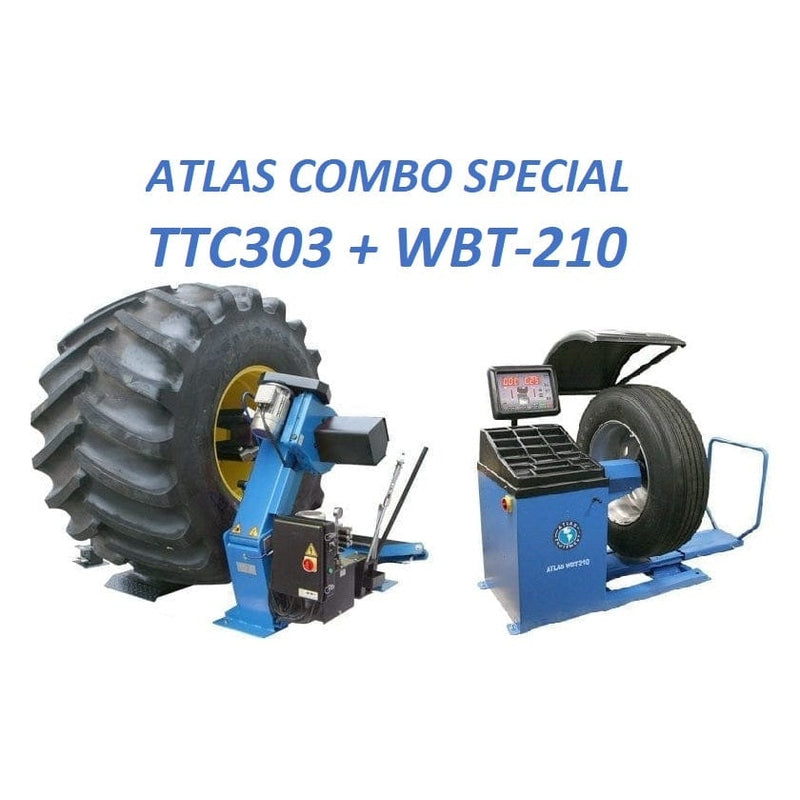

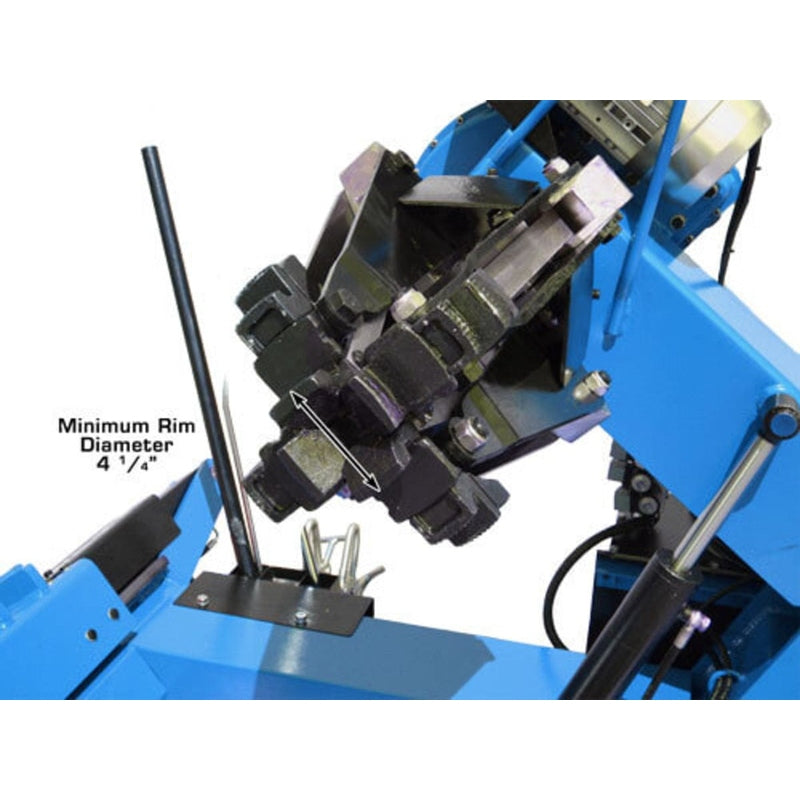

This Combo Package includes the Atlas® TC303 truck tire changer and the the heavy duty computerized Atlas® WBT-210 wheel balancer. The Super Duty Atlas® TTC303 truck tire changer is designed and engineered to handle rim sizes from 4-1/4 inches to 56 inches and tire diameters in excess of over 90 inches. The Atlas® Truck Tire Changer can easily accommodate tires with a maximum width of up to 42 inches. This tire changer has been sold all over the world for the last several years and is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia.

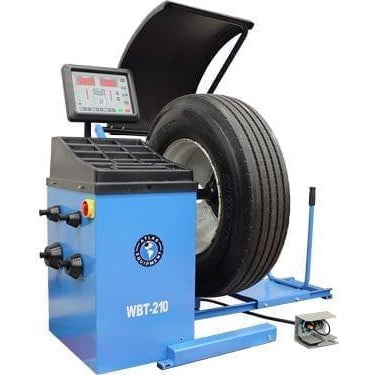

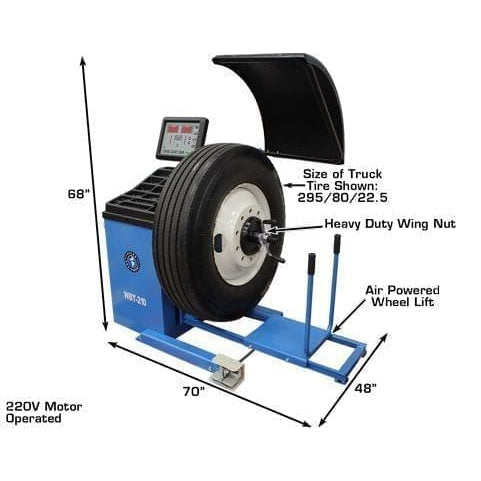

The Atlas® WBT-210 is the perfect wheel balancer for those shops that want one balancer that can balance a 14-inch steel rim up to and including a 300-pound semi-truck tire. There are many large (32 inch) custom wheels and over-sized “gumbo-mudders” that can easily be balanced on the Atlas® WBT-210 computer wheel balancer.

The Atlas® WBT-210 is the perfect computer spin balancer for those trucking companies that operate everything from passenger cars to light trucks to over the road semi tractor/ trailer rigs. The 40 mm heavy duty shaft accommodates the standard mounting cones for most cars and pickup trucks. There are several large truck adapters included with the package that will allow the operator to mount and balance most BUDD style wheels.

Features

-

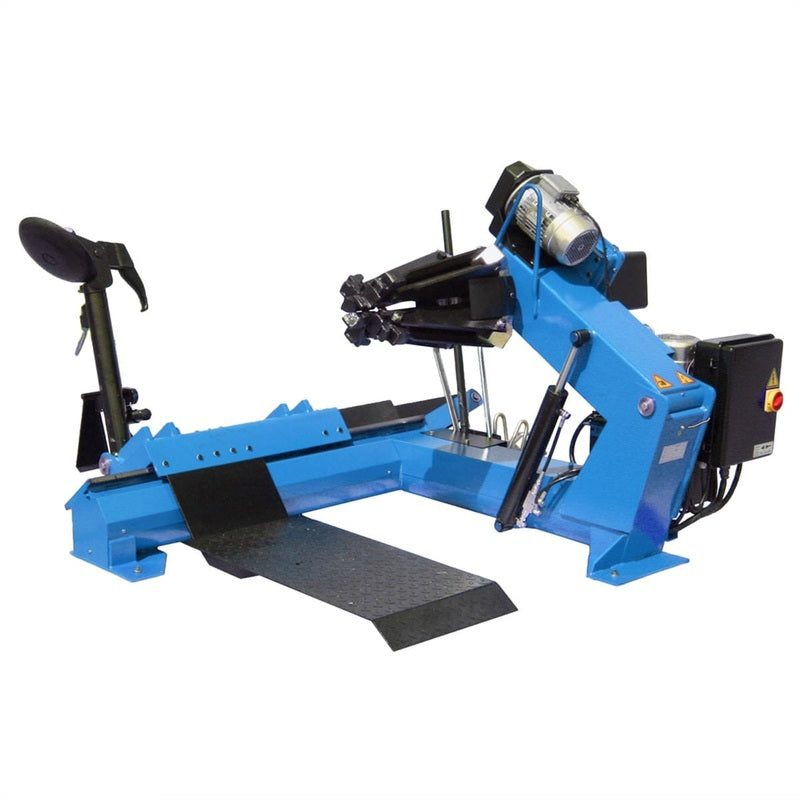

TTC303

  • Super Duty Truck Tire Changer
  • 220VOLT 1 PHASE ELECTRIC
  • Handles rims from 14″ to 56″ and tire diameters in excess of 90″
  • Accommodates tires with a max width of up to 42″

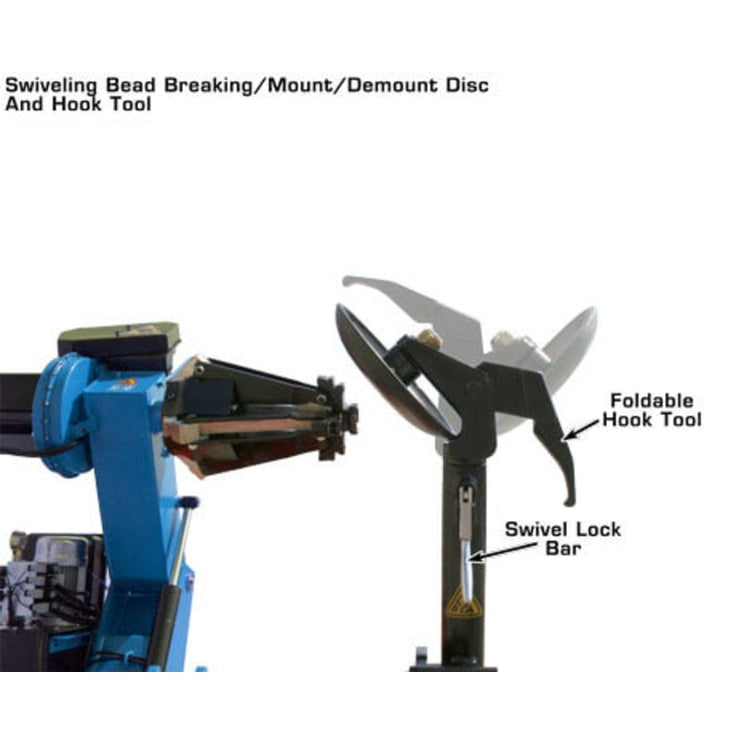

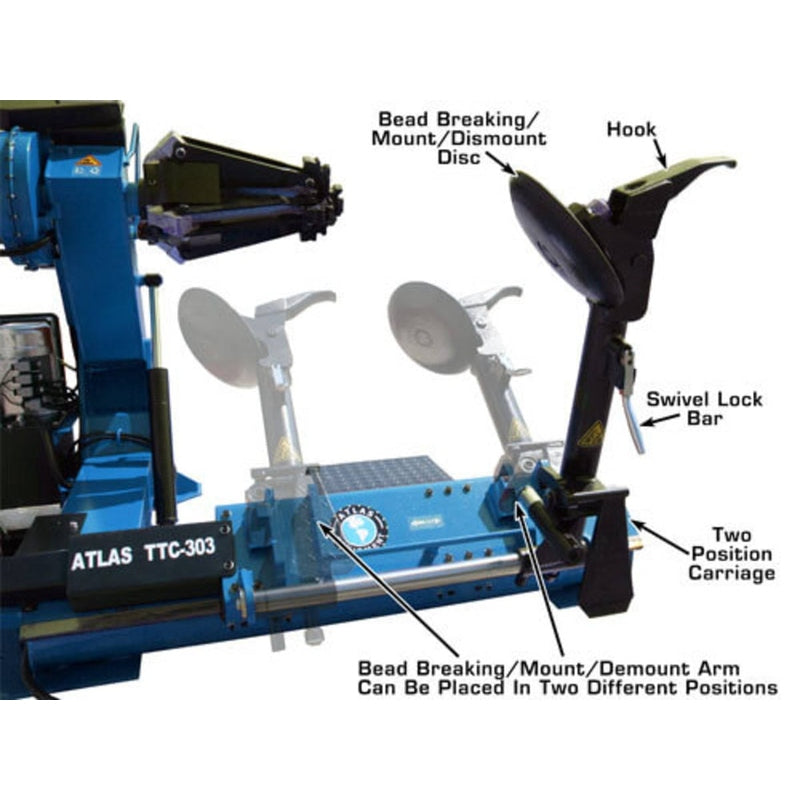

  • Bead Breaker
  • Mount/Demount Head

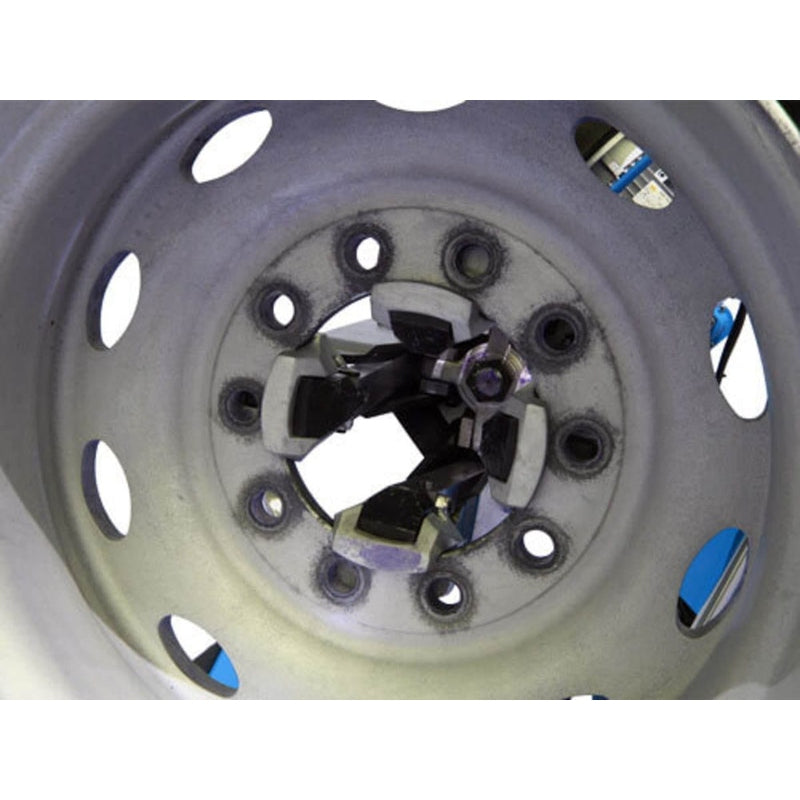

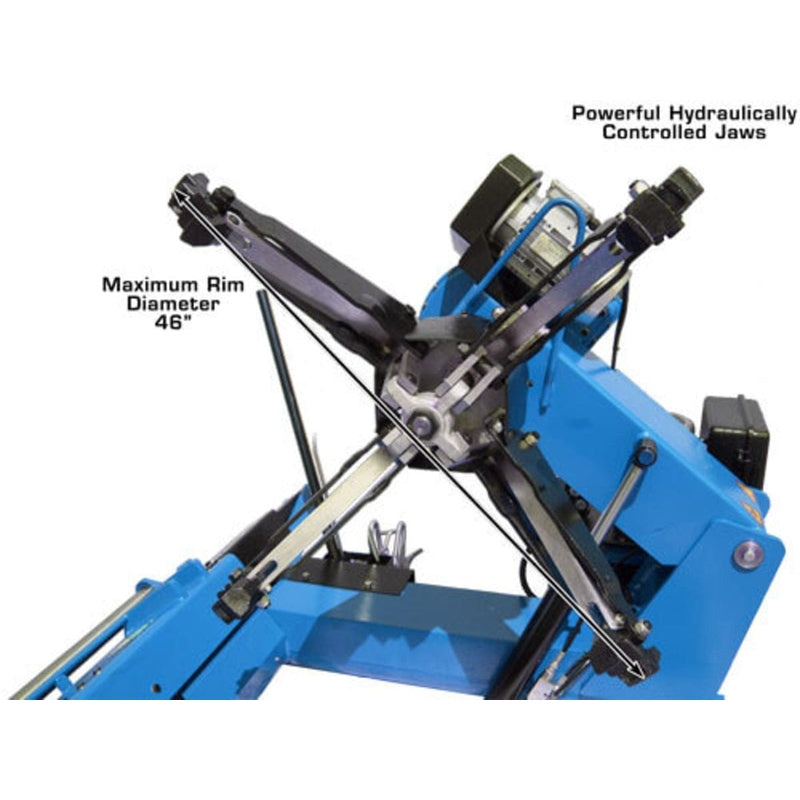

  • Electric/Hydraulic Self-Centering Four Jaw Chuck
  • 5 different rim locking positions

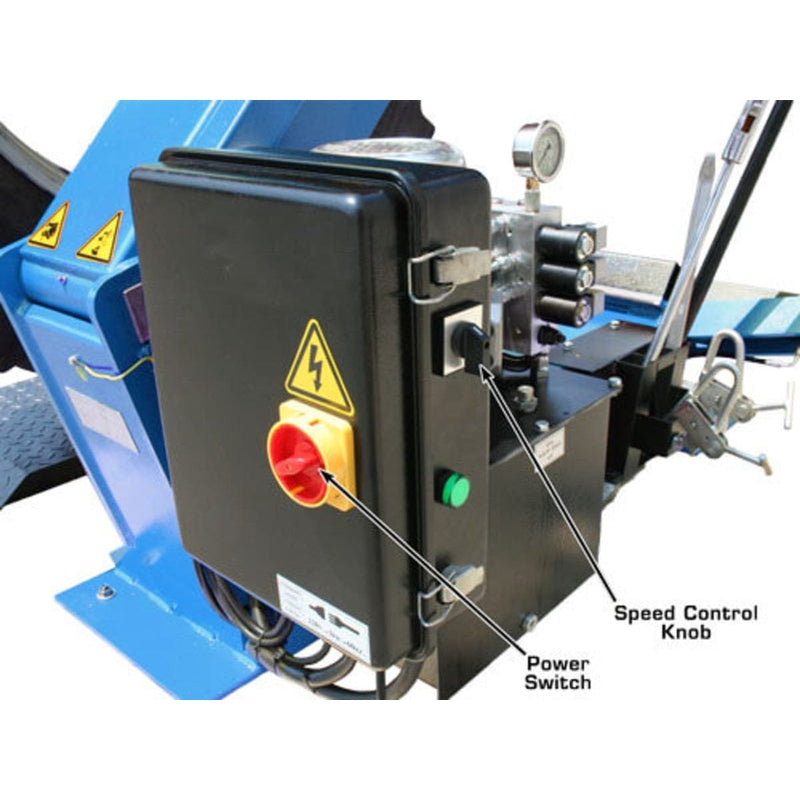

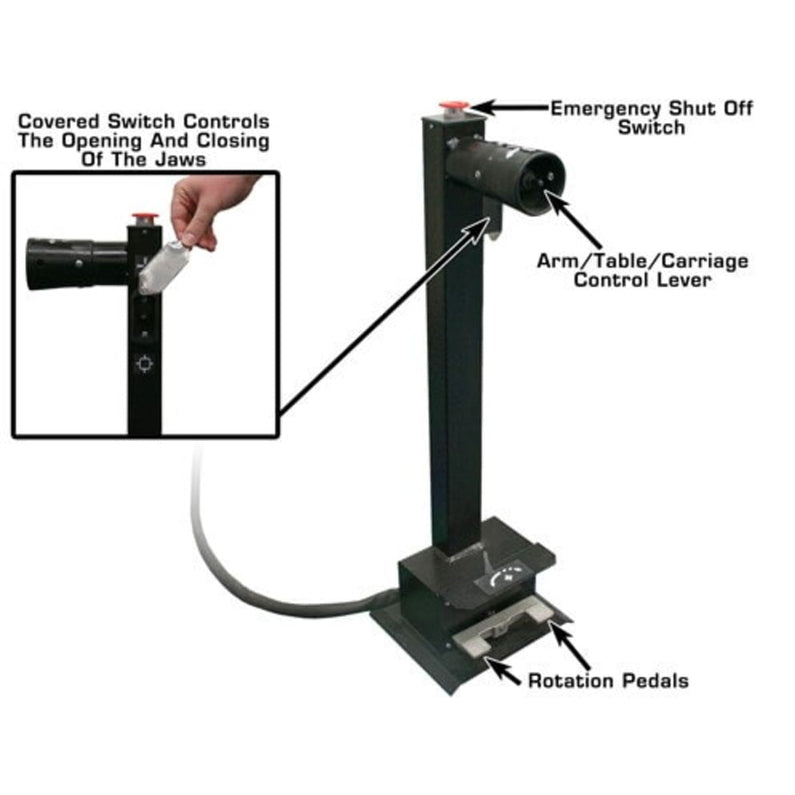

  • Wired Mobile Control Unit

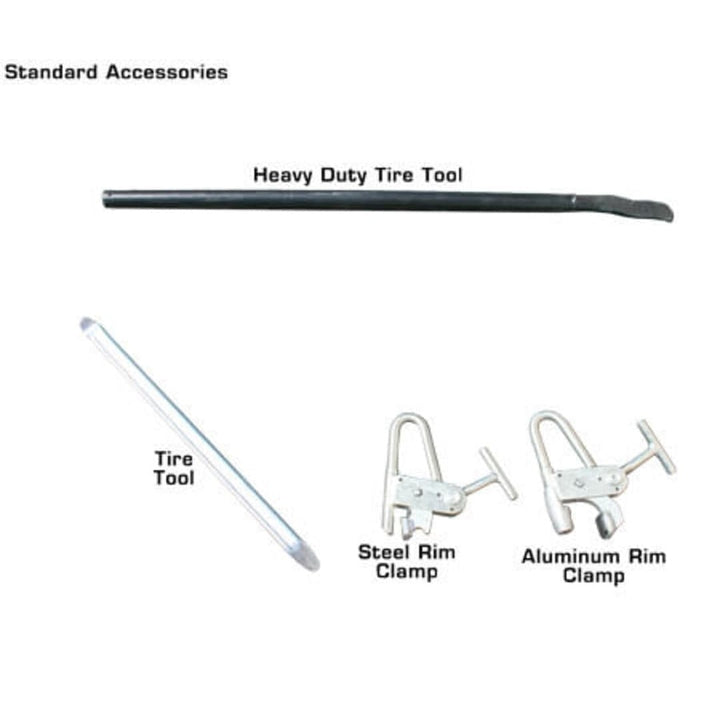

  • Heavy Duty Tire Tool Included

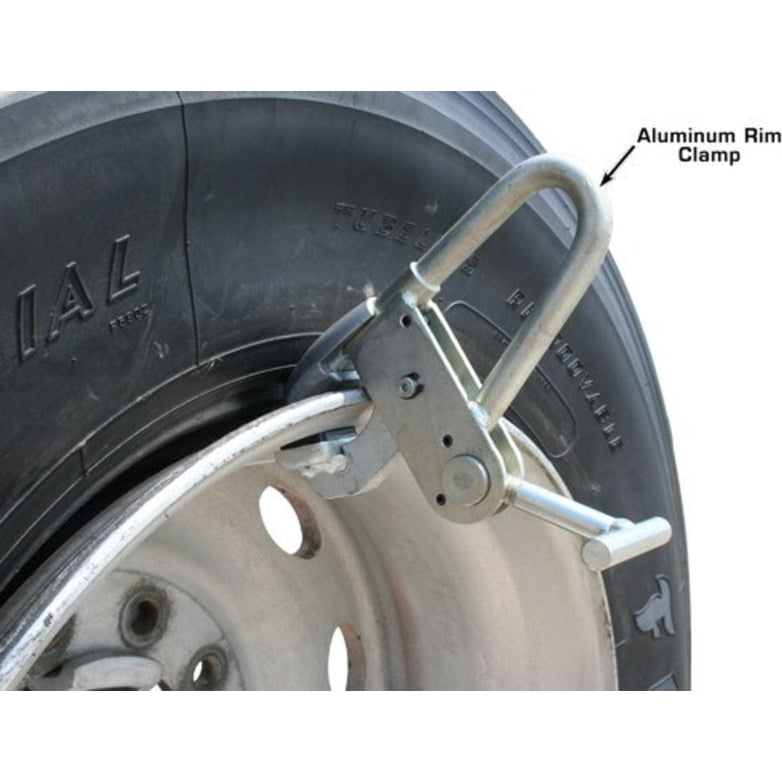

  • Rim Clamps for Steel and Alloy Wheels Included

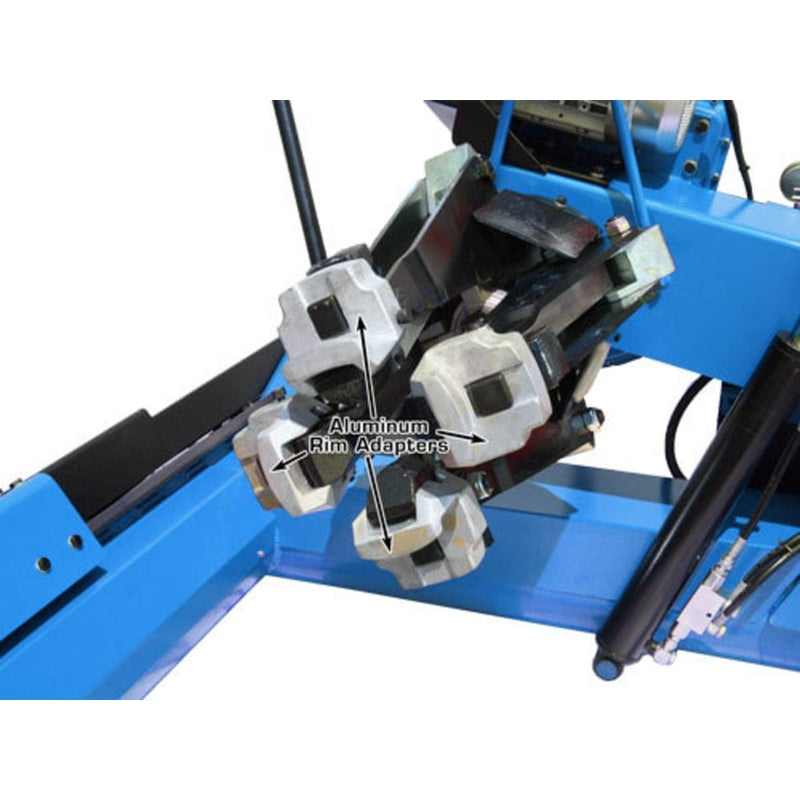

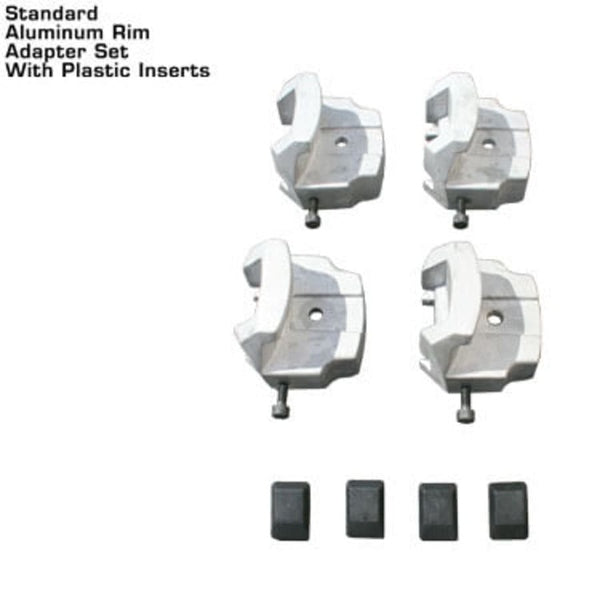

  • Alloy Rim Adapter Set w/ Plastic Inserts Included
  • 1 Year Parts Only Warranty

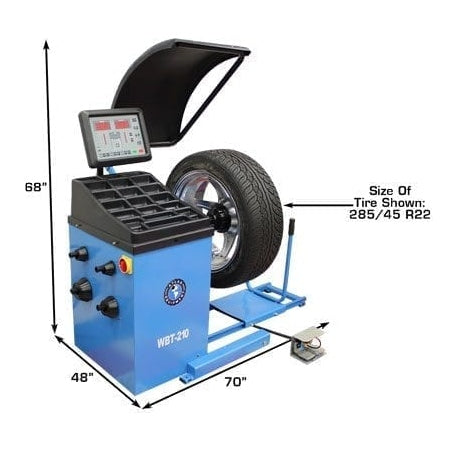

WBT-210

  • Computer Controlled Heavy Duty Spin Balancer

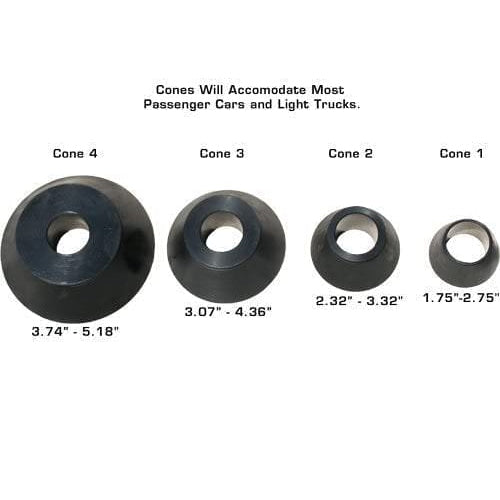

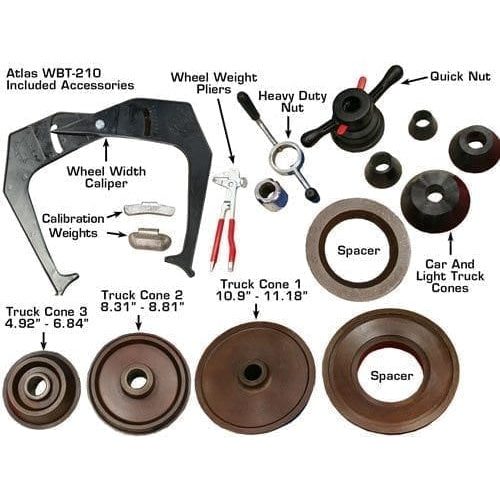

  • Cone sets for car and light truck tires
  • Cone and spacer set for truck, bus, or implement tires
  • Plastic Quick Release Nut included
  • Heavy duty steel wing nut included

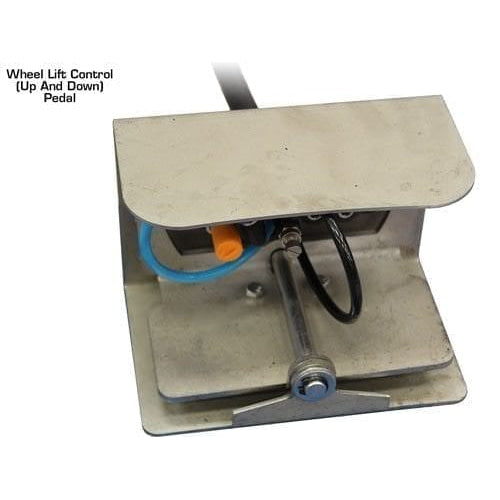

  • Pneumatic wheel lift (external air supply required)
  • Automatic start/stop when hood is lowered/raised.

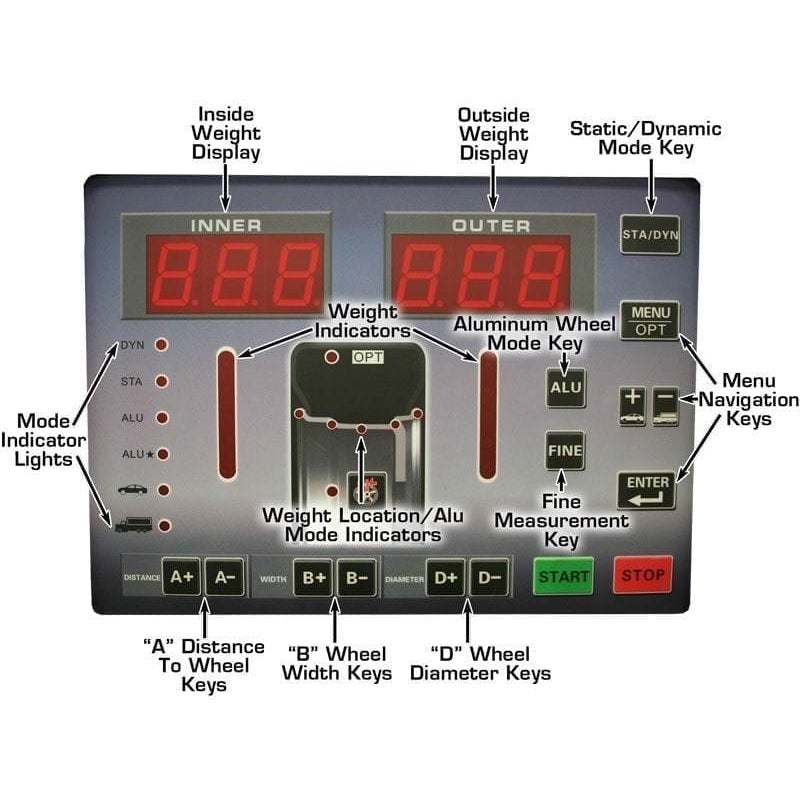

  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self-diagnosis
  • Self-calibration
  • Exceptional stability in reading the unbalance between planes
  • Display in grams or ounces, and in mm or inches
  • Wheel Weight Pliers Included
  • Wheel Width Calipers Included
  • Replacement Parts & Wear Items Always in Stock
  • 1 Year Parts Only Warranty

Specifications

-

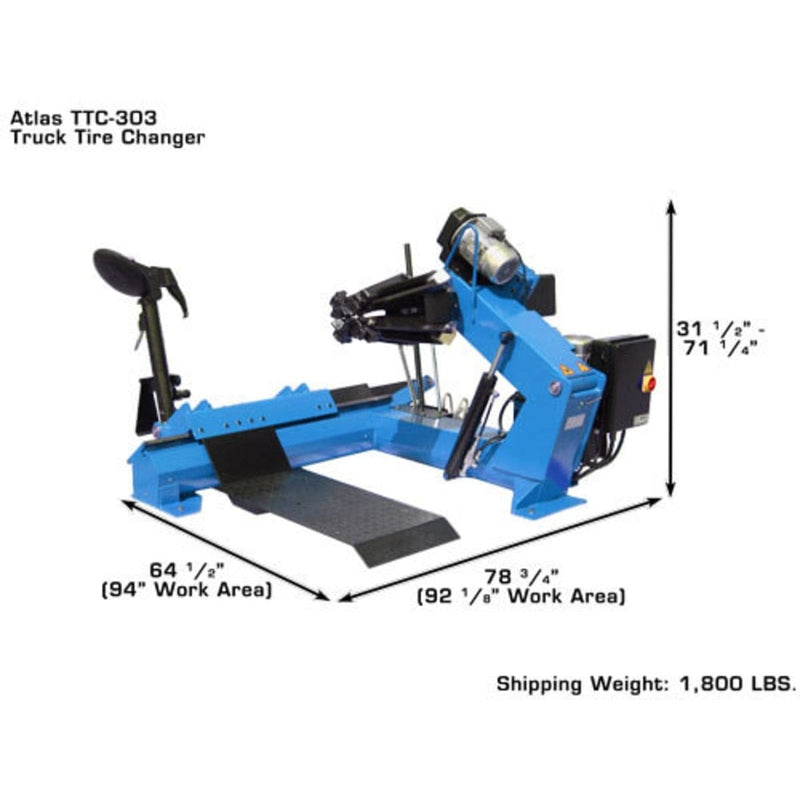

Atlas® TTC303 Specifications

Rim Clamping Range 14" - 46"

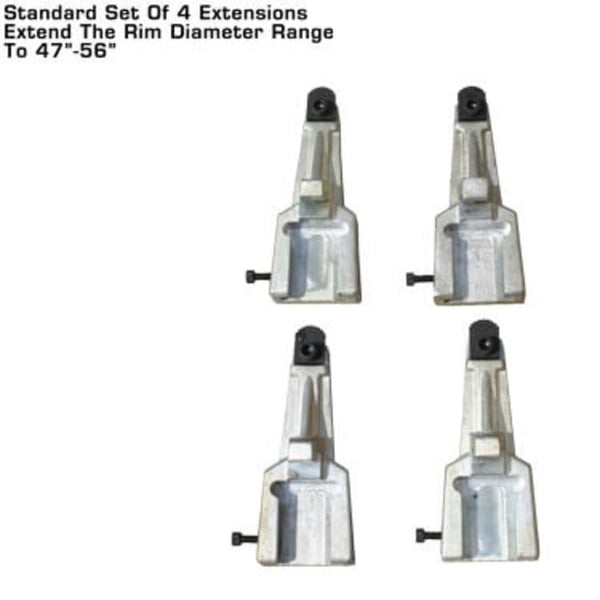

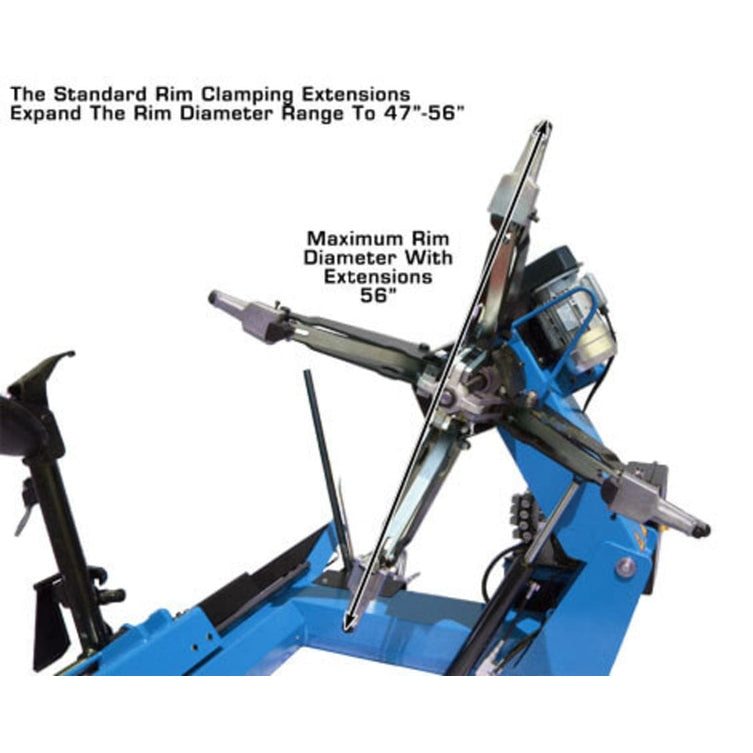

Max Clamping Size W/ Extensions 56""
Max Wheel Weight 3,300 lbs.
Max Tire Diameter 90 1/2" (7' 6 1/2")
Max Tire Width 42" (3' 6")
Clamping Power 13,173 lbs.
Operating Pressure 0-1885 PSI
Acoustic Pressure <70dBA
Bead Breaker Force 5930 lbs.
Tool Arm Positioning Manual
Tool Head Positioning Manual
Construction Single Piece Frame w/ Solid Floor Plate
Hydraulic Motor Power 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
Chuck Motor Power 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required

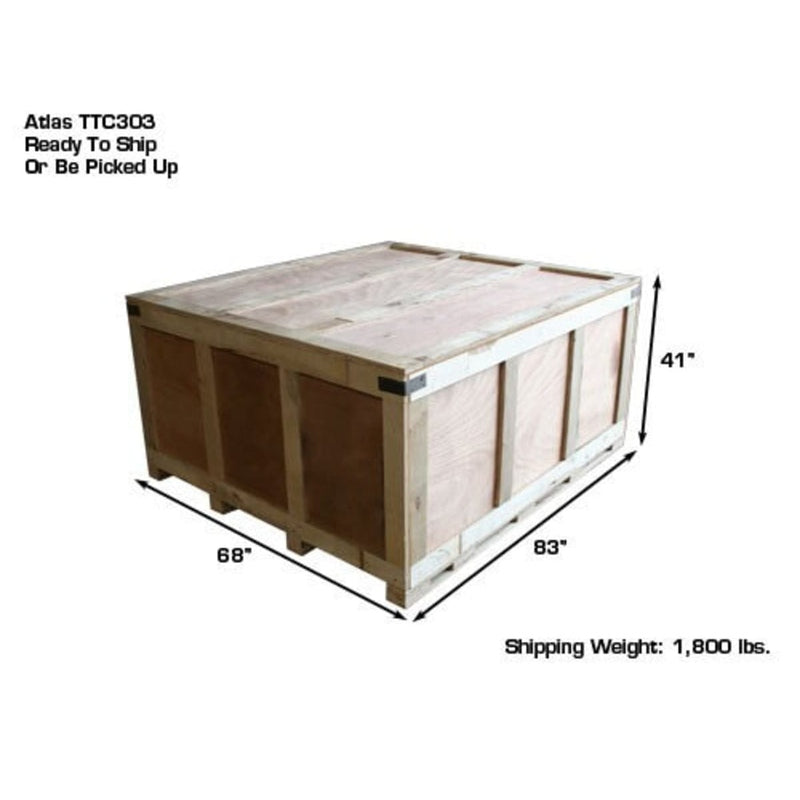

Shipping Weight 1,800 lbs.

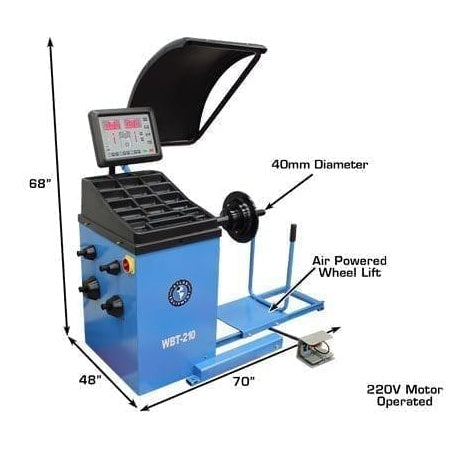

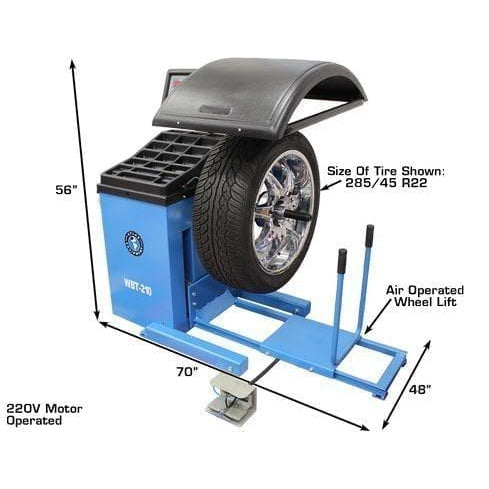

Atlas® WBT-210 Specification

Max Tire Diameter 47"
Rim Sizes (Cars And Light Trucks) 10"-32"
Rim Width 1 1/2"-20"
Shaft Size 40mm
Max. Wheel Weight 440 lbs.
Balancing Speed 150 rpm Car-Light Truck Mode/90 rpm Truck Mode
Data Entry All Dimensions Manual Entry
Measurements Standard Or Metric
Accuracy 1 gram Car-Light Truck Mode/10 gram Truck Mode
Weight Position Resolution 1.4 Degrees
Self Calibration Yes
Motor 1/3 HP
Air Requirement 115-140 PSI (MUST NOT EXCEED 140 PSI)
Power Supply 220volt +/- 5% (209-231 volts) 1phase, 30 amp breaker required

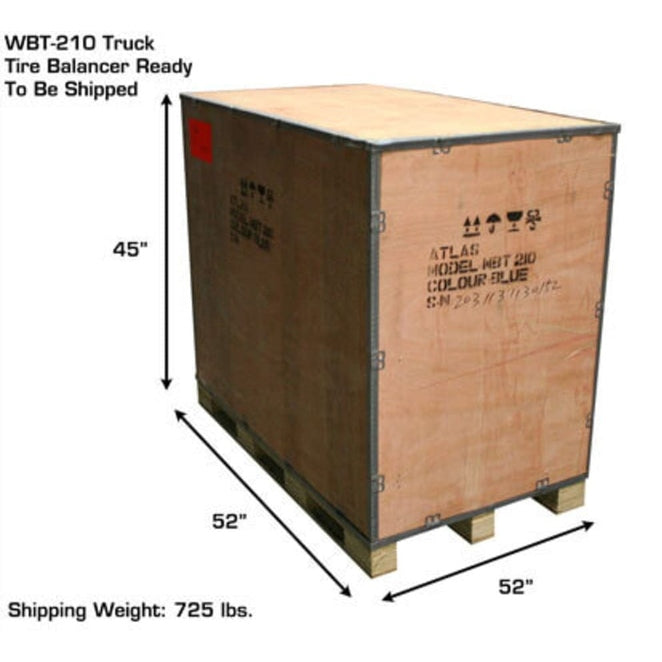

Shipping Weight 725 lbs.
