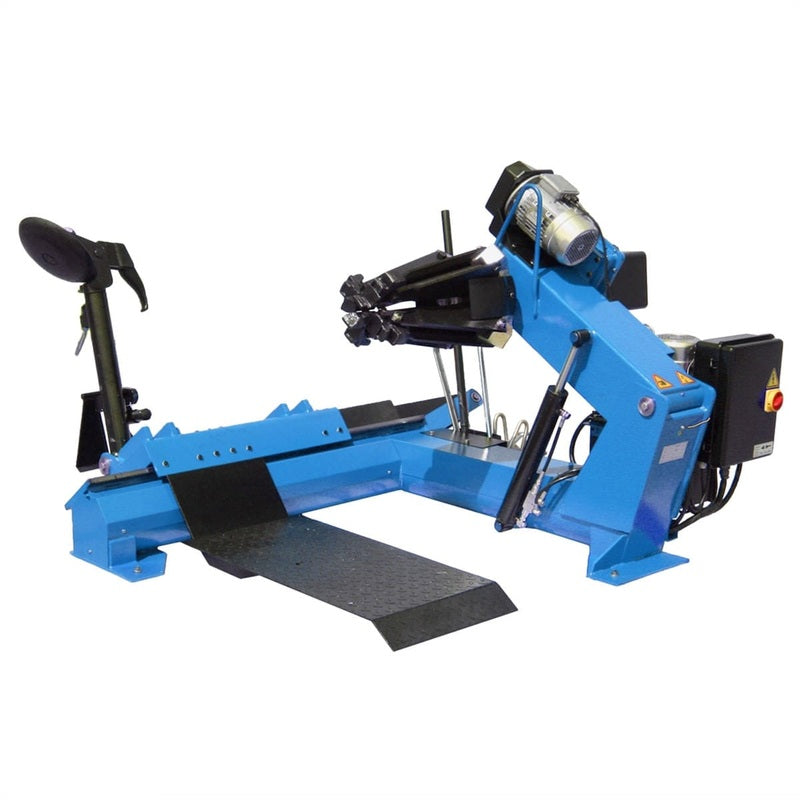

Atlas TTC303 Large Truck Tire Changer

SKU ATEATTC303-FPD
Original price $10,999.00 - Original price $10,999.00
Original price
$10,999.00
$10,999.00 - $10,999.00
Current price $10,999.00
Availability:
in stock, leaves warehouse in 24hrs
BLACK FRIDAY: 5% Applied At Checkout
Black Friday is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings while they last.

Description

-

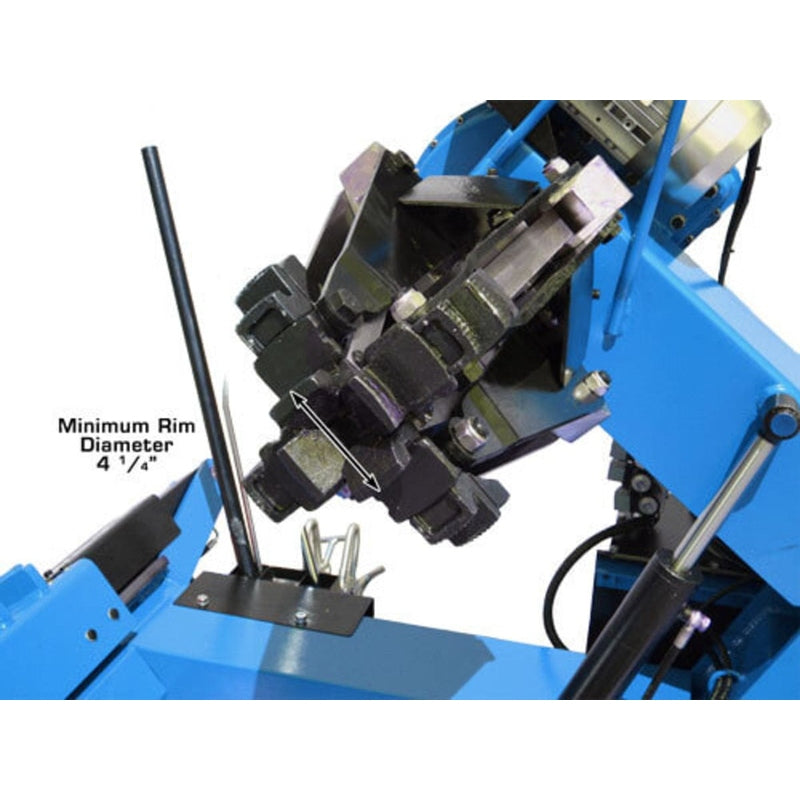

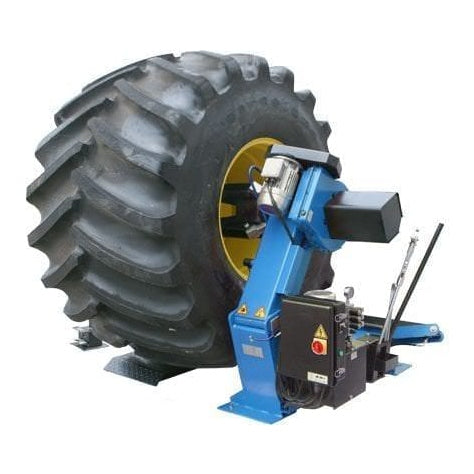

The Super Duty Atlas® TTC303 truck tire changer is designed and engineered to handle rim sizes from 4-1/4 inches to 56 inches and tire diameters in excess of over 90 inches. The Atlas® Truck Tire Changer can easily accommodate tires with a maximum width of up to 42 inches. This tire changer has been sold all over the world for the last several years and is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia.

This Atlas® TTC303 truck tire changer is designed for high volume truck tire shops that demand dependability and durability in their equipment.

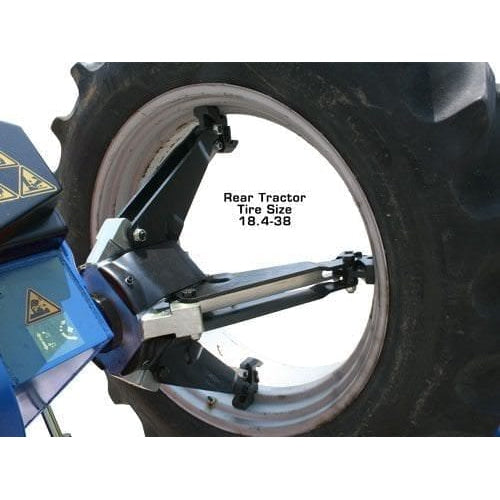

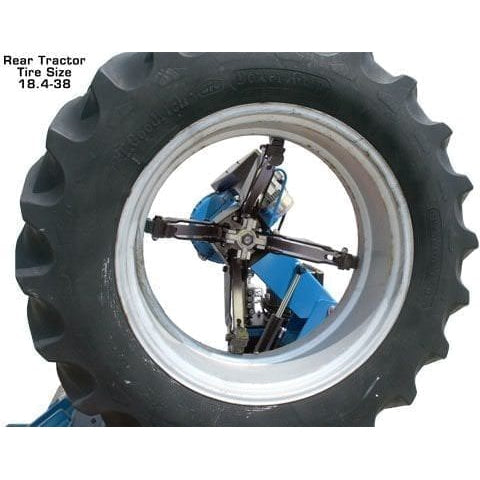

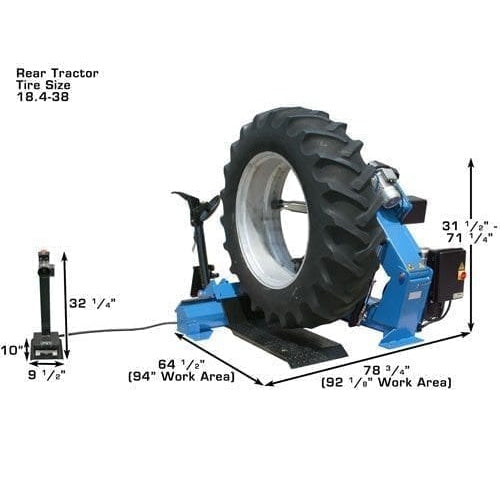

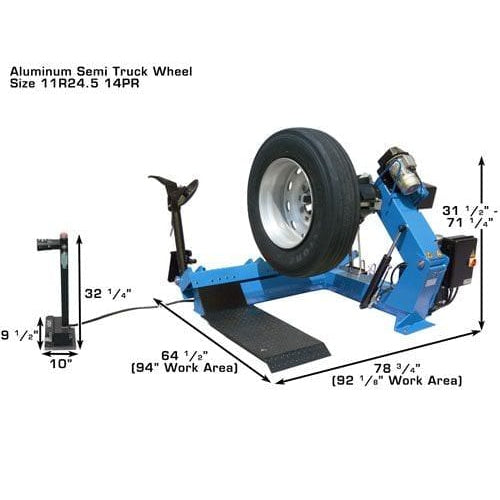

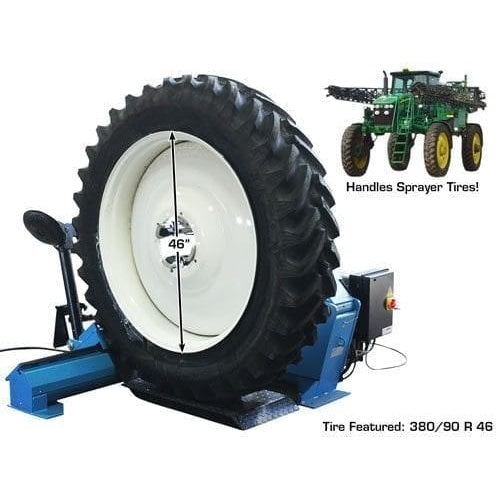

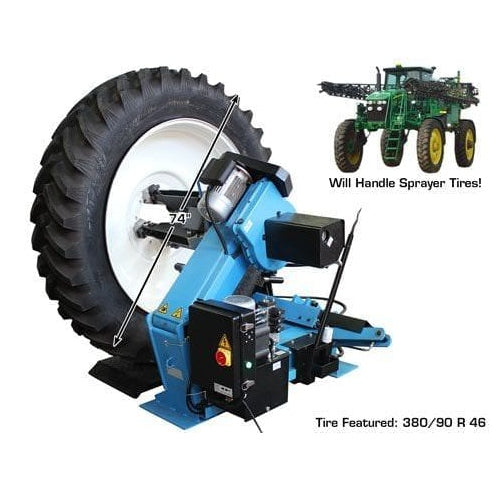

The Atlas® TTC303 handles off-road tires, agricultural tires, super single tires, and skidder tires with ease. The Atlas® TTC303 truck tire changer is the perfect choice for the large truck tire center that does high volume truck tire work on standard over the road wheel assemblies and demands the capabilities to change agricultural and off road wheel assemblies.

Features

-
  • Super Duty Truck Tire Changer

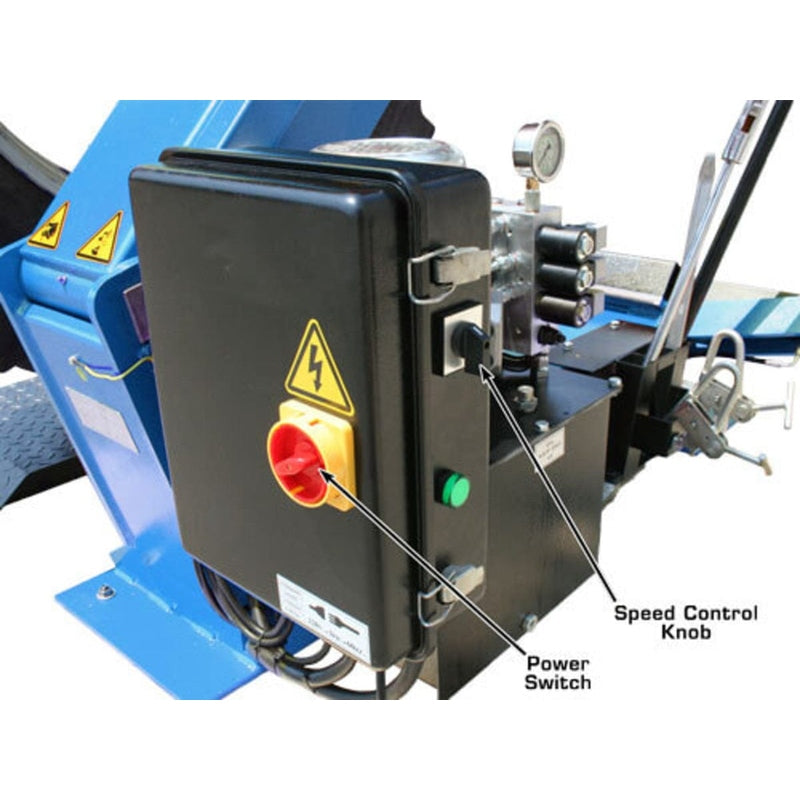

  • 220VOLT 1 PHASE ELECTRIC
  • Handles rims from 14″ to 56″ and tire diameters in excess of 90″
  • Accommodates tires with a max width of up to 42″

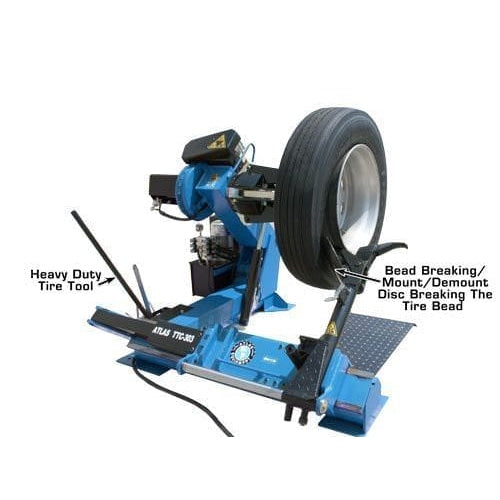

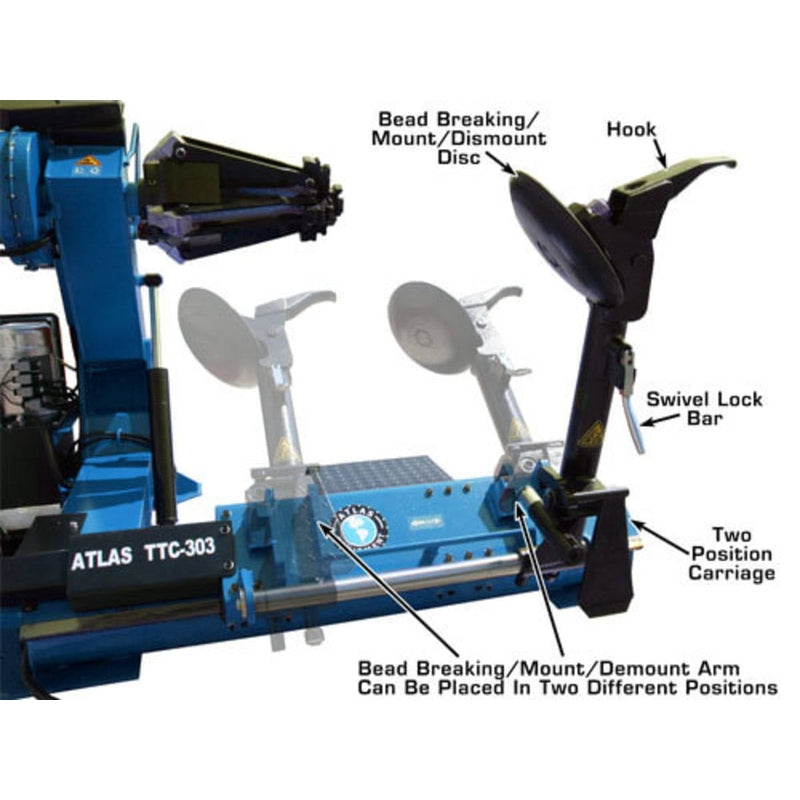

  • Bead Breaker

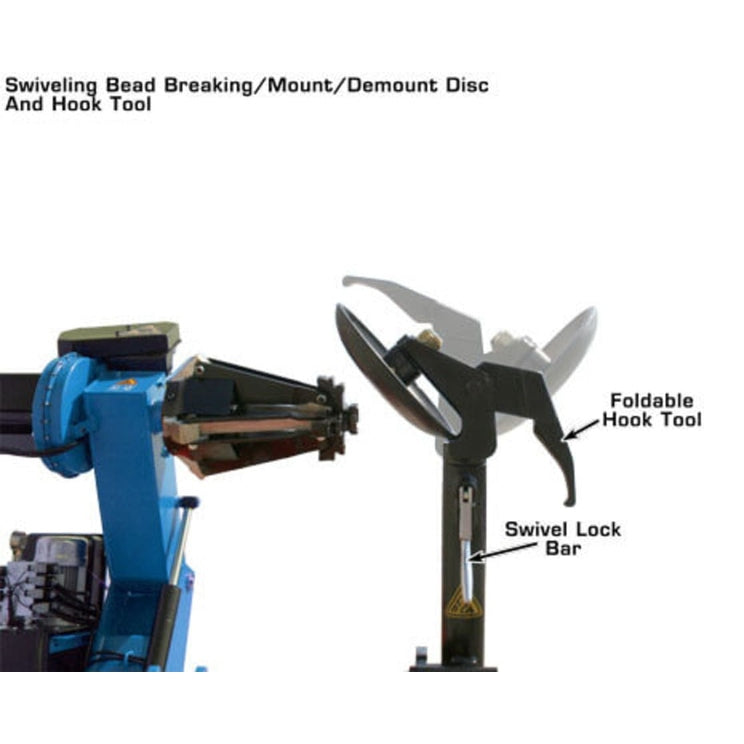

  • Mount/Demount Head

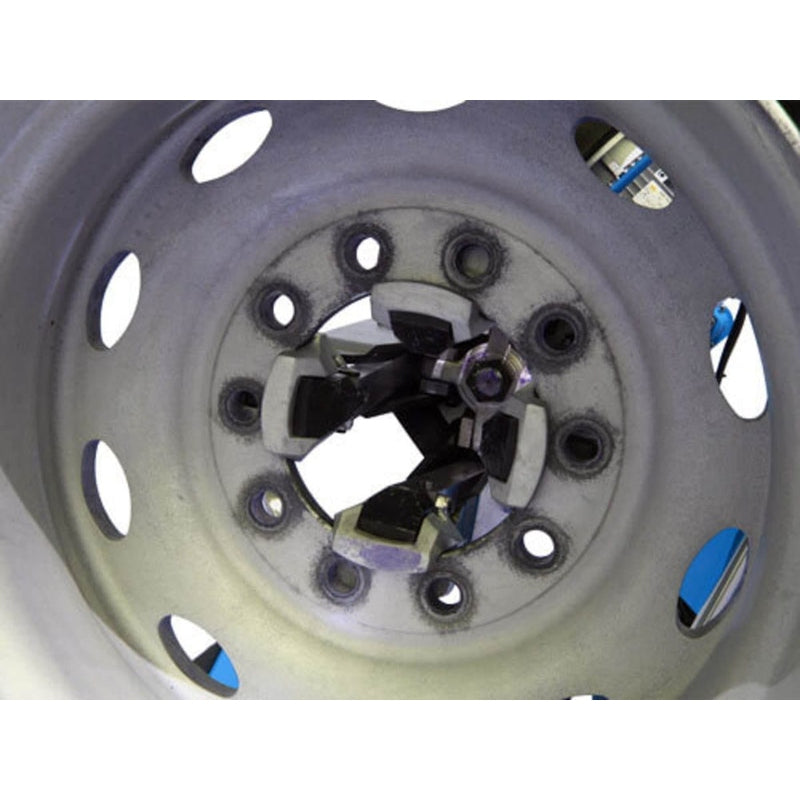

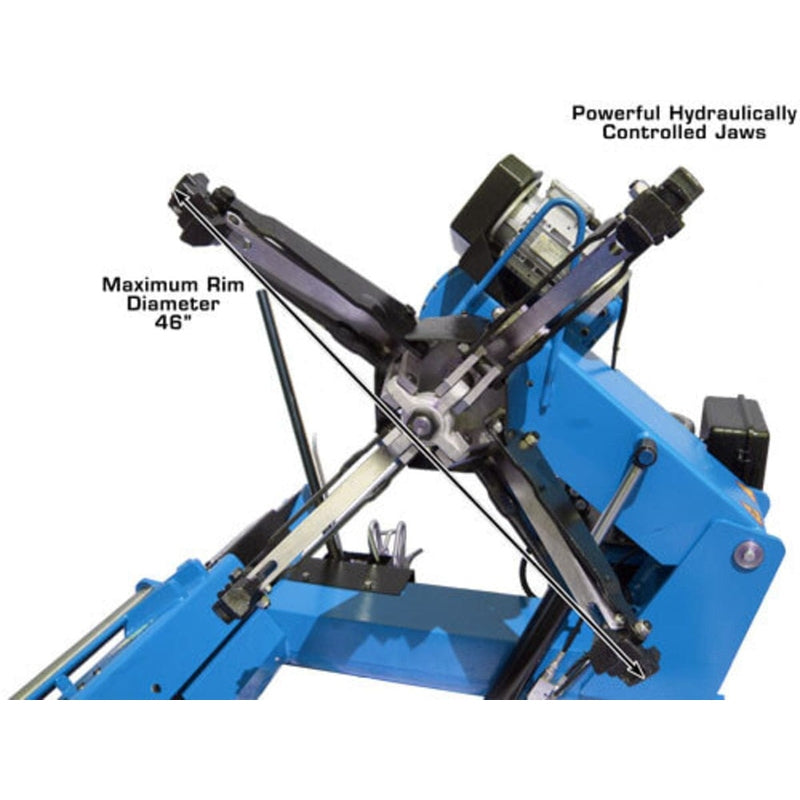

  • Electric/Hydraulic Self-Centering Four Jaw Chuck
  • 5 different rim locking positions

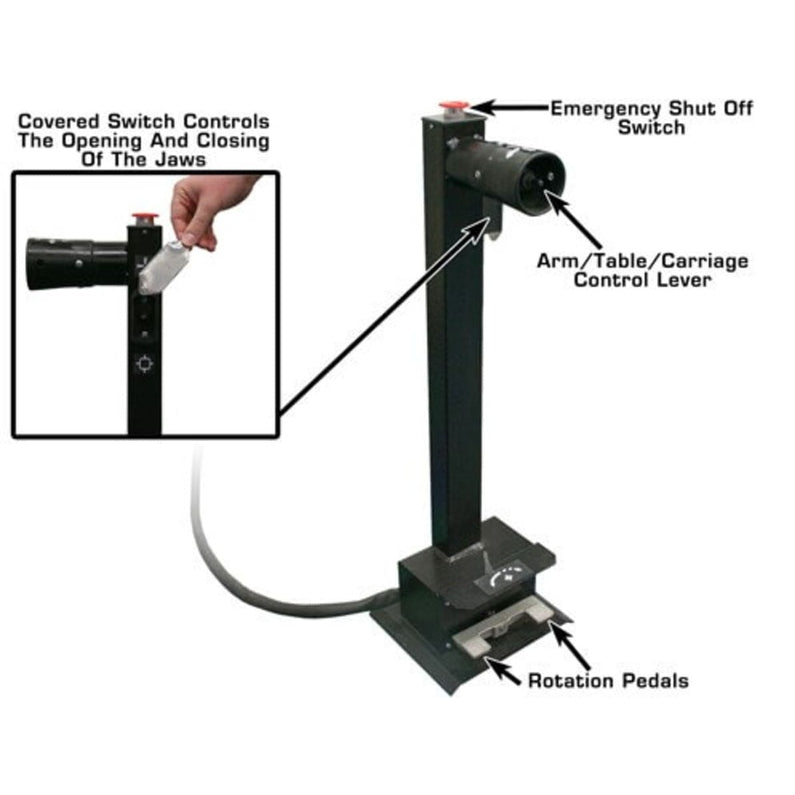

  • Wired Mobile Control Unit

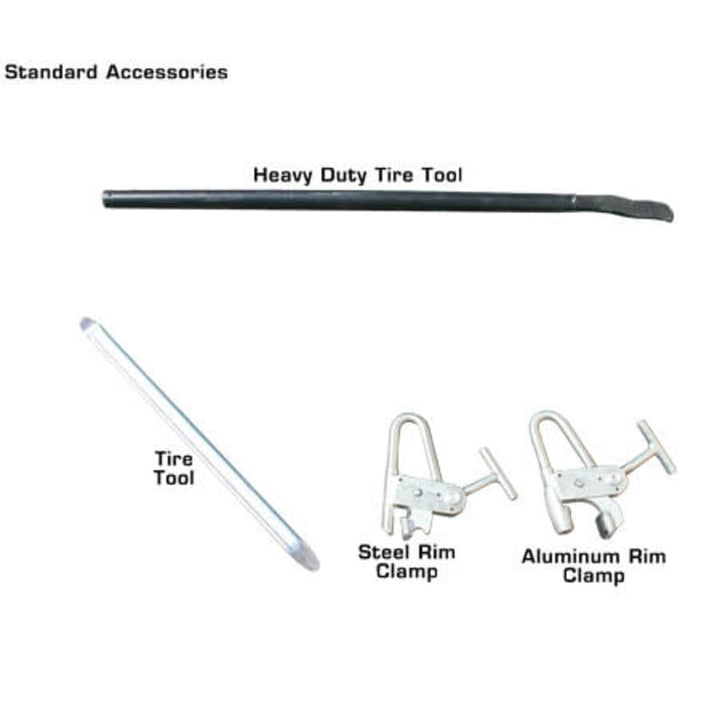

  • Heavy Duty Tire Tool Included

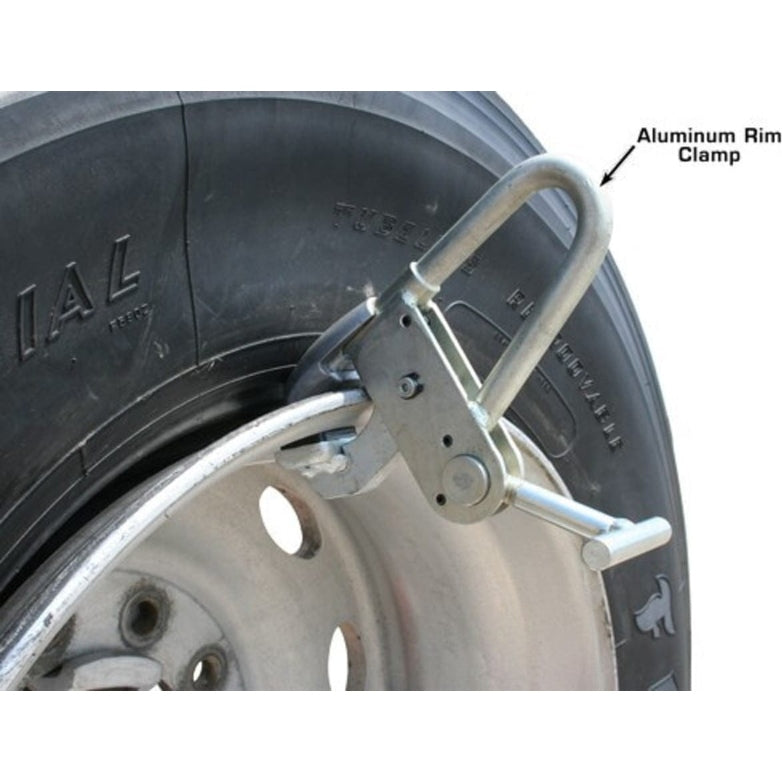

  • Rim Clamps for Steel and Alloy Wheels Included

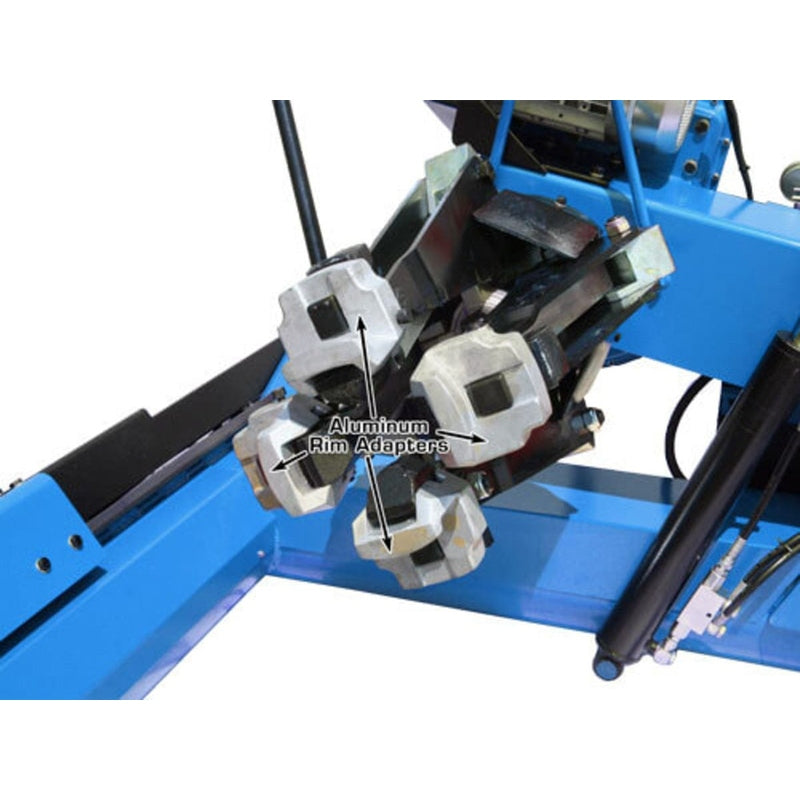

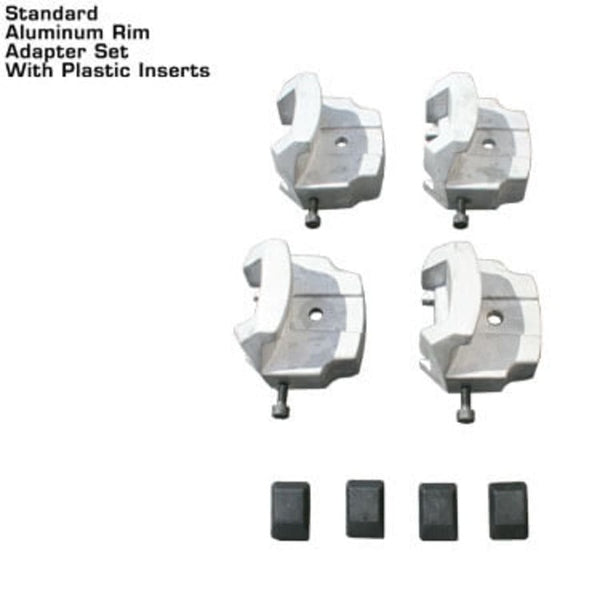

  • Alloy Rim Adapter Set w/ Plastic Inserts Included
  • 1 Year Parts Only Warranty

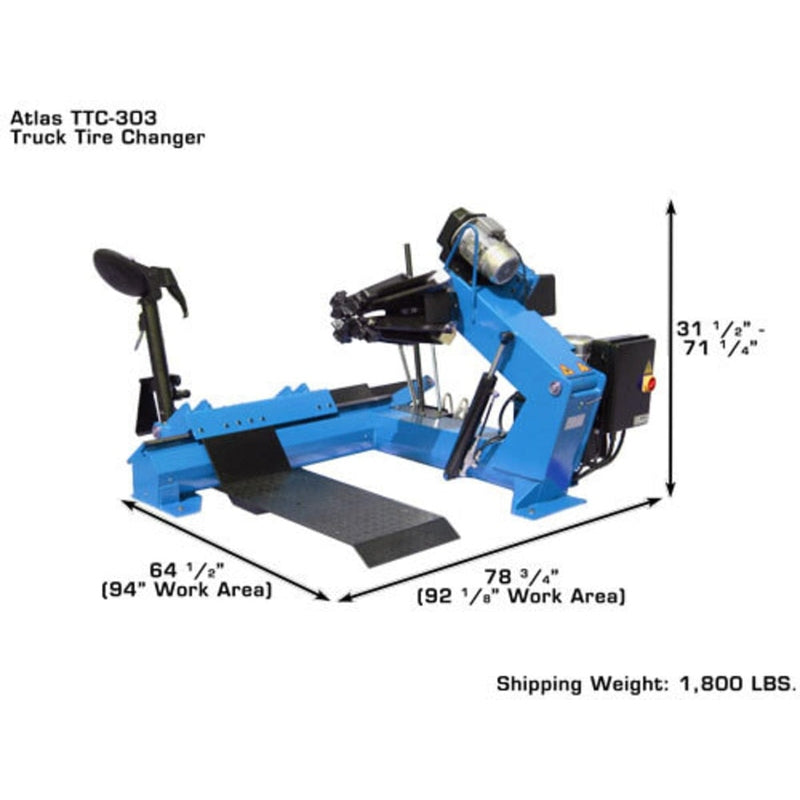

Specifications

-

Atlas® TTC303 Specifications

Rim Clamping Range 14" - 46"

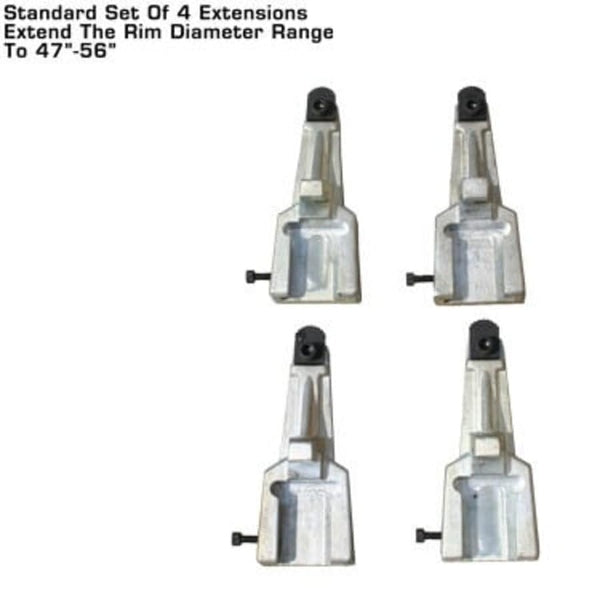

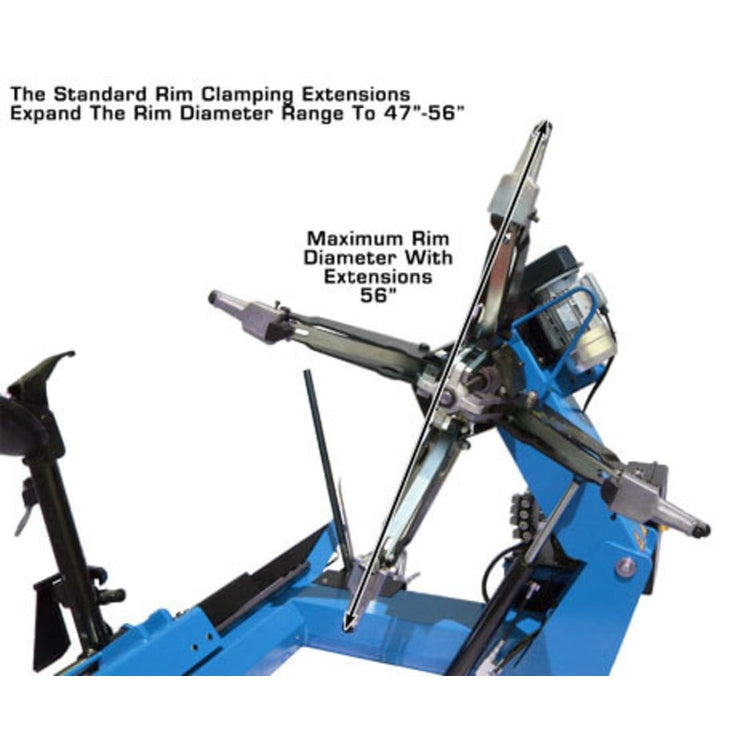

Max Clamping Size W/ Extensions 56""
Max Wheel Weight 3,300 lbs.
Max Tire Diameter 90 1/2" (7' 6 1/2")
Max Tire Width 42" (3' 6")
Clamping Power 13,173 lbs.
Operating Pressure 0-1885 PSI
Acoustic Pressure <70dBA
Bead Breaker Force 5930 lbs.
Tool Arm Positioning Manual
Tool Head Positioning Manual
Construction Single Piece Frame w/ Solid Floor Plate

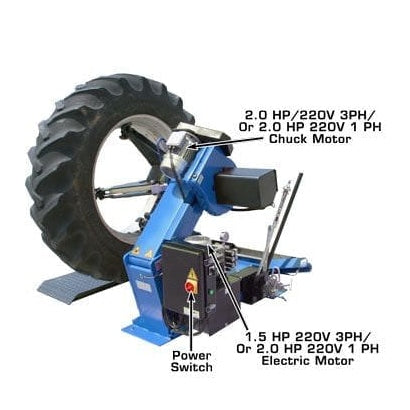

Hydraulic Motor Power 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
Chuck Motor Power 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required

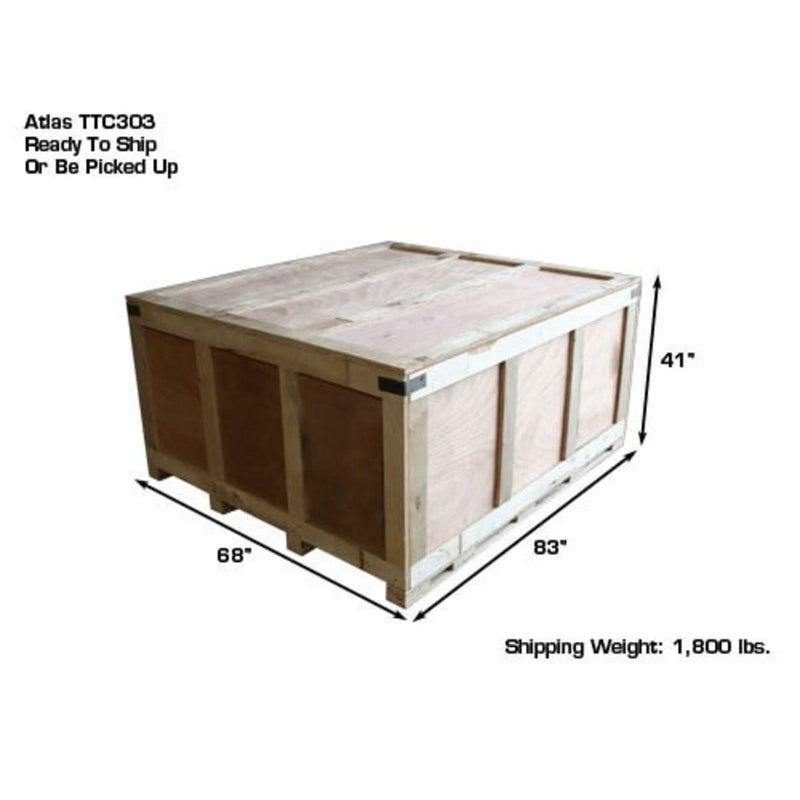

Shipping Weight 1,800 lbs.
