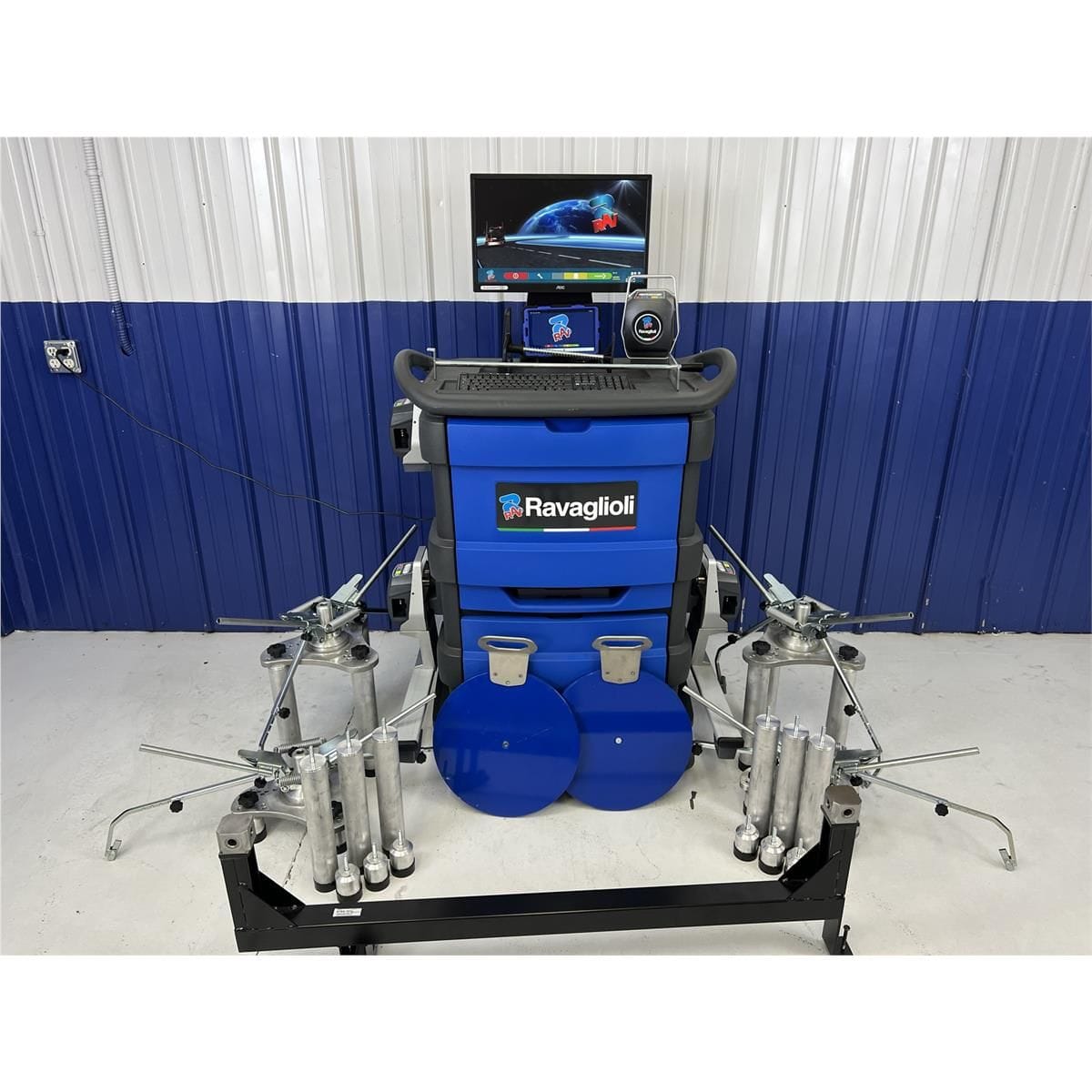

Atlas TD8060NA heavy-duty truck alignment system with Ravaglioli Express cabinet, 24-inch monitor, tablet, sensor heads, turntables

Atlas TD8060NA Heavy-Duty Truck Alignment System with Ravaglioli Express Cabinet

SKU ATEATEDGE-TD8060NA

In Stock
$34,995.00 - $34,995.00
$34,995.00
$34,995.00 - $34,995.00
$34,995.00
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat

Description

-

The Atlas TD8060NA heavy-duty truck alignment system is the Ravaglioli "Express" aligner — a fully equipped, portable system for aligning trucks, trailers, coaches, buses, and multi-axle vehicles. No roll-back operation, 4 Bluetooth 8CCD sensor heads, and a full-size modular cabinet with a 24" monitor and Windows 10 PC let one technician align long wheelbases without rolling the vehicle off the bay.

The system is built by Ravaglioli, one of Europe's longest-established alignment-equipment manufacturers, and backed by U.S.-based service and support. Each of the four sensor heads is a fully functional remote control, and a four-side measuring path supports collision measurement and calibration tracking on top of standard alignments. The TEQ-LINK app exports printouts and workflow reports so the shop can hand documentation to fleet customers.

What's Included

-

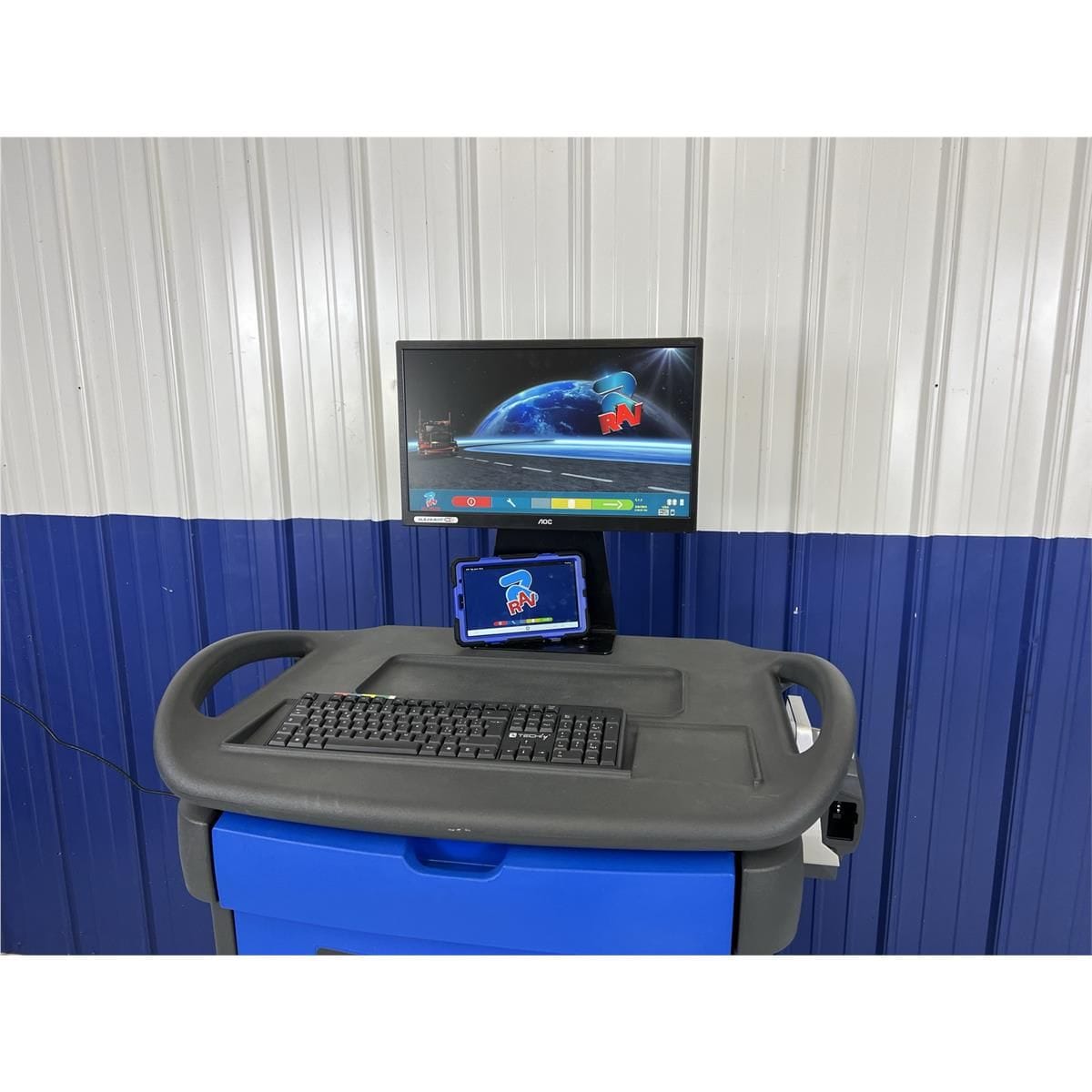

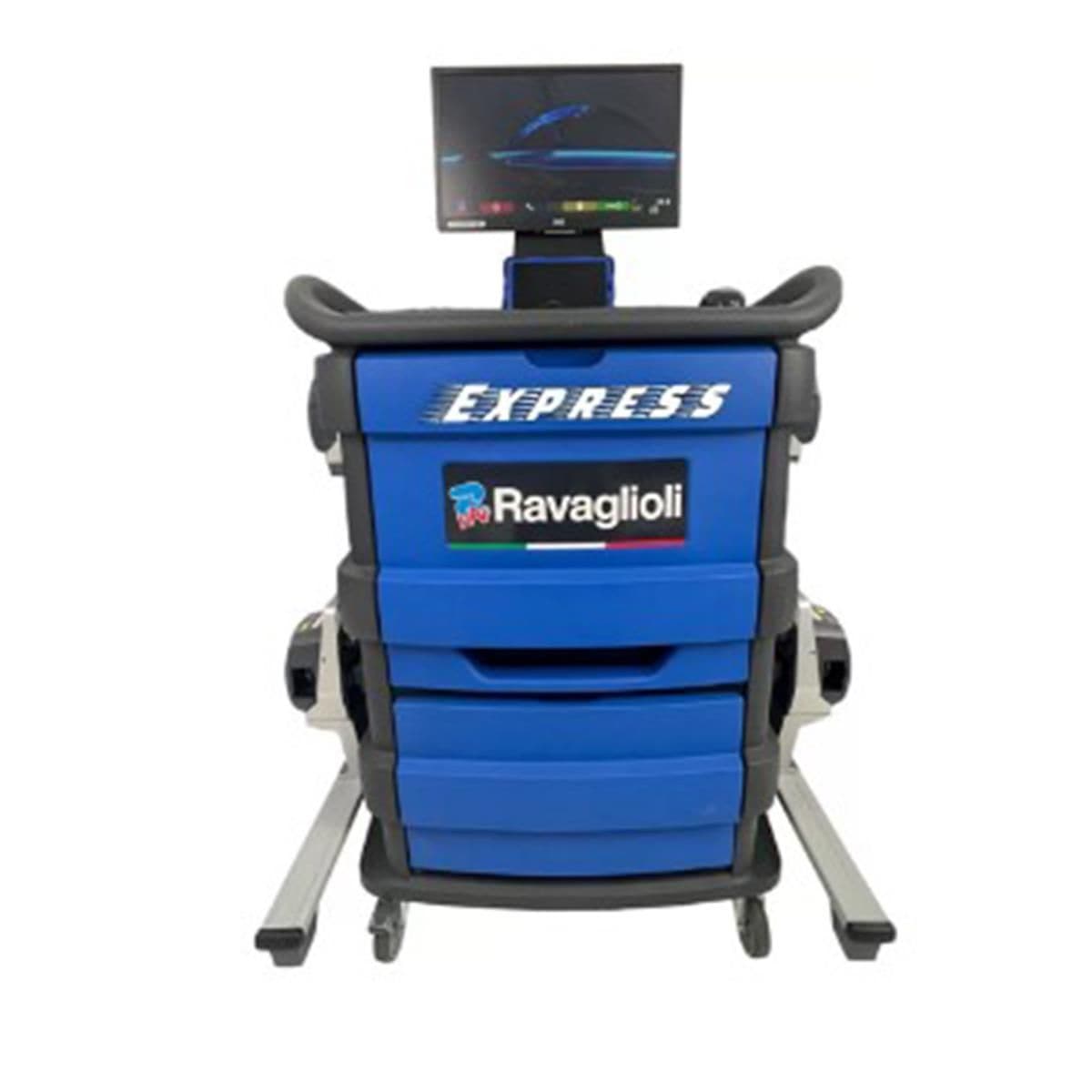

  • Ravaglioli "Express" full-size modular cabinet with 24" monitor
  • Windows 10 PC with mouse, keypad, and printer
  • Smart tablet remote control / viewer
  • 4 Bluetooth 8CCD sensor heads — each functions as a remote control
  • 4 wheel clamps (choice of touchless or fast-clamp)
  • Pair of superlight alloy alignment turntables
  • Calibration package

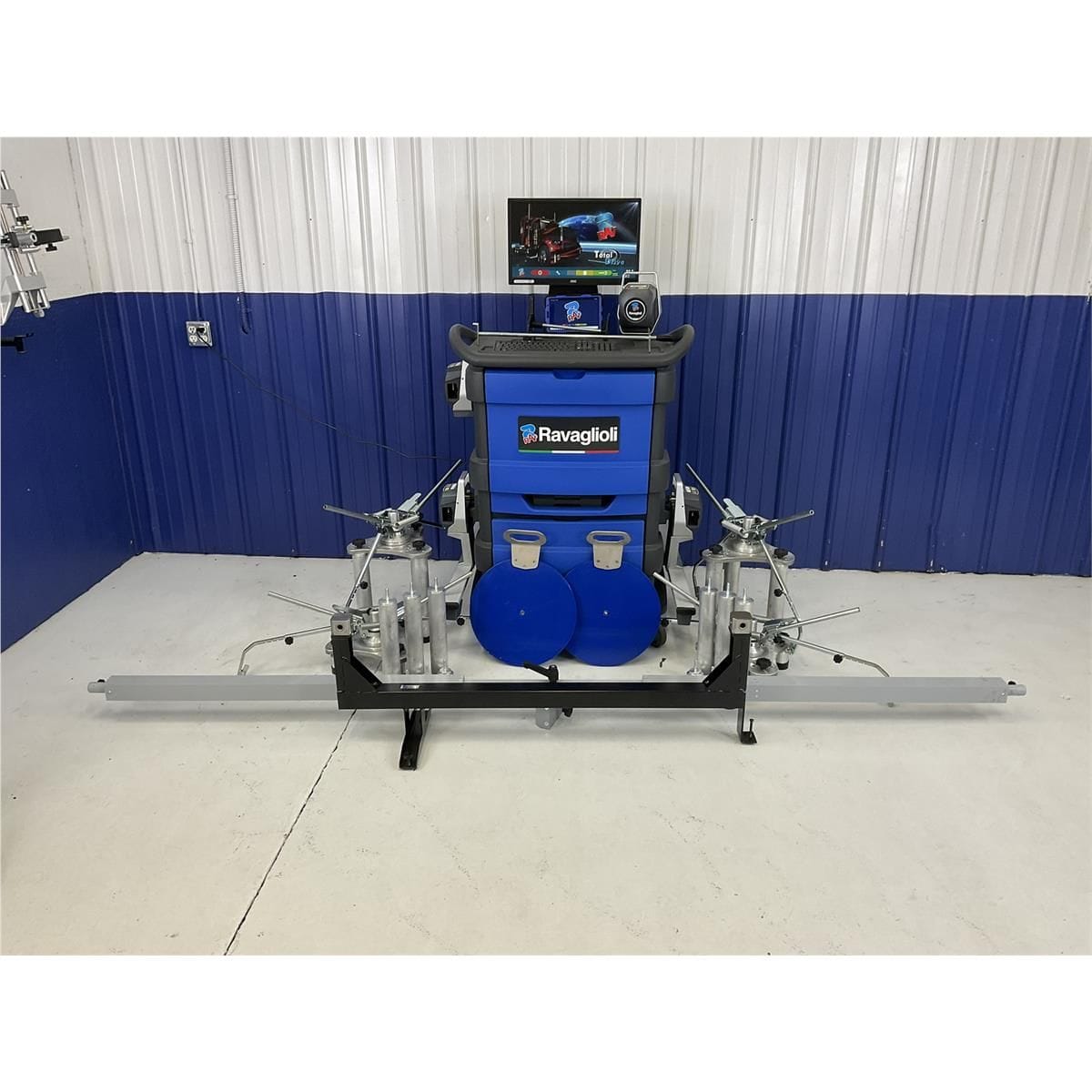

  • Trailer alignment package
  • 1 brake pedal depressor
  • 1 steering wheel lock
  • TEQ-LINK app access
Atlas TD8060NA included components: turntables, trailer alignment fixture, touchless and fast clamps, calibration bar, adapters, steering and brake tools
Included components: turntables, trailer fixture, clamps, calibration bar, adapters, and steering/brake tools.

Features

-
  • No roll-back truck and trailer alignment
  • WiFi operation with Bluetooth data transmission between sensor heads
  • Two-head steer axle mode for faster front-end-only jobs
  • Premium alignment software covering heavy-duty and light-truck vehicles
  • Vast vehicle database with free software updates (vehicle specifications updates not included)
  • Four-side measuring path supports collision measurement and calibration tracking
  • Easily portable between bays
  • Made in Europe; supported by U.S. service and remote technical support

Specifications

-
Atlas TD8060NA Heavy-Duty Truck Alignment System
Manufacturer Ravaglioli
System Type "Express" heavy-duty truck and trailer aligner
Vehicle Coverage Trucks, trailers, coaches, buses, multi-axle vehicles, light-duty trucks
Sensor Heads 4 Bluetooth 8CCD sensor heads (each acts as remote control)
Wheel Clamps 4 included; choice of touchless or fast-clamp
Turntables 1 pair, superlight alloy
Cabinet Full-size modular with 24" monitor
Computer Windows 10 PC, mouse, keypad, printer
Remote Control Smart tablet viewer
Connectivity WiFi operation, Bluetooth data transmission
App TEQ-LINK (printout export, workflow reports)
Calibration Package Included
Trailer Alignment Package Included
Steering / Brake Tools 1 steering wheel lock, 1 brake pedal depressor
Software Updates Free; vehicle specifications updates not included
Warranty 2-year limited parts
Country of Origin Made in Europe
Warranty excludes wear items and consumables, damage from abuse or neglect, and onsite service visits.

Shipping & Delivery

-

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

Documents

-

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
