Atlas TD6000CNA Ravaglioli Spirit Heavy-Duty Truck Wheel Alignment System

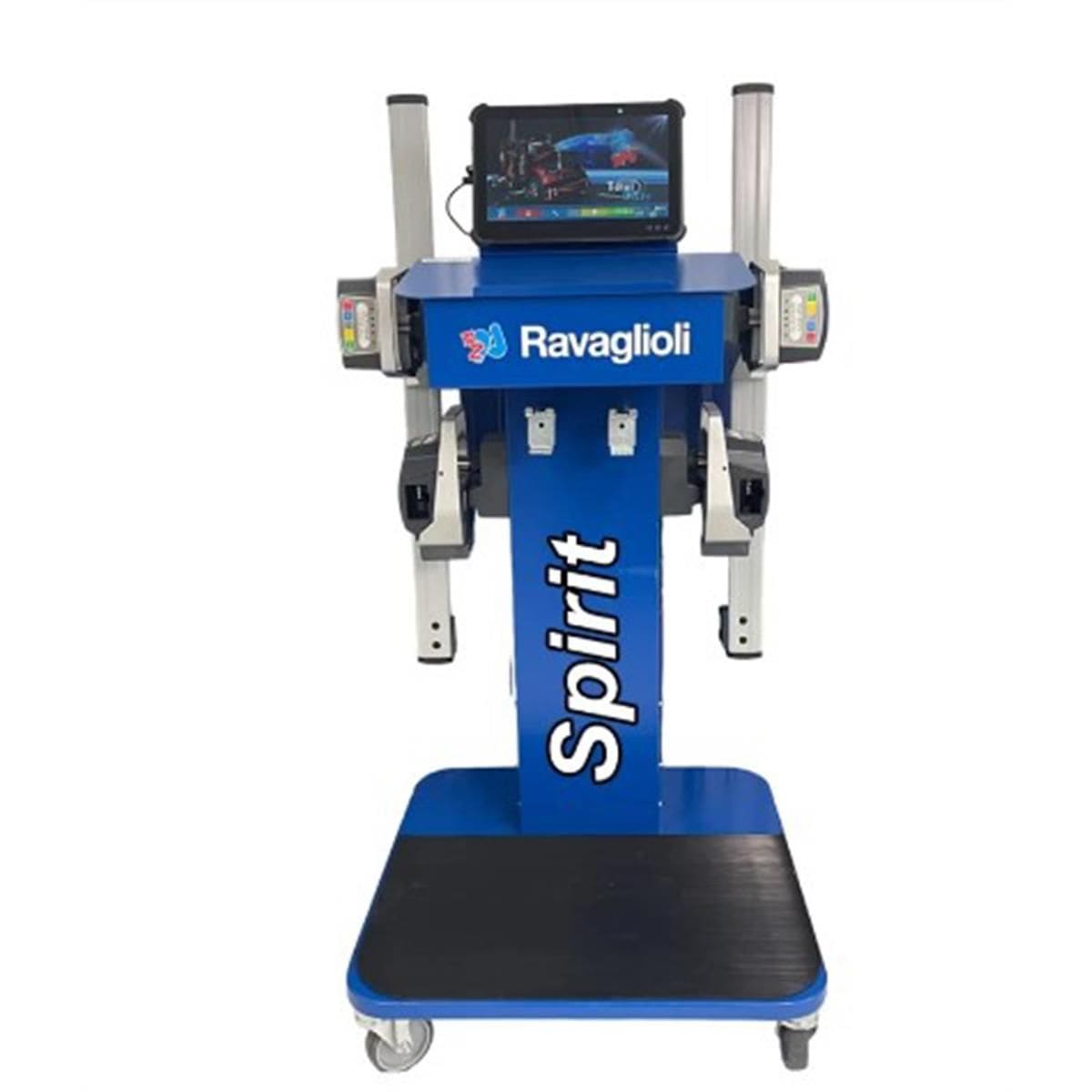

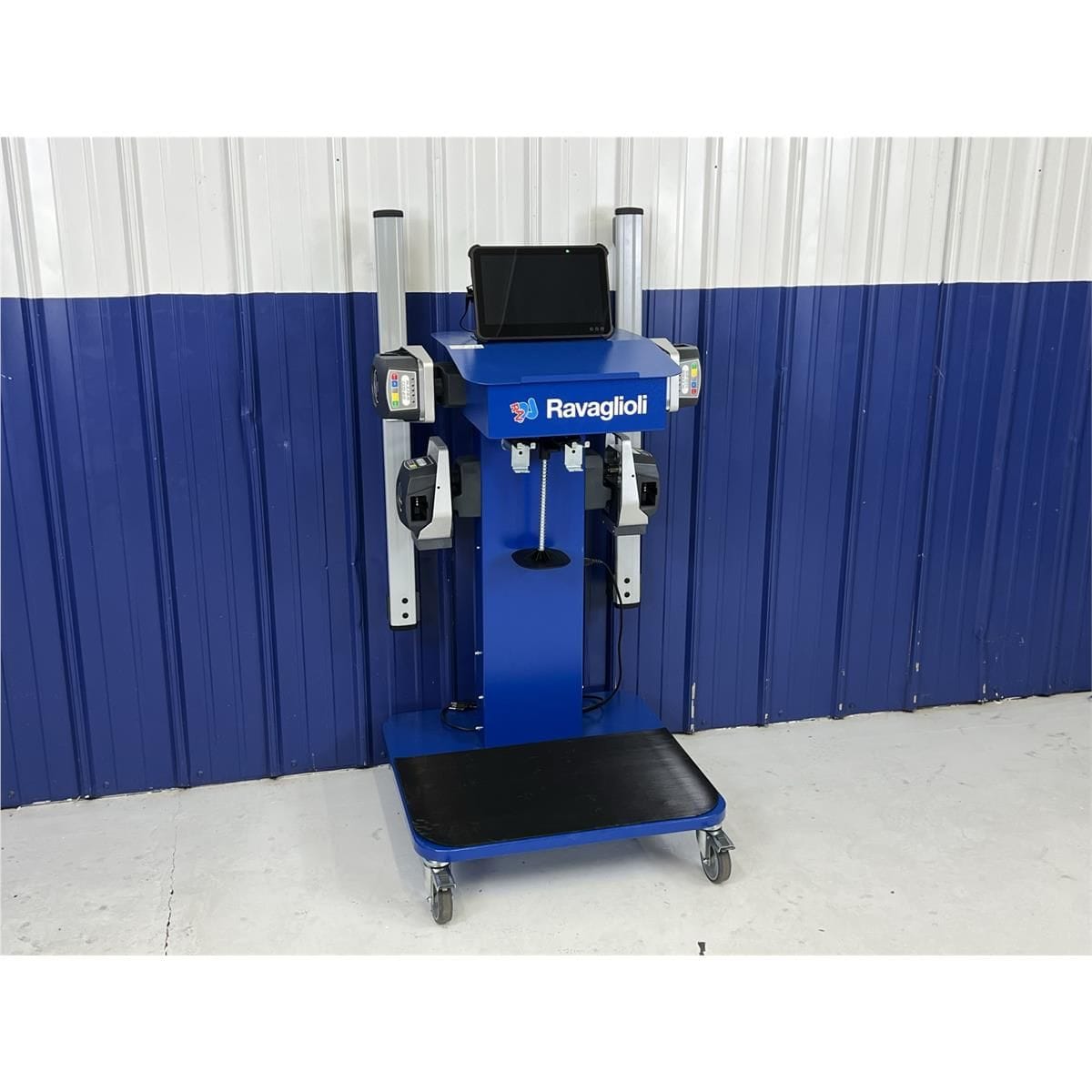

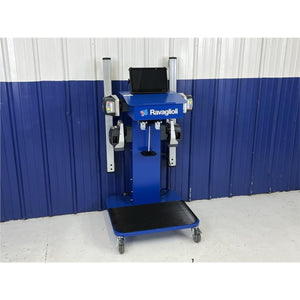

The Atlas TD6000CNA is the Ravaglioli “Spirit” heavy-duty truck wheel alignment system — a portable, no-roll-back aligner built for trucks, trailers, coaches, buses, and multi-axle vehicles. Manufactured by Ravaglioli, one of Europe’s longest-established alignment manufacturers, and supported in the United States by Atlas Automotive Equipment, it is sold as a complete kit: trolley cart, four 8-CCD Bluetooth wireless sensor heads, magnetically backed Windows 10 tablet, calibration package, trailer alignment package, and a full set of clamps and turntables.

Each of the four sensor heads operates as a fully functional remote control, and together they establish a measuring path on all four sides of the vehicle. That four-sided geometry is what enables collision measurements and calibration tracking in addition to standard alignment work. Wireless data transmission and the magnetically docked tablet keep the technician at the wheel rather than walking back to a console between adjustments.

Heavy-duty truck alignments traditionally require pulling the vehicle forward and back to compensate sensor positions. The “Spirit” system is no-roll-back — the vehicle stays in place through the entire procedure. Combined with the Two Head Steer Axle Mode, that shaves significant time per alignment in a busy commercial bay.

The Teq-Link app exports printouts and receives workflow reports, so shop owners can hand finished alignment records to fleet customers without rerunning paperwork.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53’ truck.

• Heavy-duty truck, trailer, coach, bus, and multi-axle wheel alignment
• No-roll-back design — vehicle remains stationary throughout the alignment
• Portable trolley cart for movement between bays and alignment locations
• Four 8-CCD Bluetooth wireless sensor heads, each functioning as a remote control
• Magnetically backed PC tablet running Windows 10
• Teq-Link app for printout export and workflow report transfer
• Two Head Steer Axle Mode for faster steer-axle alignments
• Wi-Fi operation with Bluetooth data transmission
• Vast vehicle database with free software updates (vehicle specification updates sold separately)
• U.S.-based service team with remote technical support

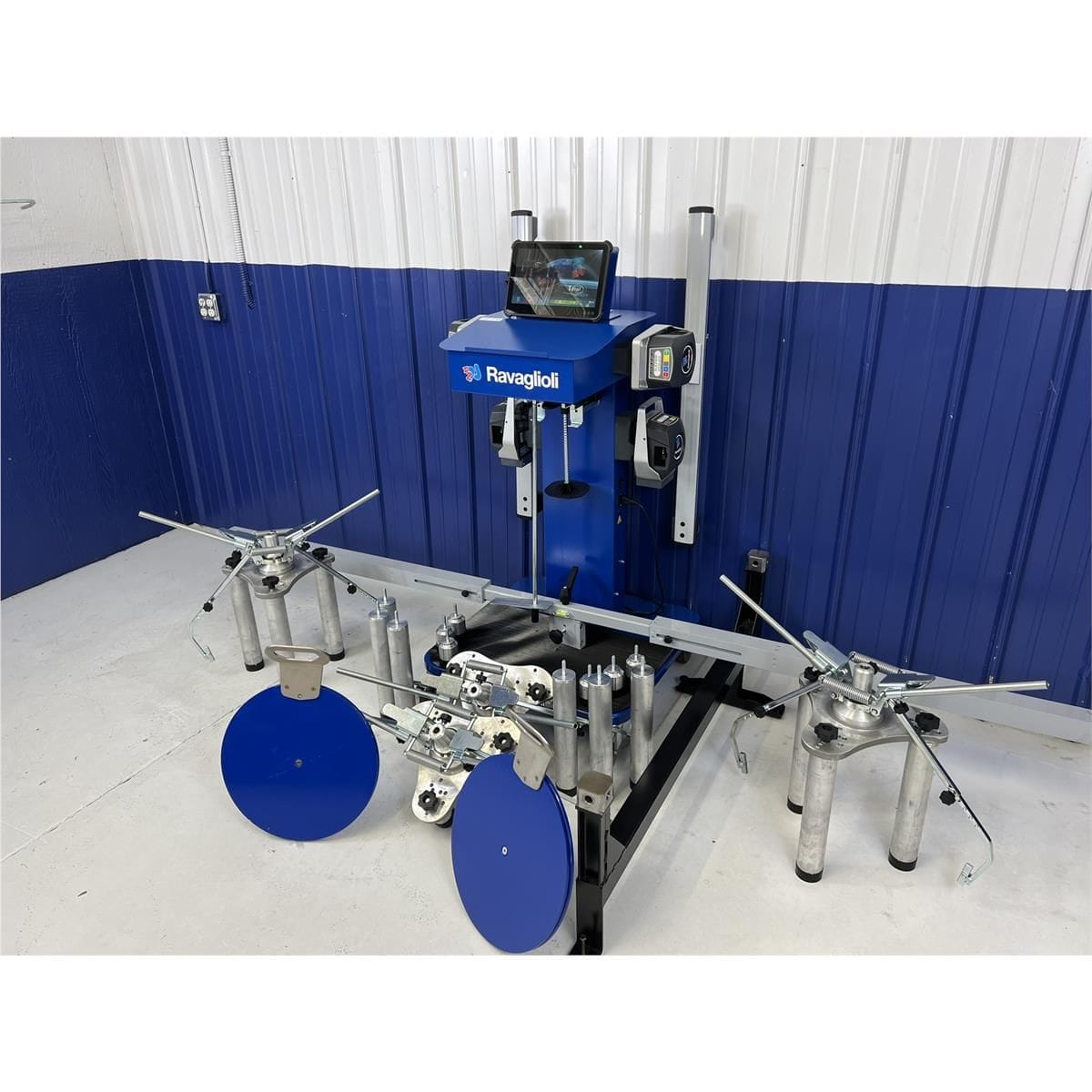

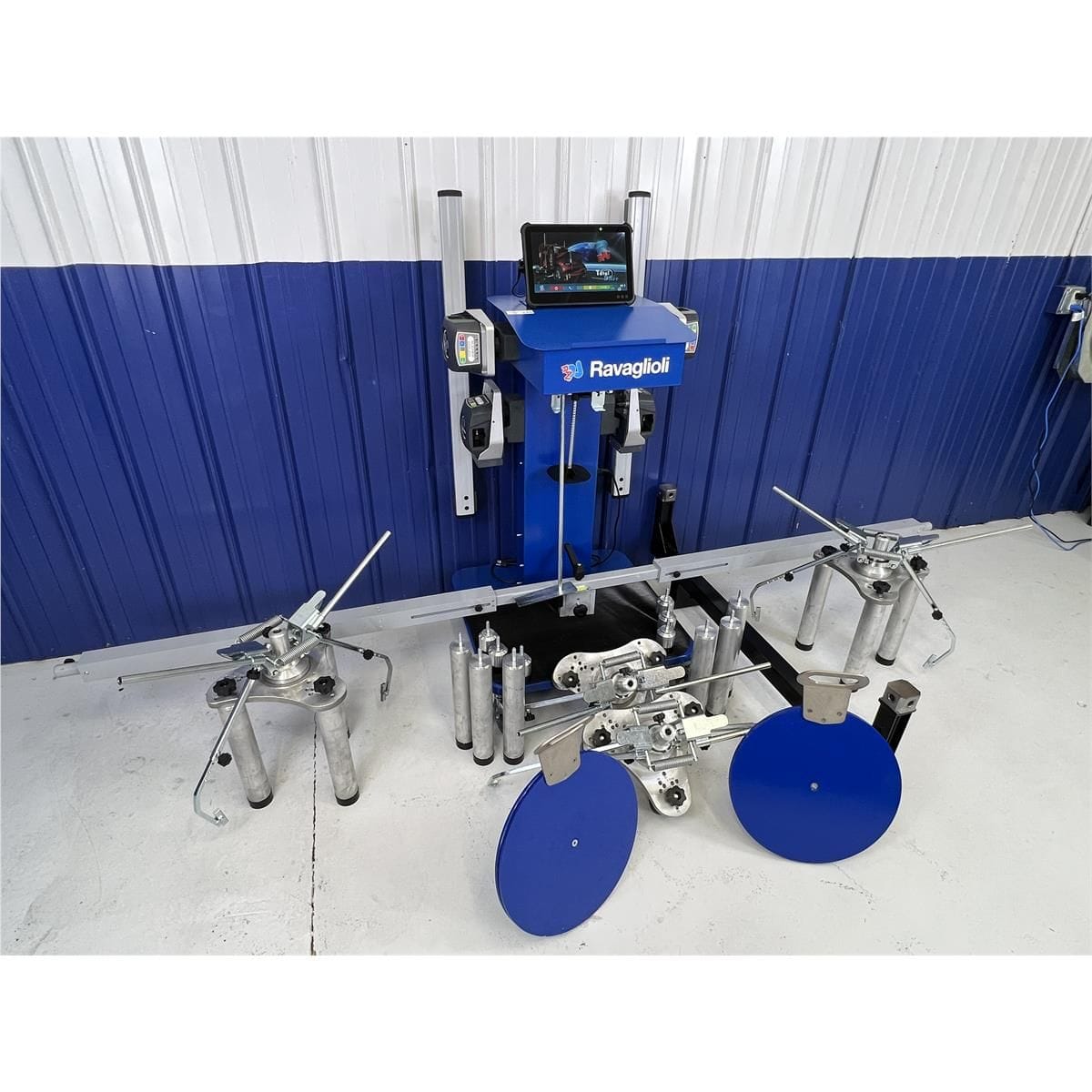

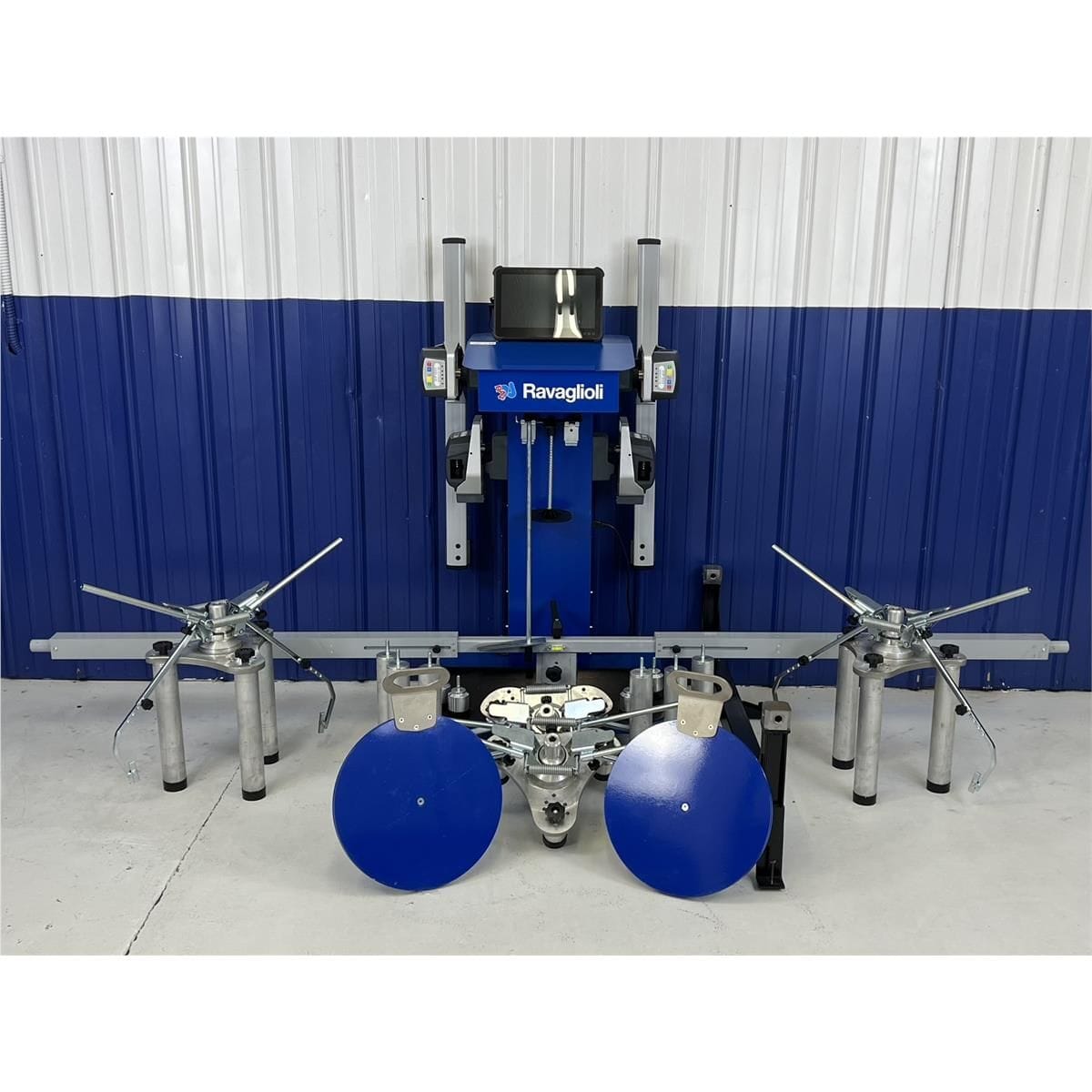

• Ravaglioli “Spirit” heavy-duty truck alignment cart with magnetically backed Windows 10 PC tablet
• Four 8-CCD Bluetooth wireless sensor heads
• Four wheel clamps (touchless or fast-clamp)
• Pair of superlight alloy turntables
• Calibration package
• Trailer alignment package
• One brake pedal depressor
• One steering wheel lock
• Extra set of six long and six short adapters

The TD6000CNA carries a 2-year limited parts warranty. The warranty does not cover damage from abuse or neglect, wear items, consumables, or onsite service visits. Remote technical support is provided by the U.S.-based Atlas service team. Free software updates are included for the life of the system; vehicle specification database updates are sold separately.

Manuals and technical documents are available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
