Description

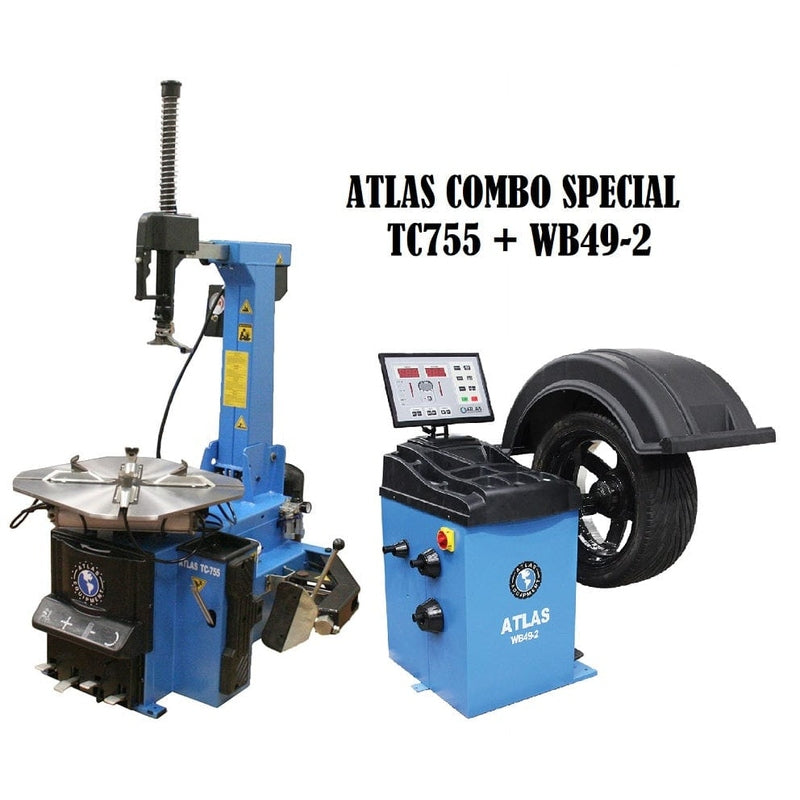

-This combination package includes the Atlas® TC755 rim-clamp tilt-back column tire changer & the Atlas® WB49-2 premium computerized spin balancer. This combination is perfect for commercial car repair shops and high volume tire shops. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty.
Features

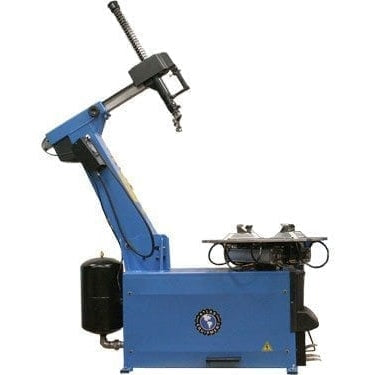

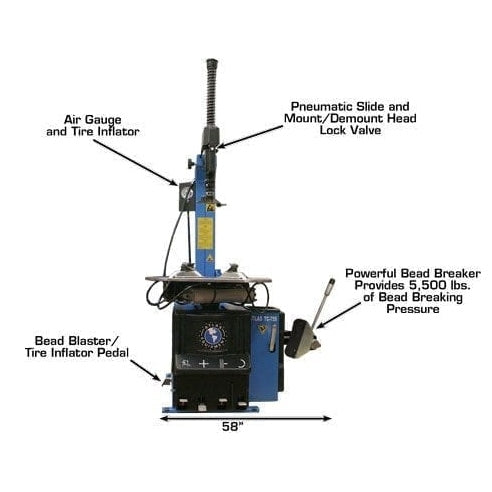

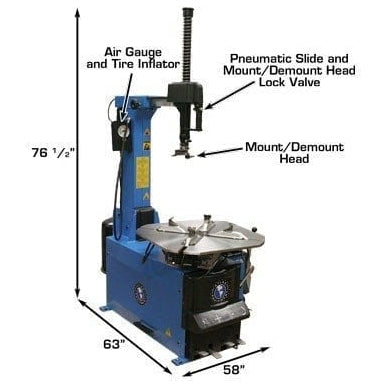

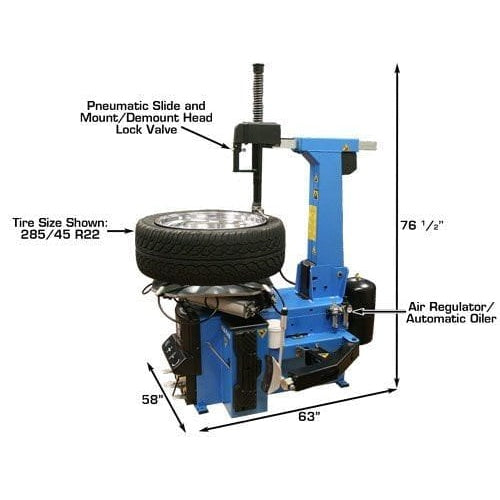

-TC755 Tire Changer

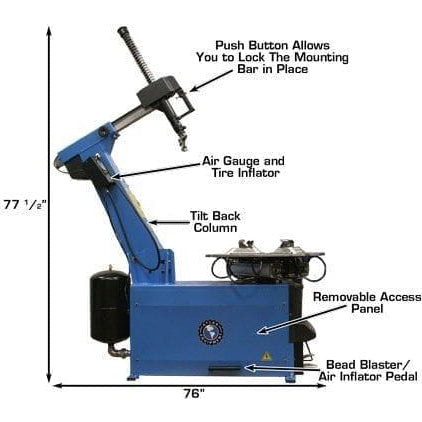

- Tilt-Back Column Tire Changer
- Rim-Clamp Style
- Extra-Large turntable, more clearance
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable

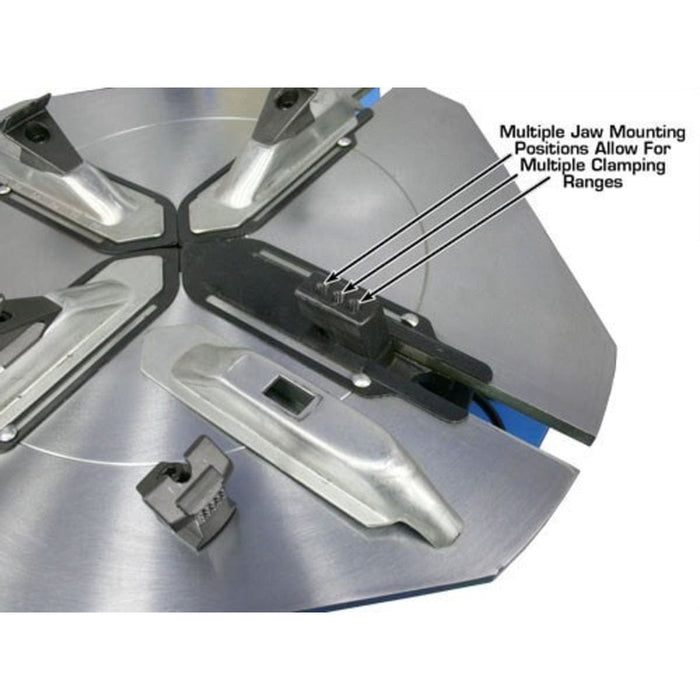

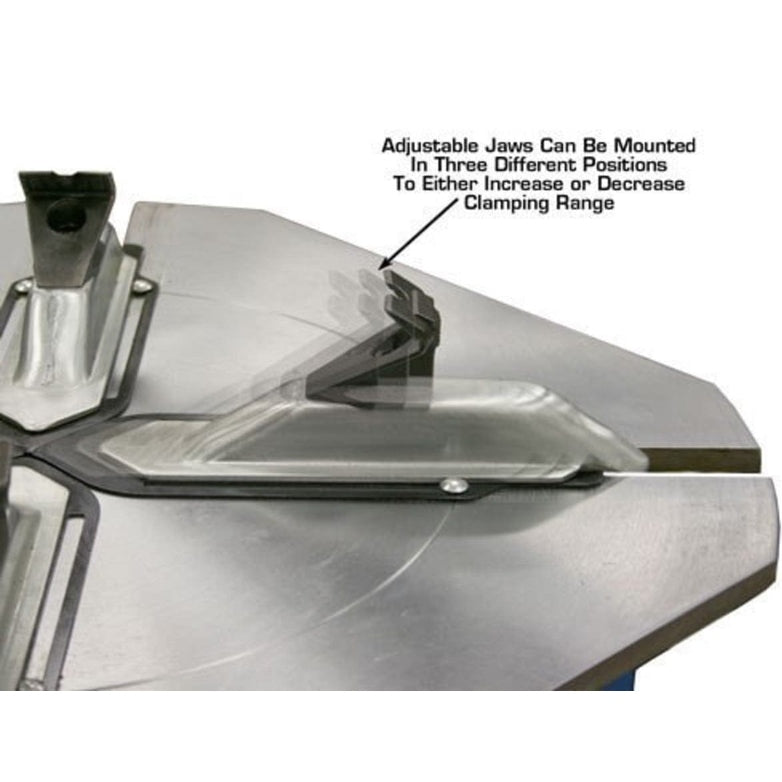

- Adjustable jaws, three mounting positions
- Button-Controlled Bead Breaker (operated at blade)

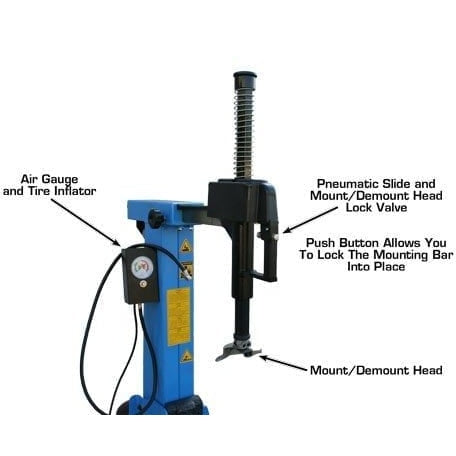

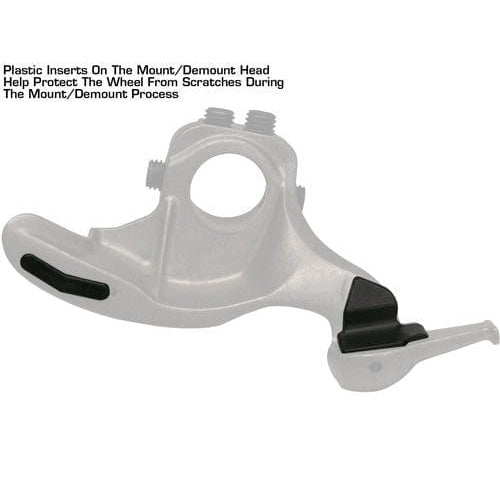

- Metal mount/demount head w/ metal roller or replaceable plastic inserts

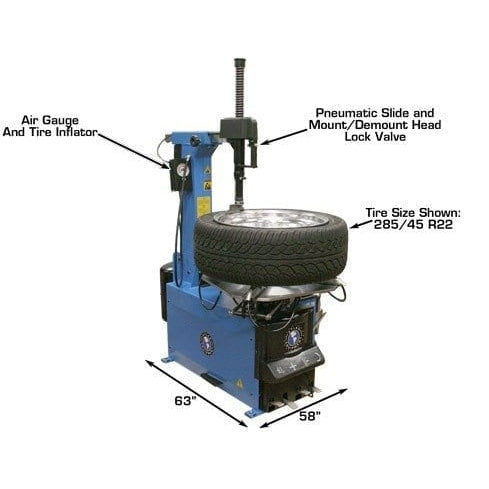

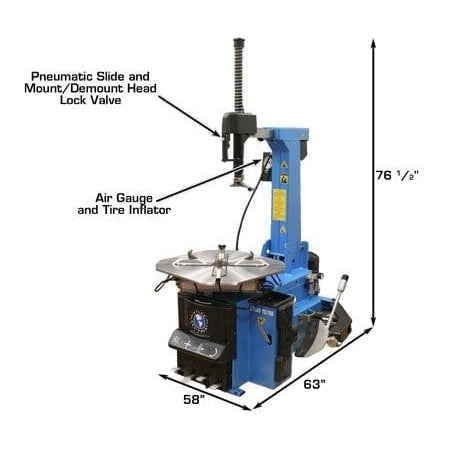

- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Built in “Beadblaster”

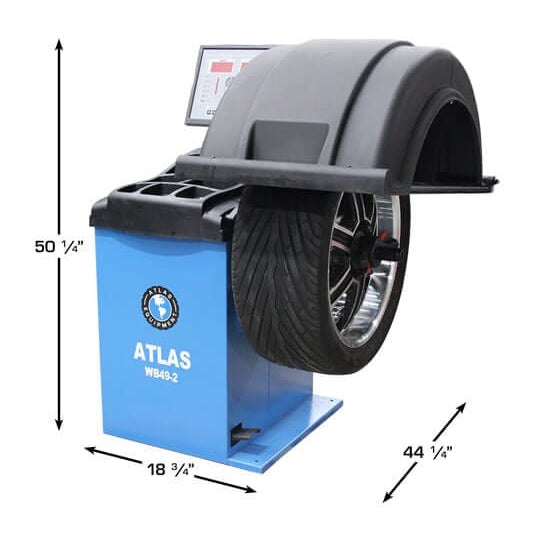

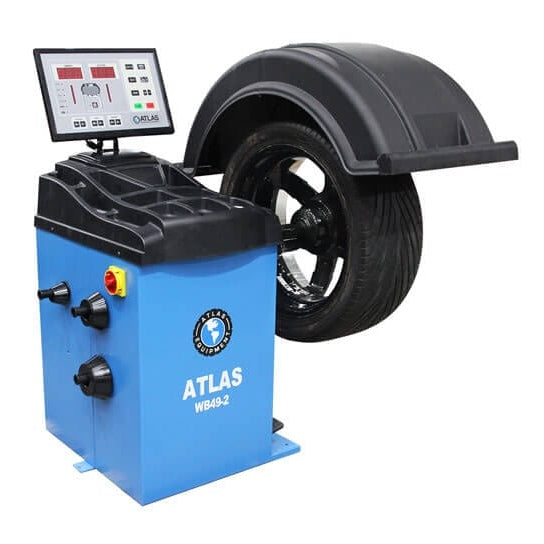

WB49-2 Wheel Balancer
- Computer Controlled Motorized Spin Balancer

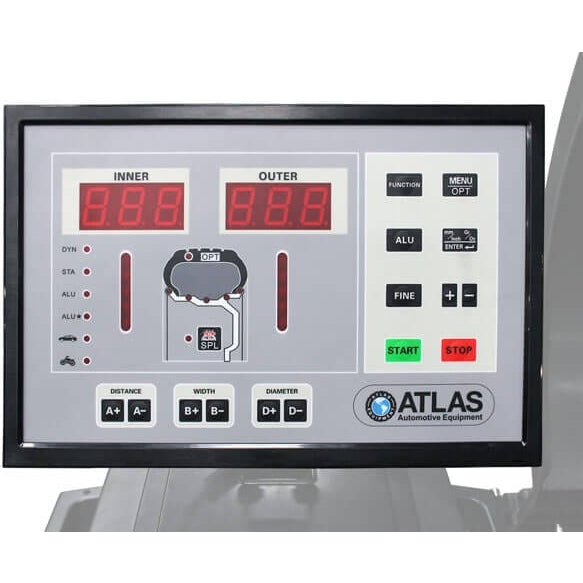

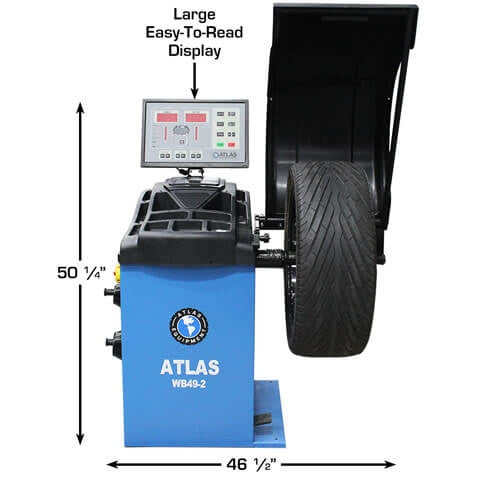

- Raised, Easy to Read Display
- Large Wheel Weight Tray

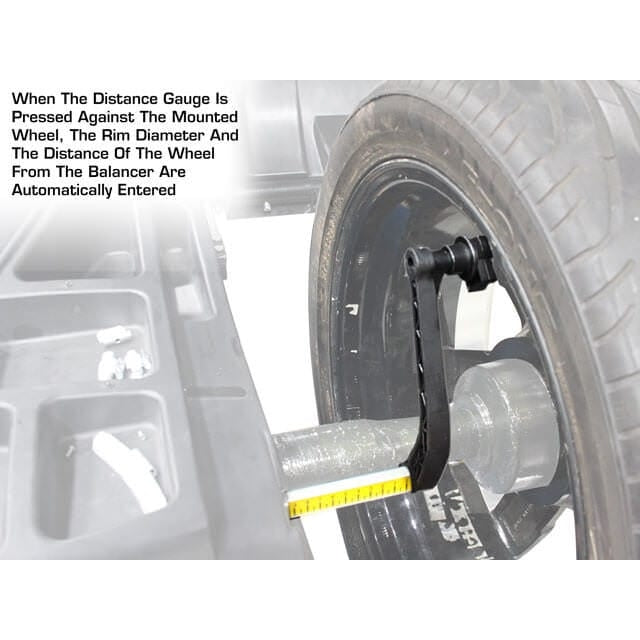

- Automatic 2D Data Entry
- Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
- Split-Weight Function for hiding weights behind spokes
- Automatic LED Light
- Auto-Positioning

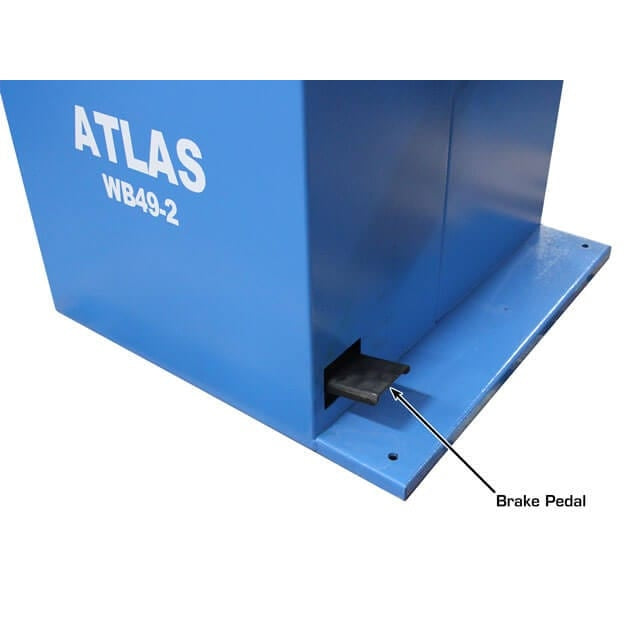

- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed

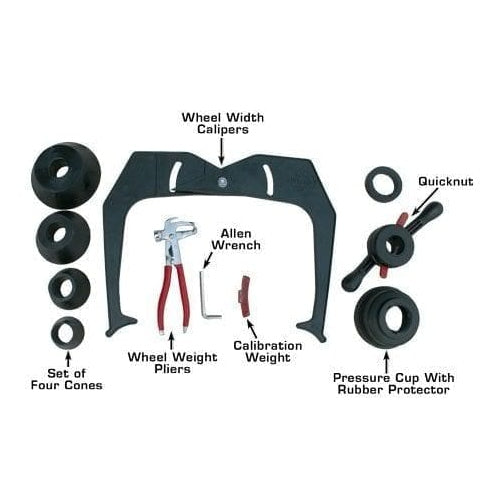

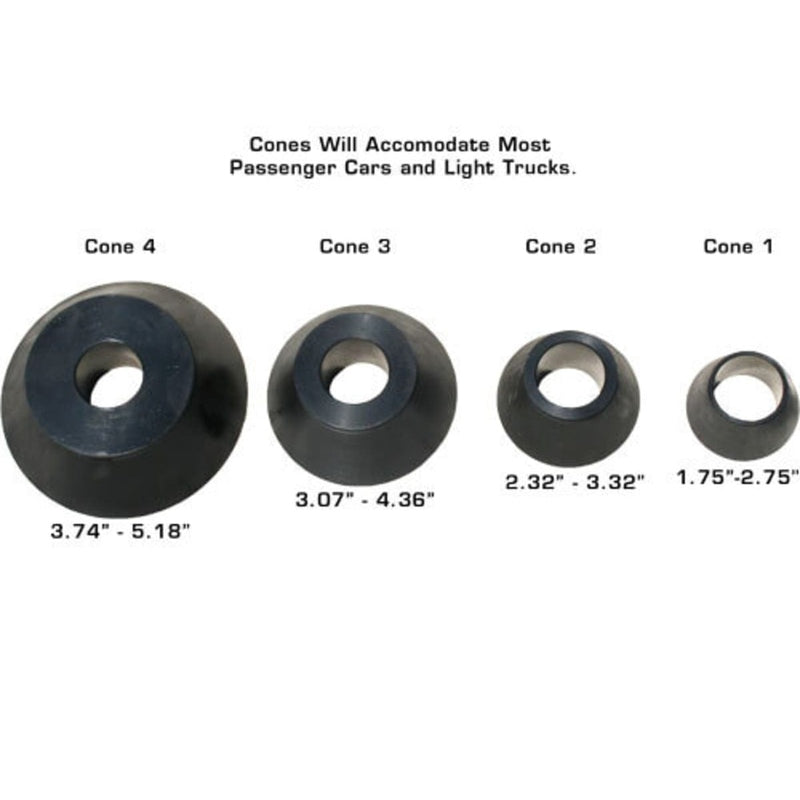

- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
-Atlas® TC755 Specifications
Rims | Steel, Aluminum, Alloy |

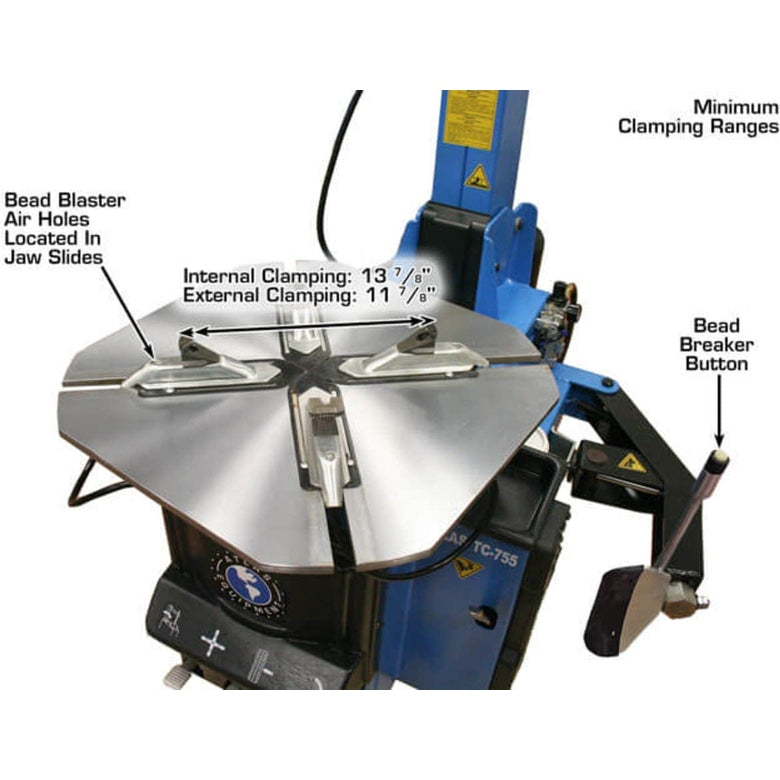

External Locking Rim Dimension (3 Positions) |
1) 11 7/8" - 26" 2) 12 7/8" - 27" 3) 13 3/4" - 28" |
Internal Locking Rim Dimension (3 Positions) |
1) 13 7/8" - 27 7/8" 2) 14 5/8" - 28 7/8" 3) 15 5/8" - 29 7/8" |
Maximum Tire Diameter | 47" |
Maximum Wheel Width (Bead Breaker) | 18" |

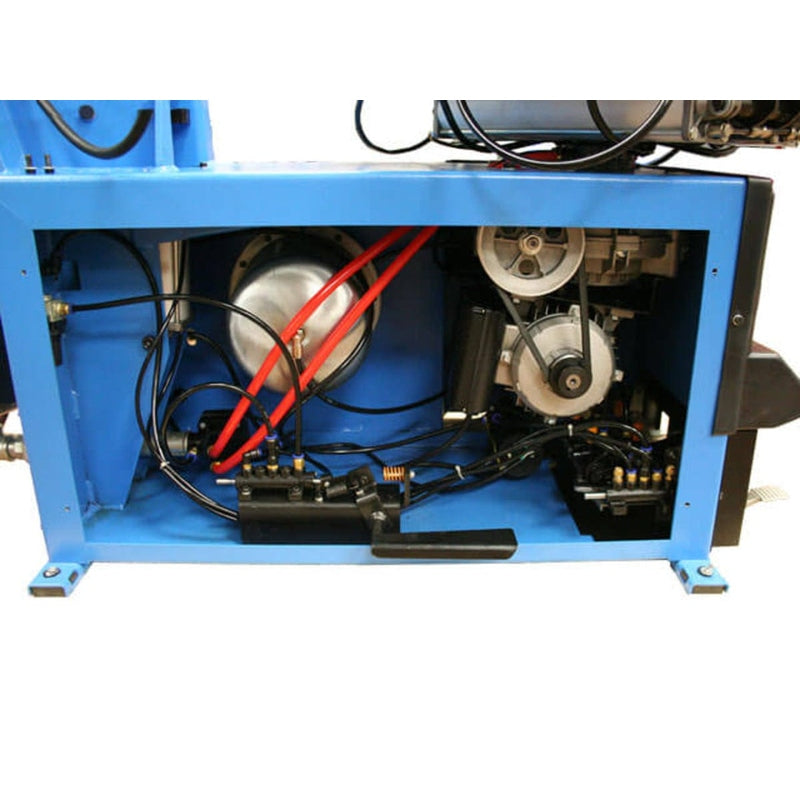

Table Motor | 1 HP |
Turntable Rotating Torque | 885 ft/lbs |
Bead Breaker | 5,500 LB. Force |
Air Requirement | 90-110 PSI (MUST NOT EXCEED 140 PSI) |
Operating Voltage | 110volt |
Shipping Weight | 650 lbs. |

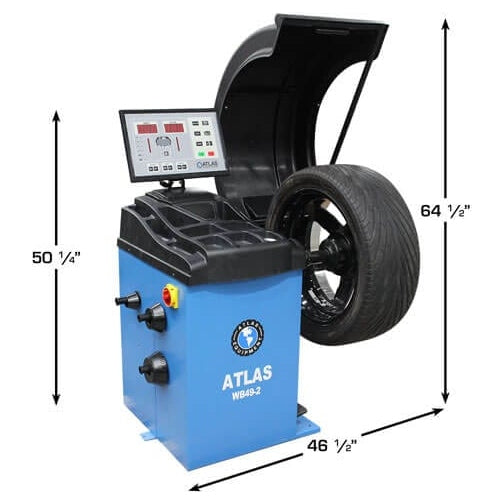

Atlas® WB49-2 Specifications
Max Tire Diameter | 39" (3" 6') |
Rim Sizes (Cars And Light Trucks) | 10"-32" |
Rim Width | 1 1/2"-20" |

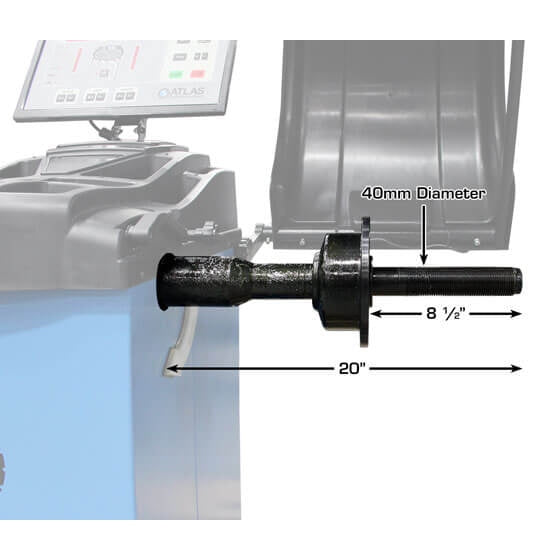

Shaft Size | 40mm |
Max. Wheel Weight | 150 lbs. |
Balancing Speed | 150 rpm |
Data Entry | Automatic 2D (Automatic 3D Optional) |
Measurements | Standard Or Metric |
Accuracy | 1 gram |
Weight Position Resolution | 1.4 Degrees |
Self Calibration | Yes |
Motor | 1/4 HP |
Power Supply | 110volt |
Shipping Weight | 400 lbs. |
