Atlas TC289 Tire Changer + WB41 Wheel Balancer Combo Package

Name: Atlas TC289 Tire Changer + WB41 Wheel Balancer Combo Package
Brand: Atlas Automotive Equipment
SKU: ATETCWB-COMBO2-FPD
Price: 4399.0 USD
Availability: InStock

SKU ATETCWB-COMBO2-FPD

$4,399.00 - $4,399.00

$4,399.00

$4,399.00 - $4,399.00

$4,399.00

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

Description

-

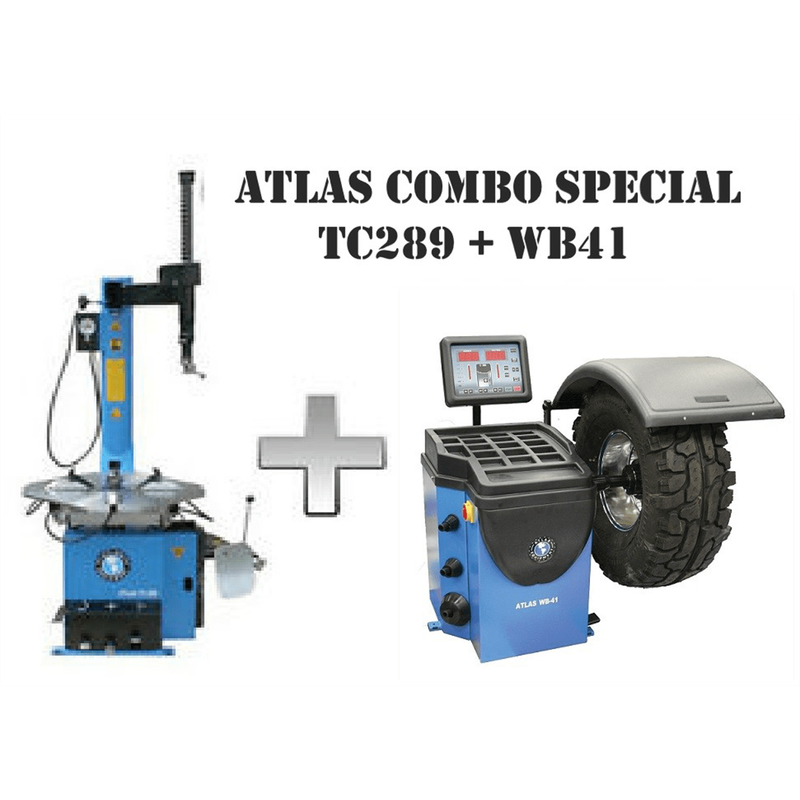

This combination package includes the Atlas® TC289 rim-clamp swing arm tire changer & the Atlas® WB41 computerized spin balancer. This combination is perfect for farms, homeowners, and all sizes of shops looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty.

Features

-

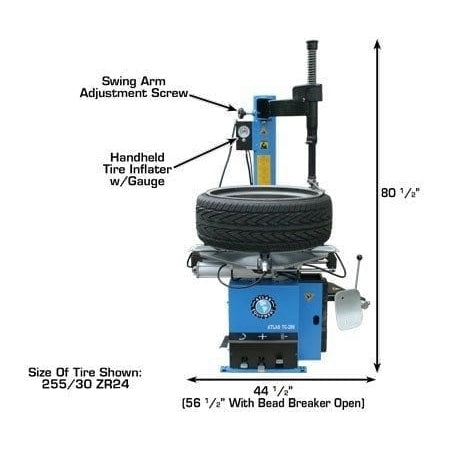

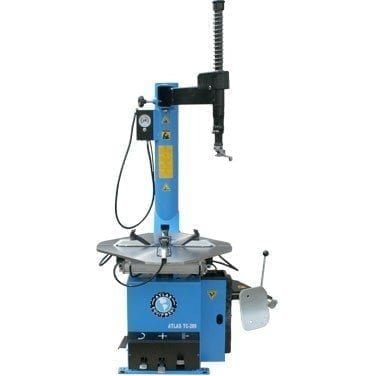

TC289 Tire Changer

Rim Clamp/Swing Arm Tire Changer
Extra Large Turntable, More Clearance

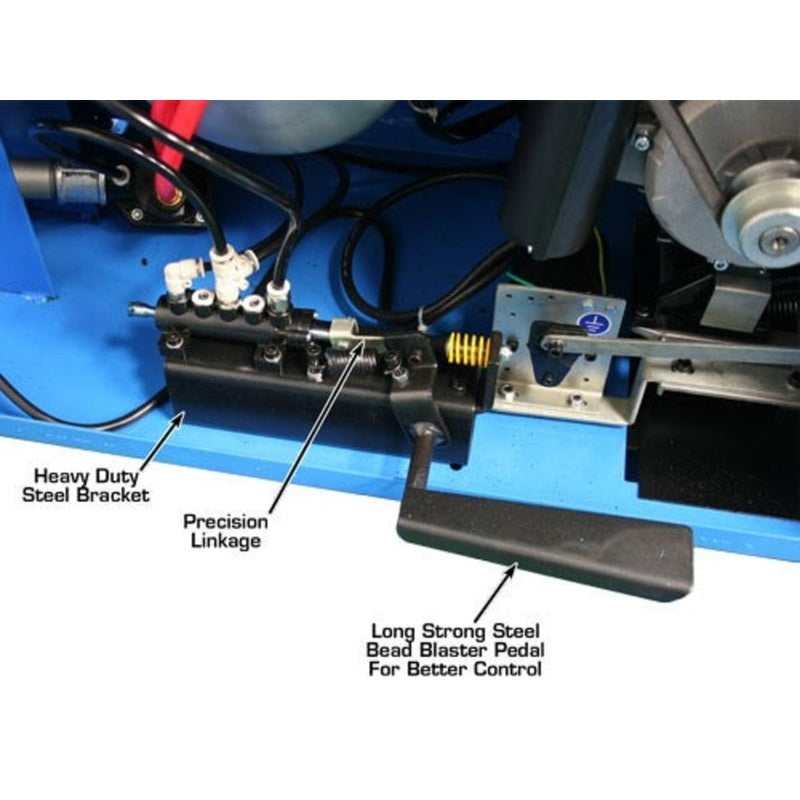

Built-in “Beadblaster”

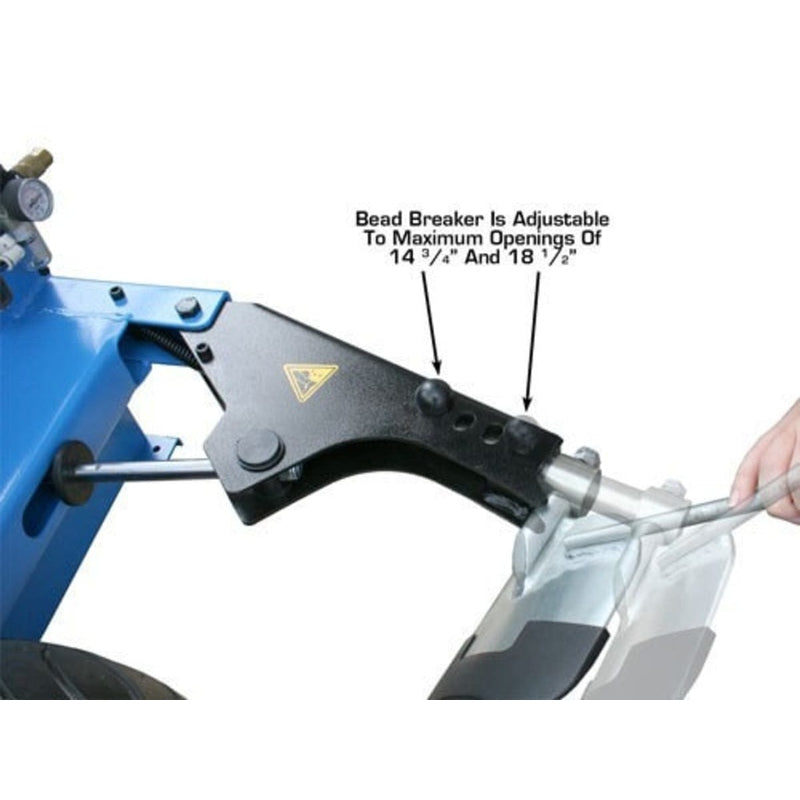

Adjustable Bead Breaker Plate

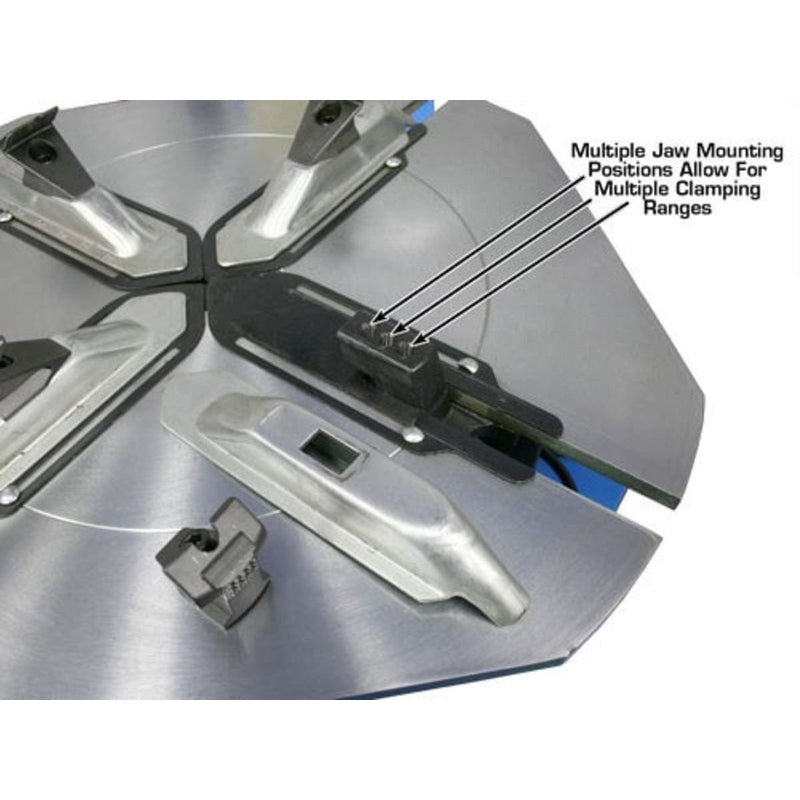

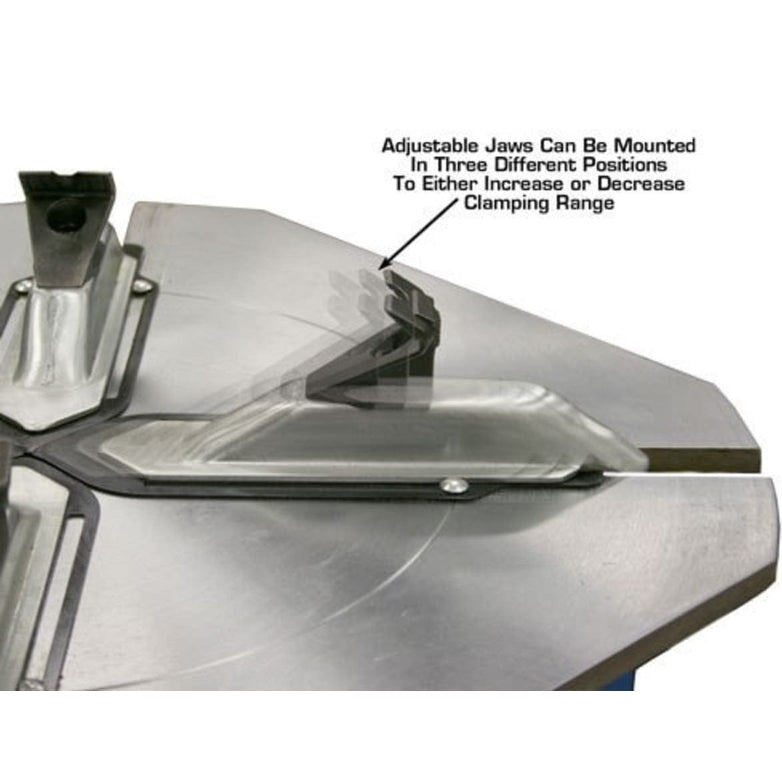

Adjustable jaws, 3 mounting positions
Oiler, Filter, Regulator included (external air supply required)

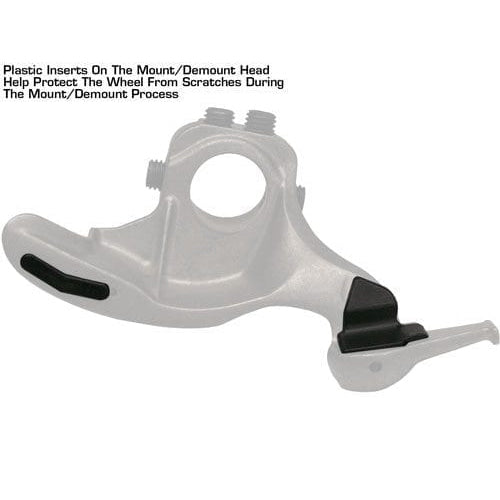

Plastic Protectors included

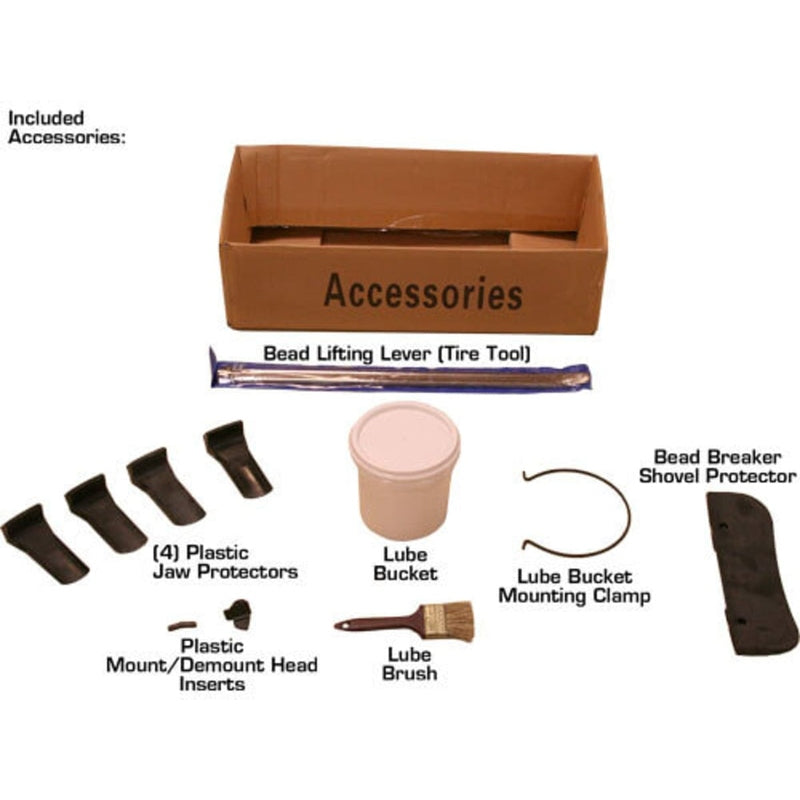

Tire Tool, Lube Bucket, and Lube Brush Included
Inflation Box w/ Gauge Included

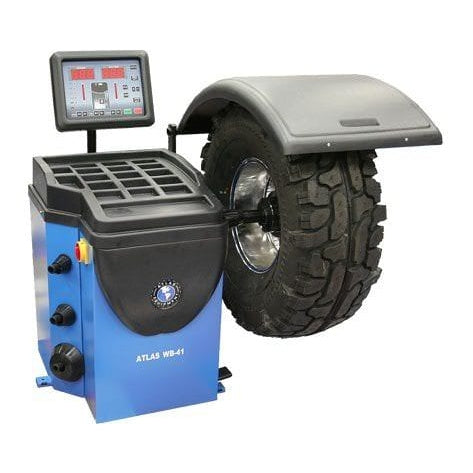

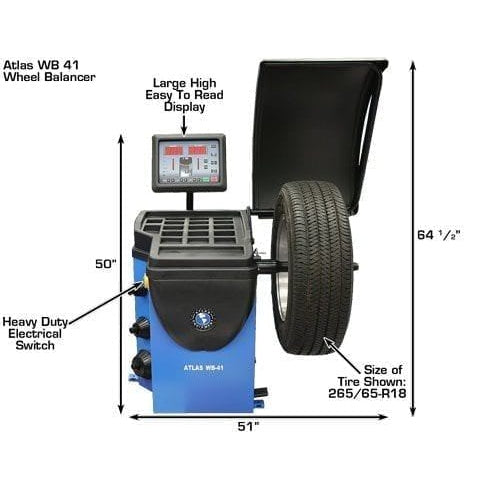

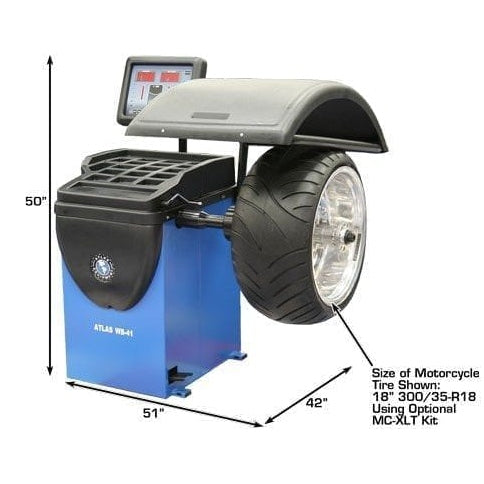

WB41 Wheel Balancer

Computer Controlled Spin Balancer

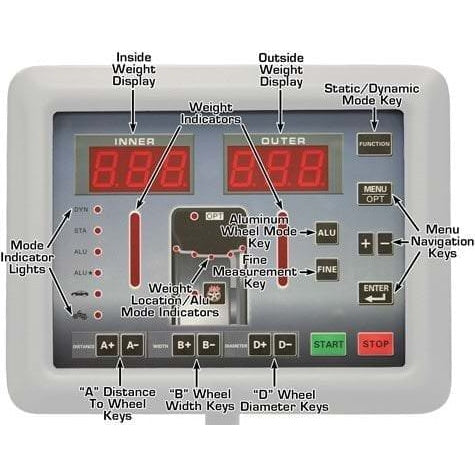

Raised, Easy to Read Display
Large Wheel Weight Tray
Static and dynamic balancing modes.
Rapid optimization (OPT)
Self Diagnosis/Self Calibration
Display in grams or ounces, in mm or inches

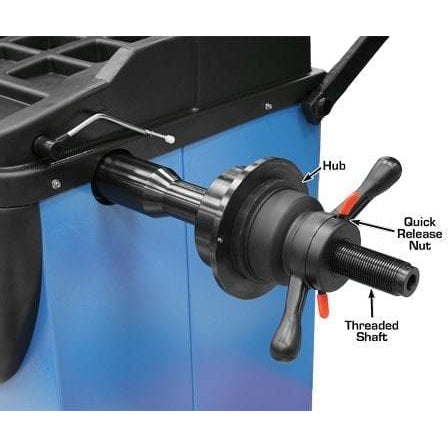

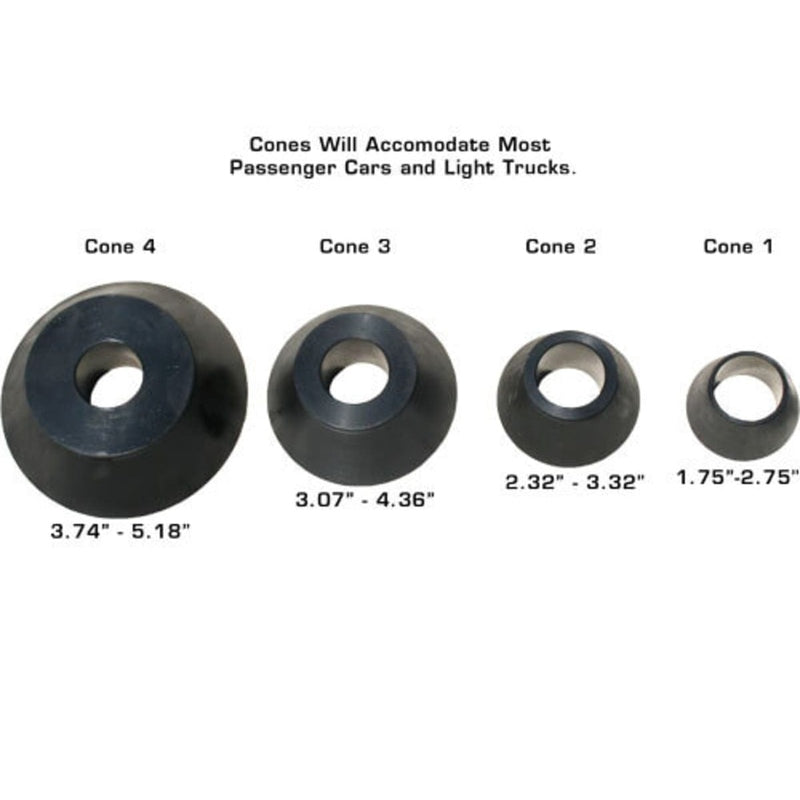

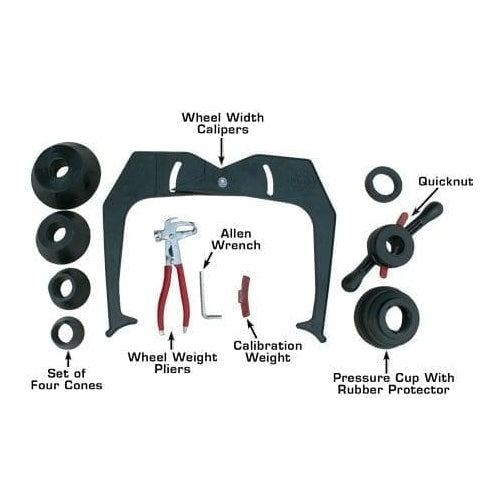

4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included

Specifications

-

Atlas® TC289 Specifications

Rims	Steel, Aluminum, Alloy

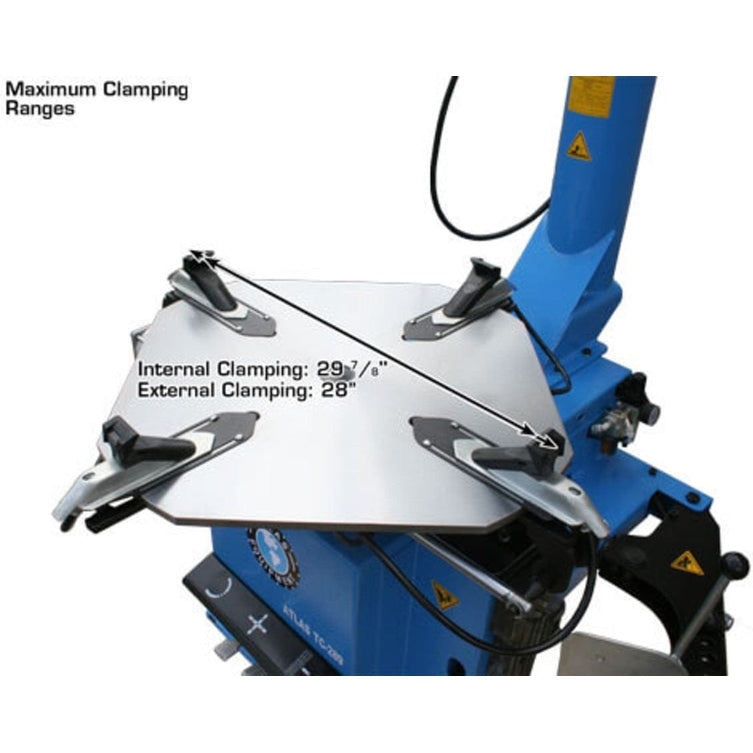

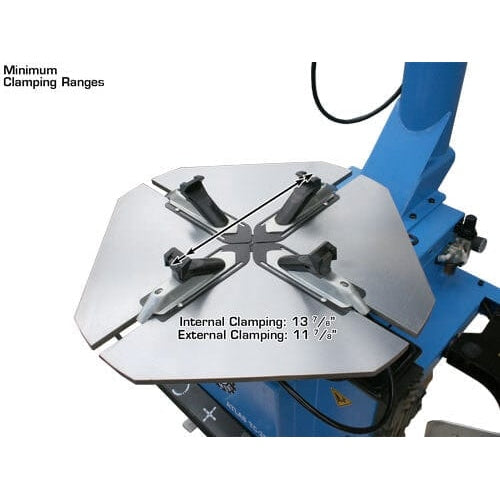

External Locking Rim Dimension (3 Positions)	1) 11 7/8" - 26" 2) 12 7/8" - 27" 3) 13 3/4" - 28"
Internal Locking Rim Dimension (3 Positions)	1) 13 7/8" - 27 7/8" 2) 14 5/8" - 28 7/8" 3) 15 5/8" - 29 7/8"
Maximum Tire Diameter	47"

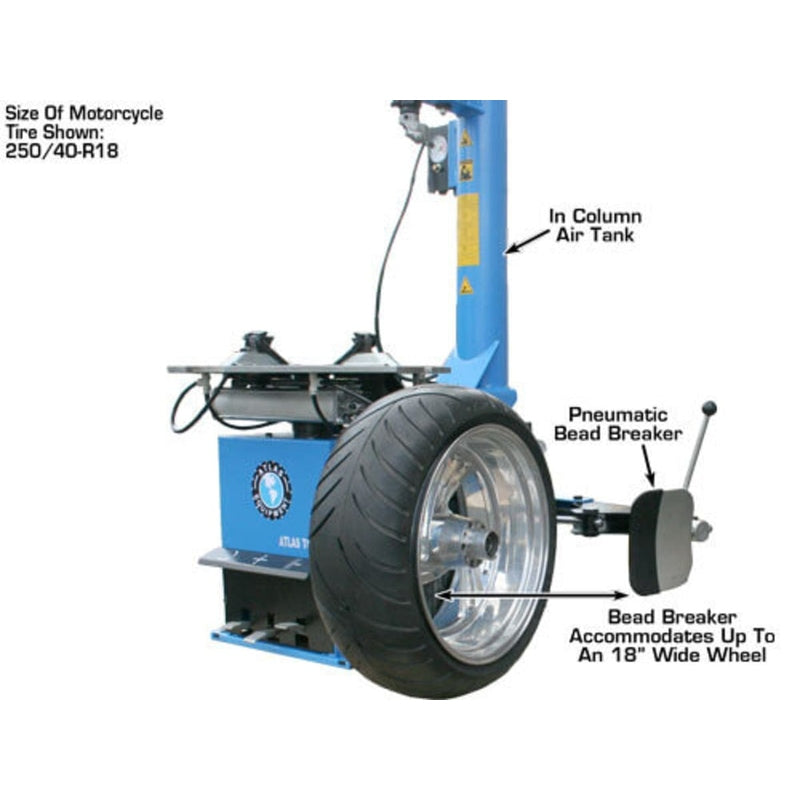

Maximum Wheel Width (Bead Breaker)	18"

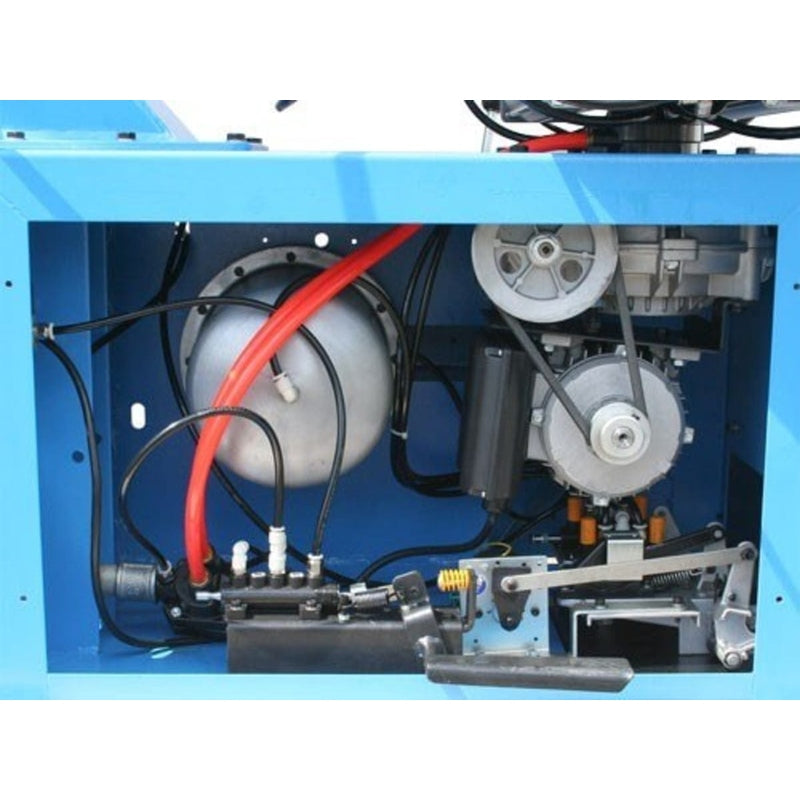

Table Motor	1 HP
Turntable Rotating Torque	885 ft/lbs
Bead Breaker	5,500 LB. Force
Air Requirement	90-110 PSI (MUST NOT EXCEED 140 PSI)
Operating Voltage	110volt

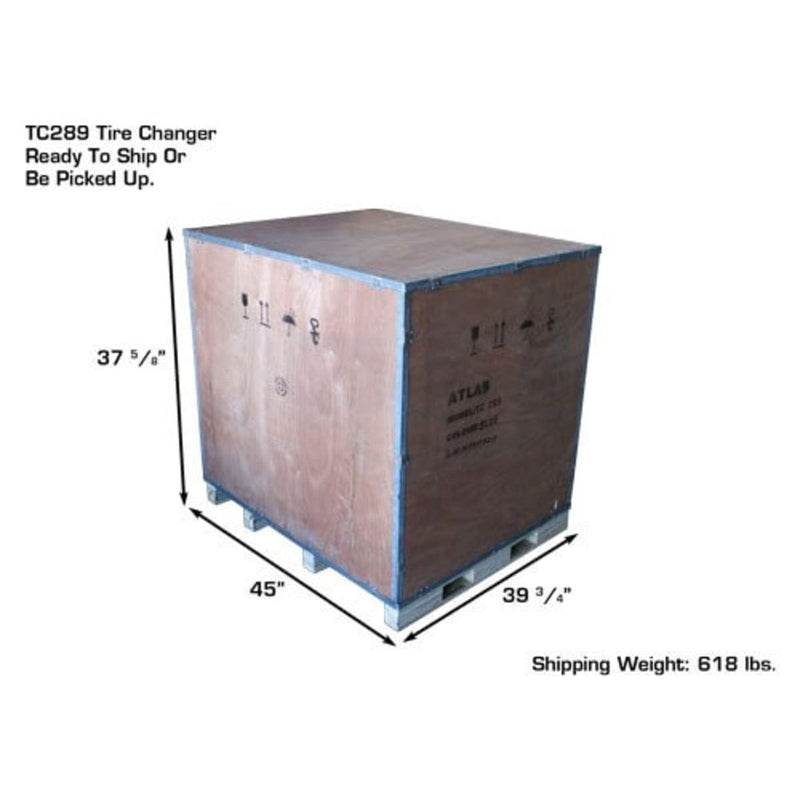

Shipping Weight	620 lbs.

Atlas® WB41 Specifications

Max Tire Diameter	39" (3" 6')
Rim Sizes (Cars And Light Trucks)	10"-32"
Rim Width	1 1/2"-20"

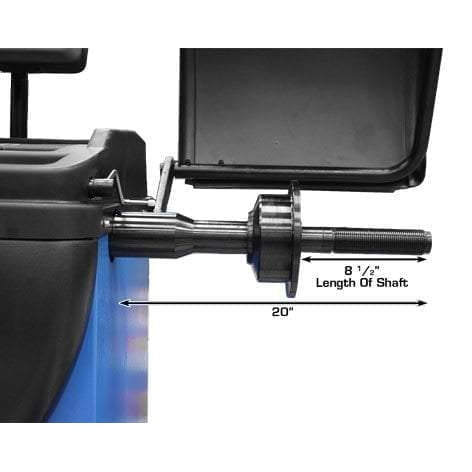

Shaft Size	40mm
Max. Wheel Weight	150 lbs.
Balancing Speed	150 rpm
Data Entry	All Dimensions Manual
Measurements	Standard Or Metric
Accuracy	1 gram
Weight Position Resolution	1.4 Degrees
Self Calibration	Yes
Motor	1/4 HP
Power Supply	110volt

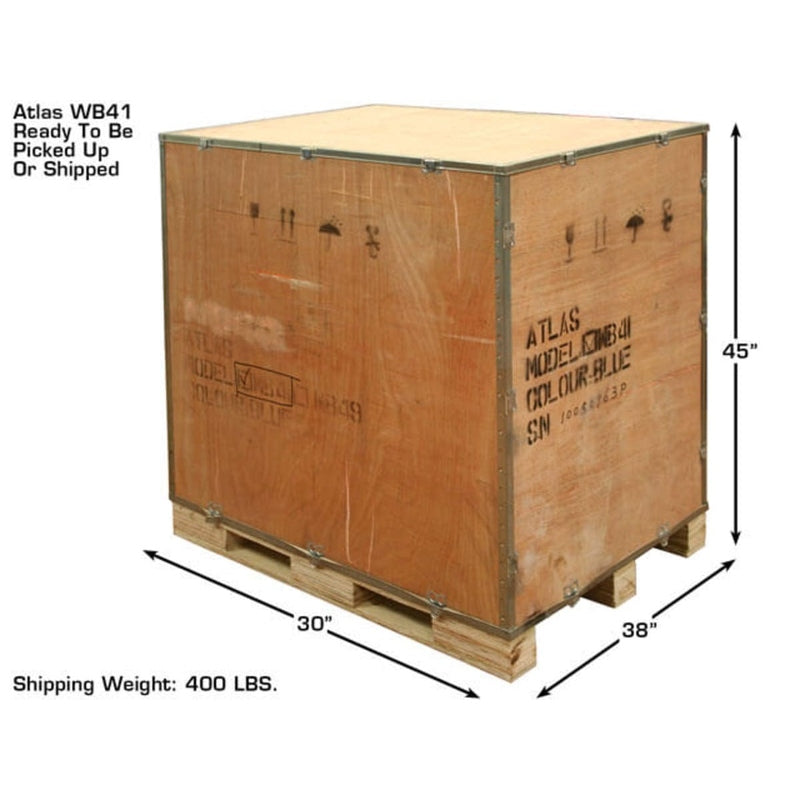

Shipping Weight	400 lbs.

Documents

-

Atlas® TC289 Manual

Atlas® WB41 Manual
