Description

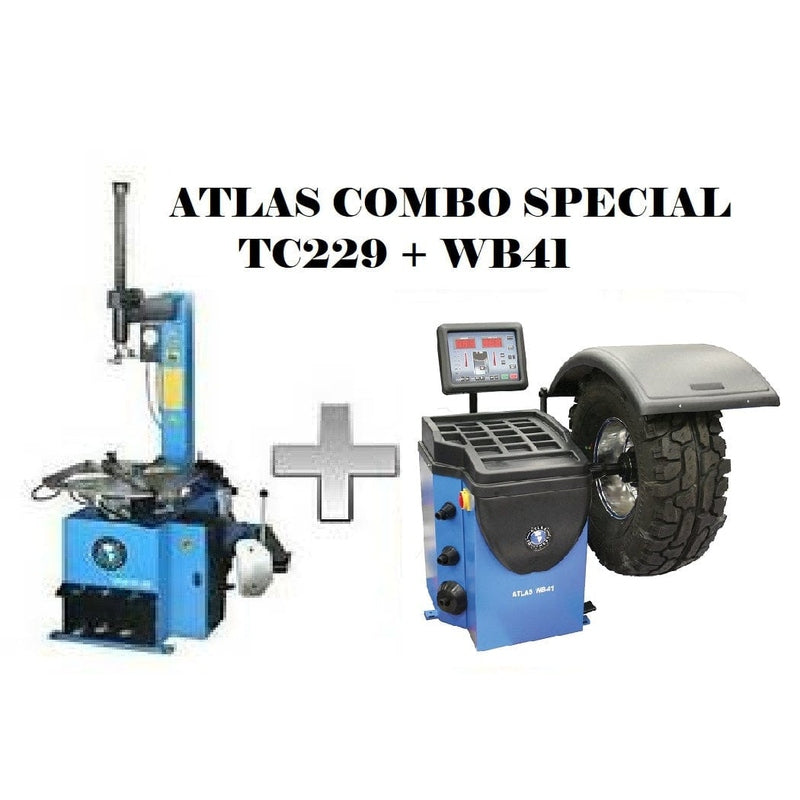

-This combination package includes the Atlas® TC229 rim-clamp swing arm tire changer & the Atlas® WB41 computerized spin balancer. This combination is perfect for the homeowner, small commercial shop or ATV/Motorcycle dealer looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty.
Features

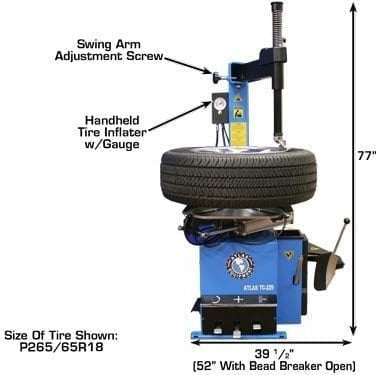

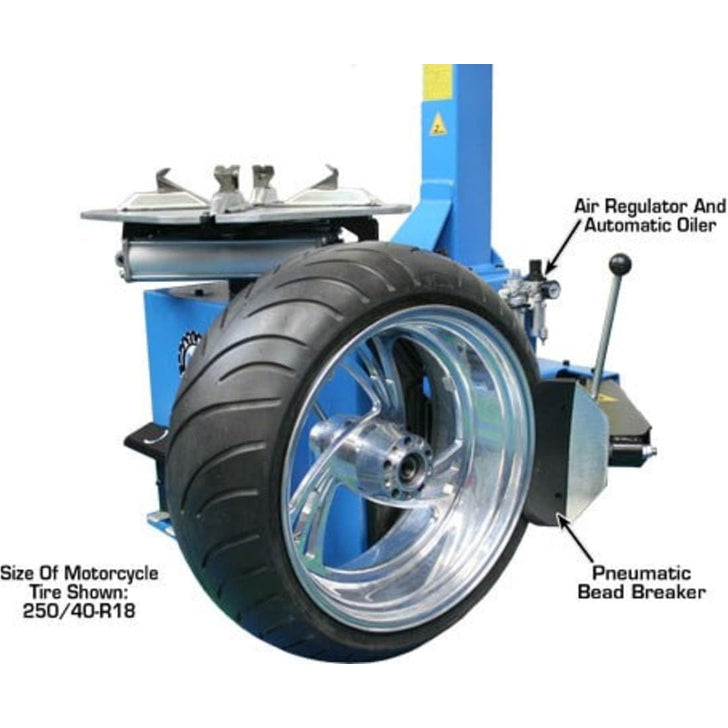

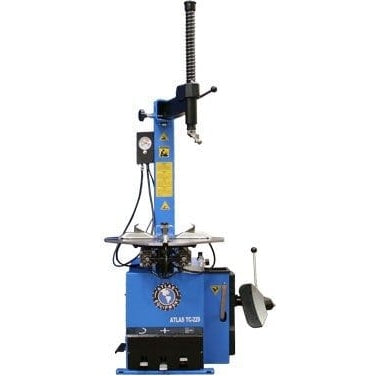

-TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer

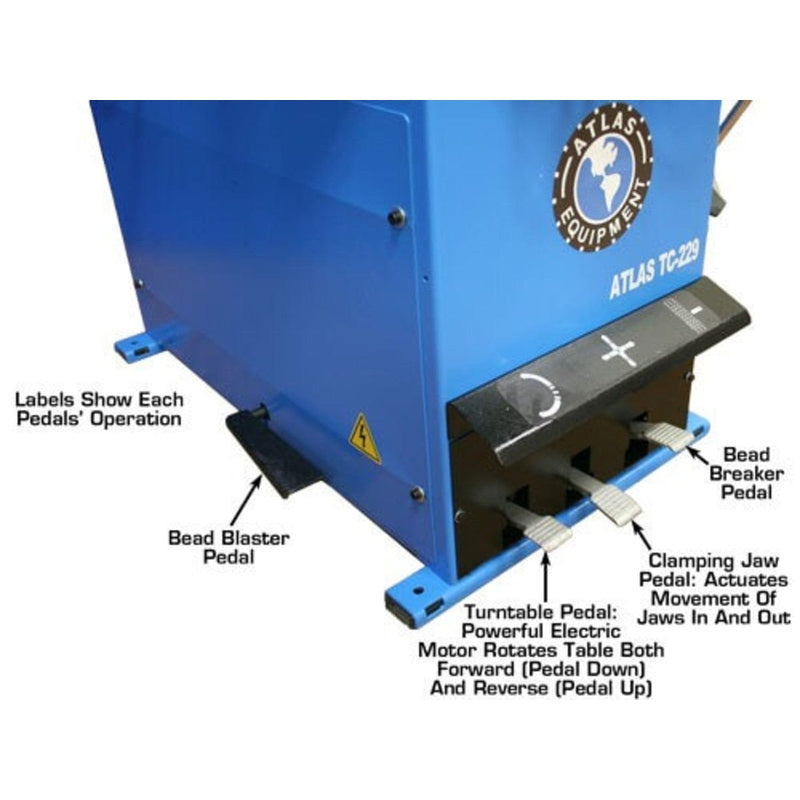

- Air operated jaws & bead breaker (external air supply required)

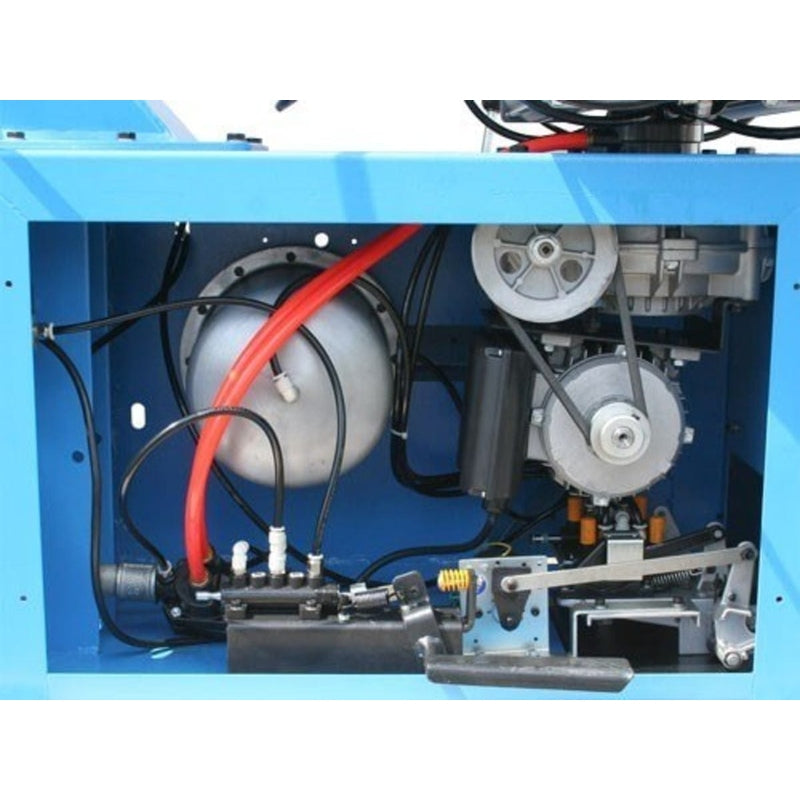

- Electric turntable
- Adjustable jaws, three mounting positions

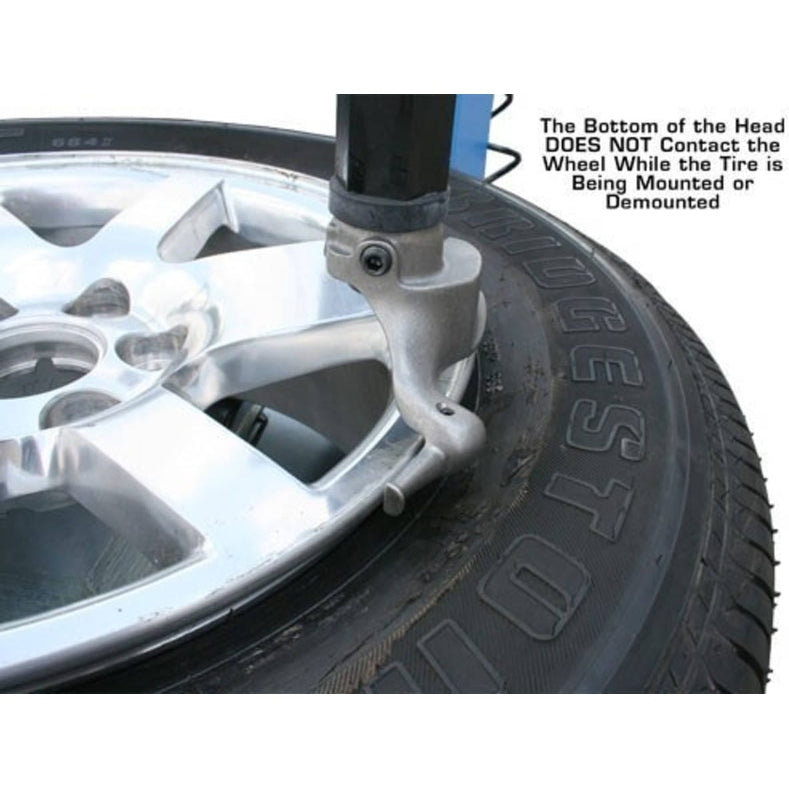

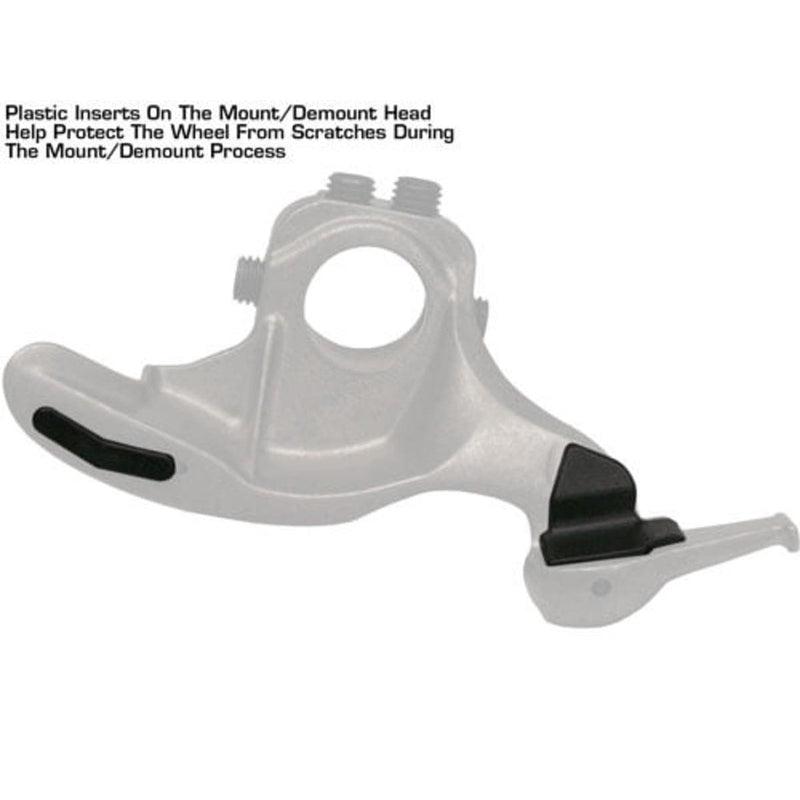

- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included

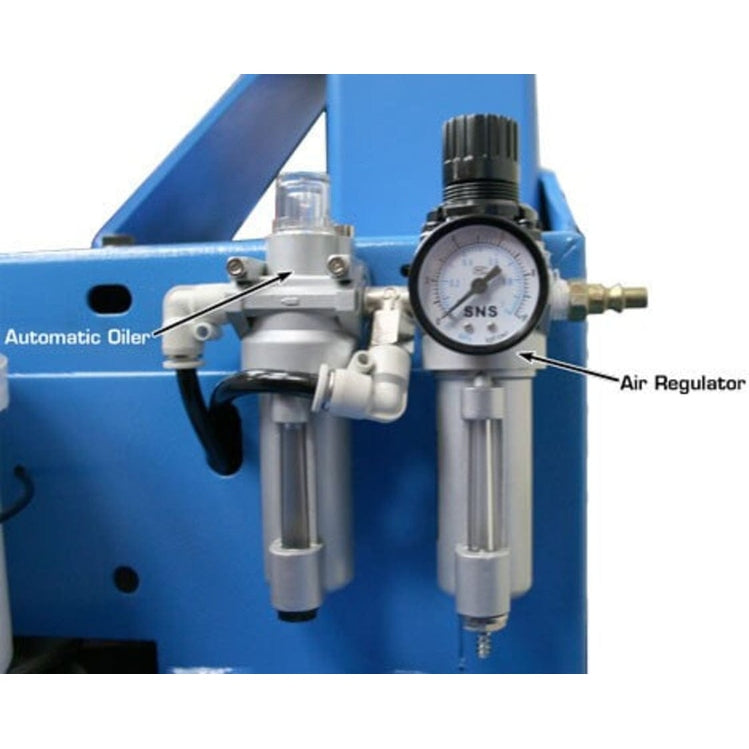

- Filter/Regulator/Lubricator Included

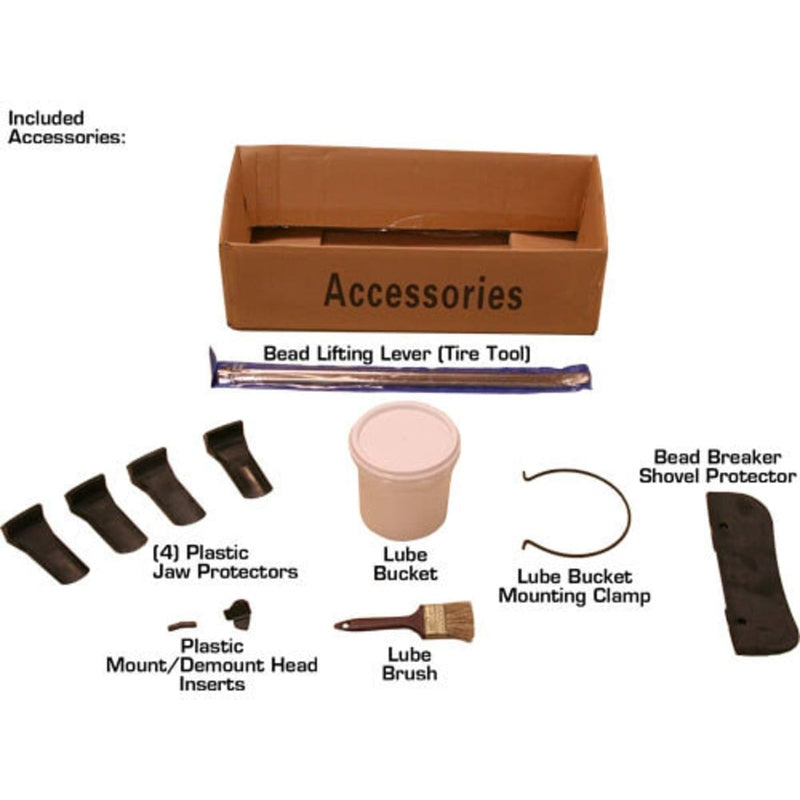

- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included

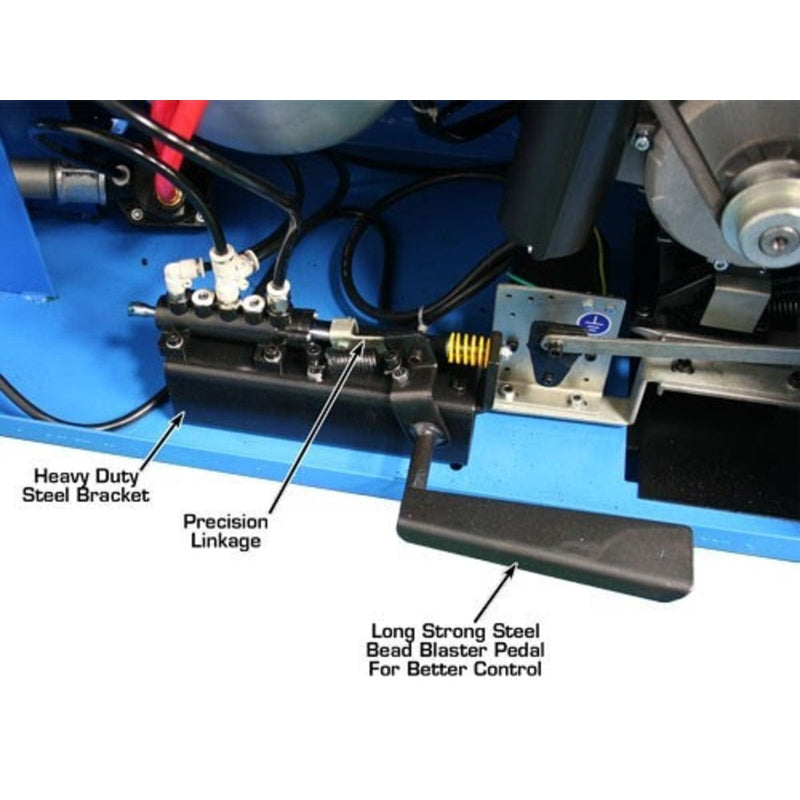

- Built in “Beadblaster”

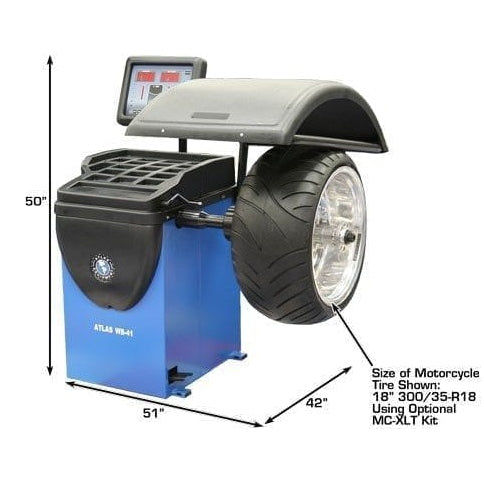

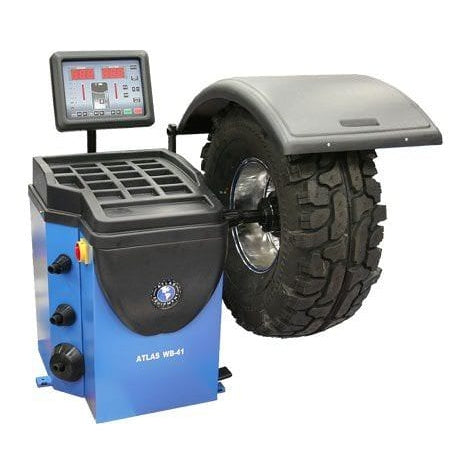

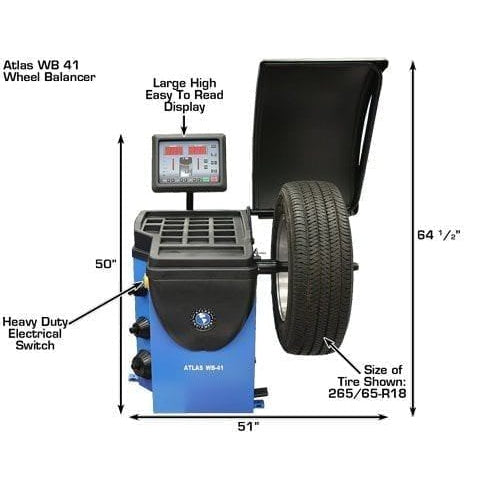

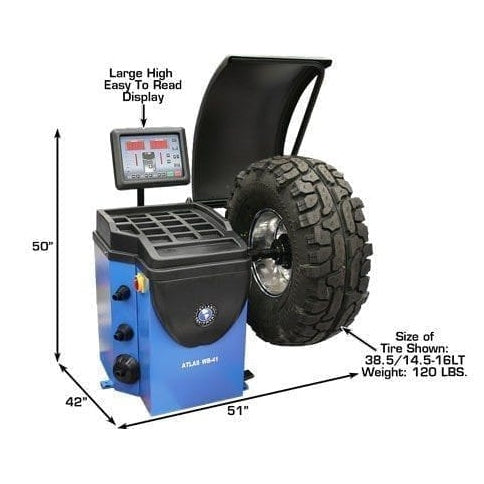

WB41 Wheel Balancer
- Computer Controlled Motorized Spin Balancer

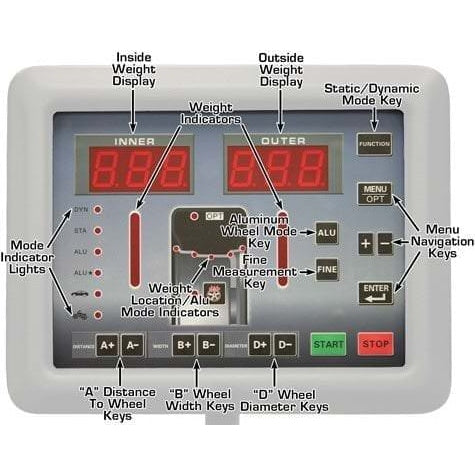

- Raised, Easy to Read Display
- Large Wheel Weight Tray
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed

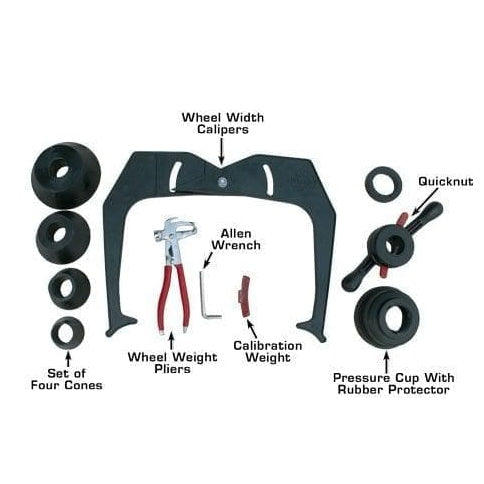

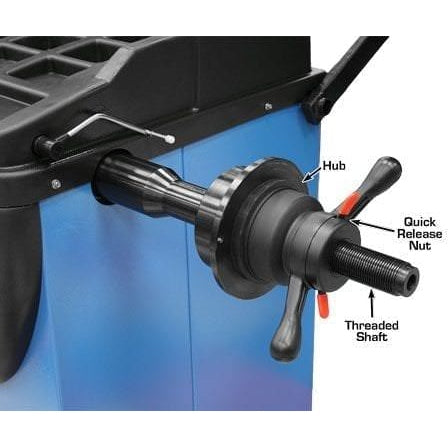

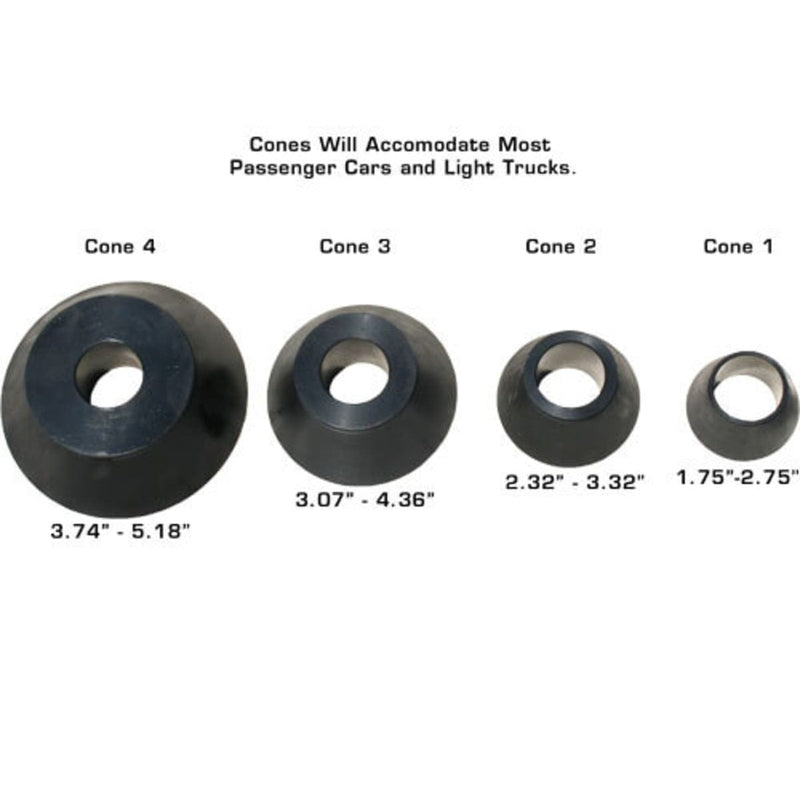

- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
-Atlas® TC229 Specifications
Rims | Steel, Aluminum, Alloy |

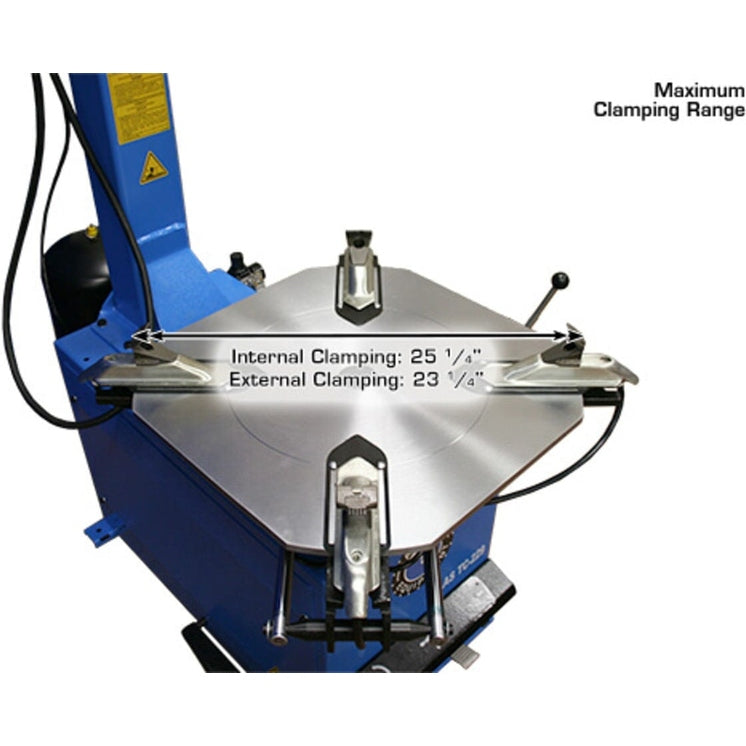

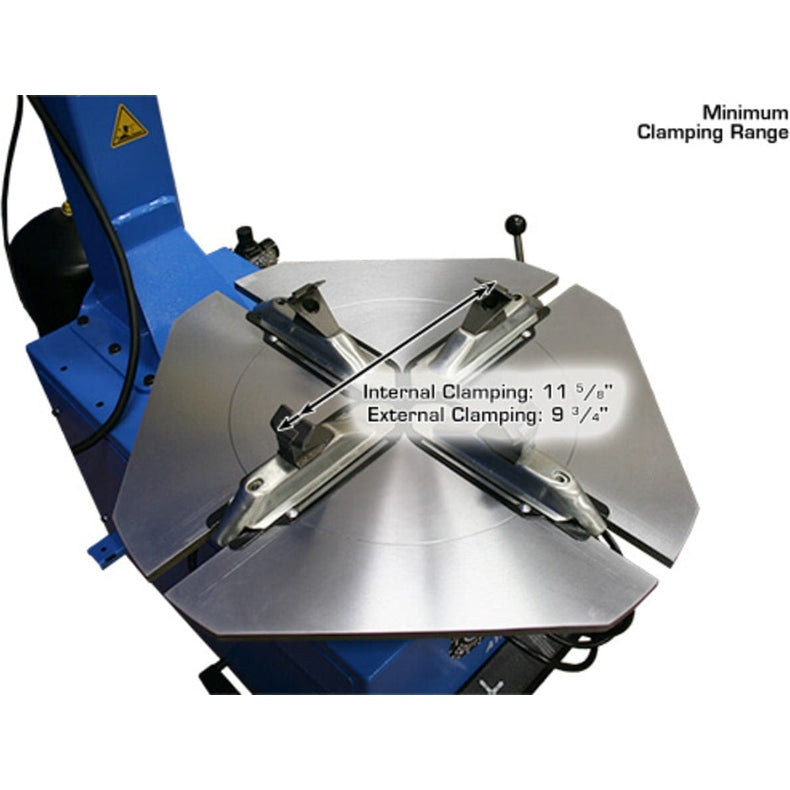

External Locking Rim Dimension (3 Positions) |
1) 9 3/4" - 21 5/8" 2) 10 3/4" - 22 1/2" 3) 11 5/8" - 23 1/4" |
Internal Locking Rim Dimension (3 Positions) |
1) 11 5/8" - 23 1/4" 2) 12 5/8" - 24 1/4" 3) 13 1/2" - 25 1/4" |
Maximum Tire Diameter | 39" |
Maximum Wheel Width (Bead Breaker) | 13" |
Table Motor | 1 HP |
Turntable Rotating Torque | 885 ft/lbs |
Bead Breaker | 5,500 LB. Force |
Air Requirement | 90-110 PSI (MUST NOT EXCEED 140 PSI) |
Operating Voltage | 110volt |

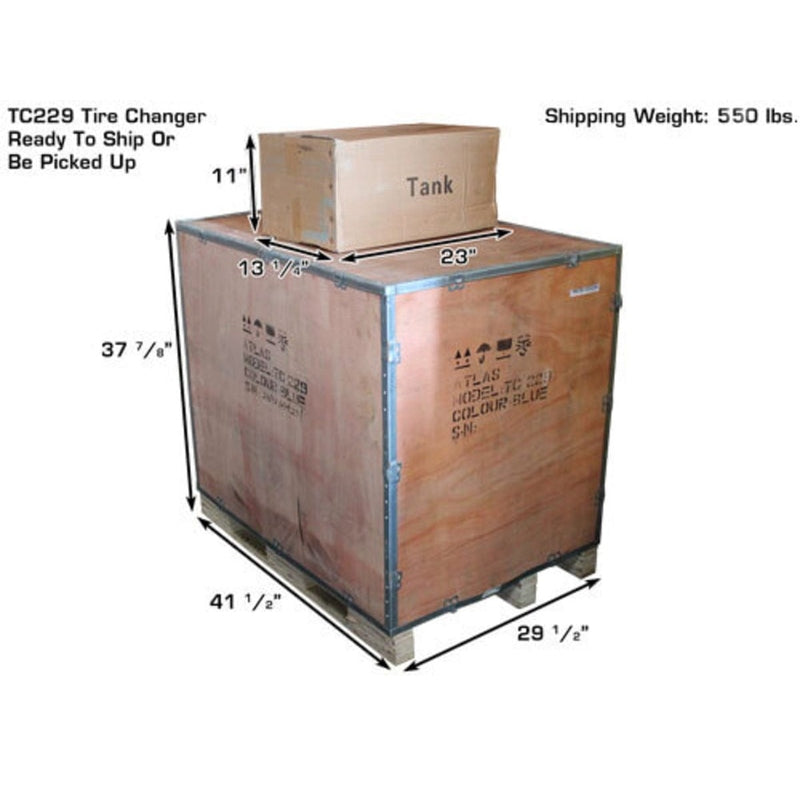

Shipping Weight | 550 lbs. |
Atlas® WB41 Specifications
Max Tire Diameter | 39" (3" 6') |
Rim Sizes (Cars And Light Trucks) | 10"-32" |
Rim Width | 1 1/2"-20" |

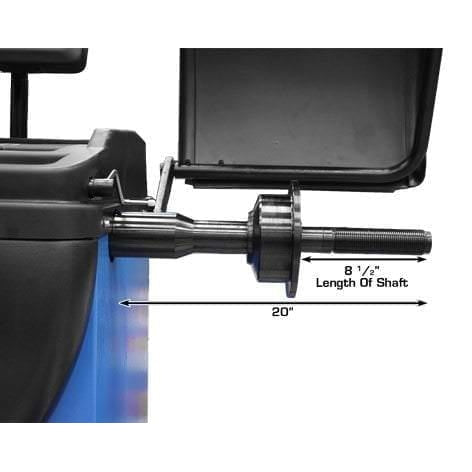

Shaft Size | 40mm |
Max. Wheel Weight | 150 lbs. |
Balancing Speed | 150 rpm |
Data Entry | All Dimensions Manual |
Measurements | Standard Or Metric |
Accuracy | 1 gram |
Weight Position Resolution | 1.4 Degrees |
Self Calibration | Yes |
Motor | 1/4 HP |
Power Supply | 110volt |

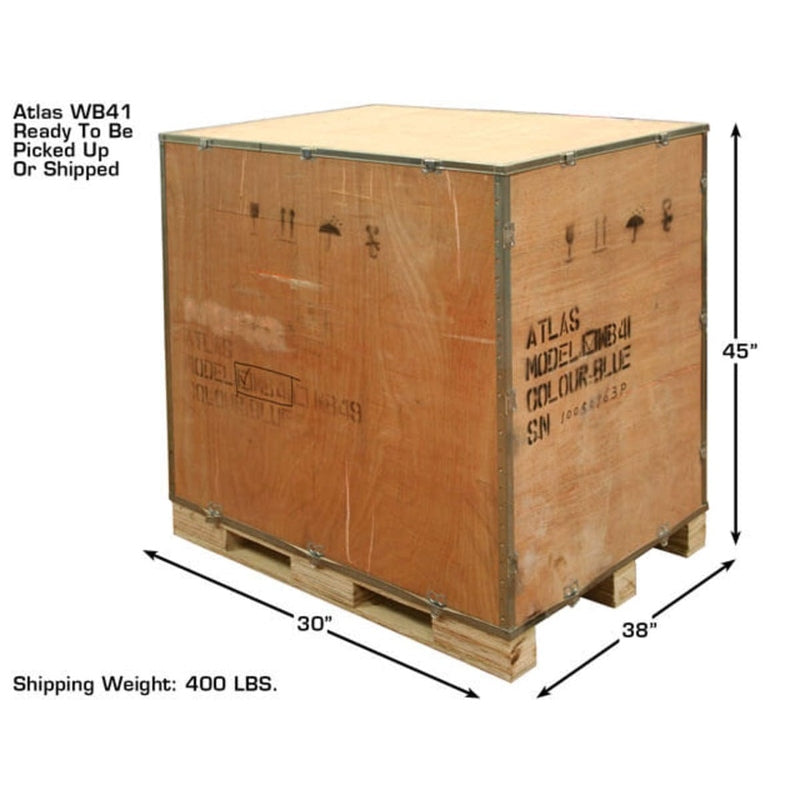

Shipping Weight | 400 lbs. |
