Atlas TC229 Tire Changer + PWB50 Wheel Blancer Combo Package

Name: Atlas TC229 Tire Changer + PWB50 Wheel Blancer Combo Package
Brand: Atlas Automotive Equipment
SKU: ATETCWB-COMBO7-FPD
Price: 4799.0 USD
Availability: InStock

SKU ATETCWB-COMBO7-FPD

$4,799.00 - $4,799.00

$4,799.00

$4,799.00 - $4,799.00

$4,799.00

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

Description

-

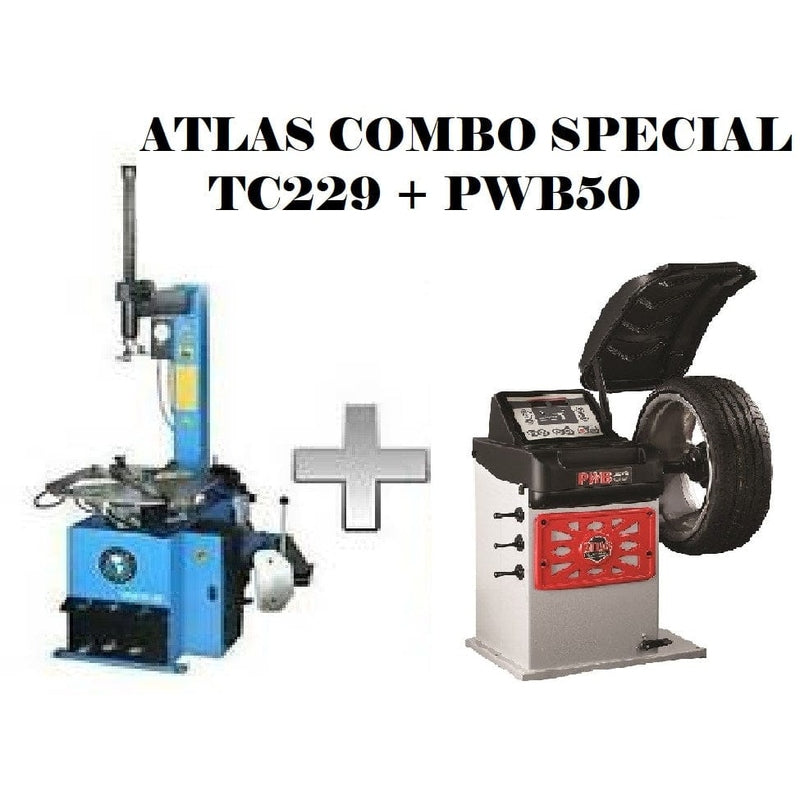

This combination package includes the Atlas® TC229 rim-clamp swing arm tire changer & the Atlas® Platinum PWB50 computerized spin balancer. This combination is perfect for a commercial shop looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and the Atlas® TC229 carries a 1 year parts only warranty and the Atlas® Platinum PWB50 carries an extended 2 year parts only warranty.

Features

-

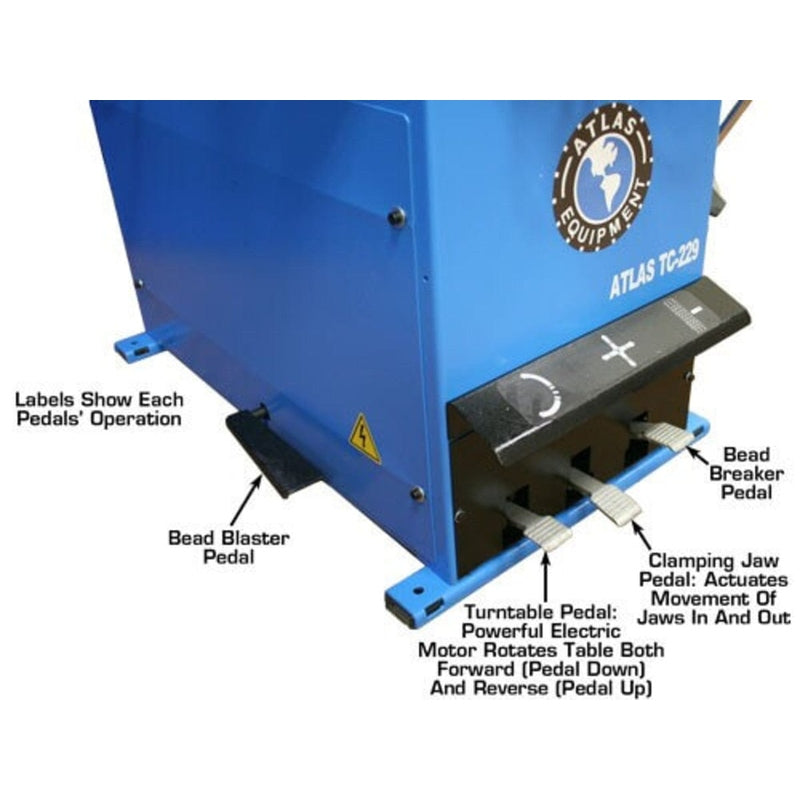

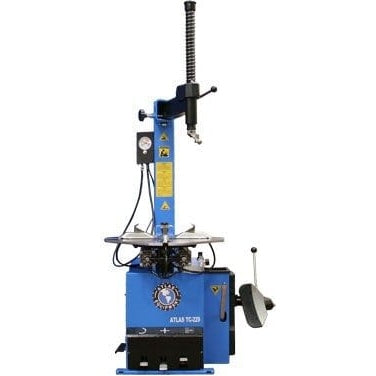

TC229 Tire Changer

Rim Clamp/Swing Arm Tire Changer

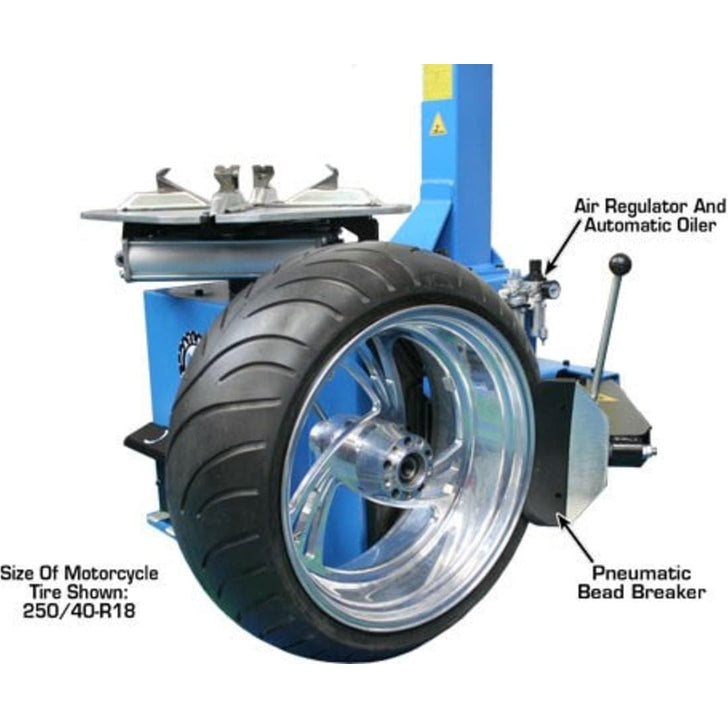

Air operated jaws & bead breaker (external air supply required)

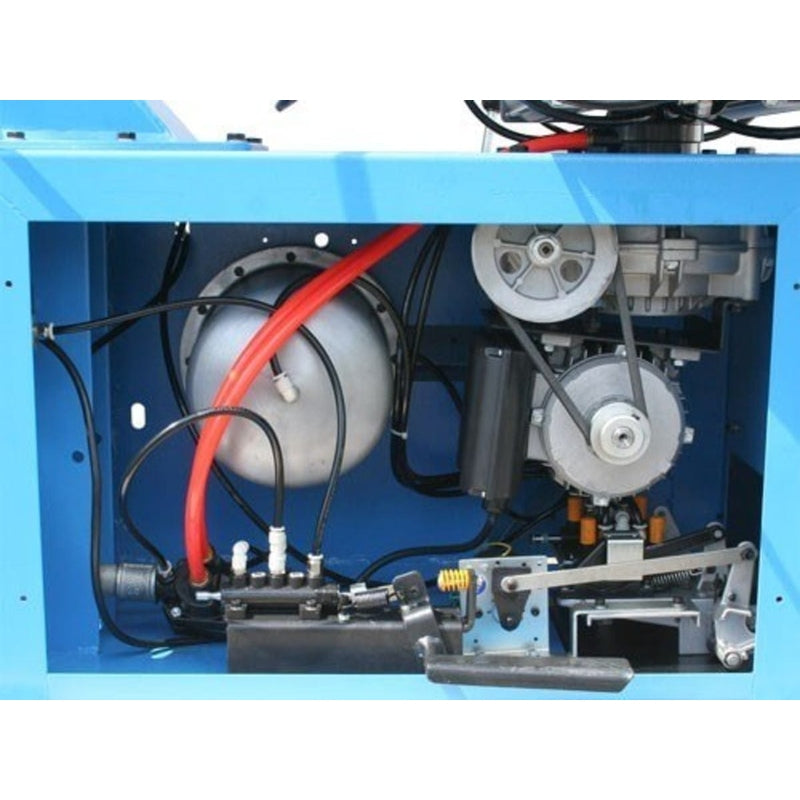

Electric turntable
Adjustable jaws, three mounting positions

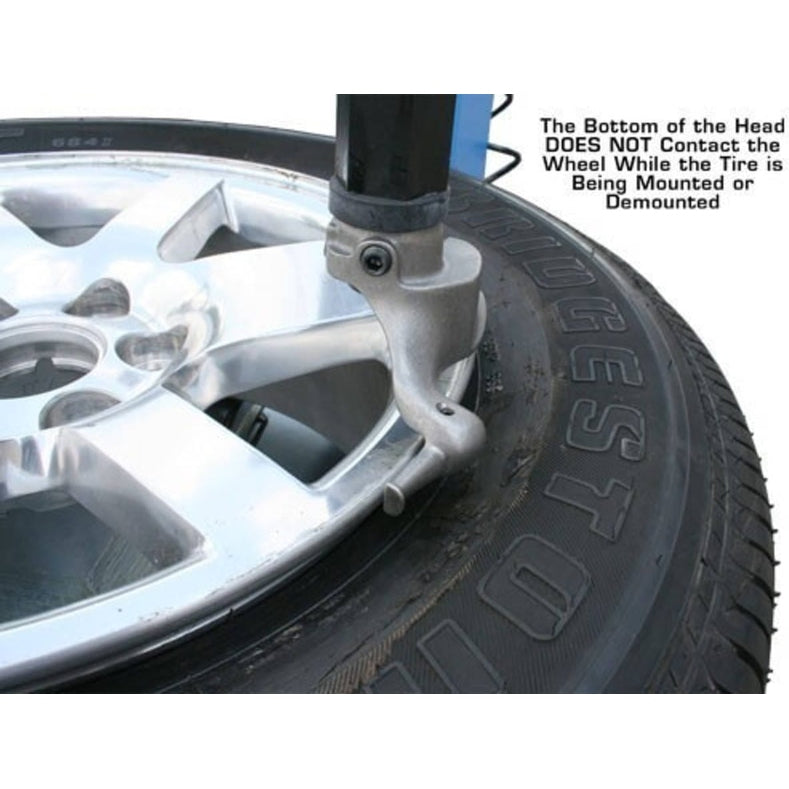

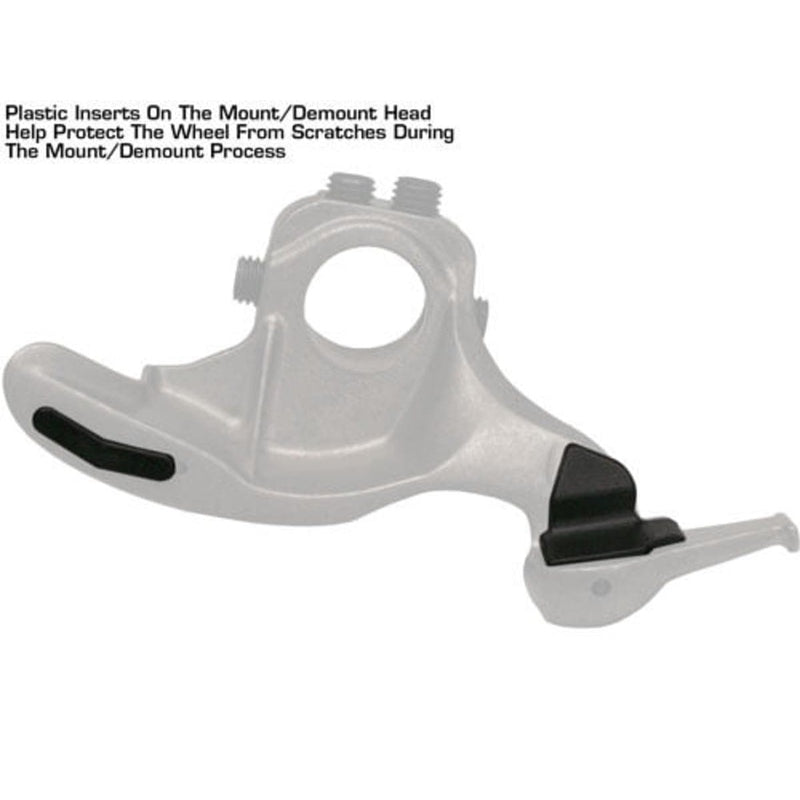

Metal mount/demount head w/ metal roller or replaceable plastic inserts
Column mounted inflator box w/ gauge Included

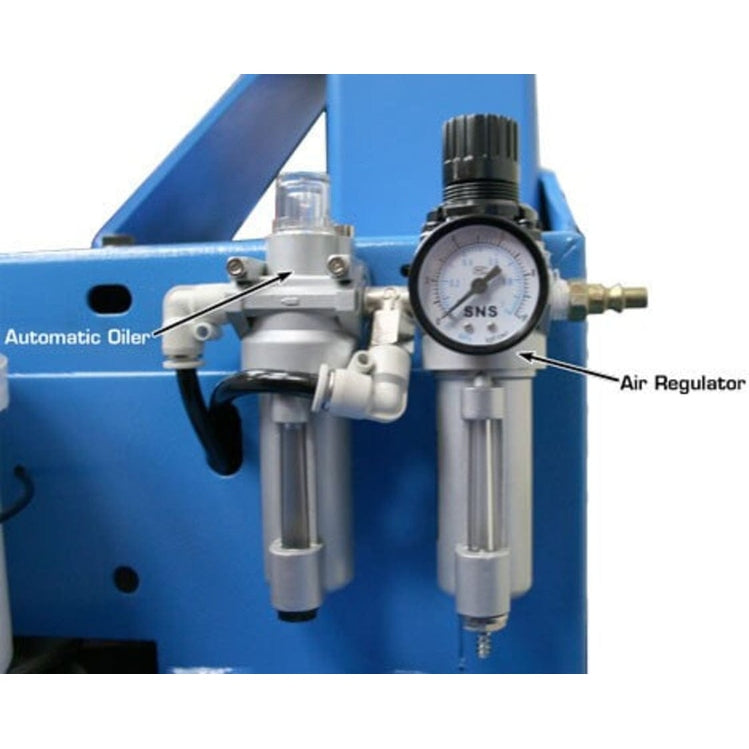

Filter/Regulator/Lubricator Included

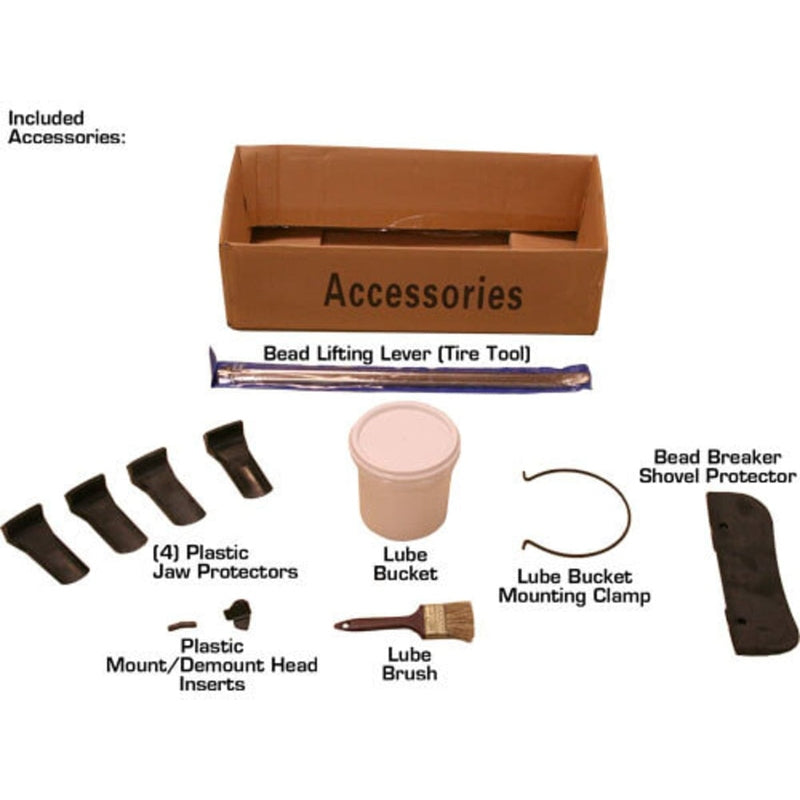

20″ Tire Tool Included
Lube Bucket with Brush Included
Set of Large Plastic Jaw Covers Included
Plastic Cover for Bead Breaker Shovel Included
Multiple Replacement Plastic Inserts for M/D Head Included

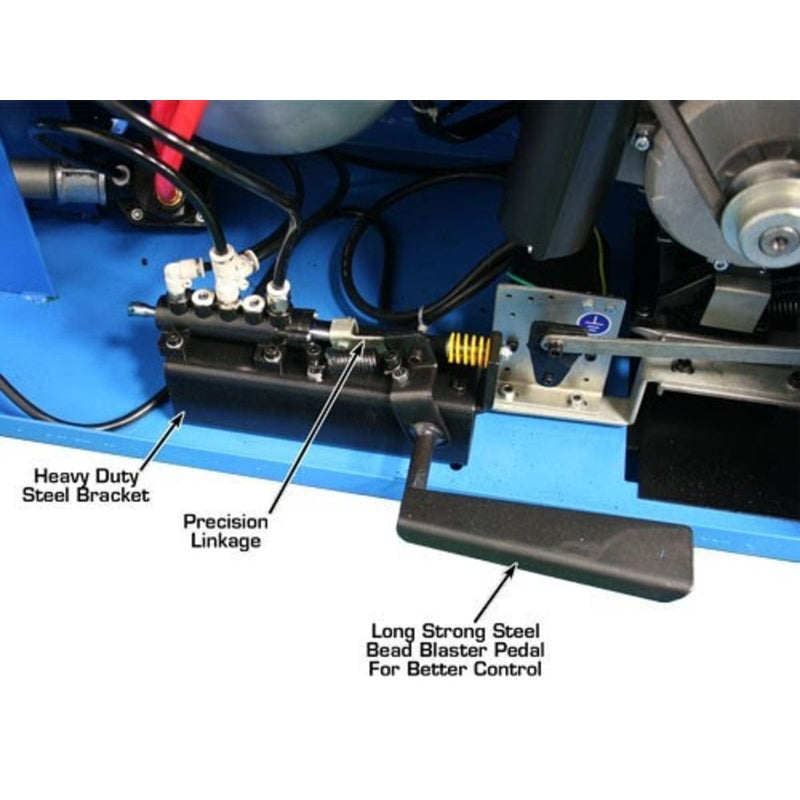

Built in “Beadblaster”

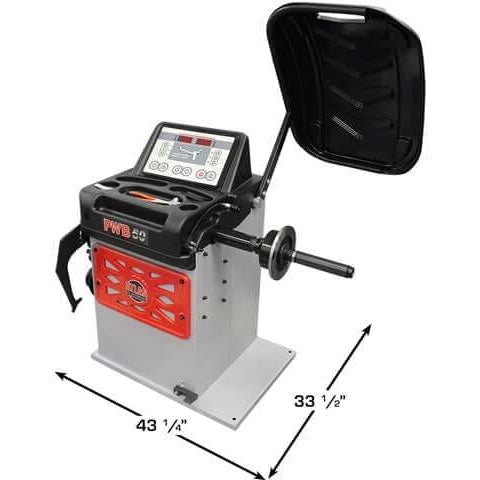

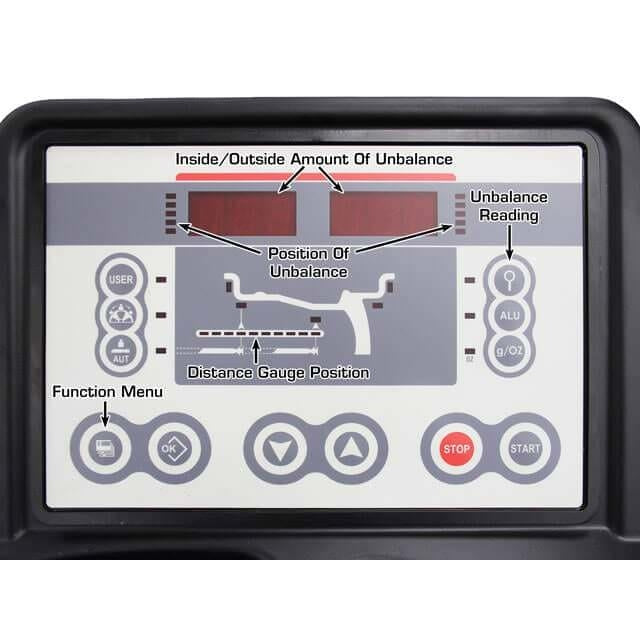

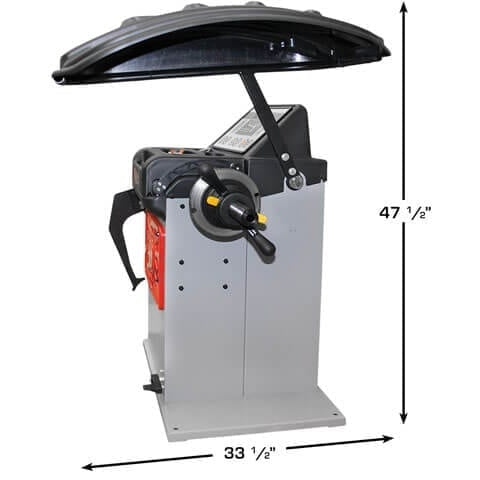

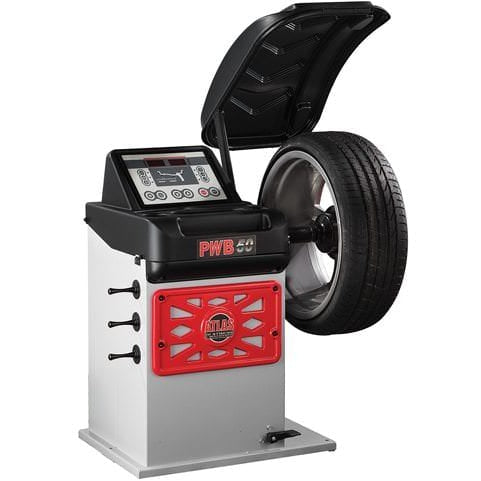

PWB50 Wheel Balancer

Platinum Computer Controlled Motorized Spin Balancer
Italian Engineering and Components

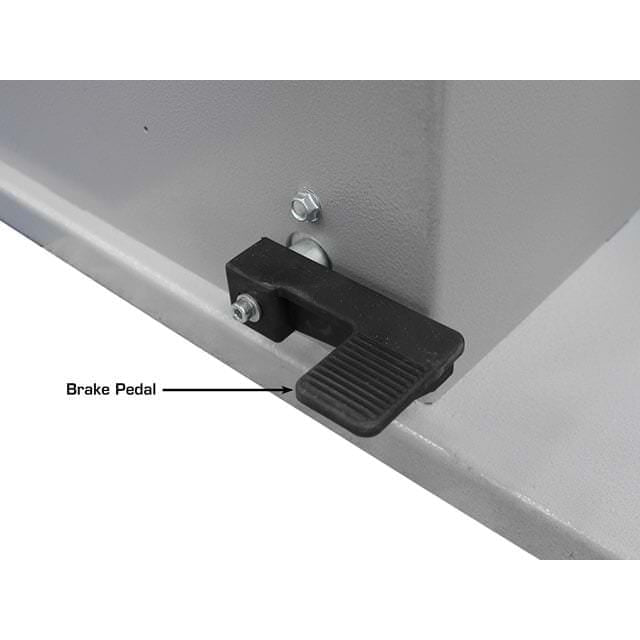

Automatic and pedal operated brake.
Automatic start/stop when hood is lowered/raised.
Static and dynamic balancing modes.
Optimatch, FES (Split), OPF (Opposite Position) Functions
Special ALU-S and other ALU Programs
Automatic 2D Data Entry
NWN (no wheel need) System
Self-Diagnosing and Self-calibrating
USB hub for firmware update through PC/Notebook
Exceptional stability in reading the unbalance between planes.
Display in grams or ounces, and in mm or inches.
No anchor-down installation needed

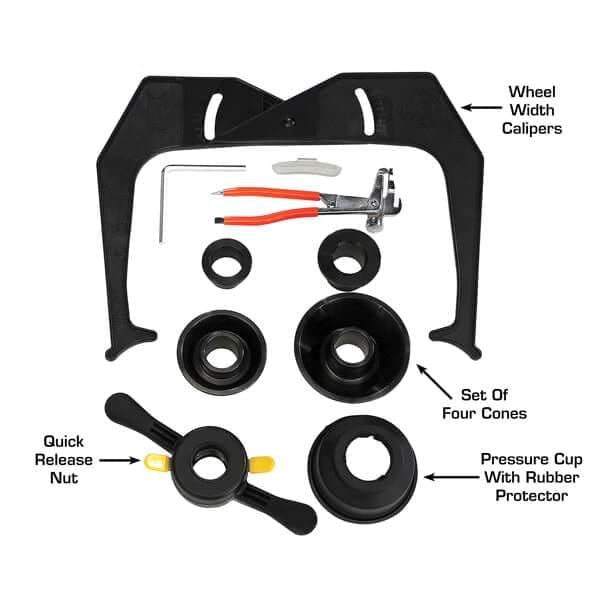

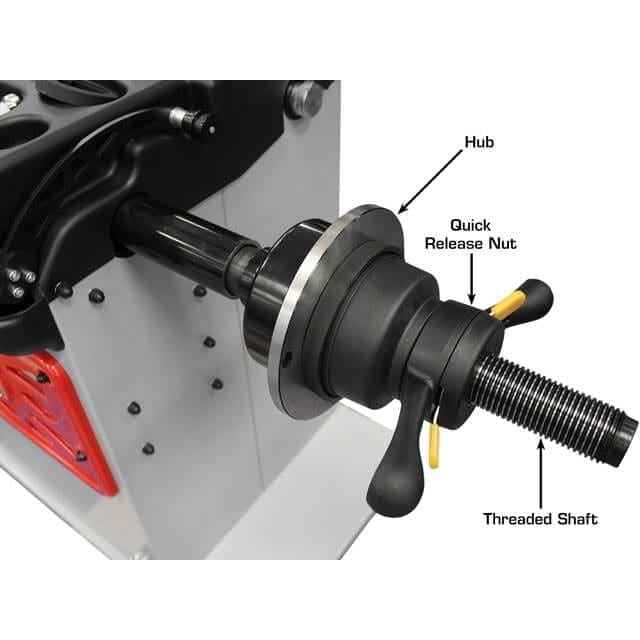

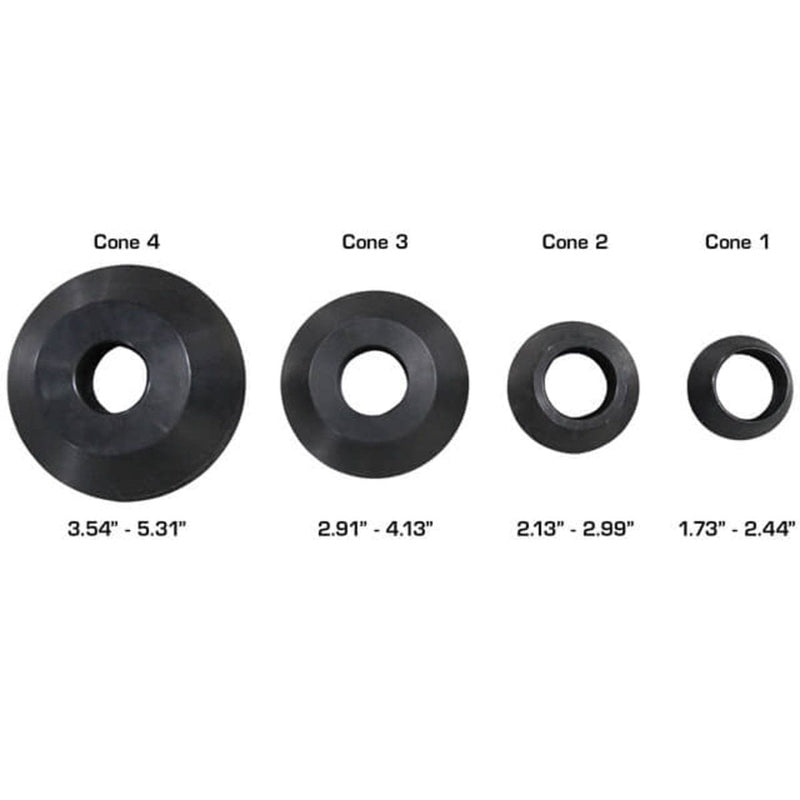

Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers

Specifications

-

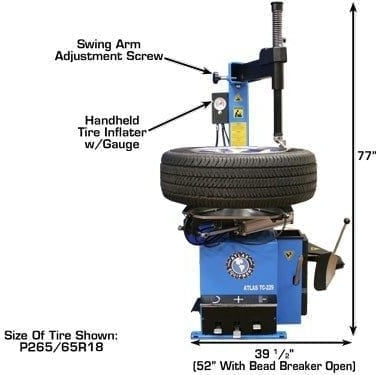

Atlas® TC229 Specifications

Rims	Steel, Aluminum, Alloy

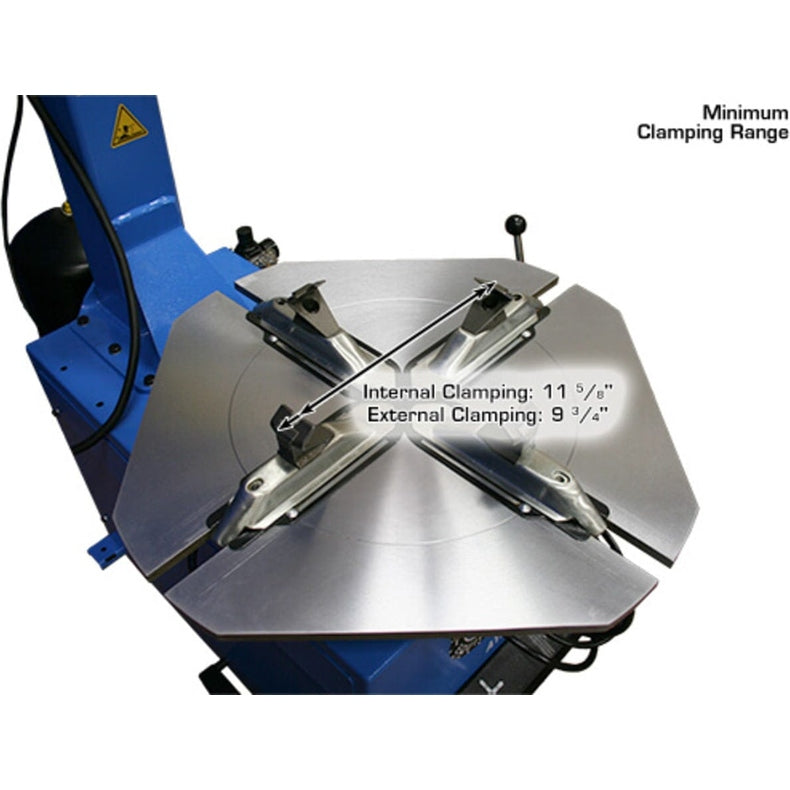

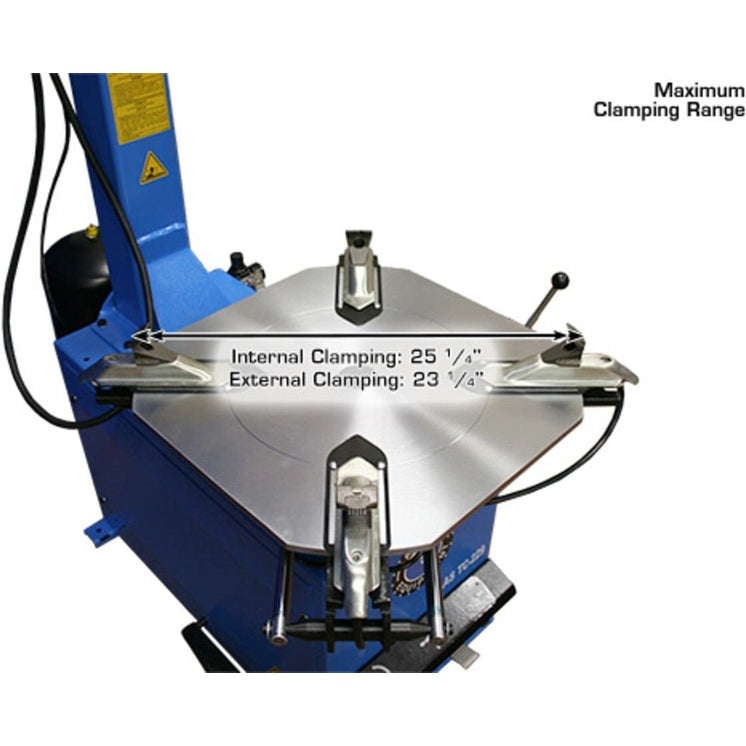

External Locking Rim Dimension (3 Positions)	1) 9 3/4" - 21 5/8" 2) 10 3/4" - 22 1/2" 3) 11 5/8" - 23 1/4"
Internal Locking Rim Dimension (3 Positions)	1) 11 5/8" - 23 1/4" 2) 12 5/8" - 24 1/4" 3) 13 1/2" - 25 1/4"
Maximum Tire Diameter	39"
Maximum Wheel Width (Bead Breaker)	13"
Table Motor	1 HP
Turntable Rotating Torque	885 ft/lbs
Bead Breaker	5,500 LB. Force
Air Requirement	90-110 PSI (MUST NOT EXCEED 140 PSI)
Operating Voltage	110volt

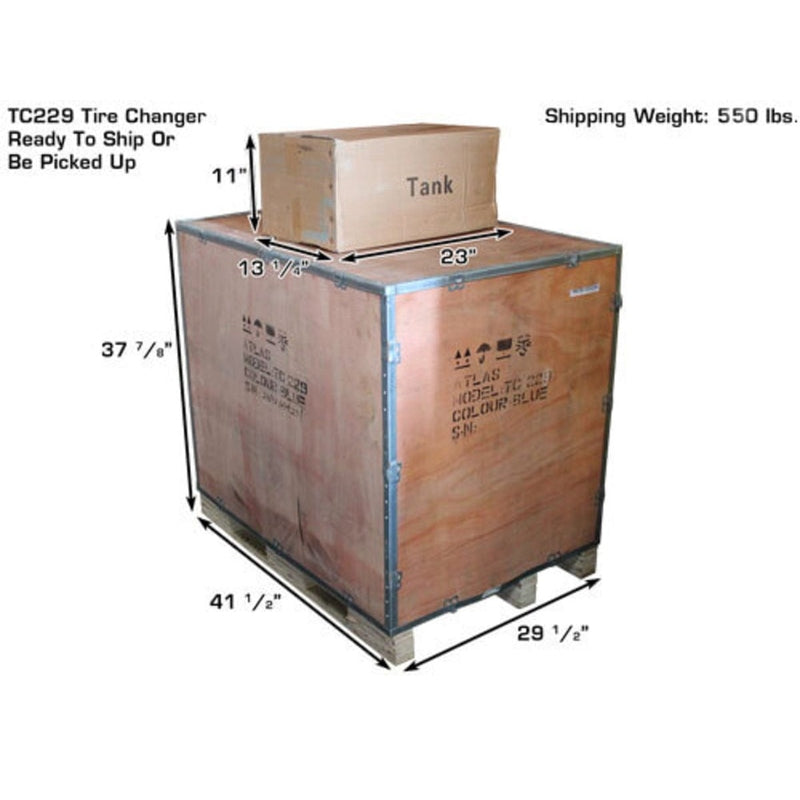

Shipping Weight	550 lbs.

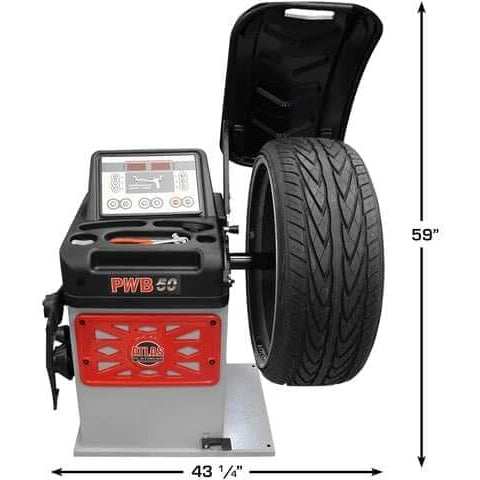

Atlas® Platinum PWB50 Specifications

Max Tire Diameter	43"
Rim Sizes (Cars And Light Trucks)	10"-30"
Rim Width	1 1/2"-20"

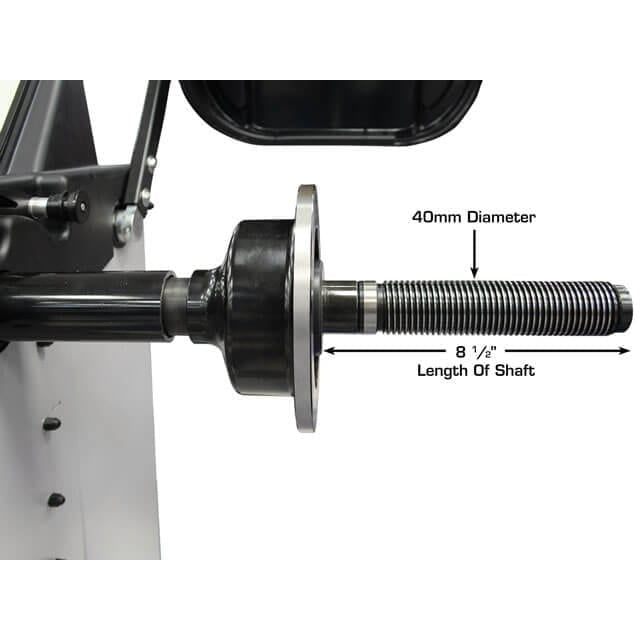

Shaft Size	40mm
Max. Wheel Weight	165 lbs.
Balancing Speed	130 rpm
Data Entry	Automatic 2D
Measurements	Standard Or Metric
Accuracy	1 gram
Weight Position Resolution	1.4 Degrees
Self Calibration	Yes
Cycle Time	7 seconds
Power Supply	110volt
Shipping Weight	230 lbs.

Documents

-

Atlas® TC229 Manual

Atlas® Platinum PWB50 Manual
