Atlas TC221 Tire Changer + WB11 Economy Wheel Balancer Combo Package

Name: Atlas TC221 Tire Changer + WB11 Economy Wheel Balancer Combo Package
Brand: Atlas Automotive Equipment
SKU: ATETCWB-COMBOEC-FPD
Price: 3399.0 USD
Availability: InStock

SKU ATETCWB-COMBOEC-FPD

$3,399.00 - $3,399.00

$3,399.00

$3,399.00 - $3,399.00

$3,399.00

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

Description

-

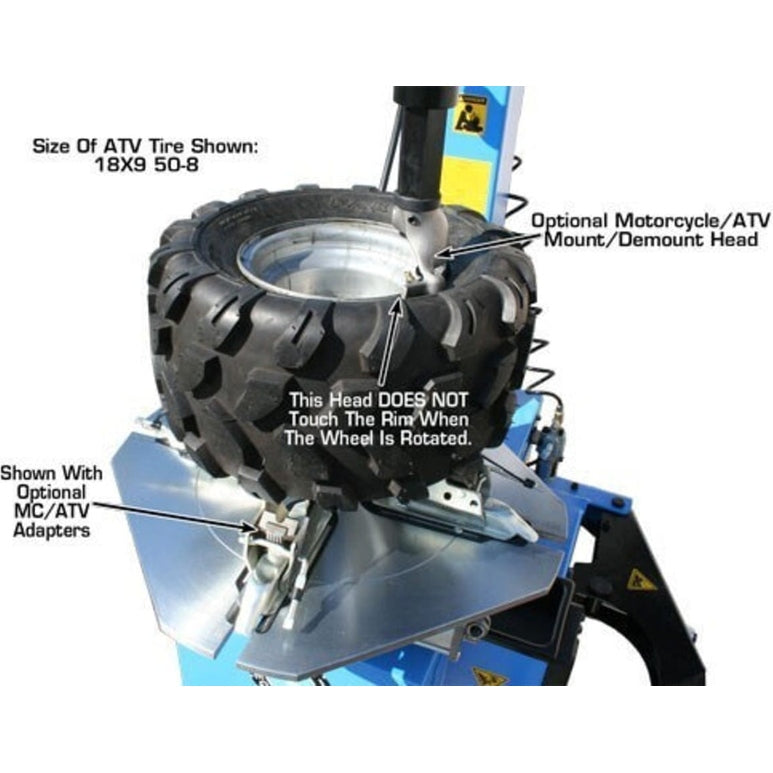

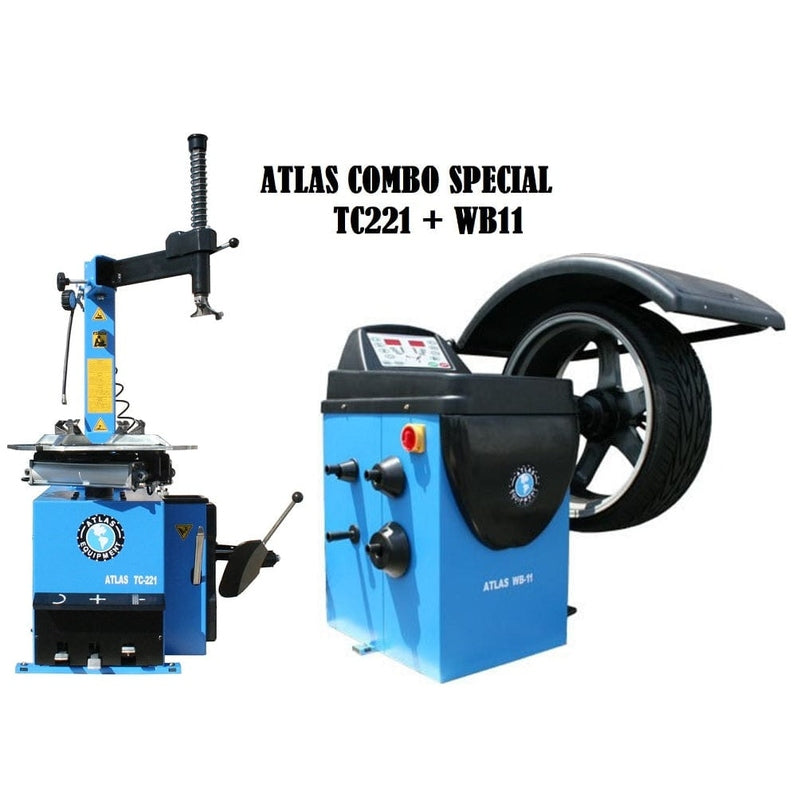

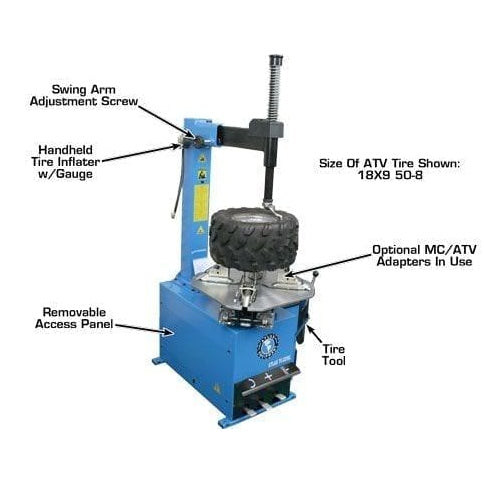

This cost effective combination package includes the Atlas® TC221 rim-clamp swing arm tire changer & the Atlas® WB11 computerized spin balancer. This combination is perfect for the homeowner, small commercial shop or ATV/Motorcycle dealer looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty.

Features

-

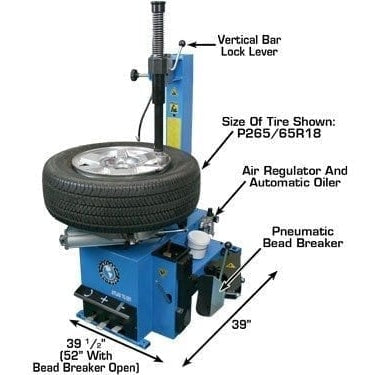

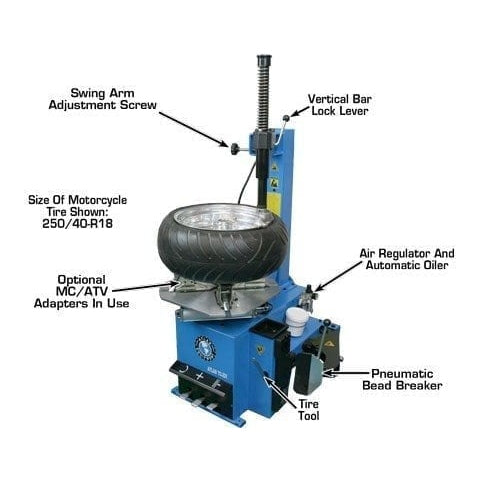

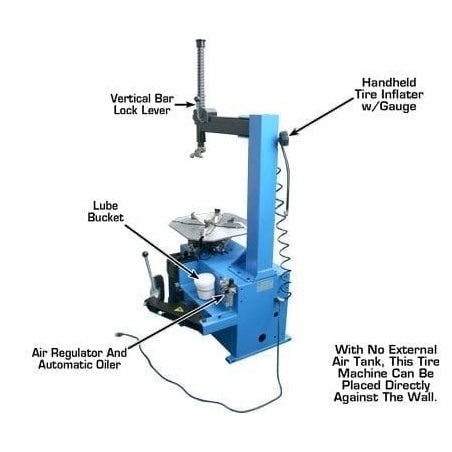

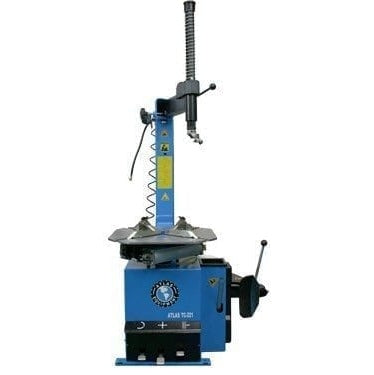

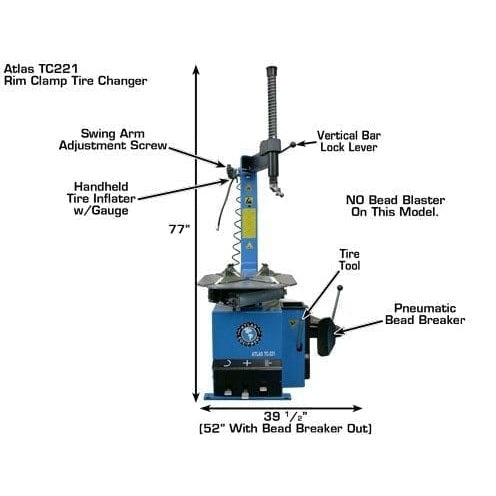

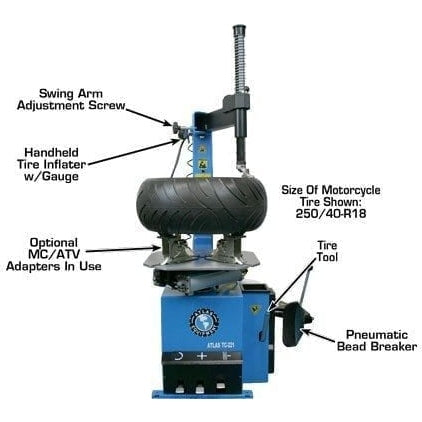

TC221 Tire Changer

Rim Clamp/Swing Arm Tire Changer

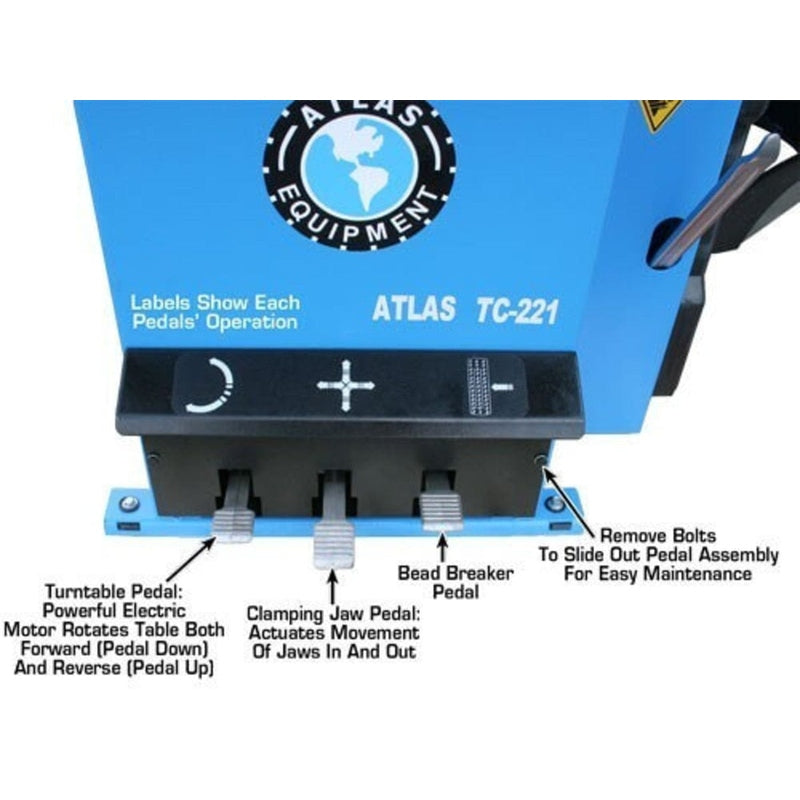

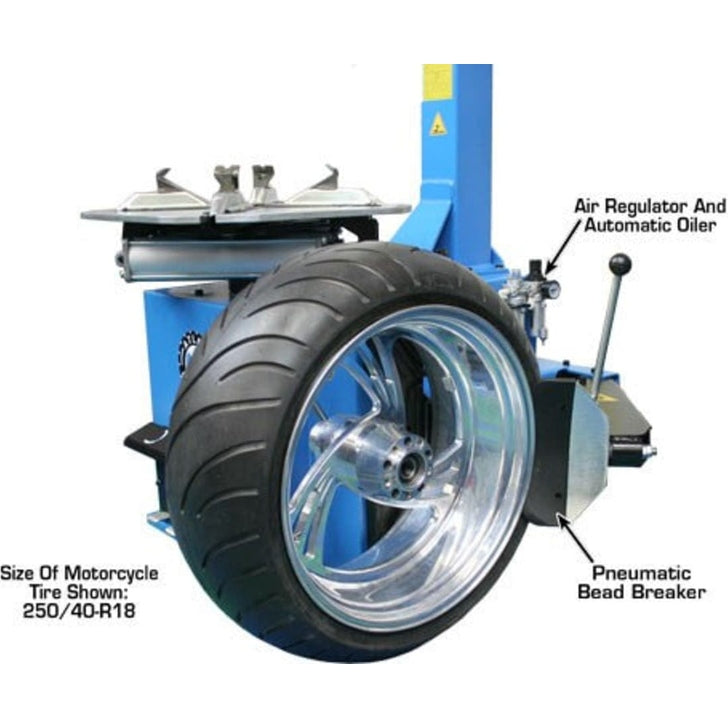

Air operated jaws & bead breaker (external air supply required)
Electric turntable

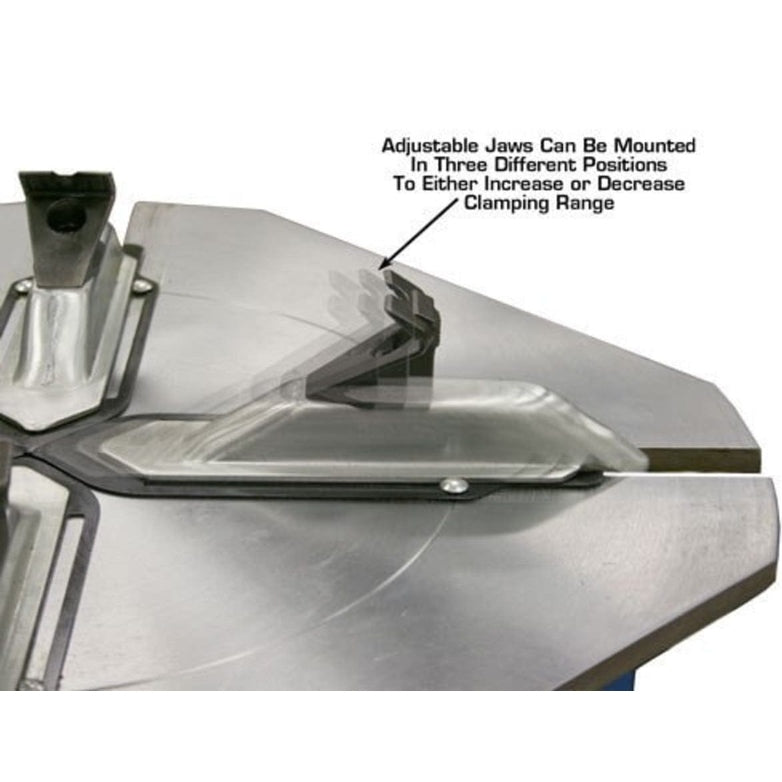

Adjustable jaws, three mounting positions

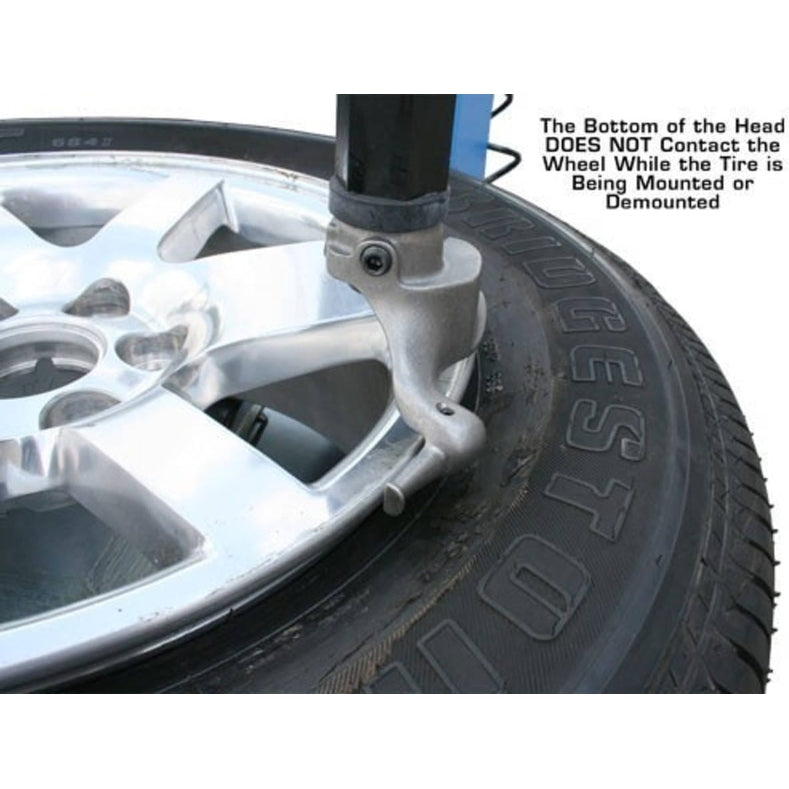

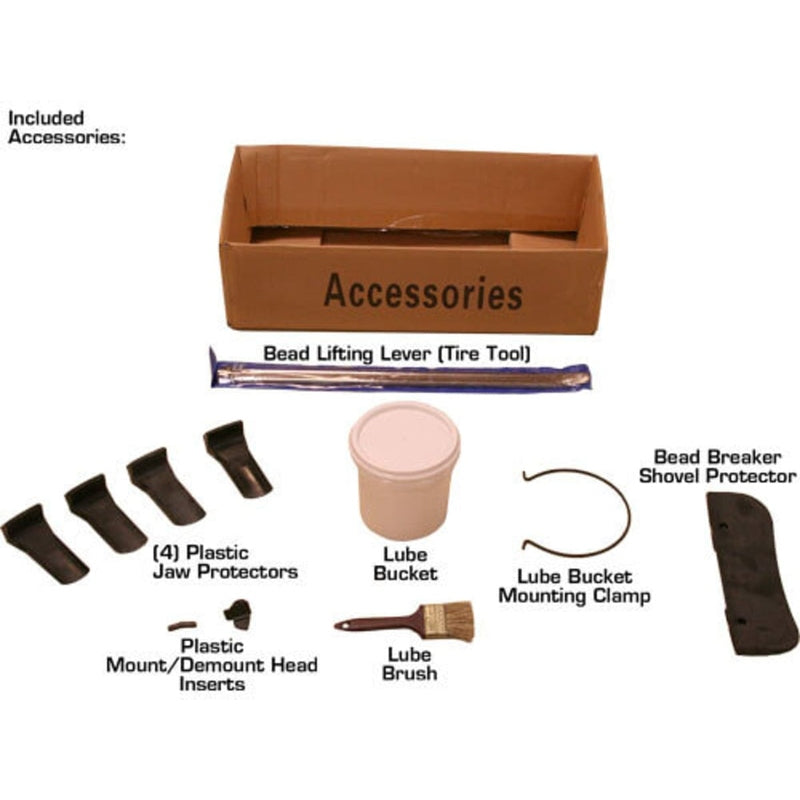

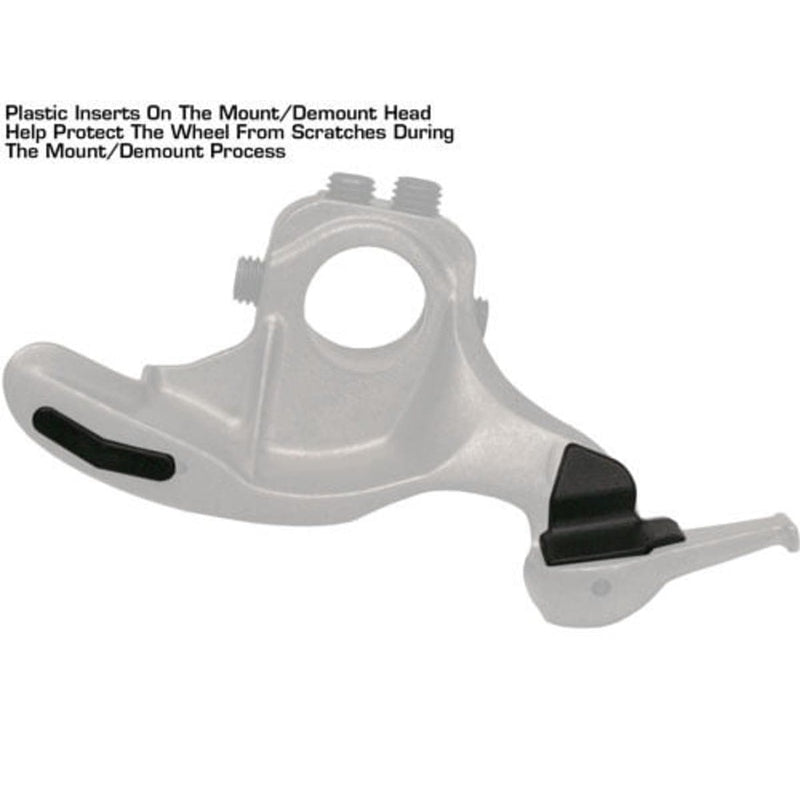

Metal mount/demount head w/ metal roller or replaceable plastic inserts
Column mounted inflator box w/ gauge Included

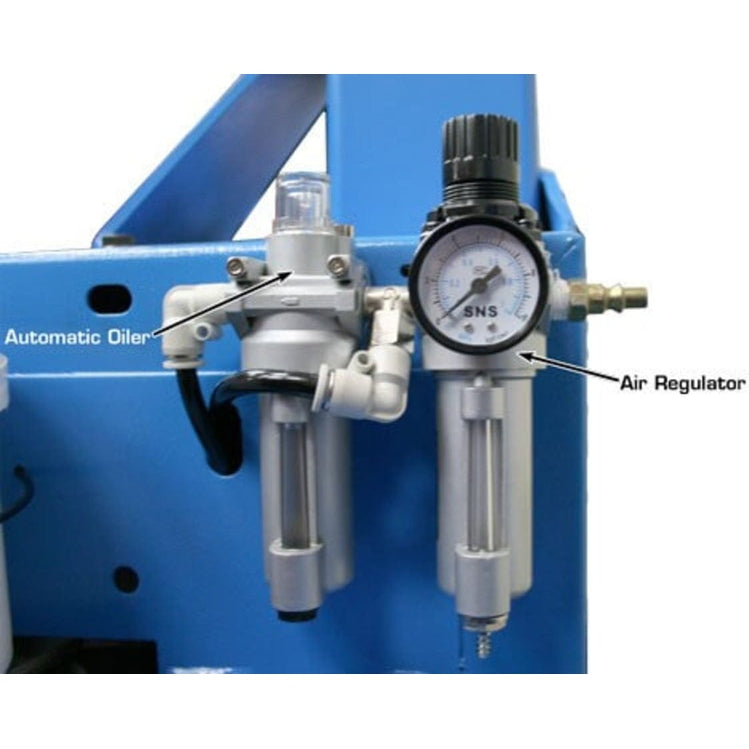

Filter/Regulator/Lubricator Included
20″ Tire Tool Included
Lube Bucket with Brush Included
Set of Large Plastic Jaw Covers Included
Plastic Cover for Bead Breaker Shovel Included
Multiple Replacement Plastic Inserts for M/D Head Included

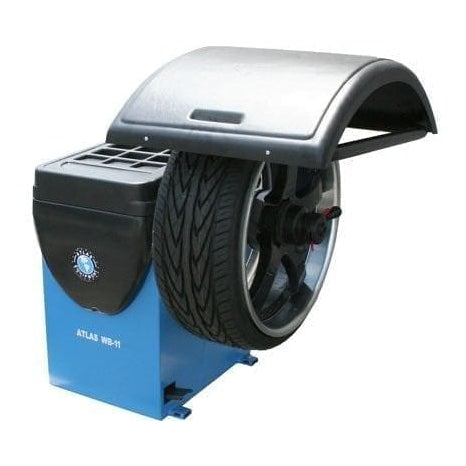

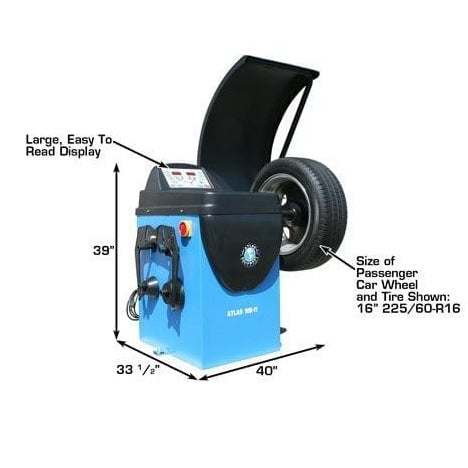

WB11 Wheel Balancer

Computer Controlled Motorized Spin Balancer

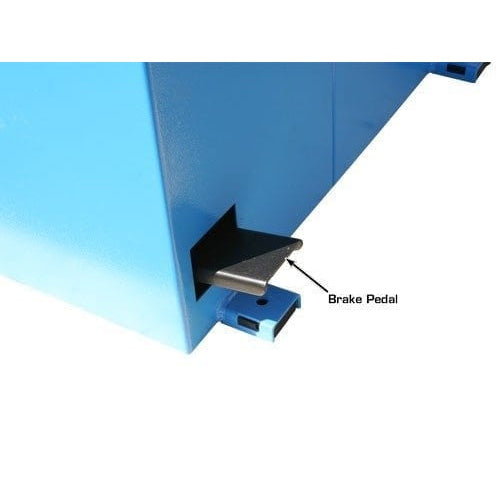

Automatic and pedal operated brake.
Automatic start/stop when hood is lowered/raised.

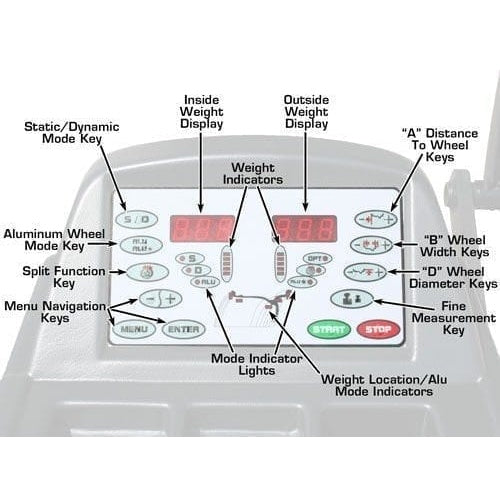

Static and dynamic balancing modes.
Rapid optimization (OPT)
Self-Diagnosing and Self-calibrating
Exceptional stability in reading the unbalance between planes.
Display in grams or ounces, and in mm or inches.
No anchor-down installation needed

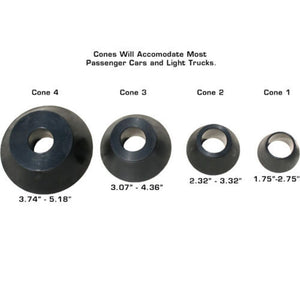

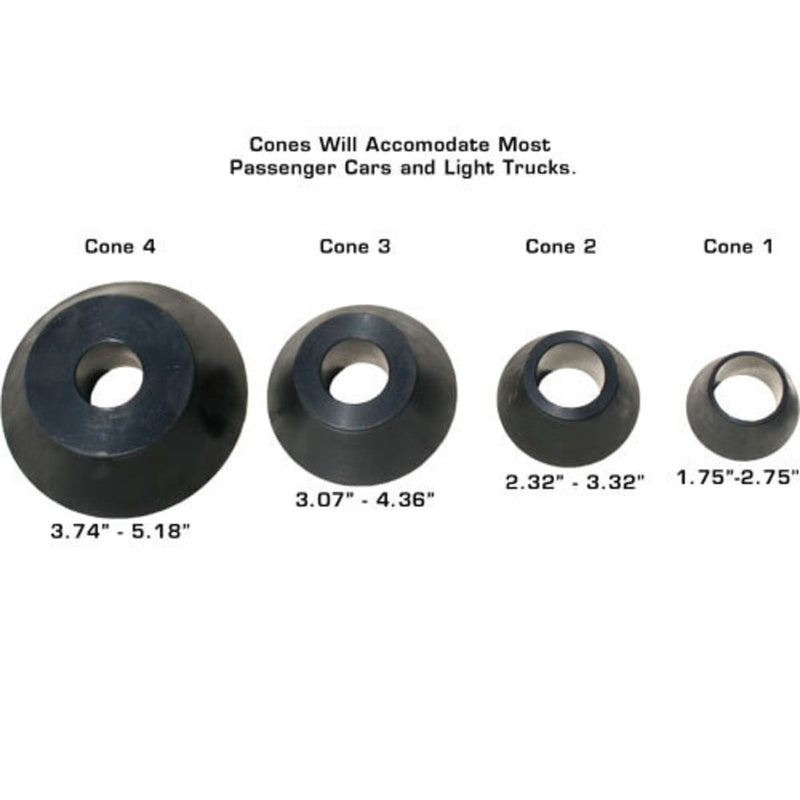

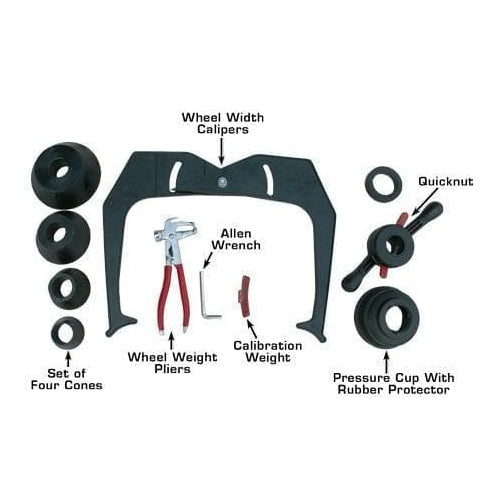

Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers

Specifications

-

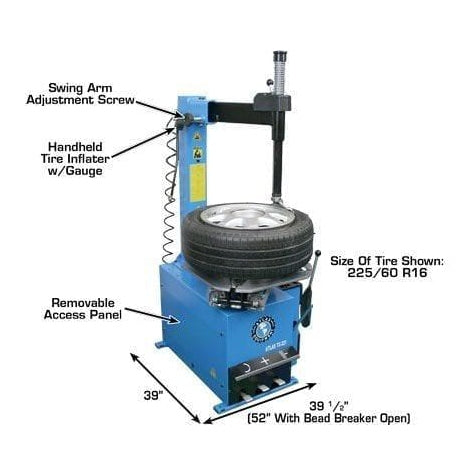

Atlas® TC221 Specifications

Rims	Steel, Aluminum, Alloy

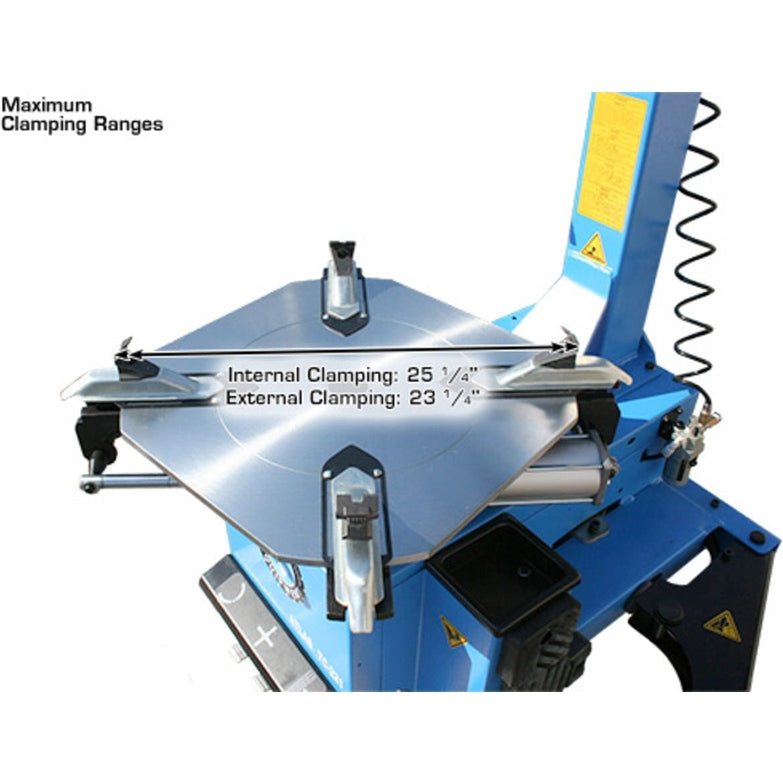

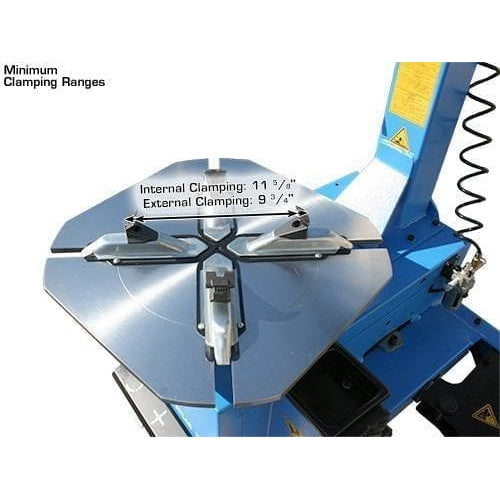

External Locking Rim Dimension (3 Positions)	1) 9 3/4" - 21 5/8" 2) 10 3/4" - 22 1/2" 3) 11 5/8" - 23 1/4"
Internal Locking Rim Dimension (3 Positions)	1) 11 5/8" - 23 1/4" 2) 12 5/8" - 24 1/4" 3) 13 1/2" - 25 1/4"
Maximum Tire Diameter	39"
Maximum Wheel Width (Bead Breaker)	13"

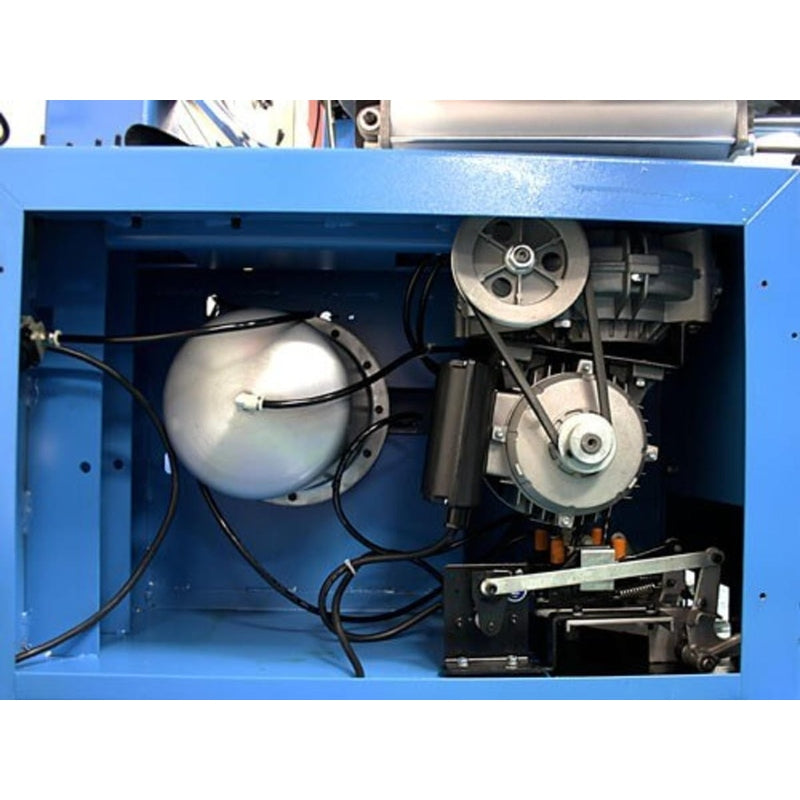

Table Motor	1 HP
Turntable Rotating Torque	885 ft/lbs
Bead Breaker	5,500 LB. Force
Air Requirement	90-110 PSI (MUST NOT EXCEED 140 PSI)
Operating Voltage	110volt

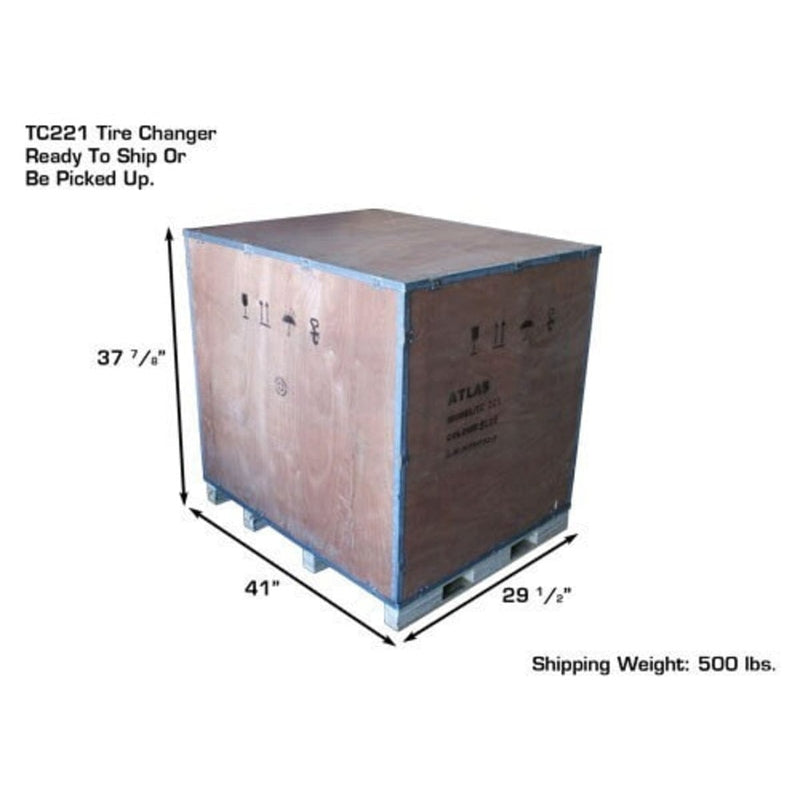

Shipping Weight	550 lbs.

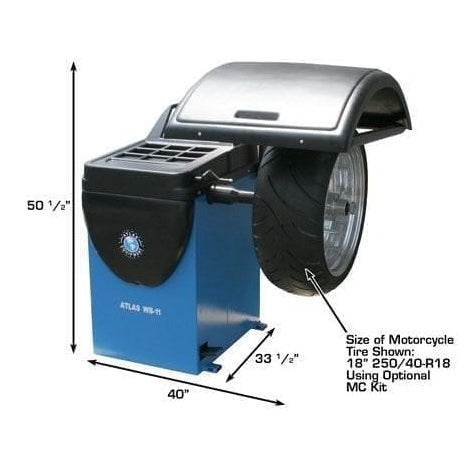

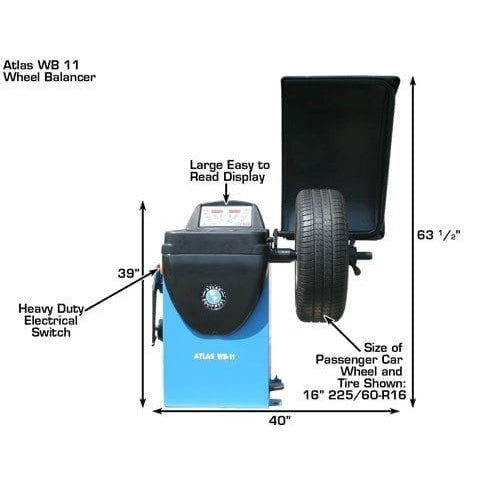

Atlas® WB11 Specifications

Max Tire Diameter	39" (3" 6')
Rim Sizes (Cars And Light Trucks)	10"-32"
Rim Width	1 1/2"-20"

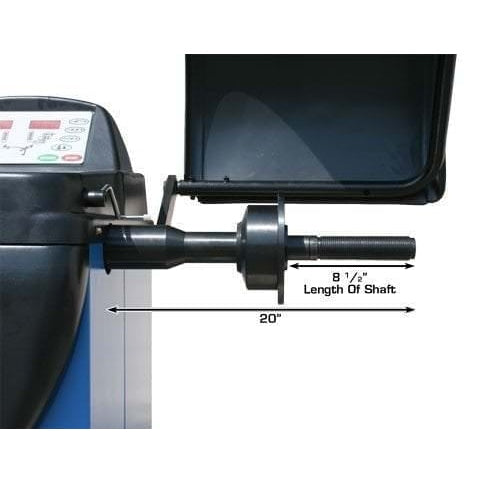

Shaft Size	40mm
Max. Wheel Weight	150 lbs.
Balancing Speed	150 rpm
Data Entry	All Dimensions Manual
Measurements	Standard Or Metric
Accuracy	1 gram
Weight Position Resolution	1.4 Degrees
Self Calibration	Yes
Motor	1/4 HP
Power Supply	110volt

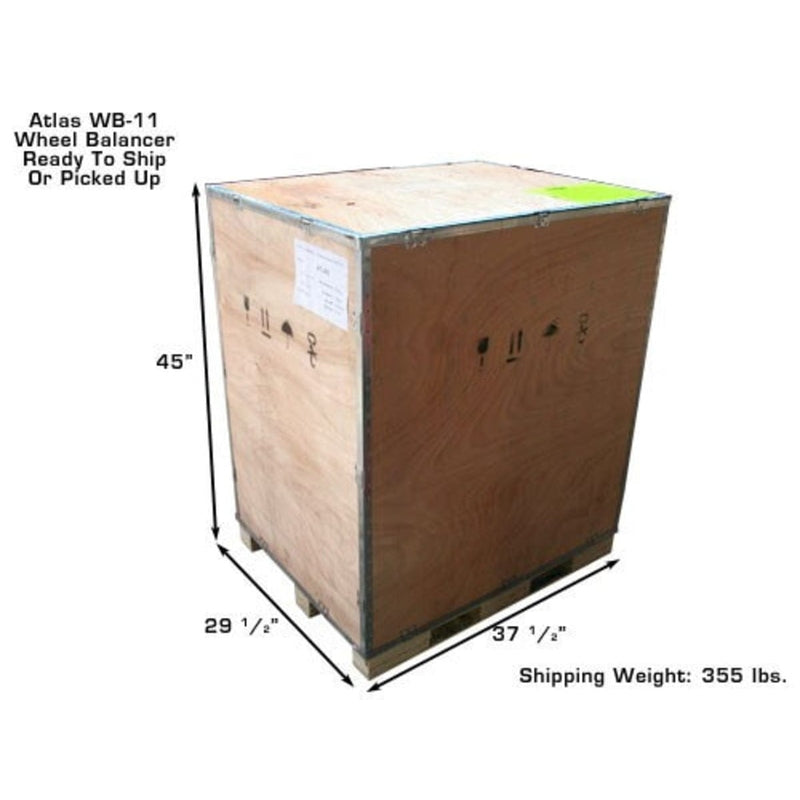

Shipping Weight	355 lbs.

Documents

-

Atlas® TC221 Manual

Atlas® WB11 Manual
