Description

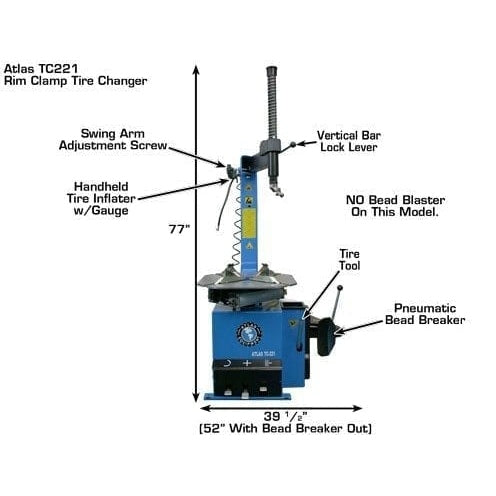

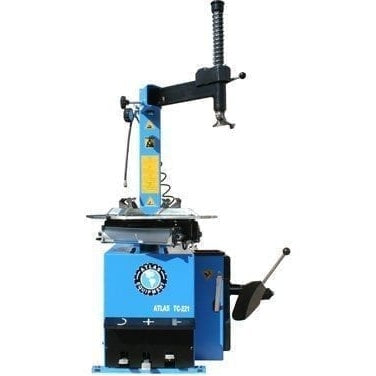

-The Atlas® TC221 rim clamp, swing arm tire changer is the perfect machine for homeowners, a small commercial garage or an ATV/Motorcycle dealer. The TC221 has all the same parts and is the same quality as the Atlas® TC229 without the built in “Beadblaster.”

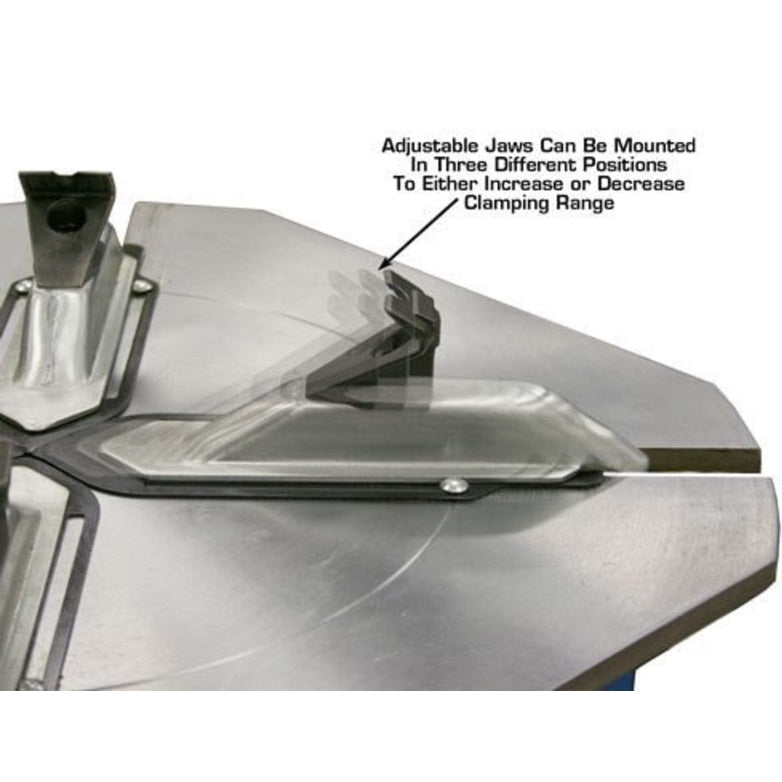

The Atlas® wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The powerful bead breaker located on the side of the machine is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires.
The Atlas® TC221 requires some assembly after purchase.
Features

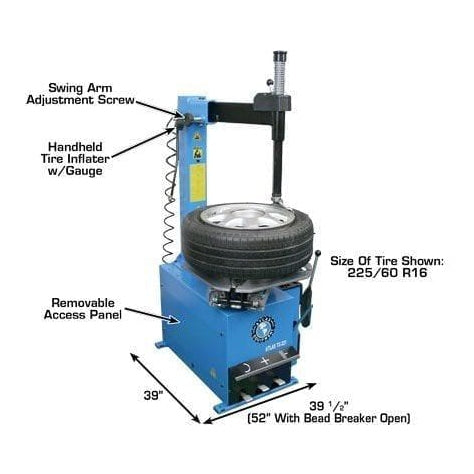

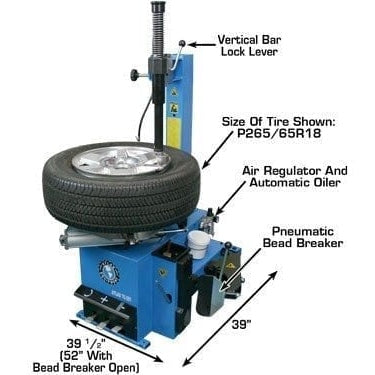

-- Rim Clamp/Swing Arm Tire Changer

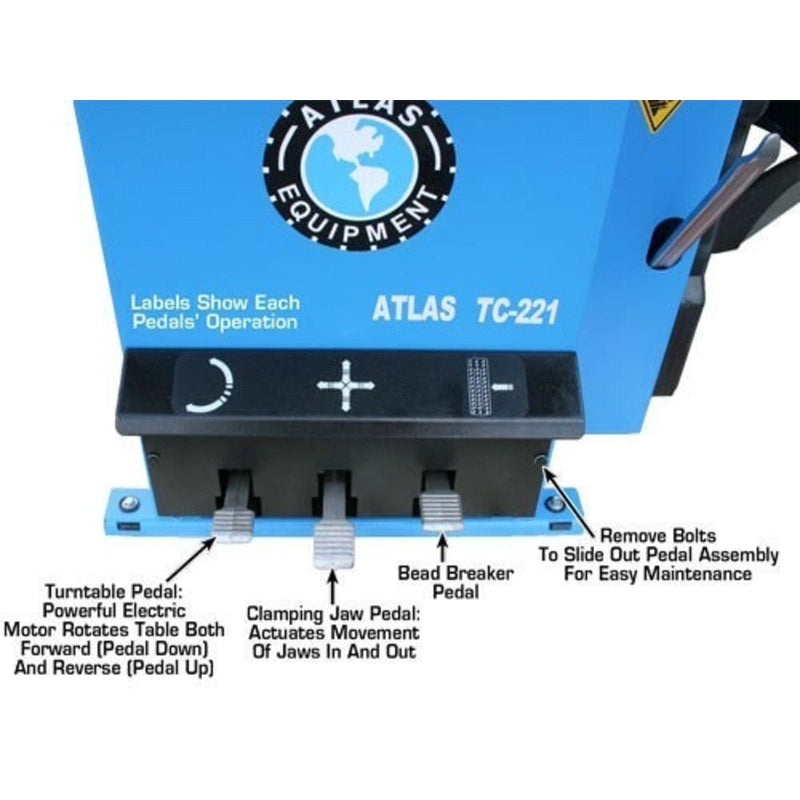

- Air operated jaws & bead breaker (external air supply required)
- Electric turntable

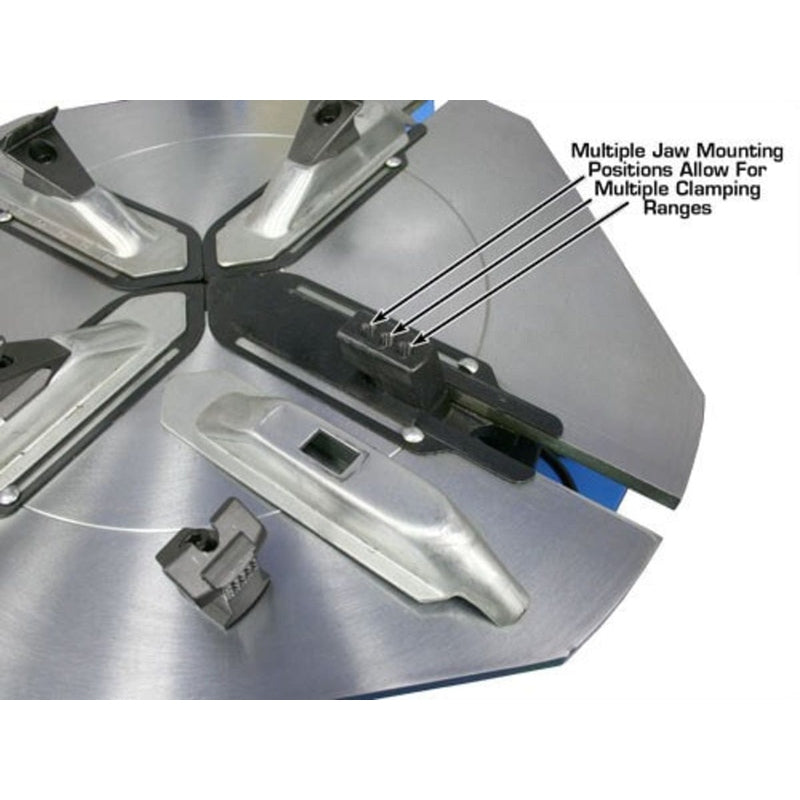

- Adjustable jaws, three mounting positions

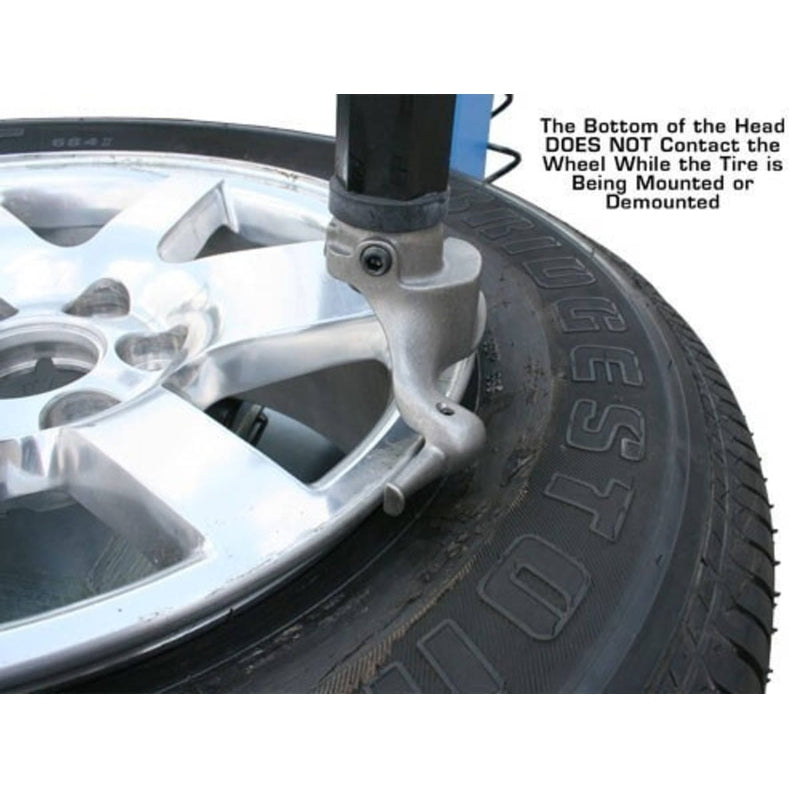

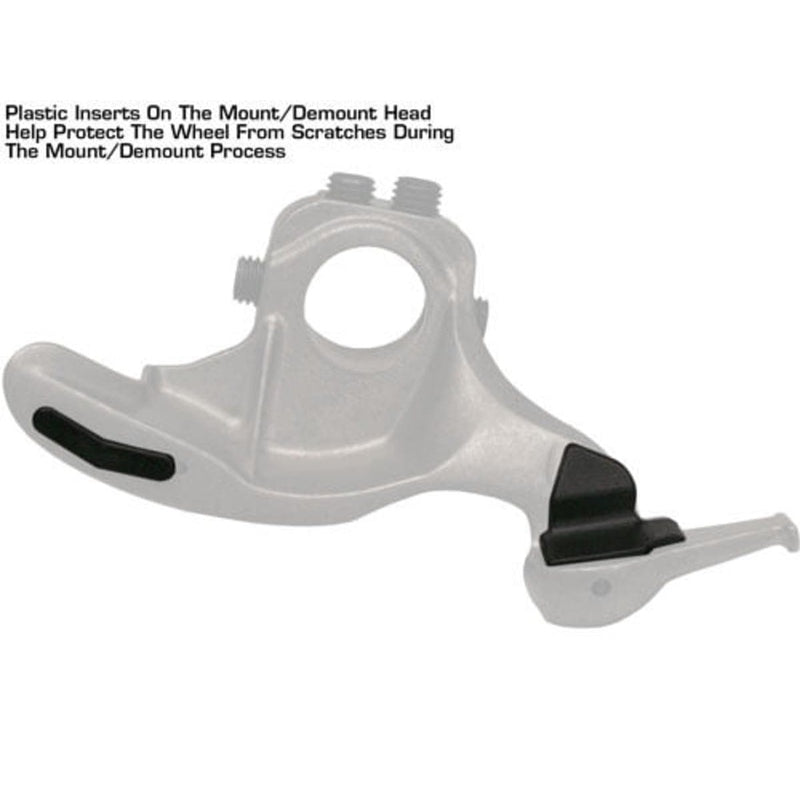

- Metal mount/demount head w/ metal roller or replaceable plastic inserts

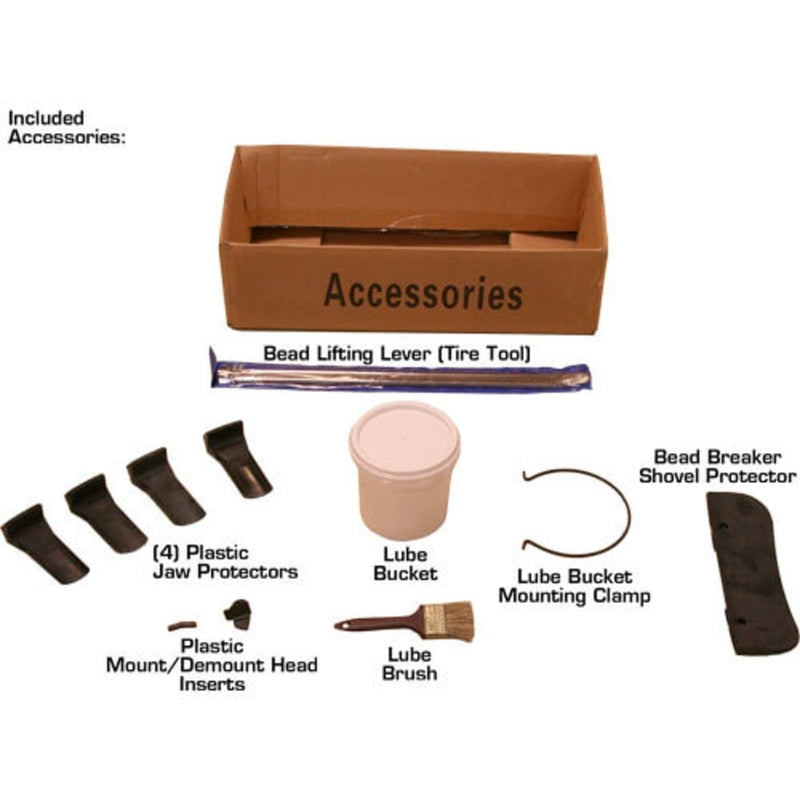

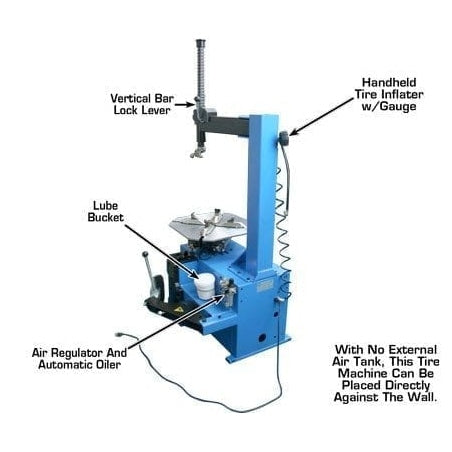

- Inflation Gun with Gauge Included

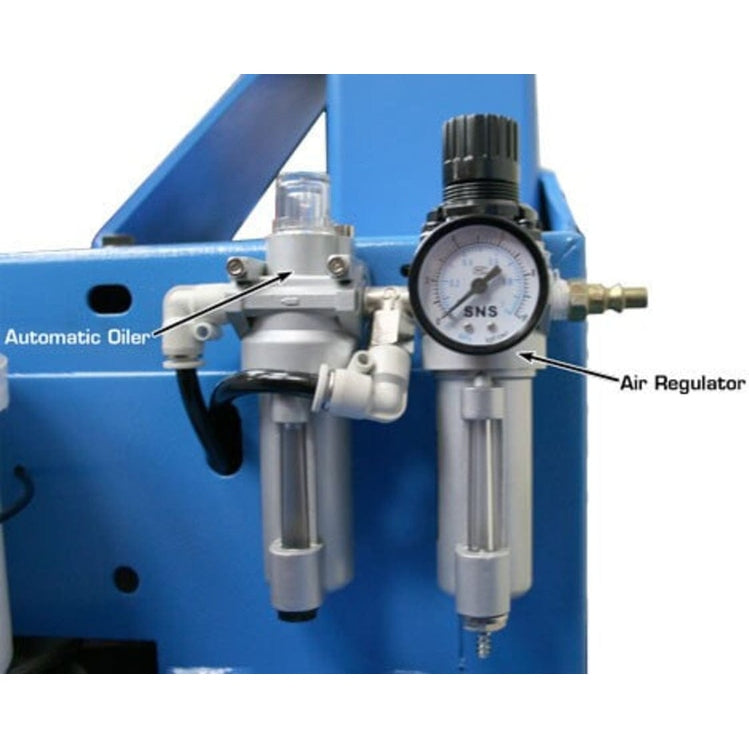

- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included

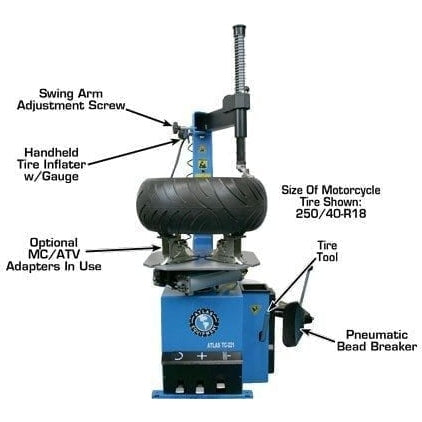

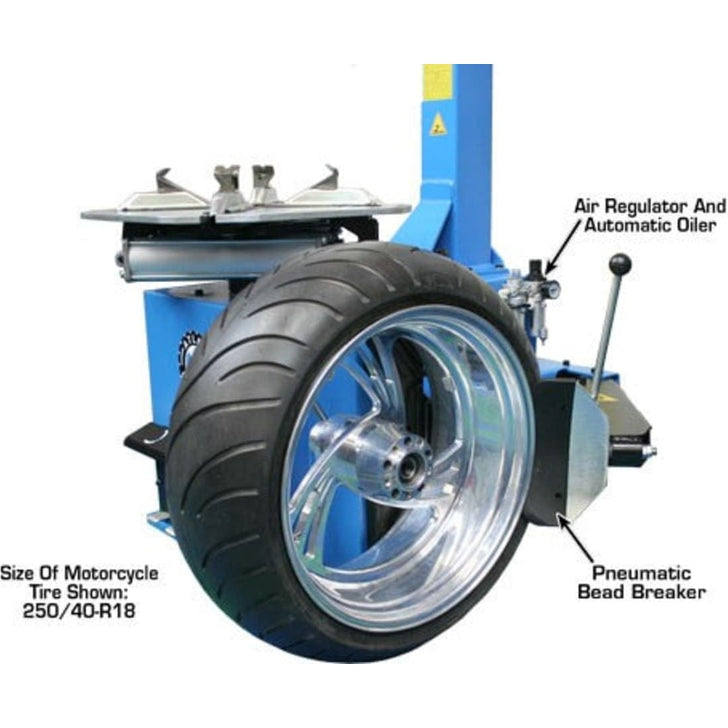

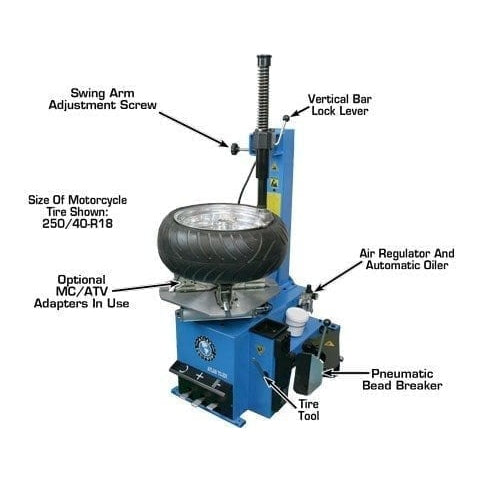

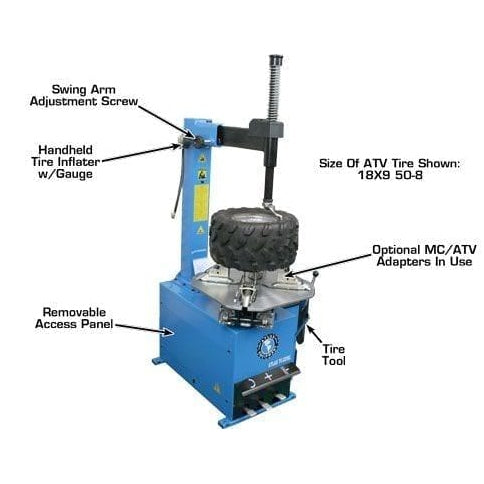

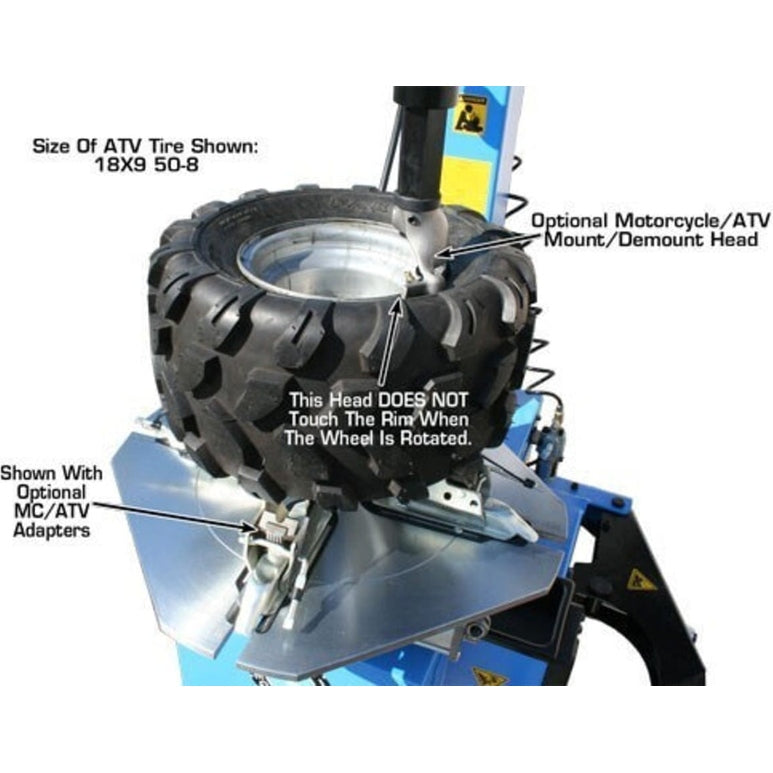

- Motorcycle and ATV adapters available (sold separately)
- Does not have a built in “Beadblaster”

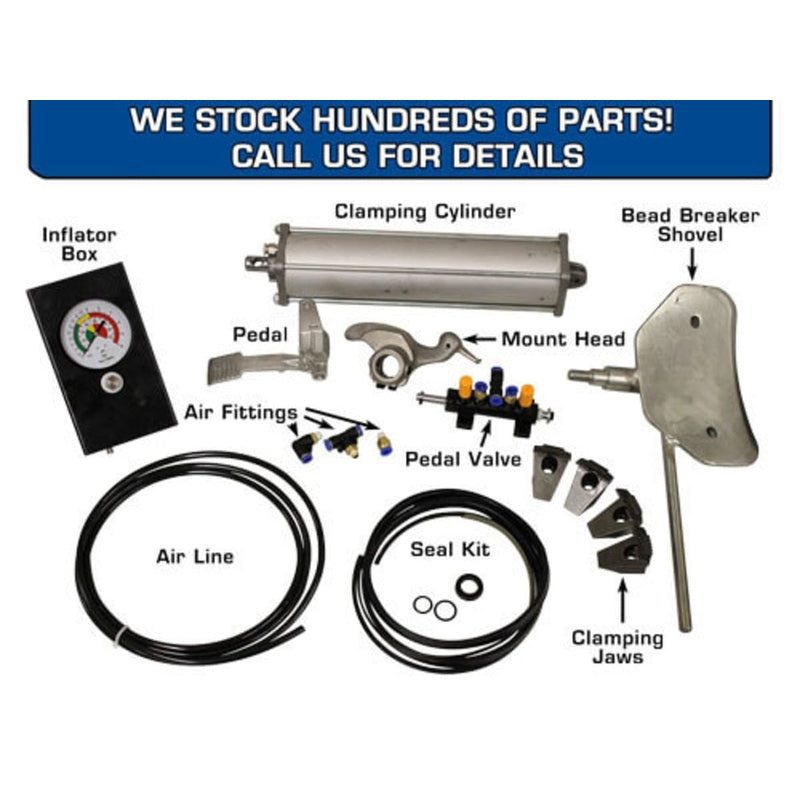

- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
Specifications
-Atlas® TC221 Specifications
Rims | Steel, Aluminum, Alloy |

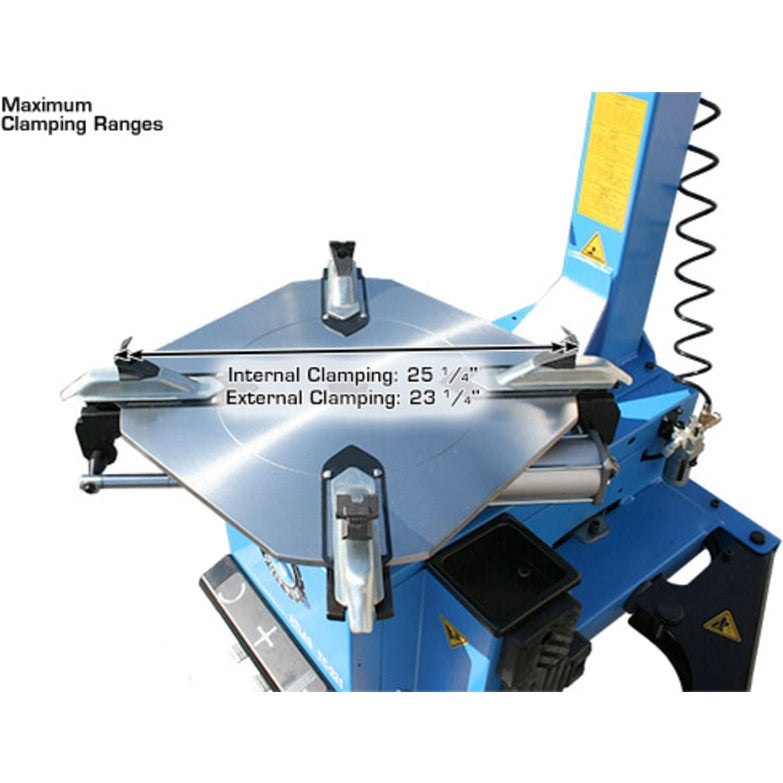

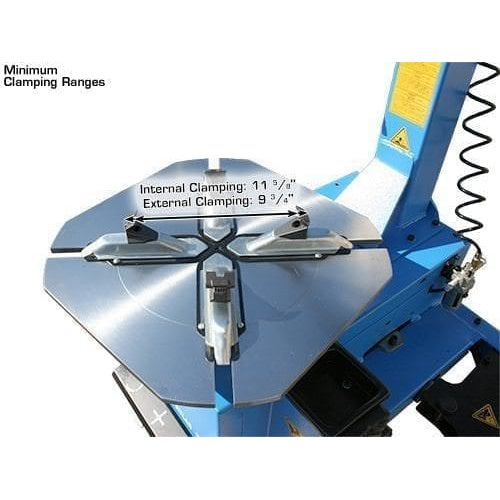

External Locking Rim Dimension (3 Positions) |
1) 9 3/4" - 21 5/8" 2) 10 3/4" - 22 1/2" 3) 11 5/8" - 23 1/4" |
Internal Locking Rim Dimension (3 Positions) |
1) 11 5/8" - 23 1/4" 2) 12 5/8" - 24 1/4" 3) 13 1/2" - 25 1/4" |
Maximum Tire Diameter | 39" |
Maximum Wheel Width (Bead Breaker) | 13" |

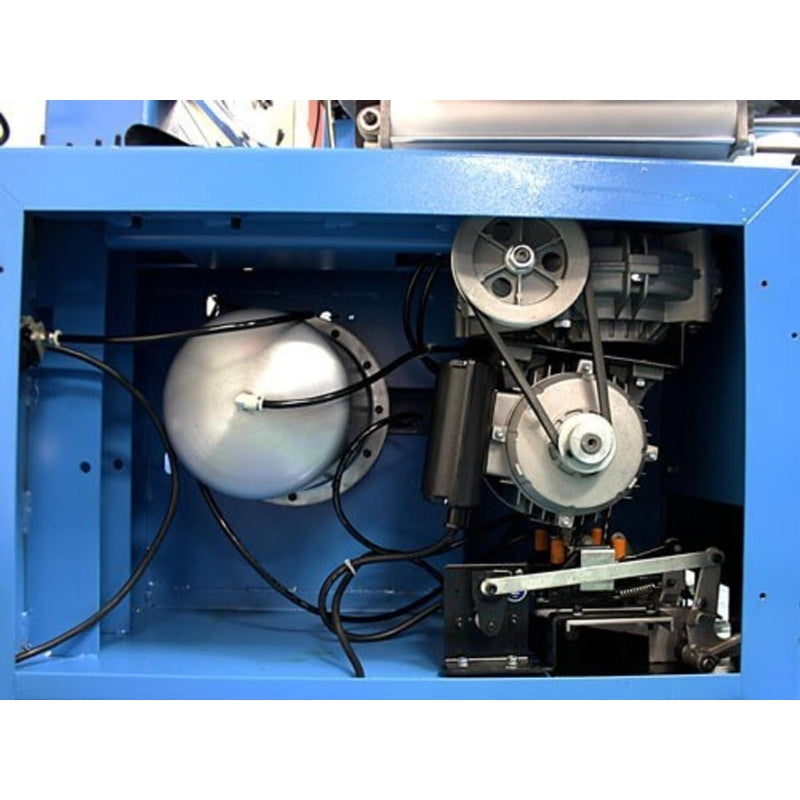

Table Motor | 1 HP |
Turntable Rotating Torque | 885 ft/lbs |
Bead Breaker | 5,500 LB. Force |
Air Requirement | 90-110 PSI (MUST NOT EXCEED 140 PSI) |
Operating Voltage | 110volt |

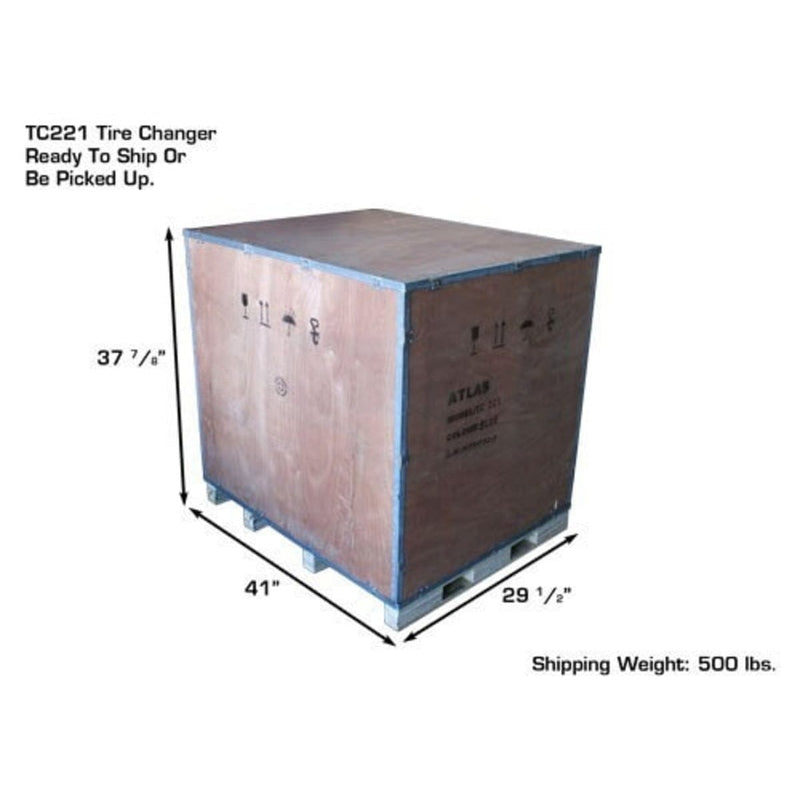

Shipping Weight | 500 lbs. |
