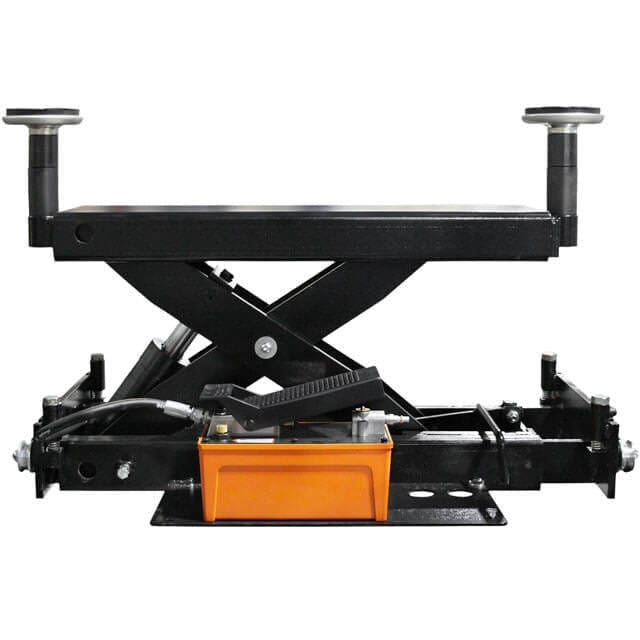

Atlas RJ6 6,000 lb Rolling Bridge Jack

SKU ATEATTD-RJ6BK-FPD
Original price $2,049.00 - Original price $2,049.00
Original price
$2,049.00
$2,049.00 - $2,049.00
Current price $2,049.00

Description

-

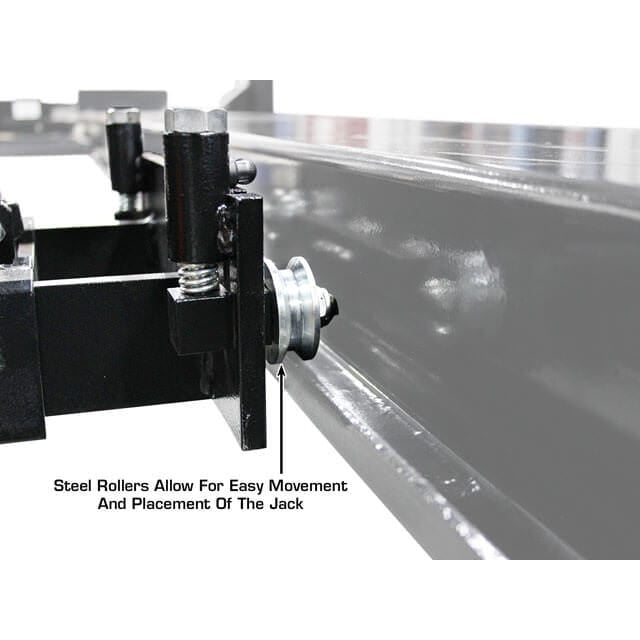

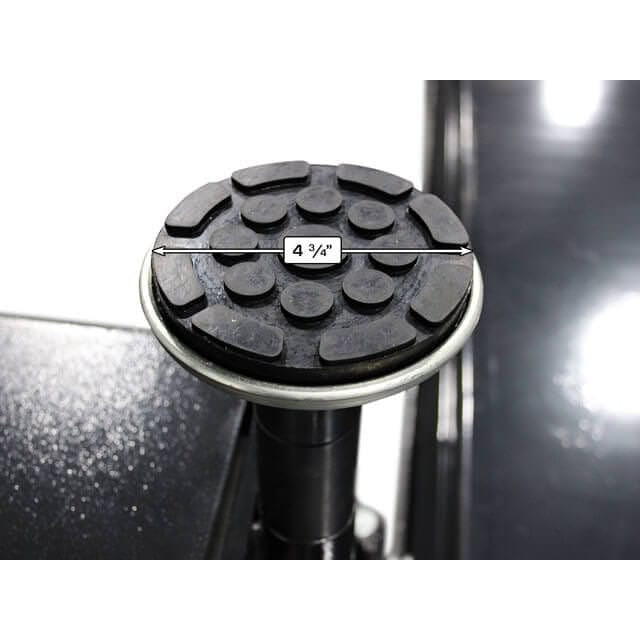

The Atlas® RJ6 air/hydraulic rolling jack has telescoping arms that can be extended over the runways of a four post lift. The lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of that four post lift. This rolling jack is equipped with expandable rail supports which adjust to fit between the runways of many different four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle.

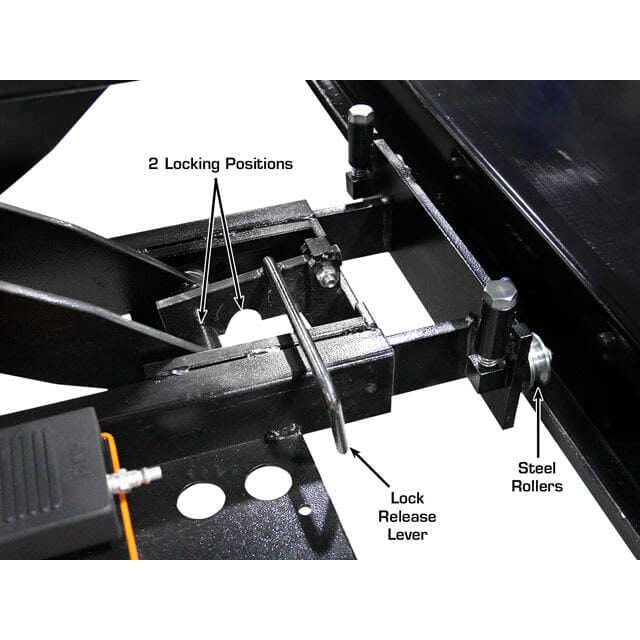

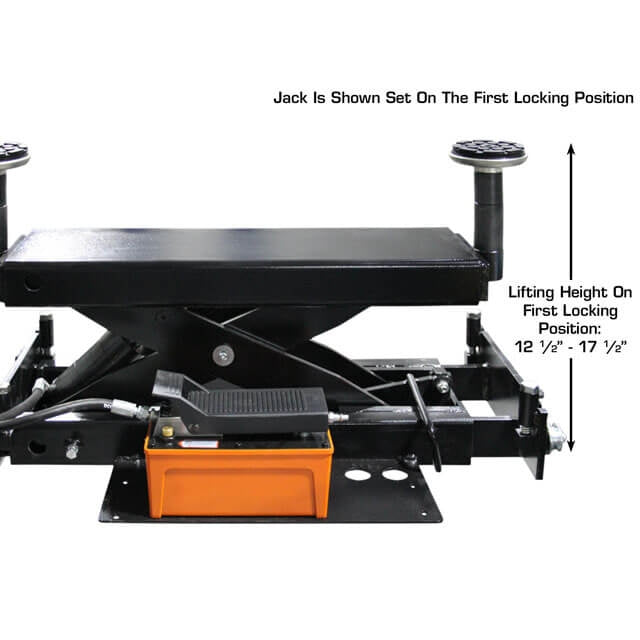

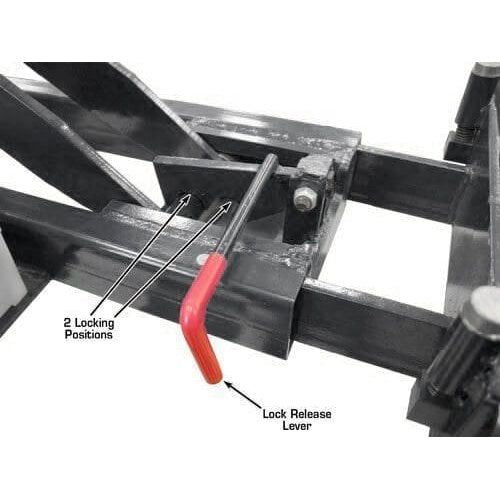

The Atlas® RJ6 rolling bridge jack comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the RJ6 to raise most pick up and larger trucks that will sit higher than the average passenger car. The RJ6 rolling hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).

IMPORTANT: The Atlas® RJ6 is designed and engineered to operate on “delivered” air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack.

Features

-
  • 6,000 lb. Capacity

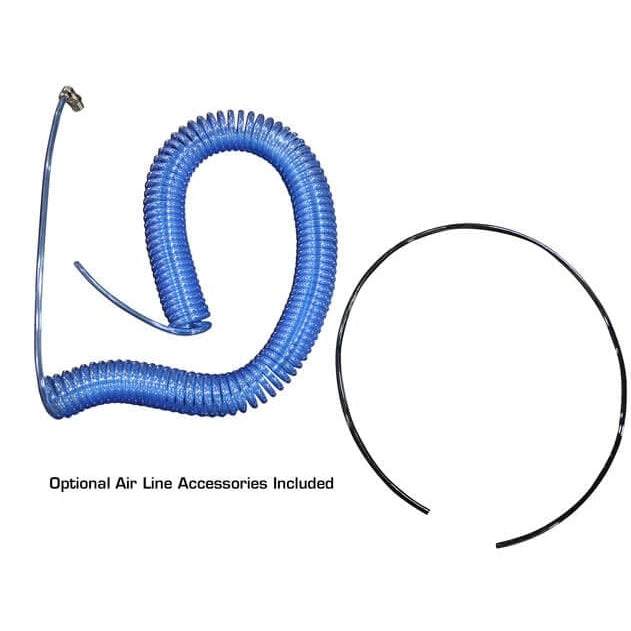

  • Air/Hydraulic Operated (external air supply required)
  • Multiple Safety Lock Positions
  • Compact Size with Low Profile
  • Smooth Rolling Action
  • Scissor mechanism allows for level lifting
  • Powder Coated Finish
  • 4 Piece Truck Adapter Set Included
  • 1 Year Parts Only Warranty

Specifications

-

Atlas® RJ6 Specifications

Maximum Capacity 6,000 lb.

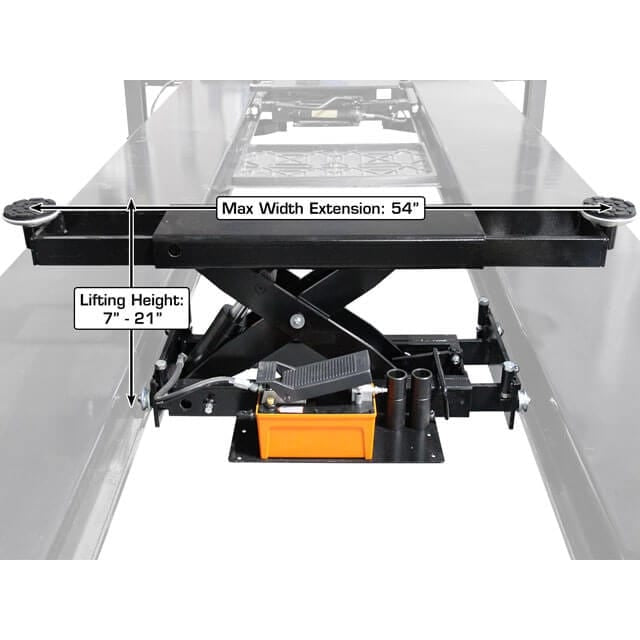

Maximum Width 55" (4' 7")

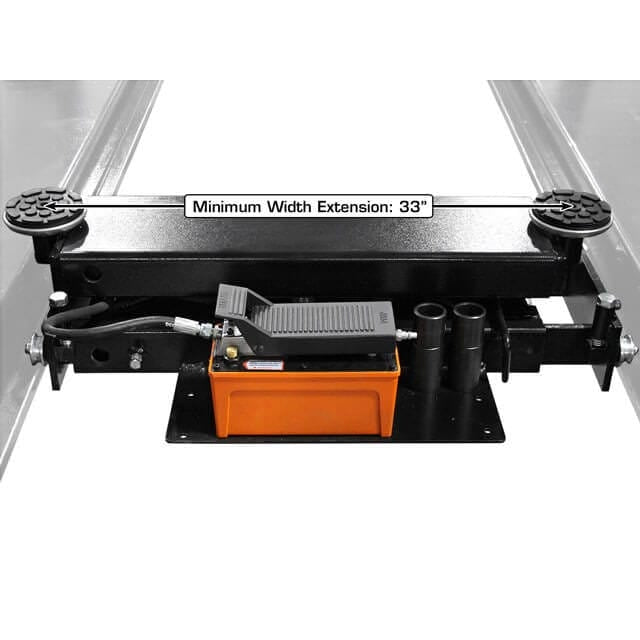

Minimum Width 35" (2' 11")
Distance Between Runway Capability 32"-50"

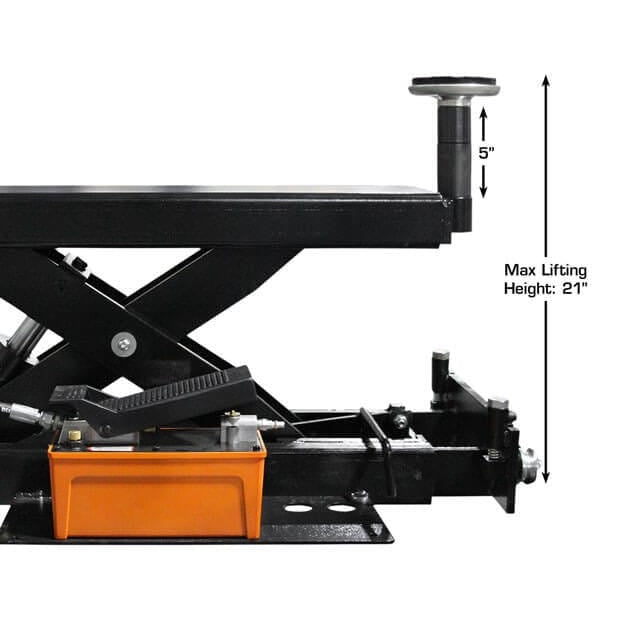

Maximum Lifting Height (With Adapters) 21" (1' 9")
Air Requirement 70-115 PSI
Shipping Weight 350 lbs.
Adapter Heights 2 Each 2", 3"
Arm Hole/Adapter Peg Size 1.5"
