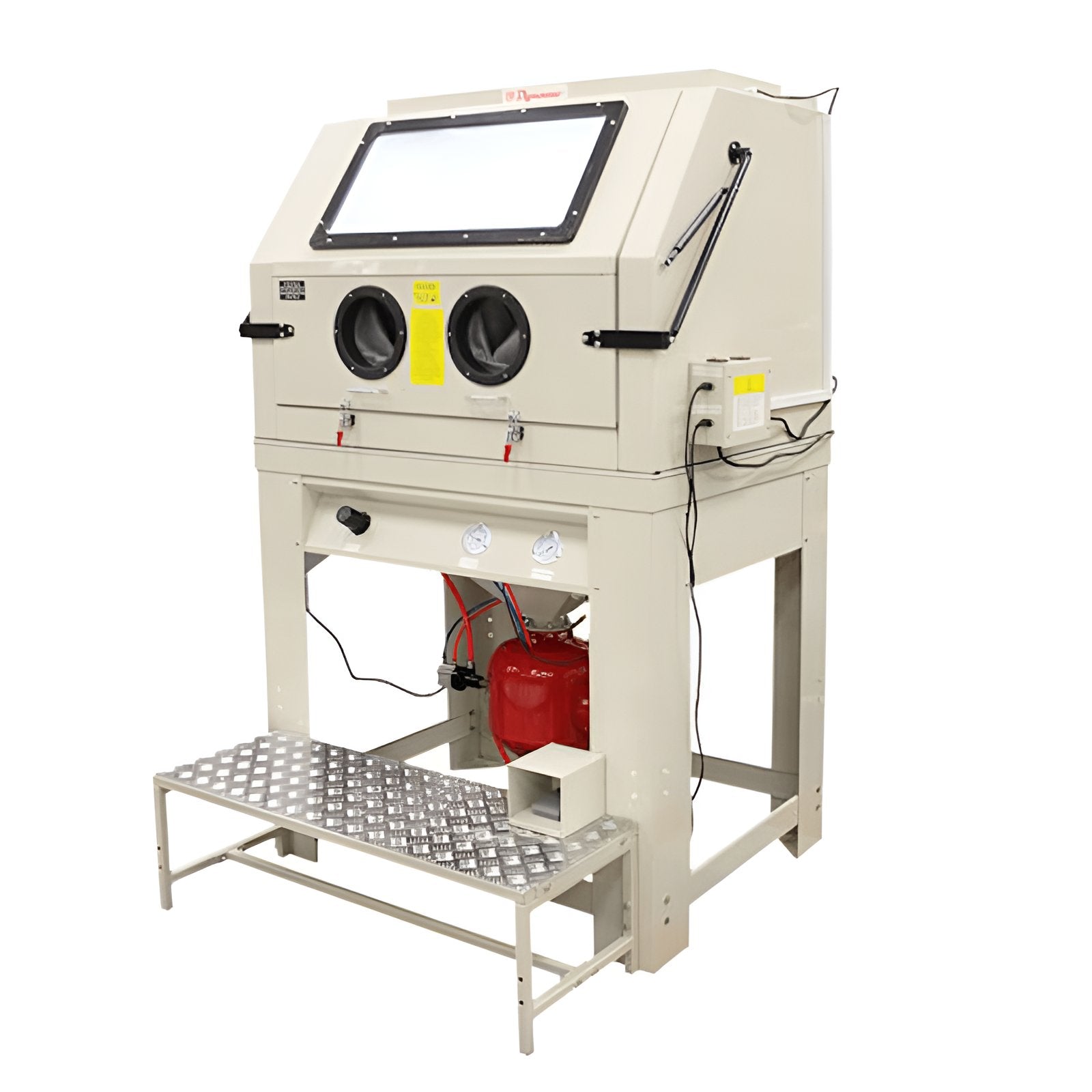

Atlas PSBC990 Pressurized Large Sandblast Cabinet w/ Vacuum

Standard vacuum-only blast cabinets bog down on heavy rust, mill scale, and thick coatings — the media just doesn't hit hard enough to keep pace. The Atlas PSBC990 solves that with a direct-pressure system that pneumatically forces blast media through the air hose at a higher-velocity stream, cutting blast time on stubborn jobs by up to 4 times versus a vacuum-only cabinet. The same pressurized tank has an adjustable pressure valve, so the same cabinet steps down for more delicate parts instead of requiring a second machine.

A powerful vacuum system attached to the cabinet pulls the "floating" rust particles and spent glass bead out of the air as they're kicked up mid-blast, keeping the 46" W x 34" D x 33 1/2" H work area visible through the front window instead of clouding over. The large front folding door and a standing bench built into the base frame make it easier to load and position bigger parts without leaning over the cabinet edge.

Running the PSBC990 requires an external air supply — 24 CFM at 125 PSI minimum — and a standard 110V outlet; neither the compressor nor the blast media (glass bead) ships with the cabinet.

• Direct-pressure blasting system — up to 4x faster than vacuum-only cabinets on heavy coatings
• Adjustable pressure valve for heavy-duty to delicate work on the same machine

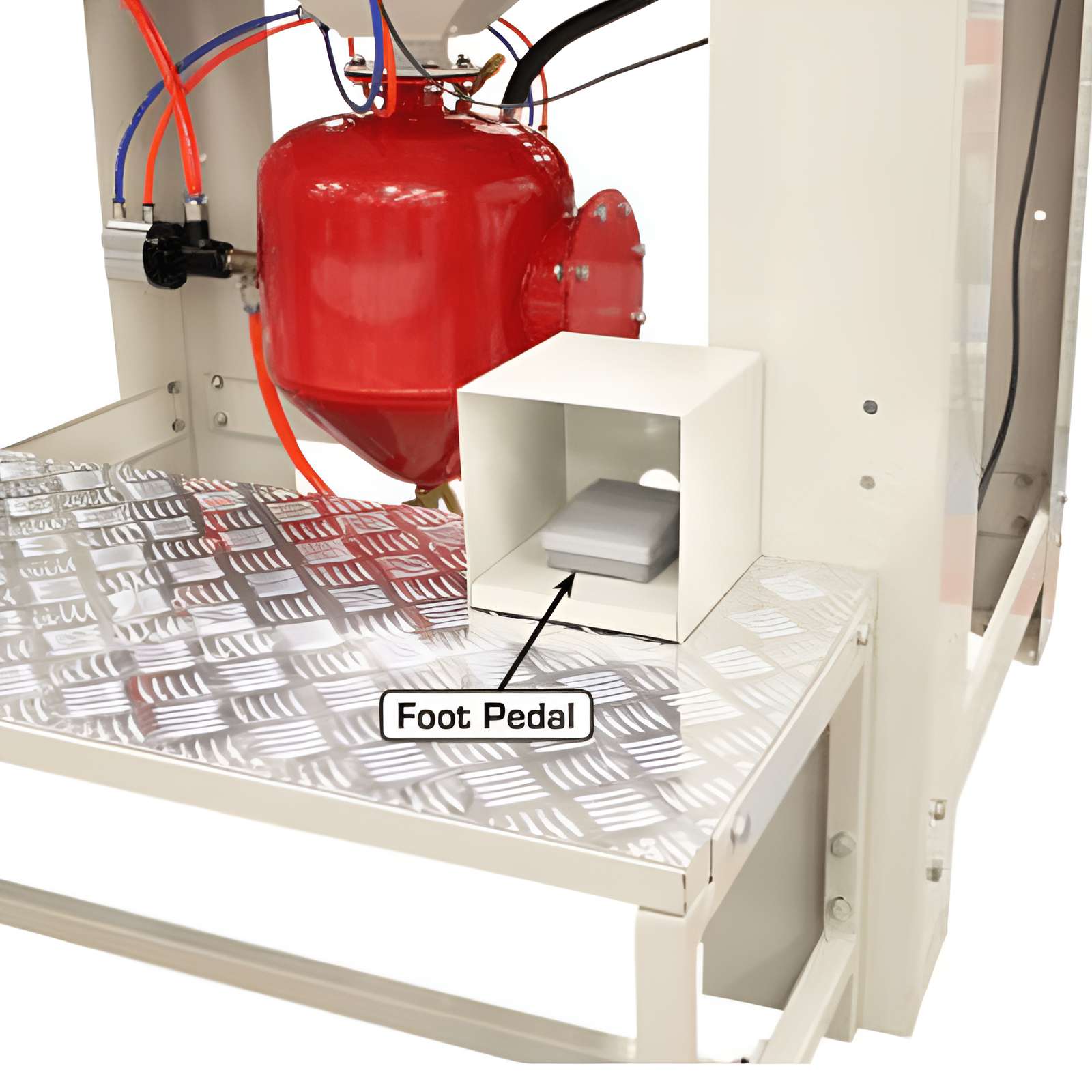

• Foot-operated control valve — hold and point instead of pulling a trigger
• Heavy-duty blasting gun with replaceable ceramic nozzles
• Self-contained dust collection system with cartridge filter and bottom gate clean-out
• Extra-large front/top load door
• Built-in LED light
• 24" gauntlet gloves
• Standing bench for easier access
• Replacement parts and wear items always in stock

• Heavy-duty foot-pedal blasting gun with 4 replaceable ceramic nozzles
• Extra nozzles and plastic nozzle protectors
• Standing bench

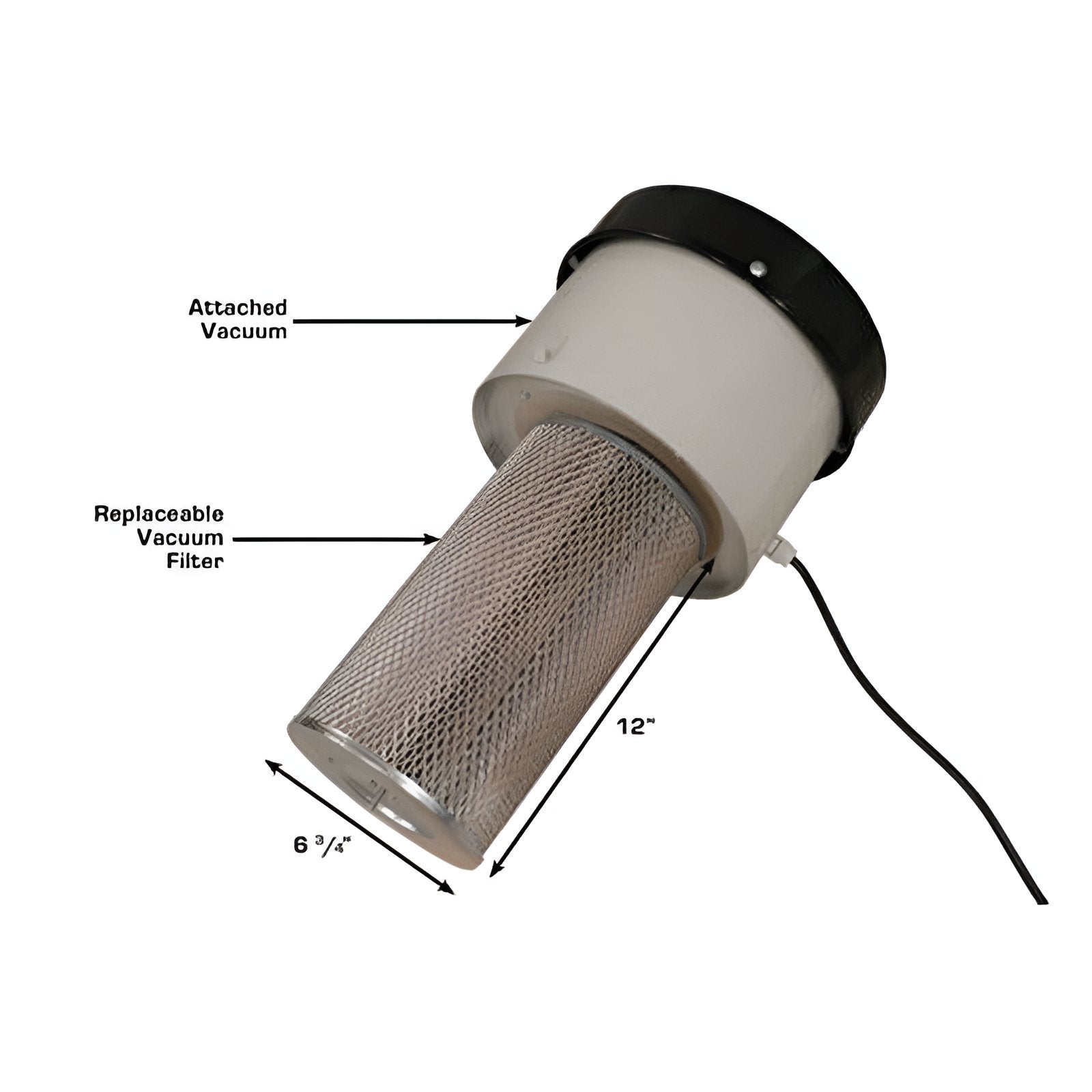

• Attached vacuum with replaceable cartridge filter

Blast media is not included — Atlas recommends glass bead.

1-year warranty on material and workmanship. Warranty returns may need to be processed through the manufacturer.

What air compressor do I need to run the PSBC990?

An external air supply rated at 24 CFM and 125 PSI minimum. The compressor is not included.

What comes with the cabinet, and what do I still need to buy?

The cabinet ships with the foot-pedal blasting gun, 4 ceramic nozzles, plastic nozzle protectors, the standing bench, and the attached vacuum with cartridge filter. Blast media (Atlas recommends glass bead) is not included.

What's the warranty?

1 year on material and workmanship.

Can I pick this up at a warehouse instead of having it shipped?

Yes — choose the Warehouse Pickup or Ship to My Address option before adding to cart.

How much floor space does it need?

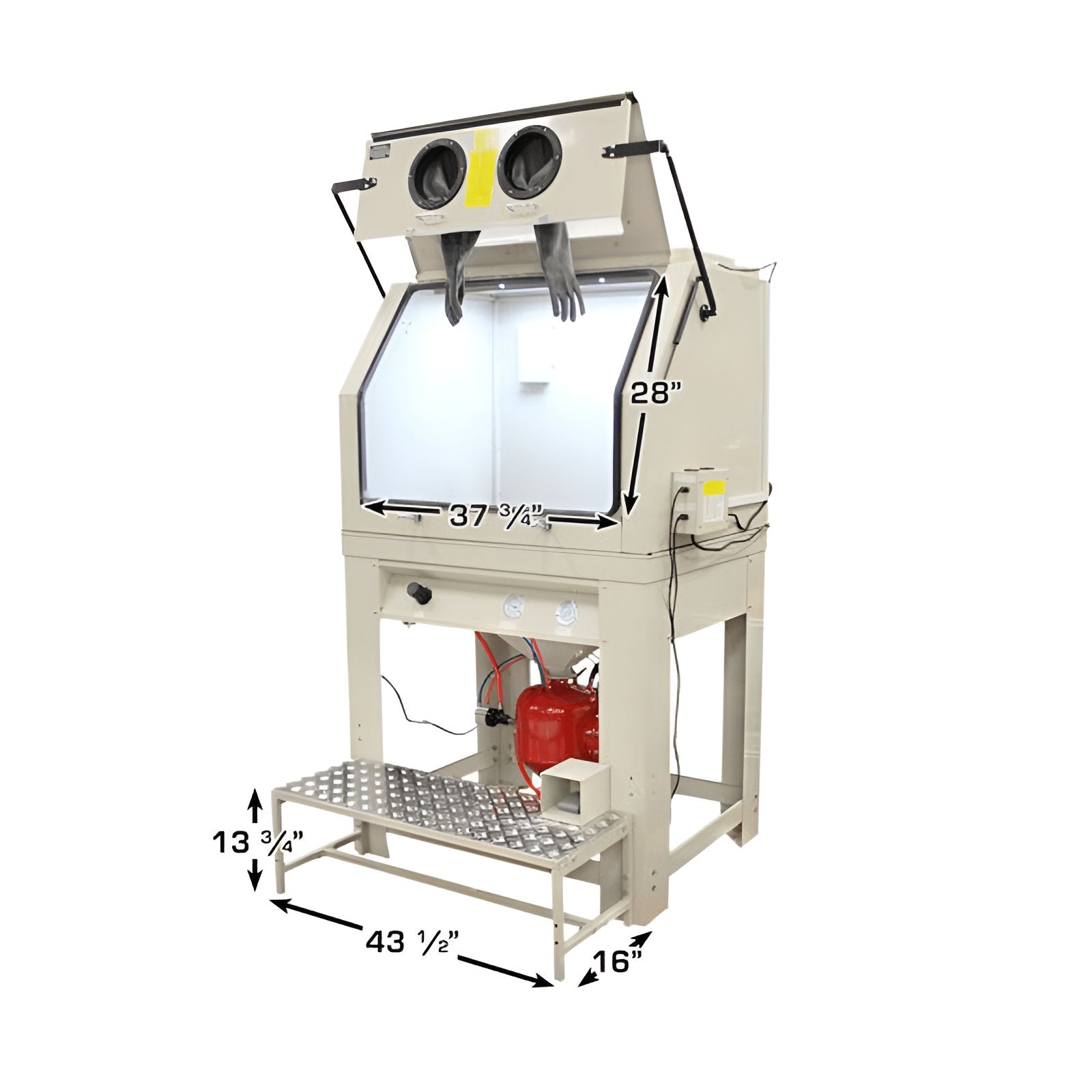

56 1/2" W x 65" D x 81" H for the cabinet itself, plus its step platform extends 43 1/2" x 16" out from the base.
