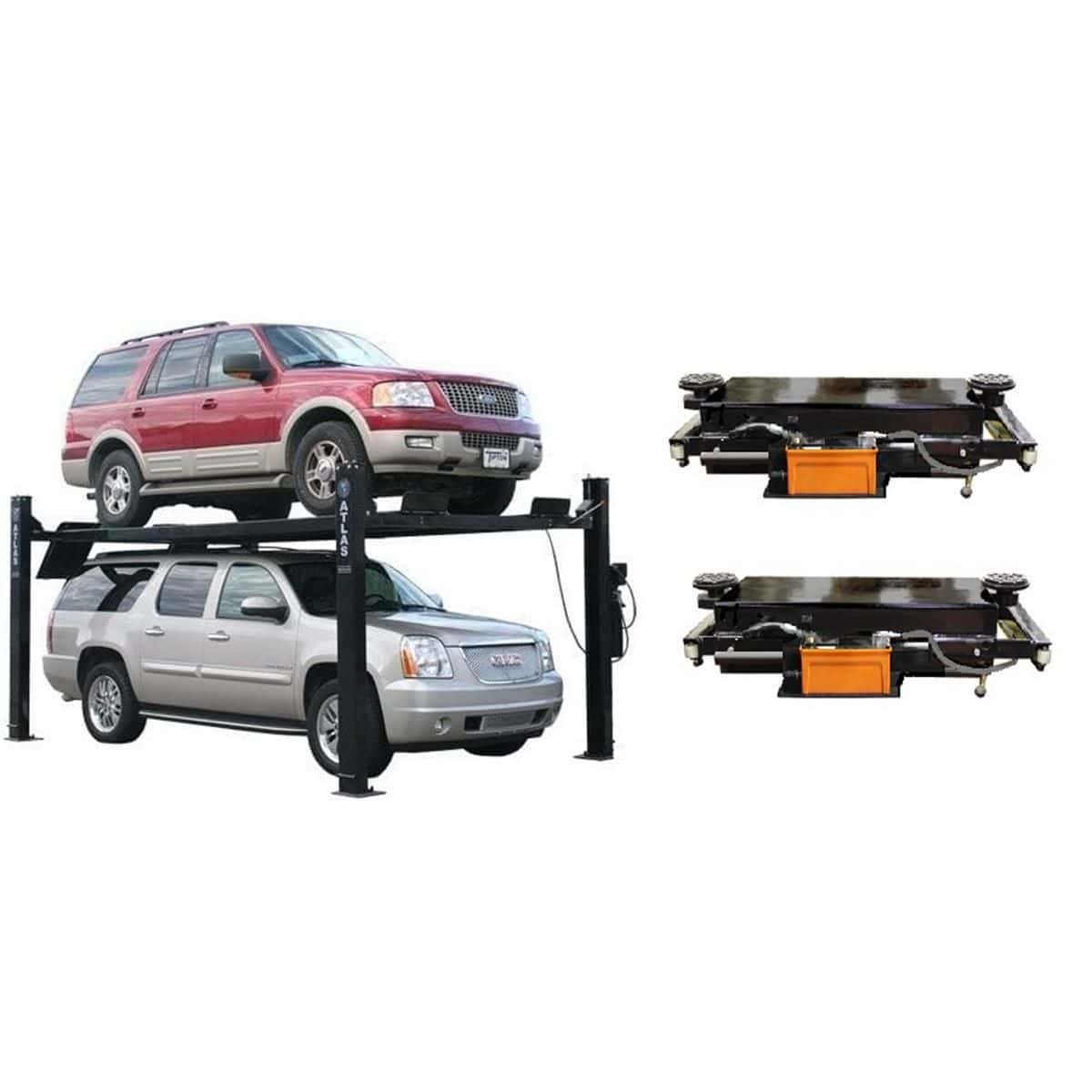

Atlas Garage PRO9000 9,000-lb 4-Post Lift + 2 RJ-45A 4,500-lb Bridge Jacks Combo Package

The Atlas Garage PRO9000 combo pairs the highest-capacity lift in the Atlas Garage PRO series with two RJ-45A rolling bridge jacks — turning a portable storage and service four-post into a rolling wheel-and-brake station. The lift is rated 9,000 lbs; each RJ-45A jack is rated 4,500 lbs. Together they handle everything from a Smart Car to a diesel dually.

The PRO9000 runs on standard 110V power (30-amp breaker required), is free-standing — no anchoring required — and rolls on an included caster kit so it can move when the floor plan changes. The runways are extra-long to fit longer-wheelbase vehicles, and extra-wide so full-size duallys can drive on without their tires riding the runway edges. Extra column height makes it possible to park anything from a Smart Car to a dually both below and on the runways.

The two RJ-45A bridge jacks ride on the runways and span the gap between them. Air/hydraulic operation lets a tech raise a vehicle's wheels off the runway for tire and brake service on the same lift the car is already parked on. Adjustable support arms fit lifts with 35" to 54½" between runways, so the jacks aren't tied to the PRO9000 — they work across most four-post platforms in that runway range.

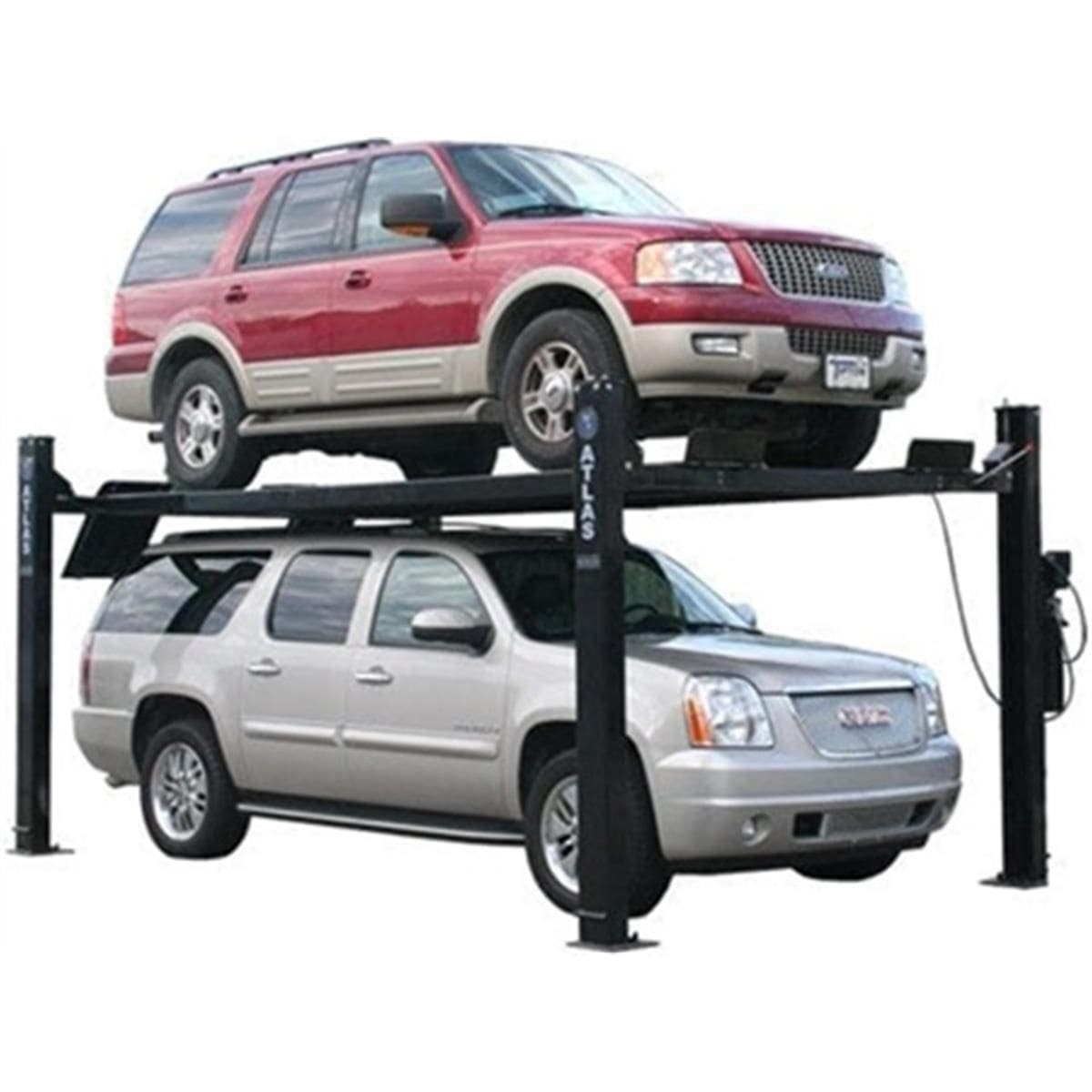

Atlas Garage PRO9000 four-post lift

• 9,000-lb lifting capacity
• Free-standing, portable design — no anchoring required

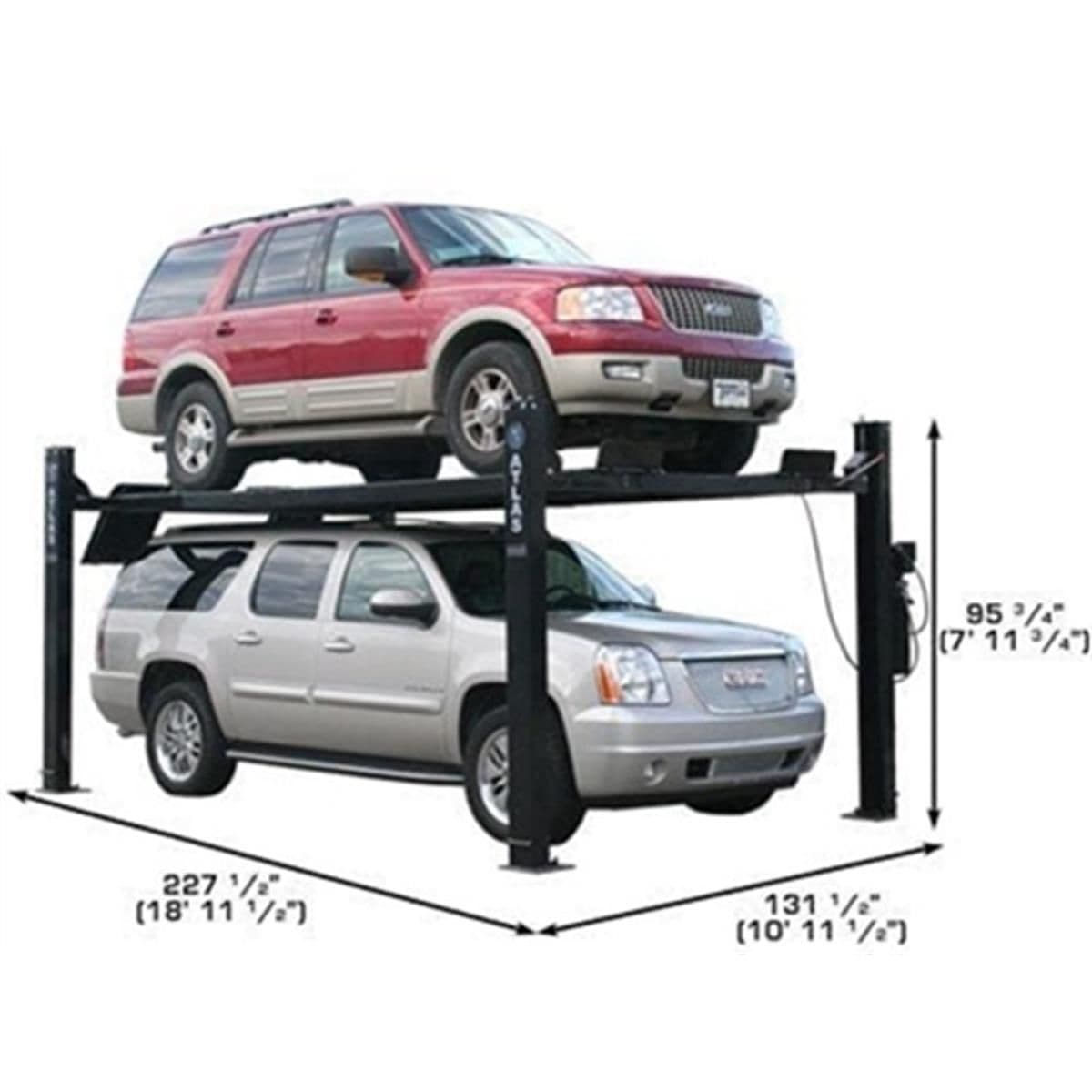

• Extra-tall, extra-wide, and extra-long runways
• Single-point lock release
• Lock ladder design with double-lock safety system
• Caster kit with polyurethane wheels included
• Steel approach ramps included
• Steel jack tray included
• Four plastic drip trays included
• Two rubber wheel chocks included
• 110V electric operation (30-amp breaker required)
• 2-year structural / 1-year hydraulic parts-only warranty

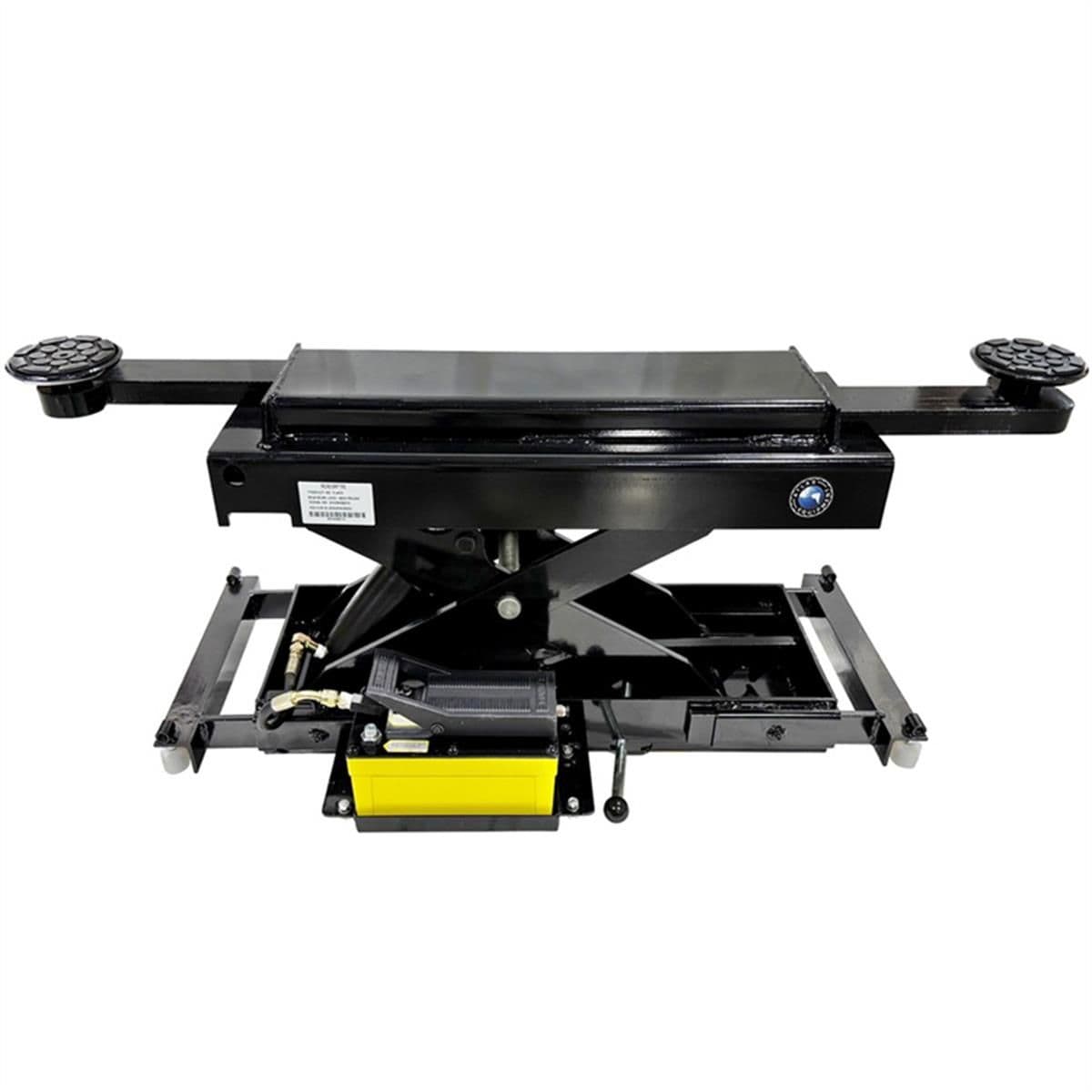

RJ-45A rolling bridge jacks (×2 included)

• 4,500-lb lifting capacity per jack
• Air/hydraulic operation (external air supply not included)
• Two locking heights: 7⅜" and 10½"
• Max lifting height with adapters: 18½" (may vary by lift)
• Min height above runway: 3¾" (may vary by lift)
• Arm adjustment: 39½" to 64¾"
• Fits lifts with 35" to 54½" between runways
• Height adapters and rubber lift pads included

• (1) Atlas Garage PRO9000 four-post lift with 110V power unit
• (2) RJ-45A rolling bridge jacks with adapter kits
• Caster kit with polyurethane wheels (lift)
• Steel approach ramps
• Steel jack tray
• 4 plastic drip trays
• 2 rubber wheel chocks

This combo ships freight in three crates: one for the lift and one for each RJ-45A bridge jack.

• Atlas Garage PRO9000 Owner's Manual (PDF)
• Four-Post Cylinder Bleeding Service Guide (PDF)
