Description

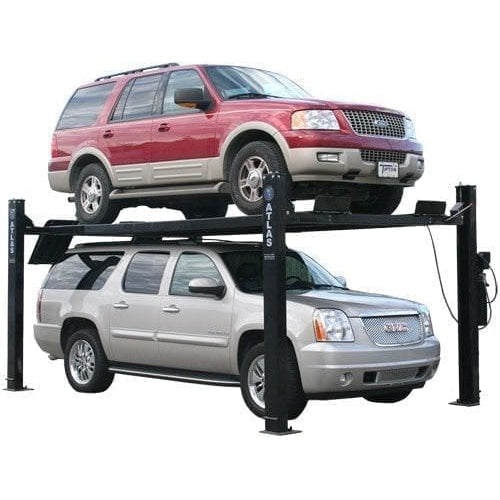

-The Atlas® Garage PRO9000 4 post lift is a heavy duty hobbyist lift and features the highest lifting capacity of all our Garage PRO series lifts. The Garage PRO9000 is extra long and has the longest runways (we believe) of any portable 9,000 LB. four post on the market. That feature allows the lift to handle some of the longest wheel base vehicles out there. The Garage PRO9000 is extra wide allowing even Diesel Duallys to be driven onto the runways. This lift also features extra height so everything from Smart Cars® to a Dually can be parked both below and on the runways.
The commercial grade features of the Garage Pro 9000 make this lift the perfect choice for automotive service center or “Mr. Homeowner” that needs a PORTABLE professional four post lift at a competitive price.

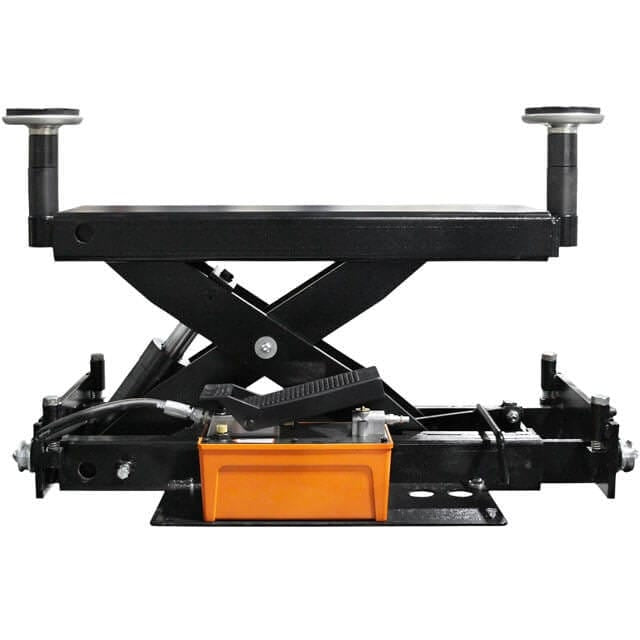

This combo package also includes two of the popular Atlas® RJ6 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
-PRO9000
- 9,000 lb. Capacity
- Free Standing/Portable Design
- Heavy Duty
- Extra Tall/Extra Wide/Extra Long
- Single-Point Lock Release
- Lock Ladder Design
- Double Lock Safety System

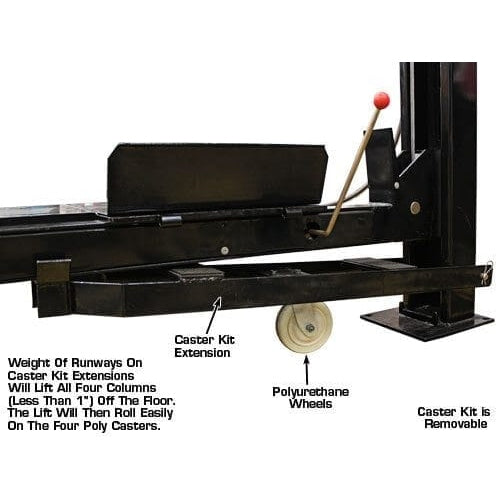

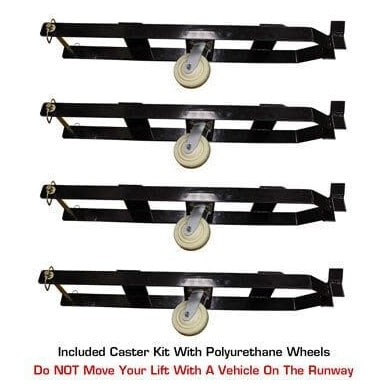

- Caster Kit With Polyurethane Wheels Included

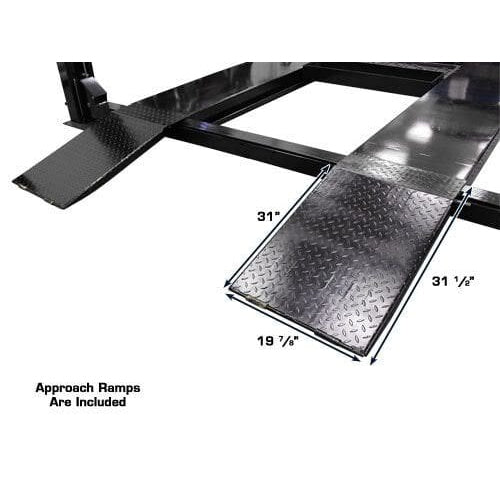

- Steel Approach Ramps Included

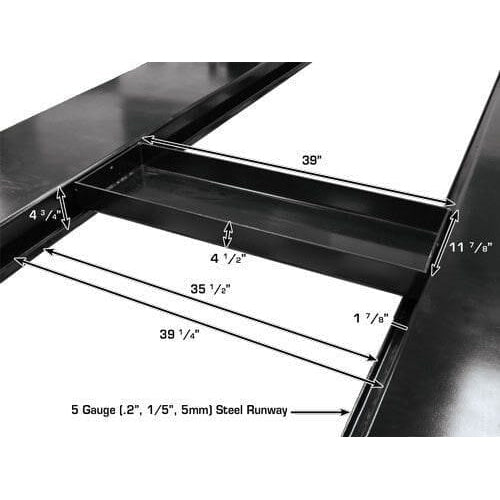

- Steel Jack Tray Included

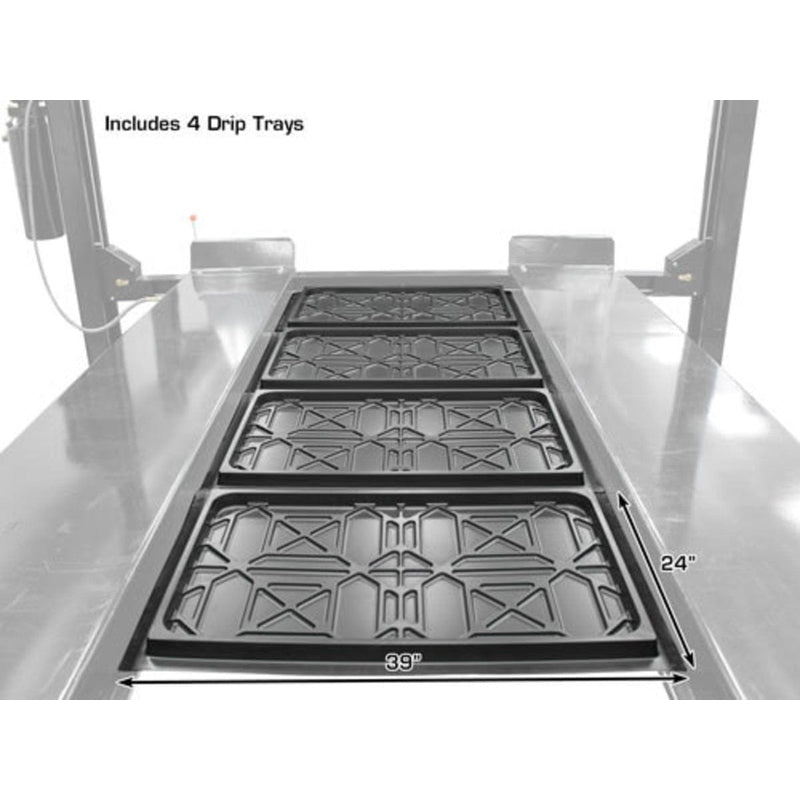

- 4 Plastic Drip Trays Included

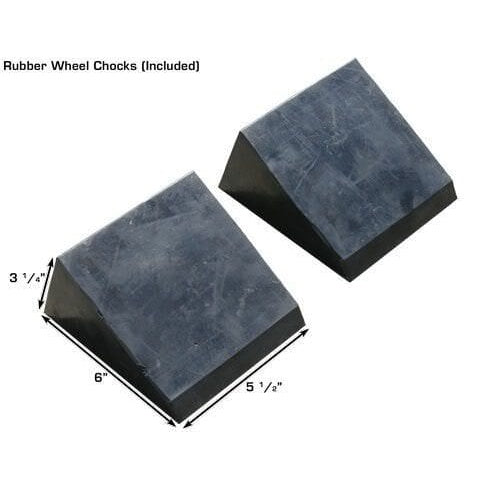

- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)

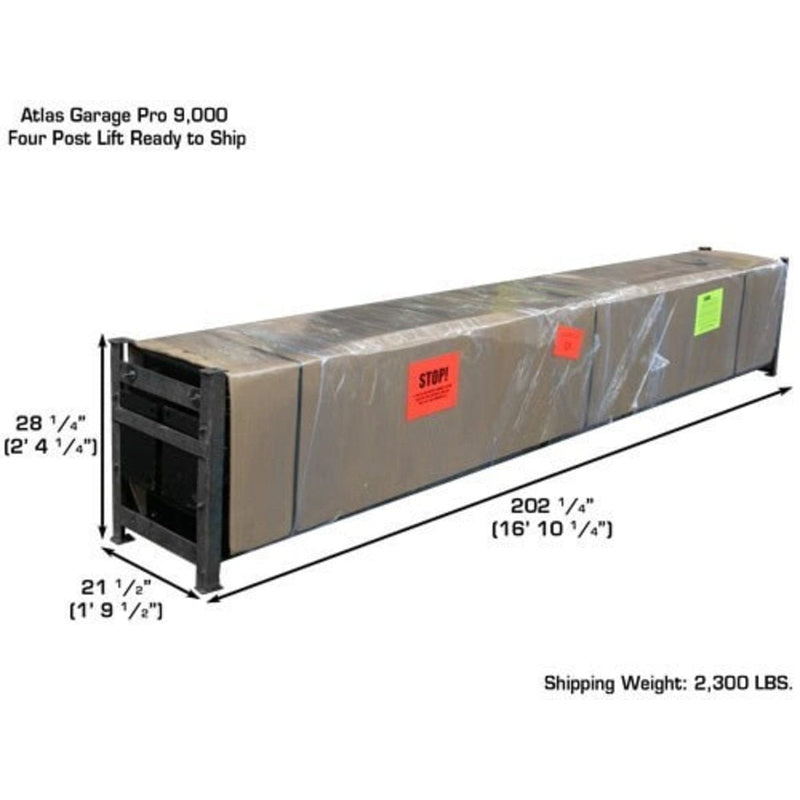

- Shipping Weight 2,300 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

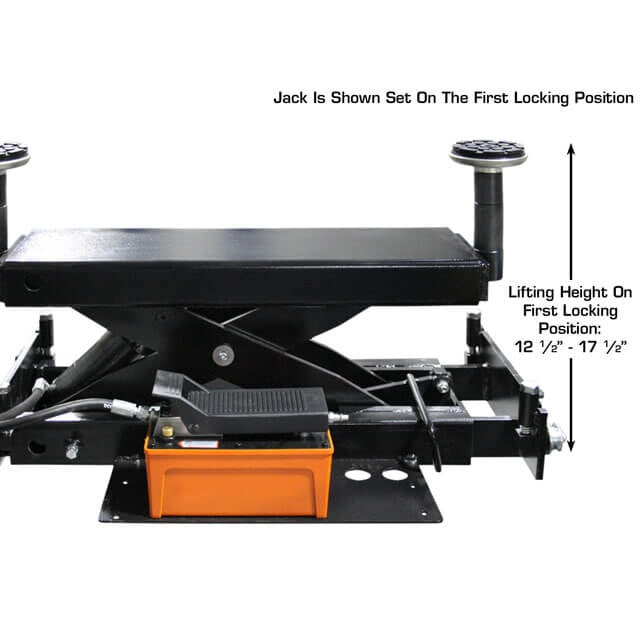

RJ6
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)

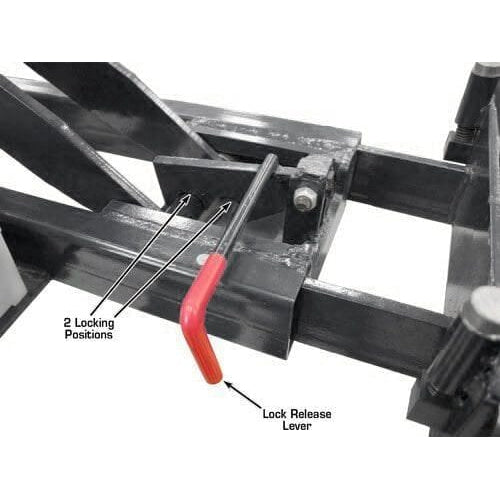

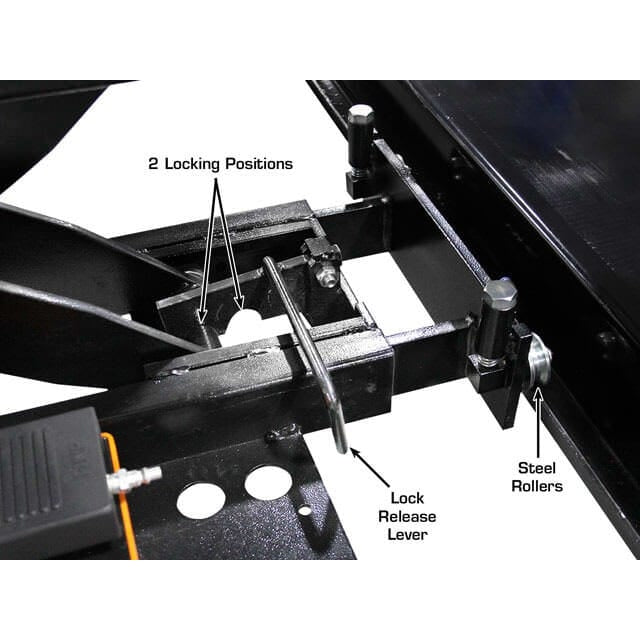

- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Specifications

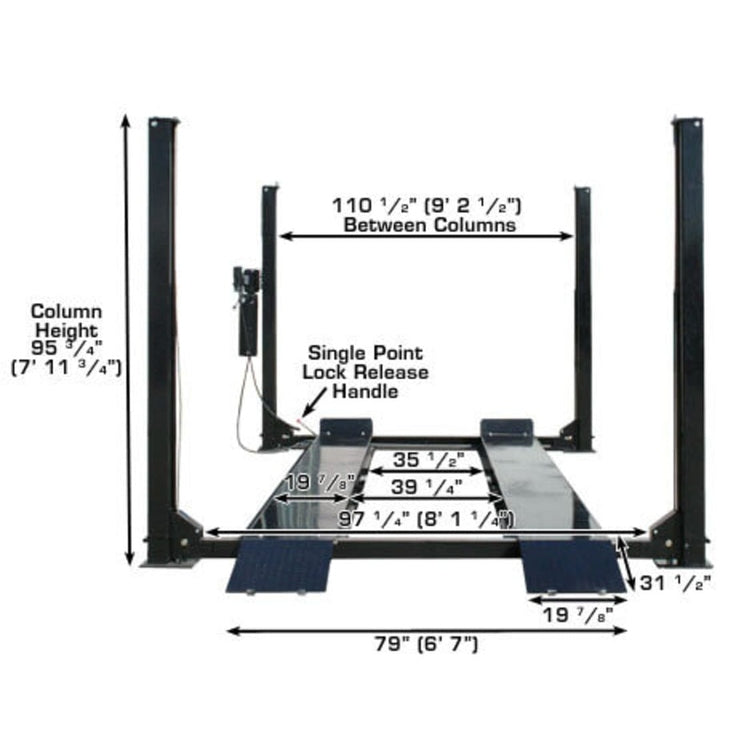

-Atlas® Garage PRO9000 Specifications | |
Capacity | 9,000 Lb. |

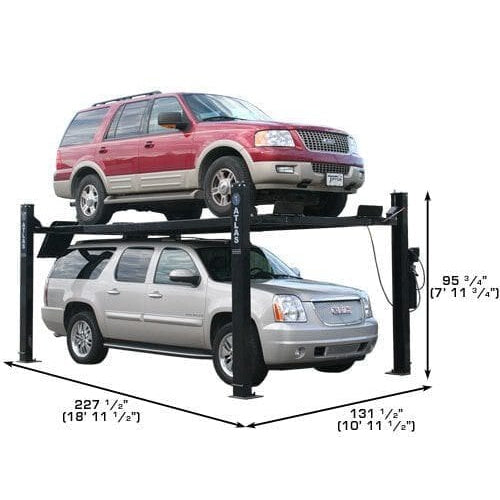

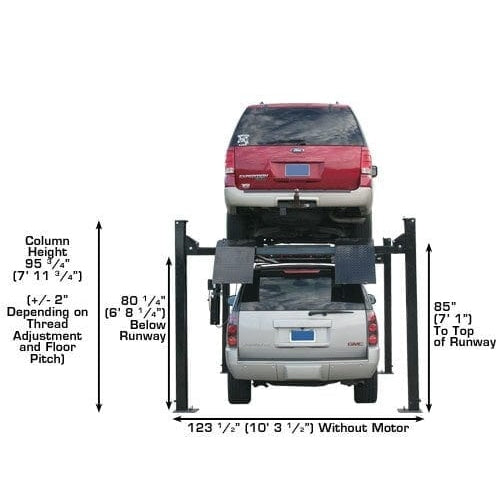

Lifting Height To Top Of Runway | 85" (7' 1") |
Clearance Under Runways | 80 1/4" (6' 8 1/4") |

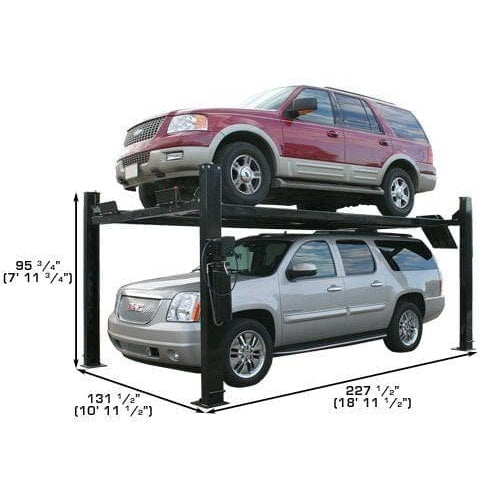

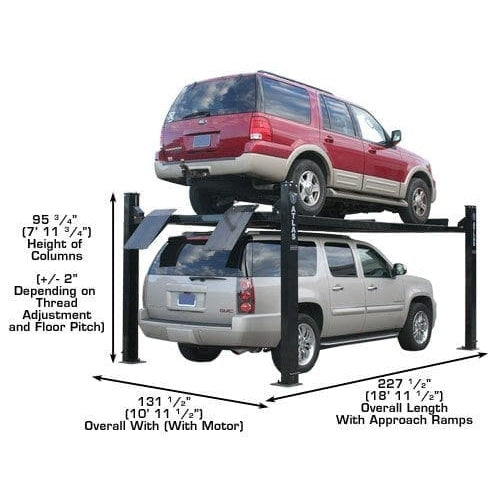

Height Of Columns | 95 3/4" (7' 11 3/4") |
Overall Width (Without Motor) | 123 1/2" (10' 3 1/2") |

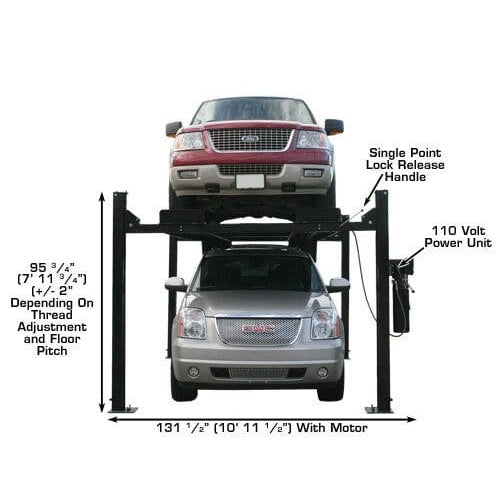

Overall Width (With Motor) | 131 1/2" (10' 11 1/2") |

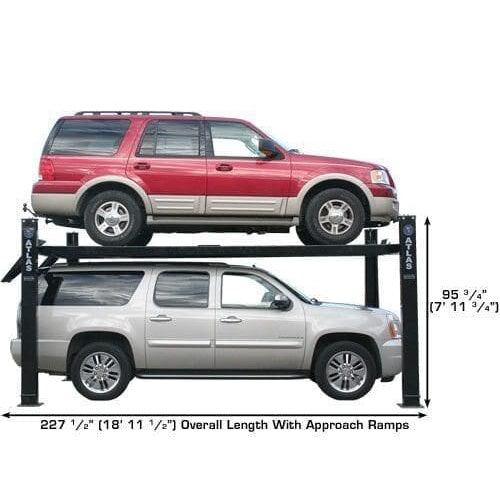

Overall Length With Approach Ramp | 227 1/2" (18’ 11 1/2”) |
Approach Ramp | 31" (2' 7") |
Runway Width | 21 1/4" (w/ Rails) or 20" (Driving Surface) |
Runway Length | 199 1/2" (16' 7 1/2") |
Runway Thickness | 4 3/4" |
Width Between Runways | 39 3/4" (3' 3 3/4") |
Width Between Runway Rails | 35 1/2" (2’ 11 1/2") |
Outside Runway To Outside Runway | 79" (6' 7") |
Clearance Between Columns | 110 1/2" (9' 2 1/2") |

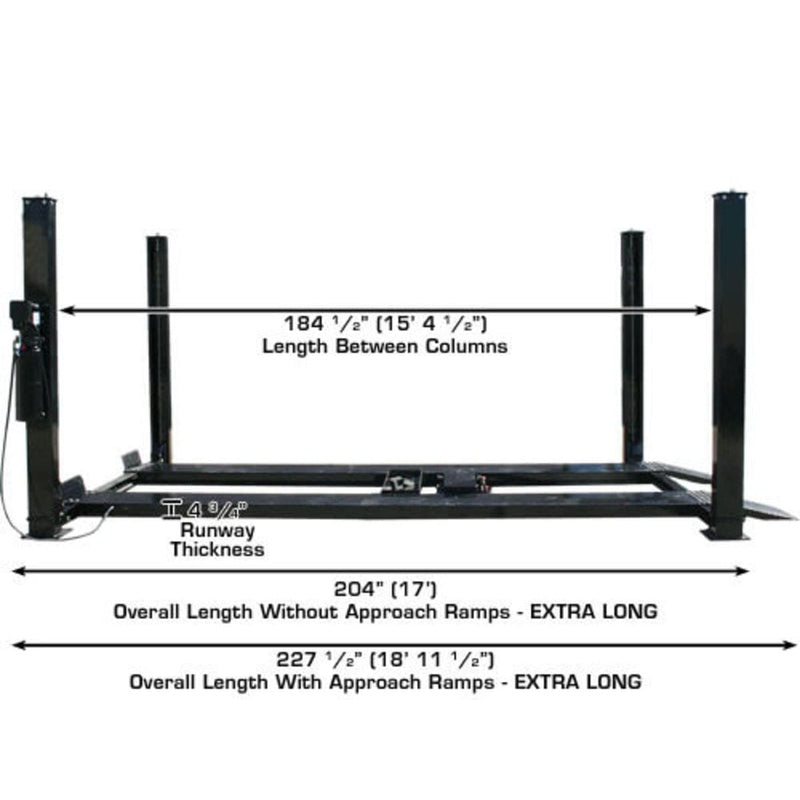

Length Between Columns | 184 1/2" (15' 4 1/2") |
Maximum Wheel Base | 187" (15' 7") |
Drive Thru (Outside Of Tire To Outside Of Tire) | 97 1/4" (8' 1 1/4") |
Motor/Electrical Requirement | 110 Volt, 30 AMP BREAKER REQUIRED |
Shipping Weight | 2,300 lb. |
Atlas® RJ6 Specifications | |
Maximum Capacity | 6,000 lb. |
Maximum Width | 55" (4' 7") |

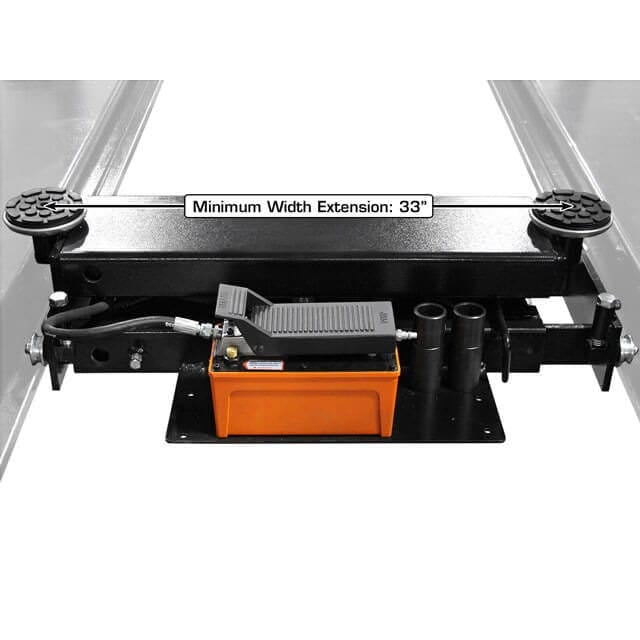

Minimum Width | 35" (2' 11") |
Distance Between Runway Capability | 32"-52" |

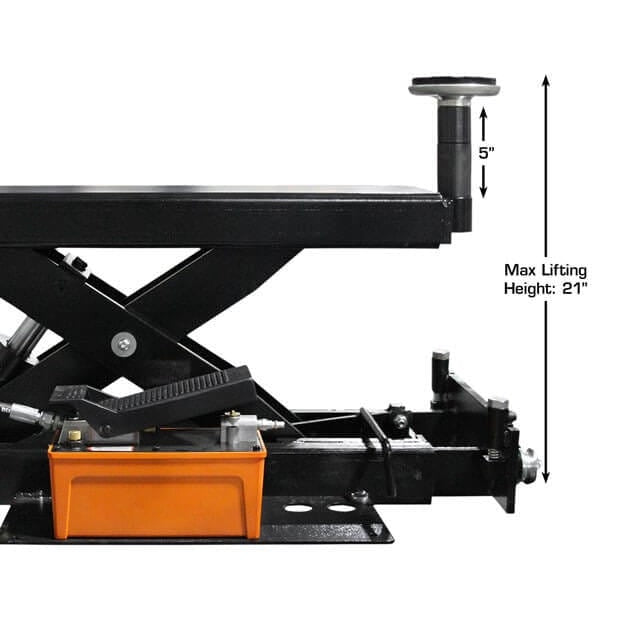

Maximum Lifting Height (With Adapters) | 21" (1' 9") |
Air Requirement | 70-115 PSI |

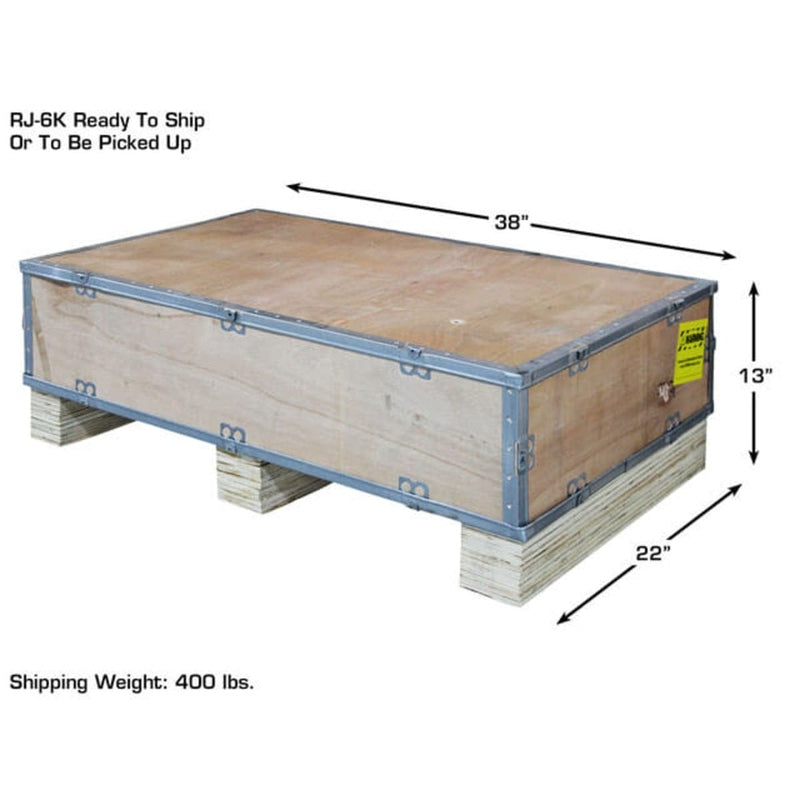

Shipping Weight | 350 lbs. |

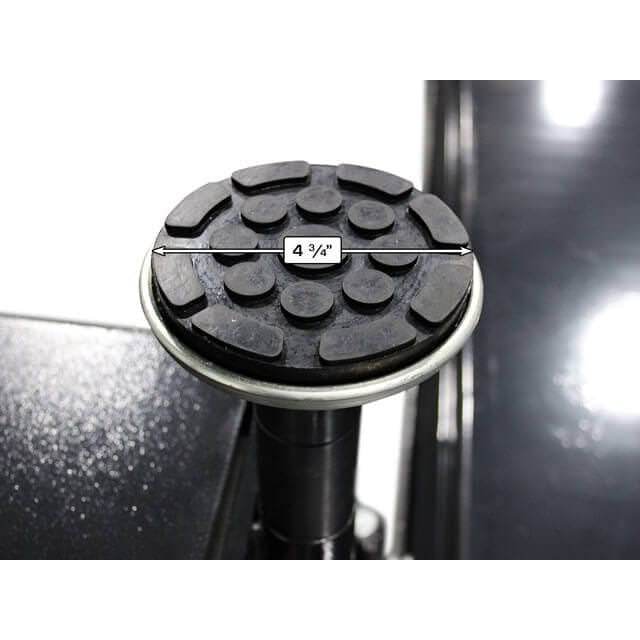

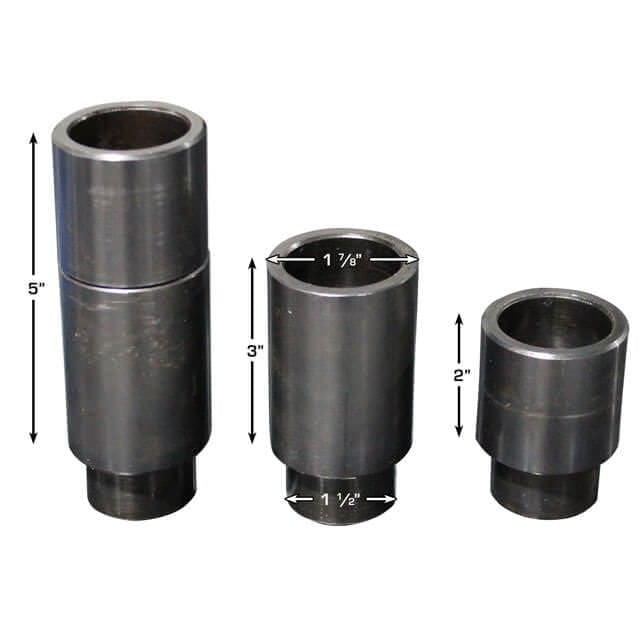

Adapter Heights | 2 Each 2", 3" |
Arm Hole/Adapter Peg Size | 1.5" |
