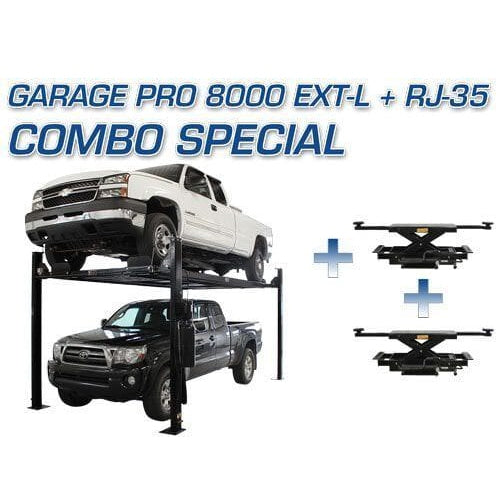

Atlas PRO8000EXT-L 4 Post Lift + RJ35 Sliding Jacks Combo

Atlas PRO8000EXT-L 4 Post Lift + RJ35 Sliding Jacks Combo

SKU ATEXH-PRO8EXTL-COMBO-FPD
$5,999.00 - $5,999.00
$5,999.00
$5,999.00 - $5,999.00
$5,999.00
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat
CHRISTMAS: 5% Applied At Checkout
Christmas is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires Midnight.

Description

-

The Garage PRO8000EXT-L features the extra lifting height of the PRO8000EXT but is also 20 inches longer and 3 inches wider. Or to compare to the original, the Garage PRO8000EXT-L is 20 inches longer, 3 inches wider, and 14 inches taller than the standard Atlas® Garage PRO8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage PRO9000 if you need a portable lift for your dually!

This combo package also includes two of the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Features

-

PRO8000EXT-L

  • 8,000 lb. Capacity
  • Free Standing/Portable Design
  • EXTRA TALL & EXTRA LONG
  • Diamond Plated Runways

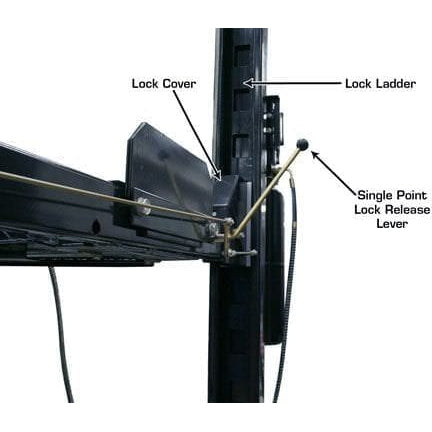

  • Single-Point Lock Release

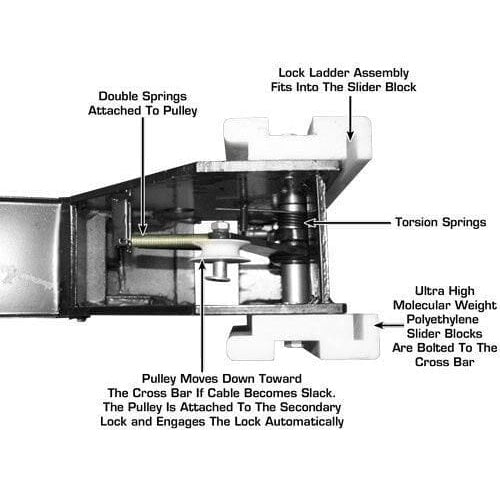

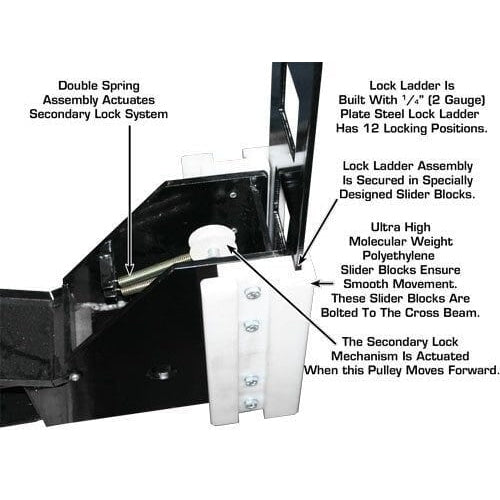

  • Lock Ladder Design

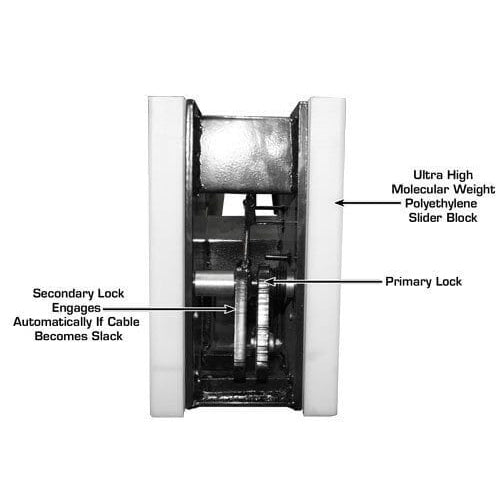

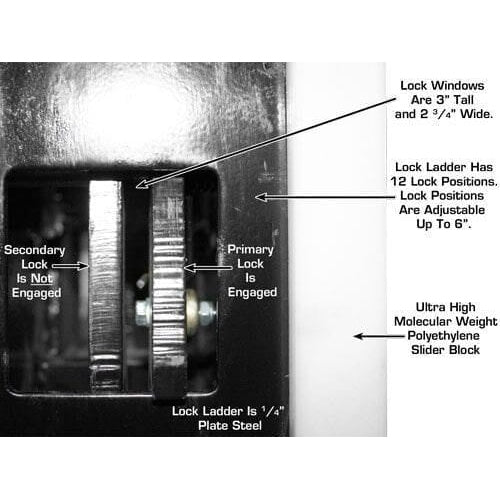

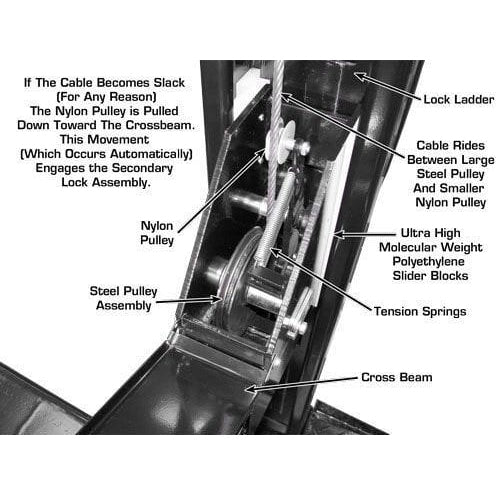

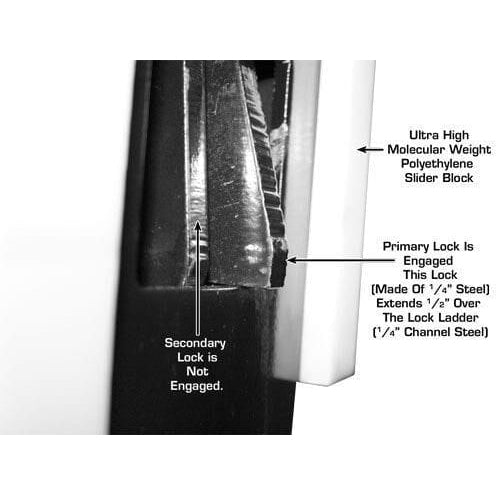

  • Double Lock Safety System

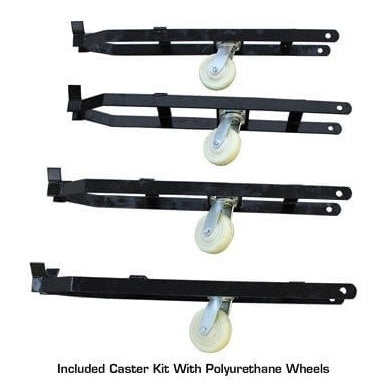

  • Caster Kit With Polyurethane Wheels Included

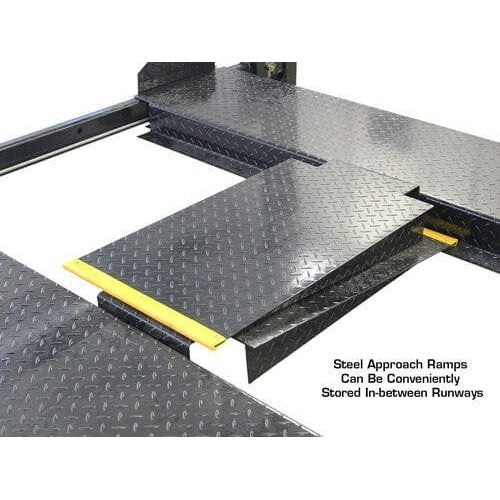

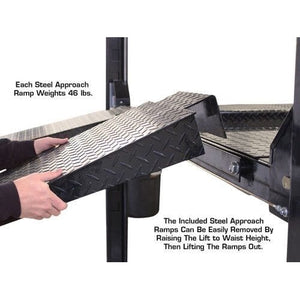

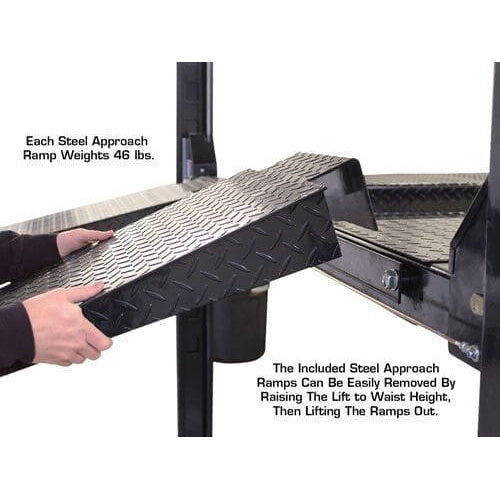

  • Steel Approach Ramps Included

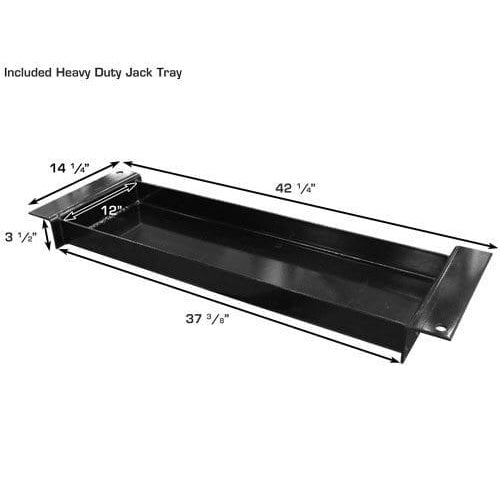

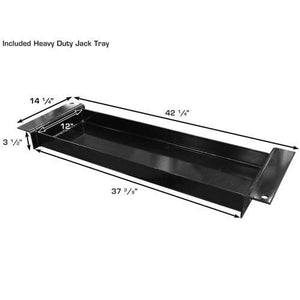

  • Steel Jack Tray Included

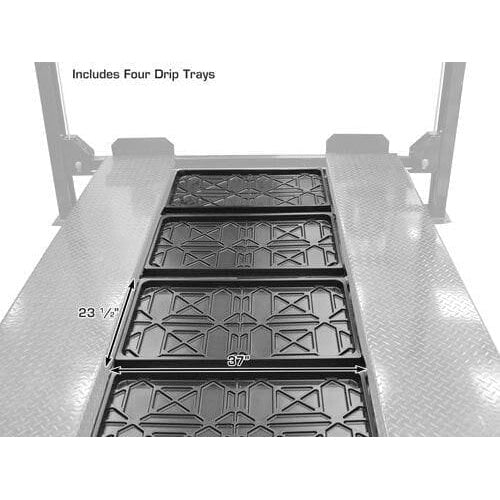

  • 4 Plastic Drip Trays Included
  • 4 Wheel Stops Included

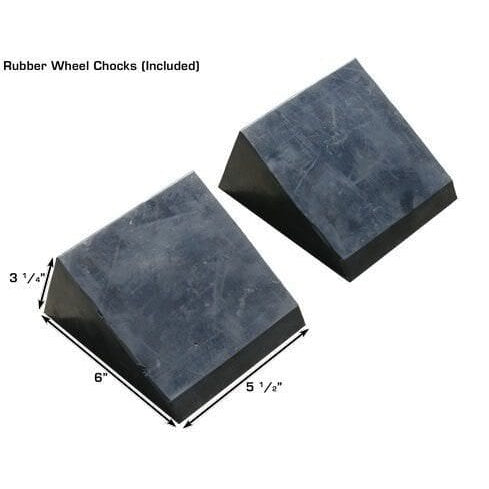

  • 2 Rubber Wheel Chocks Included
  • Perfect For Storing Or Working On Vehicles
  • 110volt Electric Operation (30 AMP BREAKER REQUIRED)
  • Shipping Weight 1,850 lbs.
  • 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

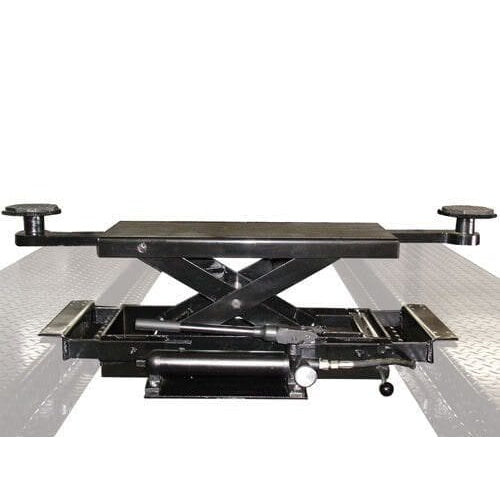

PROJACK35

  • Sliding Bridge Jack
  • Capacity: 3,500 lbs.
  • Manual, hand pump operated
  • Scissor mechanism allows for level lifting
  • Low Profile, Compact Design
  • Adjustable Width to fit many 4-post lifts
  • Adjustable Lift Arms to reach many lifting points
  • Multiple Safety Lock Positions

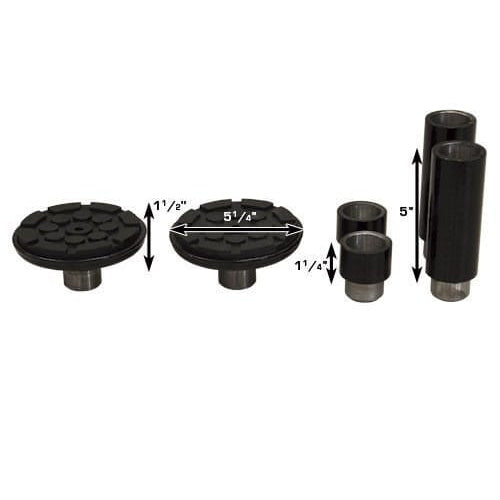

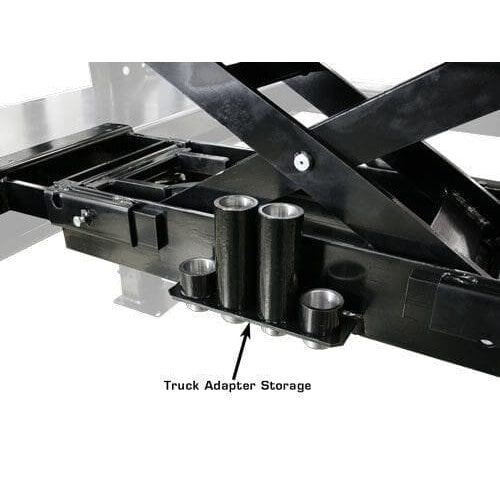

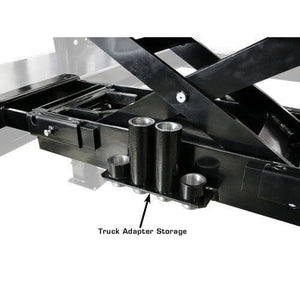

  • 4 Piece Truck Adapter Set Included
  • 1 Year Parts Only Warranty

Specifications

-
Atlas® Garage Pro 8000 EXT-L Specifications
Capacity 8,000 LB

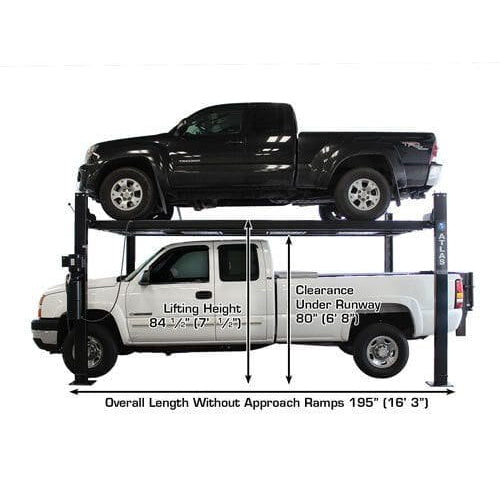

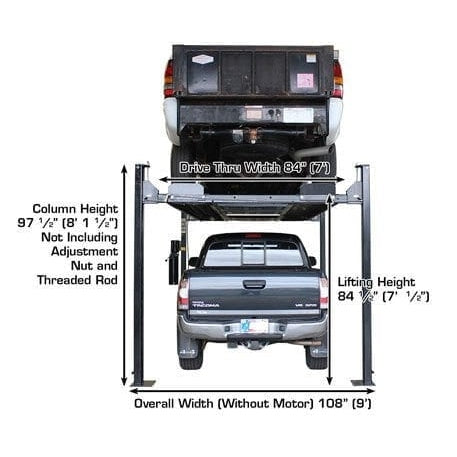

Lifting Height 84 ½" (7' ½")
Overall Width (Without Motor) 108" (9')

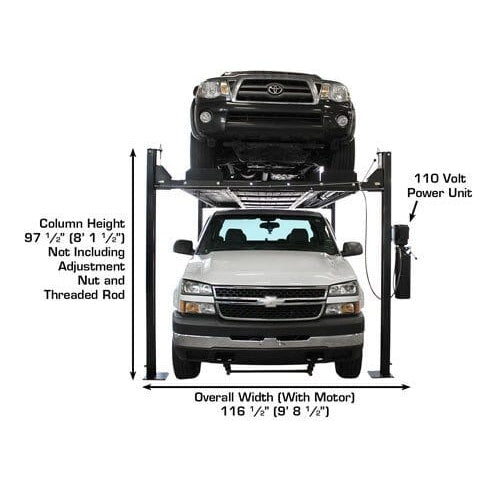

Overall Width (With Motor) 116 ½" (9' 8 ½")

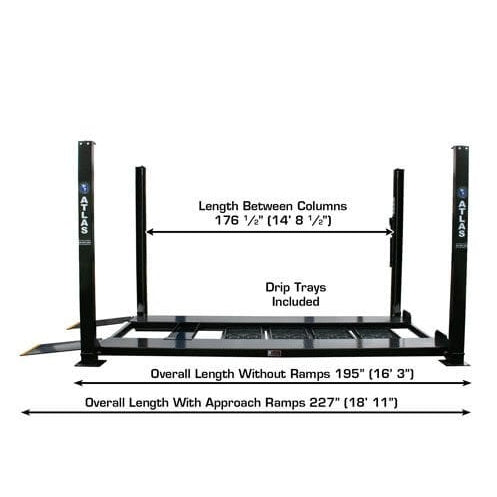

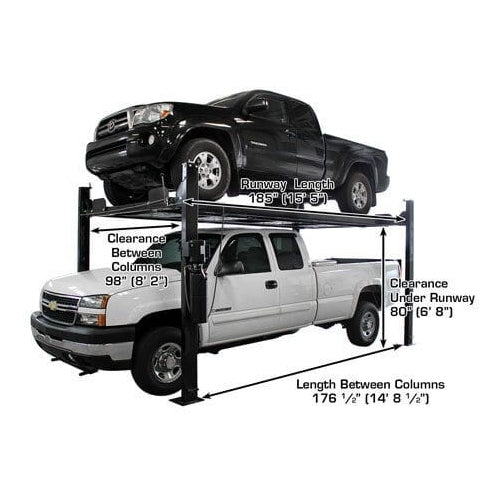

Length Between Columns 176 ½" (14' 8 ½")
Overall Length with Approach Ramps 227" (18' 11")
Overall Length without Approach Ramps 195" (16' 3")

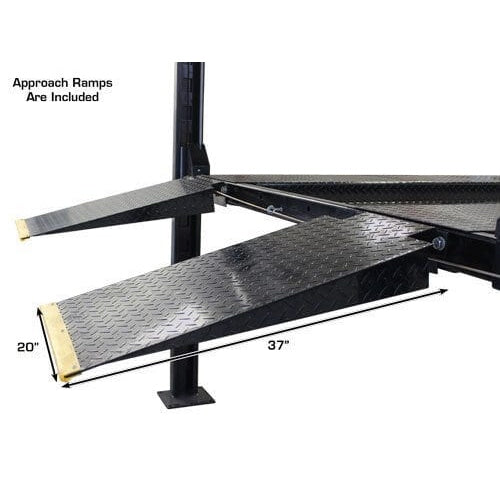

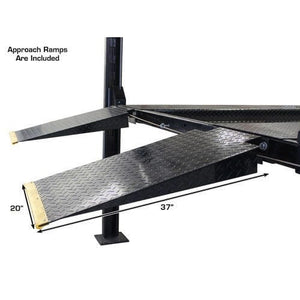

Approach Ramps 36 3/4" (3' 3/4") x 19 5/8" (1' 7 5/8")

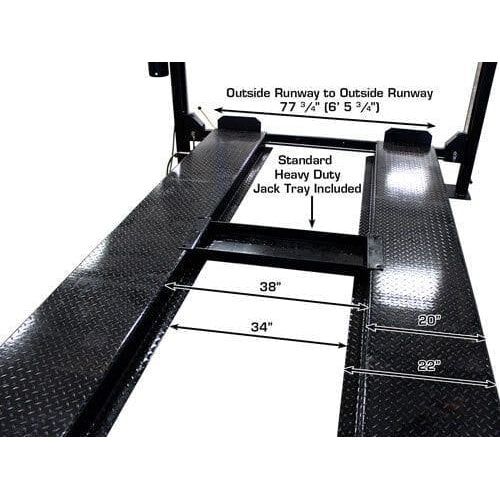

Total Runway Width 22" (1' 10")
Runway Length 185" (15' 5")
Runway Thickness 4 ½"

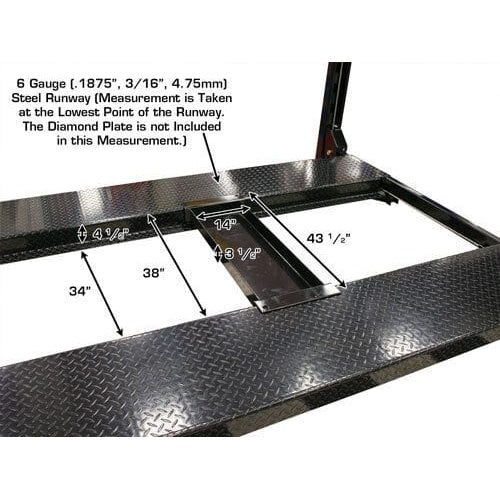

Width Between Runways 38" (3' 2")
Width Between Runway Rails 34" (2' 10")
Outside Runway to Outside Runway 77 3/4" (6' 5 3/4")
Clearance Under Runways Max: 80" (6' 8")

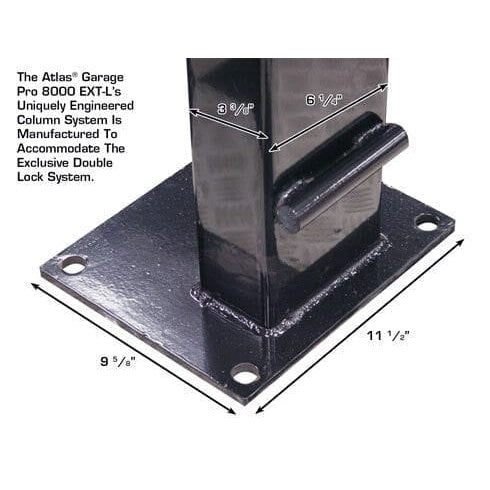

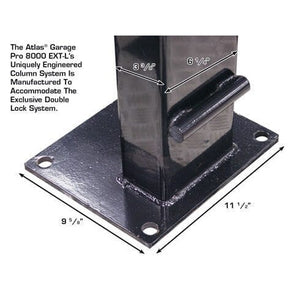

Size of Column 6 ¼" x 3 3/8"

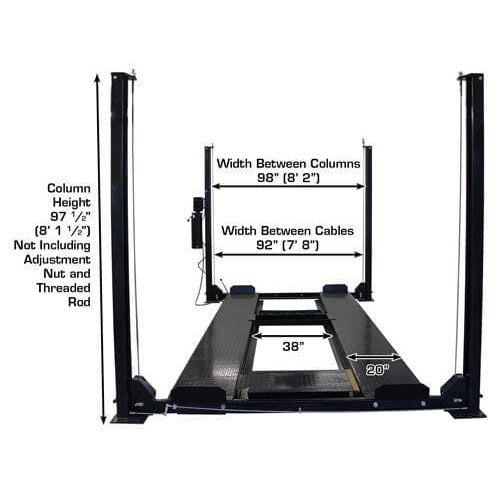

Clearance Between Columns 98" (8' 2")
Base of Column 9 5/8" x 11 ½"
Height of Columns 97 ½" (8' 1 ½"); 100" (8' 4") with Bolts

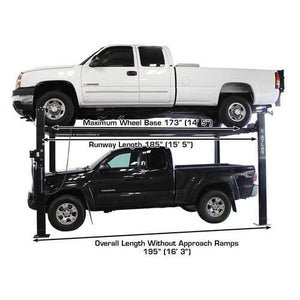

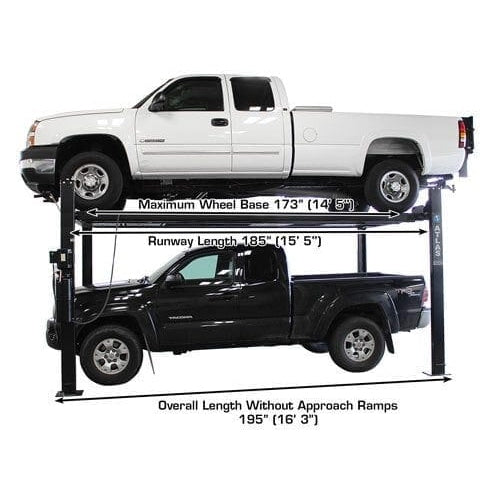

Maximum Wheel Base 173" (14' 5")
Drive Thru (Outside of tire to outside of tire) 84" (7')

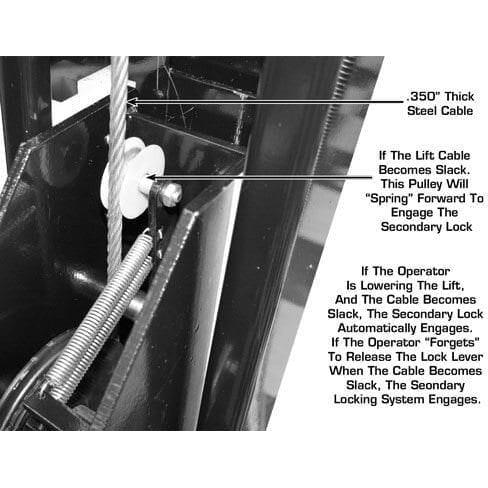

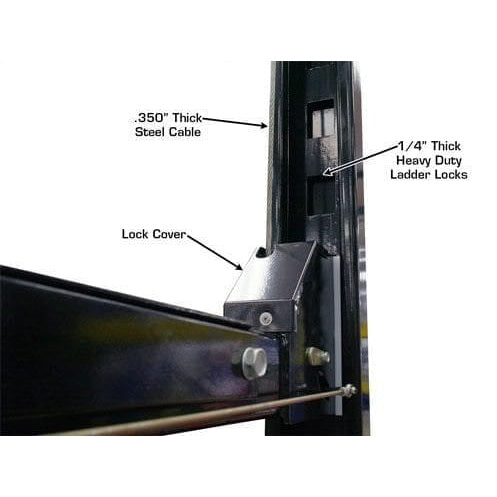

Cable Diameter .350"
Gauge Of Steel 6 Gauge (.1875"/ 3/16" / 4.75mm)
Motor 110 Volt
Oil Requirement 3-5 Gallons AW32/AW46

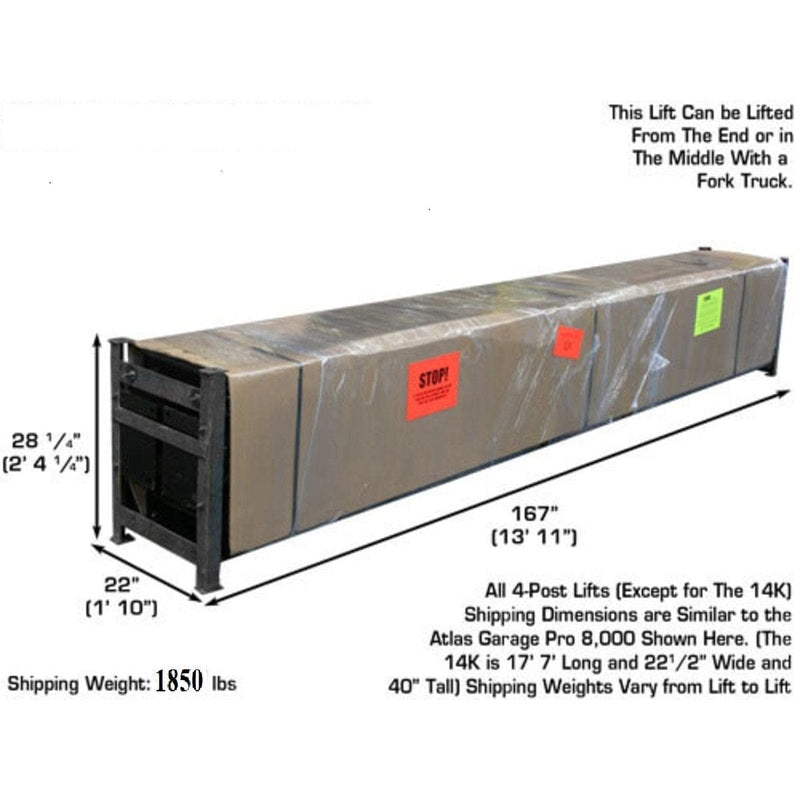

Shipping Weight 1,900 LB.



11 Locking Positions Under Runway
(+/ - 2")		 11 Locking Positions Top Of Runway
(+/ - 2")
19" (1' 7") 24 1/4" (2' 1/4")
25" (2' 1") 30 1/4" (2' 6 1/4")
31" (2' 7") 36 1/4" (3' 1/4")
37" (3' 1") 42 1/4" (3' 6 1/4")
43" (3' 7") 48 1/4" (4' 1/4")
49" (4' 1") 54 1/4" (4' 6 1/4")
55" (4' 7") 60 1/4" (5' 1/4")
61" (5' 1") 66 1/4" (5' 6 1/4")
67" (5' 7") 72 1/4" (6' 0 1/4")
73" (6' 1") 78 1/4" (6' 6 1/4")
79" (6' 7") 84 1/4" (7' 1/4")

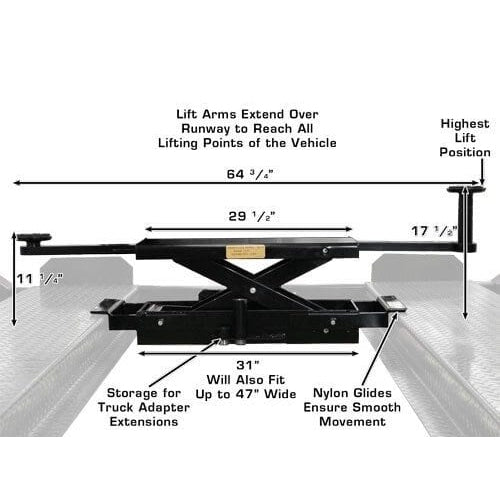

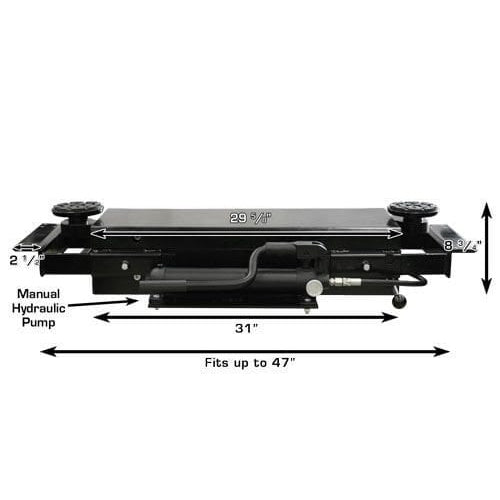

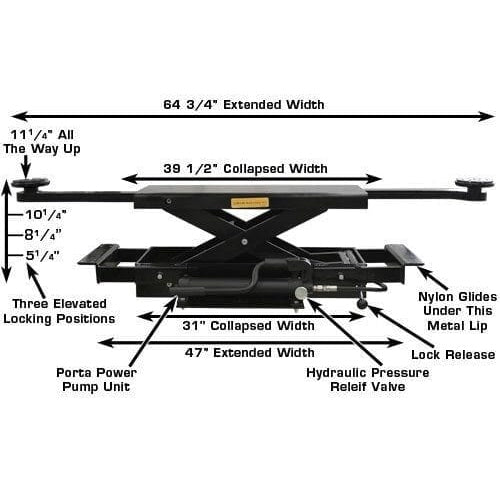

Atlas® RJ-35 Sliding Jack Specifications
Capacity 3,500 LB.
Minimum Width 29 1/2"
Minimum Width with Arms In 39 1/2"
Maximum Width with Arms Out 64 3/4"
Working Width 31" - 47"

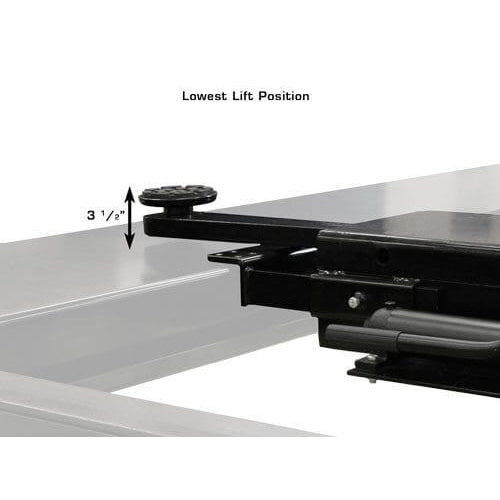

Minimum Height with Lift Pad 3 1/2"
Lifting Pad 1 3/8"
Short Adapter 1 1/4"
Tall Adapter 5"
Raised Height without Adapter 11"
Raised Height with Small Adapter 12 1/4"

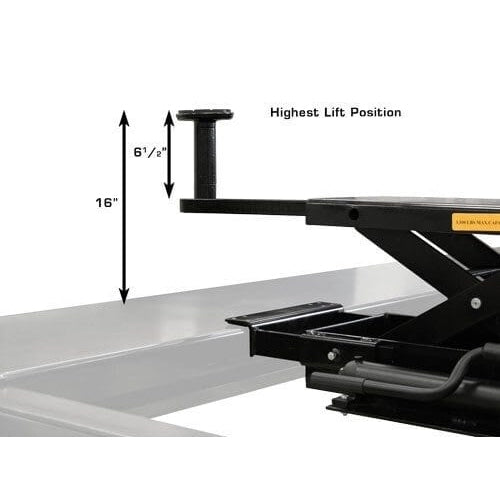

Raised Height with Large Adapter 16"
Raised Height with Small and Large Adapter 17 1/4"

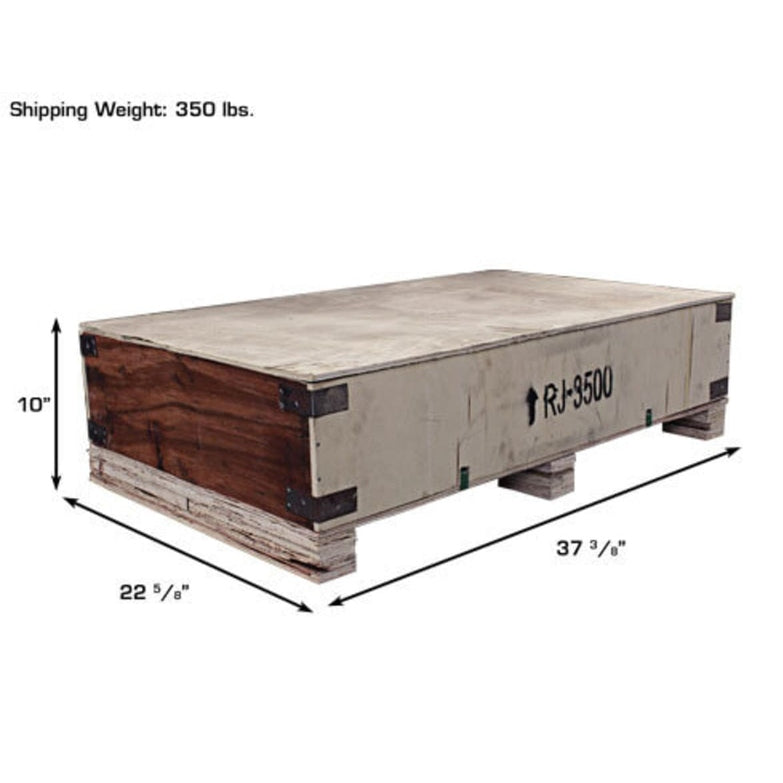

Shipping Weight 350 LB.

Documents

-

Atlas® Garage Pro 8,000 EXT-L Manual
