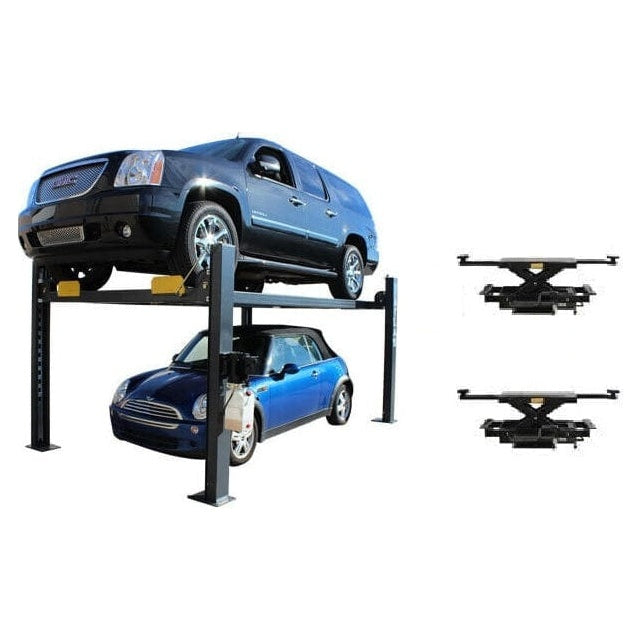

Atlas PREMIUM 408SL 4 Post Lift + RJ35 Sliding Jacks Combo

Atlas PREMIUM 408SL 4 Post Lift + RJ35 Sliding Jacks Combo

SKU ATEATTD-408SL-COMBO-FPD
$5,699.00 - $5,699.00
$5,699.00
$5,699.00 - $5,699.00
$5,699.00
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat
CHRISTMAS: 5% Applied At Checkout
Christmas is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires Midnight.

Description

-

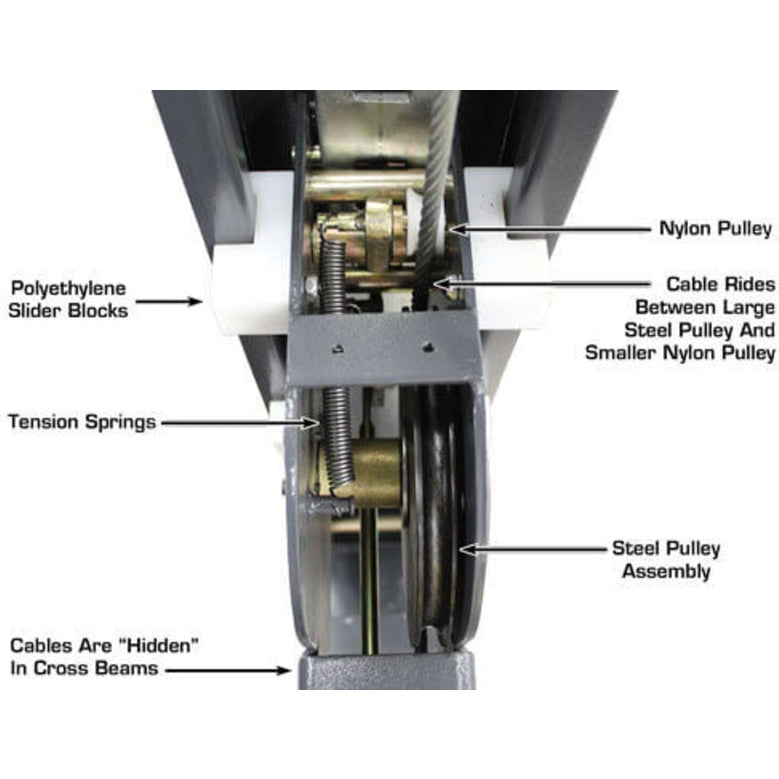

The Atlas® 408SL super deluxe portable vehicle storage lift is designed for those car enthusiasts who demand the absolute best look and superior quality. The 408SL has all the great features of our Atlas® Garage Pro Series 4 post hobbyist lifts, but incorporates many features found only on our Atlas® commercial grade 4-post lifts. All columns incorporate two special bends which help to increase the column strength. These strategic bends also increase the surface area for the slide block to travel. Horizontal cables are “hidden” inside of the cross tubes. Professional grade wheel covers are used to eliminate almost all exposure of cables and the double lock system. The Atlas® 408SL has “more metal” and weighs over 100 lbs. more than other hobbyist lifts based upon the same column and runway configuration.

The Atlas® 408SL is built to the same commercial lift standards as our Atlas® 412 and Atlas® 414 four post lifts, but also offers portability (Caster Kit included).

If you are looking for a lift that stands out from all the other storage lifts sold in the USA, then take a good look at the Atlas® 408SL.

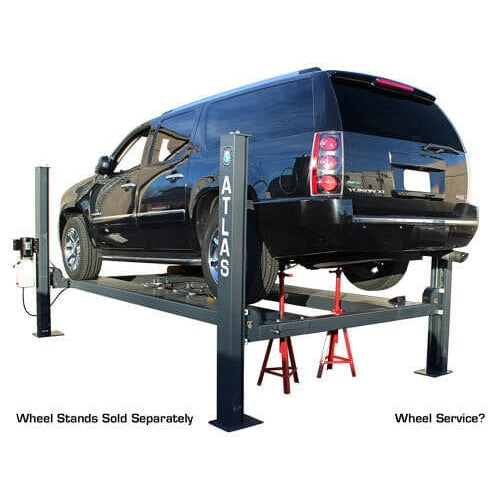

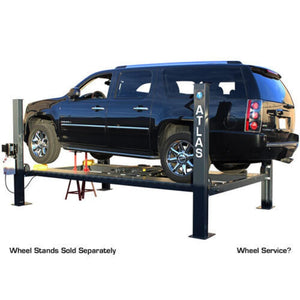

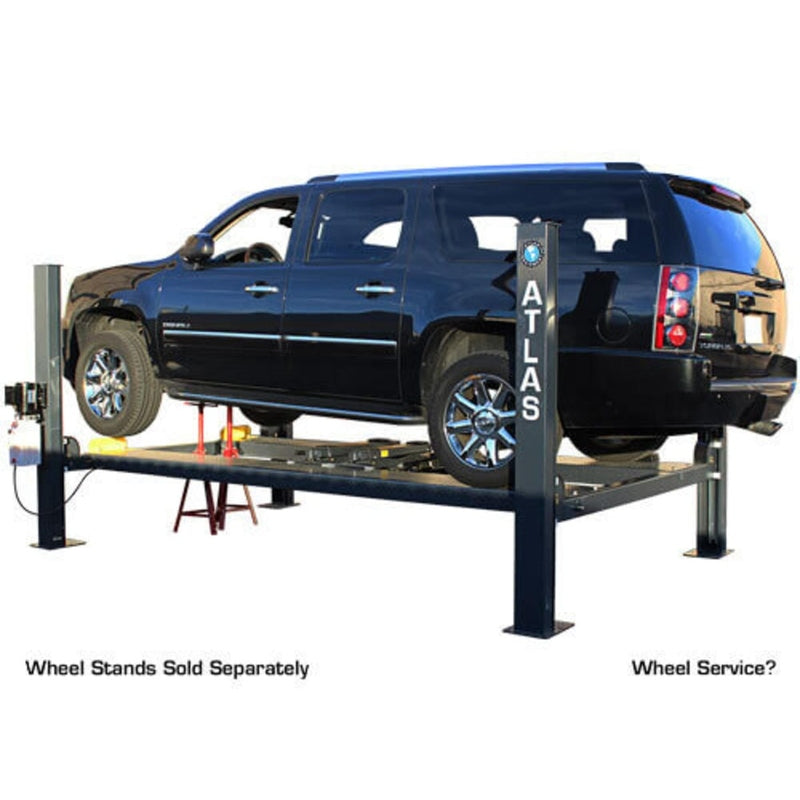

This combo package also includes two of the popular Atlas® RJ35 sliding bridge jacks.  The jacks are perfect for raising a vehicles wheels off the lifts runways in order to do wheel service and brake work.

Features

-

DELUXE 408SL

  • 8,000 lb. Capacity
  • Free Standing/Portable Design
  • Diamond Plated Runways
  • Single point lock release

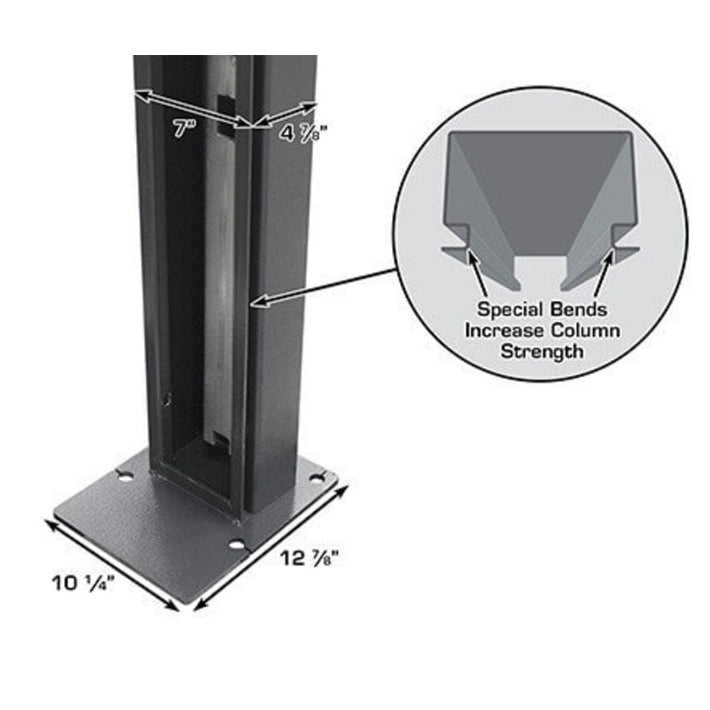

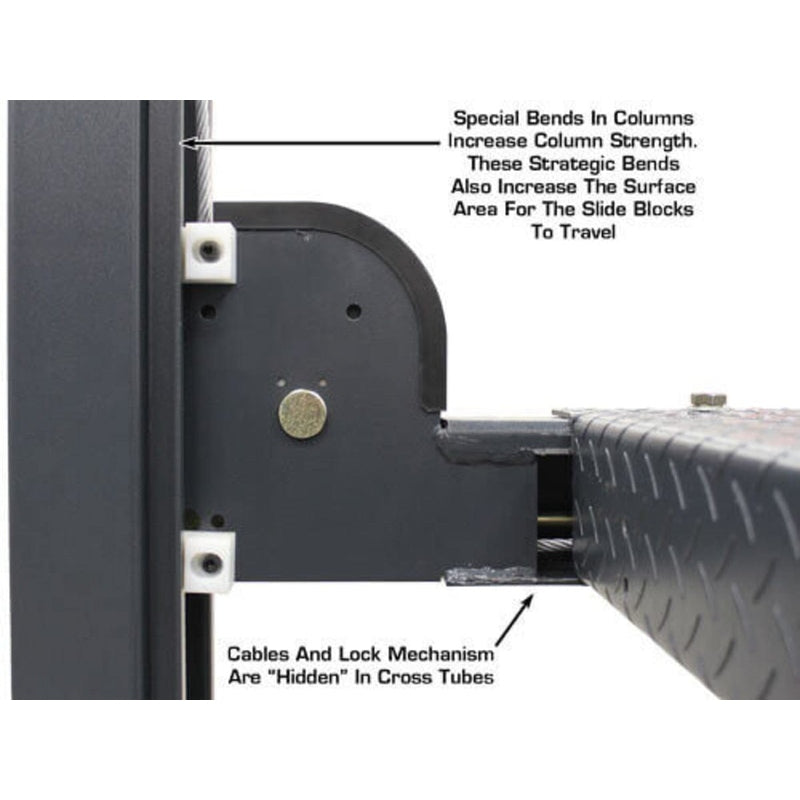

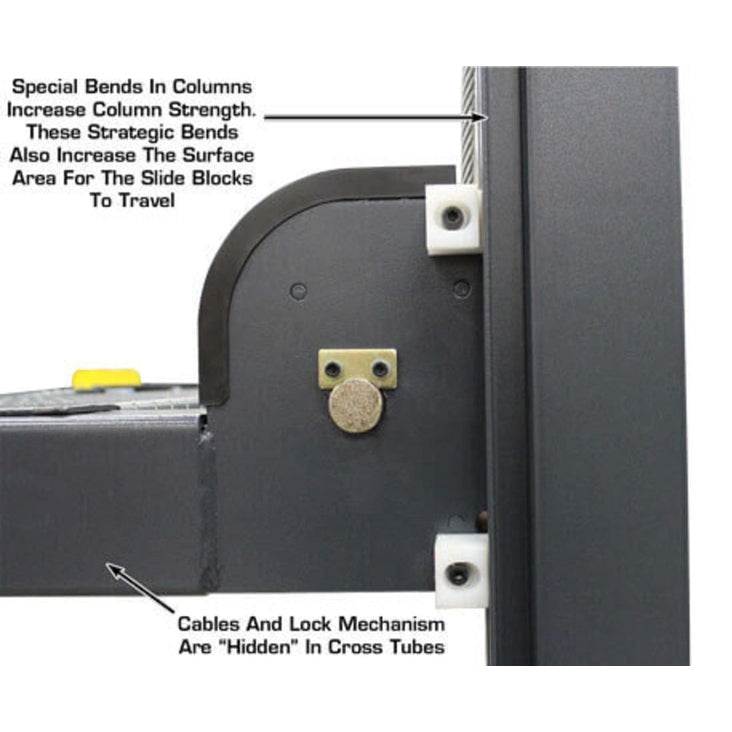

  • Columns incorporate two special bends to increase column strength.
  • Larger Column Size

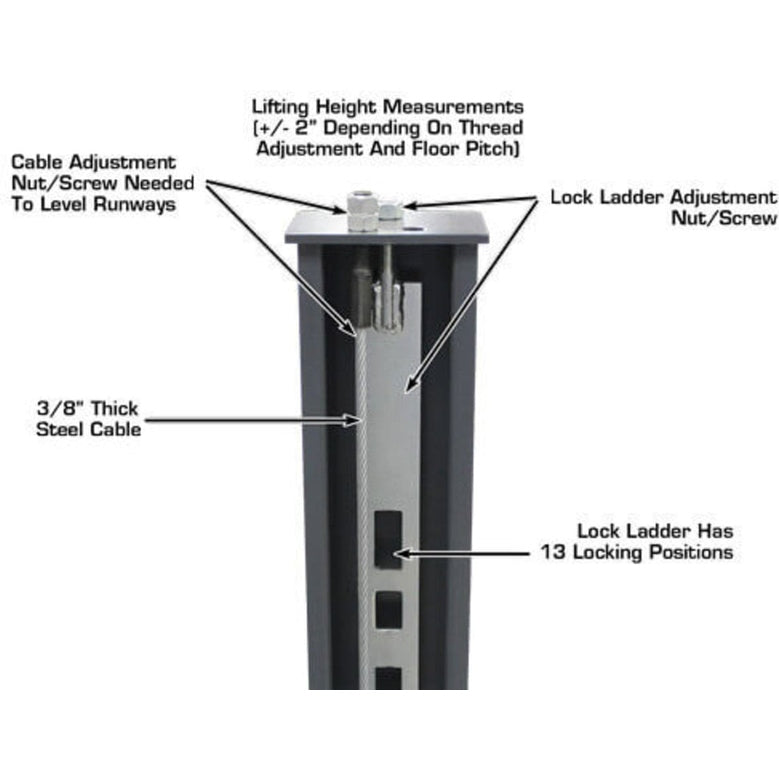

  • Double Lock Safety System
  • Higher quality powder coating (steel gray color)

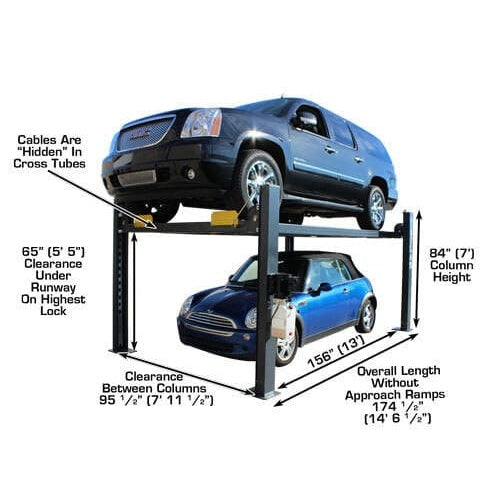

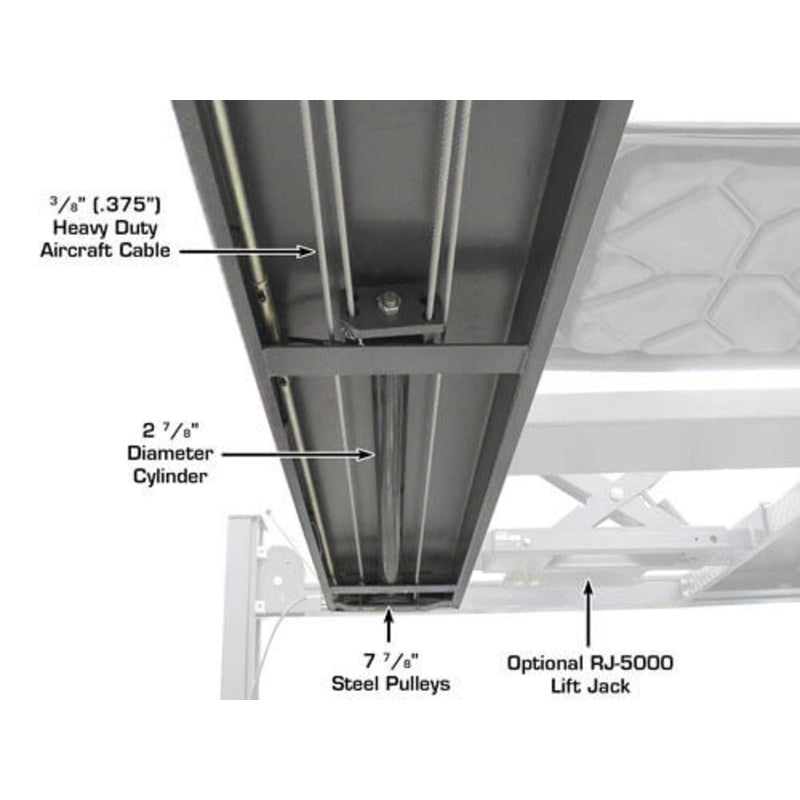

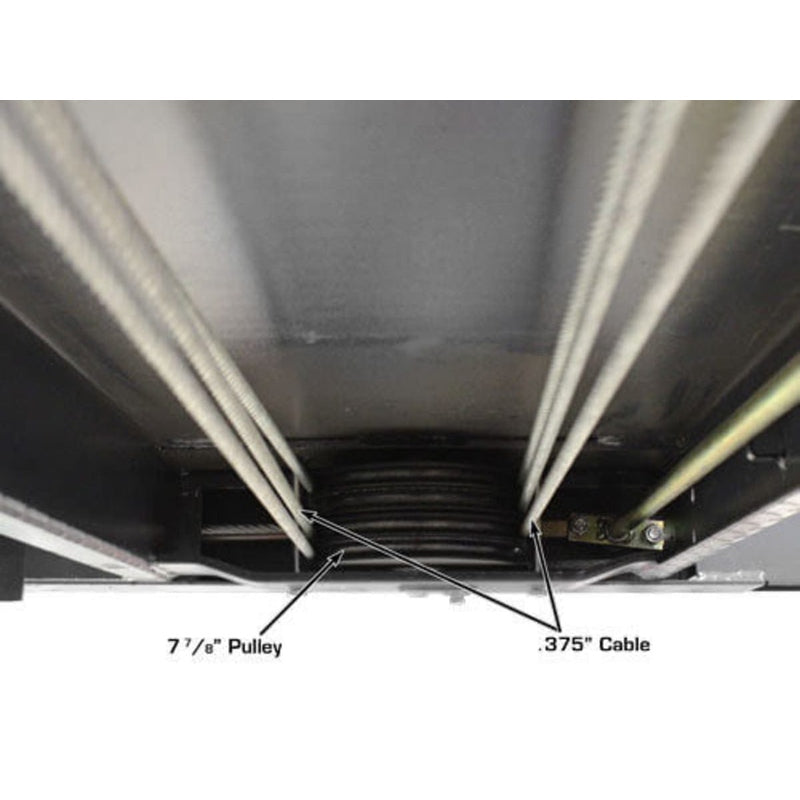

  • Cables hidden in Columns & Cross Tubes
  • Commercial Grade Wear Blocks
  • Power Unit can be positioned at any corner
  • Wider Access Between Runways

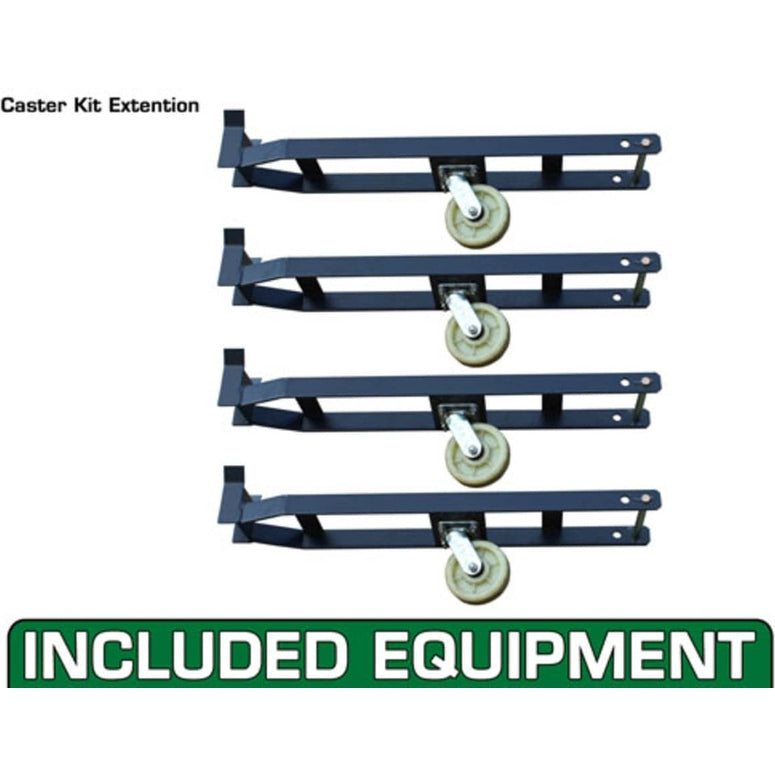

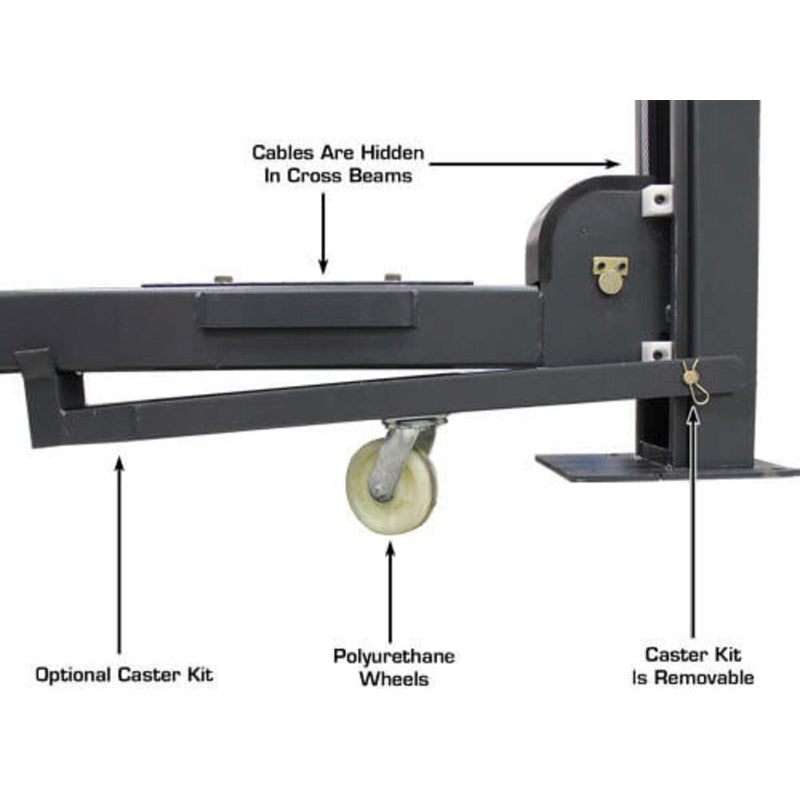

  • Caster Kit With Polyurethane Wheels Included

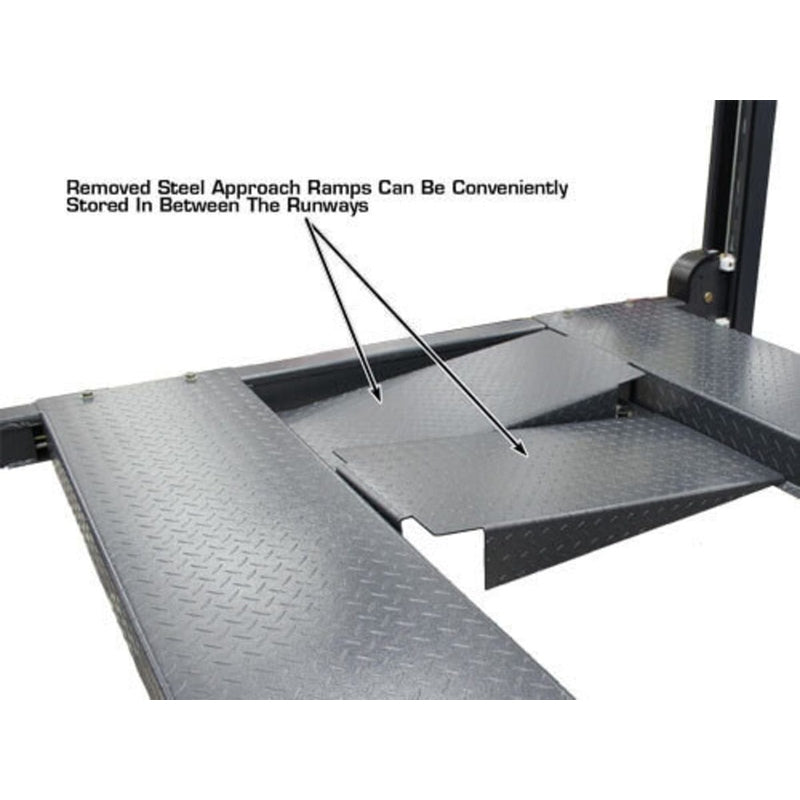

  • Steel Approach Ramps Included

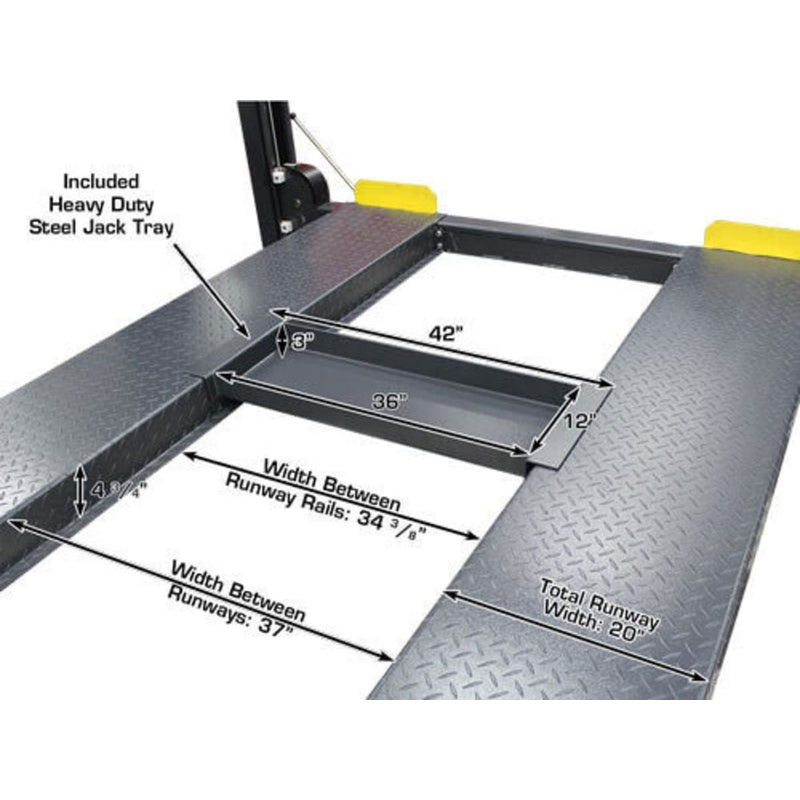

  • Steel Jack Tray Included

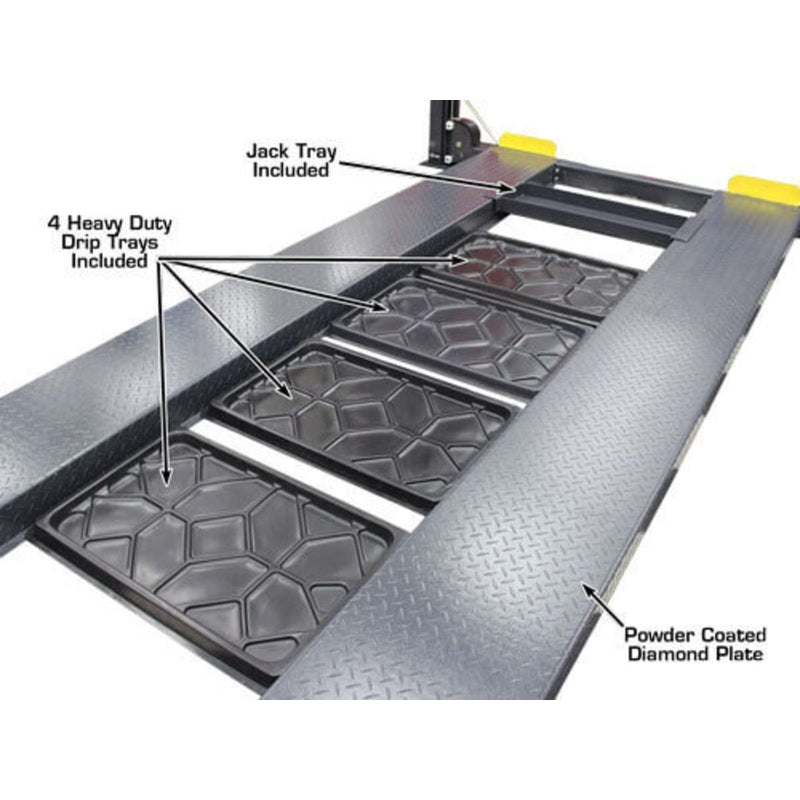

  • Four Plastic Drip Trays Included

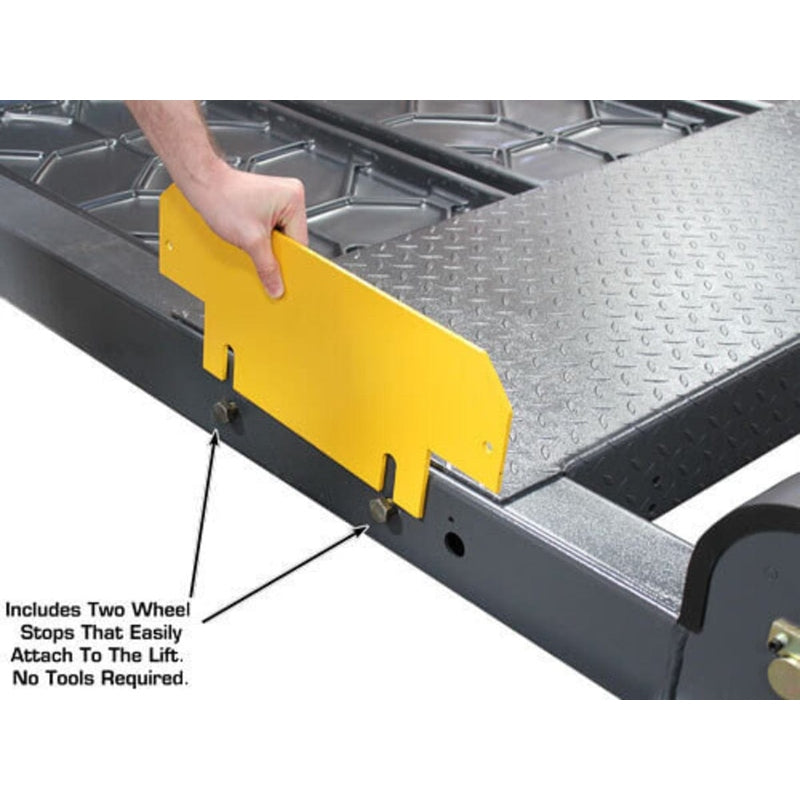

  • Wheel Stops Included
  • Anchor Bolts Optional (Sold Separately)
  • 110volt Electric Operation – PLUG NOT INCLUDED (Requires 30amp Breaker)

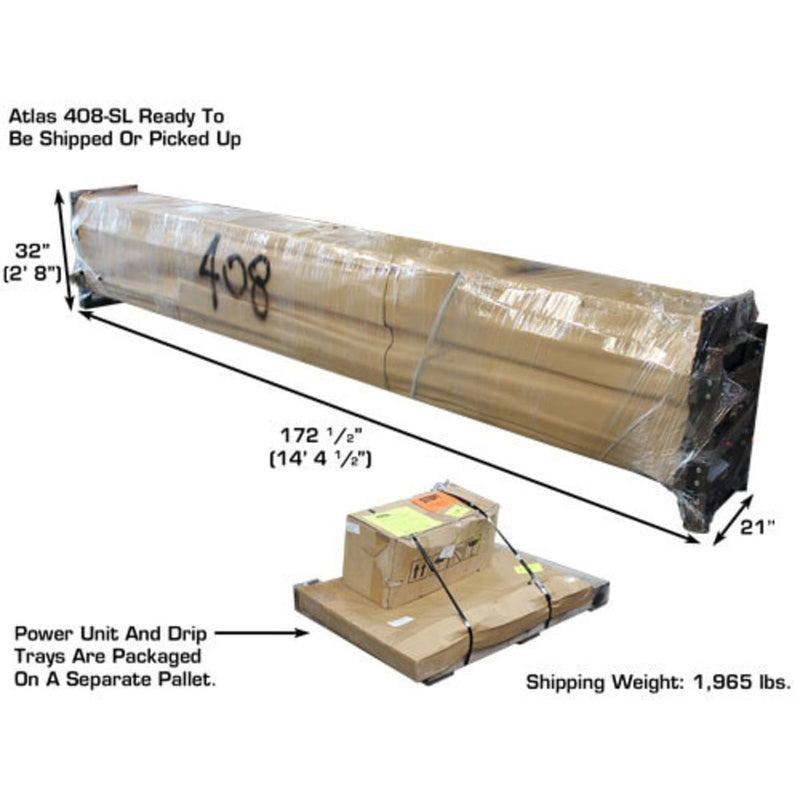

  • Shipping Weight: 1,965 lbs.
  • 2 yr Structural – 2 yr Hydraulic Warranty – Parts Only

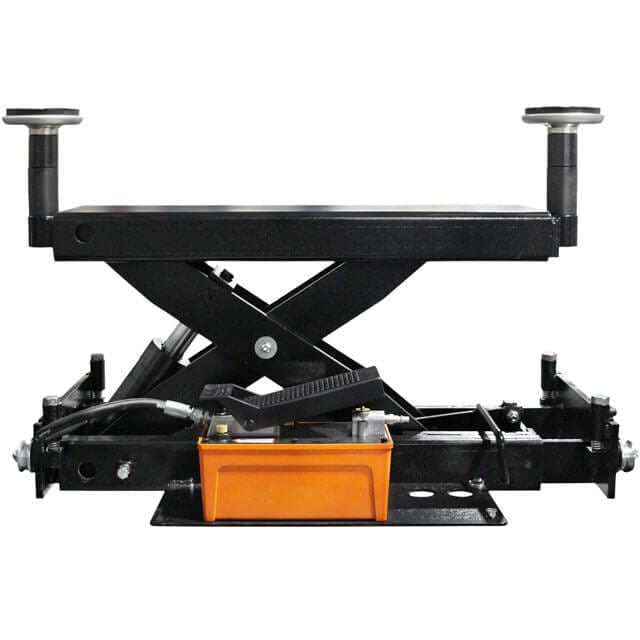

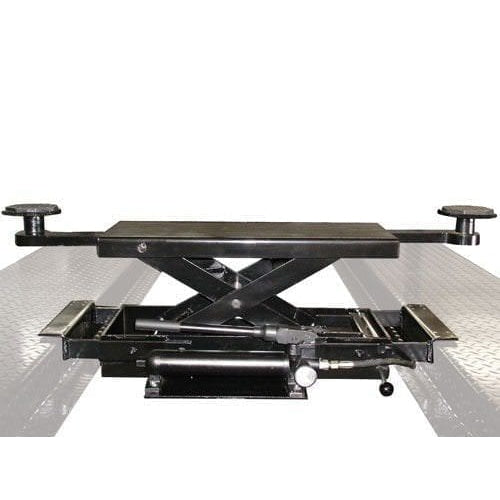

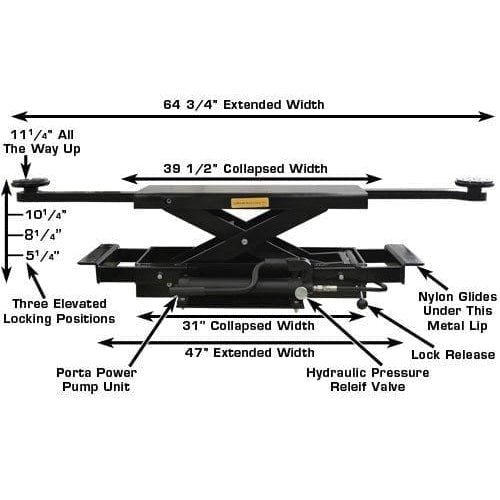

PROJACK35

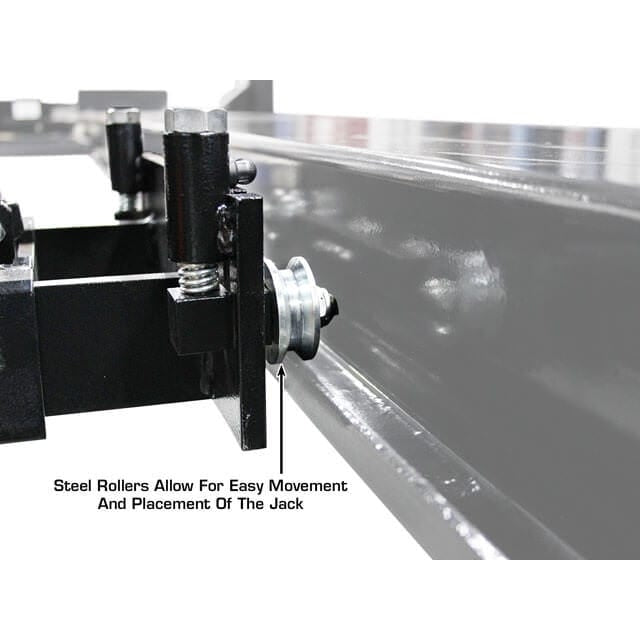

  • Sliding Bridge Jack
  • Capacity: 3,500 lbs.

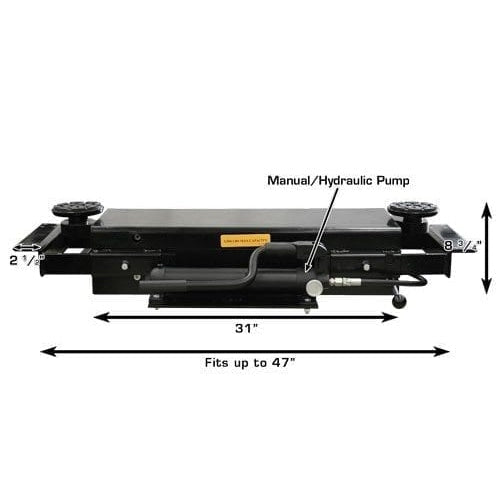

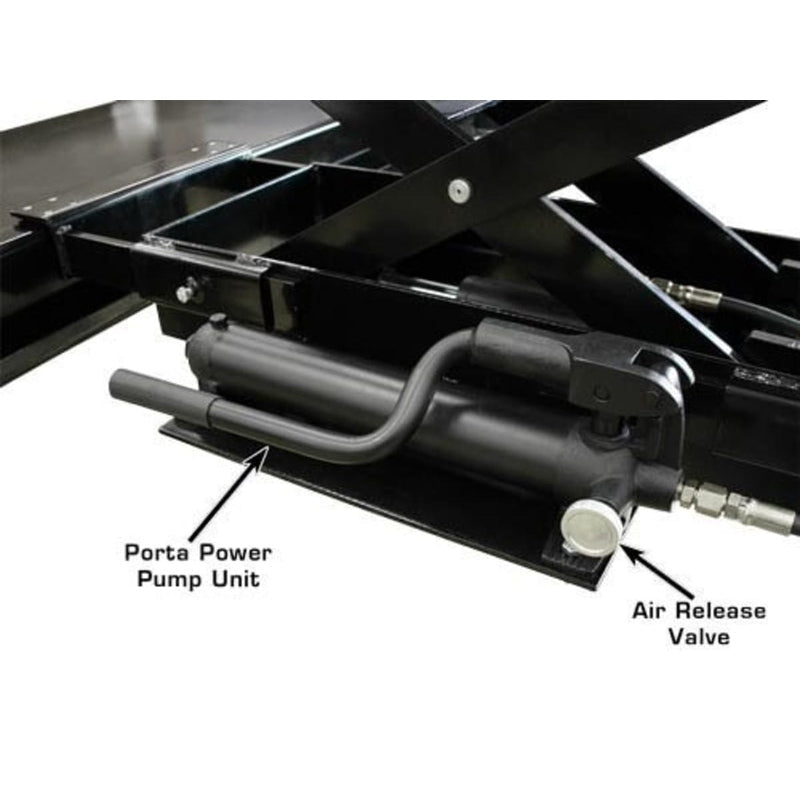

  • Manual, hand pump operated
  • Scissor mechanism allows for level lifting
  • Low Profile, Compact Design
  • Adjustable Width to fit many 4-post lifts
  • Adjustable Lift Arms to reach many lifting points

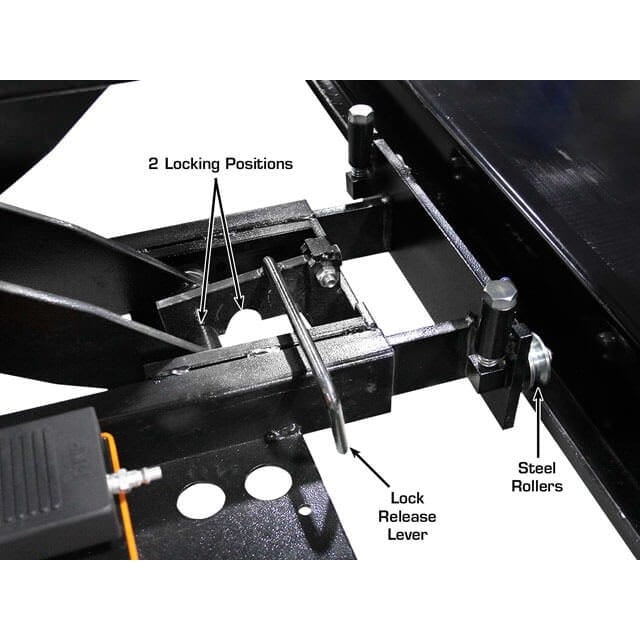

  • Multiple Safety Lock Positions

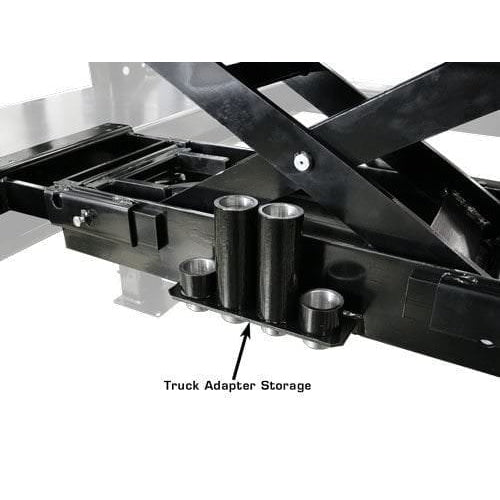

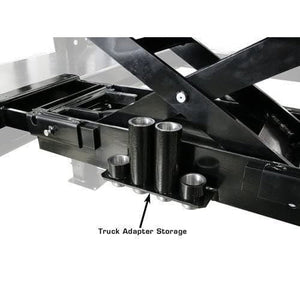

  • 4 Piece Truck Adapter Set Included
  • 1 Year Parts Only Warranty

Specifications

-

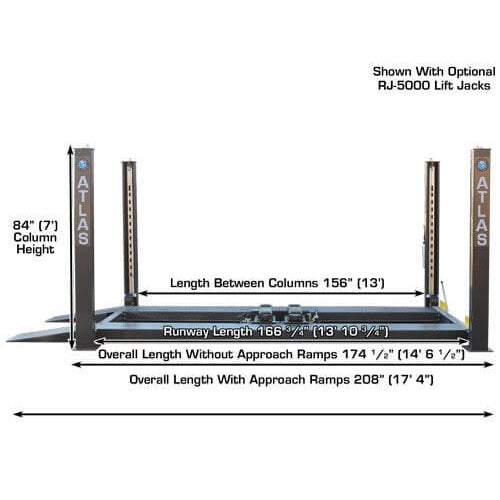

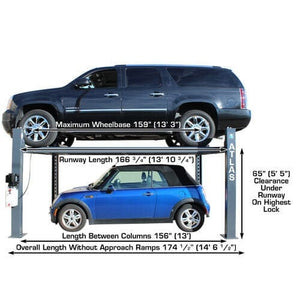

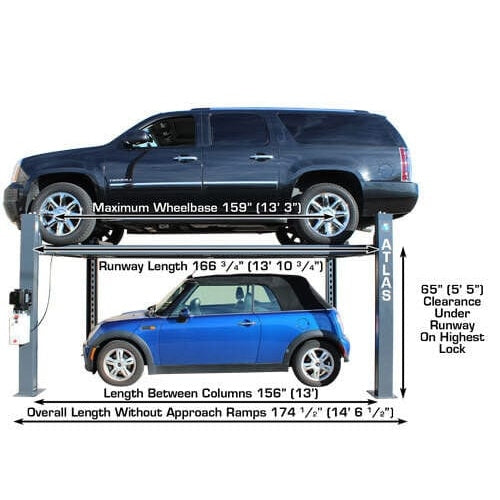

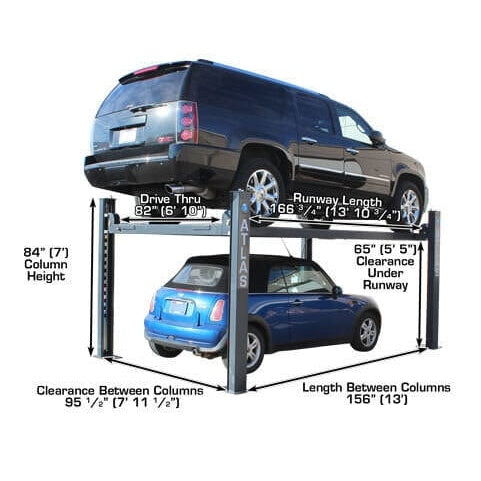

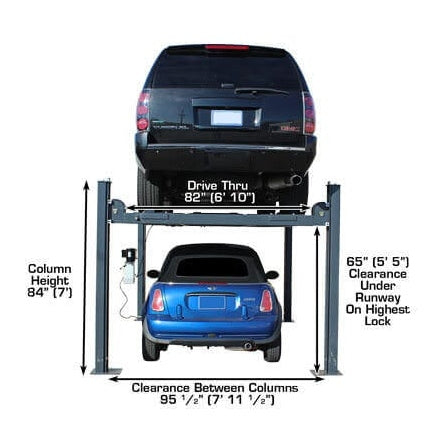

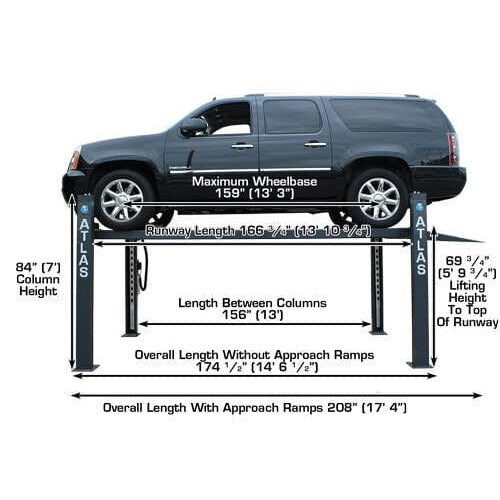

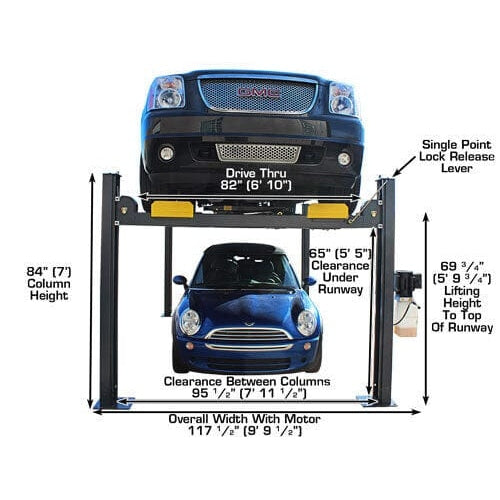

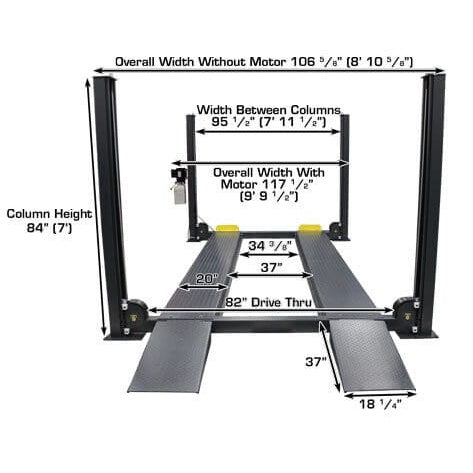

Atlas® 408SL Specifications
Capacity 8,000 lb.
Lifting Height To Top Of Runway 73 1/4" (6' 1 1/4") (Not on Lock)
Clearance Under Runways 68 1/2 (5' 8 1/2")
Height Of Columns 83" (7' 11")
Overall Width (Without Motor) 109 5/8" (9' 1 5/8")
Overall Width (With Motor) 117 1/2" (9' 9 1/2")
Overall Length With Approach Ramp 205 3/8" (17' 1 3/8")
Approach Ramp 35" (2' 11")
Runway Width 21 1/2" (w/ Rails) or 18 3/4" (Driving Surface)
Runway Length 166 3/4" (13' 10 3/4")
Runway Thickness 4 3/4"
Width Between Runways 37 1/4" (3' 1 1/4")
Width Between Runway Rails 34 3/8" (2' 10 3/8")
Outside Runway To Outside Runway 74 3/4" (6' 2 3/4")
Clearance Between Columns 95 1/2" (7' 11 1/2")
Length Between Columns 156" (13')
Maximum Wheel Base 154" (12' 10")
Drive Thru (Outside Of Tire To Outside Of Tire) 82" (6' 10")

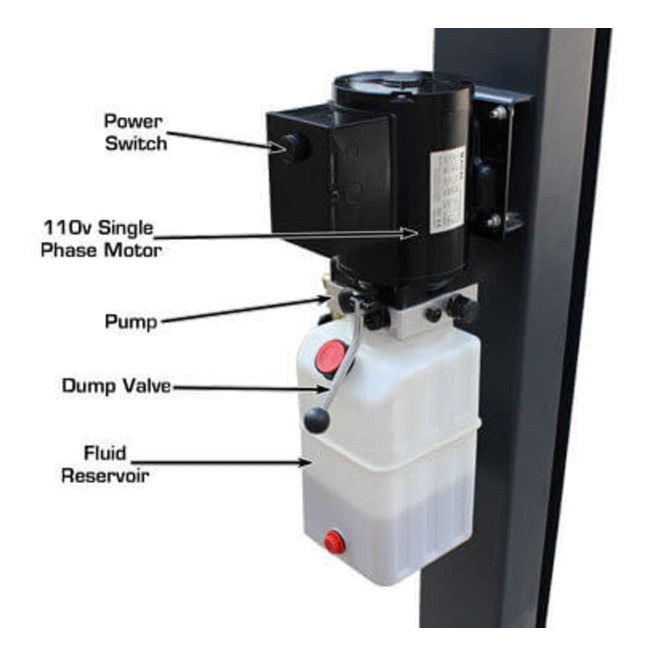

Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
Shipping Weight 1,965 lb.

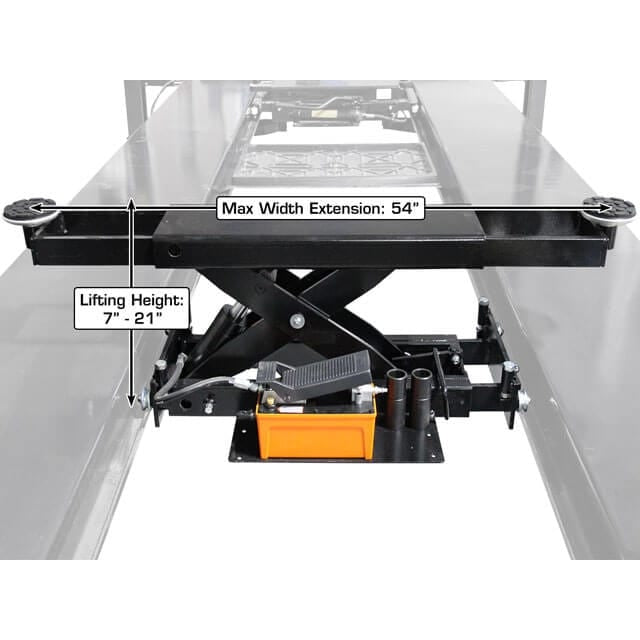

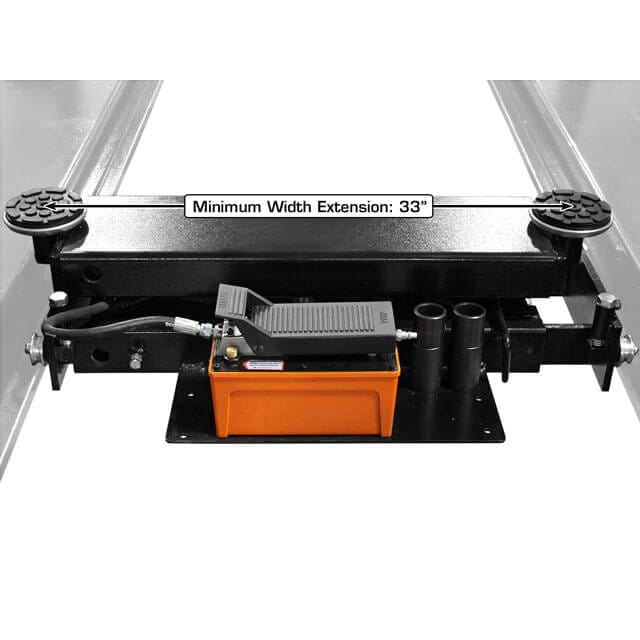

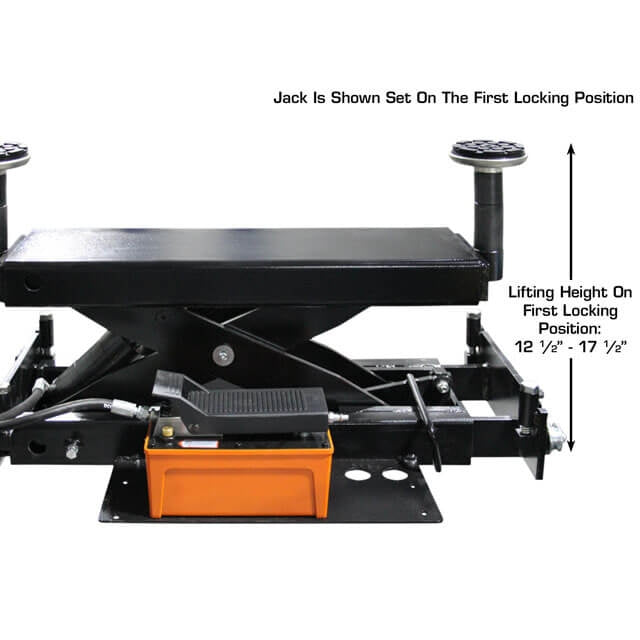

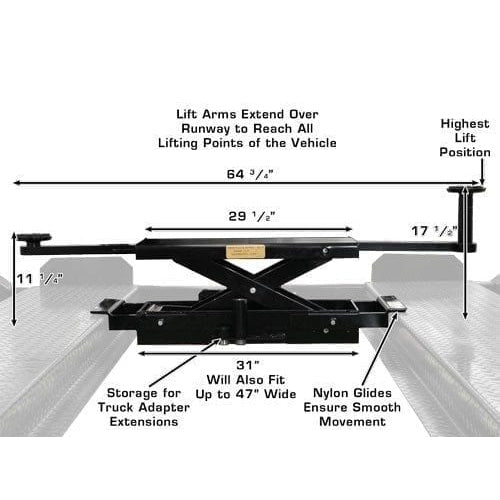

Atlas® RJ35 Specifications
Maximum Capacity 3,500 lbs.
Maximum Width 64 3/4" (5' 4 3/4")
Minimum Width 29 1/2" (2' 5 1/2")

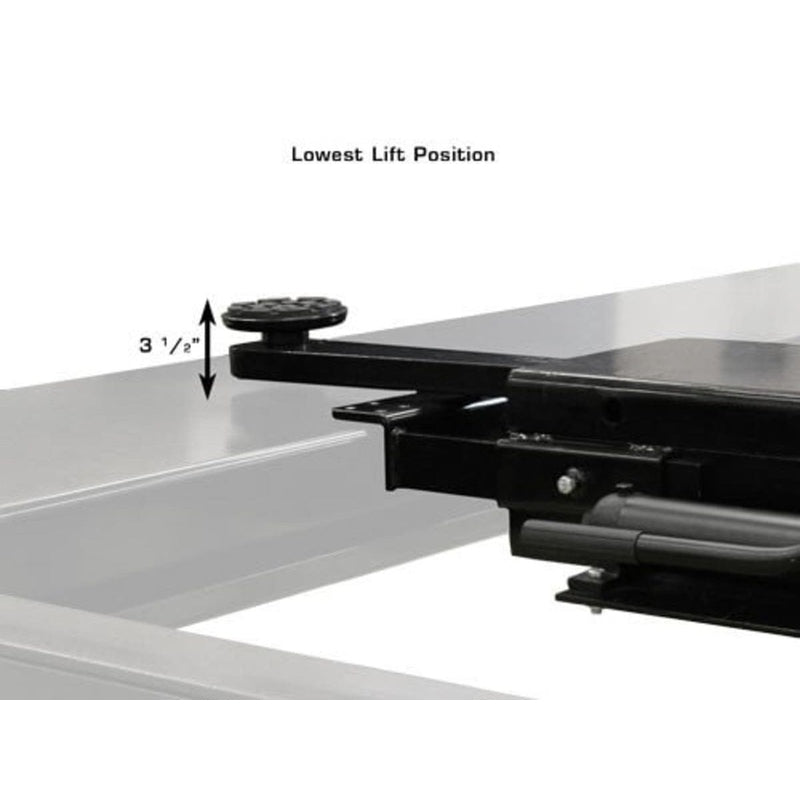

Minimum Height with Lift Pad Above Runway 3 1/2" (MAY VARY BY LIFT)

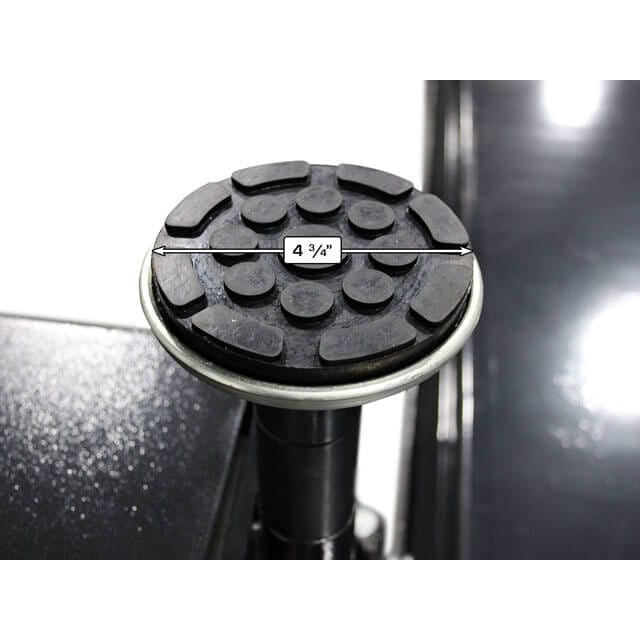

Lift Pad Height Above Arm 1 3/8"

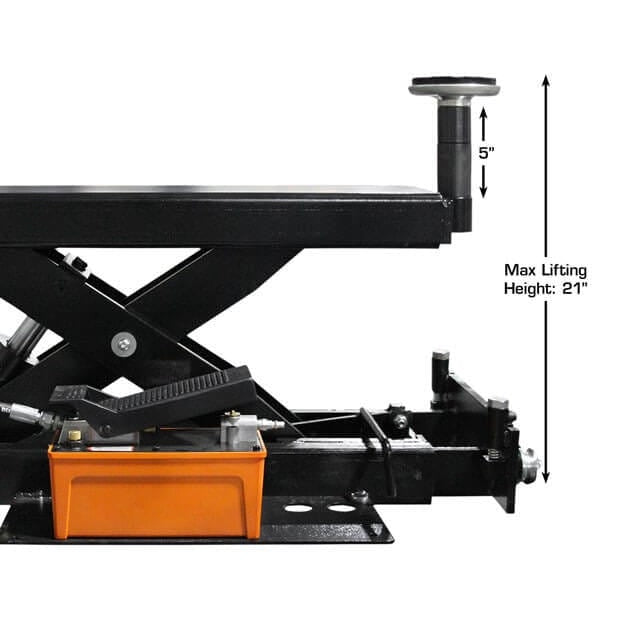

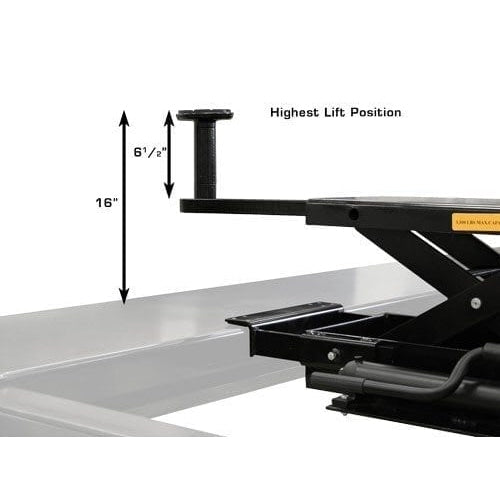

Max Raised height w/o Adapters 11"
Max Raised height w/ Adapters 17 1/4"

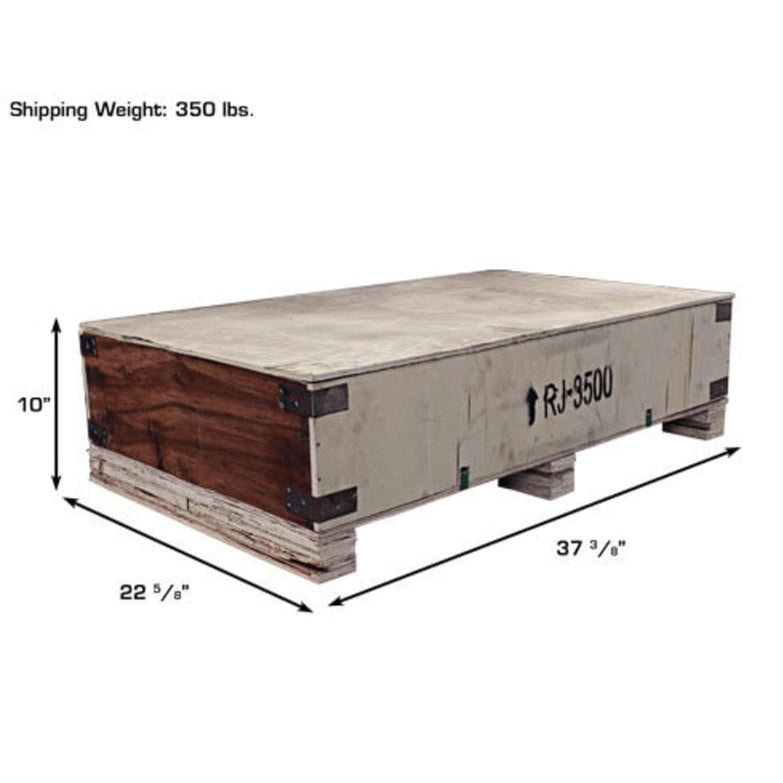

Shipping Weight 350 lb.

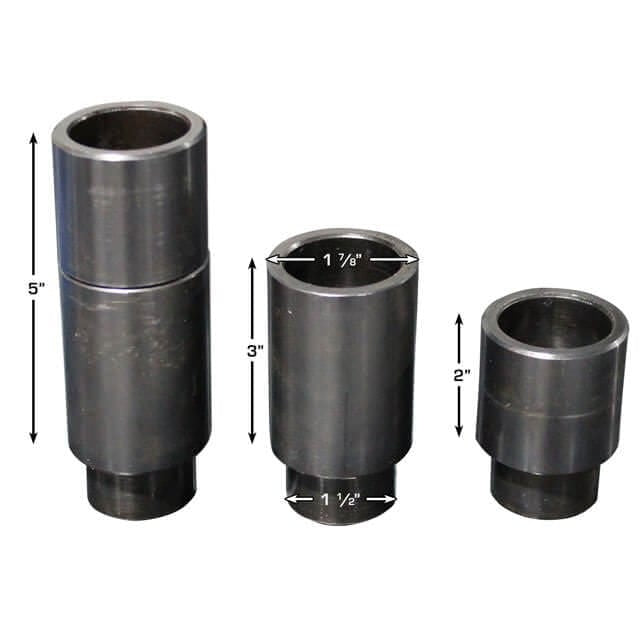

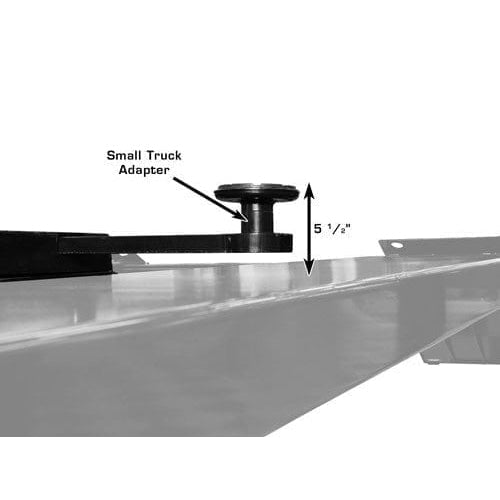

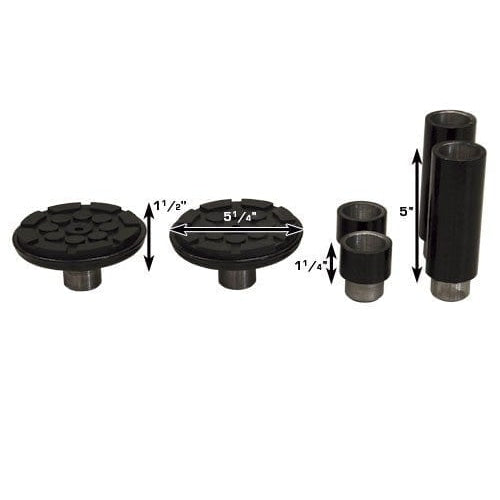

Adapter Heights 2 each 1.5", 5"
Arm Hole/Adapter Peg Size 1.5"

Documents

-

Atlas® 408SL Manual

Atlas® 408SL Cylinder Bleeding Procedure (Do this immediately after installation)
