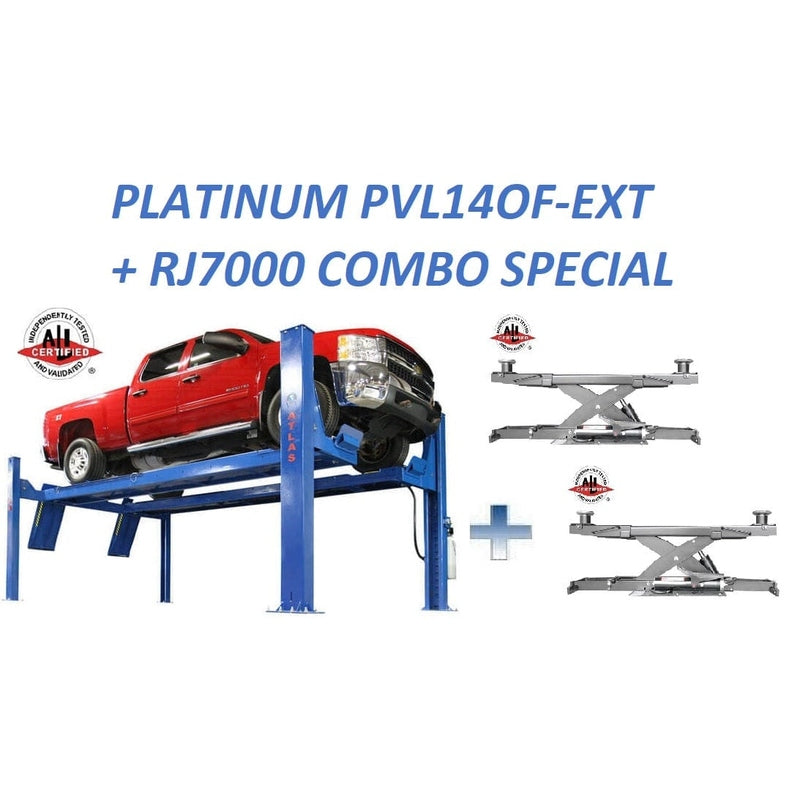

Atlas Platinum PVL14OF-EXT 4 Post Lift + RJ7000 ALI Certified Combo

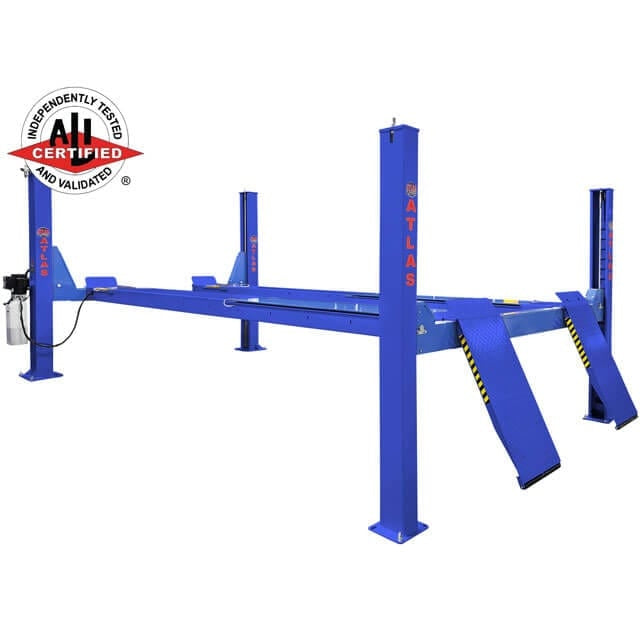

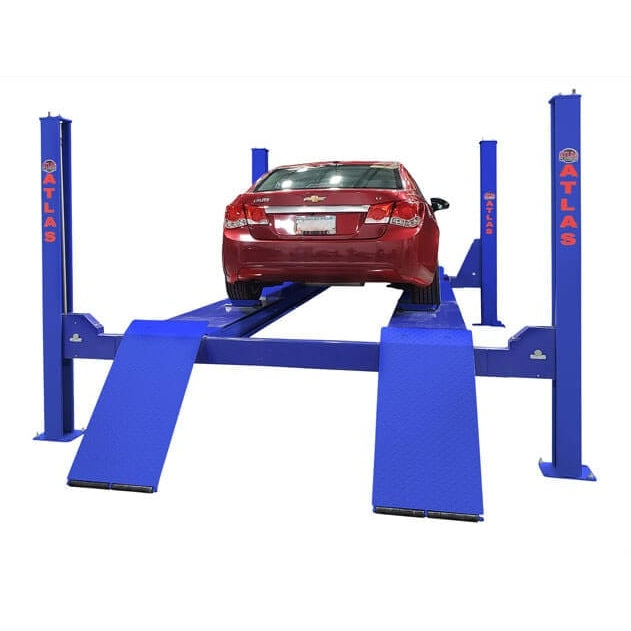

The Atlas® Platinum PVL14OF-EXT is a four post commercial grade Open-Front Alignment lift designed with the professional shop in mind. This lift has extra long runways and can accommodate a variety of cars, vans, SUVs, trucks, and commercial vehicles. the Open-Front design allows better access to the underside of vehicles during use. The AP-PVL14OF-EXT features built in slip plates and a pair of heavy duty turntables so the user can do wheel alignments.

The Platinum PVL14OF-EXT uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

The Atlas® Platinum PVL14OF-EXT is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.

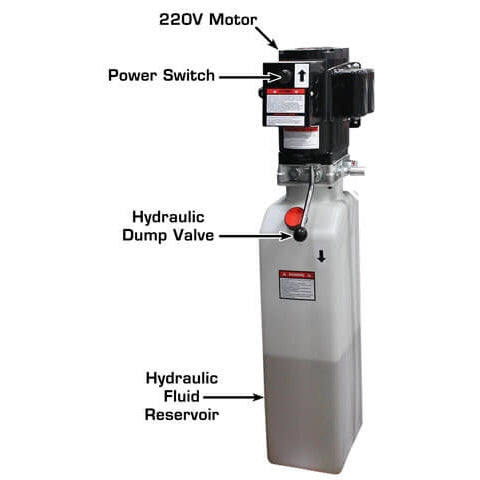

This product features an ALLY Hydraulic AL3000 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

This combo package also includes two of the popular ALI Certified Atlas® Platinum RJ7000 Rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

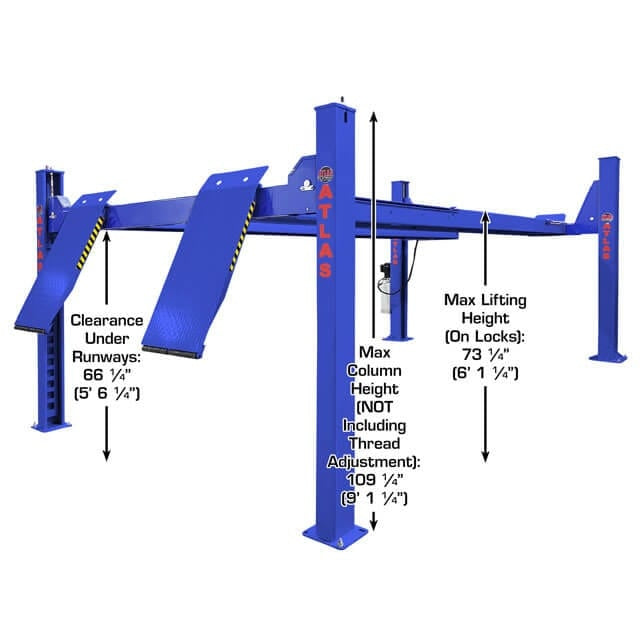

PLATINUM PVL14OF-EXT

• ALI Certified Lift

• 14,000 lb. Capacity

• Heavy Duty, Commercial Grade

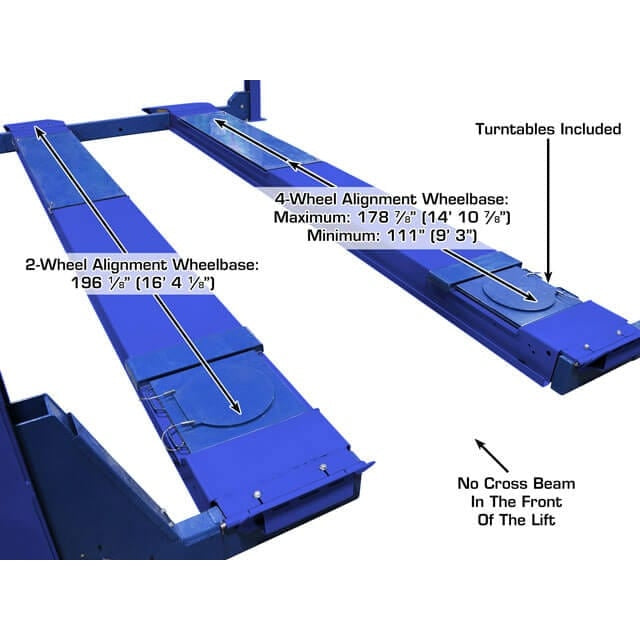

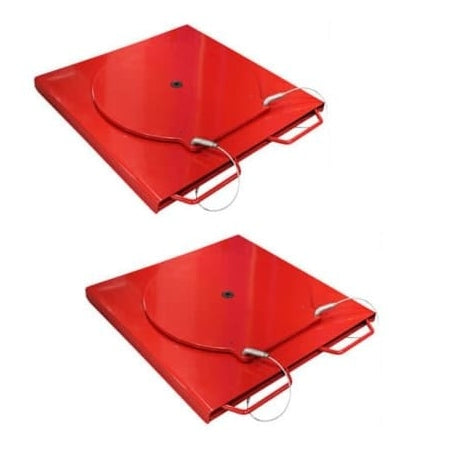

• Alignment Lift, Includes Built in Slip Plates & Turntables

• Open Front Design for Better Access

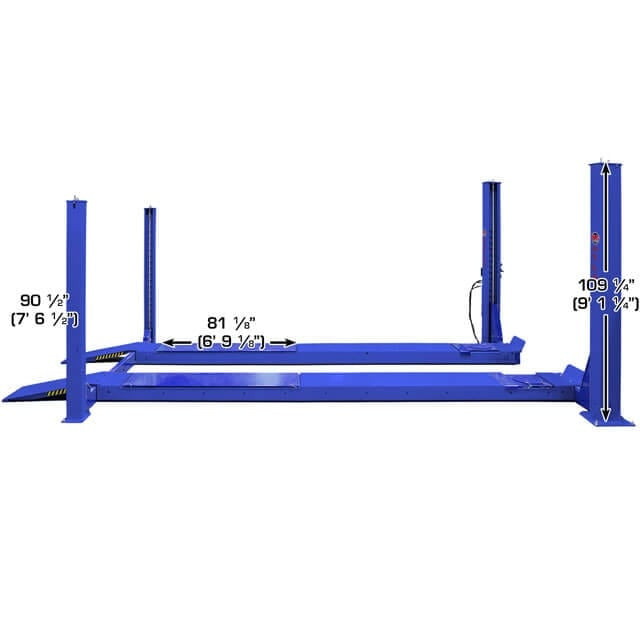

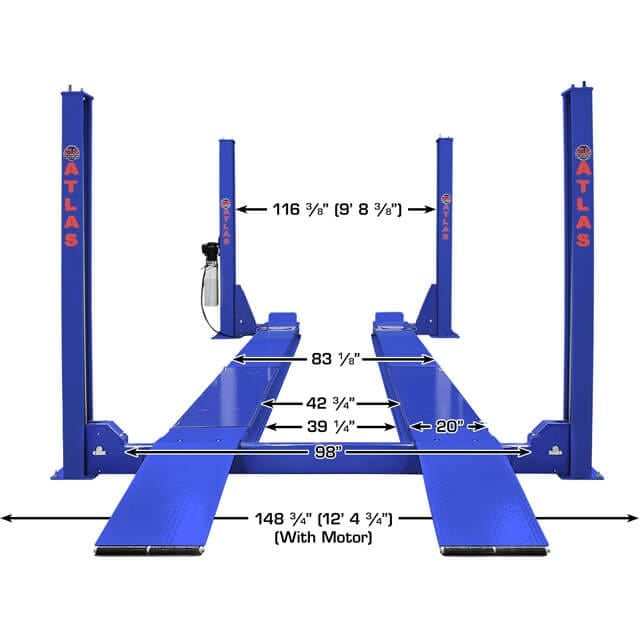

• Extra Long Runways

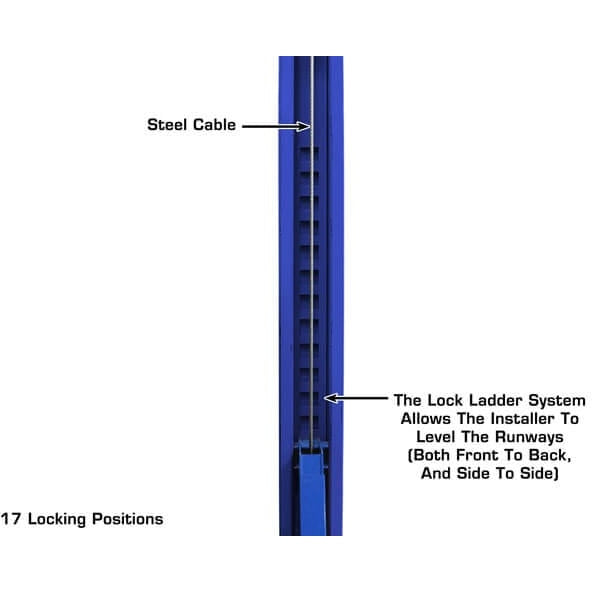

• Adjustable Lock Ladder Design

• Higher Quality Powder Coat Finish

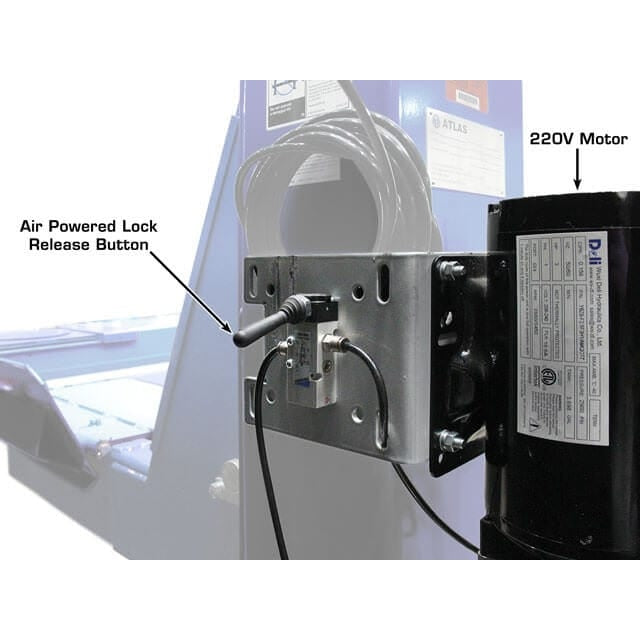

• Air Operated Single Point Lock Release (External Air Supply Required)

• Lock Ladder Design

• Double Lock Safety System

• Powder Coat Finish

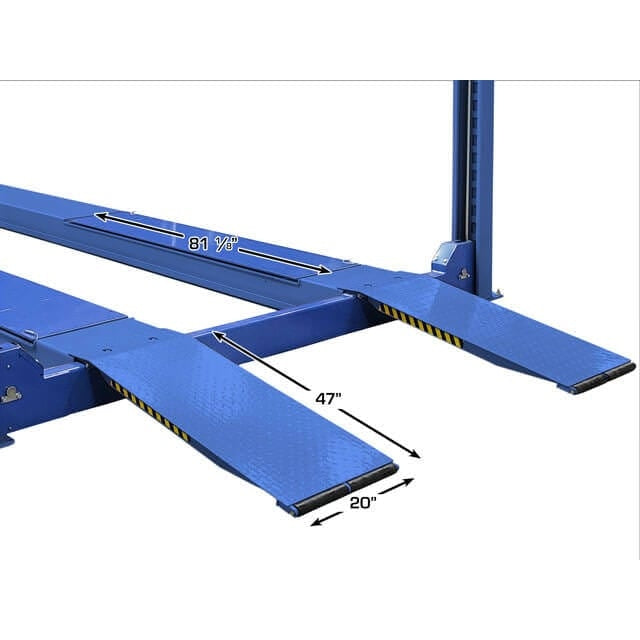

• Steel Approach Ramps Included

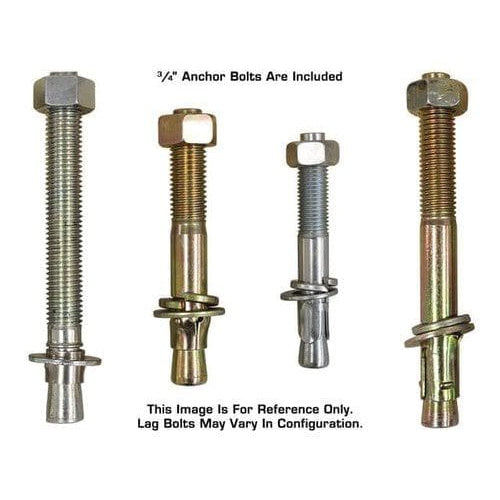

• Mounting Hardware Included

• Standard with Premium ALLY Powerunit

• 220volt/1phase Electric Operation (Requires a 30amp Breaker)

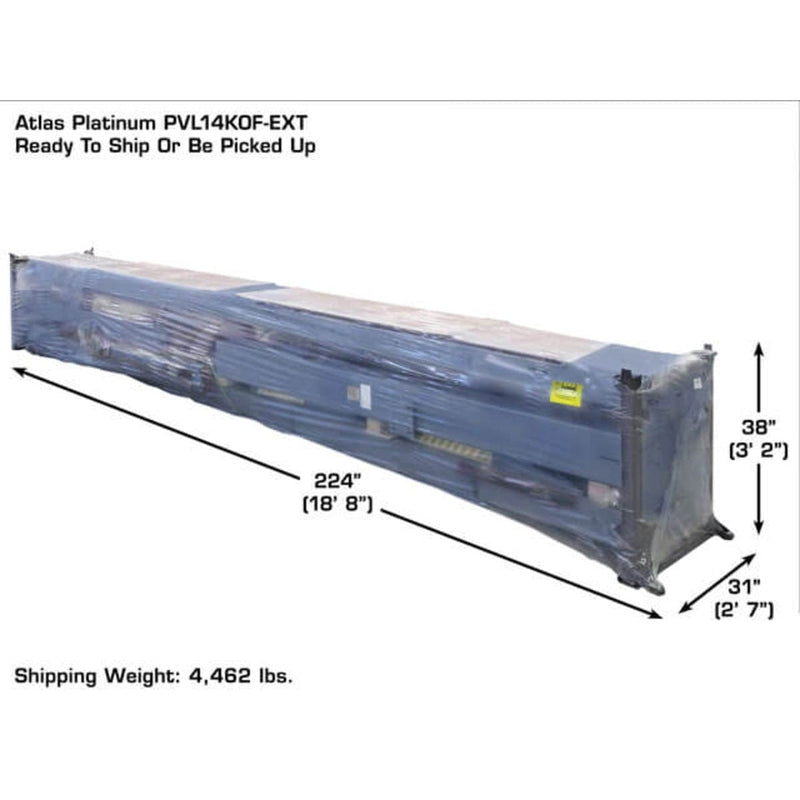

• Shipping Weight: 4,462 LB.

• 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty

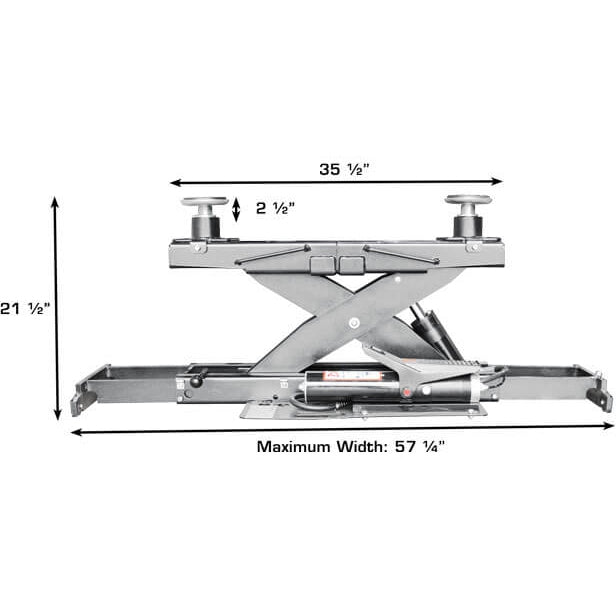

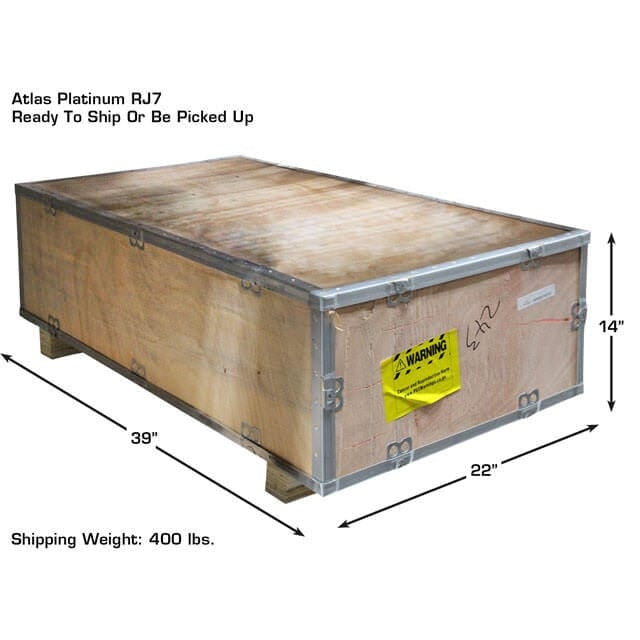

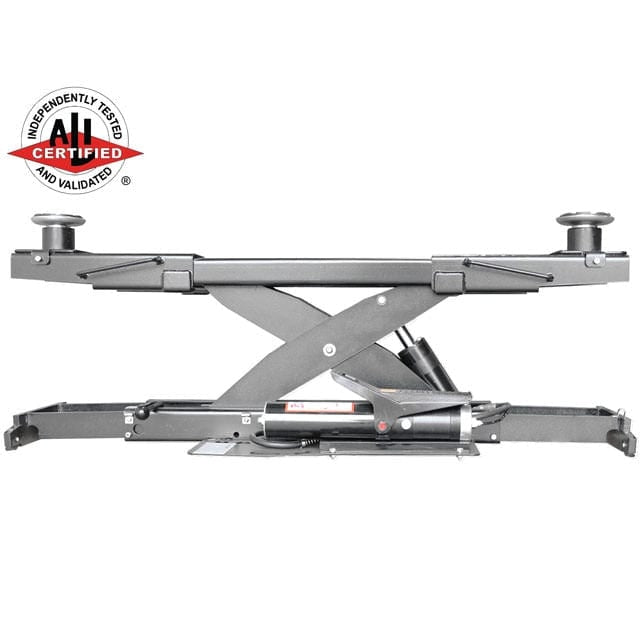

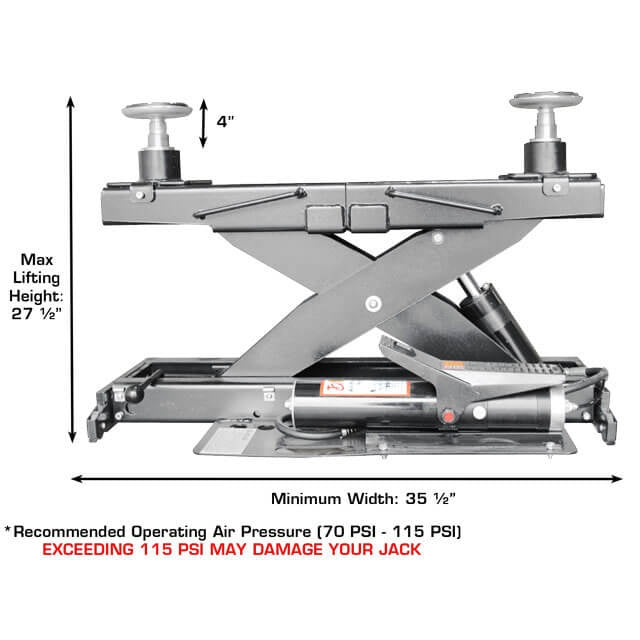

PLATINUM RJ7000

• 7,000 lb. Capacity

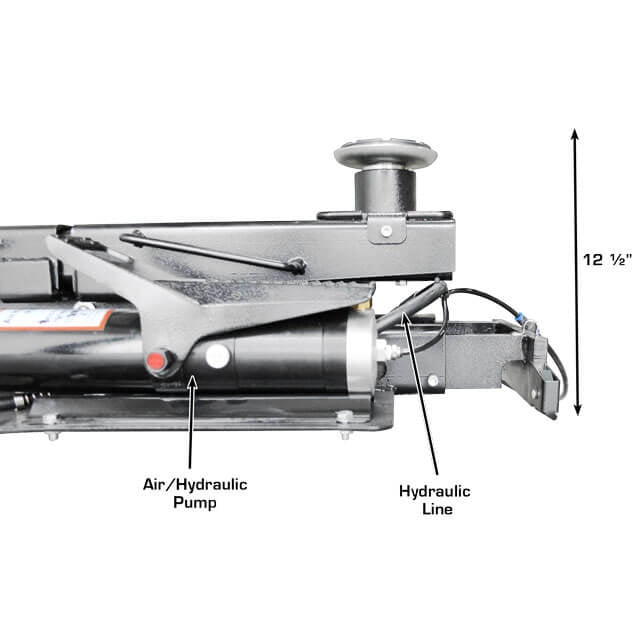

• Air/Hydraulic Operated

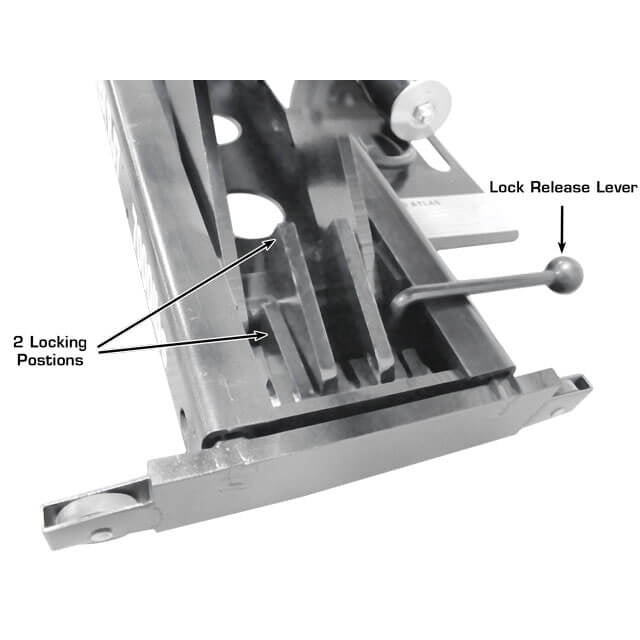

• Two Safety Lock Positions

• Double Screw-Up Adapters Included

• Compact Size with Low Profile

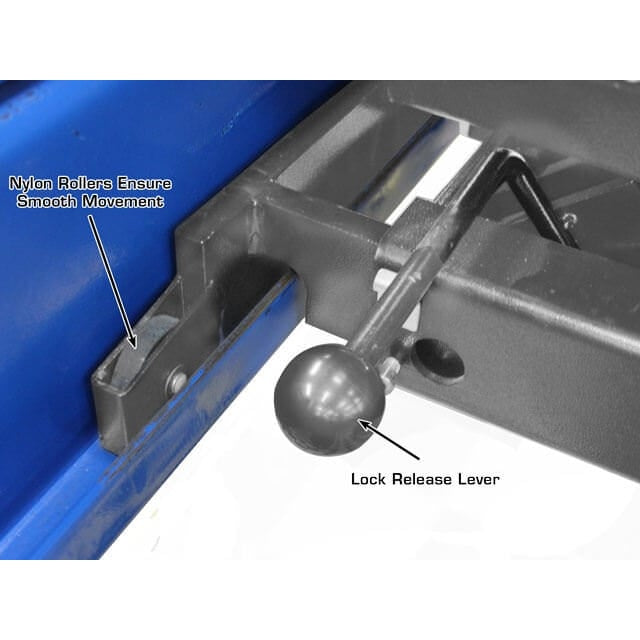

• Smooth Rolling Action

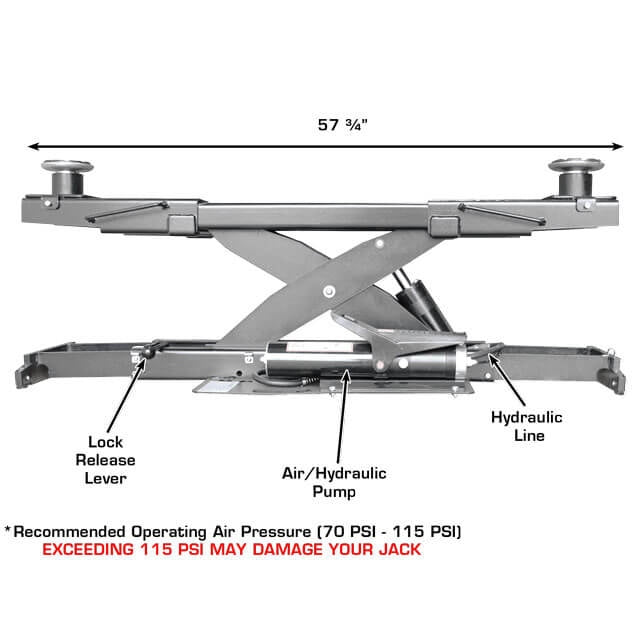

• Scissor mechanism allows for level lifting

• Powder Coated Finish

• 1 Year Parts Only Warranty
