Atlas Platinum PTC500 Tire Changer + PWB90XL Wheel Balancer Combo Package

Name: Atlas Platinum PTC500 Tire Changer + PWB90XL Wheel Balancer Combo Package
Brand: Atlas Automotive Equipment
SKU: ATEAP-TCWB-COMBO2-FPD
Price: 10599.0 USD
Availability: InStock

SKU ATEAP-TCWB-COMBO2-FPD

$10,599.00 - $10,599.00

$10,599.00

$10,599.00 - $10,599.00

$10,599.00

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

Description

-

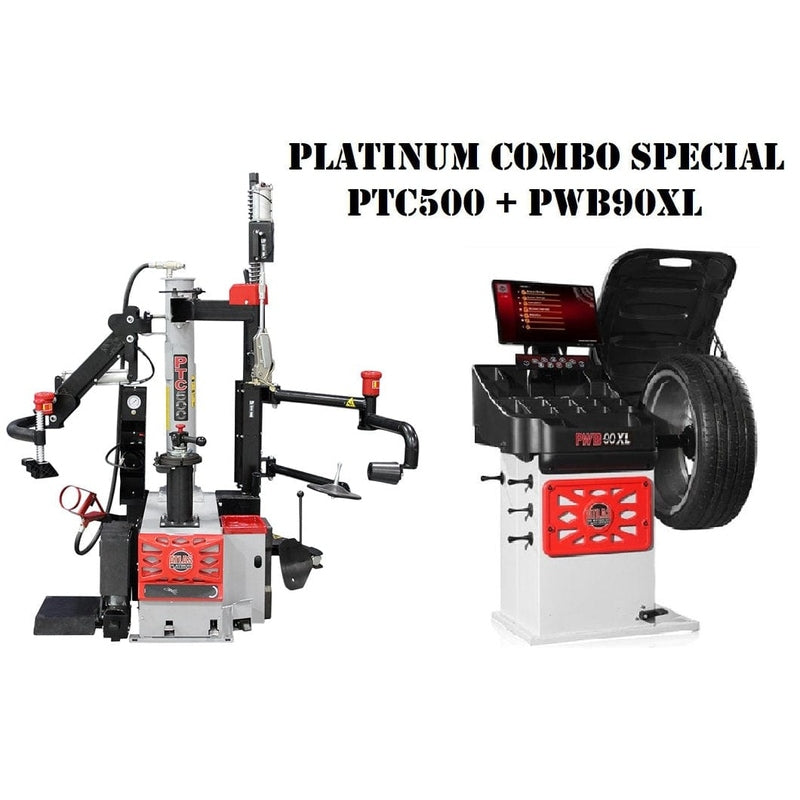

This combination package includes the Atlas® Platinum PTC500 Center Post tire changer & the Atlas® Platinum PWB90XL computerized spin balancer. This combination is perfect for high volume tire shops and for customers looking for the easiest way to handle high-end wheels. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® Platinum 2 year parts only warranty.

Features

-

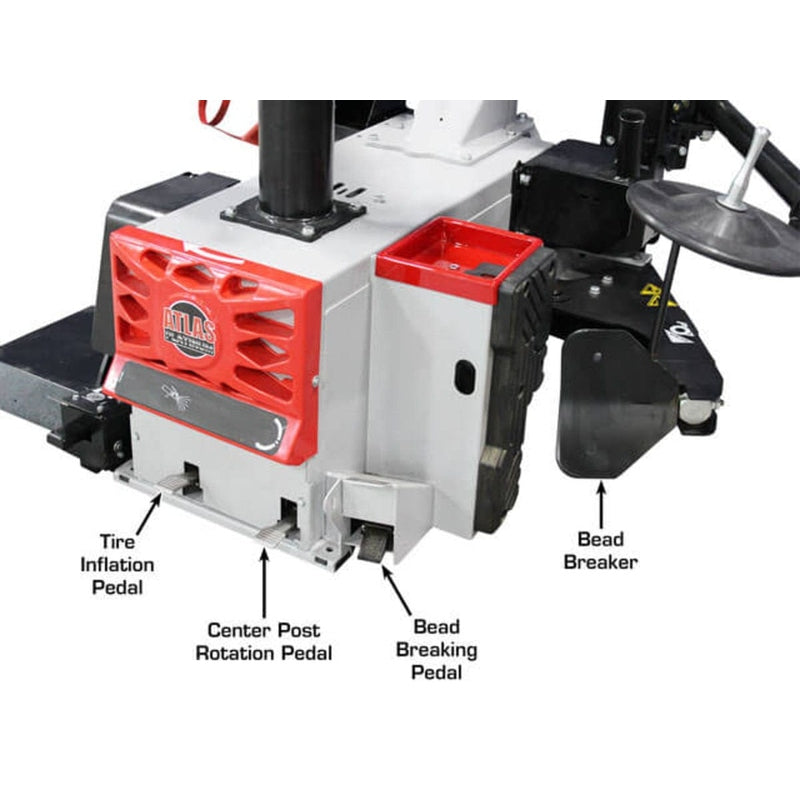

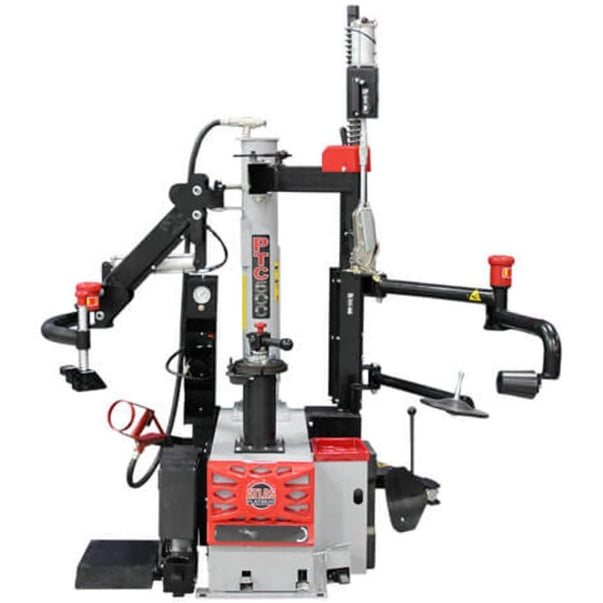

PTC500 Tire Changer

Center Post Tire Changer

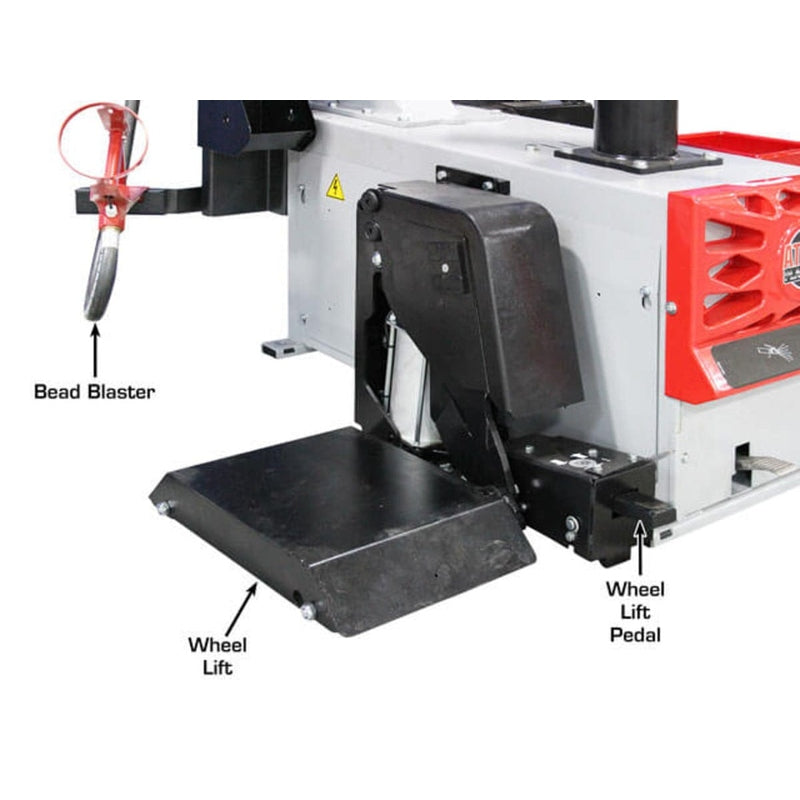

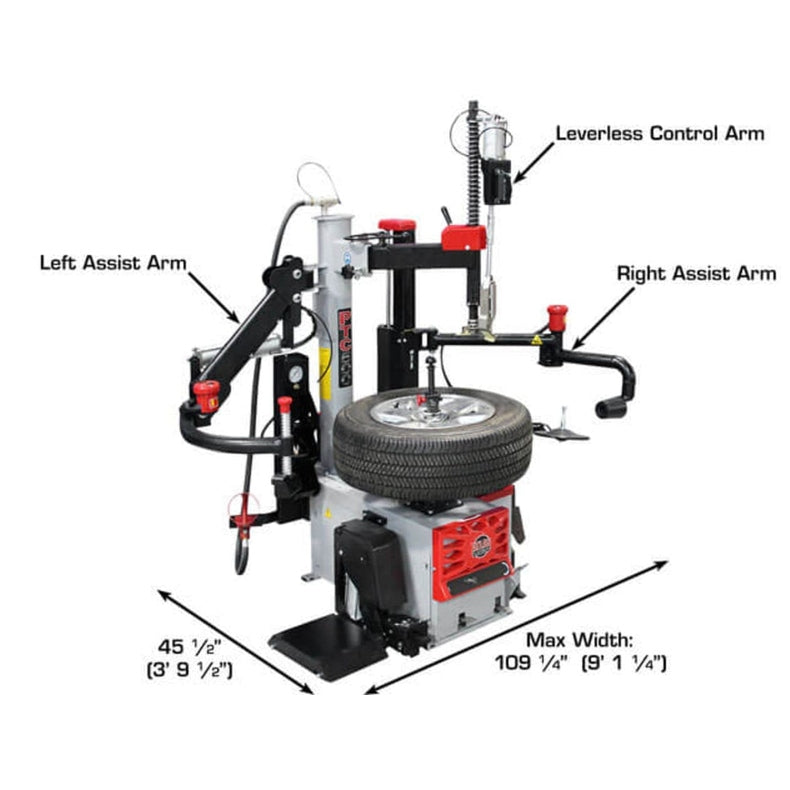

Dual Assist Arms and Wheel Lift Included

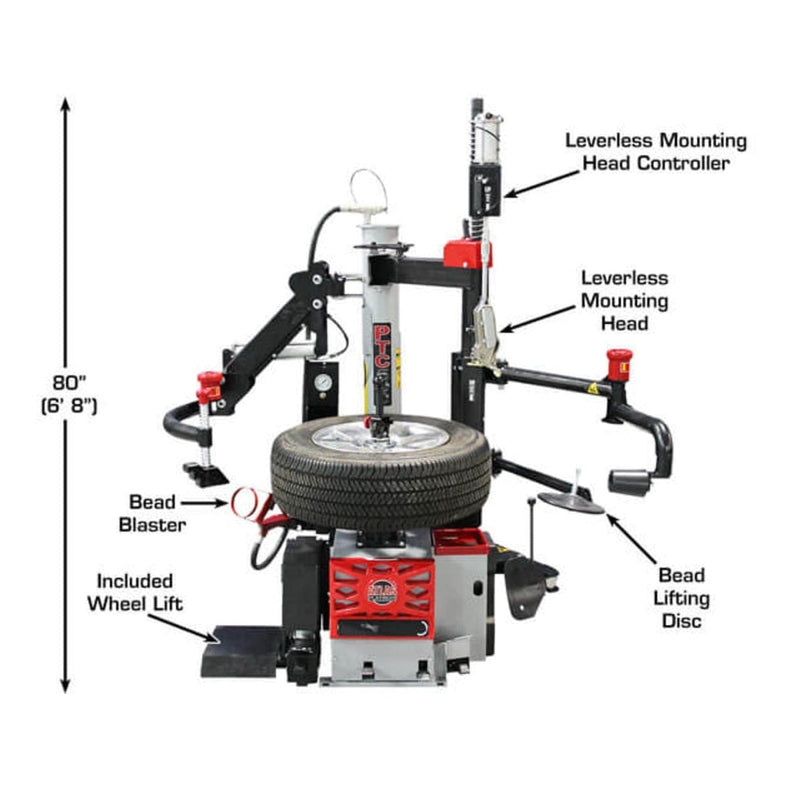

“Lever/No-Lever” Changing System
“Smart Lock” Center-Post Mounting System
Oiler, Filter, Regulator included (external air supply required)
Plastic Protectors included
Tire Tool, Lube Bucket, and Lube Brush Included
Inflation Box w/ Gauge Included

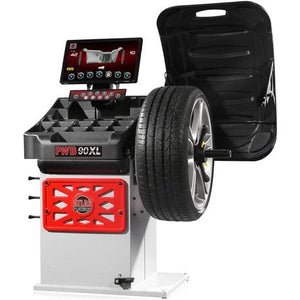

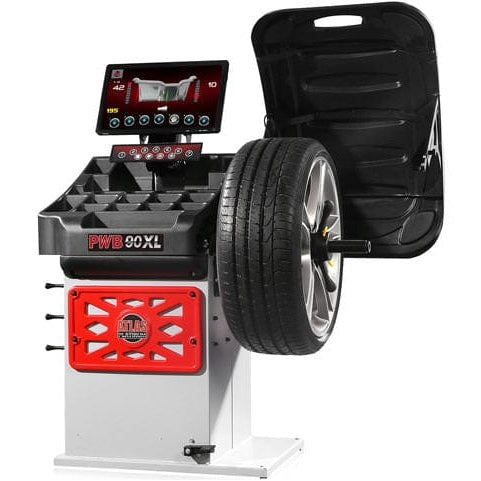

PWB90XL Wheel Balancer

Computer Controlled Spin Balancer

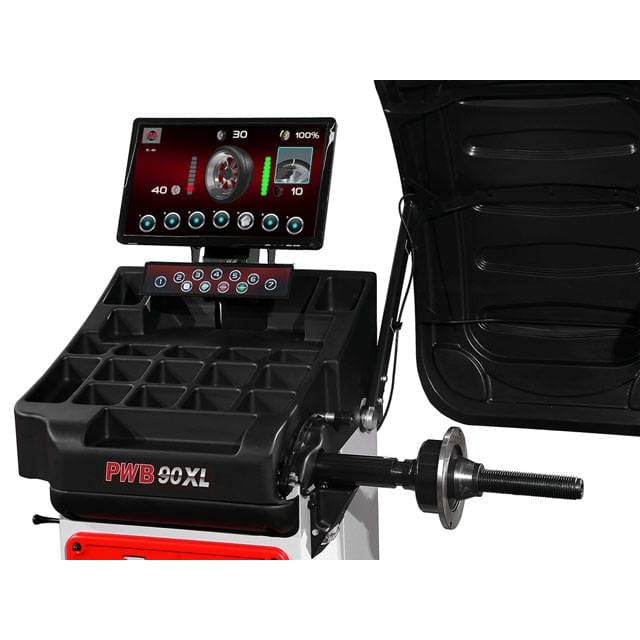

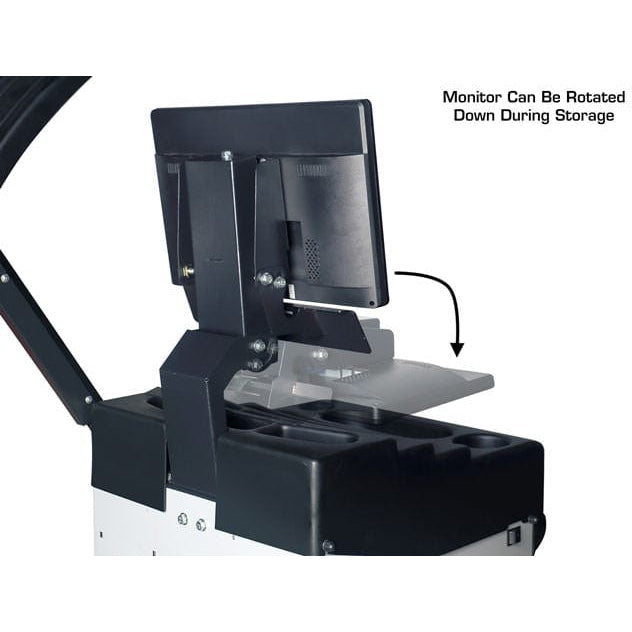

High-Resolution Video Monitor Display
Automatic 3D Data Entry

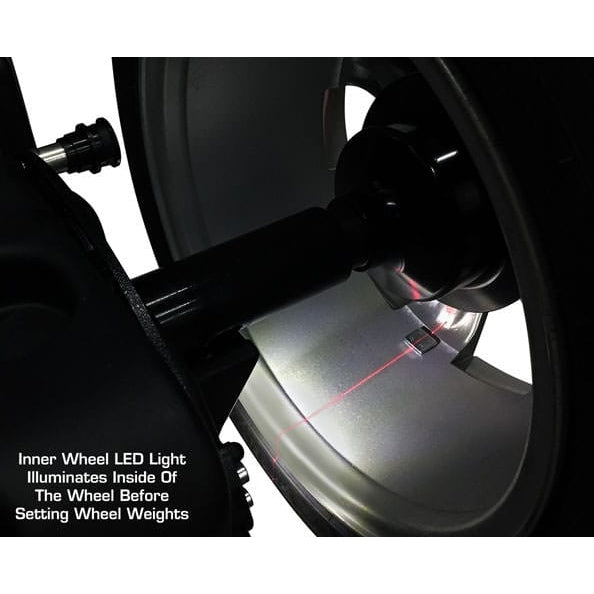

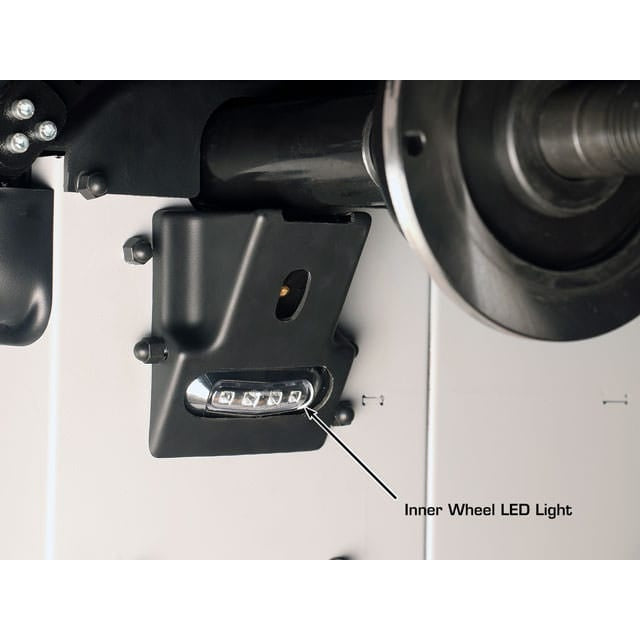

LED Light to Illuminate Wheel, Laser Line to Guide Weight Placement
Optimatch, FES (Split), OPF (Opposite Position) Functions
Self Diagnosis/Self Calibration
Display in grams or ounces, in mm or inches
4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included

Specifications

-

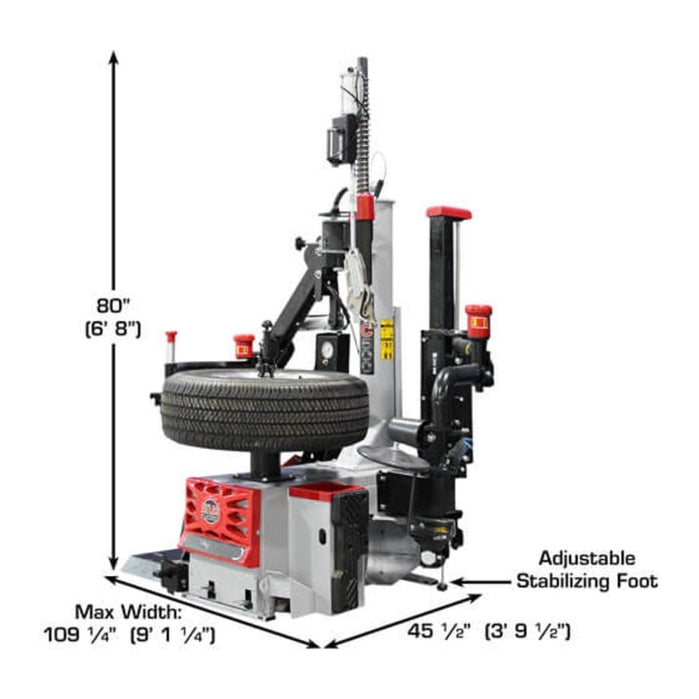

Atlas® Platinum PTC500 Specifications
Rims	Steel, Aluminum, Alloy
Clamping Range	12" - 30"
Maximum Tire Diameter	47"
Maximum Wheel Width	15"
Turntable Rotating Speed	7 RPM
Bead Breaker	6,924 LB. Force
Air Requirement	120-145 PSI
Operating Voltage	110volt
Shipping Weight	885 lbs.

Atlas® Platinum PWB90XL Specifications
Max Tire Diameter	43"
Rim Sizes (Cars And Light Trucks)	10"-30"
Rim Width	1 1/2"-20"
Shaft Size	40mm
Max. Wheel Weight	165 lbs.
Balancing Speed	130 rpm
Data Entry	Super Automatic 3D
Measurements	Standard Or Metric
Accuracy	1 gram
Weight Position Resolution	1.4 Degrees
Self Calibration	Yes
Cycle Time	7 seconds
Power Supply	110volt
Shipping Weight	290 lbs.

Documents

-

Atlas Platinum PTC500 Manual

Atlas Platinum PWB90XL Manual
