Description

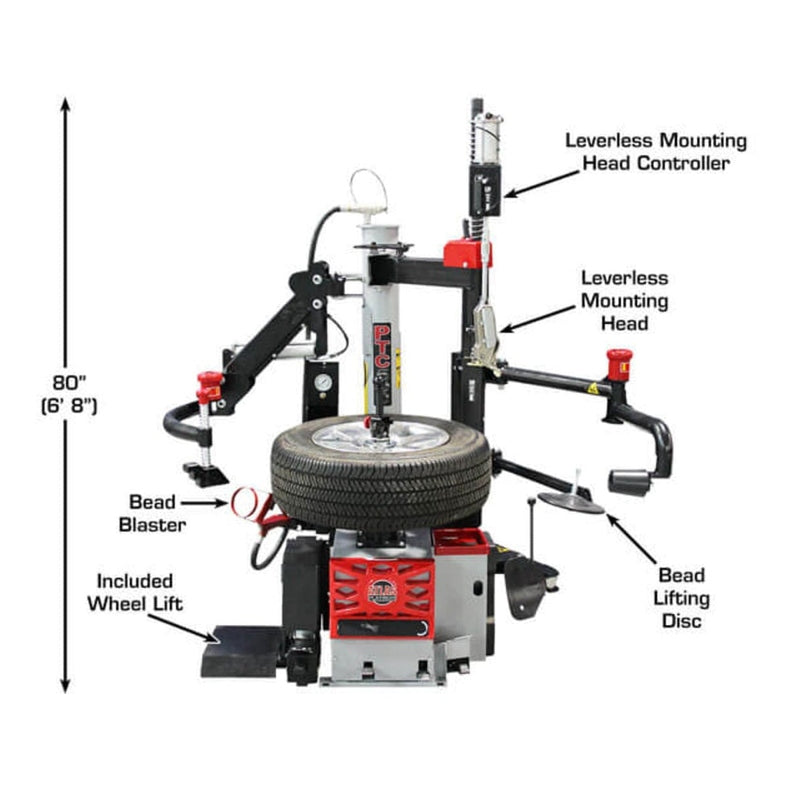

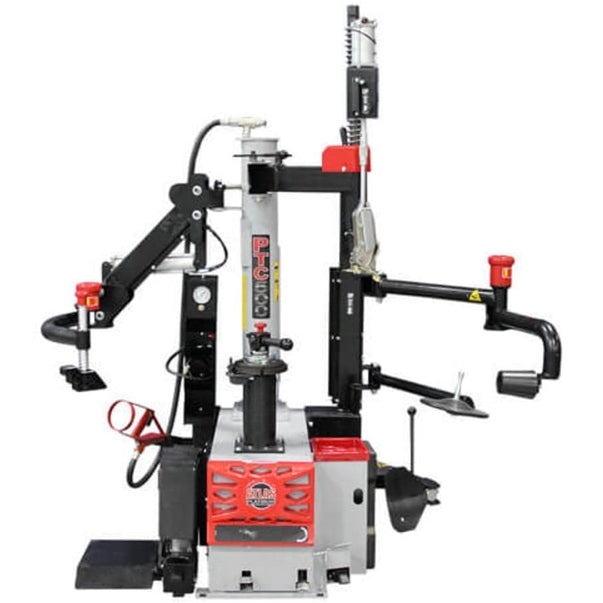

-The Atlas® Platinum PTC500 center post tire changer is designed for high-volume tire shops that deal with the most challenging wheel and tire combinations in the market.
The Atlas® Platinum PTC500 includes patented, innovative features that make it stand out from the competition! The first of these is the “Lever/No-Lever System” which allows the machine to be used with a standard tire tool/lever or in a “leverless” mode with no manual tools required. The second outstanding feature is the “Smart Lock” system which allows the tire to be mounted and immediately locked in position with a flip of the lever which eliminates the need to manually thread the center cone or to maintain a complicated pneumatic locking system. The external bead seating system makes inflating even the most challenging tires a breeze. Finally, the integrated wheel lift helps reduce employee lifting injuries or damage to expensive wheels.
The Atlas® Platinum range of wheel service equipment has a 2-year warranty and incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price.
Demount and Mount Demonstration
-Features
-- Platinum Center Post Tire Changer

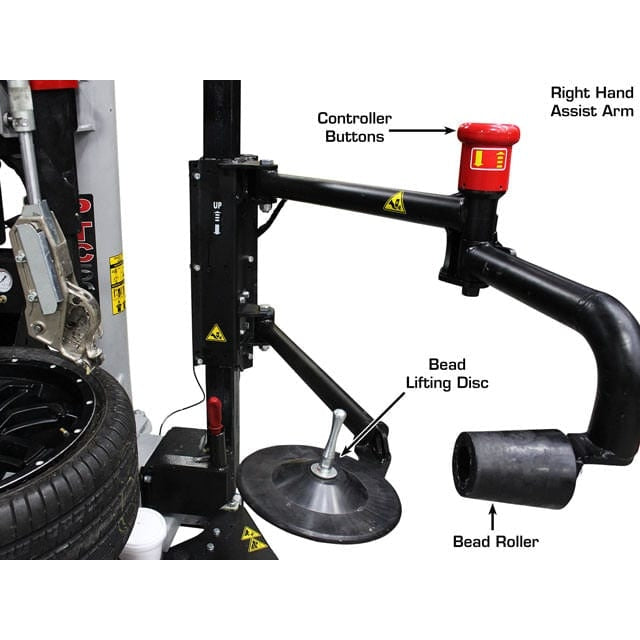

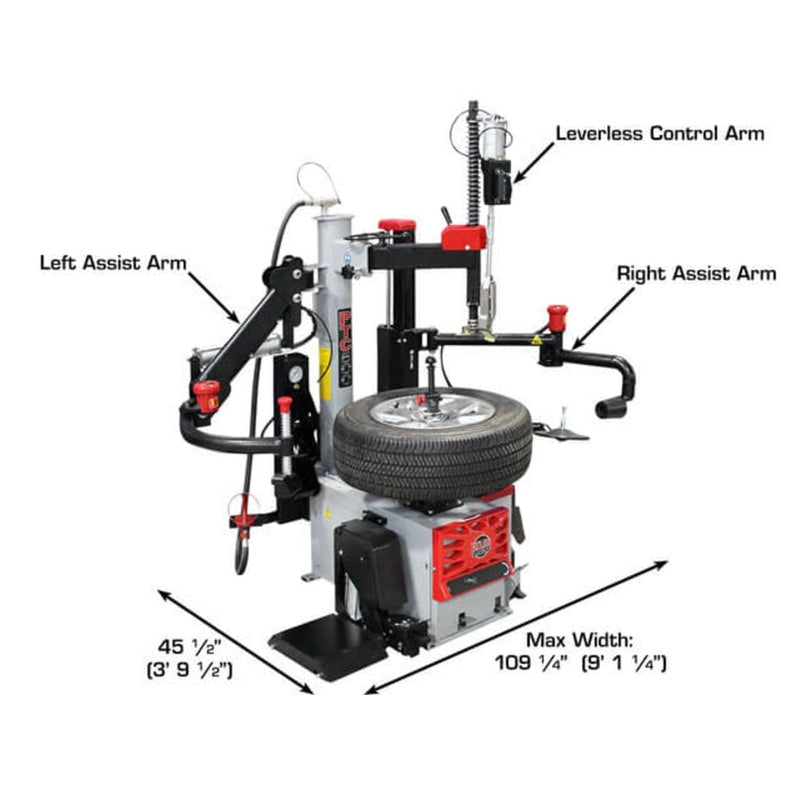

- Dual Assist Arms Included

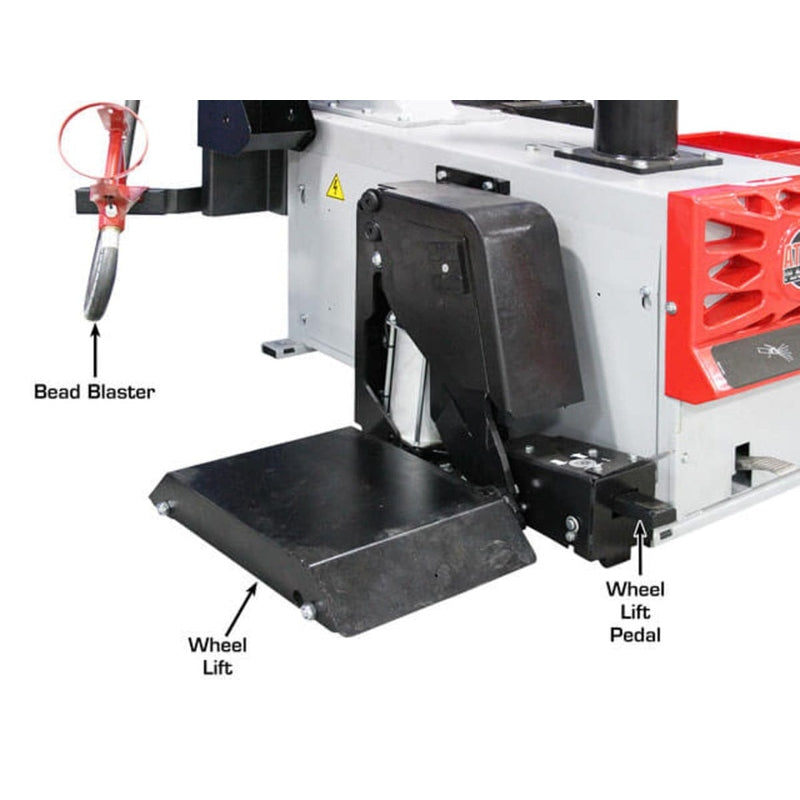

- Wheel Lift Included

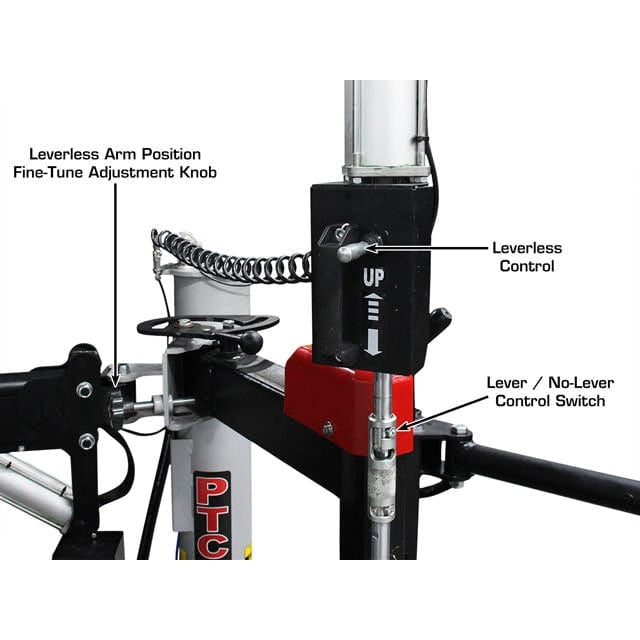

- “Lever/No-Lever” Changing System

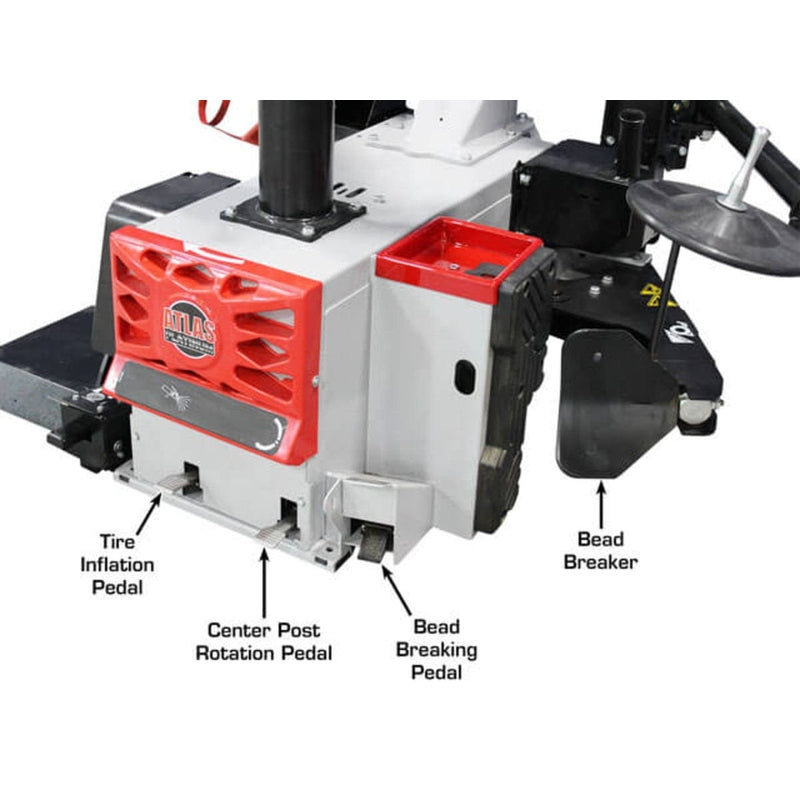

- Air operated bead breaker (external air supply required)
- Metal mount/demount head w/ replaceable plastic inserts

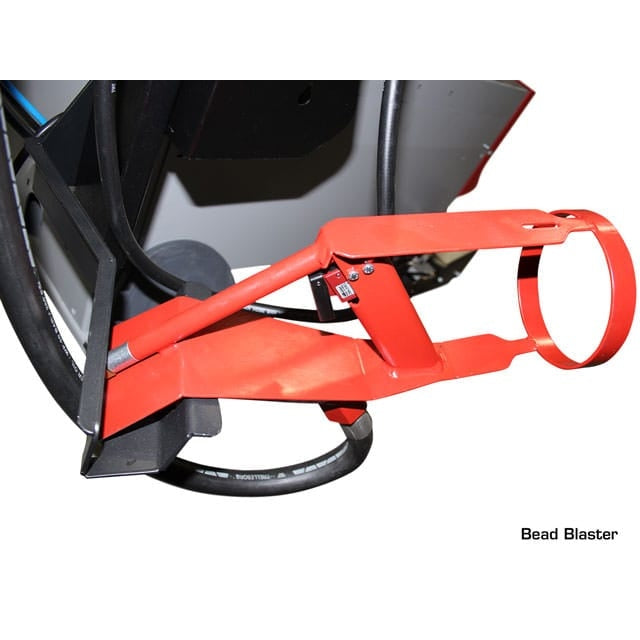

- External Flexible Bead-Blasting system

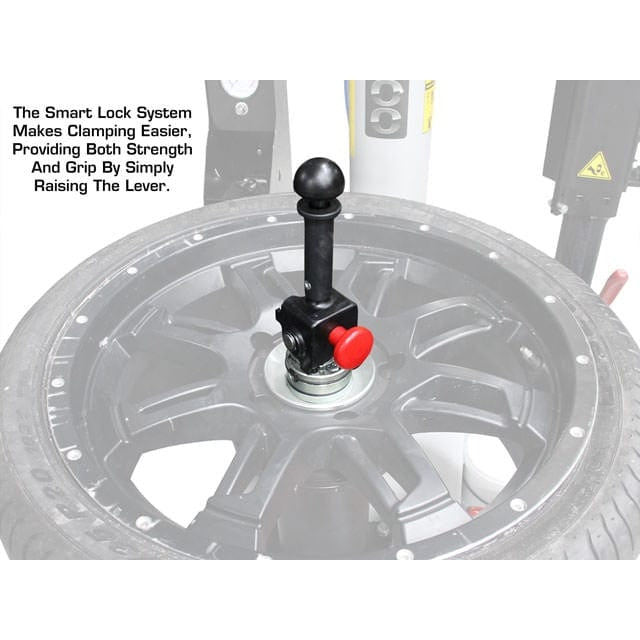

- “Smart Lock” Center-Post Mounting System
- Filter/Regulator/Lubricator Included
- Tire Tool Included
- Lube Bucket with Brush Included
- Multiple Plastic Protectors Included
- Replacement Parts & Wear Items Always in Stock
- 2 Year Parts Only Warranty
Accessories Available (Sold Seperately)
- Reverse Mount Adapter Kit
- Light Truck Cone Kit (Center Hole 4.72″ – 7.48″)
- Light Truck Cone Kit (Center Hole 5.5″ – 8.66″)
- Double Sided-Cone (Center Hole 2.95″ – 5.7″)
- Low-Profile Steel Rim Cone (Center Hole 2.95″ – 4.7″)

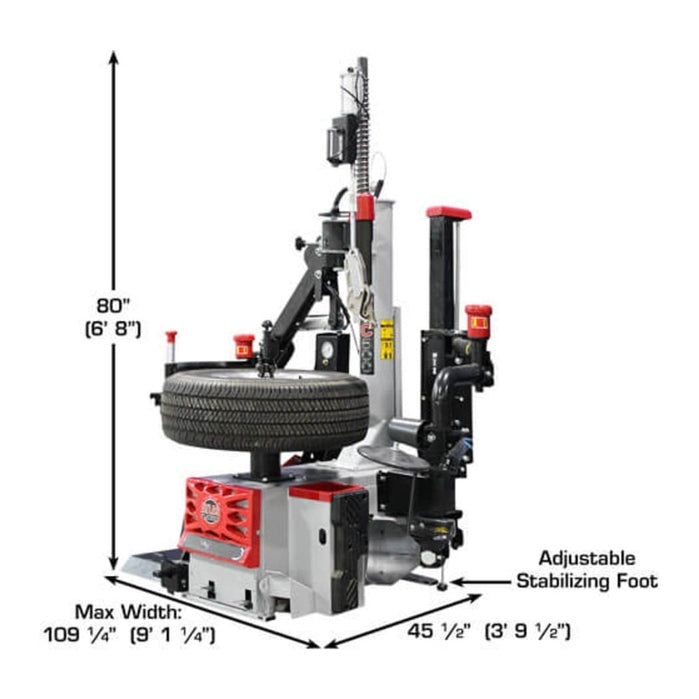

Specifications
-Atlas® Platinum PTC500 Specifications | |
Rims | Steel, Aluminum, Alloy |
Clamping Range |
12" - 30" |
Maximum Tire Diameter | 47" |
Maximum Wheel Width | 15" |
Turntable Rotating Speed | 7 RPM |
Bead Breaker | 6,924 LB. Force |
Air Requirement | 120-145 PSI |
Operating Voltage | 110volt |
Shipping Weight | 885 lbs. |
Documents
-Atlas® Platinum PTC500 Manual
Atlas® Platinum PTC500 Parts List
